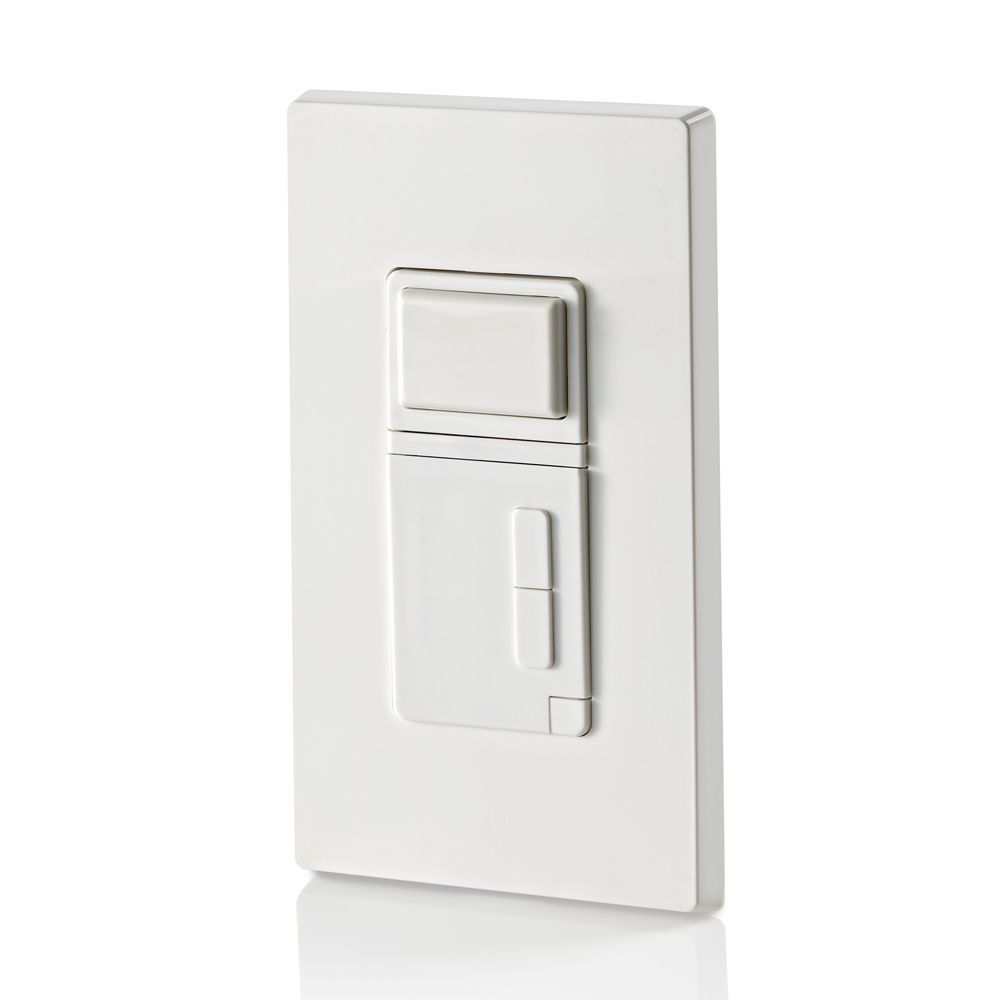

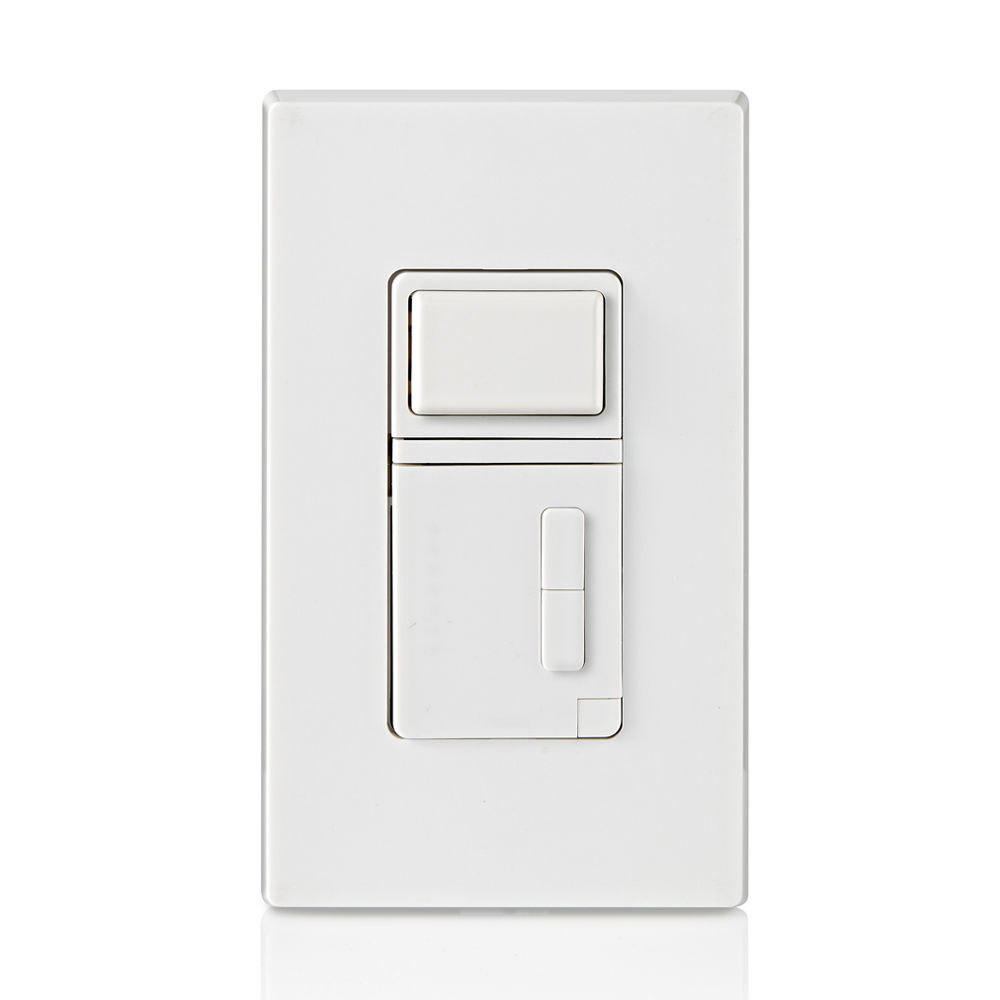

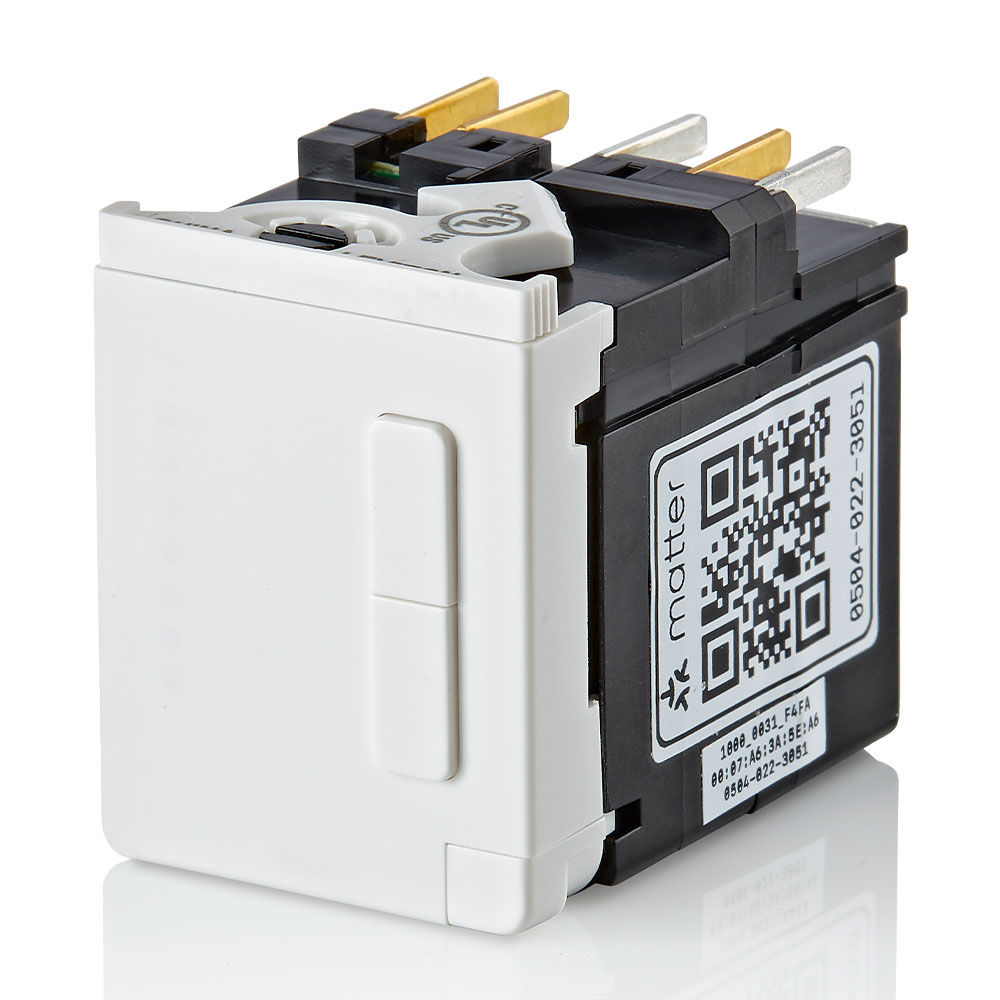

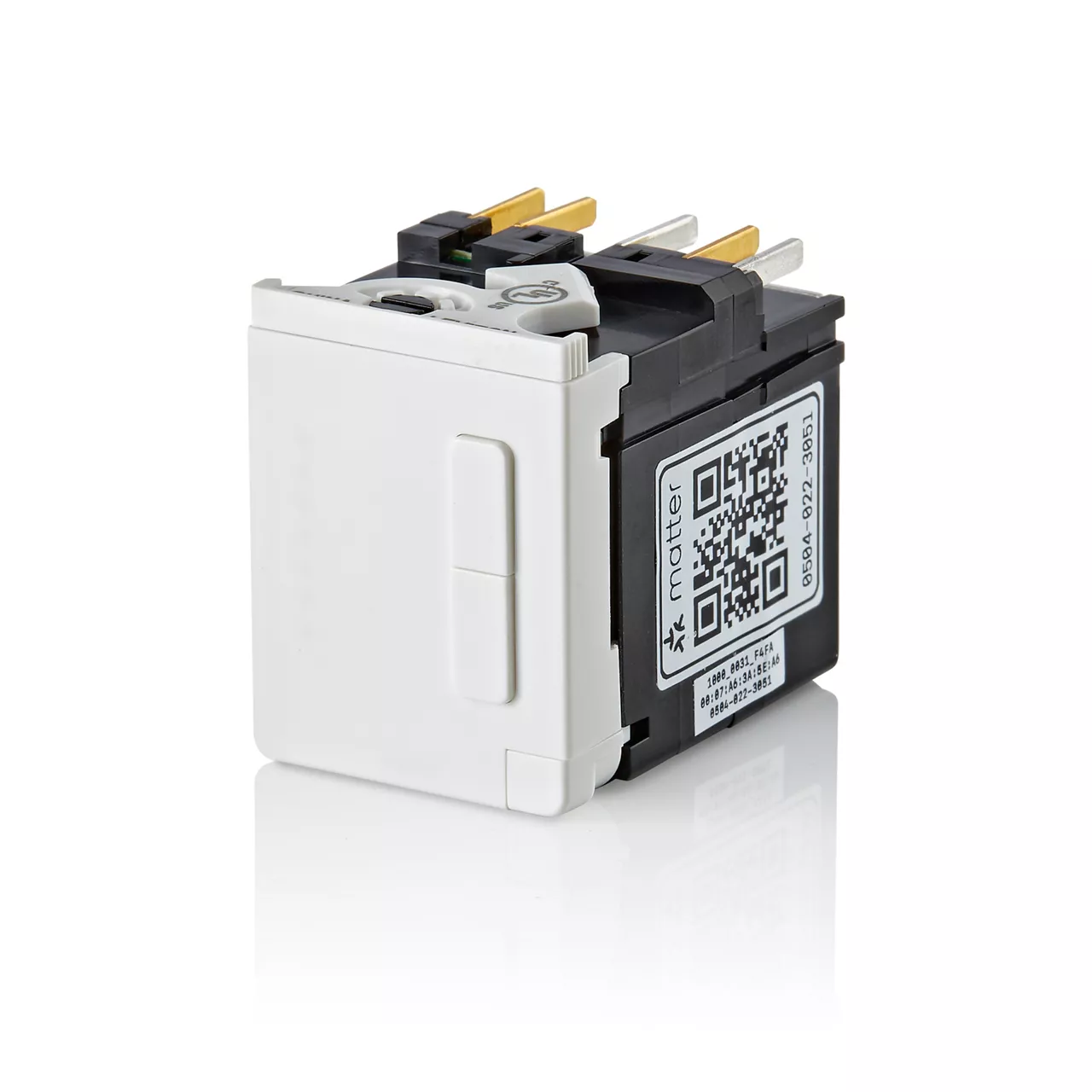

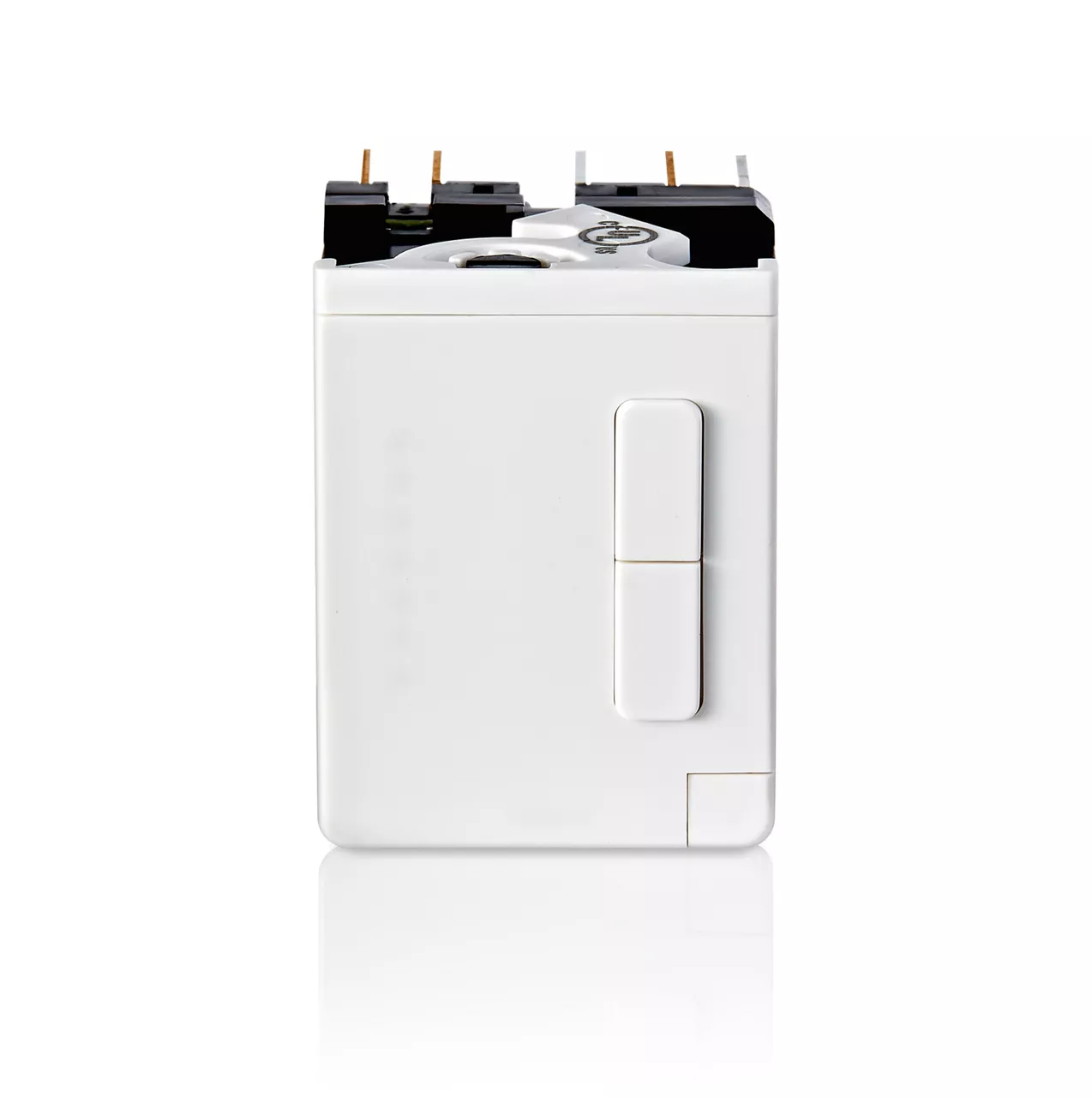

Decora Evolve Smart Dimmer Module
VM2D3-1W
Decora Evolve Smart Dimmer Module, 120VAC 300W Incandescent/MLV, 300W LED/CFL, Wi-Fi Certified, Residential - White
*Exclusively available in select new construction homes. Ask your builder to learn more.
Standard dimmer and smart dimmer available.

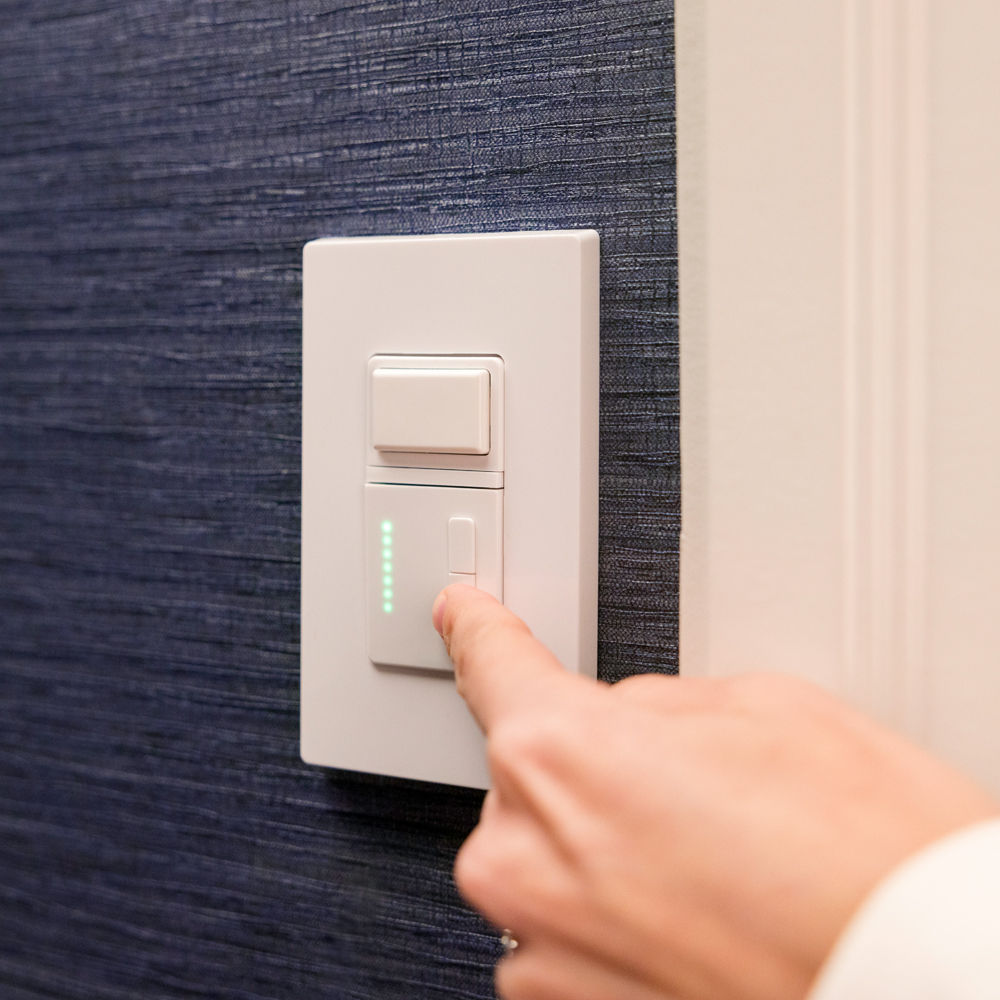

Create the perfect mood for dinner, dim the lights for a movie theatre experience, or turn the lights down low to wind down for bedtime. With the Dimmer Module, you can create just the right ambiance with soft, inviting lighting.
- SMOOTH - Precisely adjust the lighting levels throughout your home.
- ELEGANT - Set lights to slowly fade on and off.
- SMART – With a Smart Dimmer you can set schedules and activities that adapt your lighting as the day changes.
- COMPATIBLE – Works with dimmable LED bulbs and fixtures.
Color: White
Product Information
Product Features
Color : White
Device Type : Module
Feature : Modular, Smart
Function : Dimmer
Grade : Residential
Smart : Yes
Technology : Wi-Fi
Electrical Specifications
Voltage : 120VAC
Mechanical Specifications
Product ID : Back of Product
Warranty
Warranty : 2-Year Limited

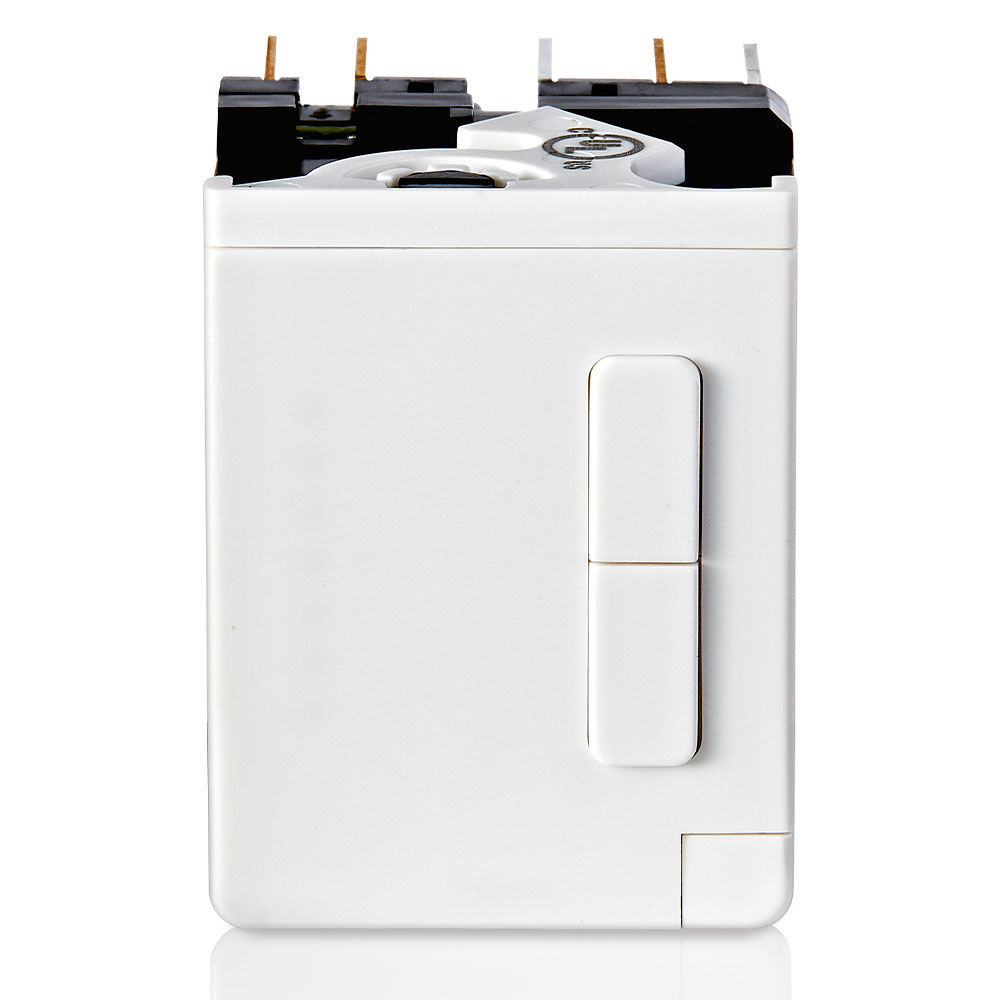

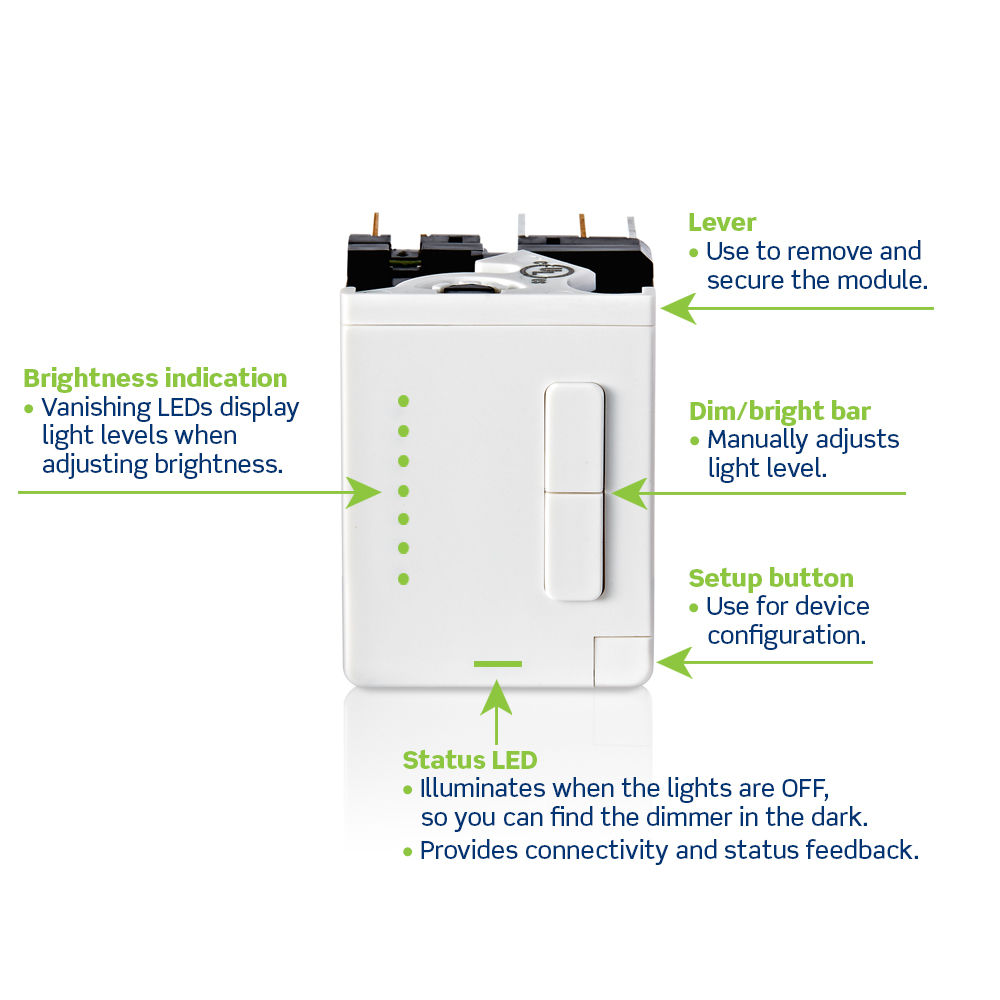

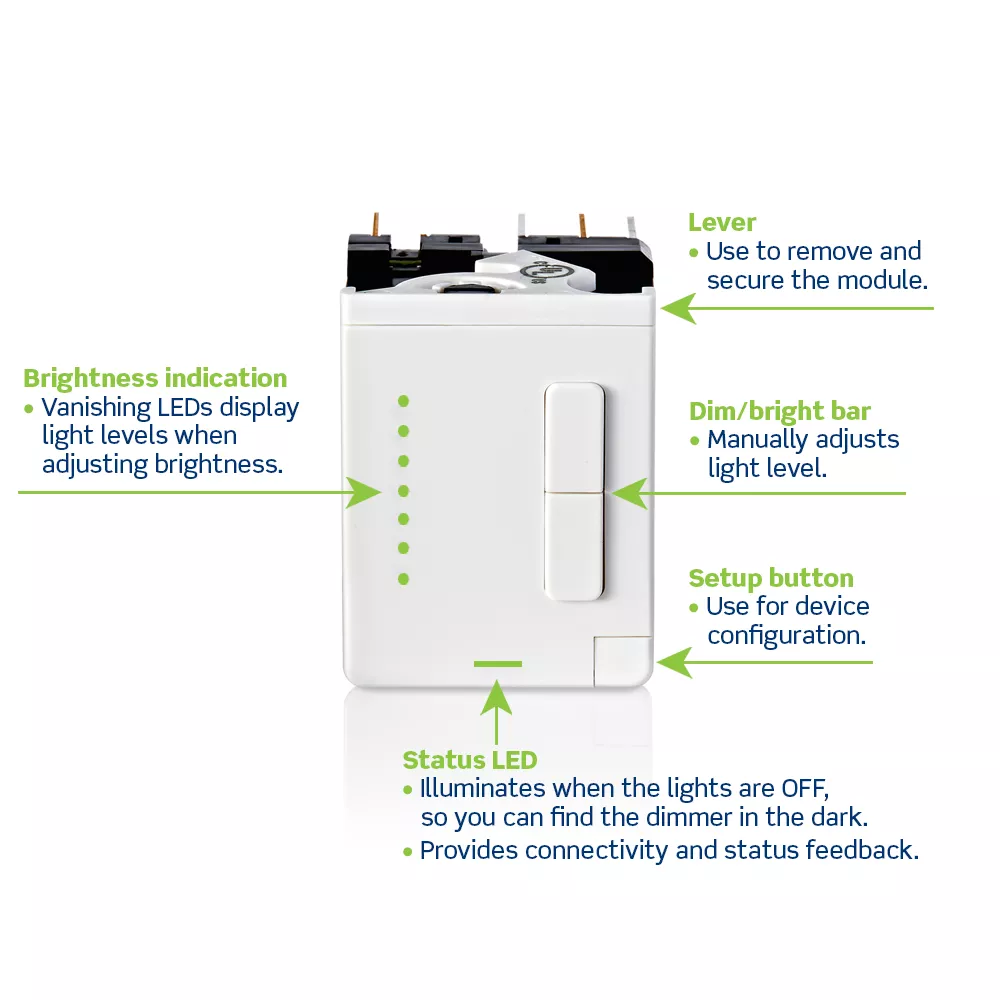

- What do the buttons on the Dimmer Module do?
- The Dimmer Module features Dim/Bright buttons to manually adjust the light level and a Setup Button which is used for device configuration.
- What types of lighting can the Dimmer Module control?
- The Dimmer Module is rated for control of dimmable LED, dimmable CFL, Incandescent, and MLV lighting.
- What types of settings are available to customize dimmer performance with my lights?
- Using the Setup Button you can fine-tune your dimmer’s control of your lighting with settings for minimum dim, maximum brightness, fade on and off times, and preset light level options.
- Where can I find instructions on how to customize my Dimmer Module?
- Step-by-step instructions for the Standard Dimmer are available in the VMDD3 Installation Instructions
- Step-by-step instructions for the Standard Dimmer are available in the VMDD3 Installation Instructions

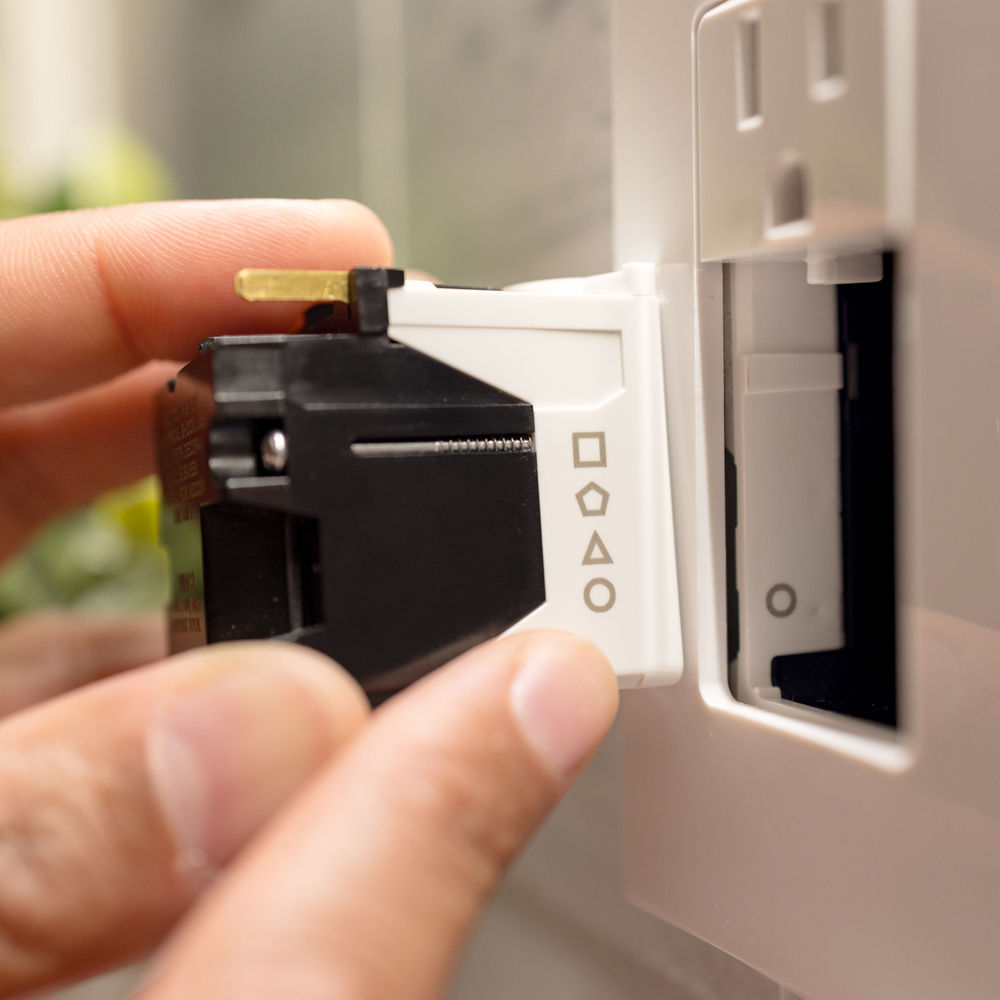

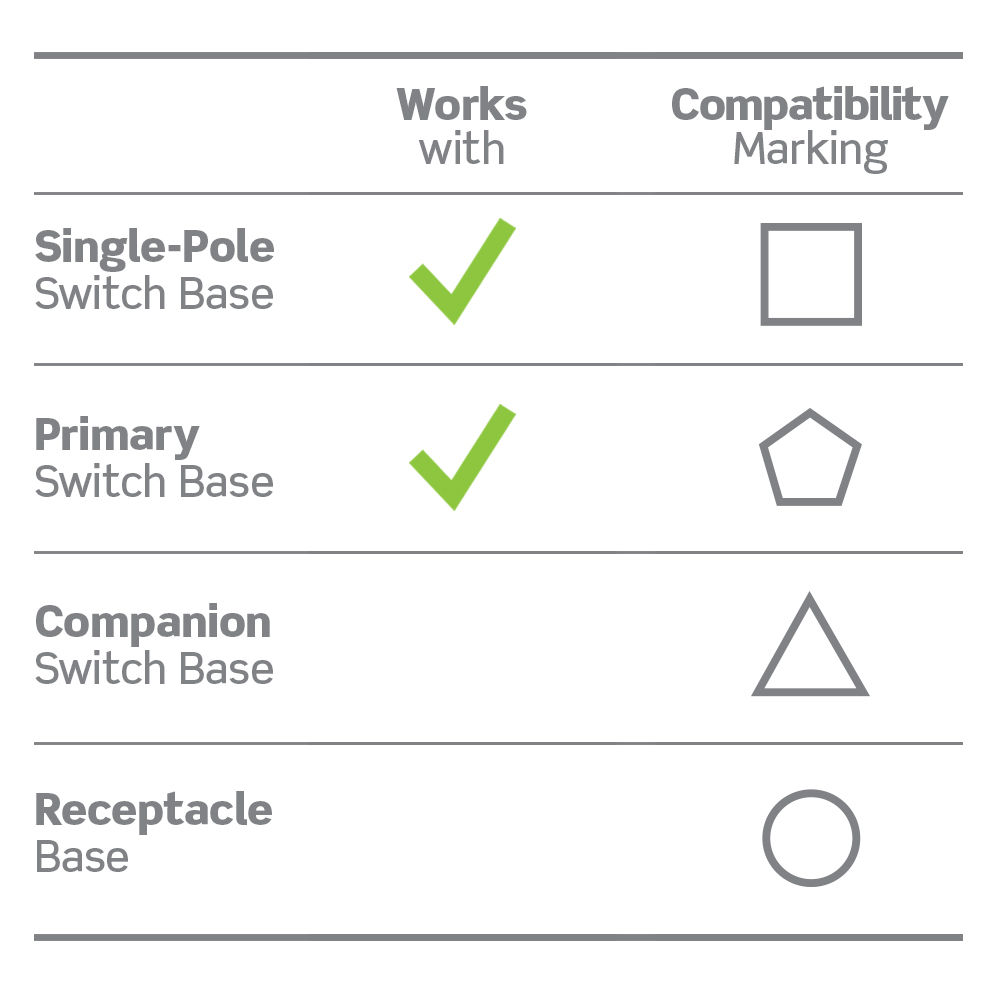

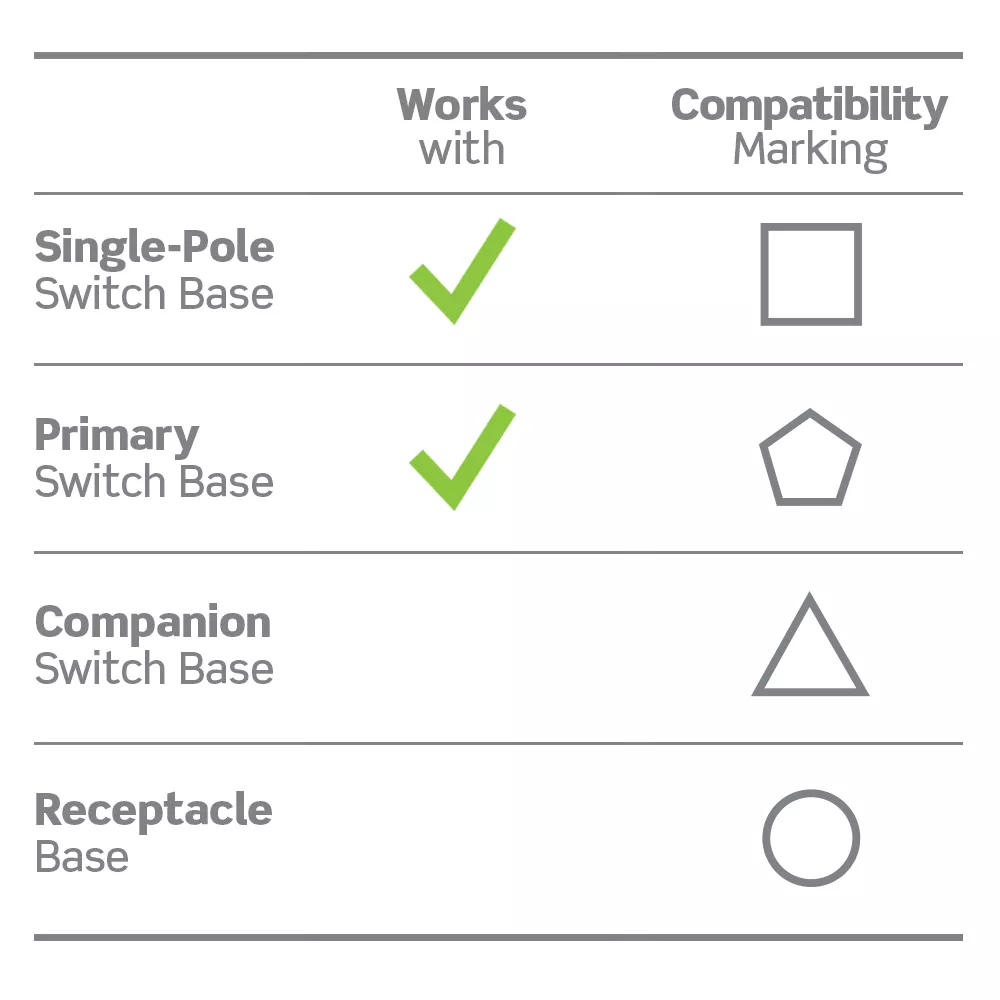

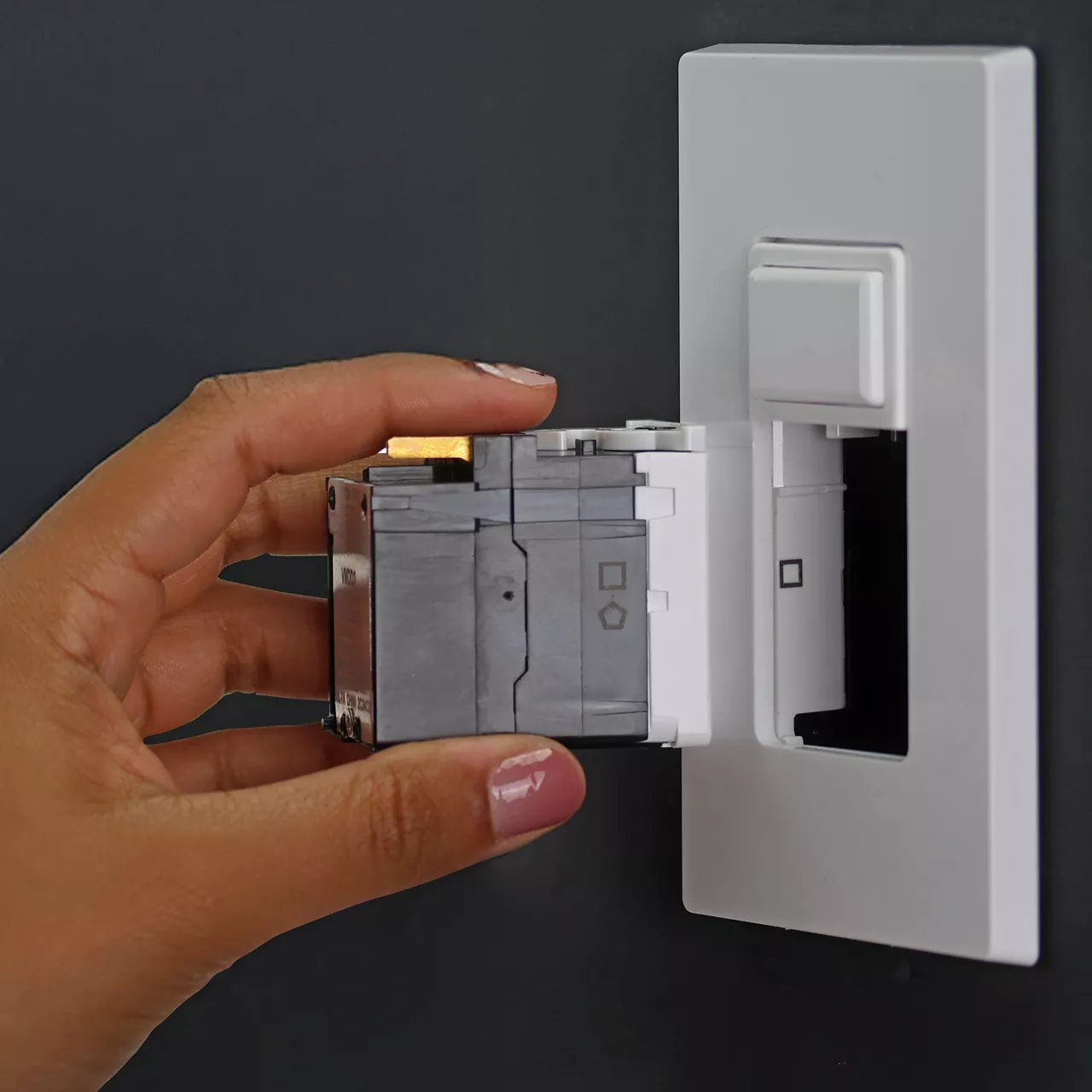

- What bases are compatible with the Dimmer Module?

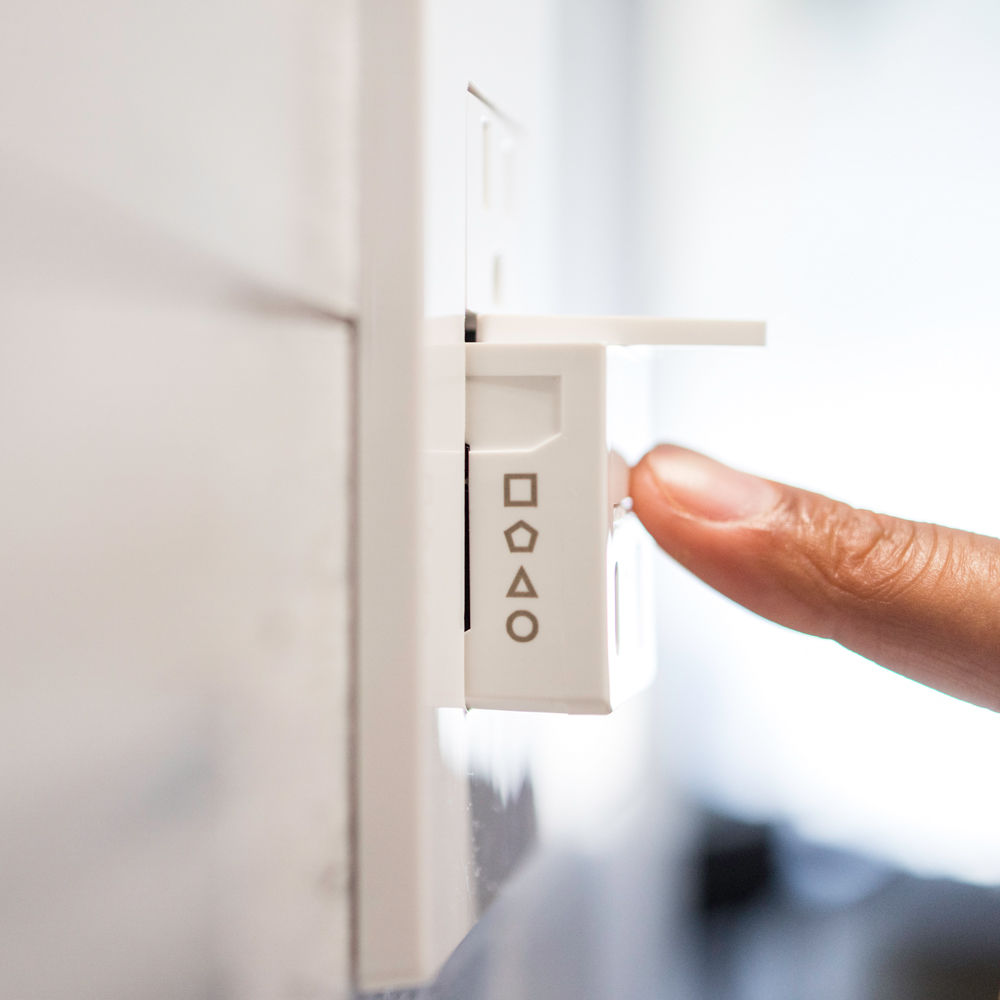

- The Dimmer Module should only be used in switch bases that feature a square or a pentagon. It is not compatible with companion switches (indicated by a triangle) or outlets (indicated by a circle).
- Does the Dimmer Module work in a wired 3-way application?
- Yes, however it must be inserted in a Primary Switch Base only (marked with a pentagon).

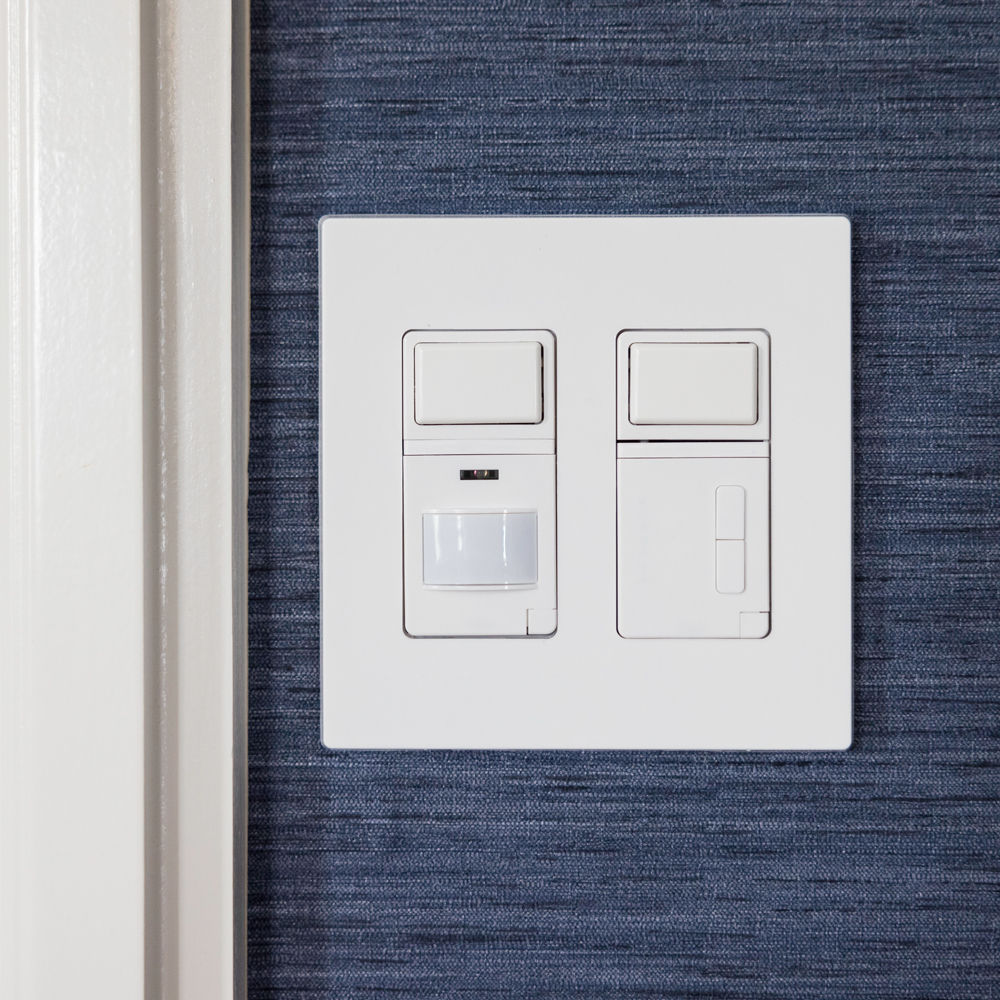

- Can I use the Dimmer Module with a Motion Sensor Module in a 3-way?
- No, the Motion Sensor Module will not work in a 3-way application with a Dimmer Module.
