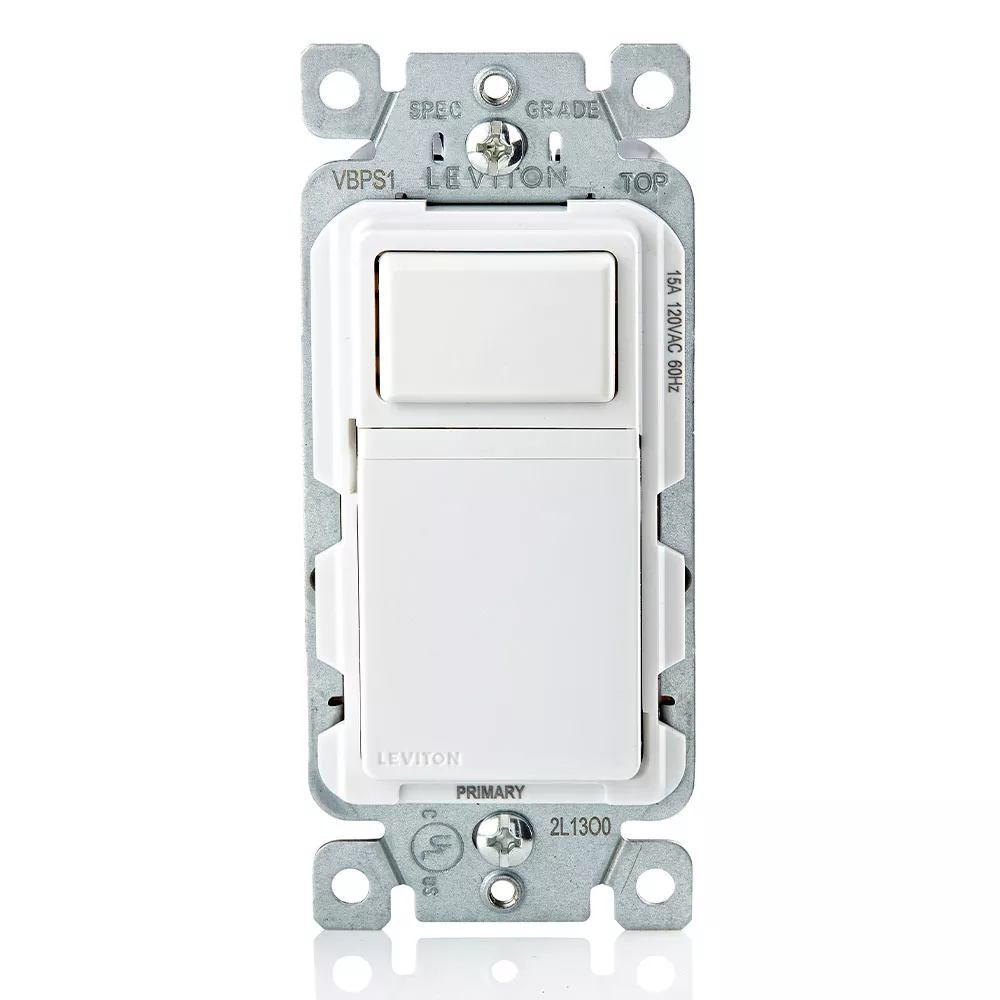

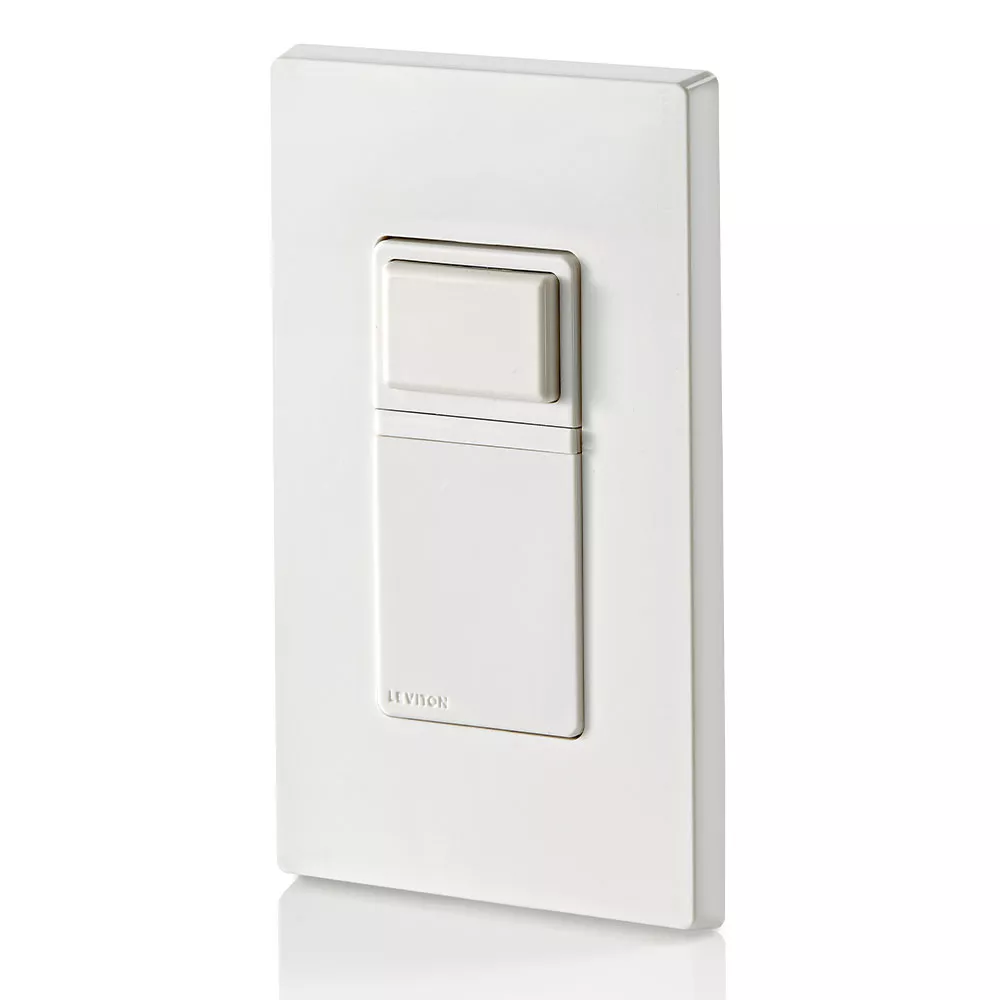

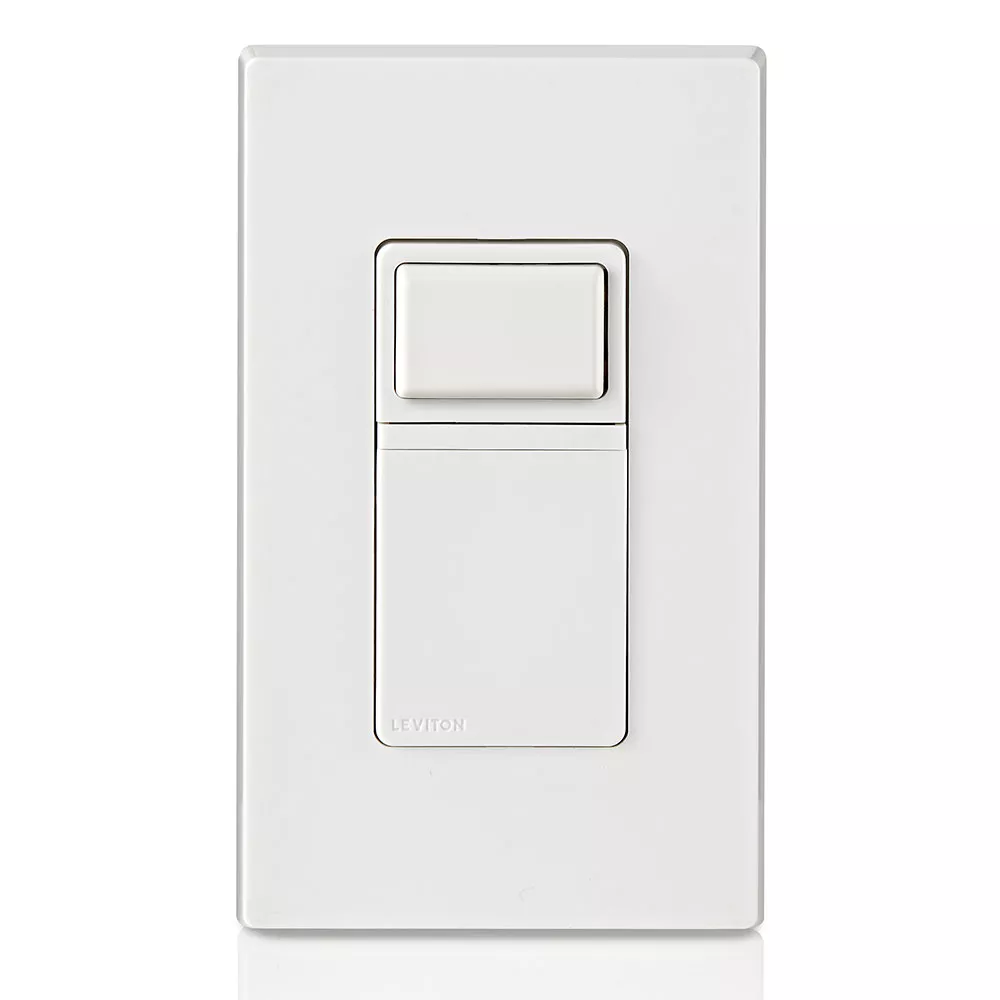

Decora Evolve 15 Amp Primary Switch
VBPS1-1W
Decora Evolve Multiway Primary Switch Base, 15A 120VAC, Residential - White
*Exclusively available in select new construction homes. Ask your builder to learn more.
With the Decora Evolve Primary Switch Base, builders can give homeowners the power to customize light switches using a variety of interchangeable modules. Once the base unit is installed by builders, homeowners can conveniently change modules in seconds – without special tools or technical know-how.
- MULTI-WAY - Used to control the load for lights managed by more than one switch.
- FAMILIAR - Install using industry-standard wiring, electrical boxes, and face plates.

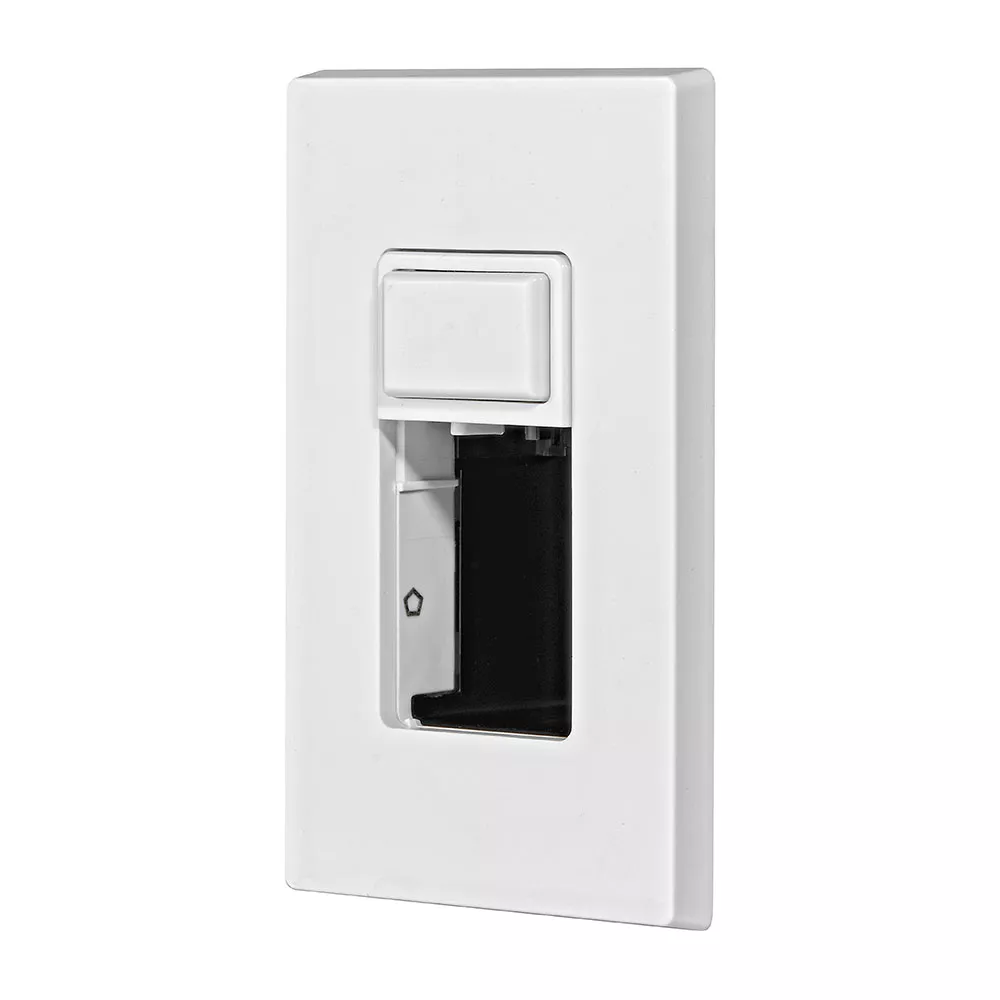

- MODULAR - Removal of the bottom blank module allows placement of a Night Light, USB-A/USB-C® Charger, Dimmer, Occupancy Sensor, Smart Switch or Smart Dimmer Module.
- CONSUMER-FRIENDLY - Homeowners can add and change modules themselves without having to turn off the power.
Should be paired with the Decora Evolve Companion Switch Base for the additional switches that do not control the load.
Color: White
Product Information
Product Features
Color : White
Device Type : Base
Feature : Modular
Function : Multiway Load Controller
Grade : Residential
Electrical Specifications
Amperage : 15 A
HP Rating : 1/2HP
Voltage : 120VAC
Material Specifications
Body Material : Thermoplastic
Contacts : Copper Alloy
Flammability Rating. : 5V
Grounding Screw : Plated Steel
Strap Material : Galvanized Steel
Terminal Screws. : Plated Steel
Mechanical Specifications
Product ID : Stamped on Strap
Terminal Accom : #12 - #14 AWG Side Wired Only

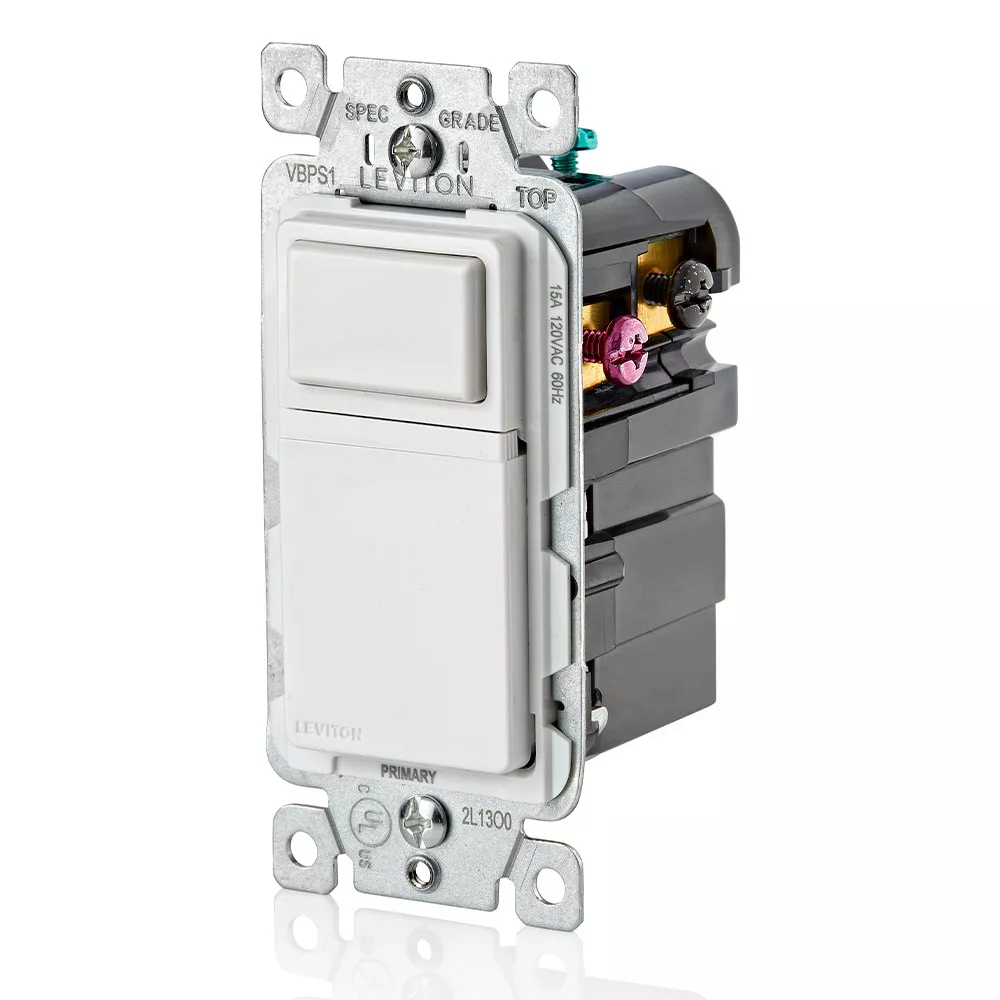

Terminal ID : Black - Hot, Silver - Neutral, Green - Ground, Brass - Traveler, Red - Load
Terminaton : Side Wire Only
Torque Range. : 14 - 18 in lb
Standards and Certifications
NEMA : Compliant to NEMA
UL Standard : UL20
Warranty
Warranty : 2-Year Limited
- Is a neutral required?
- Yes! If you don’t wire the neutral, the switch will not work
- Yes! If you don’t wire the neutral, the switch will not work
- When should I install this switch base?
- When you have a 3-way or 4-way application. This base is the load controller while the companion switch base is not.
- When you have a 3-way or 4-way application. This base is the load controller while the companion switch base is not.
- How can I differentiate between the switches?
- They will be labeled at the bottom just above the lower mounting screw and can also be identified after they’ve been installed by removing the module and referencing the symbol on the inside
- How do I know what modules fit in this switch?
- Both the bases and modules are marked with symbols to help customers identify what works where. If a module and base share the same symbol they will be compatible; if they don’t then they are not.
- Both the bases and modules are marked with symbols to help customers identify what works where. If a module and base share the same symbol they will be compatible; if they don’t then they are not.
- What wall boxes should I use to install these?
- Decora Evolve bases were designed to fit in 18 cu in new construction plastic wallboxes but we recommend using 22 cu in wallboxes to make installation a breeze!
- Decora Evolve bases were designed to fit in 18 cu in new construction plastic wallboxes but we recommend using 22 cu in wallboxes to make installation a breeze!
- Are these products NEC Compliant and agency approved?
- Yes, Decora Evolve is compliant with the National Electrical Code and are cULus approved
- Yes, Decora Evolve is compliant with the National Electrical Code and are cULus approved
- Are the Decora Evolve devices backed by a warranty?
- Yes, they are backed by a 2 Year Limited Warranty.
