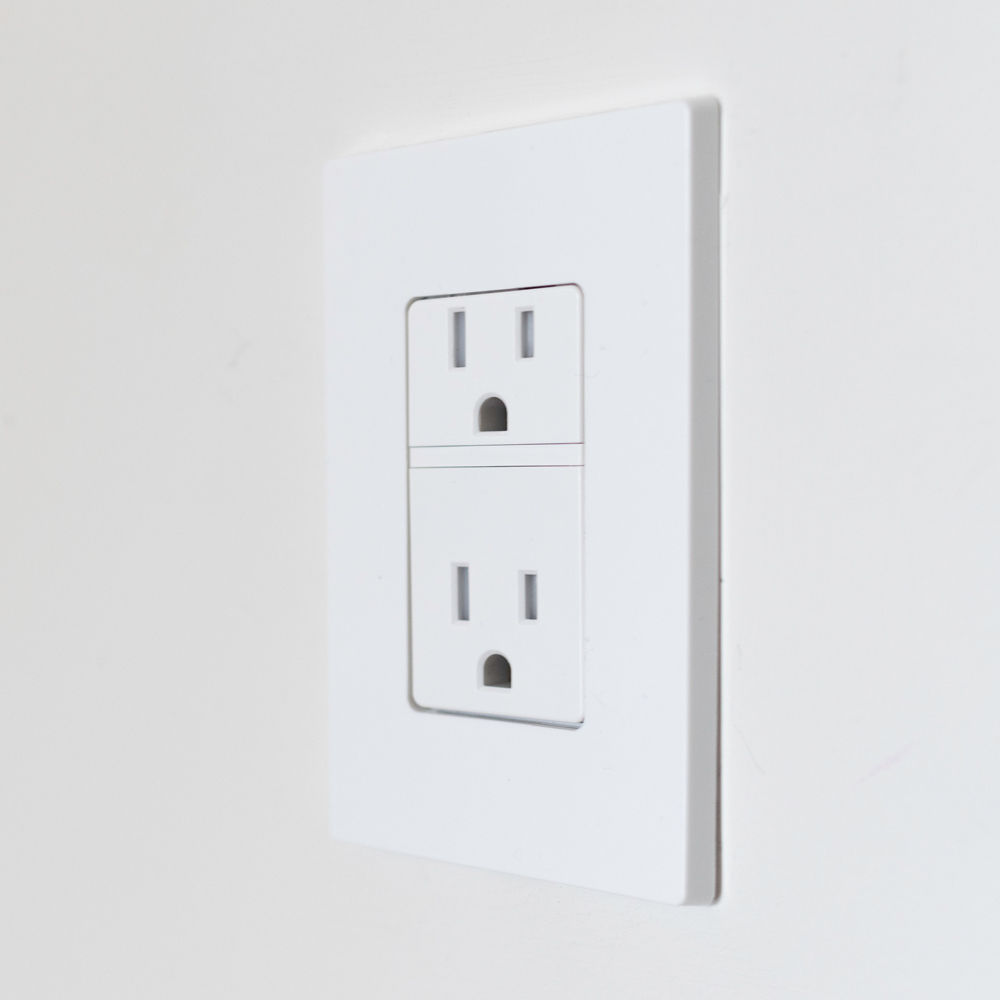

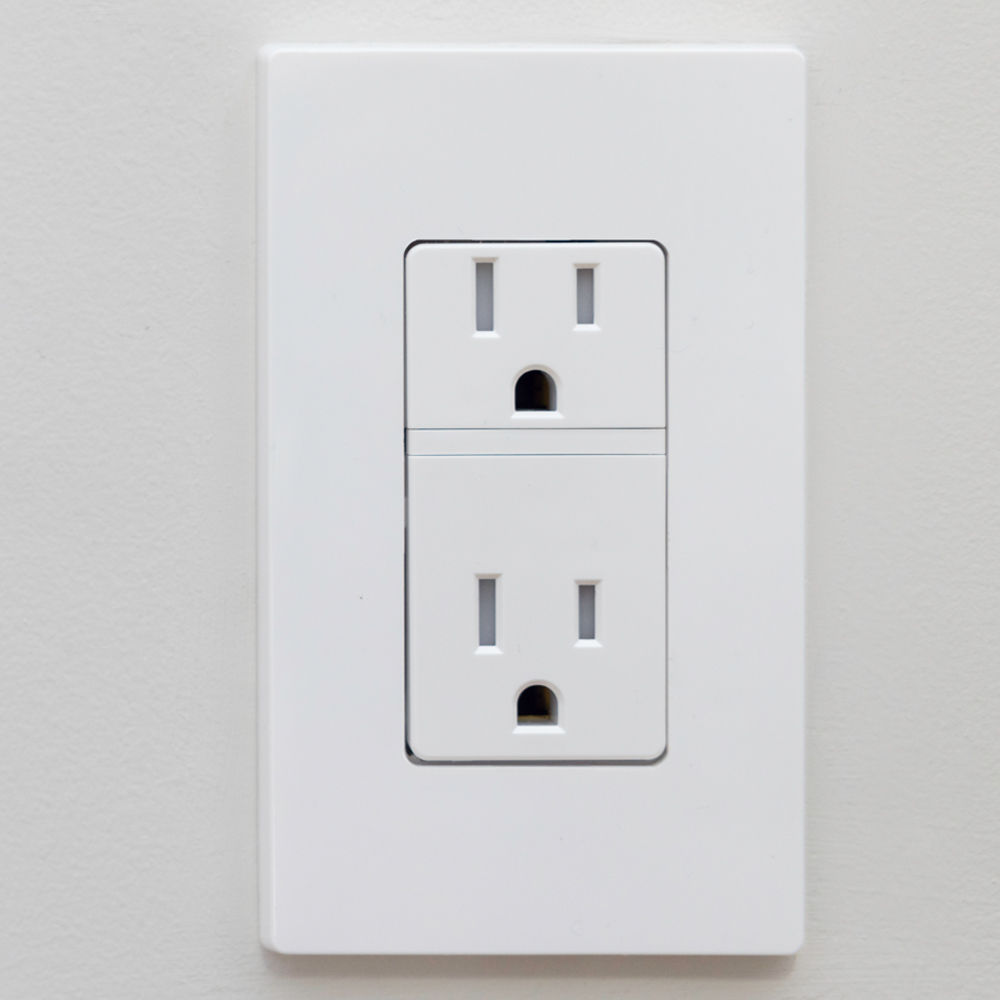

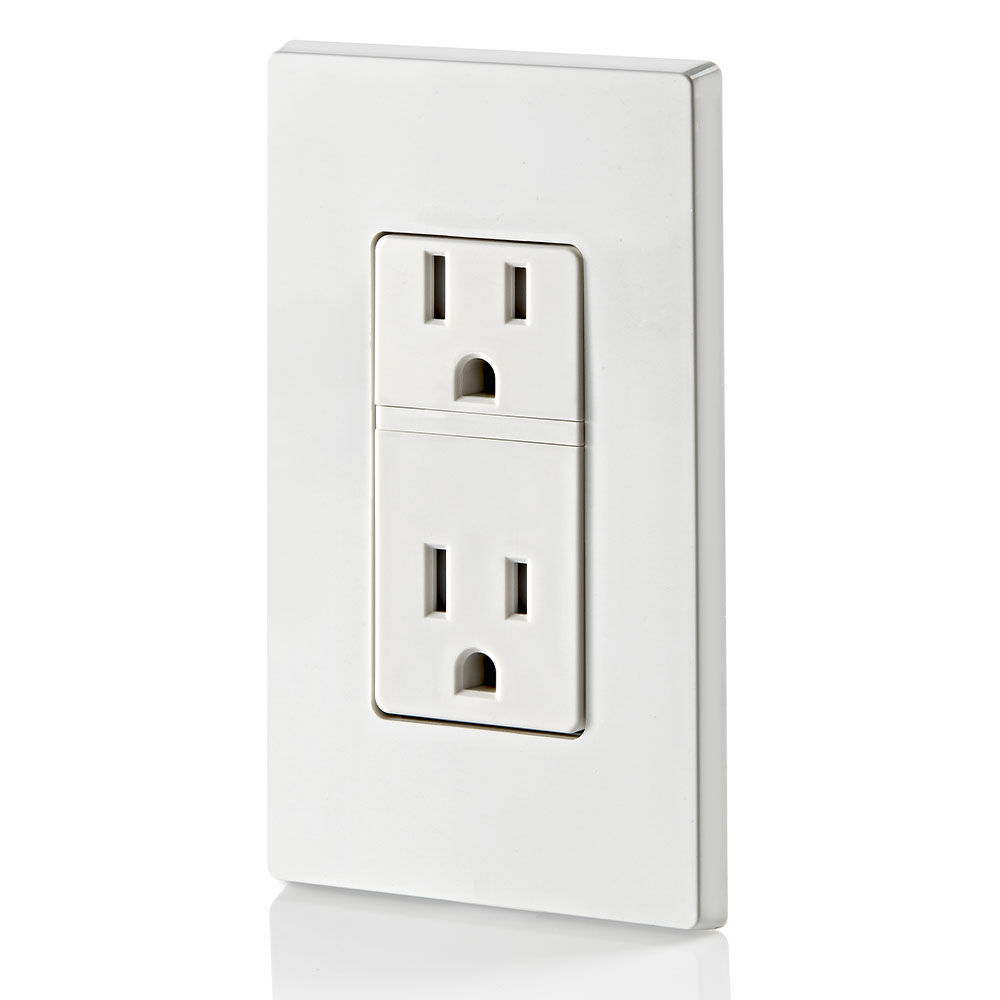

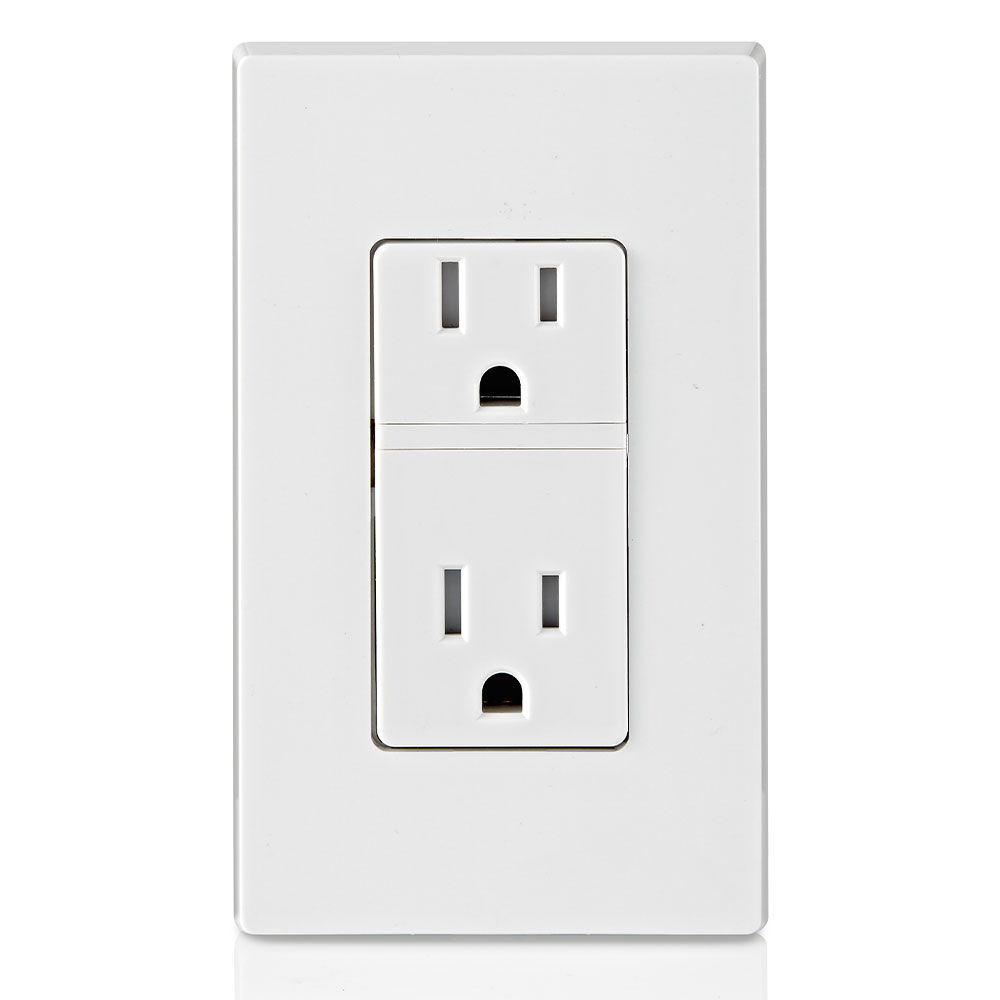

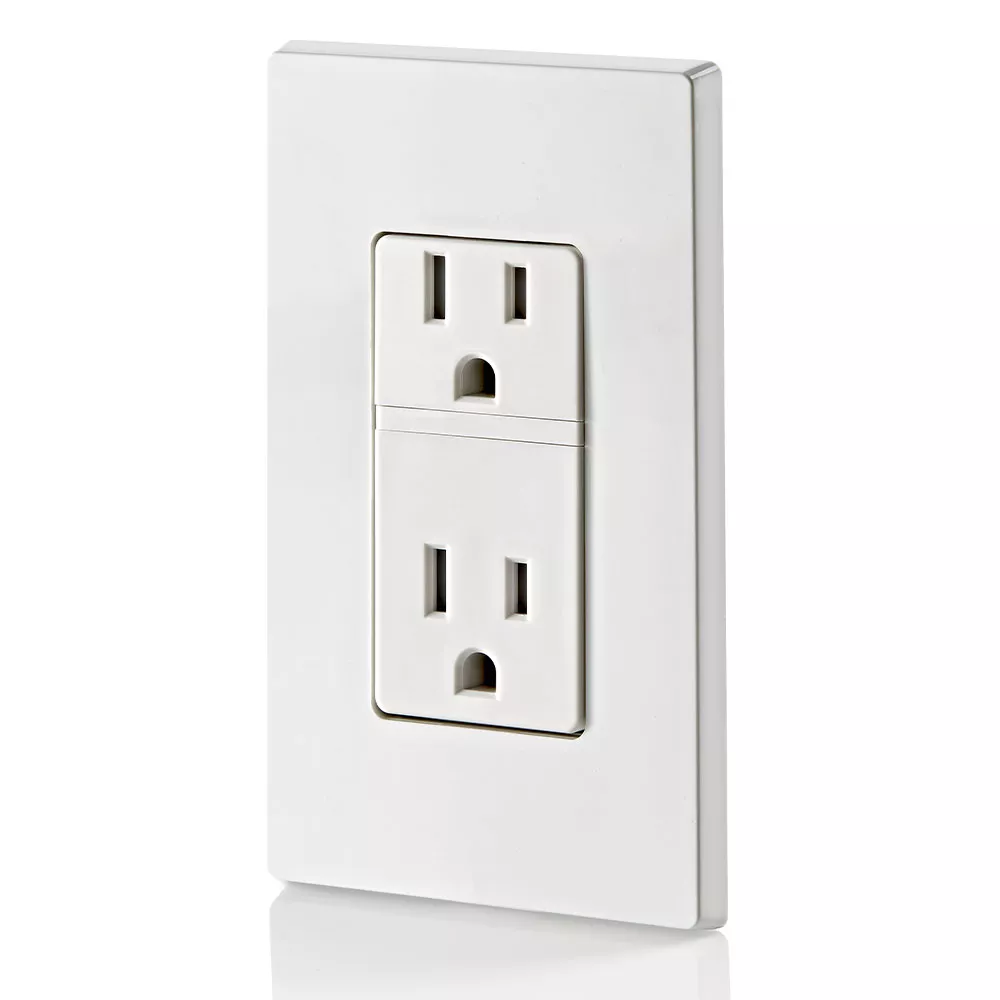

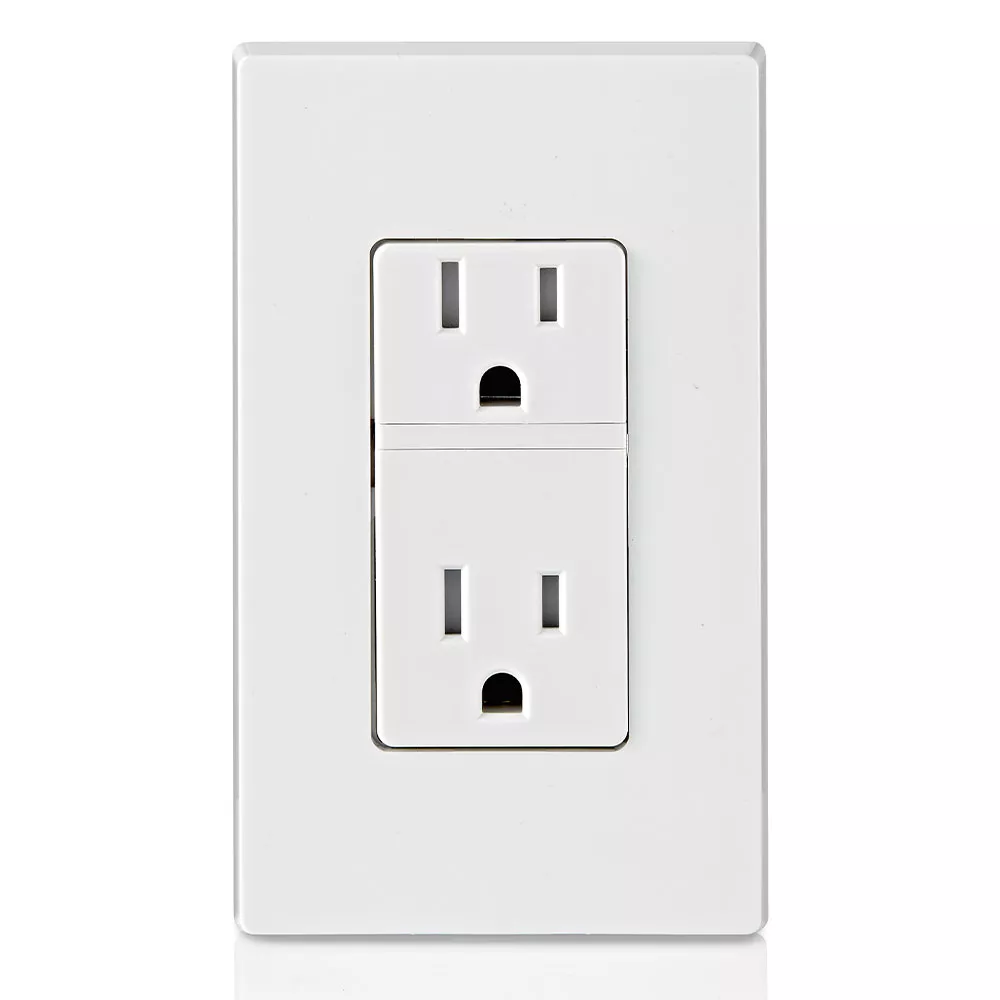

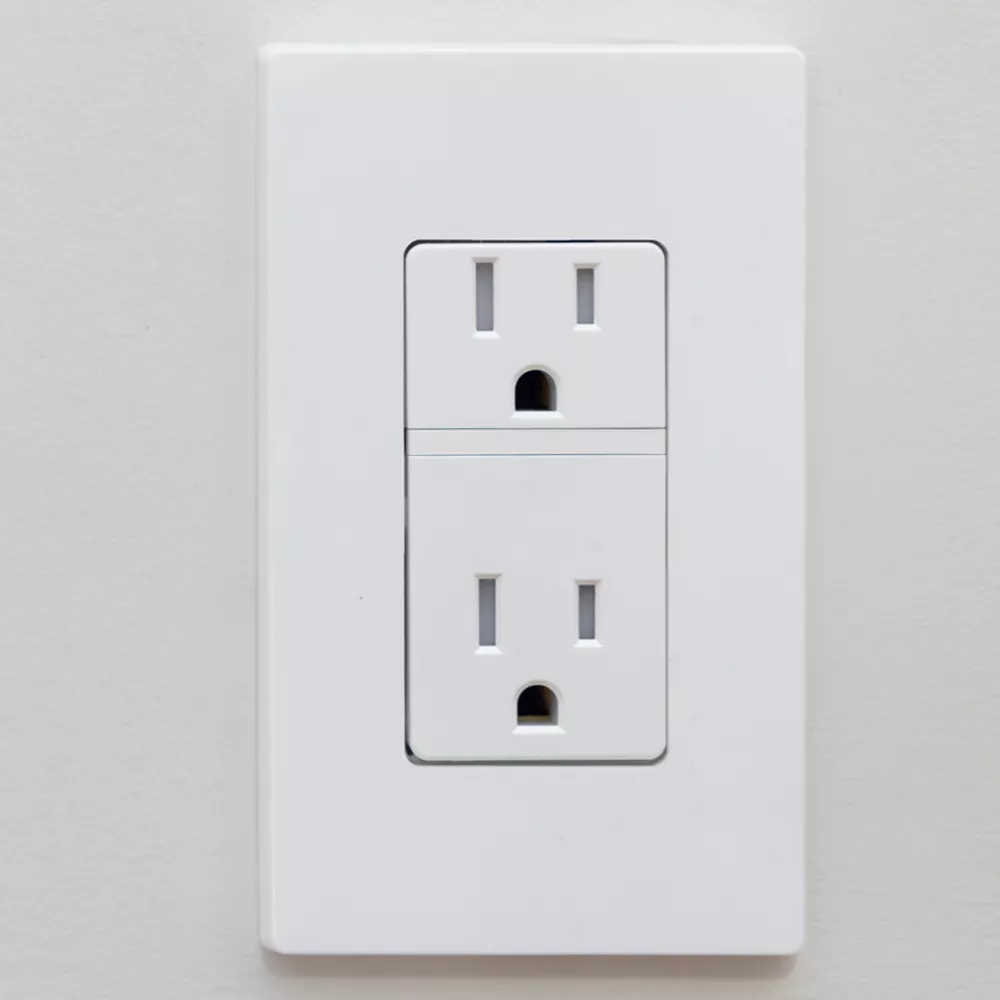

Decora Evolve 15 Amp Receptacle Base

VBTR1-1W

Decora Evolve Receptacle Base, Tamper-Resistant, 2 Pole 3 Wire, 15A 125V NEMA 5-15R, Residential - White

*Exclusively available in select new construction homes. Ask your builder to learn more.

With the Decora Evolve Receptacle Base, builders can give homeowners the power to customize power outlets using a variety of interchangeable modules. Once the base unit is installed by builders, homeowners can conveniently change modules in seconds – without special tools or technical know-how.

  • MULTI-WAY - Used as an additional way to control lights managed by more than one switch after a Decora Evolve Primary Switch Base has been installed at the location with the load.
  • FAMILIAR - Install using industry-standard wiring, electrical boxes, and face plates.

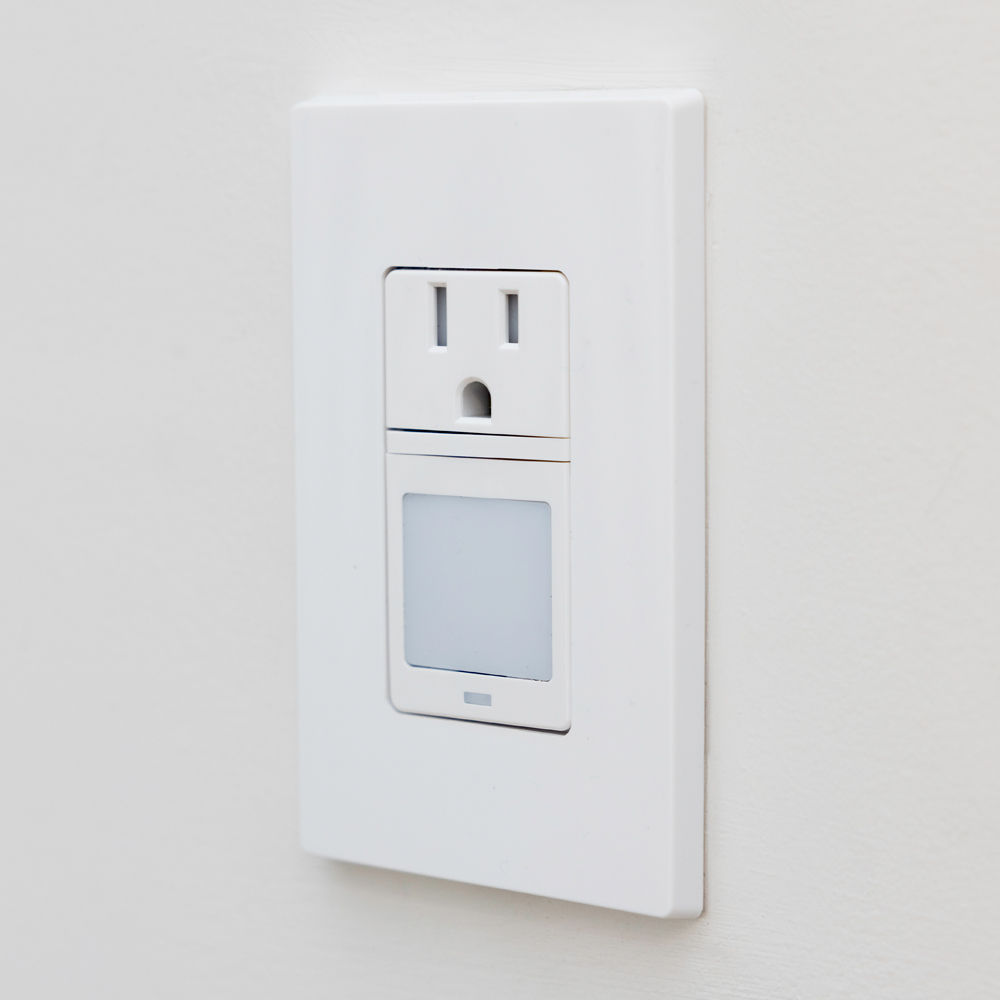

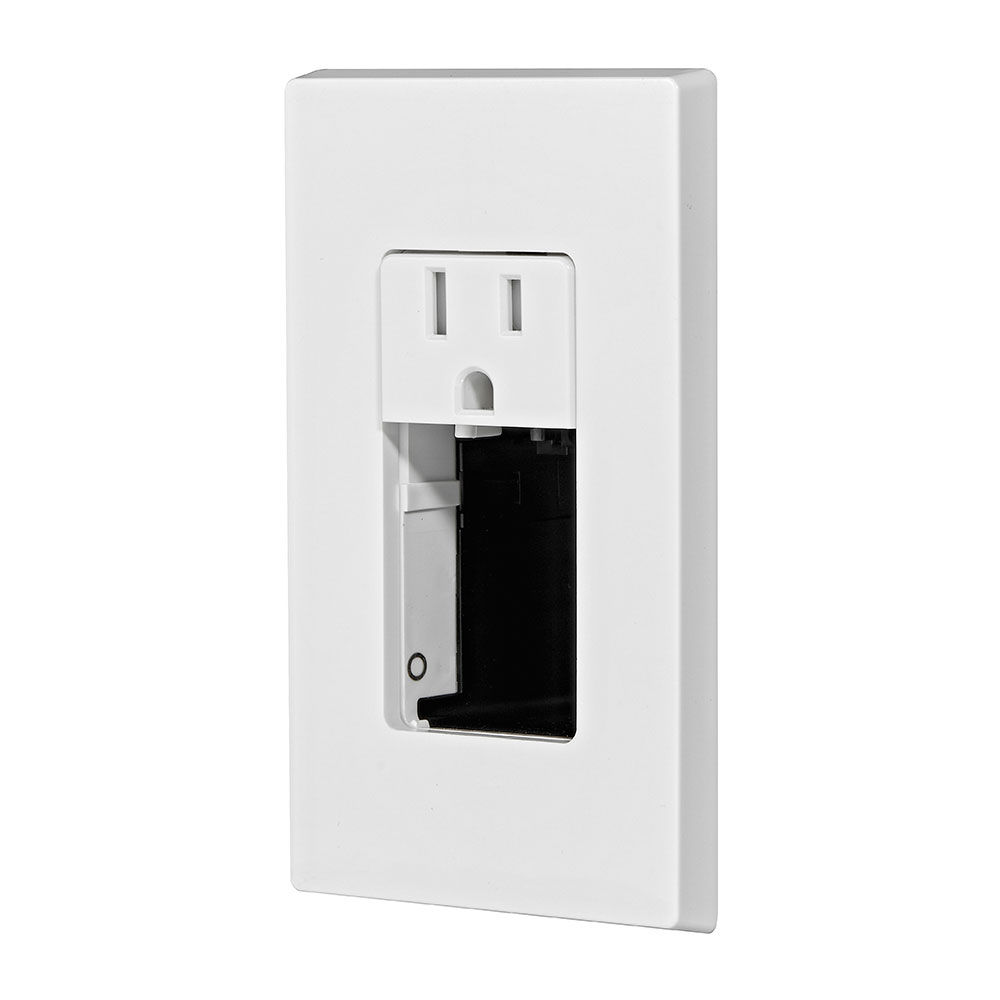

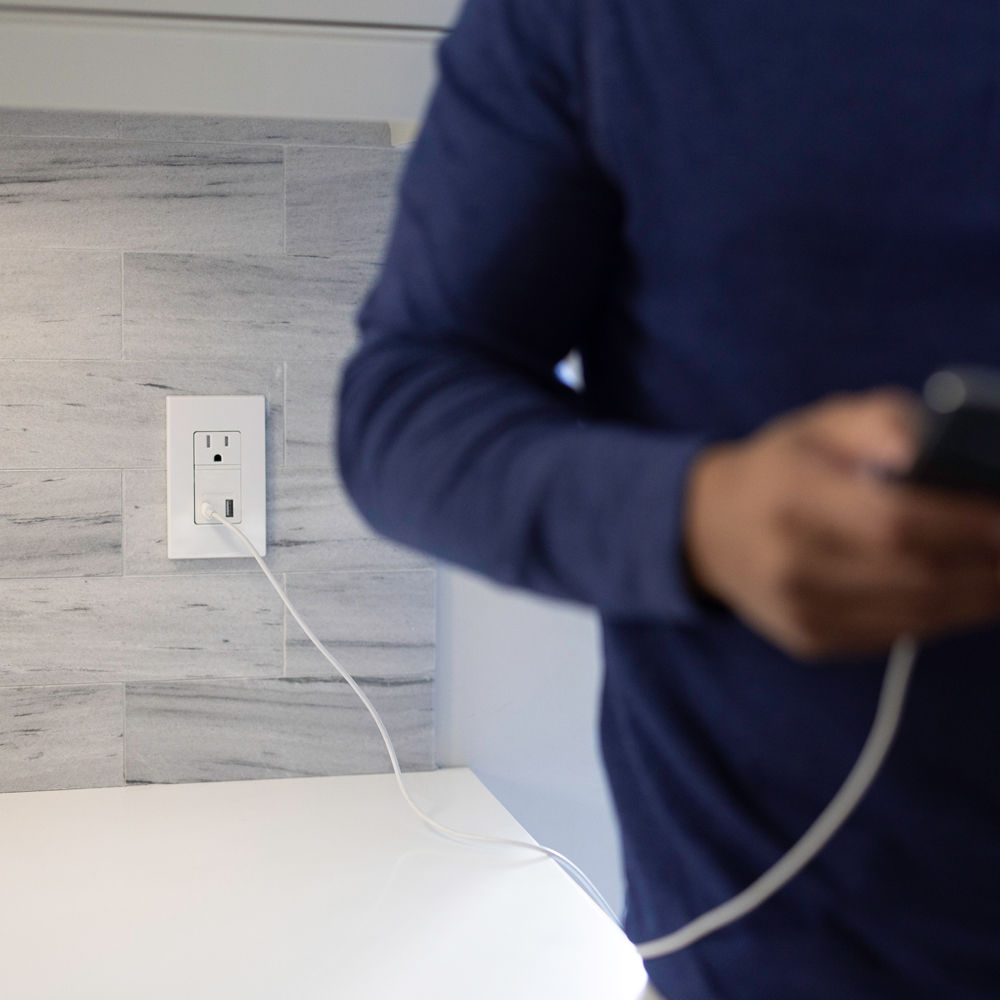

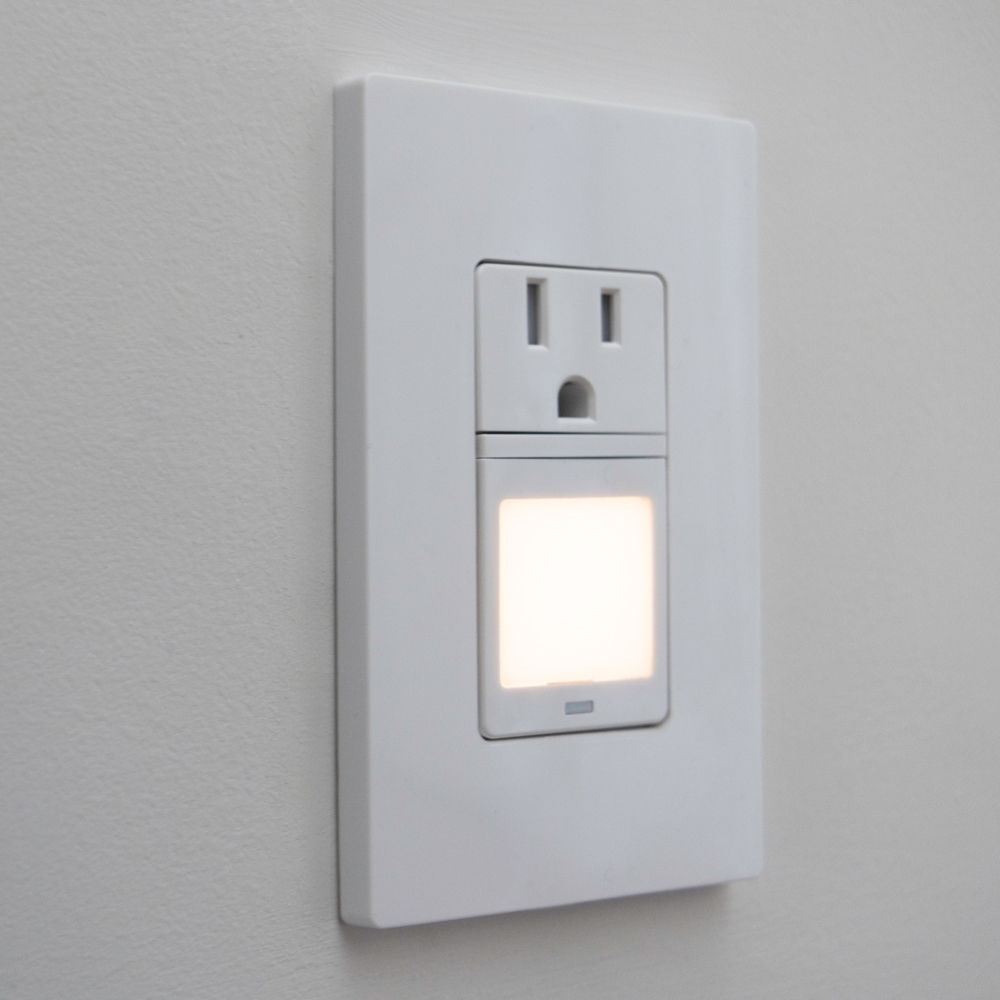

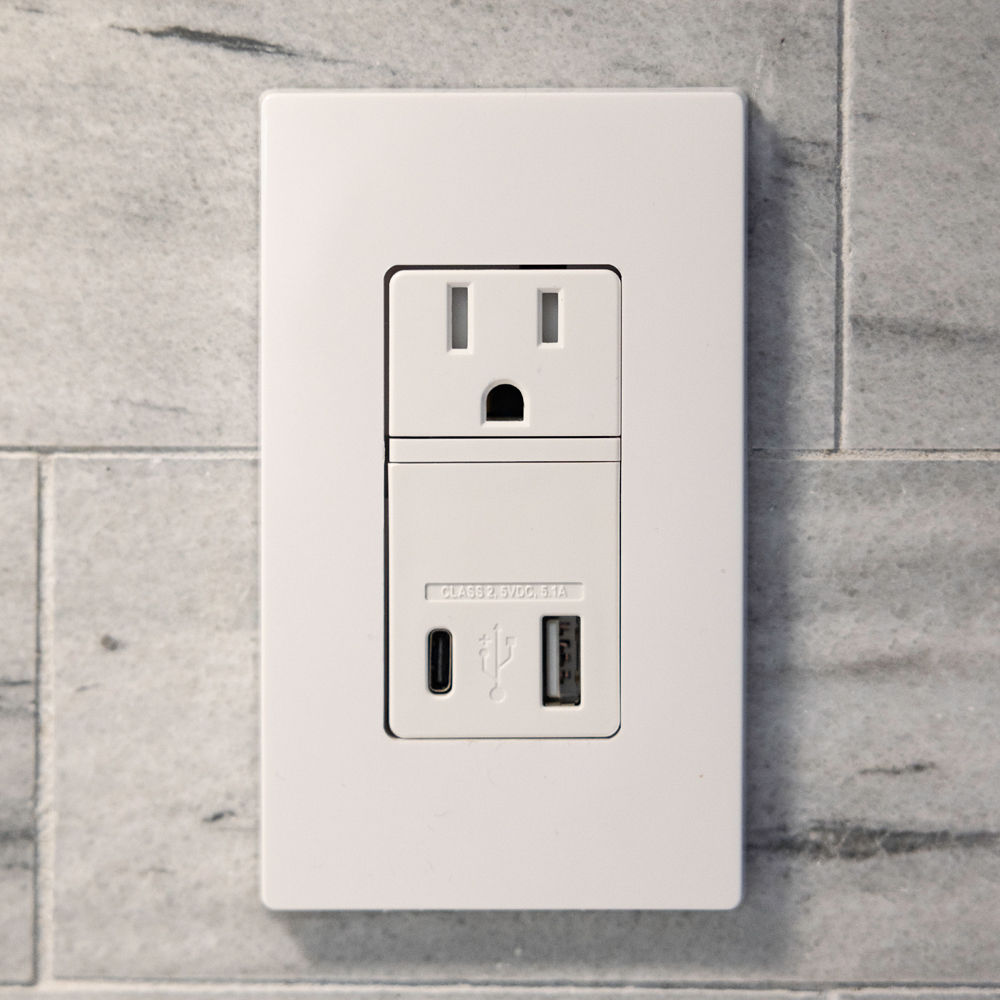

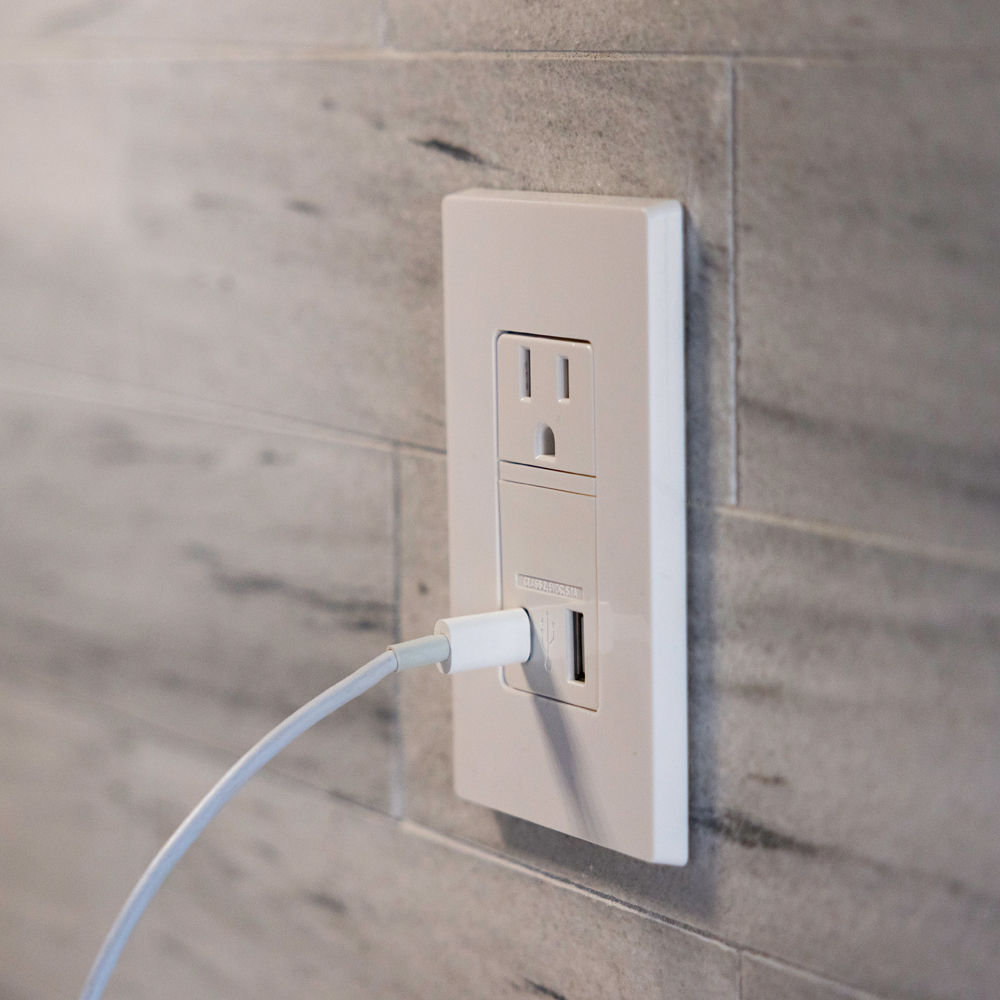

  • MODULAR - Removal of the bottom module allows placement of a Night Light or USB-A/USB-C® Charger.

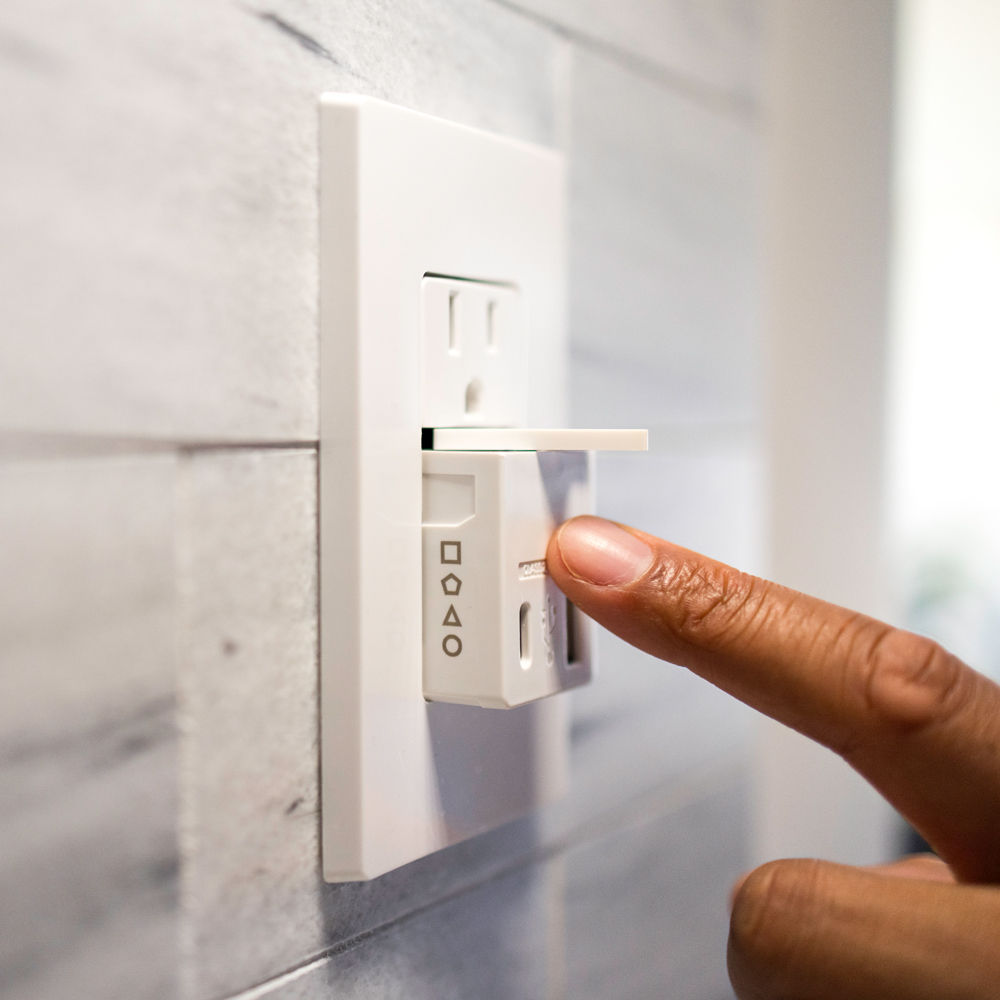

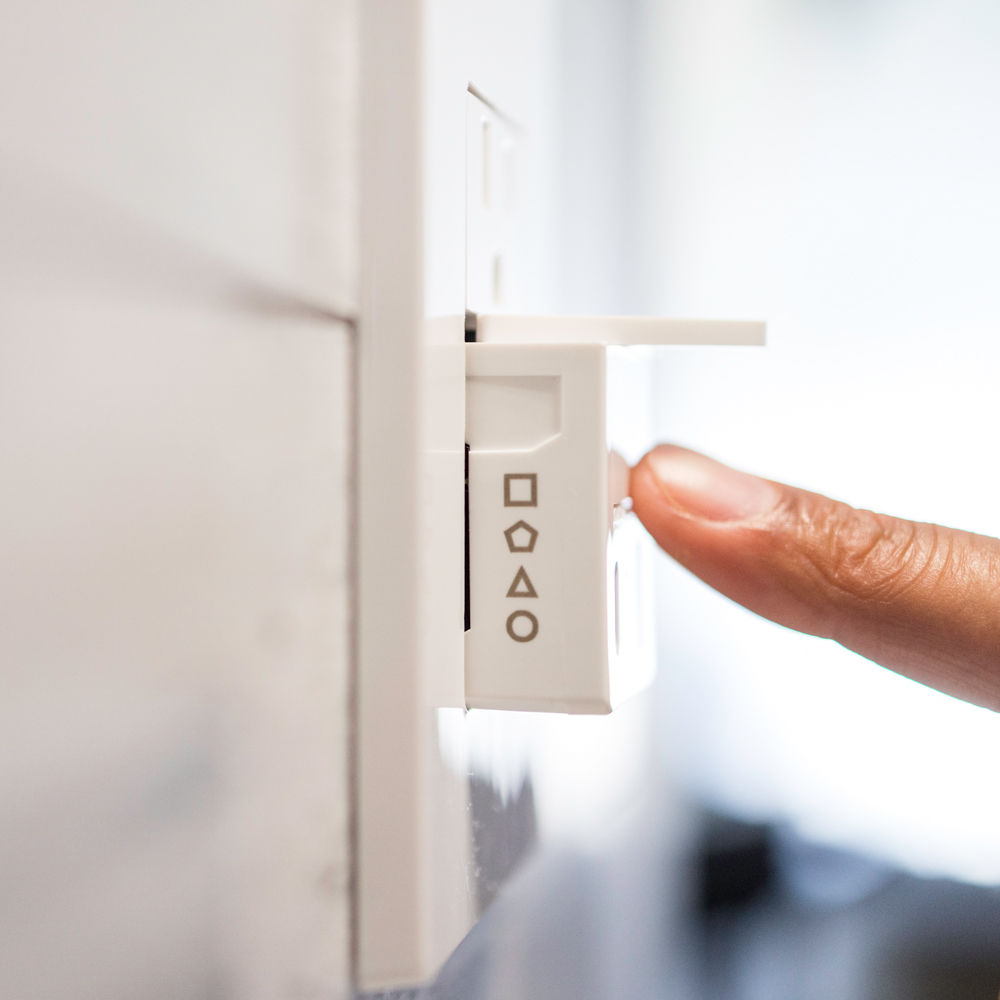

  • CONSUMER-FRIENDLY- Homeowners can add and change modules themselves without having to turn off the power.

Color: White

UPC Code: 078477005125
Country of Origin : China
NEMA 5-15R

Product Information

  • Product Features

    Color : White

    Device Type : Base

    Feature : Modular, Tamper Resistant

    Function : Outlet

    Grade : Residential

  • Mechanical Specifications

    Product ID : Stamped on Strap

    Terminal Accom : #12 - #14 AWG Side Wired Only

    Terminal ID : Black - Hot, Silver - Neutral, Green - Ground

    Terminaton : Side Wire Only

    Torque Range. : 14 - 18 in lb

  • Warranty

    Warranty : 2-Year Limited

  • Material Specifications

    Body Material : Thermoplastic

    Contacts : Copper Alloy

    Flammability Rating. : 5V

    Grounding Screw : Plated Steel

    Strap Material : Galvanized Steel

    Terminal Screws. : Plated Steel

  • Electrical Specifications

    Amperage : 15 A

    HP Rating : 1/2HP

    Voltage : 125VAC

  • Standards and Certifications

    NEMA : Compliant to NEMA

    UL Standard : UL498

  • Can I use any lighting/load control modules in this base?
    • You cannot since the outlet doesn’t already control a load
  • Do these have a breakoff tab for split power applications?
    • They do; it is located on the line side. Be sure to reference the instruction sheets to see which terminal screw powers the fixed receptacle on the base vs. the interchangeable module
  • Are there GFCI options?
    • Currently there are not, so when installing in an area that requires GFCI protection, be sure the Decora Evolve device is placed downstream on a GFCI protected circuit
  • What wallplates can I use for the Decora Evolve bases?
    • Any standard Decora Wallplate will work with these bases, no special wallplates required!
  • What wall boxes should I use to install these?
    • Decora Evolve bases were designed to fit in 18 cu in new construction plastic wallboxes but we recommend using 22 cu in wallboxes to make installation a breeze!
  • Are these products NEC Compliant and agency approved?
    • Yes, Decora Evolve is compliant with the National Electrical Code and are cULus approved
  • Are the Decora Evolve devices backed by a warranty?
    • Yes, they are backed by a 2 Year Limited Warranty.
  • Does Decora Evolve currently have 20A receptacle?
    • As of today, there are only 15A receptacles available for Decora Evolve.
