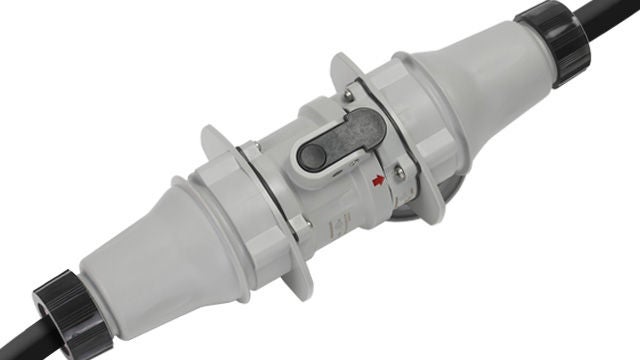

ArcArrest® Switch-Rated Pin & Sleeve devices provide a local means of disconnect as required by NEC and are rated for both branch and motor circuit disconnects. By combining a wall-mounted disconnect with a plug and connector, they deliver greater flexibility and portability. Even under load, there's no exposure to live components or arc flash. Built with watertight ratings, they’re engineered to perform reliably in harsh industrial environments.

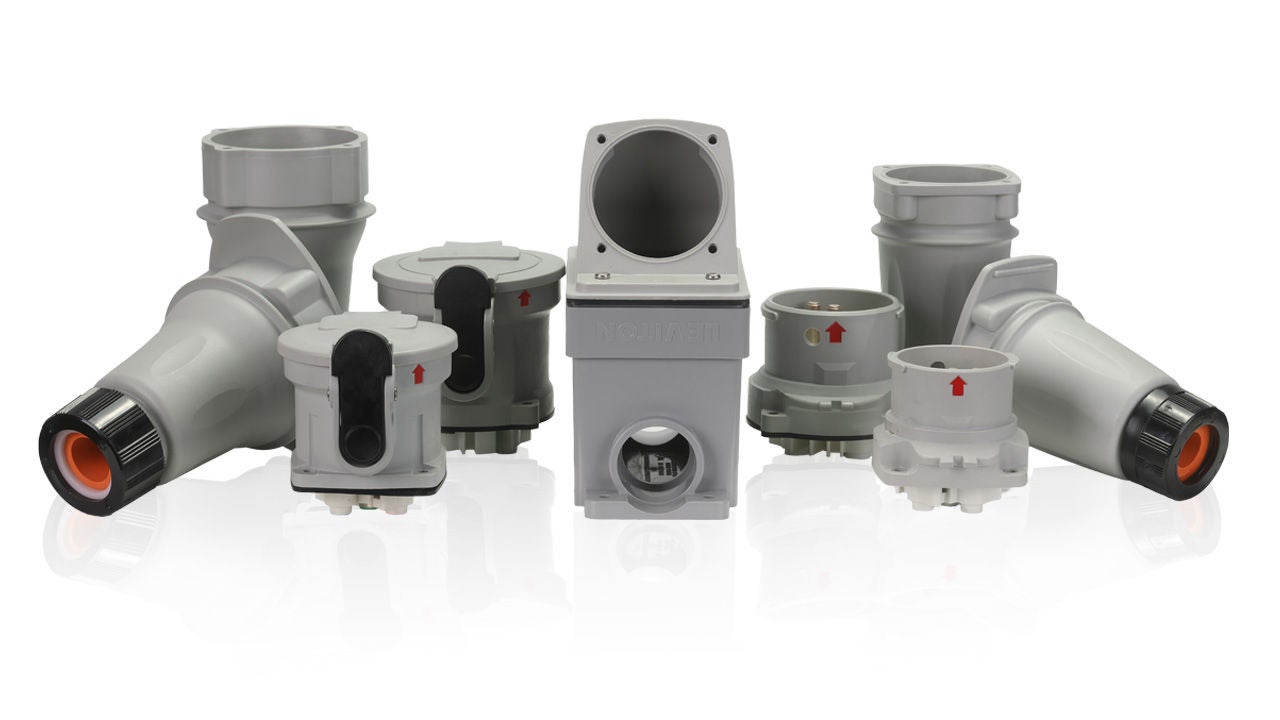

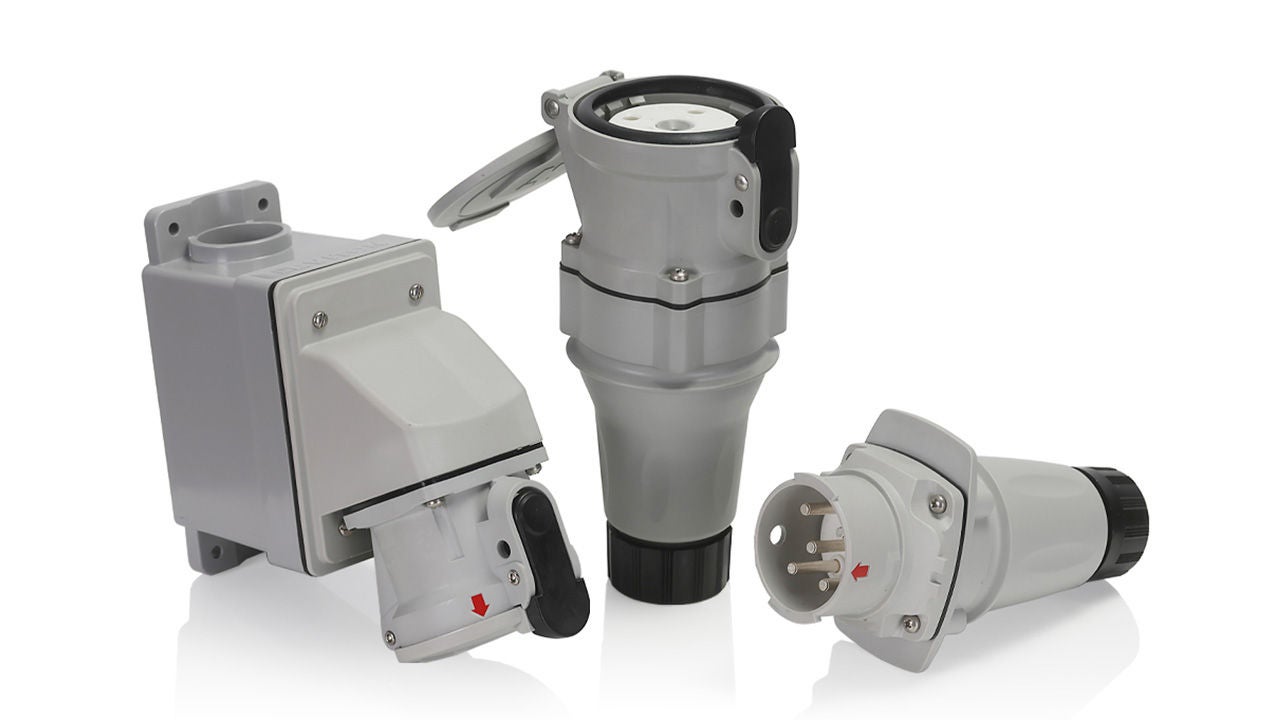

A Full Offering Of Switch Rated Pin and Sleeve Devices
No exposure to live electrical components or arc flash, even when operating under load

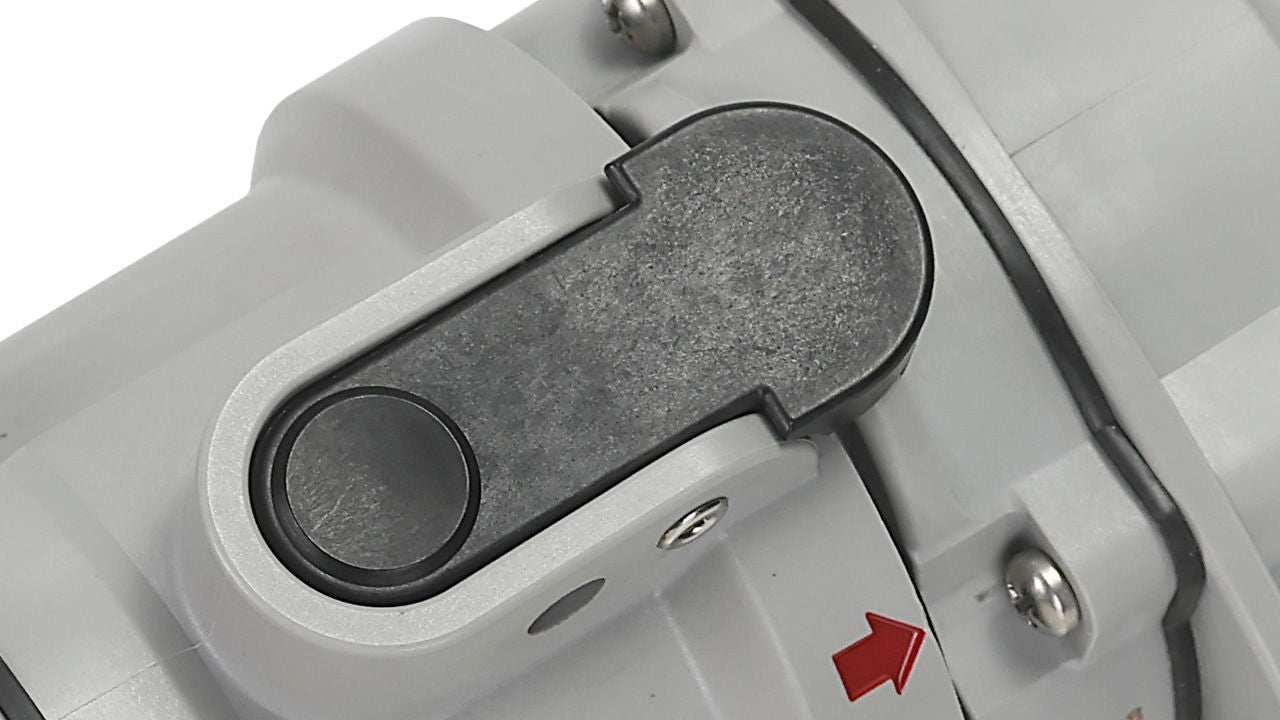

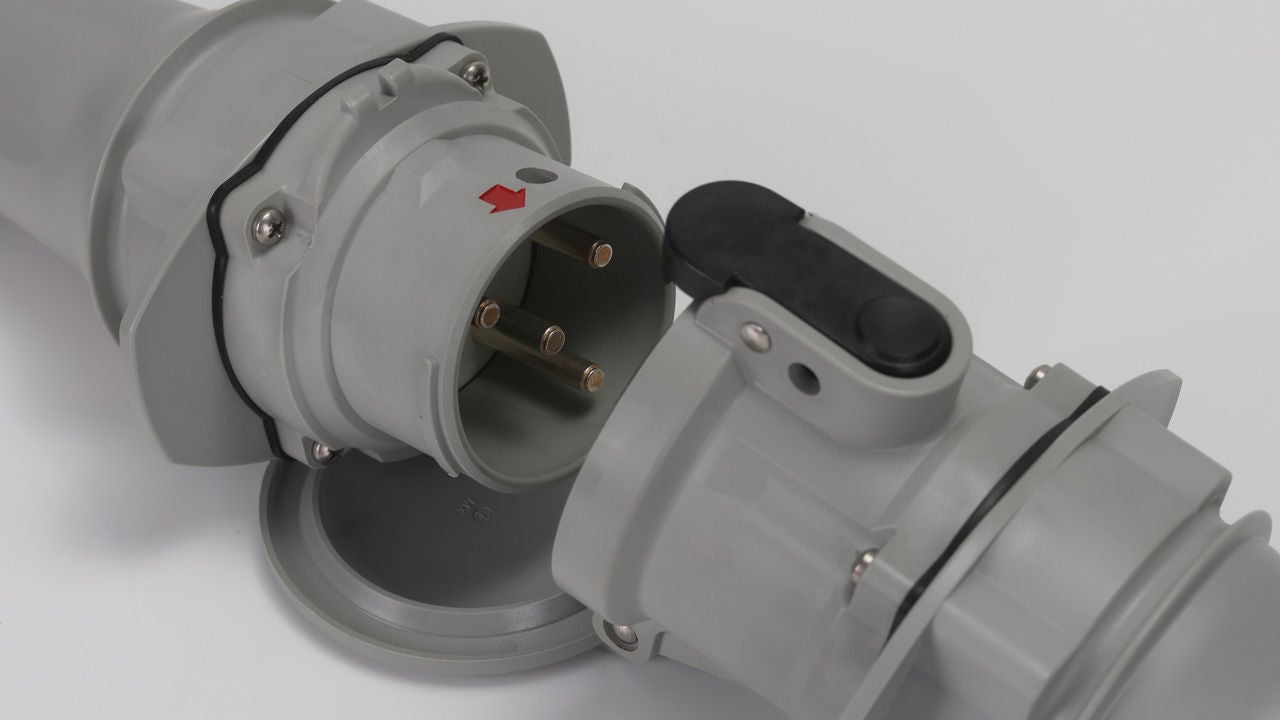

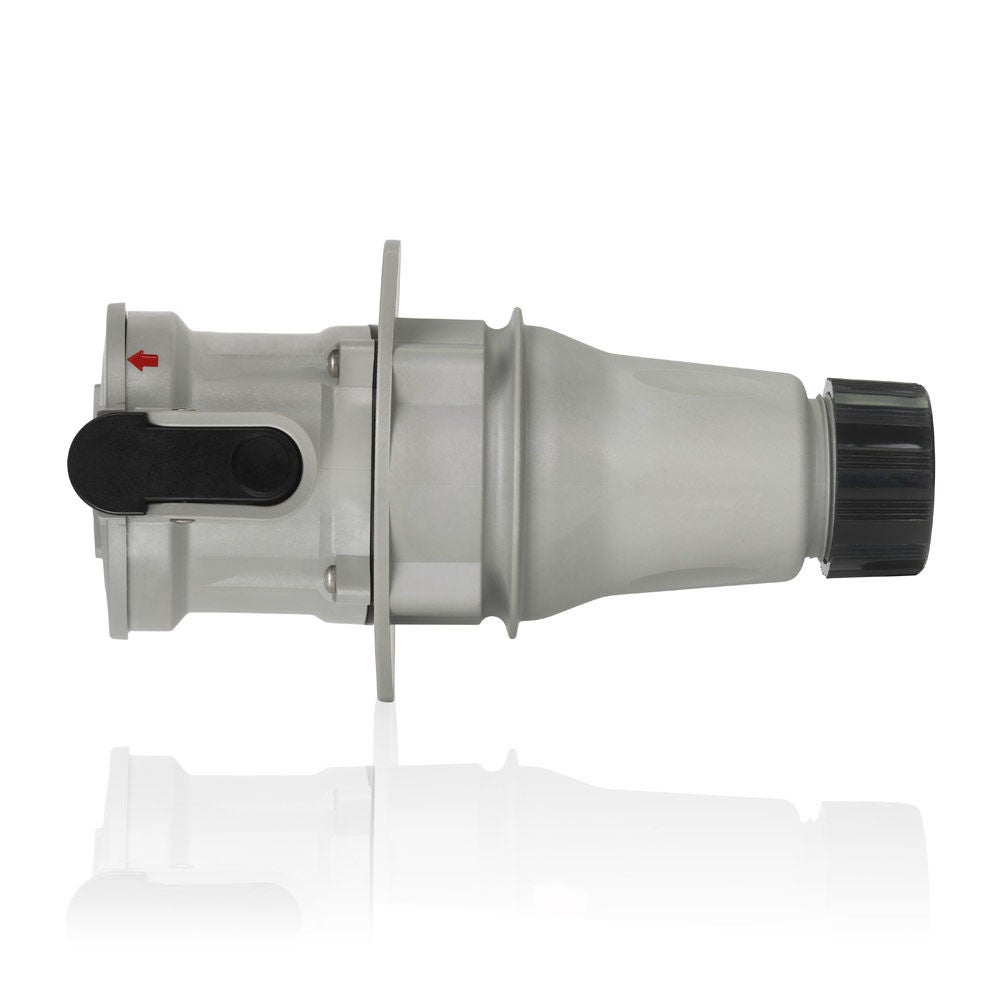

Press the release button to safely disconnect the equipment

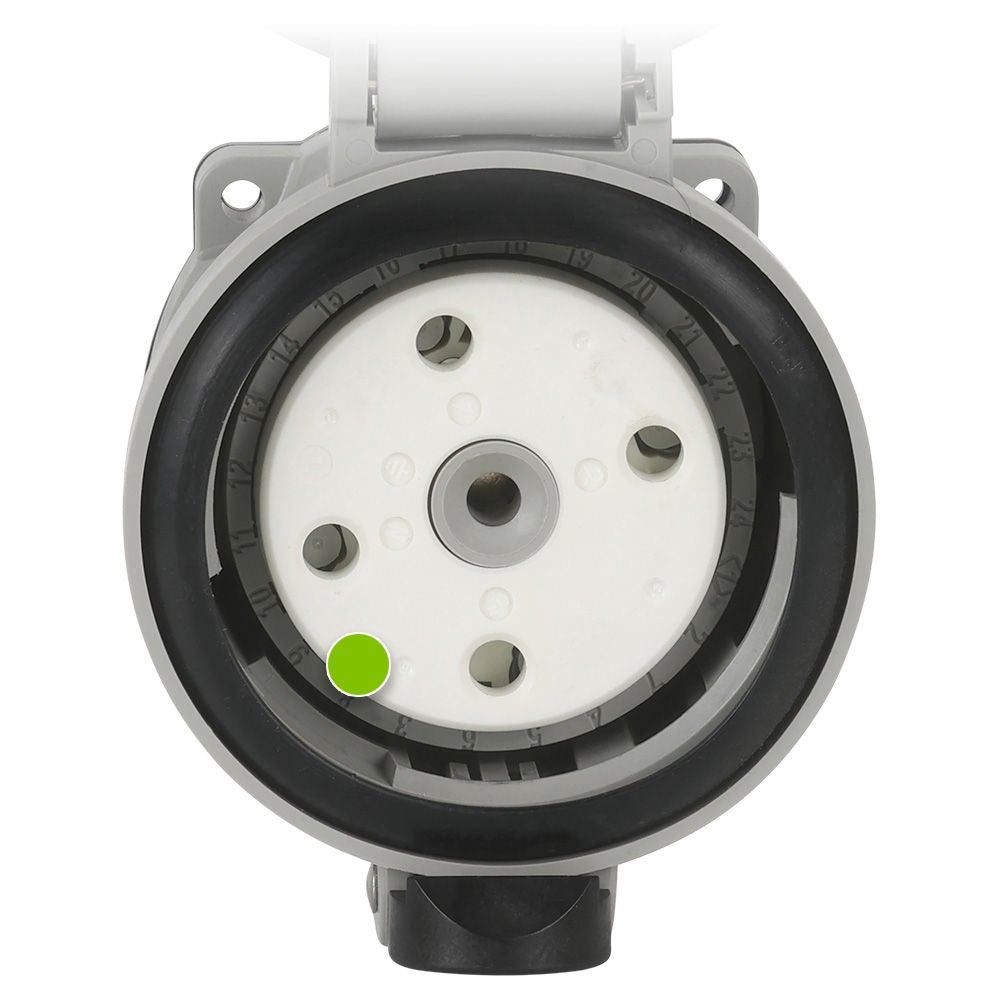

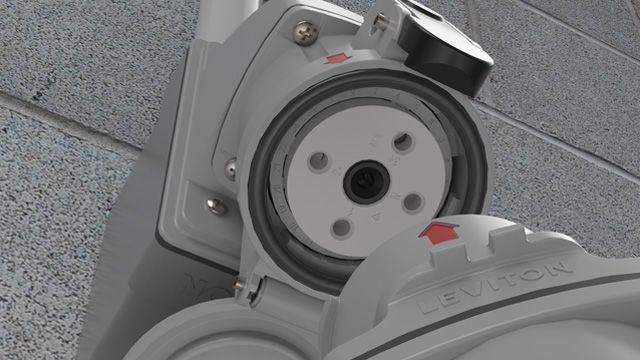

Safety shutter contains arc flash within the device

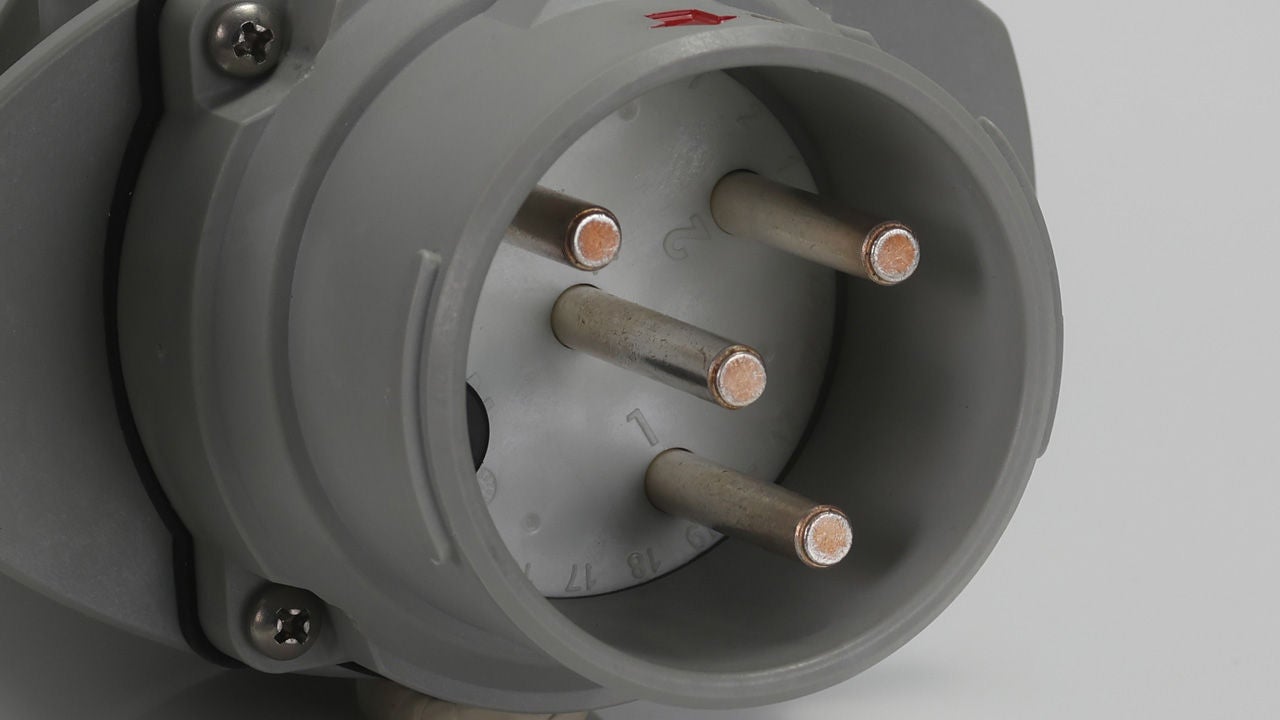

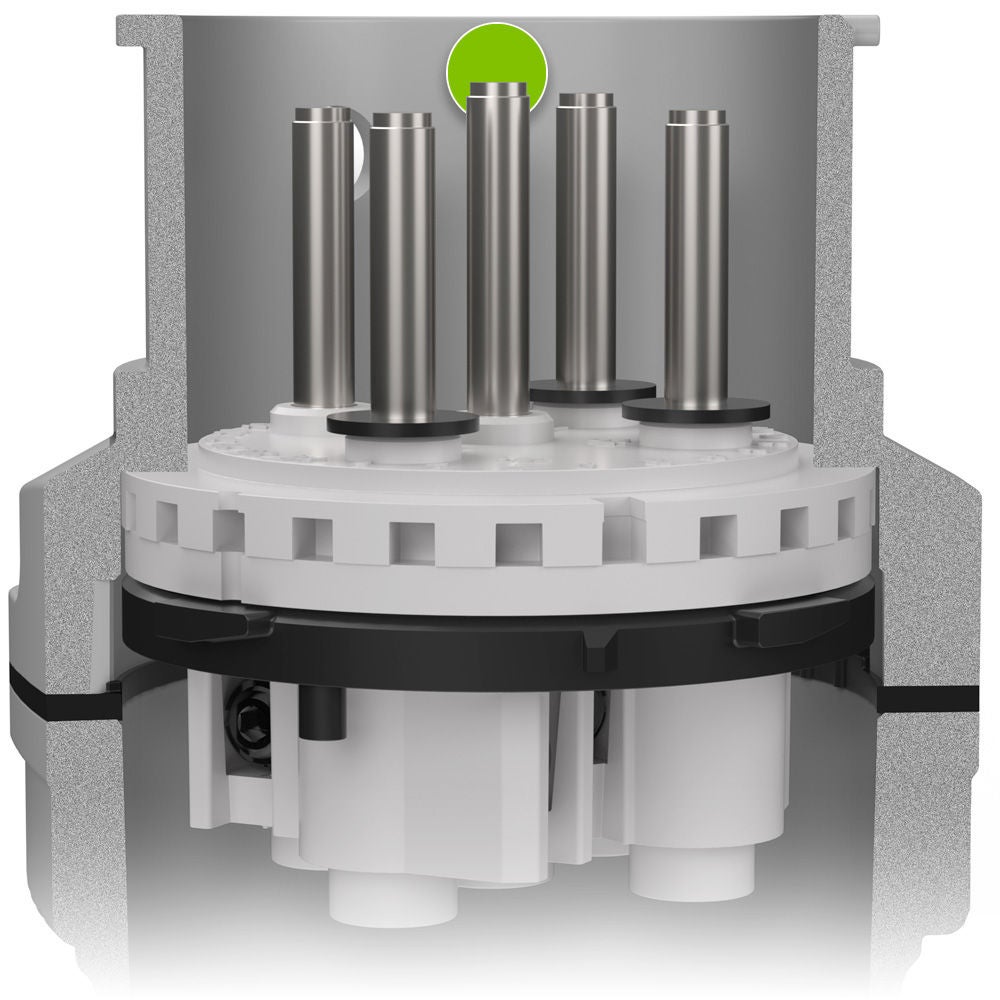

Durable silver contact tips maintain strong electrical connections under extreme conditions

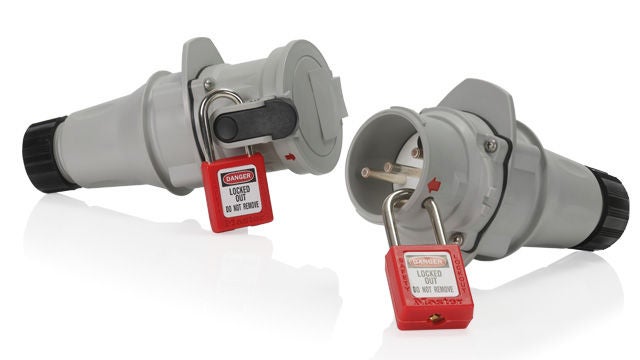

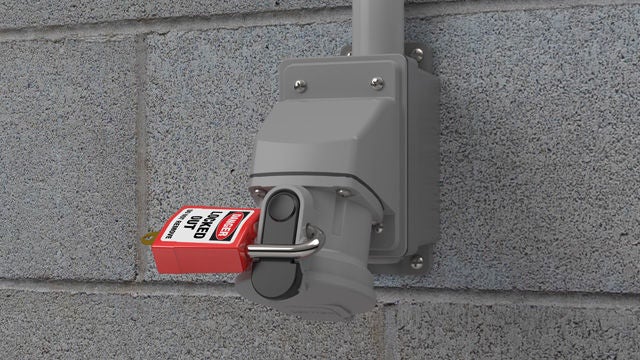

Lockout/tagout provisions in both plug and receptacle for fast OSHA compliance
Provides a local means of disconnect as required by NEC
Rated for both branch and motor circuit disconnects
UL1682 and UL2682 certified
- Arc1
- Arc2
- Arc3
- Arc4
- Arc5
- Arc6
- Arc7
- Arc8

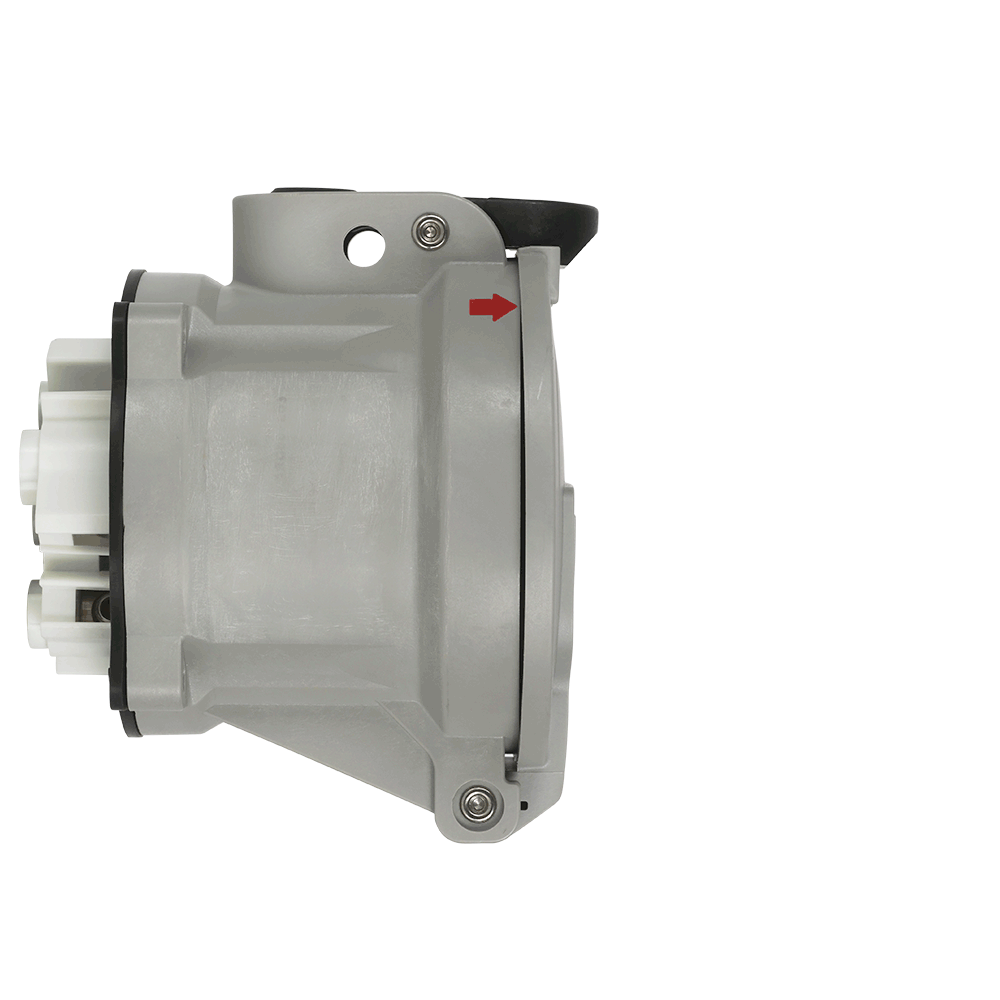

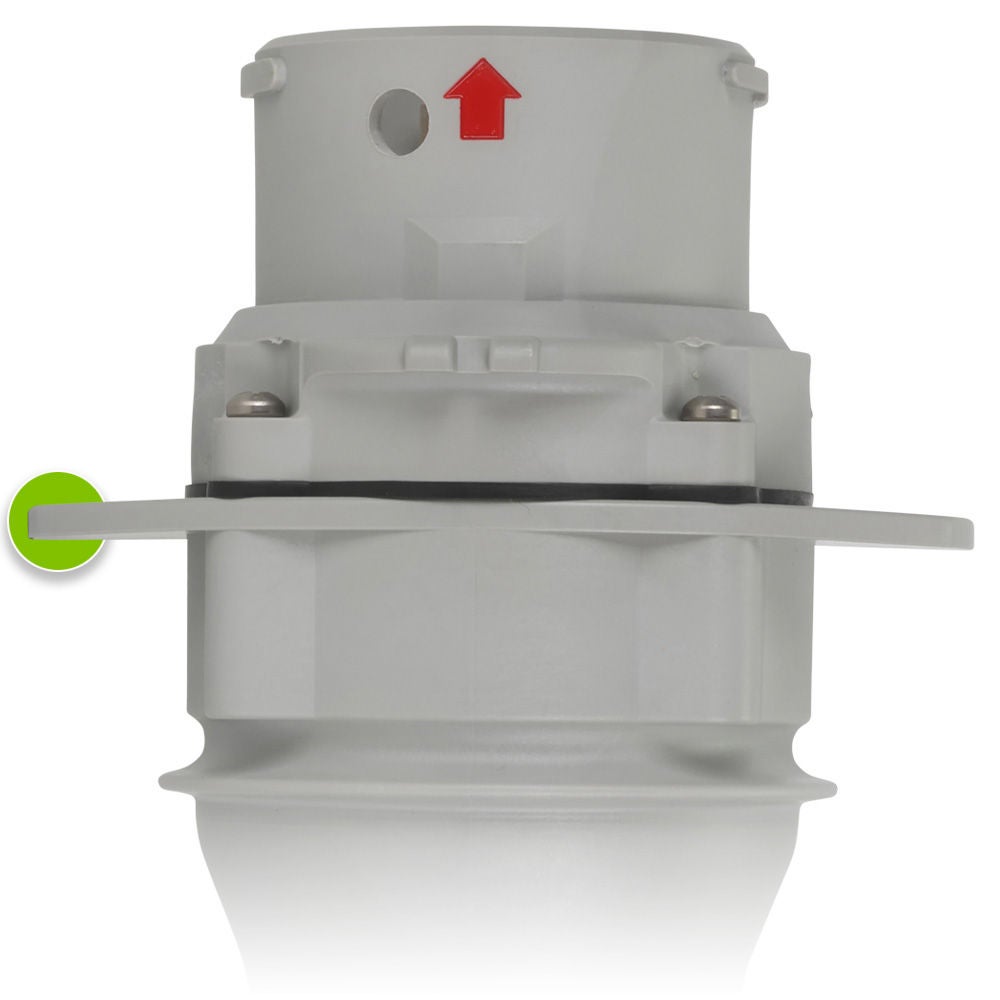

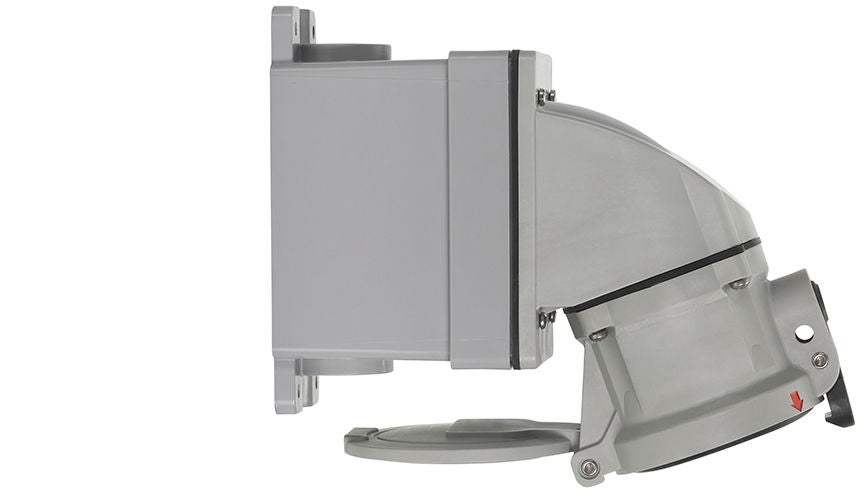

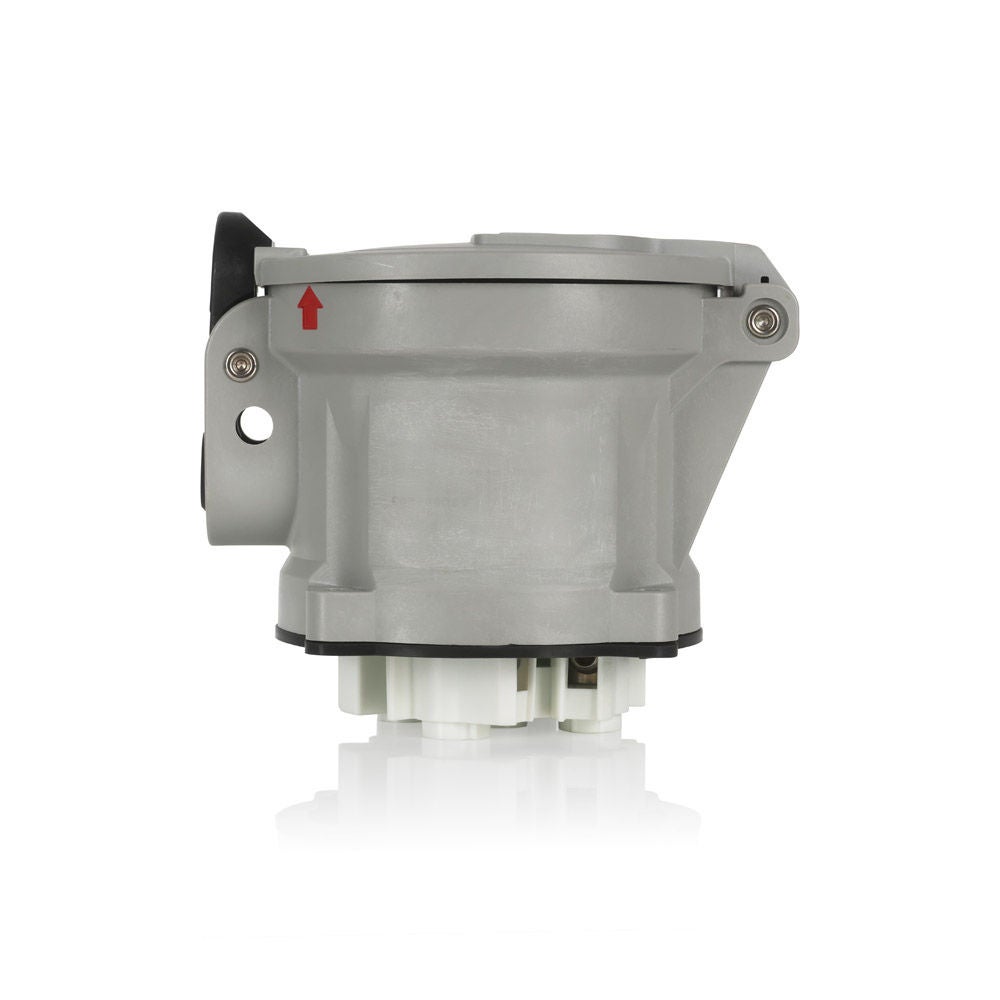

Mounting angle fits on any
standard FS/FD Box
Simplifies ordering and reduces installation complexity

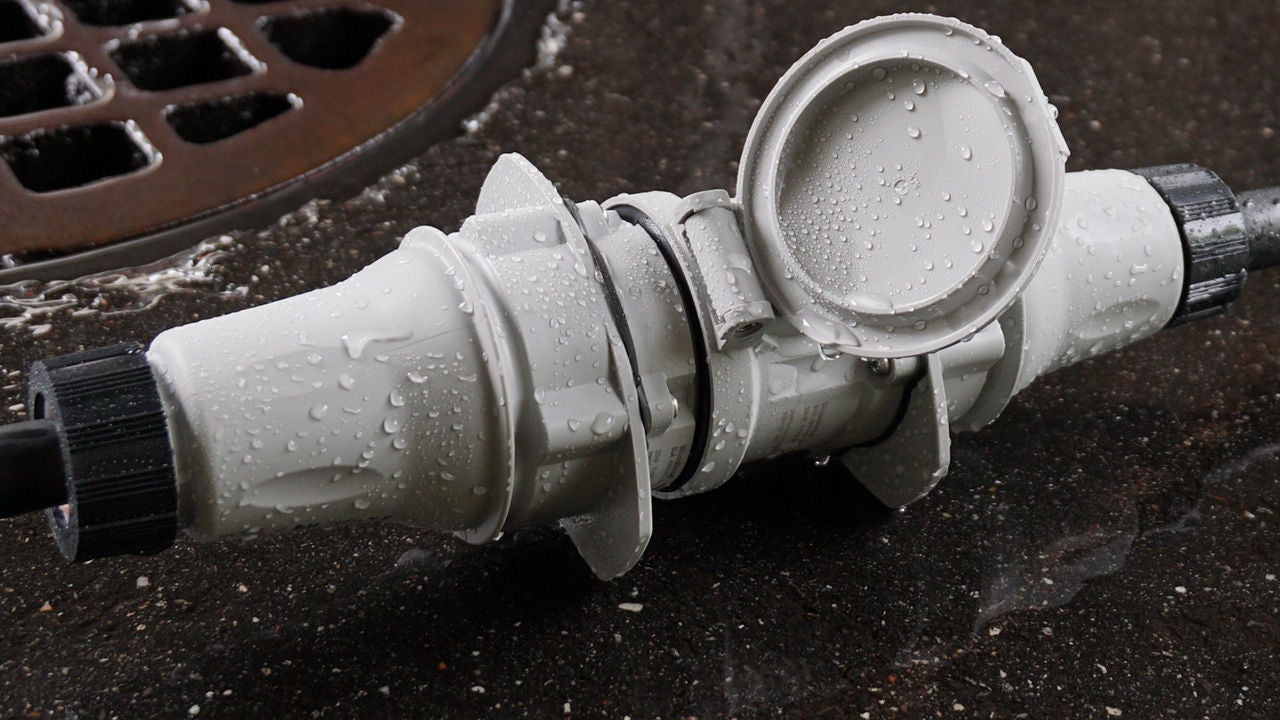

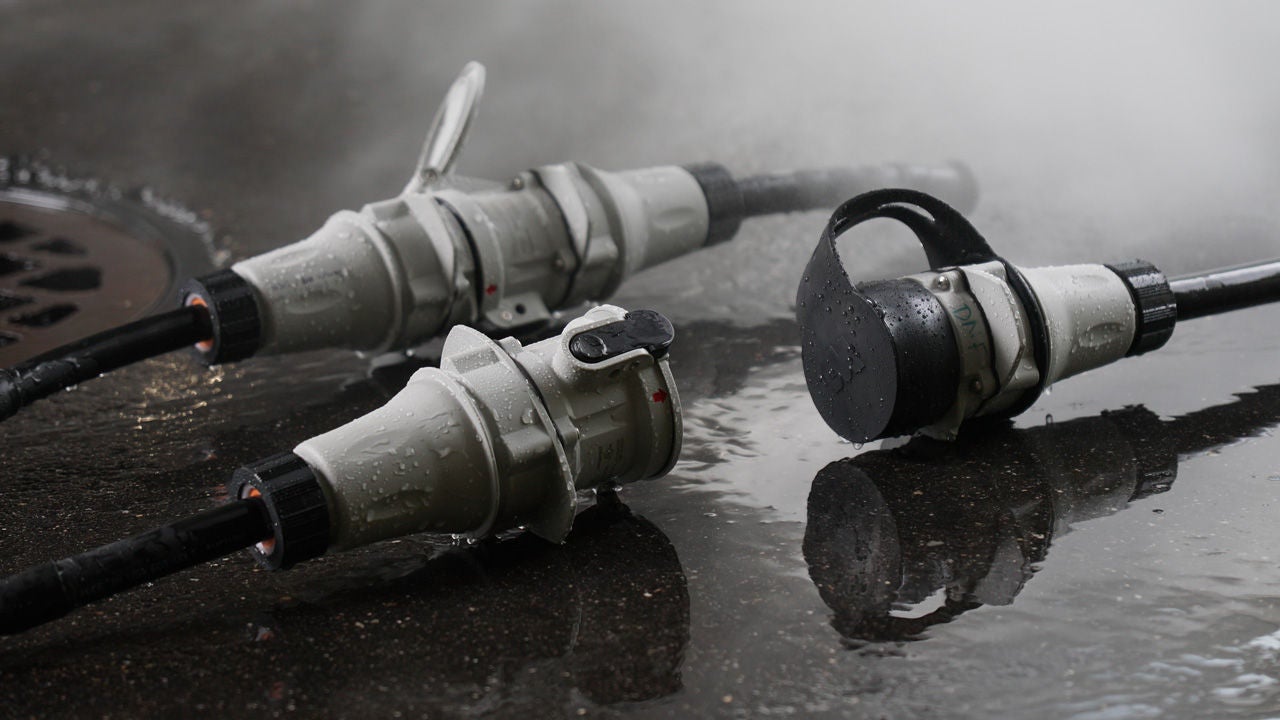

NEMA Type 4X, IP67/IP69K rated.
Eliminates ingress of dust, water, and high-temperature, high-pressure washdowns
Maintains a watertight seal whether connected or disconnected.
When unmated, devices remain protected with receptacle lid or plug cap.
