Straight Blade Receptacles

Hospital Room Showing Receptacles

Leviton offers a selection of high‑quality, reliable straight blade receptacle outlets designed to meet a wide range of application needs. Our portfolio features models equipped with options such as Tamper‑Resistant protection, Isolated Ground, Power Indication, Weather‑Resistant and Corrosion‑Resistant construction, Surge protection, Plug‑Load Control, USB charging capability, and more, supporting virtually any installation.

A receptacle for every application

Choose from the broadest offering of safe and reliable receptacle outlets in the industry: Tamper-Resistant, Isolated Ground, Power Indication, Weather-Resistant, Corrosion-Resistant, Surge, Plug Load Controlled, USB, and more...

The Future Of Wiring Is Here

Lever Edge Wiring Devices

Just push, click, done.
Lever Edge Receptacle Being Wired

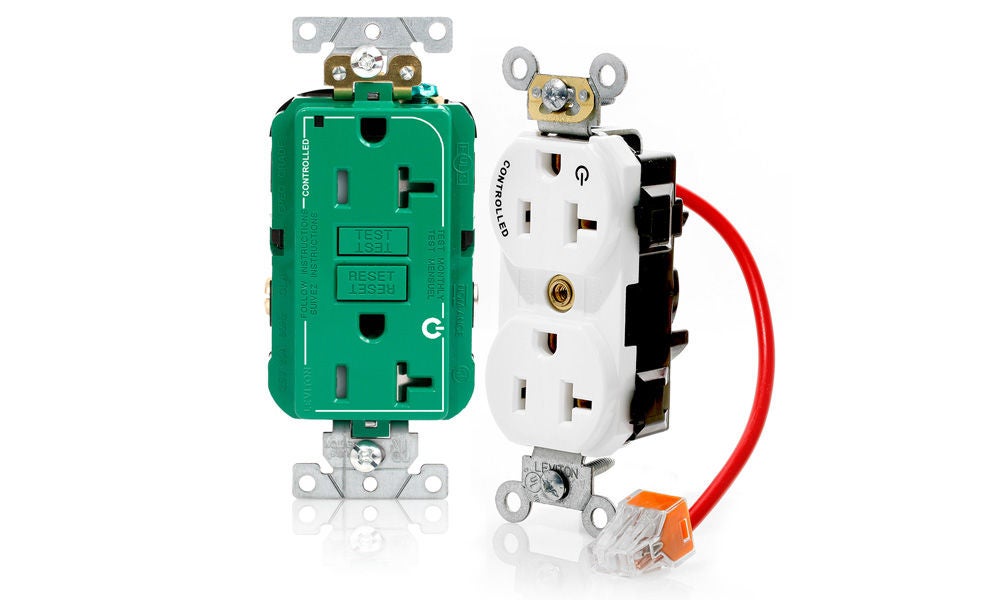

Marked Controlled Receptacles

The NEC requires all 15A & 20A, 125V receptacles that are automatically controlled to be marked with a specific symbol and the word “CONTROLLED” on the device.

  • Benefits:
    • Reducing energy consumption by automatically turning off power to devices when not in use
      • Smaller carbon footprint
    • Lower electricity costs for building owners and occupants
    • Help prevent the overuse of devices that may be left unnecessarily such as lamps, personal fans, and chargers

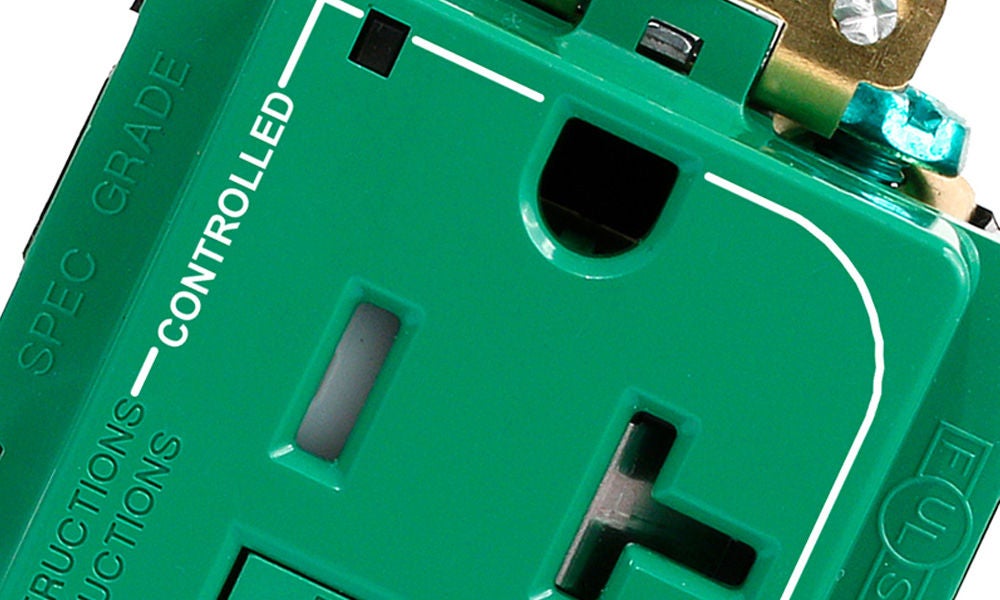

Marked Receptacles Zoomed v2
Marked Controlled Receptacles Grouping v2

How they work:

  • Occupancy sensors
    • Receptacles can be wired to occupancy sensors that detect when a space is occupied and turn on power accordingly
  • Timers
    • Receptacles can be programmed to turn on and off at specific times, ensuring they are only powered during designated periods

Leviton’s marked controlled receptacles feature a NEMA approved permanently marked controlled symbol, meeting the latest NEC® 406.3 code and CA Title 24 and ASHRAE 90.1 Energy Efficiency standards. The marked controlled receptacles are ideal for commercial construction projects, education or government buildings, or the newest healthcare or office environment.

Leaded Devices = Time Savings

"They eliminated the step of us having to add our own leads. So they went straight out of the box and into the install. Was a time saver, as far as I can see...we can have projects with hundreds of devices. So I did like how the Leviton's were grab and go."



- Anthony Parks, Independence Electric

Leaded Receptacles Banner
Leaded Devices Grouping

Leaded Receptacles and GFCIs

  • Provides fast terminating for pigtail wiring applications
  • Eliminates the need to prepare wires for pigtailing
  • No exposed live metal parts for safer installations

Get The Job Done Faster

Innovative wiring solutions that go beyond traditional back and side wiring, designed to simplify and speed installation, as wire termination no longer needs tools or electrical tape.

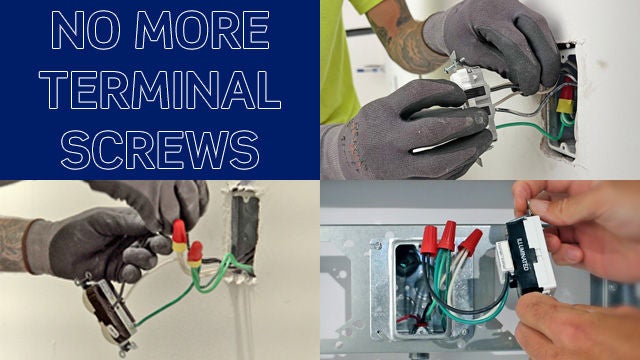

No More Terminal Screws

Know Your Grade

We offer three different grades of receptacles with performance levels based on construction and application:
HOSPITAL GRADE • INDUSTRIAL SPECIFICATION GRADE • COMMERCIAL SPECIFICATION GRADE
HOSPITAL GRADE

UL construction and performance requirements for Hospital Grade receptacles are more stringent than those for specification grade devices. Leviton Hospital Grade receptacles meet or exceed these requirements. These receptacles are Fed Spec W-C-596 rated.

Hospital Grade Green
Hospital Grade Extra Heavy-Duty
  • Single-piece wraparound nickel-plated brass strap
  • Integral ground contacts
  • Extra heavy-duty high-performance brass electrical contacts
Hospital Grade Extra Heavy Duty Receptacle and Strap
Hospital Grade Heavy-Duty
  • Single-piece heavy-duty wraparound galvanized steel strap
  • Brass ground contacts
  • Heavy-duty copper alloy electrical contacts
Hospital Grade Heavy Duty Receptacle and Strap
INDUSTRIAL SPECIFICATION GRADE

For demanding applications requiring robust construction and exceptional electrical performance, Leviton industrial specification grade receptacles are the ideal solution. These receptacles are Fed Spec W-C-596 rated.

Industrial Grade Gold
Industrial Specification Grade Extra Heavy-Duty
  • Single-piece wraparound brass strap
  • Integral ground contacts
  • Extra heavy-duty high-performance brass electrical contacts
Industrial Grade Extra Heavy Duty Receptacle and Strap
Industrial Specification Grade Heavy-Duty
  • Single-piece heavy-duty wraparound galvanized steel strap
  • Brass ground contacts
  • Heavy-duty copper alloy electrical contacts
Industrial Grade Heavy Duty Receptacle and Strap
COMMERCIAL SPECIFICATION GRADE

Leviton commercial specification grade receptacles strike the perfect balance between performance and value. These heavy-duty receptacles are the most widely specified for commercial building projects.

Commercial Grade Blue
Commercial Specification Grade
  • Single-piece wraparound galvanized steel strap
  • Brass ground contacts
  • Heavy-duty copper alloy electrical contacts
Commercial Grade Receptacle and Strap

More Options

SPECIAL FUNCTIONS • ENHANCED SAFETY • WET/DAMP LOCATIONS

Code Compliant Solutions

Tamper-Resistant

Safety shutters prevent unintended contact with live parts as specified by the National Electrical Code.

Tamper Resistant Face Detail
Weather-Resistant

For wet or damp locations; provide added protection against corrosion, UV degradation, and cold impact damage.

Weather Resistant Face Detail
Isolated Ground

Provides a more reliable, noise-free equipment ground path to sensitive electrical equipment.

Isolated Ground Face Detail
Power Indication

Provides visual indication of power present at the receptacle; ideal for emergency circuit applications.

Power Indication Face Detail

Straight Blade Receptacles Frequently Asked Questions

A straight blade receptacle is a device that accepts plugs with flat, parallel blades and is commonly used in residential, commercial, and industrial applications.

Commercial grade receptacles are built for higher-use environments, such as offices, schools, retail spaces, and other light commercial settings, while residential grade receptacles are designed for everyday household applications.

Yes! Hospital grade receptacles are designed to meet additional performance requirements for healthcare applications. They undergo more stringent testing for grounding reliability, assembly integrity, strength, and durability than standard receptacles.

Learn More About Hospital Grade Receptacles: Healthcare

  • Application type
  • Electrical requirements
  • Environmental conditions
  • Required device grade
  • Desired safety features

  • Decora® Receptacle: Features two outlets with a modern rectangular opening design.
  • Duplex Receptacle: Features two outlets with a traditional side-by-side appearance.

Yes! Tamper-resistant receptacles are required by National Electric Code (NEC) in many locations to help improve safety. They feature internal shutters that help prevent foreign objects from being inserted into the outlet.

Different receptacle grades are designed to meet varying performance and application requirements.

Common grades include:

  • Commercial Grade
  • Specification Grade
  • Hospital Grade
  • Heavy-Duty Industrial Grade
  • Extra Heavy-Duty Industrial Grade

A NEMA receptacle is an electrical outlet designed to match specific plug configurations established by the National Electrical Manufacturers Association (NEMA). Different NEMA configurations support various voltages, amperages, and applications.

ARCAT Building Specifications WHITE Logo

Leviton’s electrical wiring devices are available in ARCAT’s construction specifications. These specifications are complete CSI 3-part and Canadian CSC architectural specs that can easily be downloaded, customized for your project, and included in your master spec for future use. Offering BIM objects, specifications, and the SpecWizard tool, ARCAT is your complete source for finding, selecting, detailing and specifying building projects.

Explore Device Specifications!
