GreenConnect makes wireless lighting control easy with a simple, scalable solution. Pair multiple devices for single or multi-zone control using Push-to-Pair technology—no hub, controller, or app required. Fully programmable by the contractor, setup is quick and effortless with no factory commissioning required. Add wireless control to virtually any switching or dimming device without new wiring, making it an ideal solution for retrofits and new construction.
Discover Simplified Wireless Lighting Control with GreenConnect - Wireless Done Right!
- Simple Wireless Solution ─ makes wireless lighting control layouts easy to design, install, and program by contractors with no factory commisioning required.
- Flexible, scalable platform ─ allows customers to start small and expand. Pair a dimmer or a wall switch with a load controller for a basic application or add additional wireless components as needed.
- Code Compliant ─ meet the code requirement needs for virtually any space.

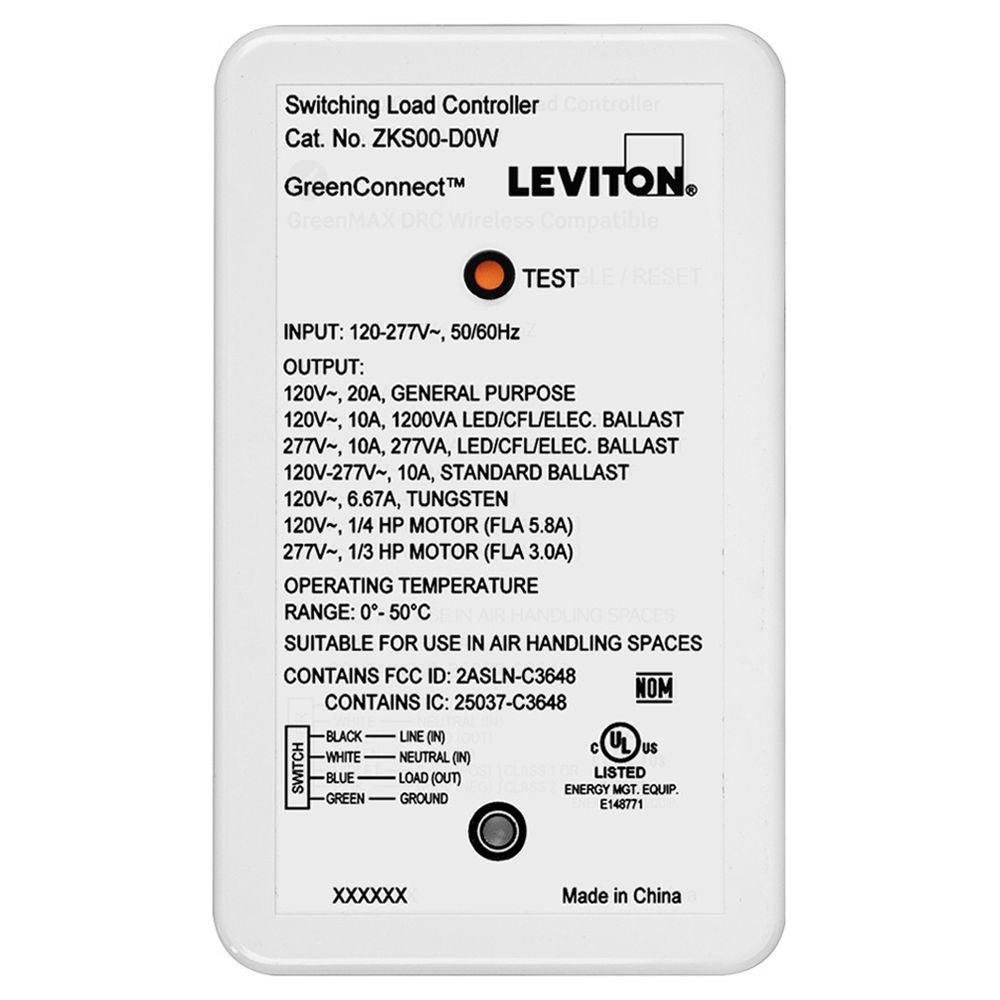

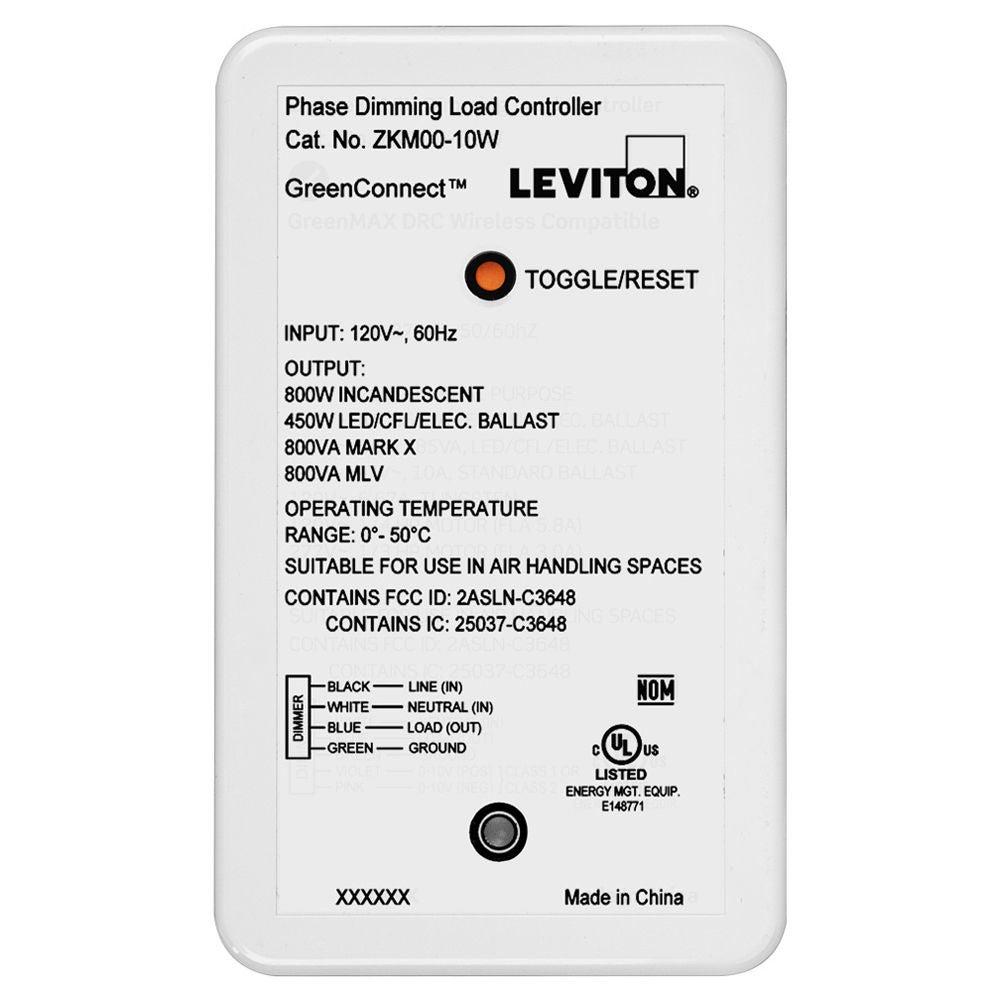

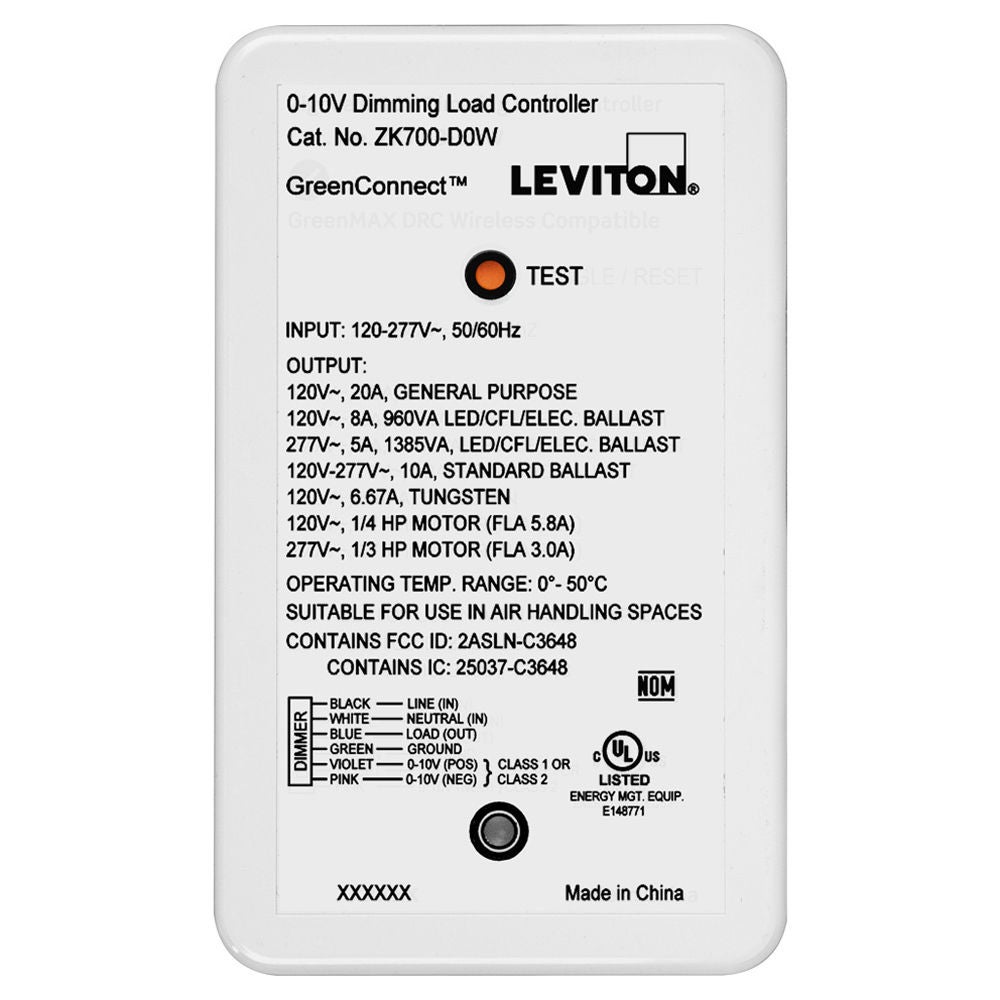

Wireless Load Controllers
Add to virtually any lamp or fixture for a wireless ON/OFF, 0-10V dimming, or phase cut dimming solution.

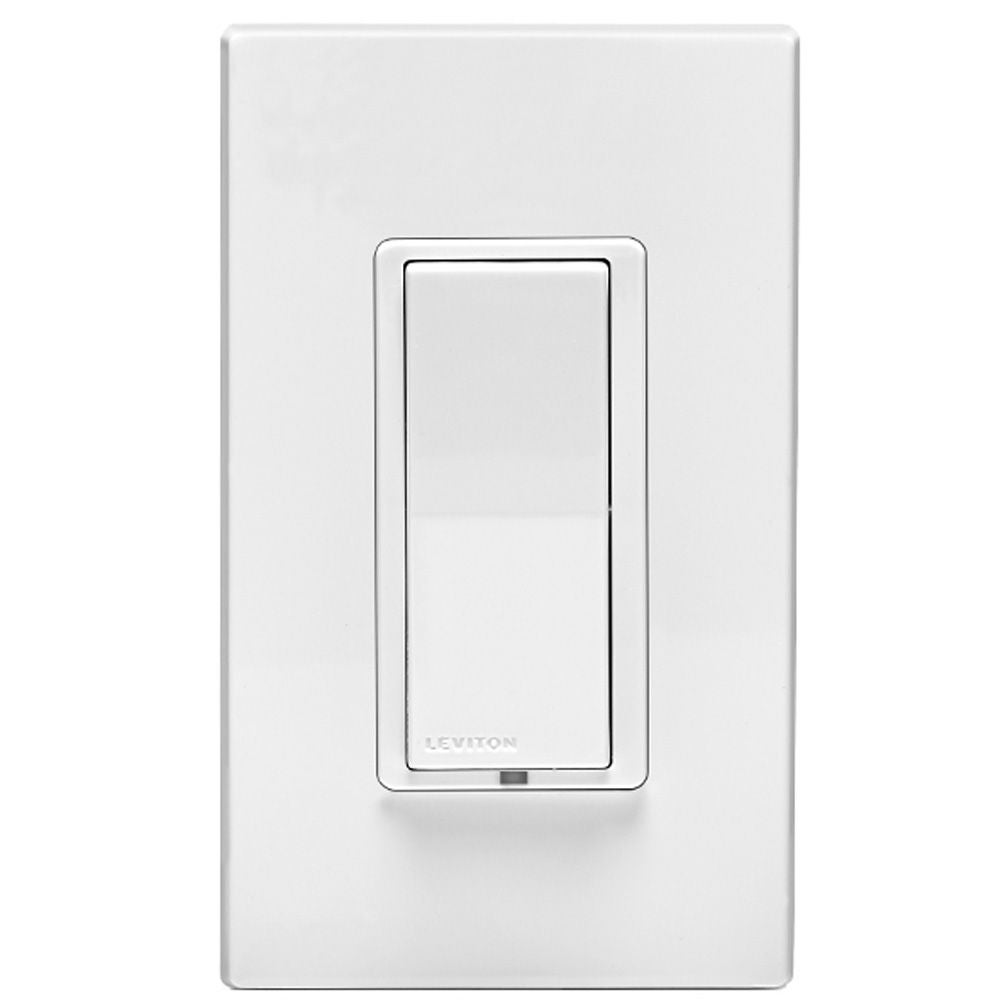

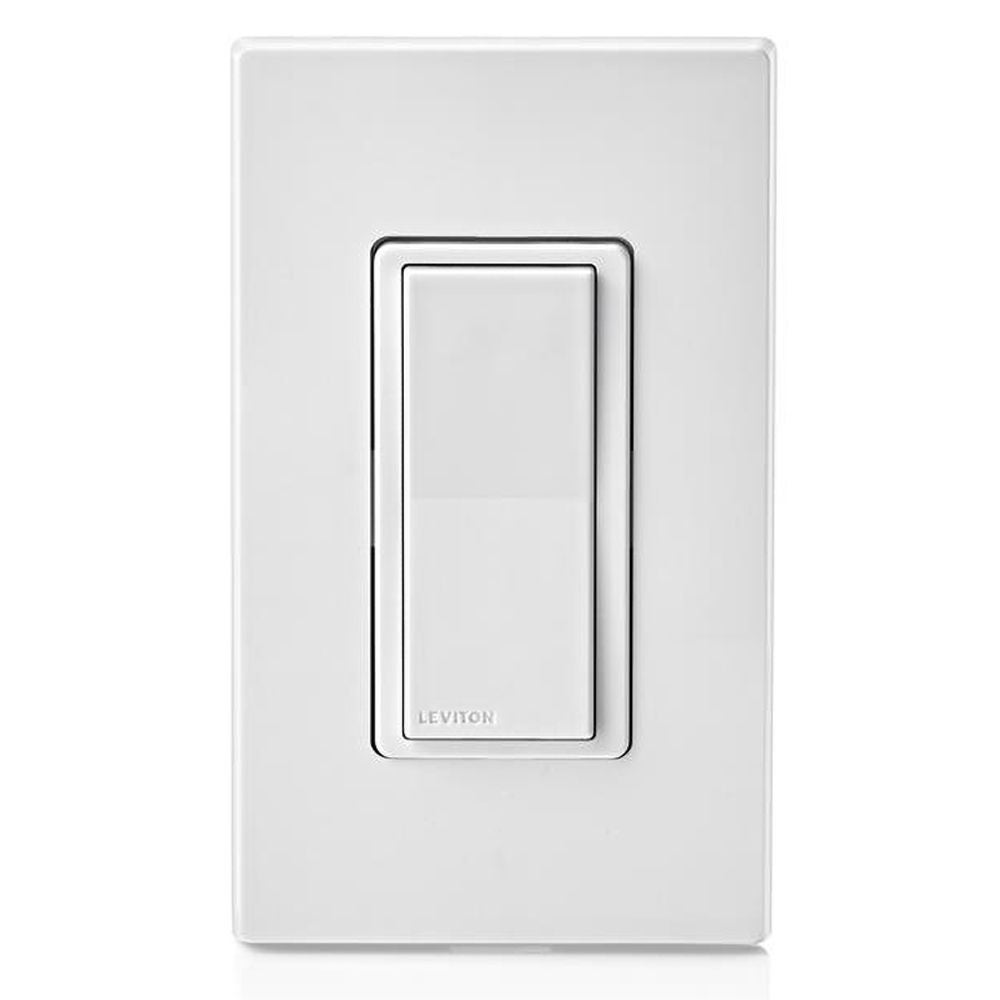

Wireless Wall Switches
Two models to choose from - Wireless Wall Switch, and Wireless Companion Switch.

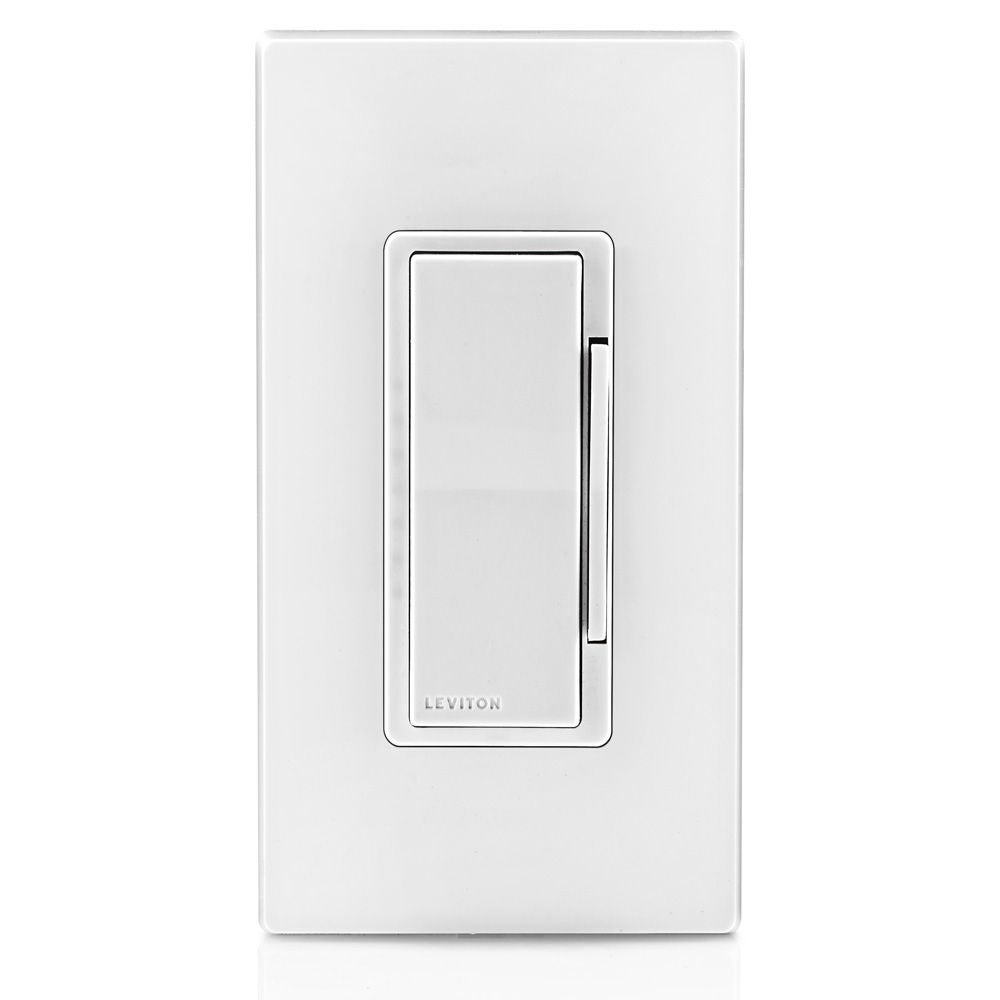

Wireless Wall Dimmer
Choose from three models - 0-10V, 1000W Forward Phase, or Wireless Companion Dimmer.

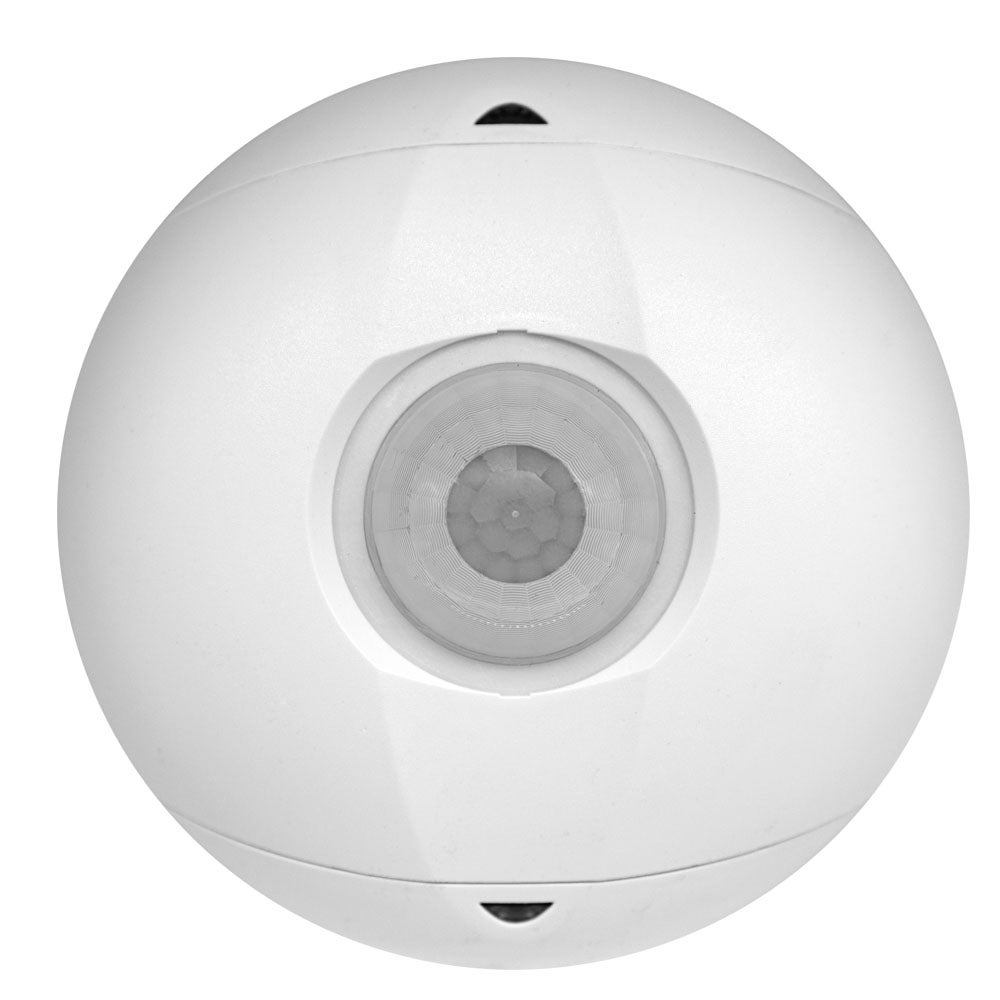

Wireless PIR Integrated Sensor & Photocell
Detects motion and measures light levels.

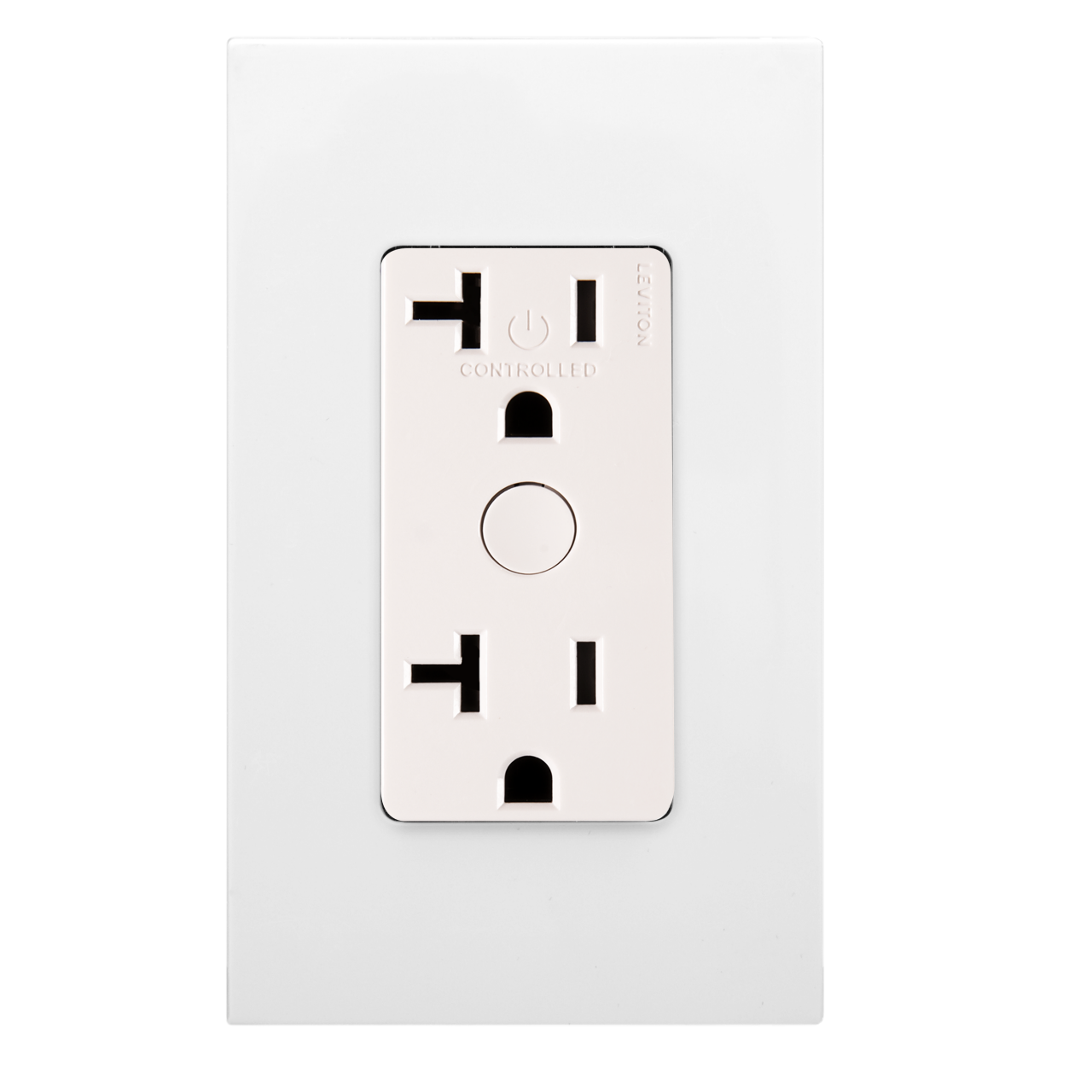

Wireless Controlled Receptacle
20A controlled receptacle for a simple, energy code compliant plug load control solution.

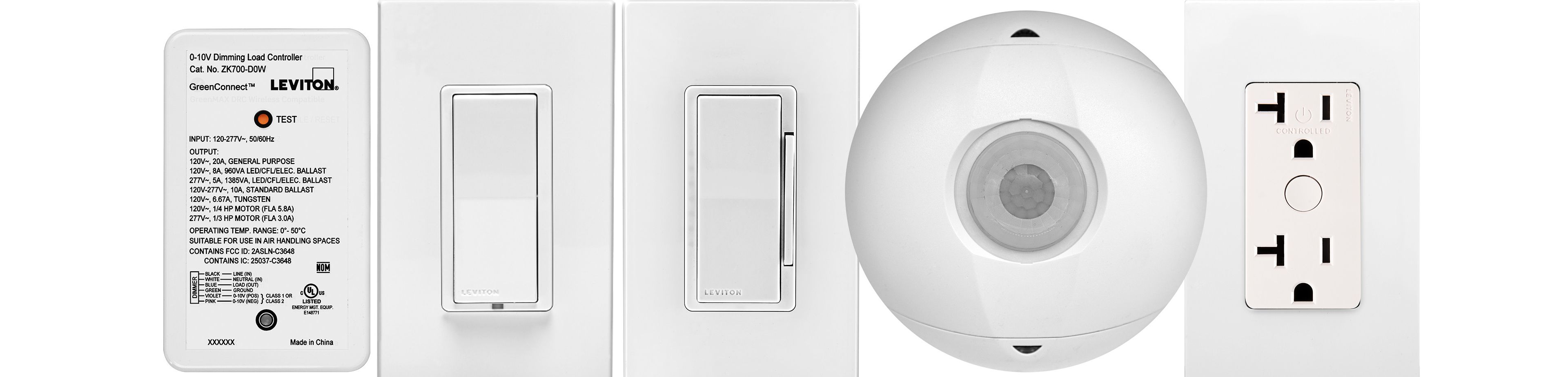

GreenConnect Wireless Components
- ZK700-D0W
- ZKM00-10W
- ZKS00-D0W
- ZBS00-D0Z
- ZB700-D0Z
- ZB700-30Z
- ZBM00-10W
- ZBK00-CDW
- ZBK00-CSW
- ZC015-BIW
- ZBR20-1SW

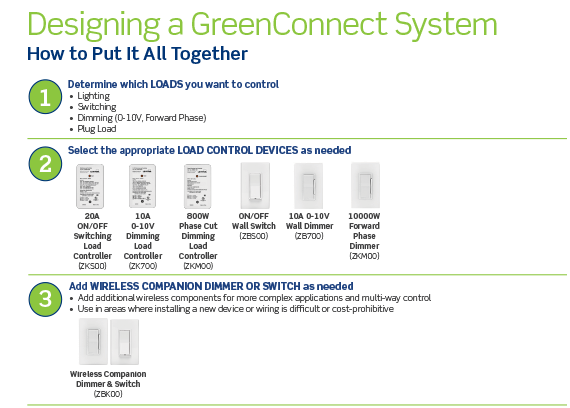

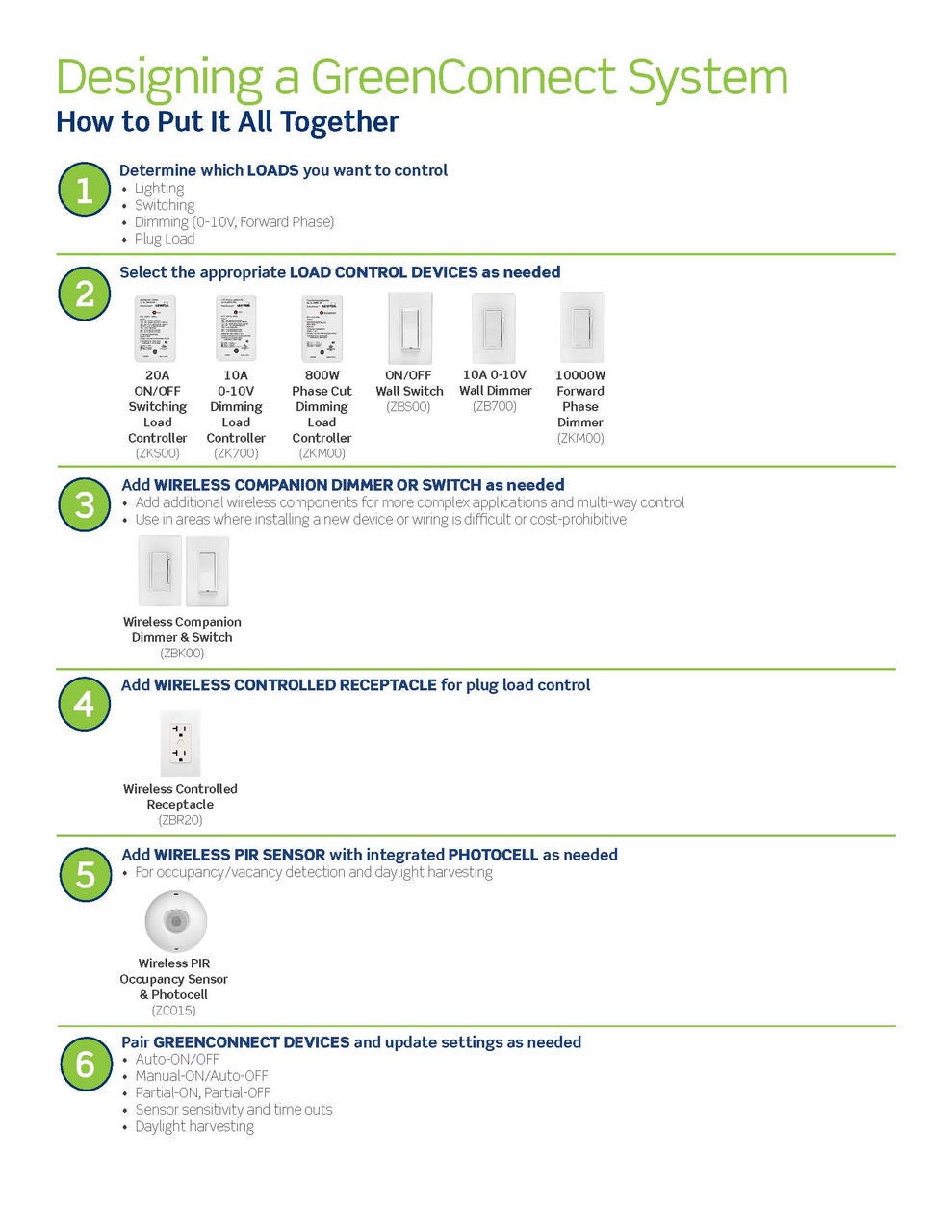

How to Put It All Together
Learn how to put together a GreenConnect System.
For basic lighting control:
- Step 1: Determine which LOADS you want to control
- Step 2: Select the appropriate LOAD CONTROLLERS
- Step 3: Pair GREENCONNECT DEVICES
Add additional lighting controls as needed:
- Add WIRELESS COMPANION DIMMER OR SWITCH for multi-way control
- Add WIRELESS PIR SENSOR with integrated PHOTOCELL for occupancy/vacancy sensing and daylight harvesting
- Add WIRELESS CONTROLLED RECPTACLE for plug load control
Videos
Frequently Asked Questions
GreenConnect delivers simple wireless lighting control for virtually any switching or dimming load. Pair multiple devices for single or multi-zone control without new wiring, room controllers, hubs, or commissioning. GreenConnect is simple to specify, install, and program—making it easy to meet your building’s needs quickly, stay on budget, and be ready for what comes next.
GreenConnect devices are programmed using Push-to-Pair technology, which allows them to connect automatically without extra hardware, a room controller, or app.
Sixteen devices per network.
Single occupancy and daylight zone and up to 16 lighting control zones.
The Wireless Companion Dimmer and Switches have a range of 50’. All other devices have a range of 75’.
Our network is IEEE 802.15.4, 2.4Ghz.
GreenConnect uses Push-to-Pair technology and the Smart Ceiling Mount Sensor uses an app.
Scene control is a feature of GreenMAX® DRC Wireless. Just add a Wireless Keypad Room Controller to access the full feature set.
GreenConnect was designed to the Zigbee 3.0 standard. The sensor and receptacle have passed certification. The remaining devices are planned for certification in the near future.
Every line voltage device is a network repeater to ensure the stability and range of the system.
Load controllers are mounted to a junction box using the ½” threaded nipple and lock nut. The load controller must be accessible enough for the installer to push the test button and observe the LED for the Push-to-Pair Process.
Not at this time. We are continually updating our system and adding new hardware, features, and capabilities.
No. GreenConnect does not require a room controller.
Yes.
The controlled receptacle only responds to the occupancy sensor. You cannot control the receptacle without a wall switch.
Three red blinks if not enrolled. Three green blinks if enrolled. Two green blinks if enrollment is incomplete. One green blink if enrolled but no communication from the network. Please refer to the installation instructions.
Yes. The GreenConnect Occupancy Sensor is a PIR sensor with an integrated photocell for applications requiring daylight harvesting.
7-10 years for the PIR Sensor, and 5 years for the Wireless Companion Dimmer and Switch.
Yes. The GreenConnect Wireless 20A receptacle is split with the top outlet controlled and the bottom outlet always on. It also allows for additional feed-though receptacles to be wired downstream and controlled together with the top outlet controlled by the network.
No. BMS integration is a feature of GreenMAX® DRC Wireless. Just add a Wireless Keypad Room Controller to access the full feature set.
Yes. They can be used to comply with IECC, ASHRAE 90.1, and 2025 Title 24, Part 6.
