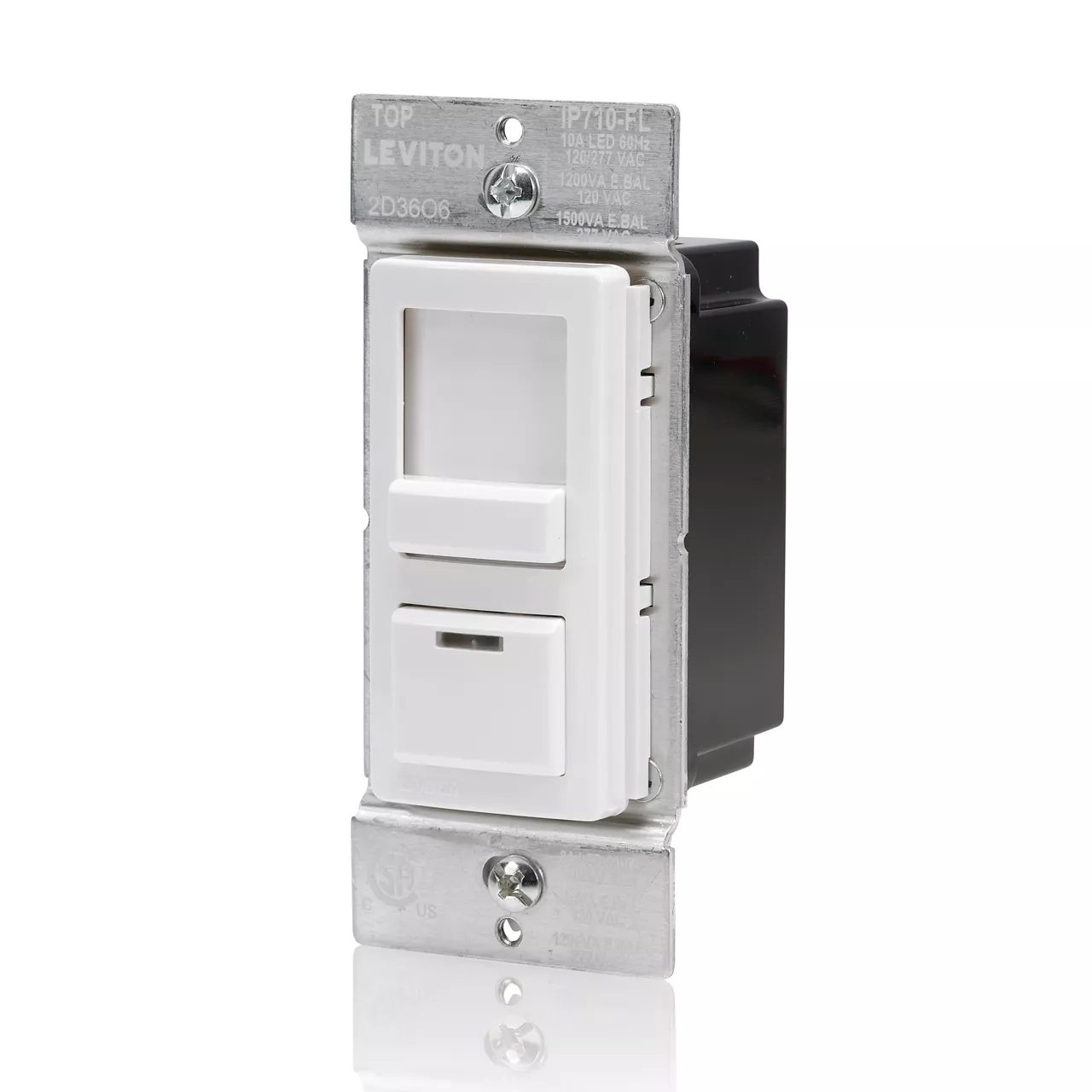

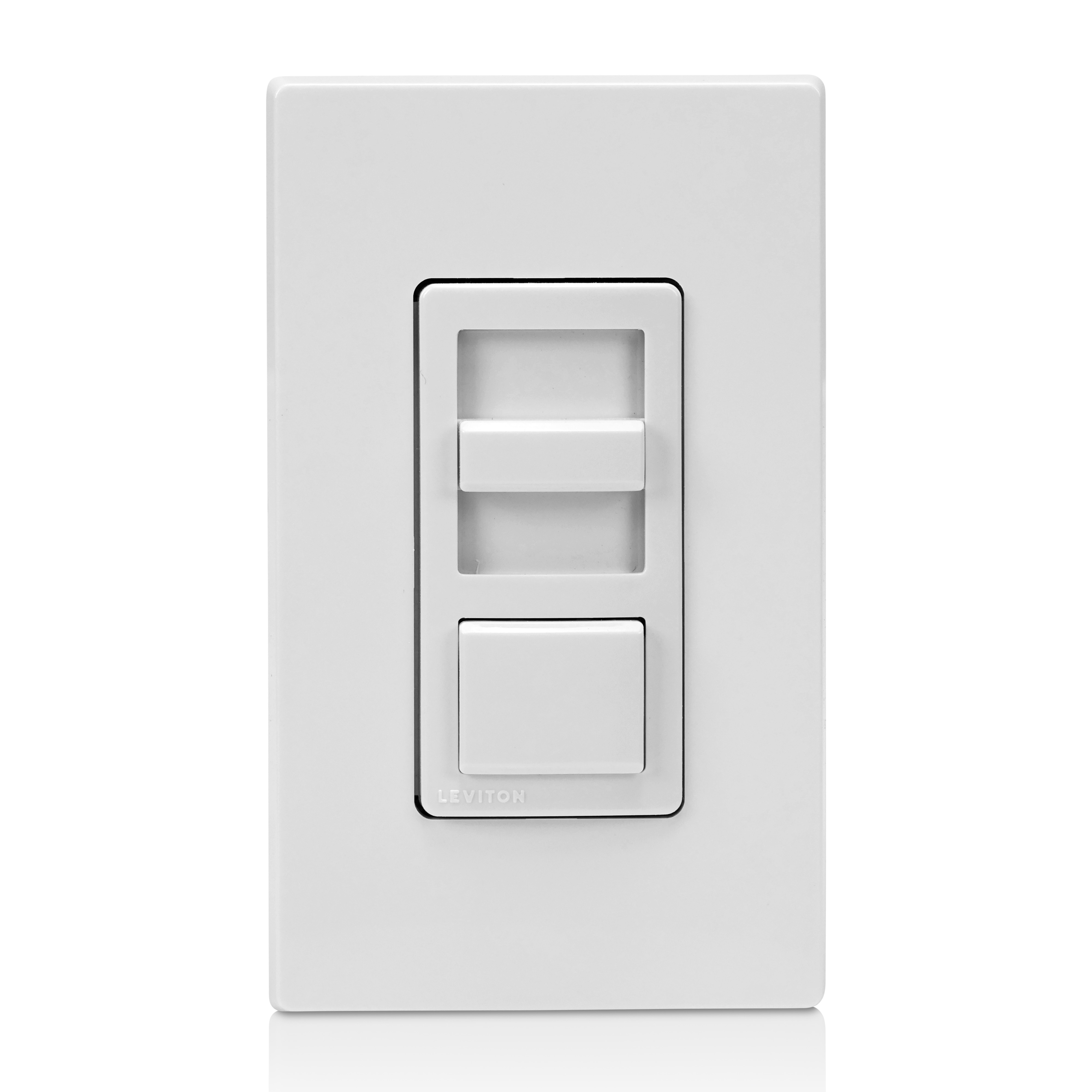

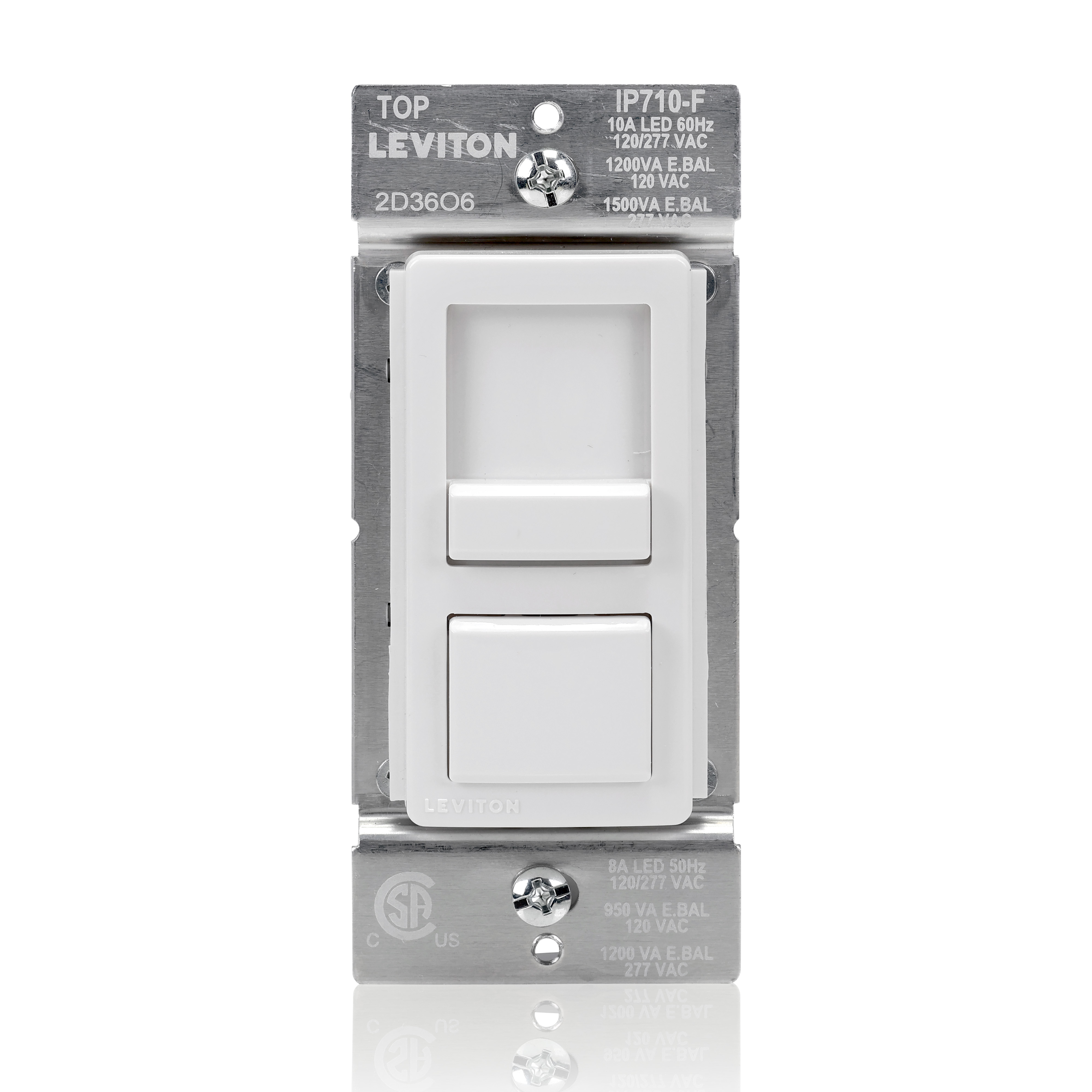

IllumaTech Lighted Dimmer Switch for 0-10V LED, Mark 7 Fluorescent Ballasts

IP710-FLW

IllumaTech Slide Preset Electro-Mechanical 0-10V Slide Dimmer for use with LED or Fluorescent Ballasts and Power Supplies with LED locator light, suitable for use with Class 1 or Class 2 wiring, 1200VA @ 120VAC, 1500VA @ 277VAC, 10A LED 120/277VAC, 60Hz, 50mAmps maximum sinking current, single pole or 3-way control when used with 3-way switch - White

PROFESSIONAL GRADE DIMMING – Delivers smooth, reliable 0-10V dimming for LED fixtures and power supplies in homes, offices, schools, hotels, restaurants, and commercial spaces

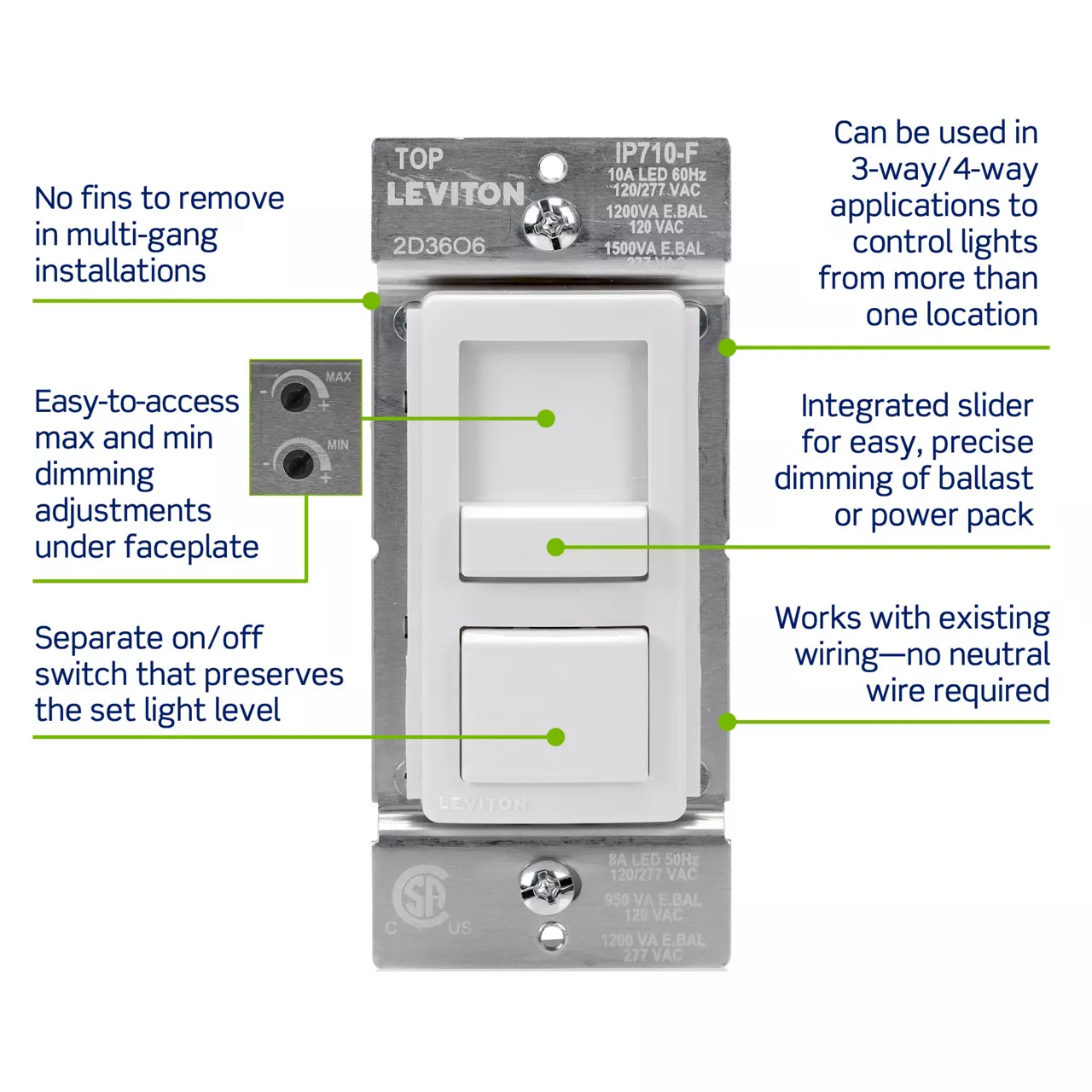

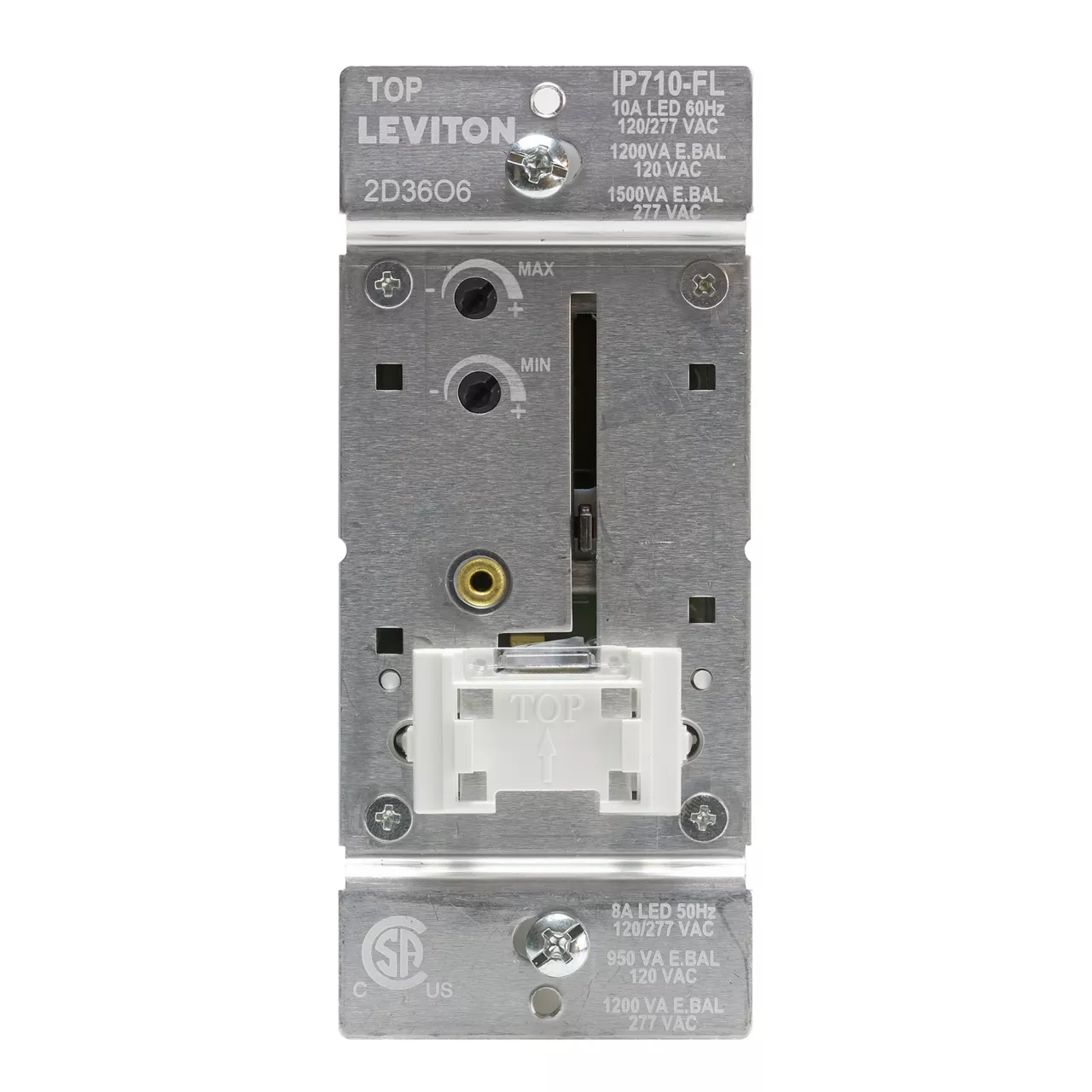

OPTIMIZED PERFORMANCE - Easily adjust the minimum dim level and maximum brightness settings to customize performance and compatibility with the 0-10V fixture

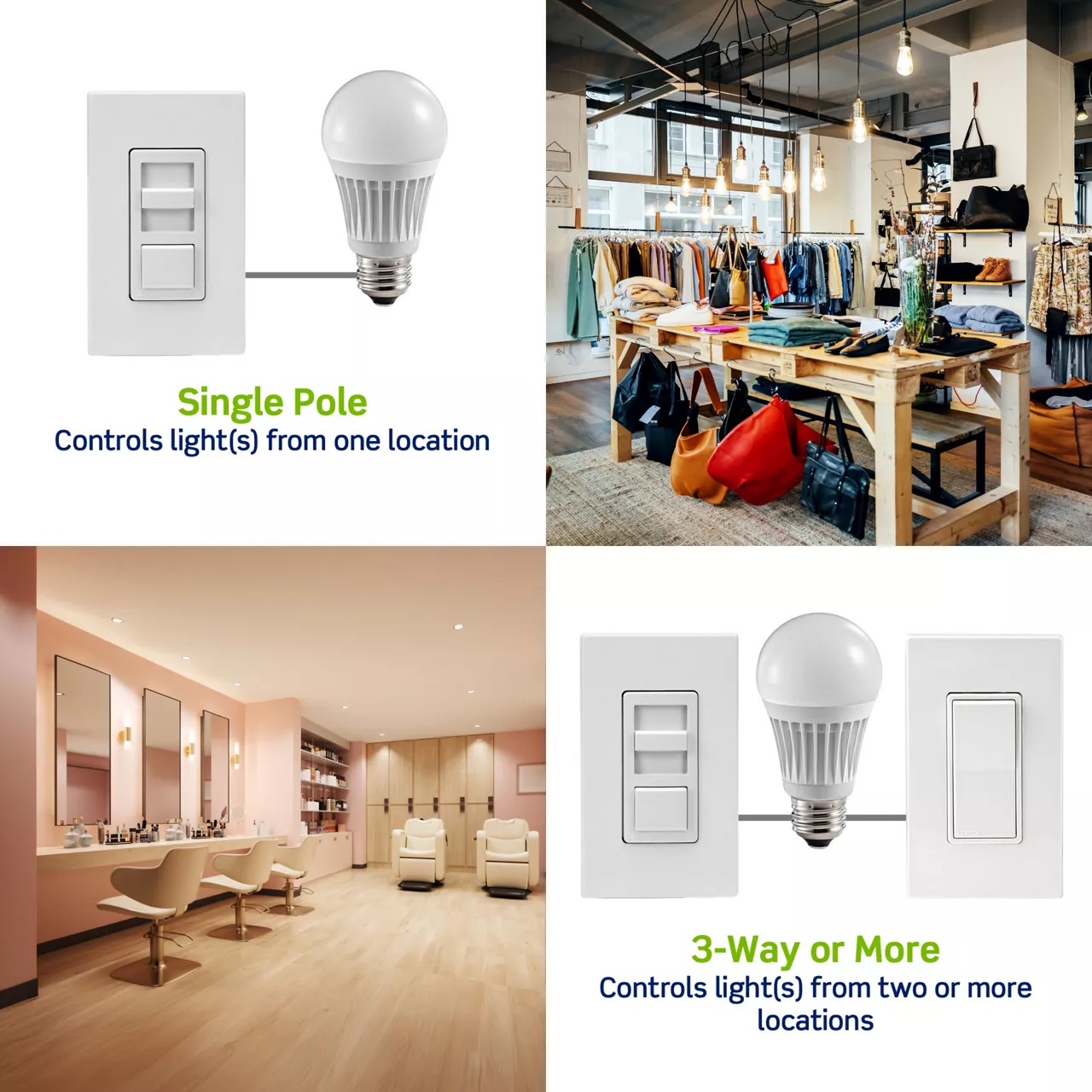

VERSATILE –Single-pole or 3-way setups with a 3-way switch; 4‑way setups with one 3‑way and one 4‑way switch (switches sold separately); no neutral wire needed, no power pack required for switching

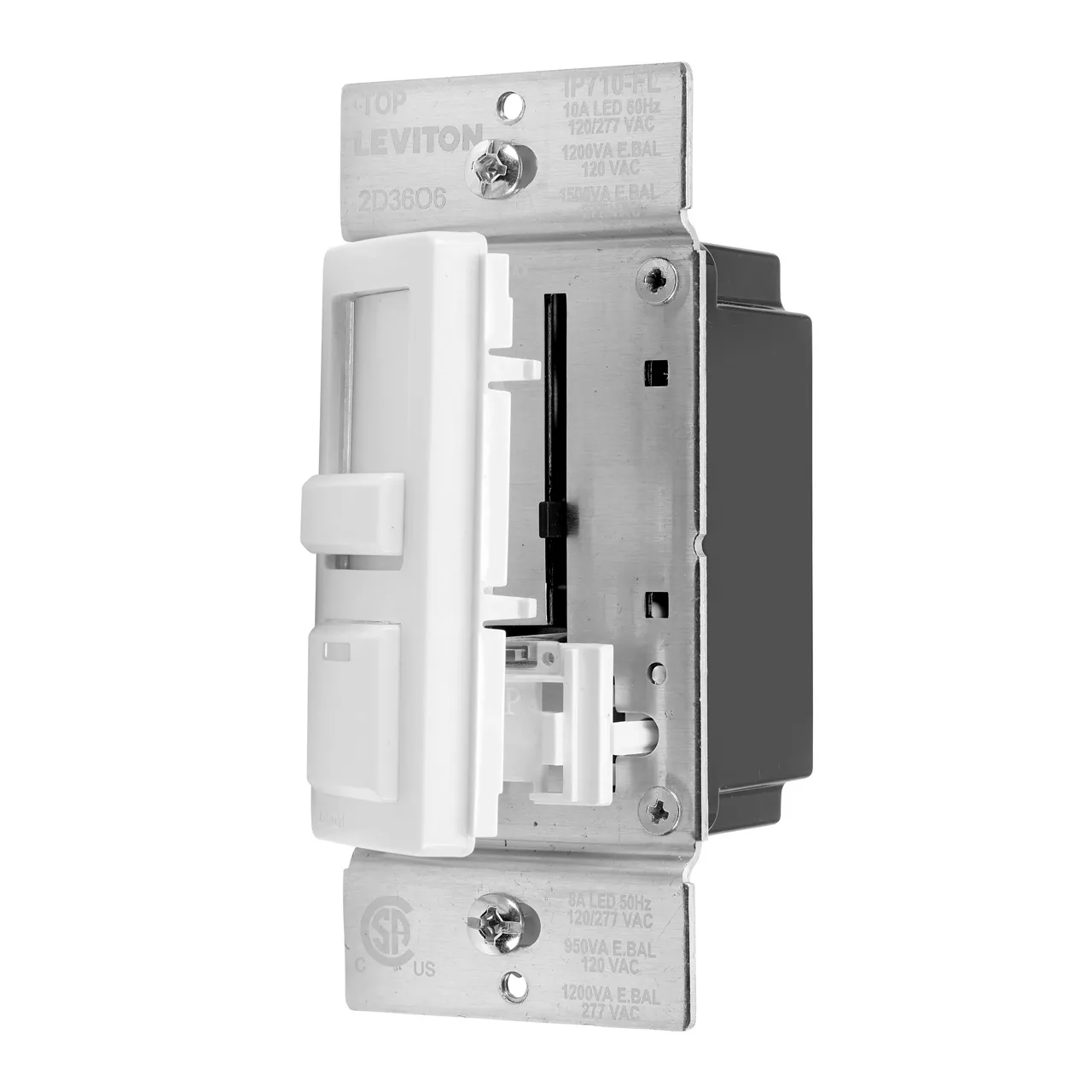

MATCH YOUR DECOR – Easily change the device color with IPKIT faceplates available in white, ivory, light almond, gray, black, brown, and red

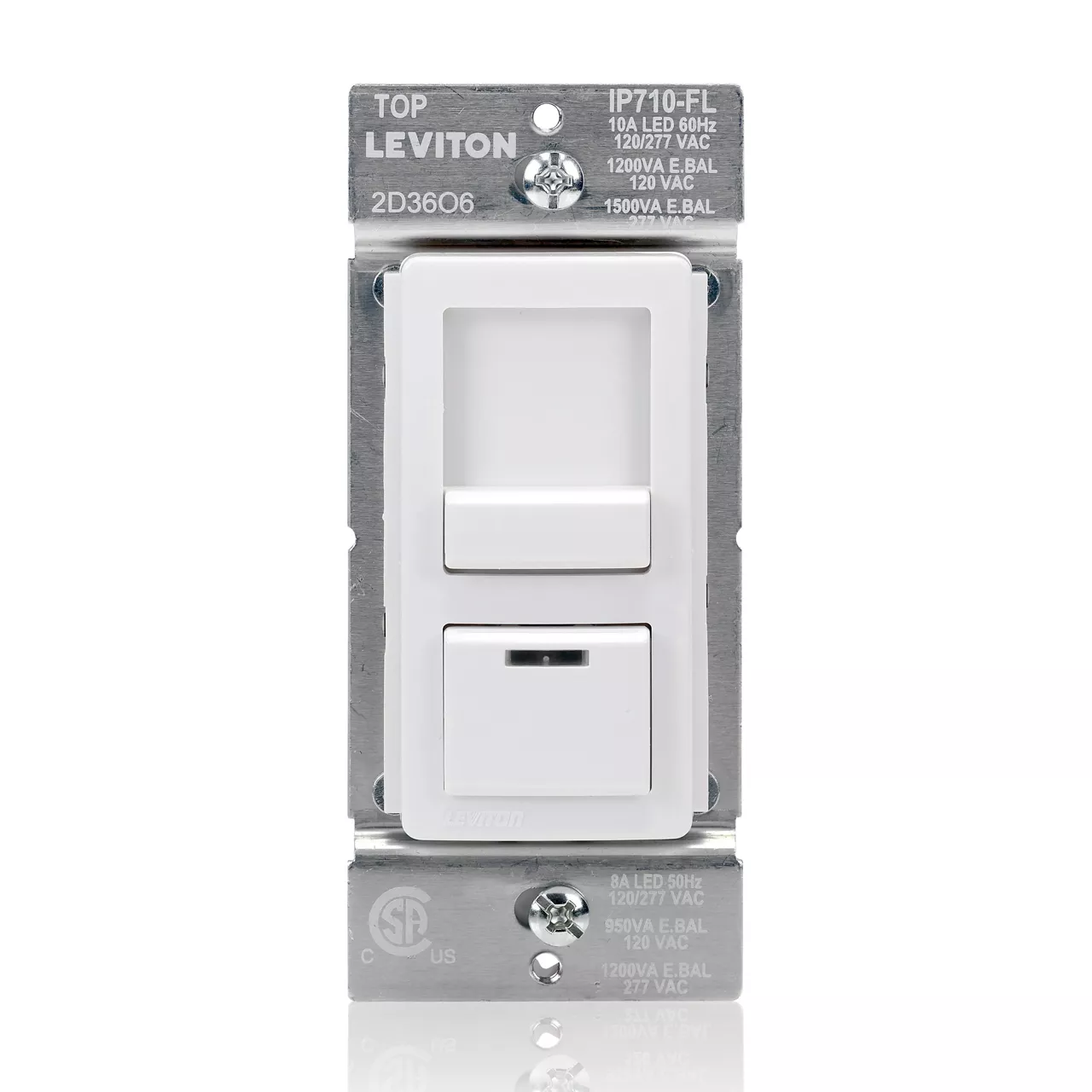

SAFETY AND CONVENIENCE – LED locator light makes it easy to find the dimmer when dark

Color: White

Where to Buy

Instruction Sheet

Add to Project List

Country of Origin : China

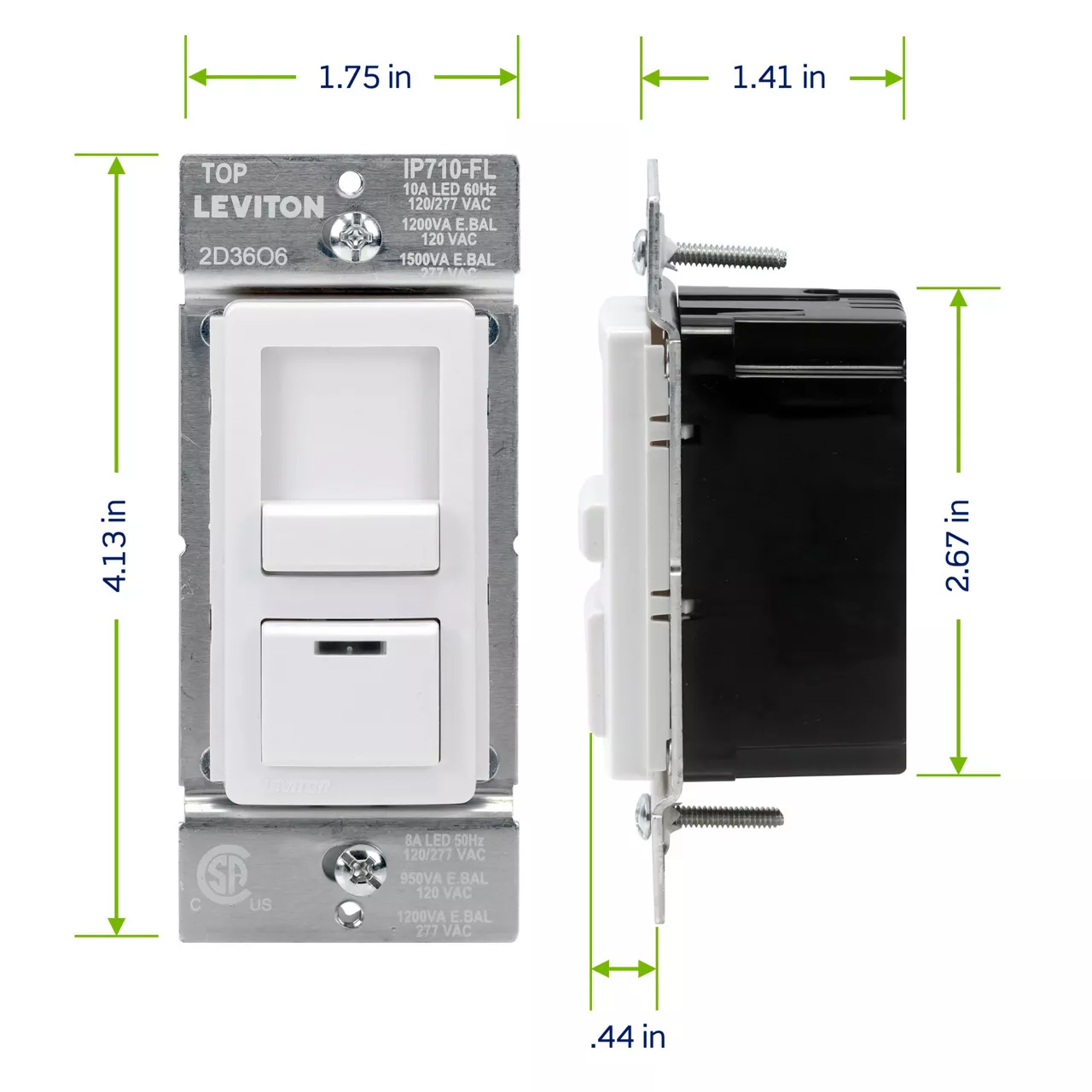

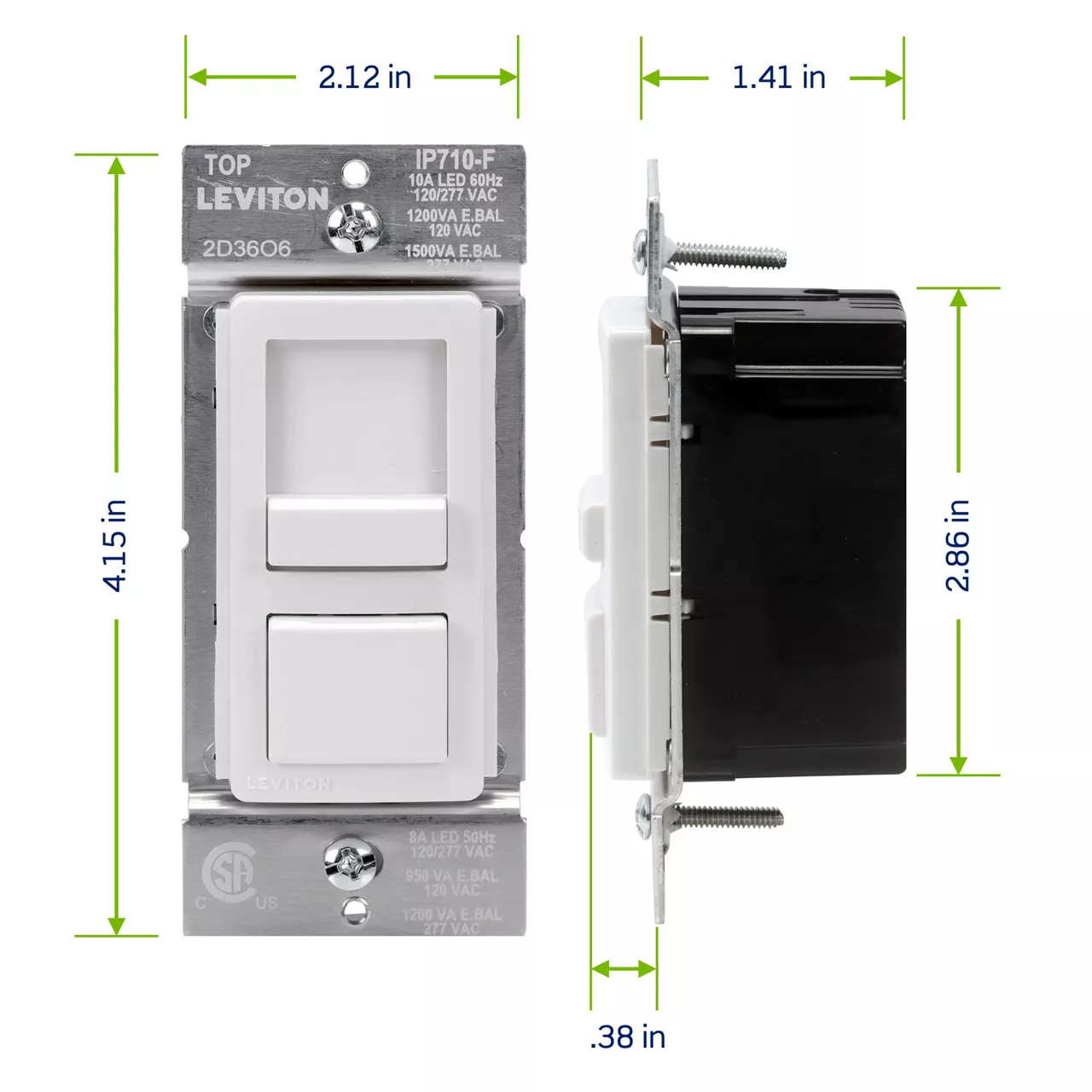

Dimensional Drawing - IllumaTech Dimmer Switch | IP710

View

General Information

UPC : 078477041390
Product Features
Brand : IllumaTech
Color : White
Device Type : Dimmer
Grade : Residential/Light Commercial
Material Specifications
Color : White
Optional Color Change Kits Available : Yes, IPKIT- in Black, White, Light Almond, Ivory, Gray, Brown, and Red
Strap Material : Metal
Environmental Specifications
Operating Temperature : 0°C – 40°C
Operating Humidity : 10% - 90%, non-condensing
Standards & Certifications
Standards and Certifications : cCSAus, FCC/IC, Complies with California Title 24, Part 6, IECC 2021, IECC 2024
Standards & Certifications
Warranty : 5-Years
