Conduit Adapter for FBBOX-GY Concrete Floor Box
FBYAD-GY

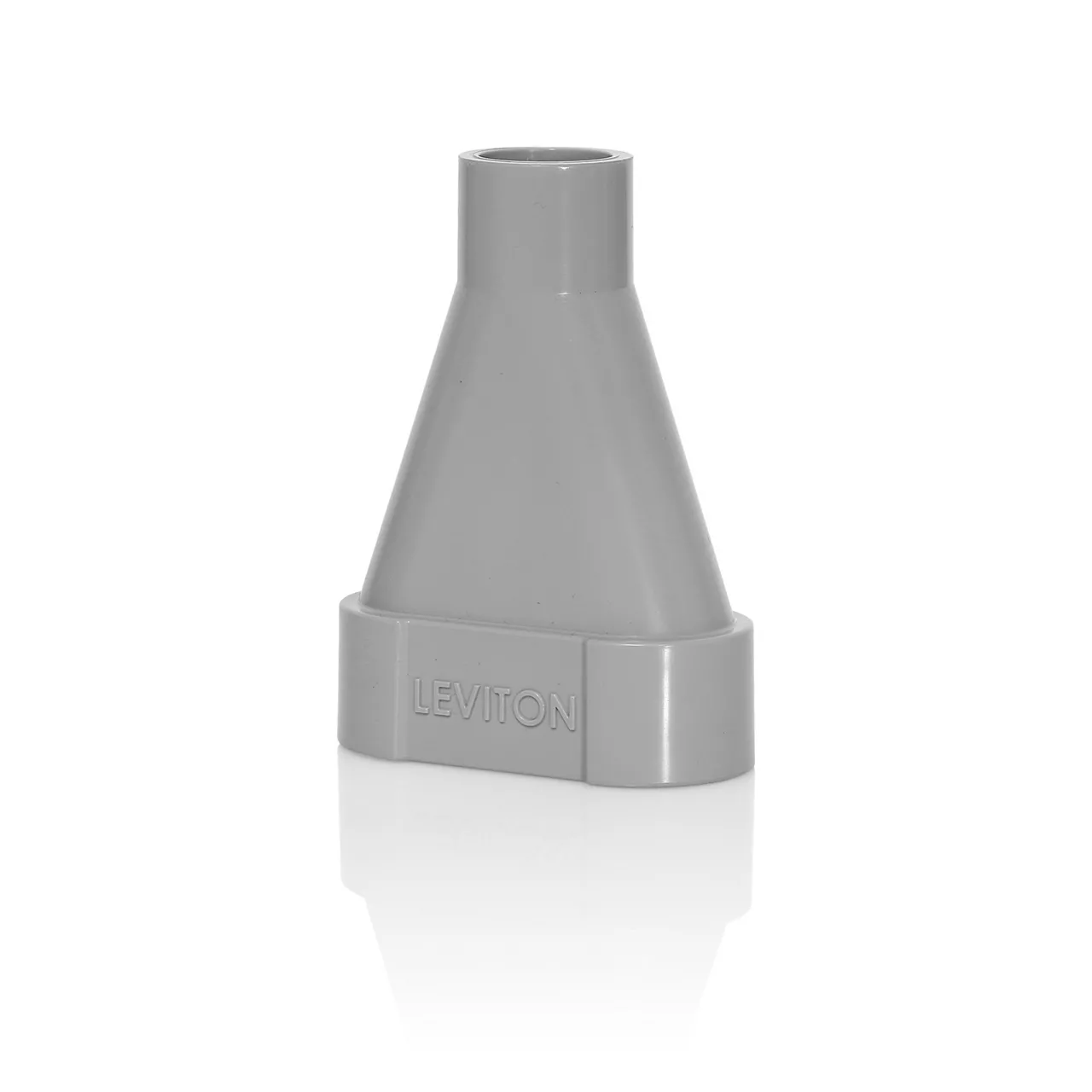

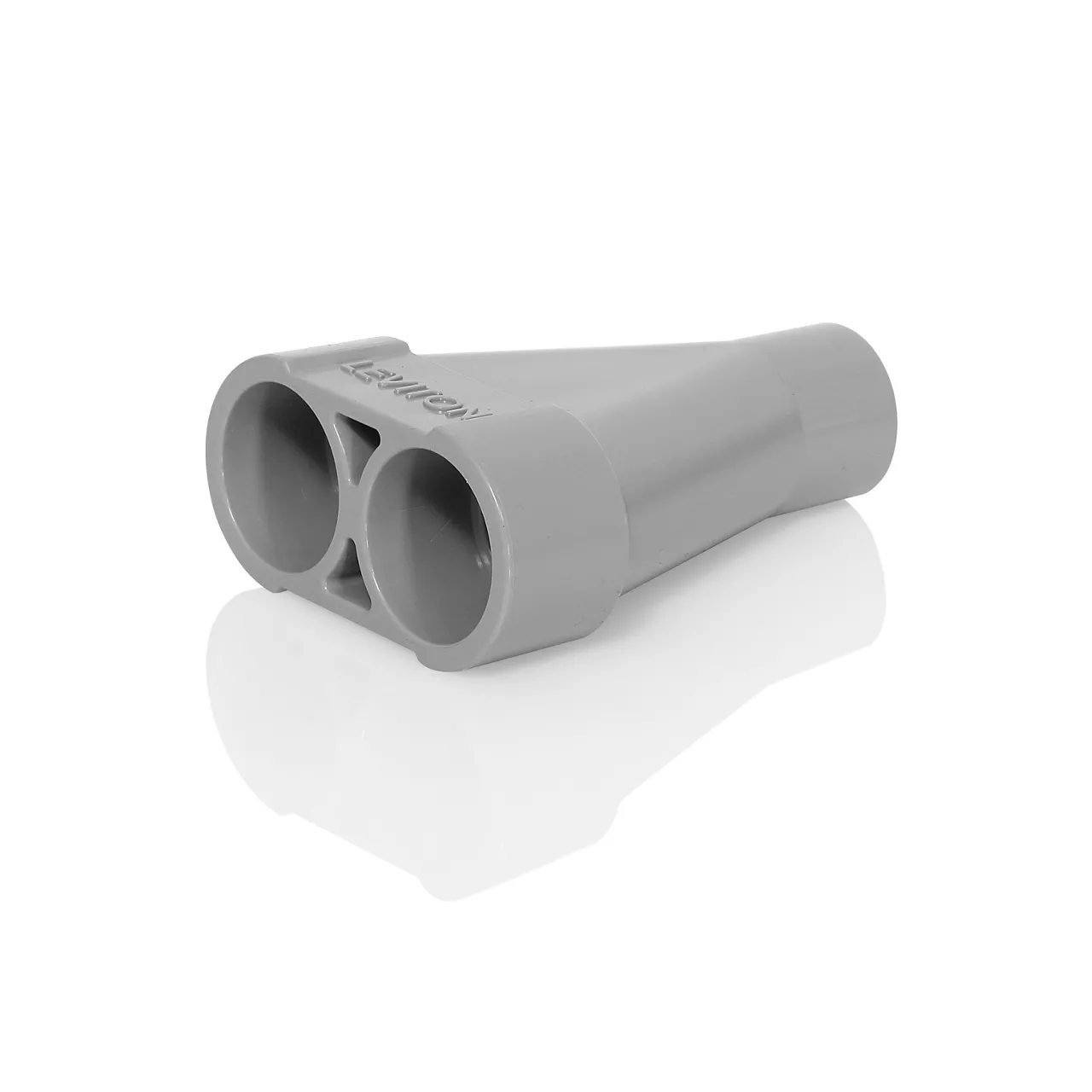

‘Y’ Conduit Adapter for FBBOX-GY Concrete Floor Box
Leviton’s Concrete Floor Box System delivers the power you need, where you need it by providing access to power connectivity and high-performance network infrastructures for every commercial setting. The ‘Y’ Adapter:
- Is used to split power conduit 2 ways
- Must be used with ¾” diameter power reducer
- Meant to connect two ¾” conduits into one ¾” conduit
*This product is sold separately from the FBBOX-GY system.
Product Information
Updated
Environmental Specifications
Flammability : UL94, 5VA
Operating Temperature : -35°C to 75°C
Material Specifications
Color : Gray
Conduit Feeds : Two 3/4" into One 3/4" Adapter
Material : PVC
Product Features
Device Type : Box System
Type : Concrete
Standards & Certifications
Applicable Standards : UL514C, UL 486 A-B, CSA C22.2 No. 85-14
Certification/Listing : cULus
UL File No. : E13397
