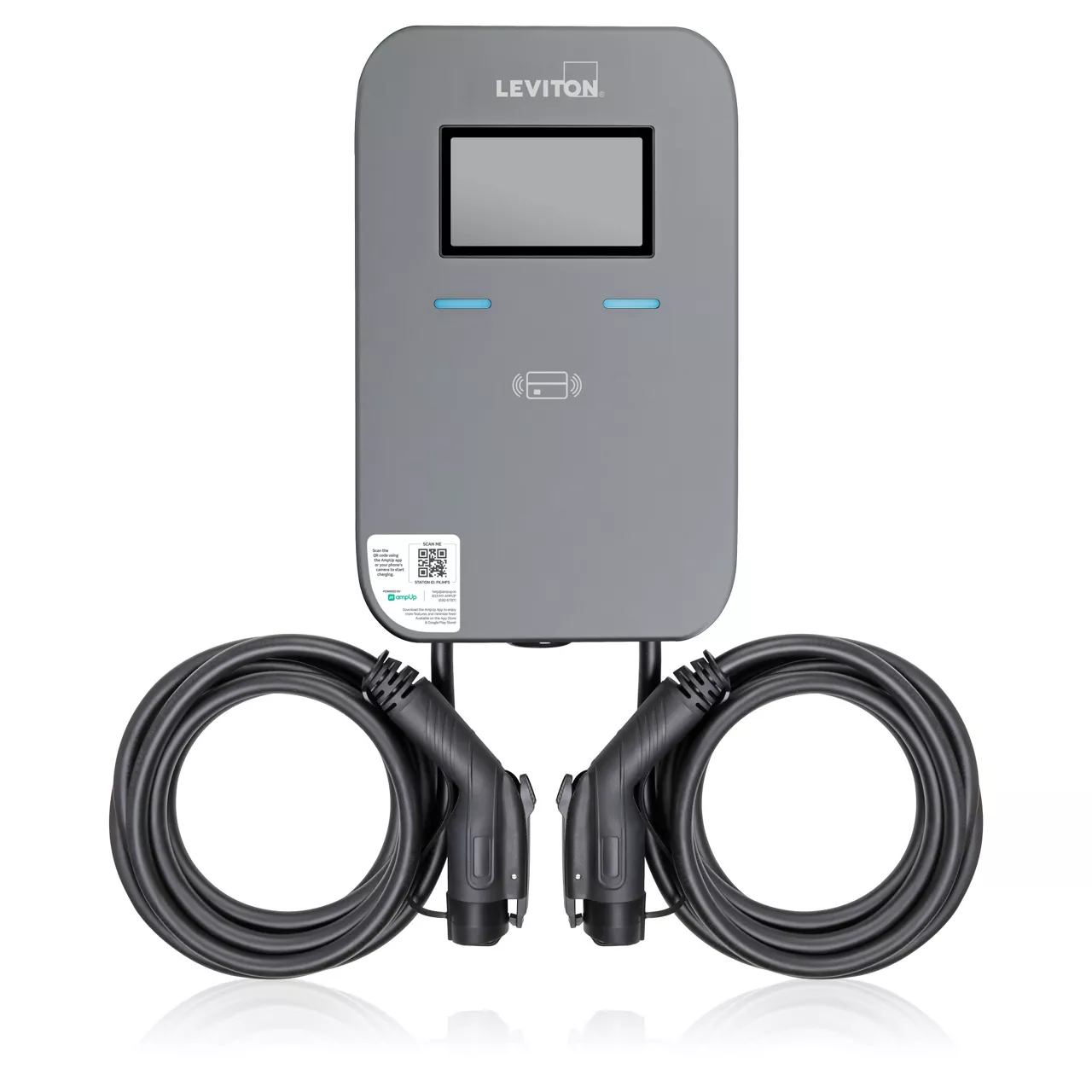

48 Amp Dual Port Level 2 Electric Vehicle Charging Station Charging Station Management Software and LCD Screen
EV48S-DP
EV Series Pro Dual Port Level 2 Electric Vehicle Charging Station, 48A, 208/240 VAC, 11.6kW Output, J1772 Charge Connector, 25' Cord, Includes Mounting Bracket and Pre-Attached Input Cable, HARDWIRED ONLY, Features AmpUp Charging Station Management Software and LCD Screen, Features Dual Power Output, OCCP 2.0 Compliant. CTEP Compliant, IS015118-2 Compliant
- MULTI-STATION, MULTI-SITE MANAGEMENT FOR SITE HOSTS – Featuring AmpUp Charging Station Management Software, these stations include real time analytics, the ability to set pricing groups and collect revenue, smart scheduling, advanced access control/RFID, power load management, automated reporting, and more
- DUAL POWER OUTPUT - Get up to 48 Amps per port!
- IMPROVED EXPERIENCE FOR EV DRIVERS - The AmpUp software makes EV charging effortless for drivers by providing the ability to locate charging stations, reserve spots, initiate sessions, and more
- THE BRAND YOU TRUST – Leviton has been in homes for over a century and electrifying vehicles for over a decade. Charge at ease with UL/Energy Star Certified stations supported by a 24/7 dedicated team
- FOR ANY APPLICATION – featuring a water-resistant enclosure rated NEMA Type 3R and a cable designed to prevent freezing and cracking in extreme weather, you can install both indoors and outdoors
- CHARGE ANY ELECTRIC VEHICLE – with an industry standard SAE J1772™ cable, the EV Series can charge any EV, including Audi, BMW, Ford, Honda, Subaru, and even Tesla with Leviton's NACS Adapter (part number NACSA)

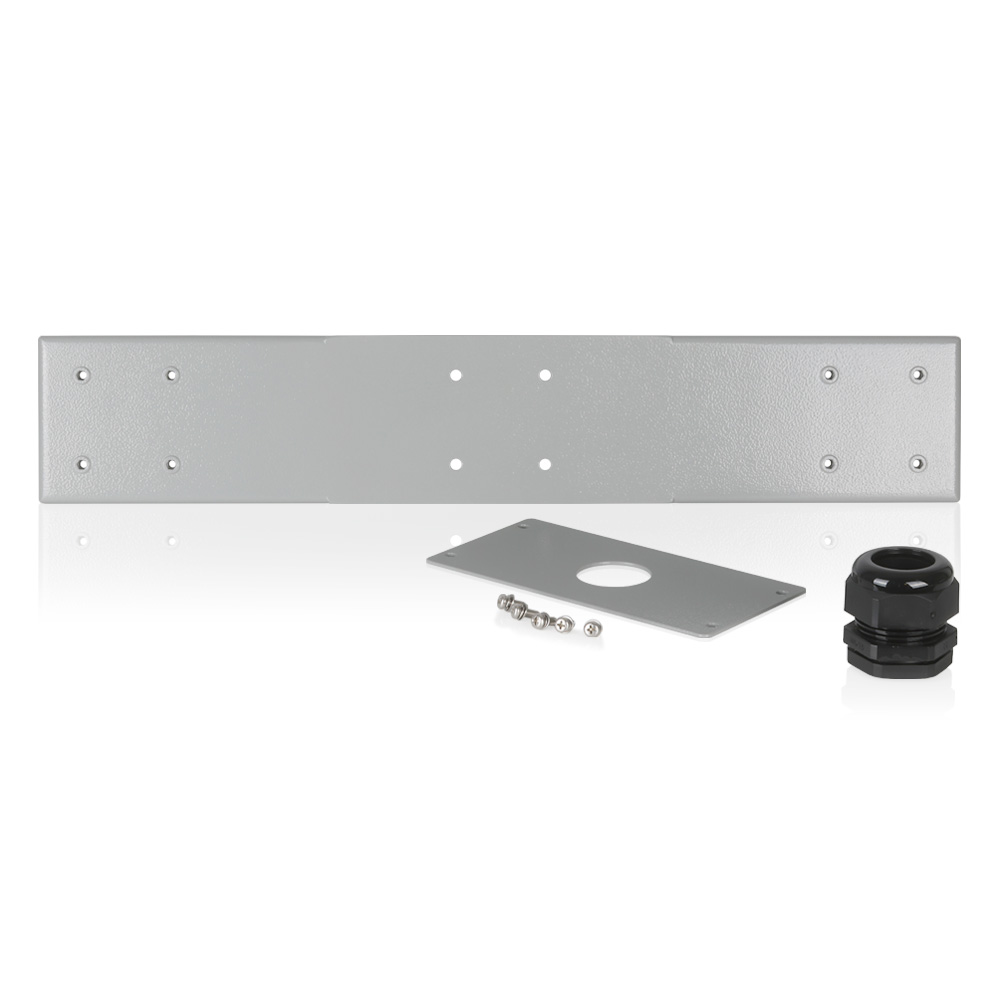

For mounting with Leviton's Dual Mount Pedestal (EPED2) utilize accessory APED2

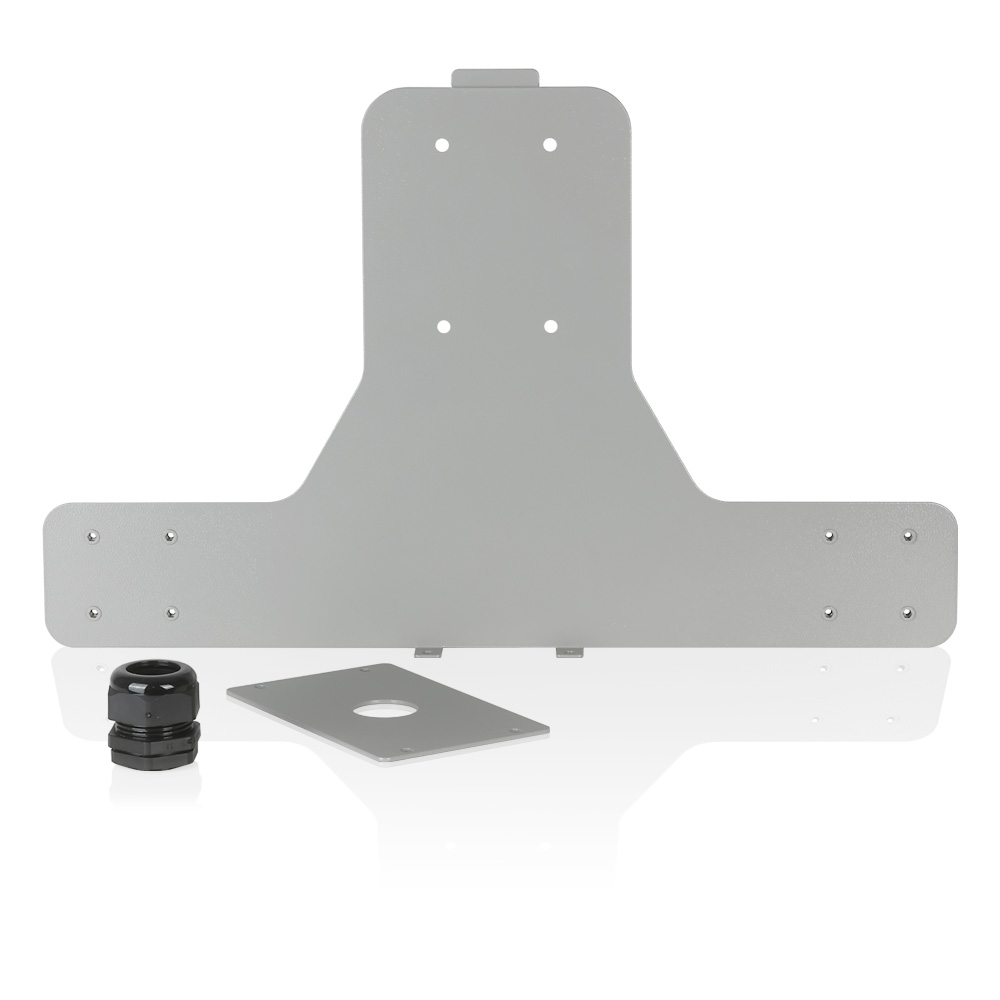

For mounting with Leviton's Pedestal with Retractable Cable Management (EPCM1 and EPCM3) utilize accessory APCMX
Product Information
Electrical Specifications
Amperage : 48 A x2
Breaker : 60 A x2, 120 A
Charge Connector Cord : #9 AWG SAE J1772
Number of Phase / Wire : L1, L2 and Ground, Bottom Feed
Output Power : 11.6kW x2
Short Circuit Current Rating : 20 mA CCID per UL 2231
Voltage : 208/240 VAC
Circuit : (2) 60 A Dedicated Circuit / (1) 120 A Dedicated Circuit
Output : 11.6 kW (240 VAC @ 120A/60Ax2) x 2
Wiring : 3-wire (L1, L2, Earth)
Dynamic Power Management : Available with an active AmpUp subscription
Harmonics : iTHD <5% (Complies with IEEE 519 Requirements)
Input Rating : 208/240 VAC, 48A x 2, 60HZ
Max Output Current : 48A x 2
Max Output Power : 11.6kW x 2
Output Voltage : 208/240VAC
Power Conversion Efficiency : > 95%
Power Factor : 0.99 at full load
Remote Energy Management : Yes, with an active AmpUp subscription
Environmental Specifications
Altitude : Up to 6,500 ft. (2,000 m)
Charging Cable Operating Temperature : -40°F to +122°F (-40°C to +55°C)
Cooling : Natural Cooling
Operating Humidity : Up to 95% @ 122°F (50°C) non-condensing
Operating Temperature : -40°F to +122°F (-40°C to +55°C)
Operational Altitude : Up to 6,500 ft. (2,000 m)
Storage Temperature : -40°F to +122°F (-40°C to +50°C)
Material Specifications
Enclosure Material : Plastic (PC+PBT)
Enclosure Rating : NEMA Type 3R
Status Indicator : Power Present, Charging, Fault
Mechanical Specifications
Cable Length : 25 ft. x2
Application : Commercial, MDU, Public Use, Work
Card Reader : RFID
Charge Connector Cord : SAE J1772™
Device Type : Charger
Feature : Touch Sceeen Display
Authentication : RFID, App
Supported Connector Types : SAE J1772™
Connectivity Specifications
Local Area Network : 2.4 GHz and 5 GHz WiFi (802.11 b/g/n)
Service and Maintenance : Remote system monitoring, diagnostic, and proactive maintenance
Supported Communication Protocols : OCPP 2.0.1
Wide Area Network : 4G LTE
Warranty
Warranty : 3-Year Limited
Standards and Certifications
Applicable Standards : UL2594, UL 2231-1, UL 2231-2, UL 2251, UL 62, UL 991,UL 1998, NFPA 70 Article 625, UL840, CSA Std. C22.2#280, OCPP 2.0.1 Compliant , CTEP , ISO 15118 Compliant
Product Features
Application : Commercial, MDU, Public Charging, Workplace
Cover Locking Mechanism : Phillips Head Screws, No Padlock Option
Device Type : Charger
Feature : Station Management Software,LCD Screen
