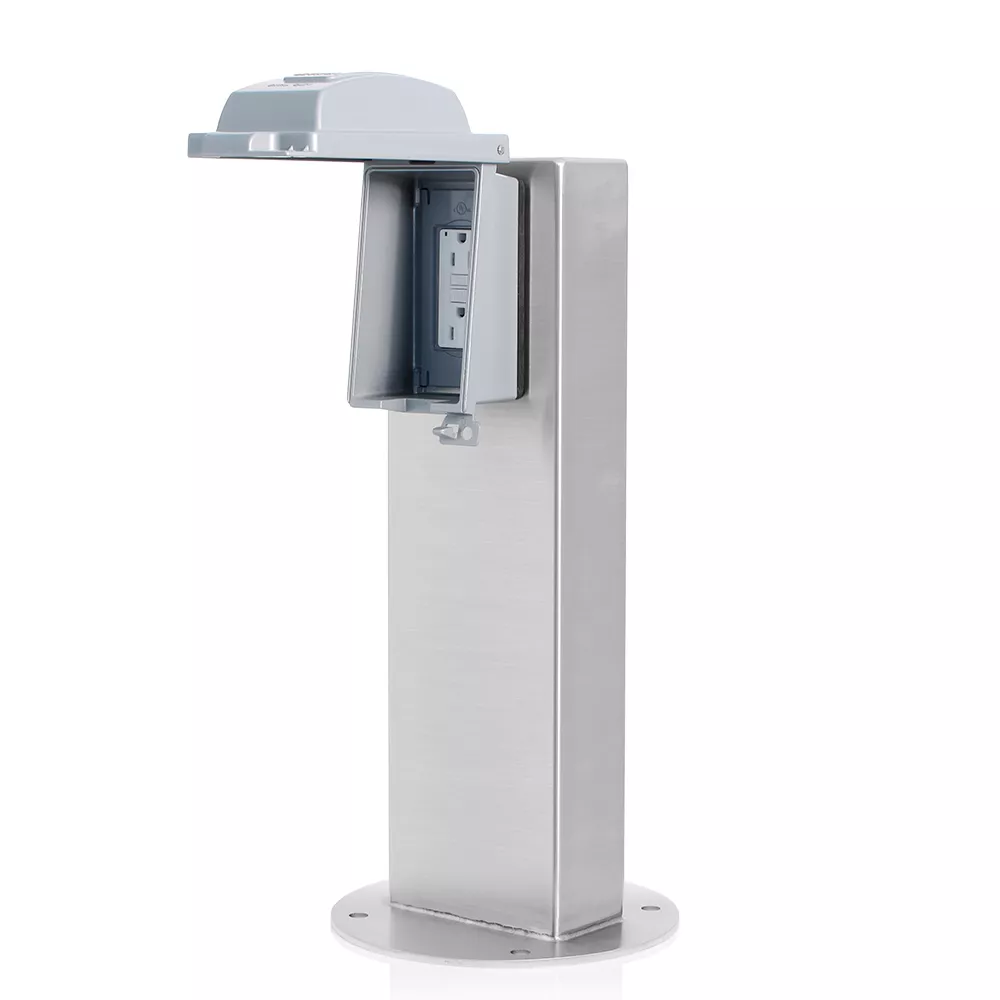

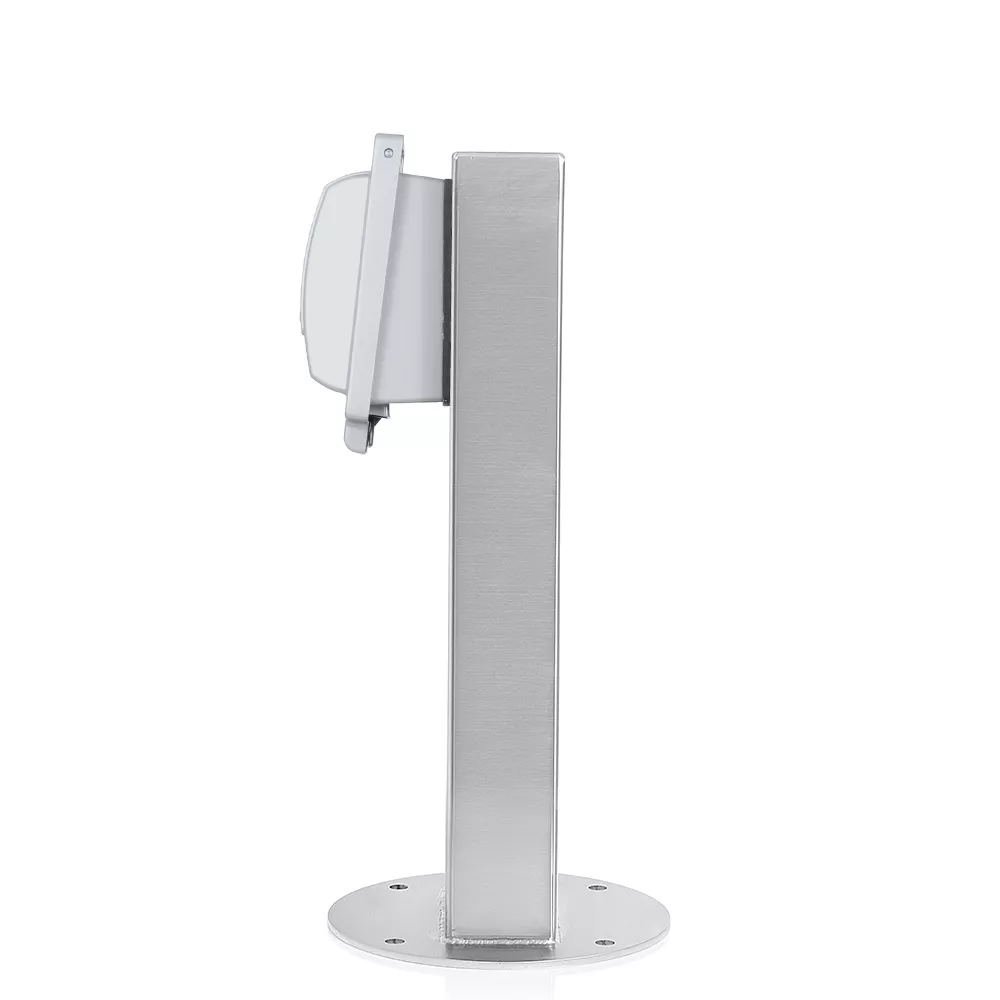

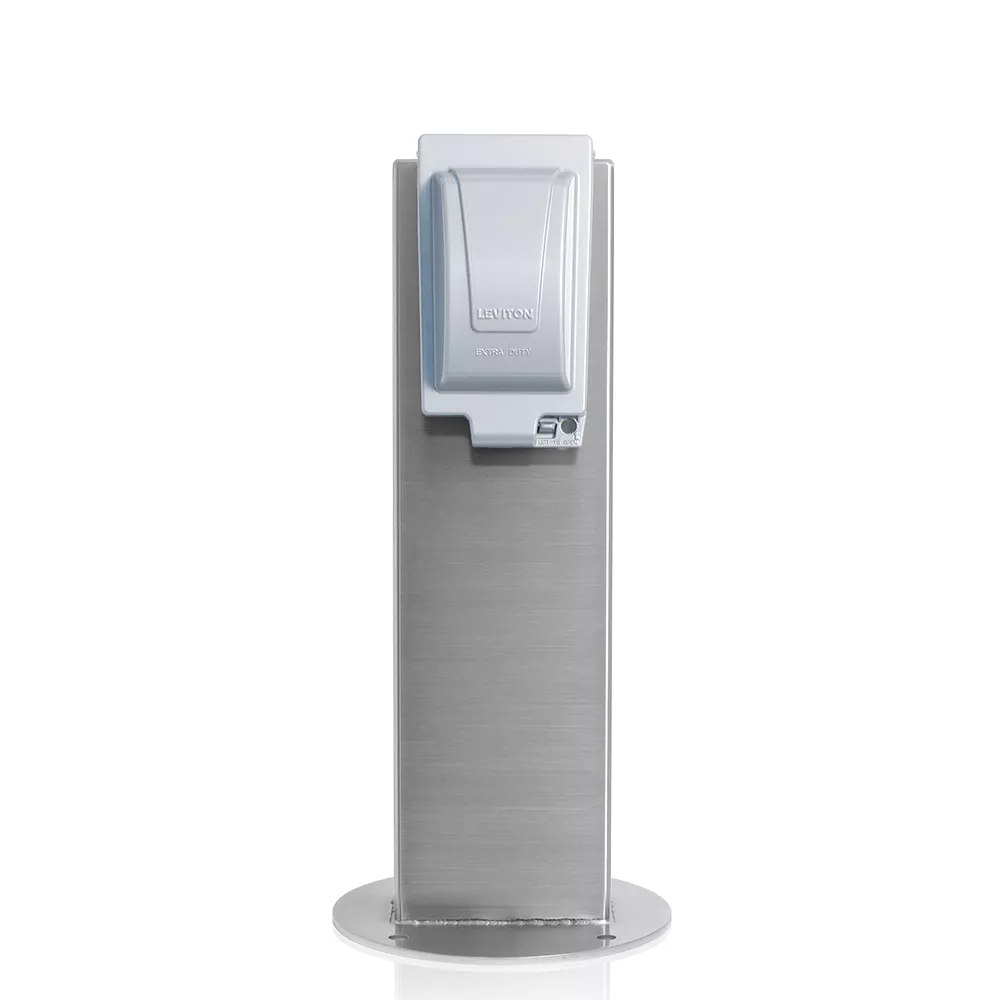

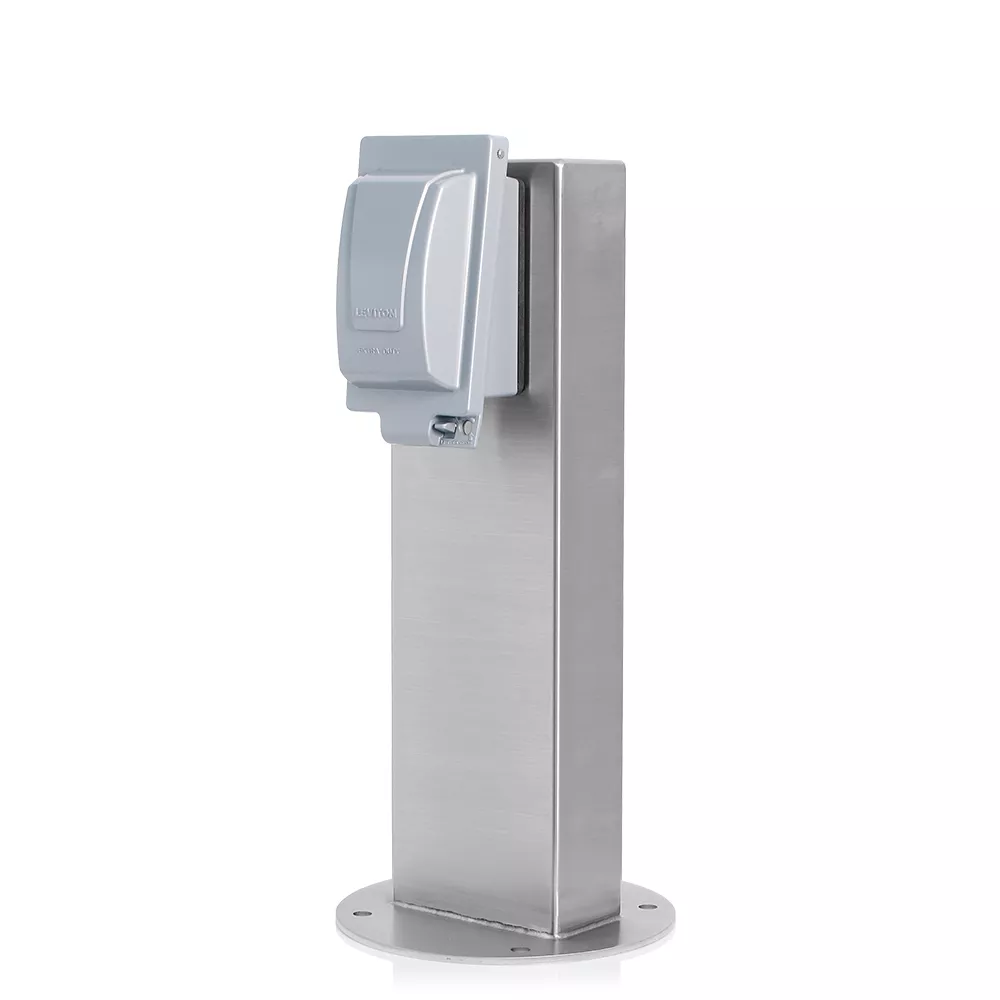

Power Pedestal Kit, No Hinge, Surface Mount
1PS18-3S
1-Gang 18” Stainless Steel Power Pedestal Kit, Surface Mount, NEMA 3R, Brushed, Kit Includes 20 Amp Weather-Resistant and Tamper-Resistant GFCI (G5362-WTW) And Weather Reistant In-Use Cover (IUM1V-0GY)
- SAFE – bring power to previously unreachable locations in a weatherproof, NEMA 3R rated enclosure
- CONVENIENT – easy to mount and install with a variety of device configurations
- VERSATILE – ideal for a variety of applications including campgrounds, public parks, airports, campuses, commercial buildings, and more
Pedestals are proudly made in the USA. See individual catalog number pages for electrical wiring device country of origin.
Color: Brushed Stainless Steel
Product Information
Standards & Certifications
Certification/Listing : cULus
NEMA Rating : NEMA 3R
Mechanical Specifications
Conduit Feeds : Accommodates two 1-1/2" conduit raceways
Height : 18"
Maximum Dimensions : 18.0"H x 8.0"W x 8.0"D
Electrical Specifications
Max. Amperage : 30A Max
Voltage : 125 VAC
Material Specifications
Construction : Welded pedestal body, base and weatherproof cover
Grounding : Stainless Steel (Pre-installed Lug)
Mounting Hardware : Anchors Included
Pedestal Material : 304 Stainless Steel (14 gauge body and cover, 7 gauge base)
Product Features
Application : Commercial|RV/Campsites
Warranty
Warranty : 1-Year Limited
