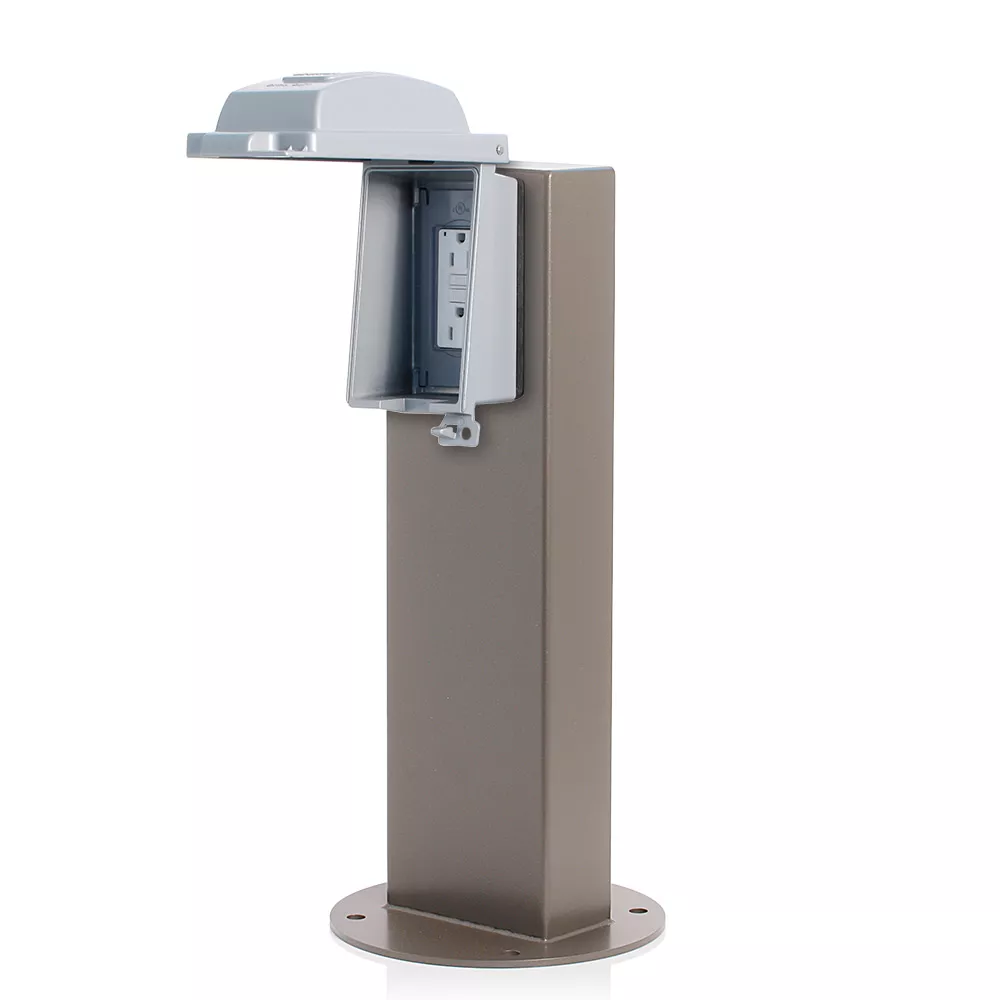

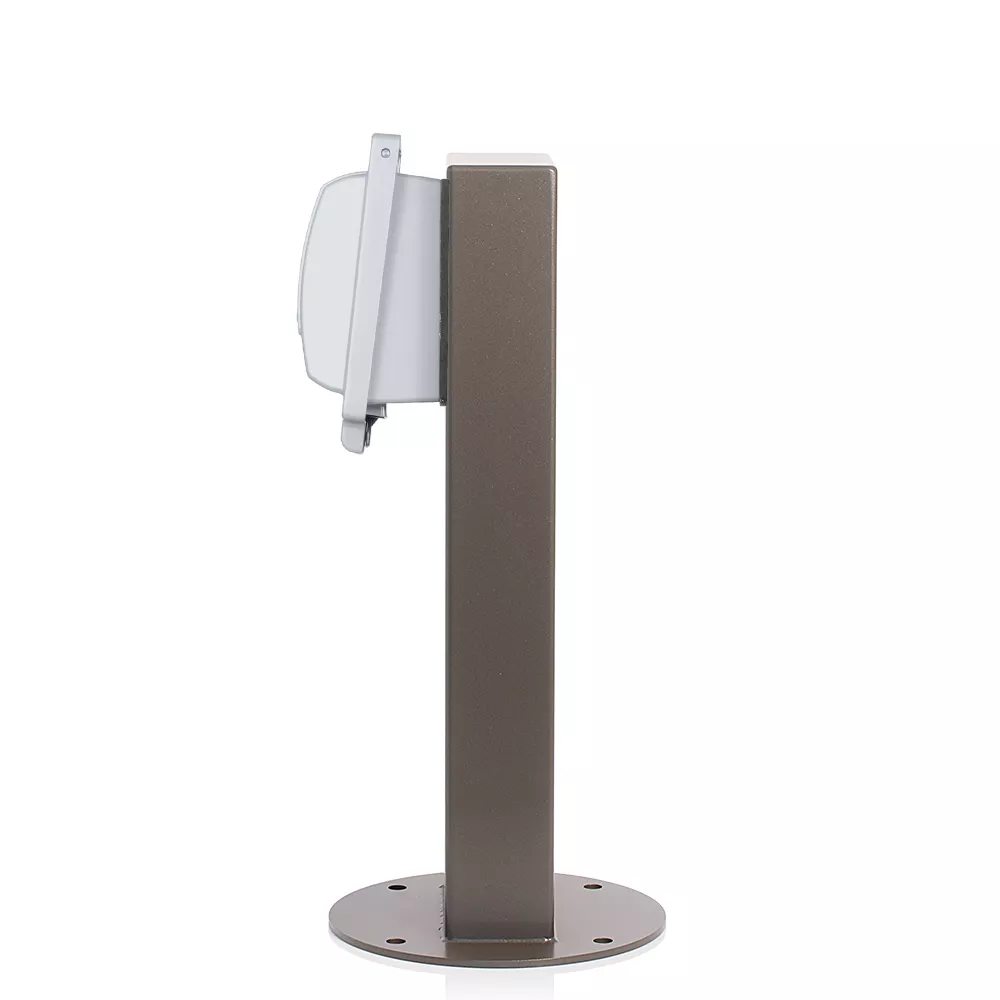

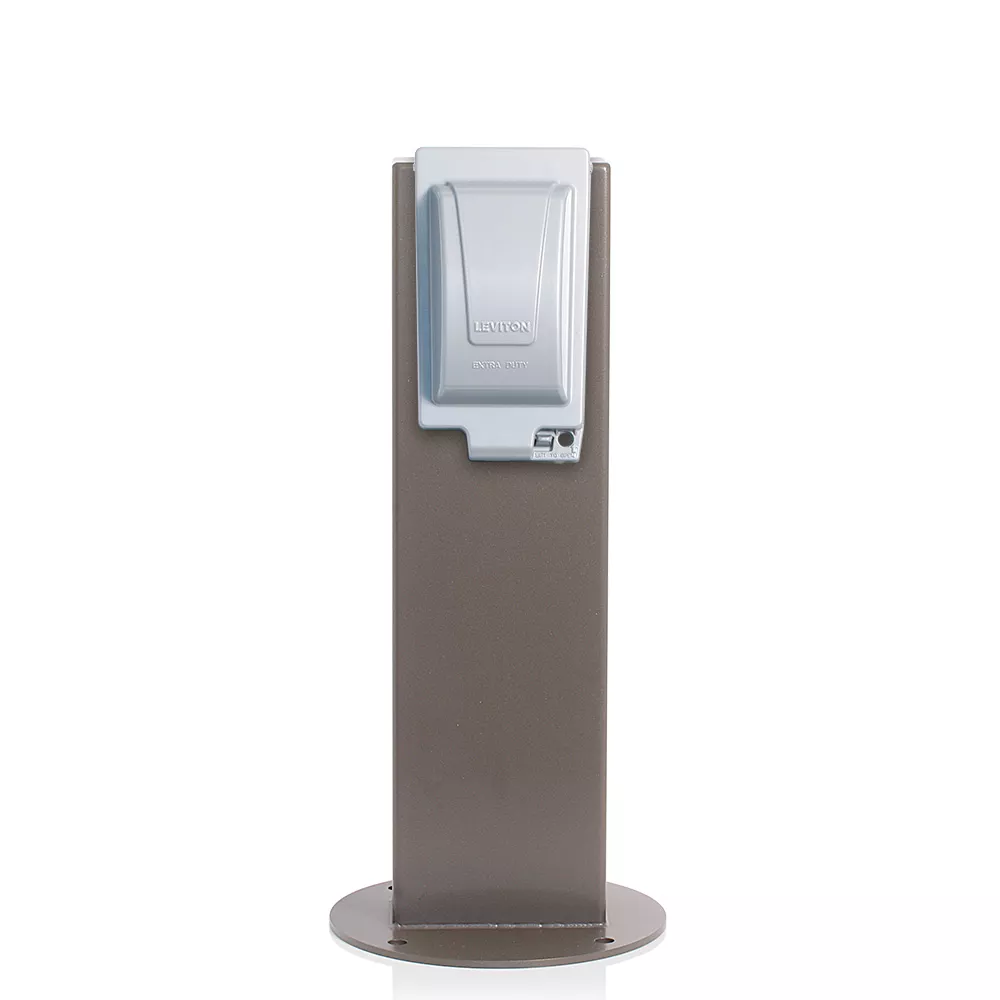

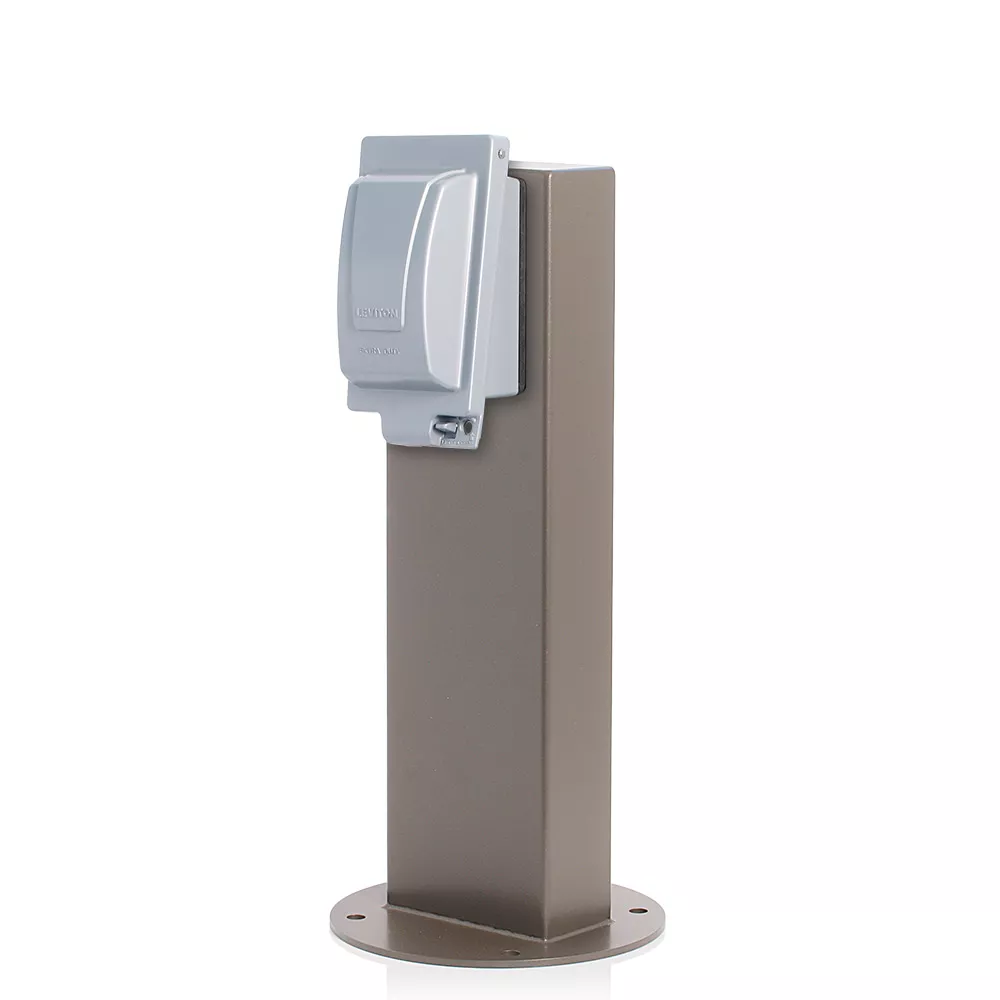

Power Pedestal Kit, No Hinge, Surface Mount
1PS18-3Z
1-Gang 18” Stainless Steel Power Pedestal Kit, Surface Mount, NEMA 3R, Bronze, Kit Includes 20 Amp Weather-Resistant and Tamper-Resistant GFCI (G5362-WTW) And Weather Reistant In-Use Cover (IUM1V-0GY)
- SAFE – bring power to previously unreachable locations in a weatherproof, NEMA 3R rated enclosure
- CONVENIENT – easy to mount and install with a variety of device configurations
- VERSATILE – ideal for a variety of applications including campgrounds, public parks, airports, campuses, commercial buildings, and more
Pedestals are proudly made in the USA. See individual catalog number pages for electrical wiring device country of origin.
Color: Bronze
Product Information
Mechanical Specifications
Conduit Feeds : Accommodates two 1-1/2" conduit raceways
Height : 18"
Maximum Dimensions : 18.0"H x 8.0"W x 8.0"D
Standards & Certifications
Certification/Listing : cULus, NOM
Material Specifications
Construction : Welded pedestal body and base
Grounding : Stainless Steel (Pre-installed Lug)
Mounting Hardware : Anchors Included
Pedestal Material : 304 Stainless Steel (14 gauge body, 7 gauge base)
Electrical Specifications
Max. Amperage : 60A Max
Voltage : 125 VAC
Product Features
Application : Commercial|RV/Campsites
Base : Pedestal
Color : Bronze
Hinge Type : No Hinge
Kitted Options : Comes with Leviton Receptacles
Receptacle Compatibility : Mounting holes for weather-resistant cover (Receptacle fit is cover dependent)
Top : 1-Gang Vertical Opening (Fits single device and electrical cover)
Warranty
Warranty : 1-Year Limited
