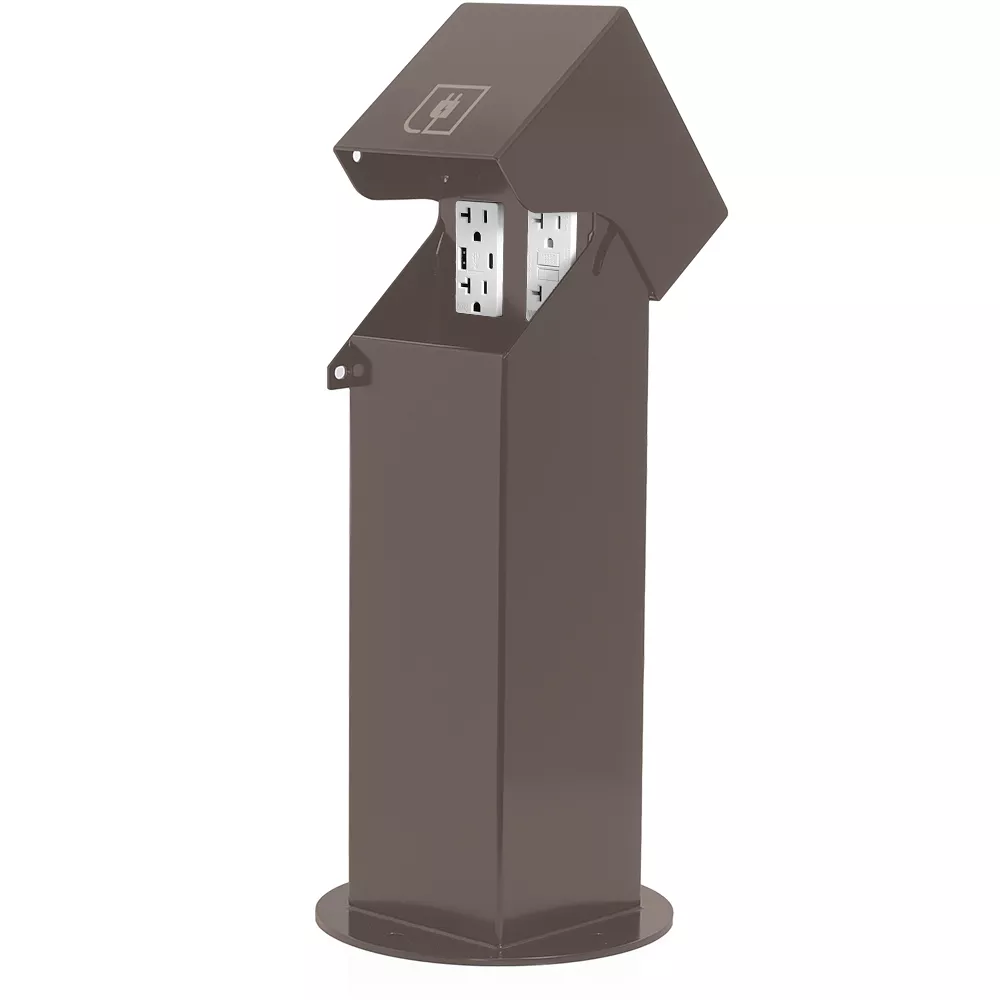

Power Pedestal Kit, Standard Hinge, Surface Mount
2PH18-2Z
2-Gang 18” Stainless Steel Power Pedestal Kit, Surface Mount, NEMA 3R, Lockable Hinged Top, Self-Closing Lid, Bronze, Kit Includes 20 Amp Weather-Resistant and Tamper-Resistant GFCI (G5362-WTW) and 20 Amp Weather-Resistant Receptacle with Type A and C USB Ports (W5833-W)
- SAFE – bring power to previously unreachable locations in a weatherproof, NEMA 3R rated enclosure
- CONVENIENT – easy to mount and install with a variety of device configurations
- VERSATILE – ideal for a variety of applications including campgrounds, public parks, airports, campuses, commercial buildings, and more
Pedestals are proudly made in the USA. See individual catalog number pages for electrical wiring device country of origin.
Color: Bronze
Product Information
Standards & Certifications
Certification/Listing : cULus, NOM
Electrical Specifications
Max. Amperage : 30A Max
Voltage : 125 VAC
Material Specifications
Construction : Welded pedestal body, base and weatherproof cover
Grounding : Stainless Steel (Pre-installed Lug)
Mounting Hardware : Anchors Included
Pedestal Material : 304 Stainless Steel (14 gauge body and cover, 7 gauge base)
Mechanical Specifications
Conduit Feeds : Accommodates two 1-1/2" conduit raceways
Height : 18"
Maximum Dimensions : 18.0"H x 8.5"W x 8.5"D
Mounting Plate : 2-Gang Decora
Warranty
Warranty : 1-Year Limited
Product Features
Application : Commercial|RV/Campsites
Base : Pedestal
Color : Bronze
Hinge Type : Standard
Kitted Options : Comes with Leviton Receptacles
Receptacle Compatibility : Decora Style
Top : Lockable Hinged Top
