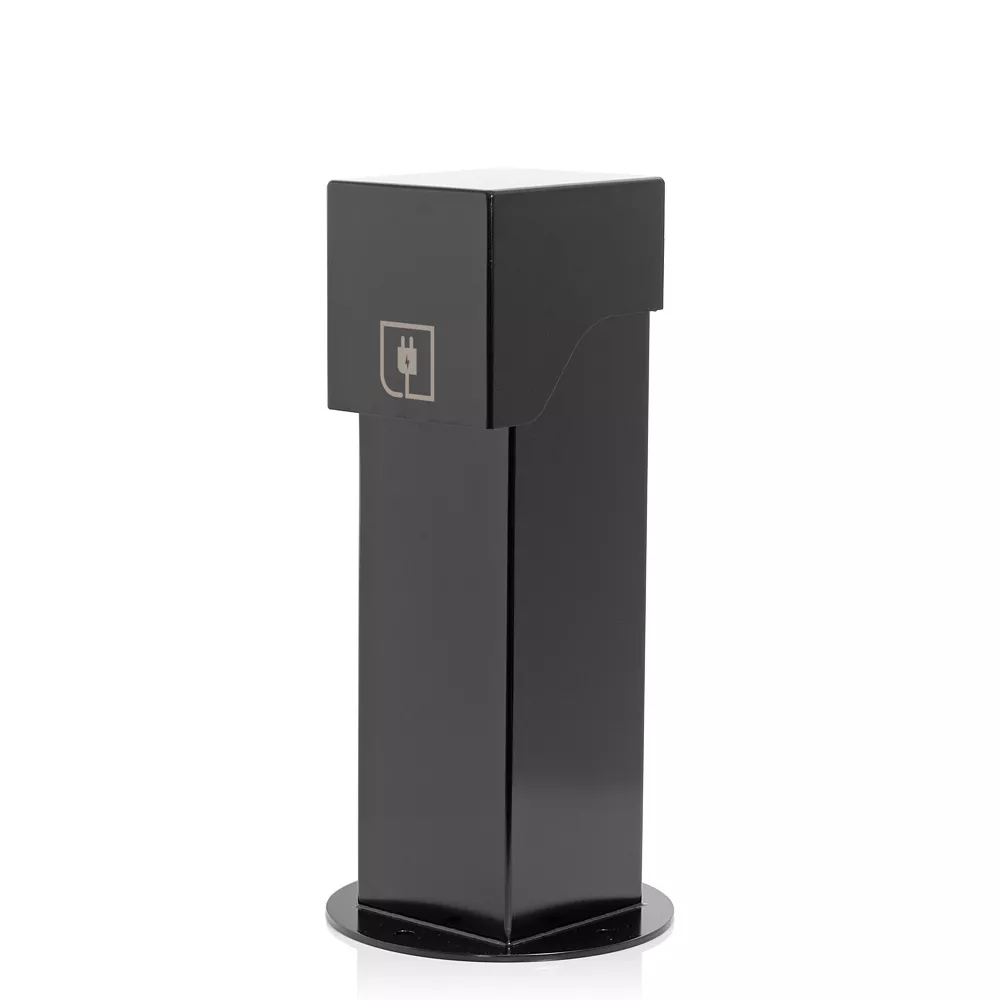

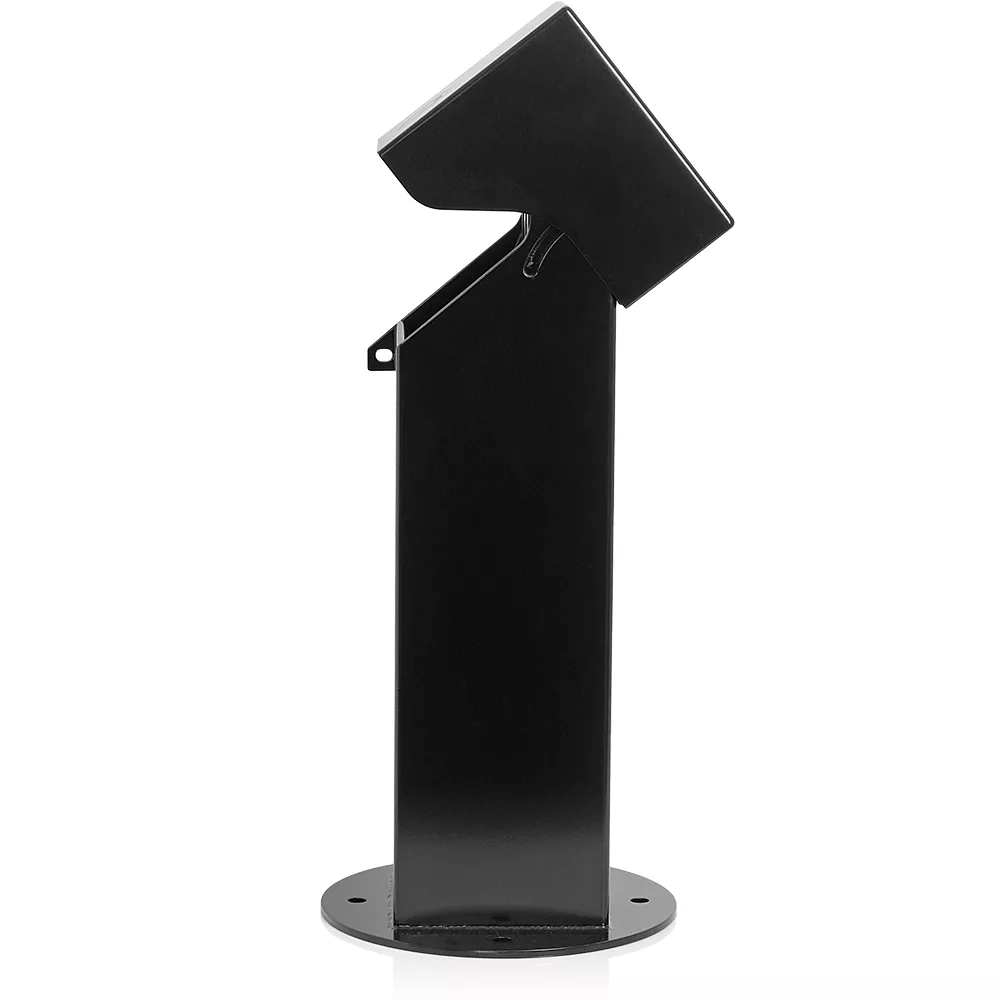

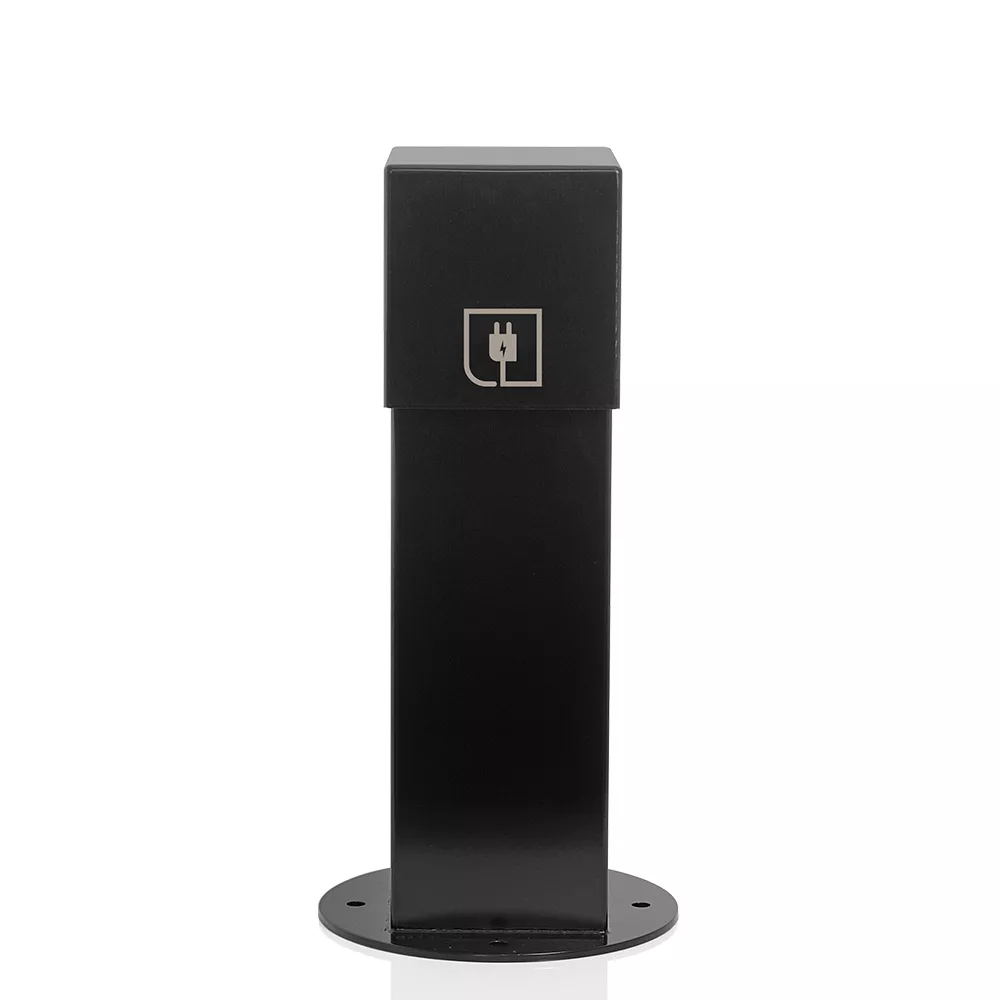

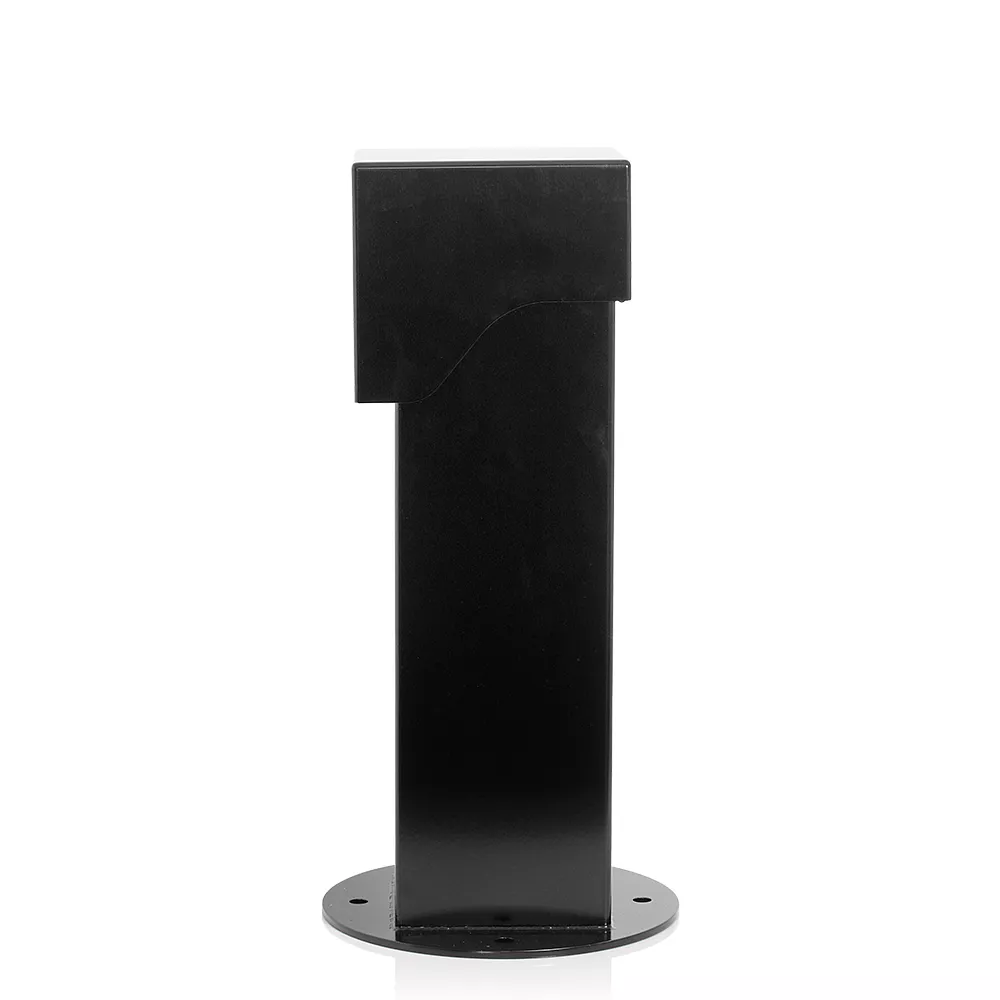

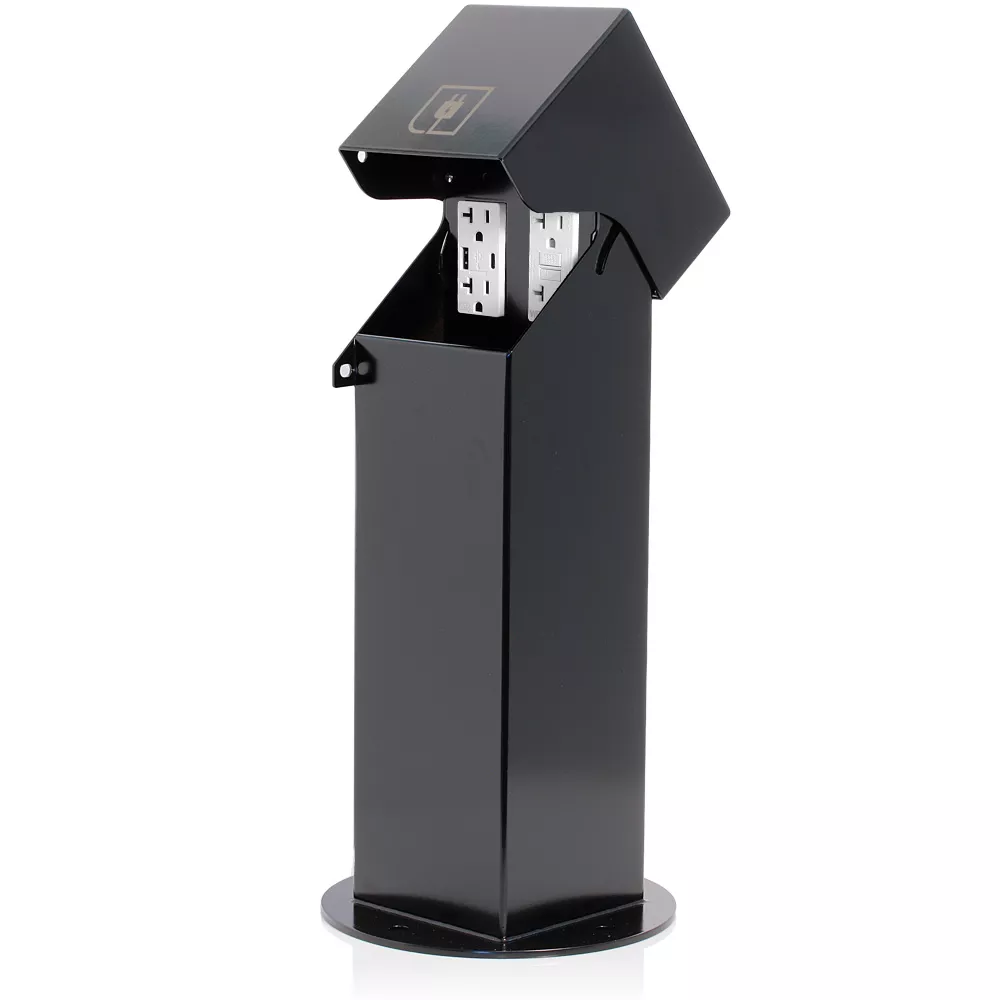

Power Pedestal Kit, Standard Hinge, Surface Mount
2PH18-2E
2-Gang 18” Stainless Steel Power Pedestal Kit, Surface Mount, NEMA 3R, Lockable Hinged Top, Self-Closing Lid, Black, Kit Includes 20 Amp Weather-Resistant and Tamper-Resistant GFCI (G5362-WTW) and 20 Amp Weather-Resistant Receptacle with Type A and C USB Ports (W5833-W)
- SAFE – bring power to previously unreachable locations in a weatherproof, NEMA 3R rated enclosure
- CONVENIENT – easy to mount and install with a variety of device configurations
- VERSATILE – ideal for a variety of applications including campgrounds, public parks, airports, campuses, commercial buildings, and more
Pedestals are proudly made in the USA
Color: Black
Product Information
Electrical Specifications
Max. Amperage : 30A Max
Voltage : 125 VAC
Material Specifications
Construction : Welded pedestal body, base and weatherproof cover
Grounding : Stainless Steel (Pre-installed Lug)
Mounting Hardware : Anchors Included
Pedestal Material : 304 Stainless Steel (14 gauge body and cover, 7 gauge base)
Mechanical Specifications
Conduit Feeds : Accommodates two 1-1/2" conduit raceways
Height : 18"
Maximum Dimensions : 18.0"H x 8.5"W x 8.5"D
Mounting Plate : 2-Gang Decora
Product Features
Application : Commercial,RV/Campsites
Base : Pedestal
Color : Black
Hinge Type : Standard
Kitted Options : Comes with Leviton Receptacles
Receptacle Compatibility : Decora Style
Top : Lockable Hinged Top
Standards & Certifications
Certification/Listing : cULus, NOM
NEMA Rating : NEMA 3R
Warranty
Warranty : 1-Year Limited
