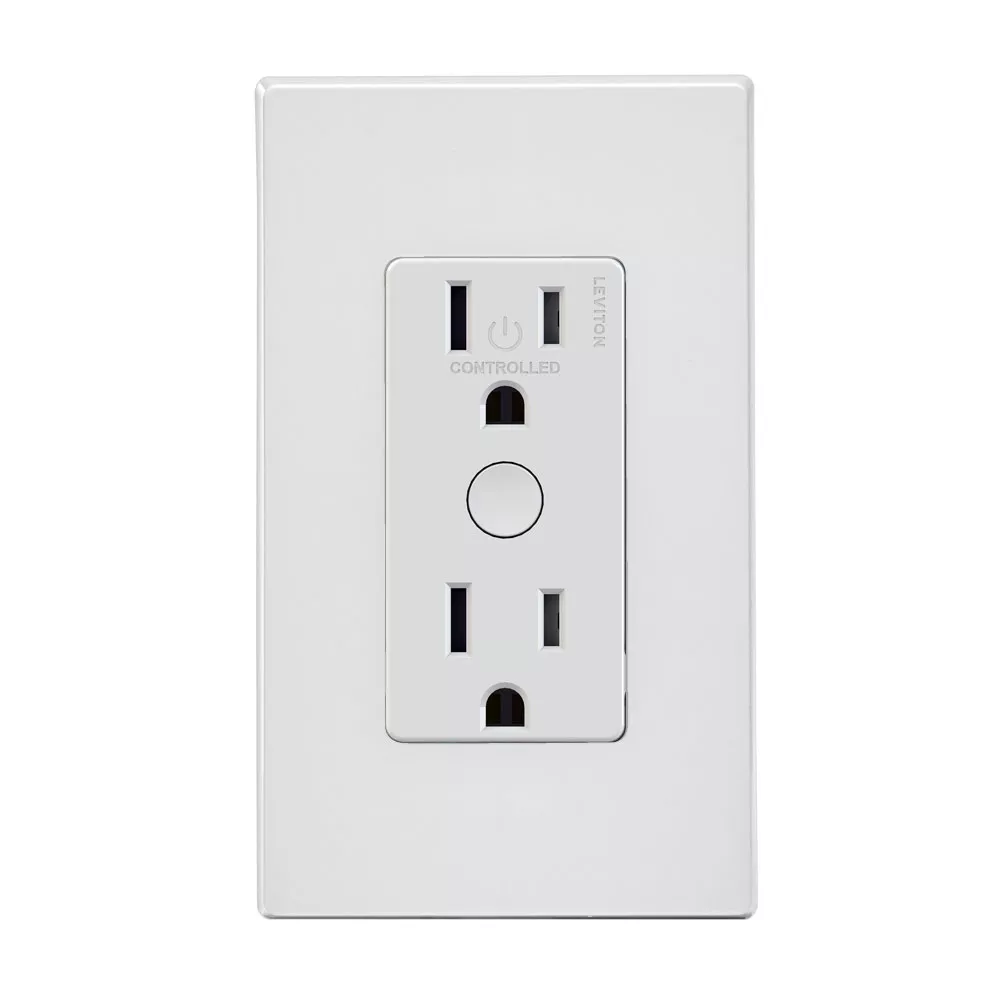

Decora Smart Outlet, Z-Wave 700 Series
ZW15R-1BW

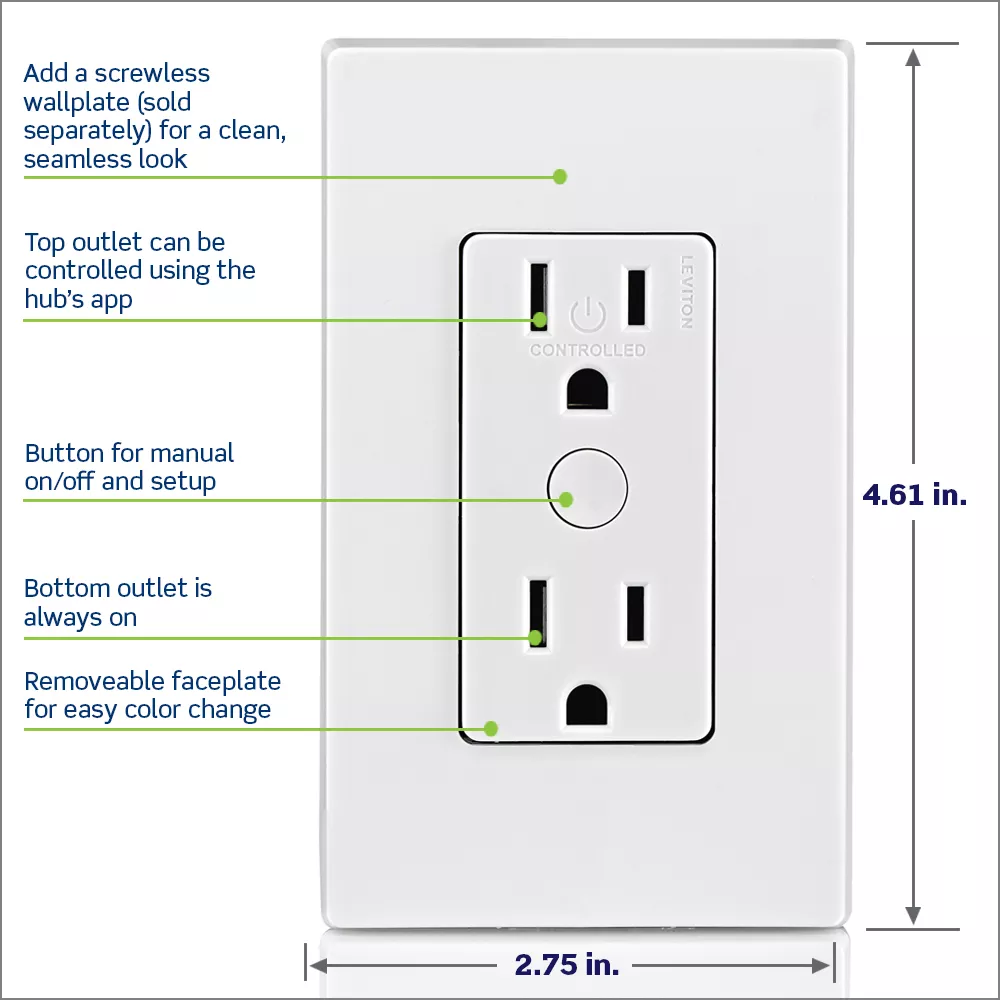

Control lights and appliances from anywhere when paired with a compatible Z-Wave controller. Connect your plug-in lamps, holiday lighting, and small appliances to the top “Controlled” outlet, while the bottom “Powered” outlet remains always on. Uses 700-Series Chipset which offers S2 security and is enabled with SmartStart. The ZW15R features tamper resistant receptacles with built-in shutters to prevent the insertion of unintended foreign objects. As well, the integrated button with vanishing feedback LED provides manual push-button on/off control and clear indication at any time. Change the switch faceplate color to black, gray, brown, light almond, ivory or white using DSRKT
Product Information
Electrical Specifications
Load Rating : 5A LED/CFL, 1500W Incand/Halogen, 15A Magnetic, 3/4 HP Motor
Termination : Screw Terminals
Voltage : 120VAC, 60Hz
Environmental Specifications
Operating Temperature : 0°C to 40°C
Material Specifications
Color : White
Optional Color Change Kits Available : Yes, DSRKT in Black, White, Light Almond, Ivory, Gray, and Brown
Product Features
Brand : Decora Smart Z-Wave
Device Type : In-Wall Smart Outlet
Grade : Residential
Hub Required : Yes
Standards and Certifications
Standards and Certification : UL, FCC, NOM, Z-Wave
Warranty
Warranty : Two-Year Limited
- Relay switching
- Tamper Resistant
- Green LED locator
- Provides two 15A, 120 VAC NEMA 5-15R grounding receptacles (one controlled, one always on) for use with a wide variety of lamps and appliances
- Memory maintains ON/OFF status of loads and during minor power fluctuations
- Button for ON/OFF manual control
- Z-Wave 700 Series Chipset includes S2 security and SmartStart
- For Indoor use only

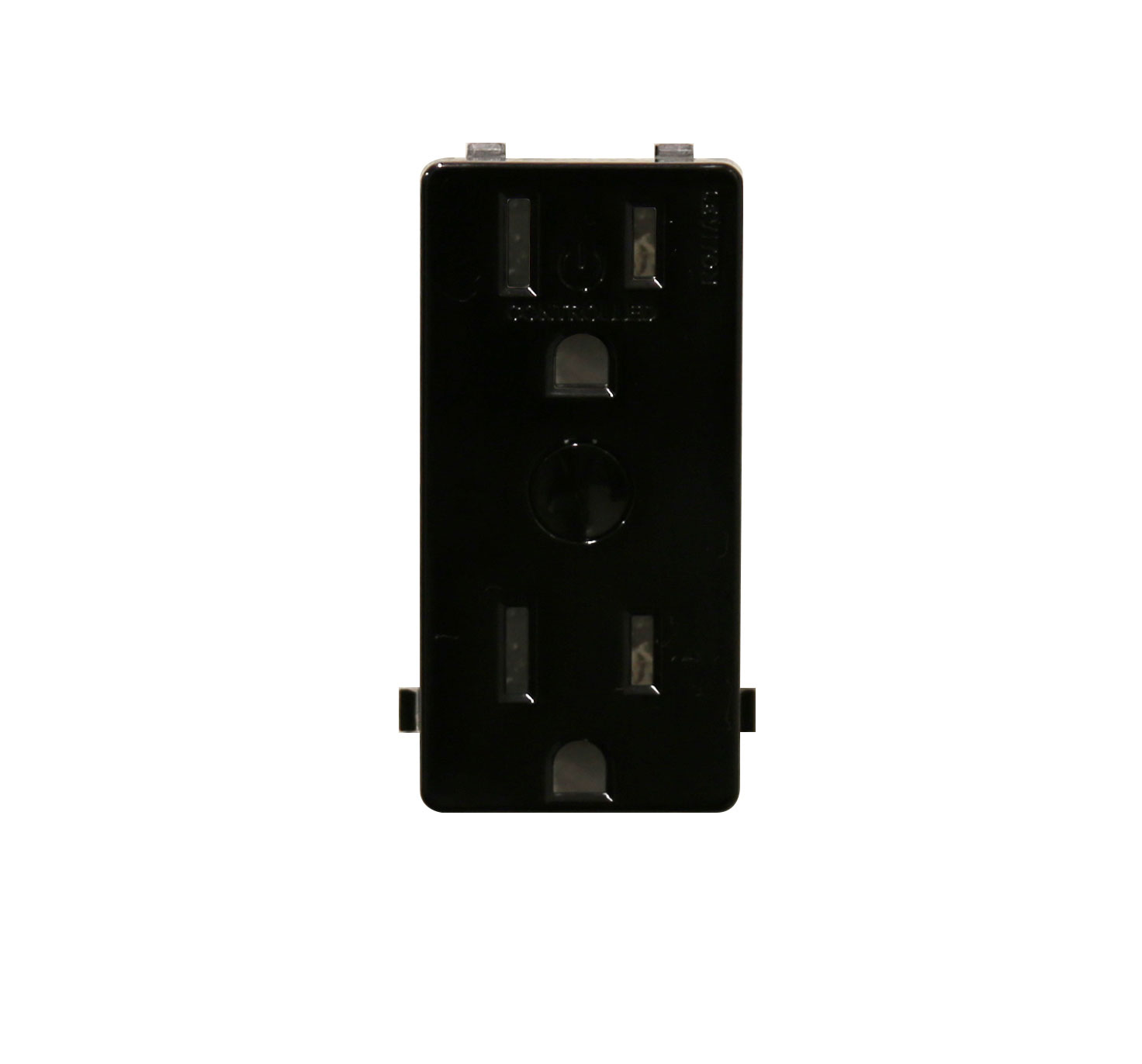

- Change the switch faceplate color to black, gray, brown, light almond, ivory or white using DSRKT
