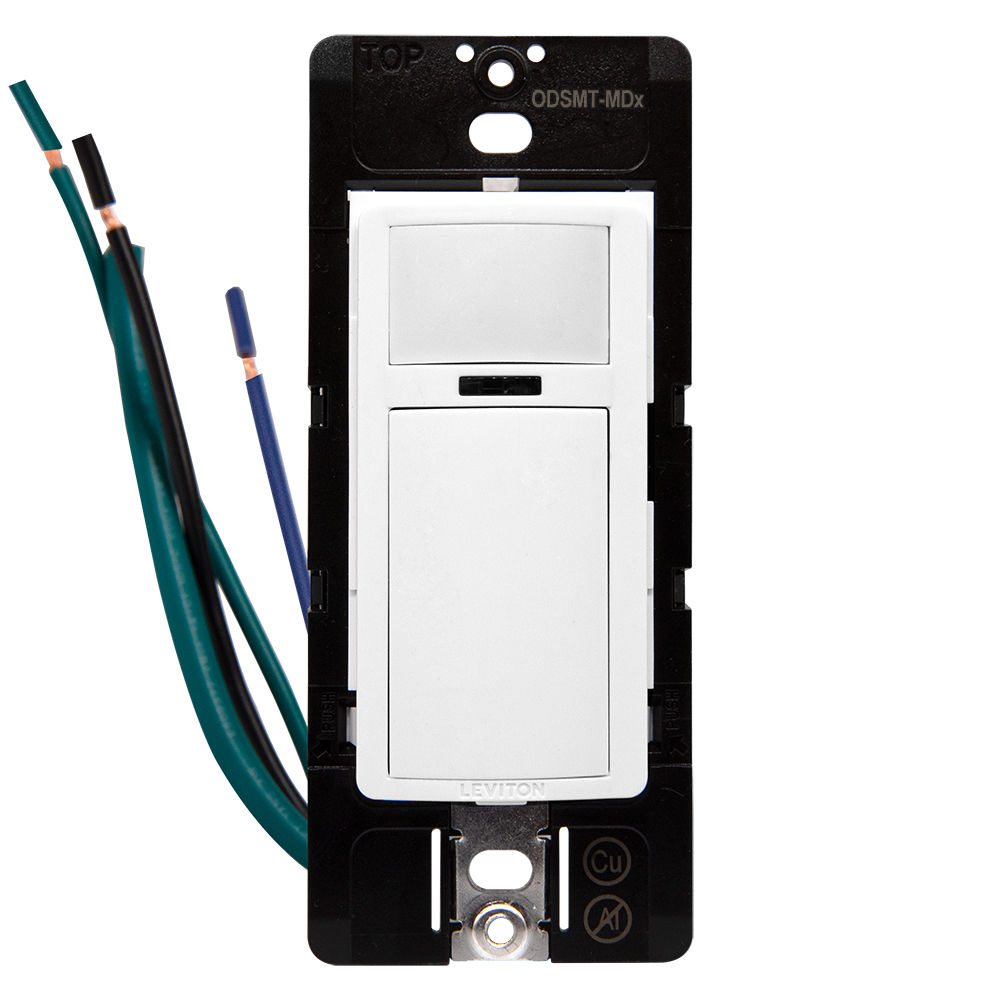

Smart Wallbox Sensor, Multi-Tech, 120-277VAC, Switch, White

ODSMT-MDW

Smart Multi-Tech Wallbox Sensor, App configurable; Auto-ON/Auto-OFF or Manual-ON/Auto-OFF, neutral wire required, 120-277VAC, 50/60Hz; White

The Leviton Smart Sensor uses Passive Infrared (PIR) detection technology to monitor a room for occupancy using a segmented, tamper resistant lens. When a person passes in or out of a sensor zone, the sensor detects motion and switches the lights ON. The lights will remain ON as long as an occupant is moving through the sensor zones. The ODS15-Ixx ’s vacancy mode features a Manual-ON/Auto-OFF for installations where manual-ON switching is required for energy code applications. Configuration of ODS15-Ixx is made using the Leviton Smart Sensor App from a smartphone or other Bluetooth® enabled Android or iOS device. Simple configuration can also be applied using pushbutton setup for several popular preconfigured options. Ideal for non-residential and commercial spaces up to 1,100 SF including offices, meeting rooms, and lobbies.

Do you have a question about an occupancy sensor or vacancy sensor?

Color: White

Where to Buy

Add to Project List

Product Support

UPC Code: 078477009543

Country of Origin : China

Product Information

Updated

Can be used to comply with ASHRAE 90.1, IECC and 2022 Title 24, Part 6 occupancy/vacancy sensing, dimming, and manual-ON/auto-OFF requirements
Fits in a standard wallbox and gangable with other units
180° field-of-view provides approximately 1,100 square feet of coverage
Maximum sensing distance in front of the sensor is 30-40 feet and 15-20 feet on either side
Microphonics technology able to detect human activity and does not require direct line-of-sight
Integrated photocell for daylighting hold-OFF
Use the Leviton Push to Pair (P2P) process to create a multi-way system for up to 5 devices
Advanced configuration can be performed using the Leviton Smart Sensor App on any Bluetooth-enabled Android or iOS device
