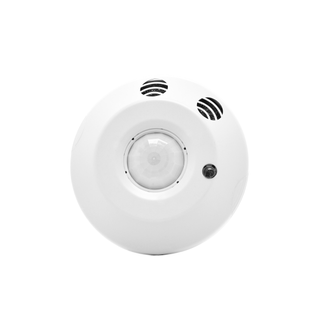

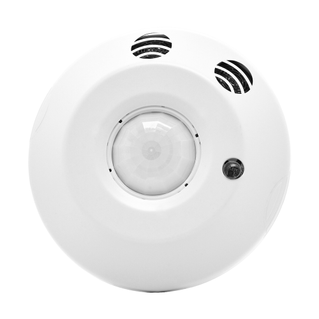

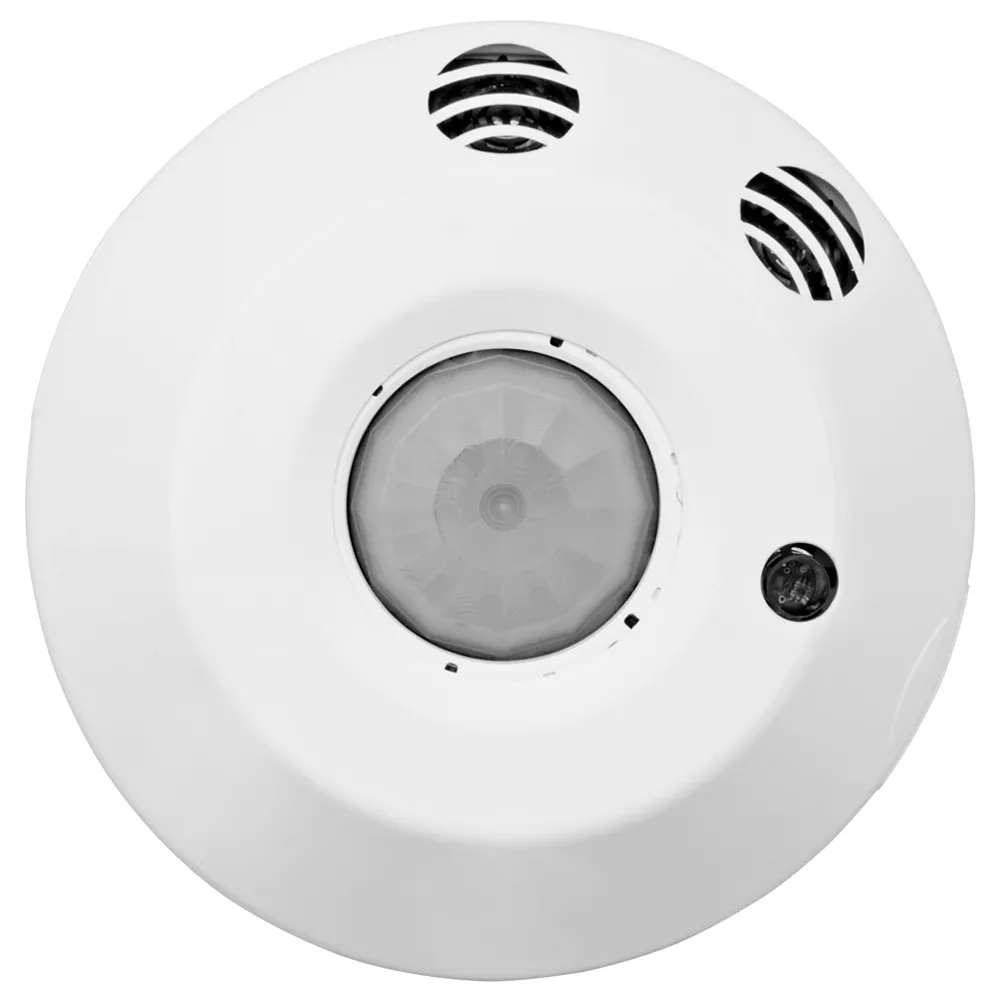

Smart Room Controller (SRC), Dimming, Multi-Tech, 500 sq ft Coverage


Smart Room Controller, Multi-Tech, 0-10V dimming, 1-zone, 500 sq ft coverage, 120-277VAC

The Leviton exclusive Smart Ceiling Mount Room Controller (SRC) offers high performance, code compliant, advanced room configuration in one easy-to-install device. Installers can download the Smart Sensor App for quick-and-easy room configuration with any iOS or Android device.

The SRC’s features meet advanced design requirements for standalone occupancy/vacancy sensing, dimming and daylight harvesting applications, offering easy configuration and operational testing for one or two 0-10V dimming zones, options for one or two daylight harvesting zones, partial-ON, partial-OFF, area control, demand response, plug load or receptacle control, and UL924 emergency lighting.

Color: White

UPC Code: 078477355183
Country of Origin : China

Product Information

  • Can be used to comply with IECC, ASHRAE 90.1. and 2022 Title 24, Part 6 requirements:
    • Occupancy/vacancy sensing
    • 0-10V dimming
    • Daylight harvesting
    • Partial-ON, partial-OFF
    • Demand response
    • Plug load or receptacle control
  • Available in 450 to 2,000 square foot field-of-view units
  • All configuration is done using the Smart Sensor App
  • For larger spaces additional Smart Ceiling Mount Room Controllers and Smart Ceiling Mount Sensors can be connected wirelessly to expand the FOV (up to 5 devices)
  • Passive infrared (PIR) and multi-tech (PIR + ultrasonic) models available
  • Manual area control available for 3-way/multi-way applications with the PLVSW Low Voltage Keypads or SBK00 Wireless Switch and Dimmer (must all be same style)
  • Manual control for independent dimming zones (dim primary and secondary daylighting zones up and down independently)
  • For dual relay models (ACY15-DIW and ACY20-DMW), two keypads can be connected for manual control of each relay/lighting zone
  • UL924 listed for emergency lighting:
    • Can be connected to BMS (Building Management System) or any contact closure to force the lights full ON in case of emergency
  • AutoCal feature—Digital Daylighting Level automatically calibrates photocell to specified lighting design
  • Simplified daylight harvesting control of primary and secondary daylighting zones with full range 0-10V dimming
    • Primary zone dimmed up and down from photocell
    • Secondary zone dimmed up and down with offset from primary zone
  • Two light pipes are included for both open (angled) and closed loop (flat and angled) daylight harvesting
  • The angled light pipe provides directional fine tuning and alignment to natural light source for closed loop applications
  • Includes two interchangeable lenses for 8-12’ mounting heights and 13-20’ mounting heights as well as aisleway masks
