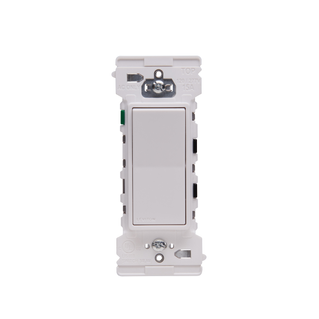

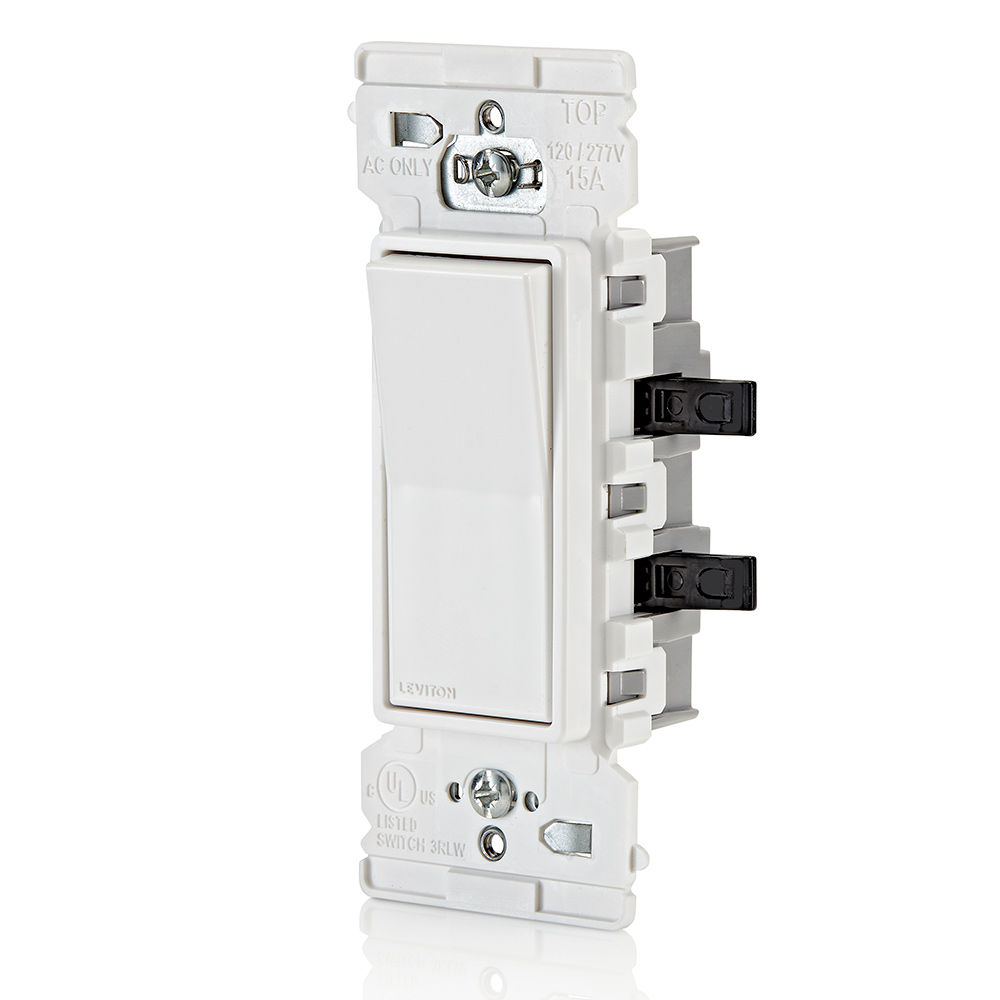

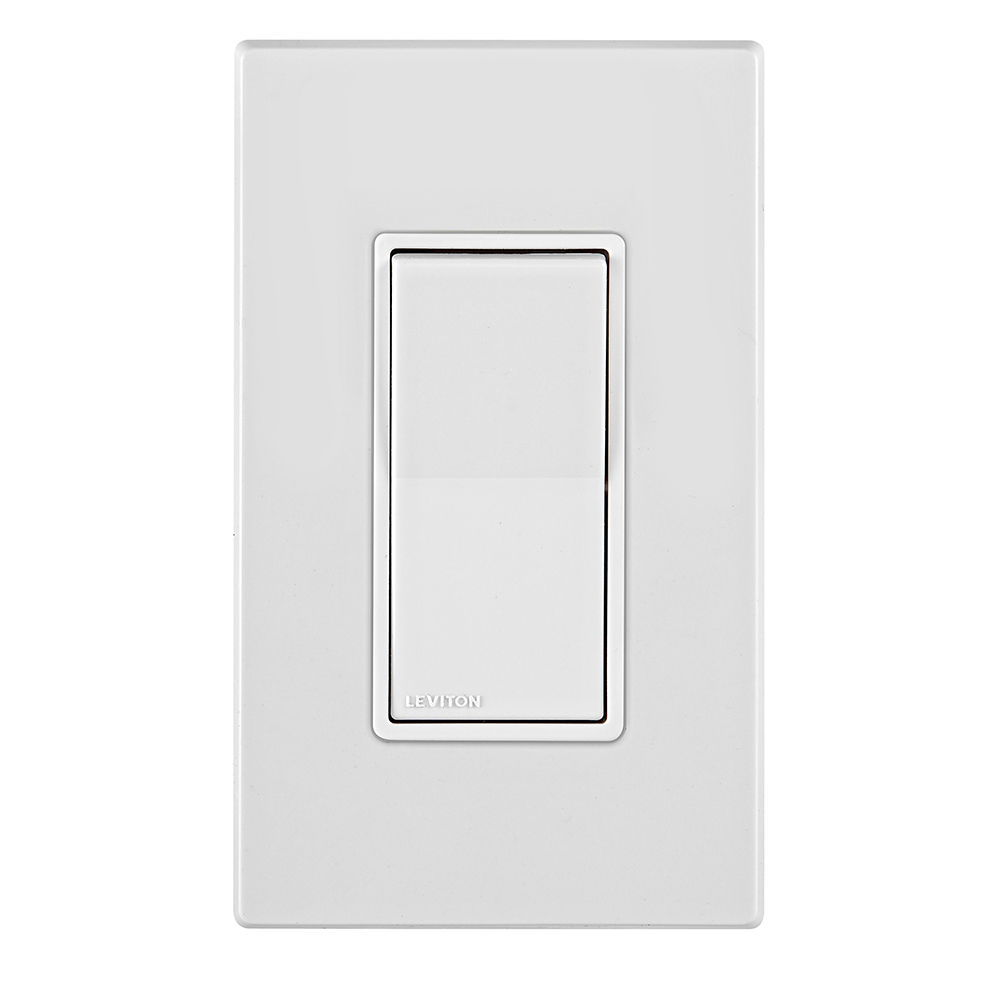

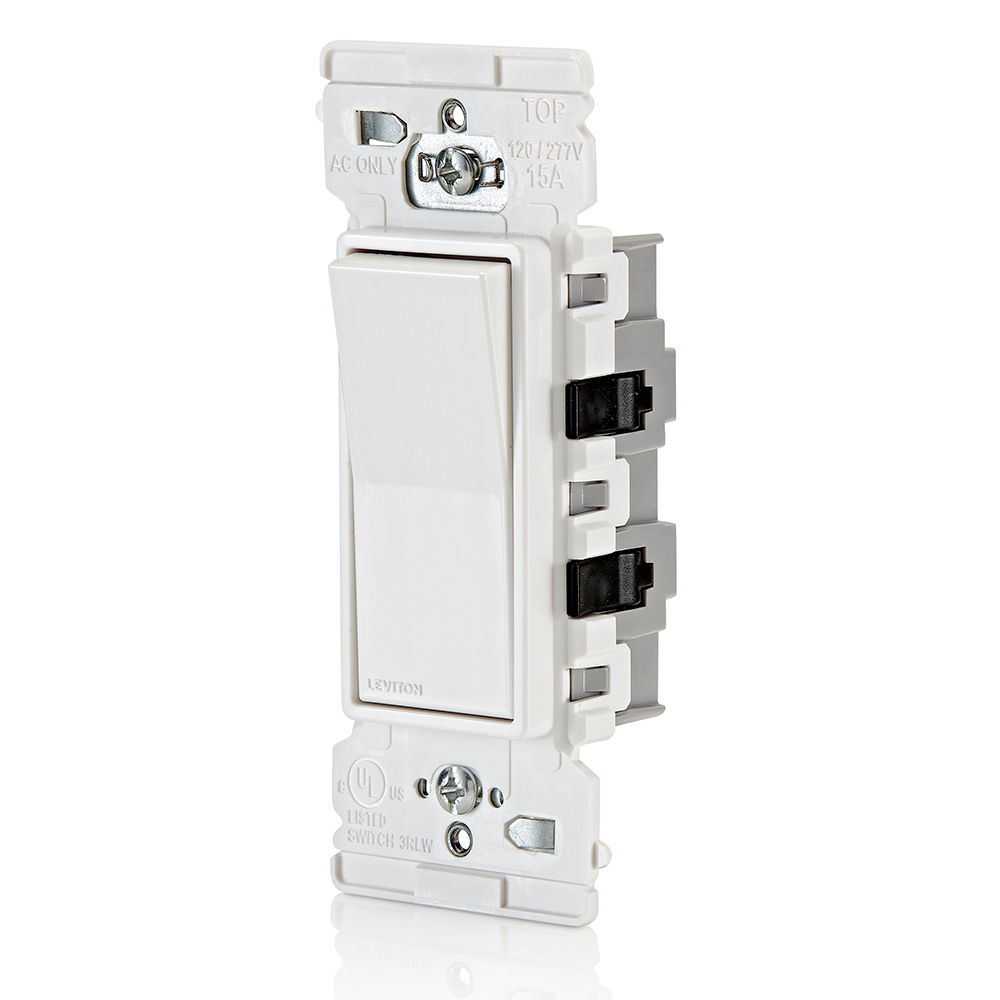

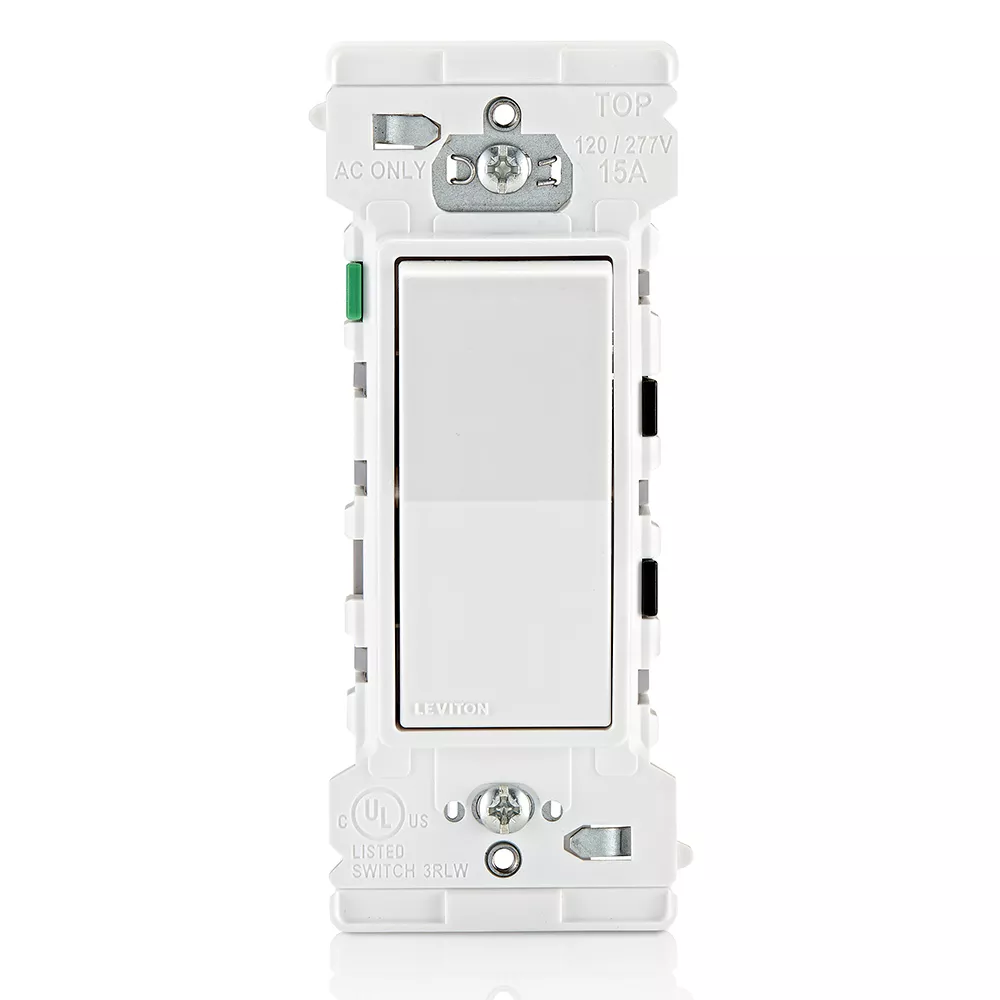

Decora Edge 15 Amp Single Pole Rocker Switch, White
E5601-W
15 Amp, 120/277 Volt, Decora Edge Single-Pole AC Quiet Switch, Residential Grade, Self-grounding - White

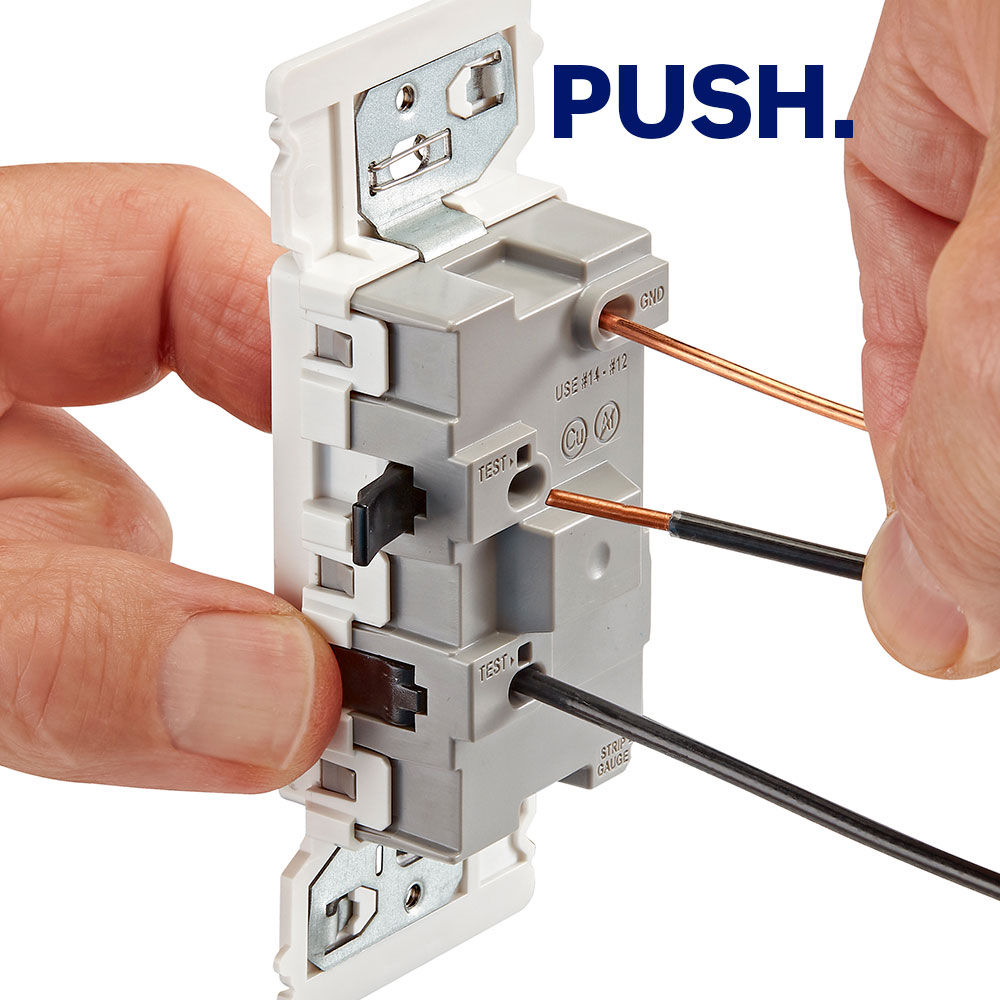

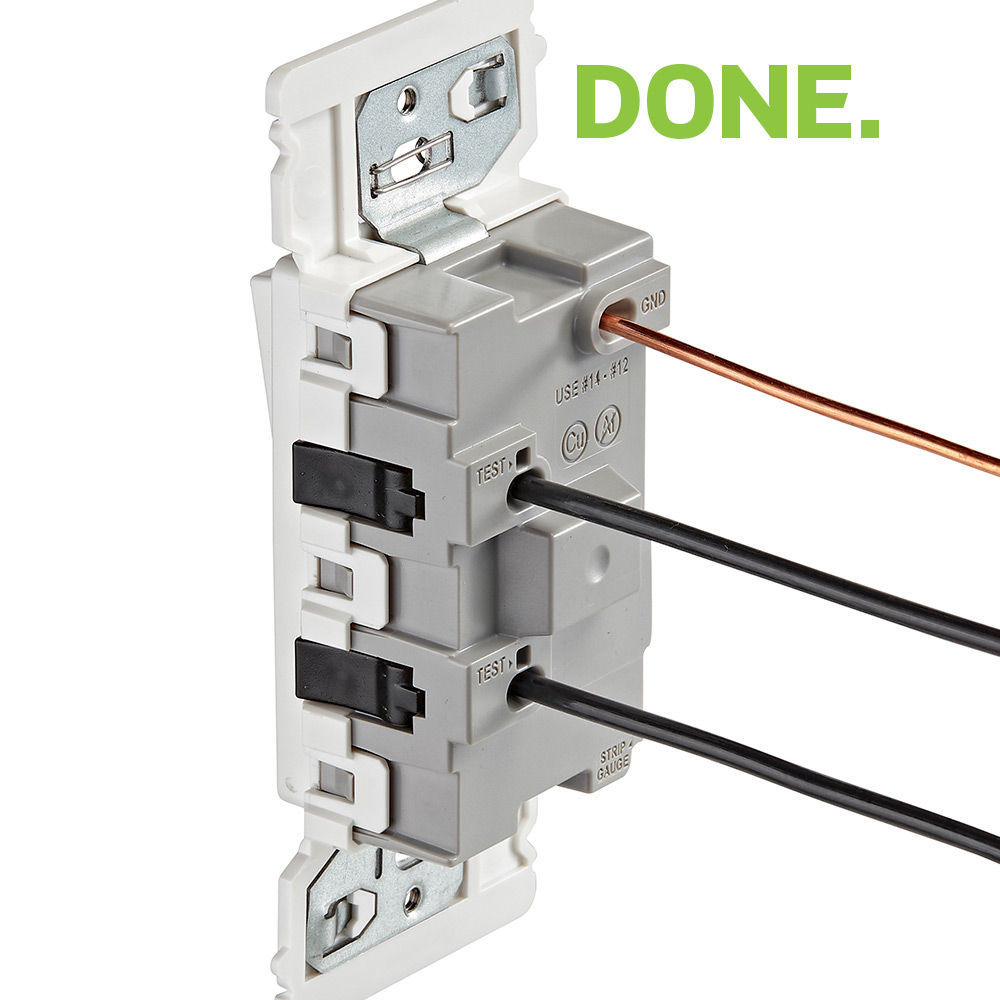

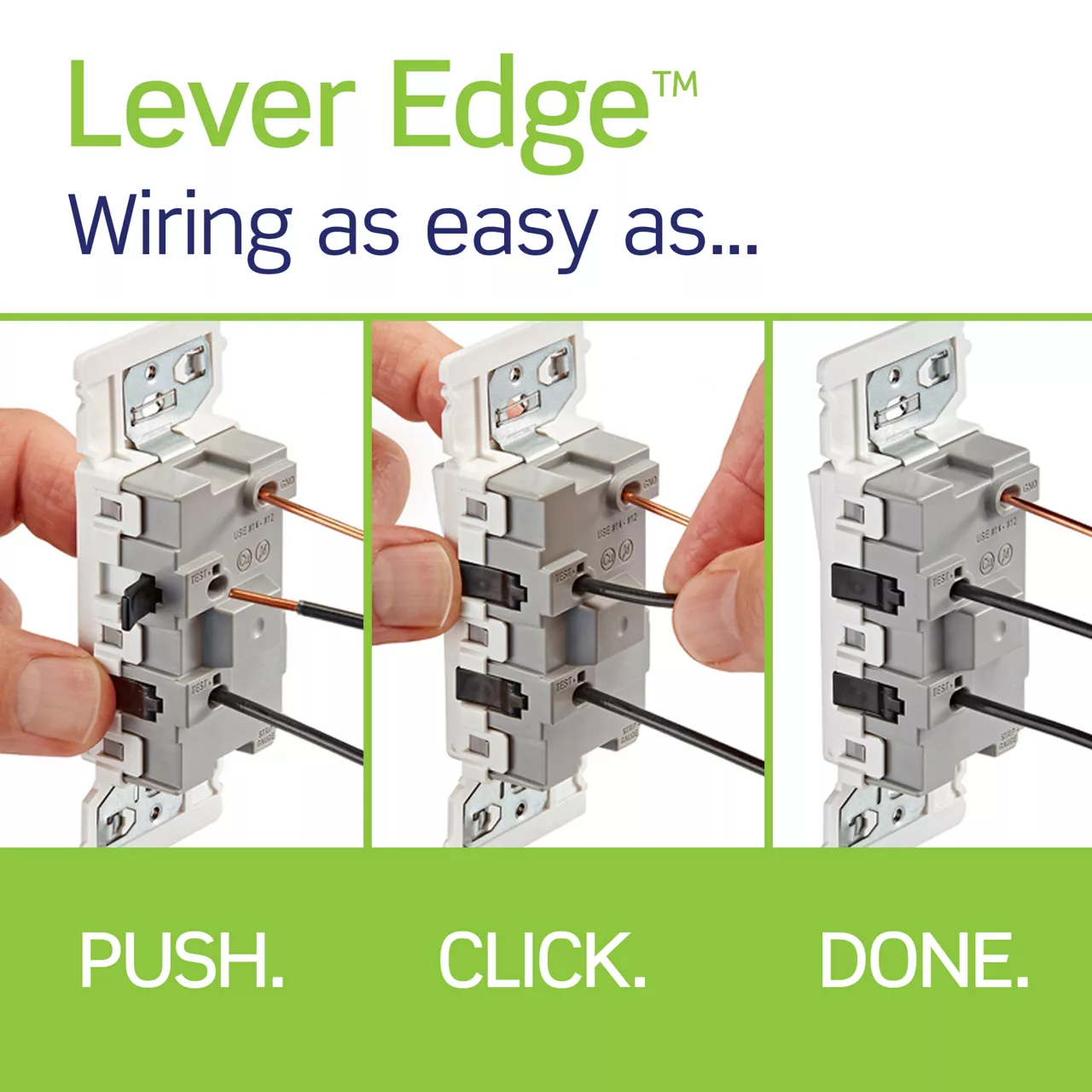

- FASTER – Patent-pending lever terminals for fast, efficient wiring. As Easy as PUSH. CLICK. DONE
- EASIER – Large strap makes installations easier as well as the ability to use 14 gauge and 12 gauge stranded and solid copper wire
- SAFER – No exposed metal parts for enhanced safety

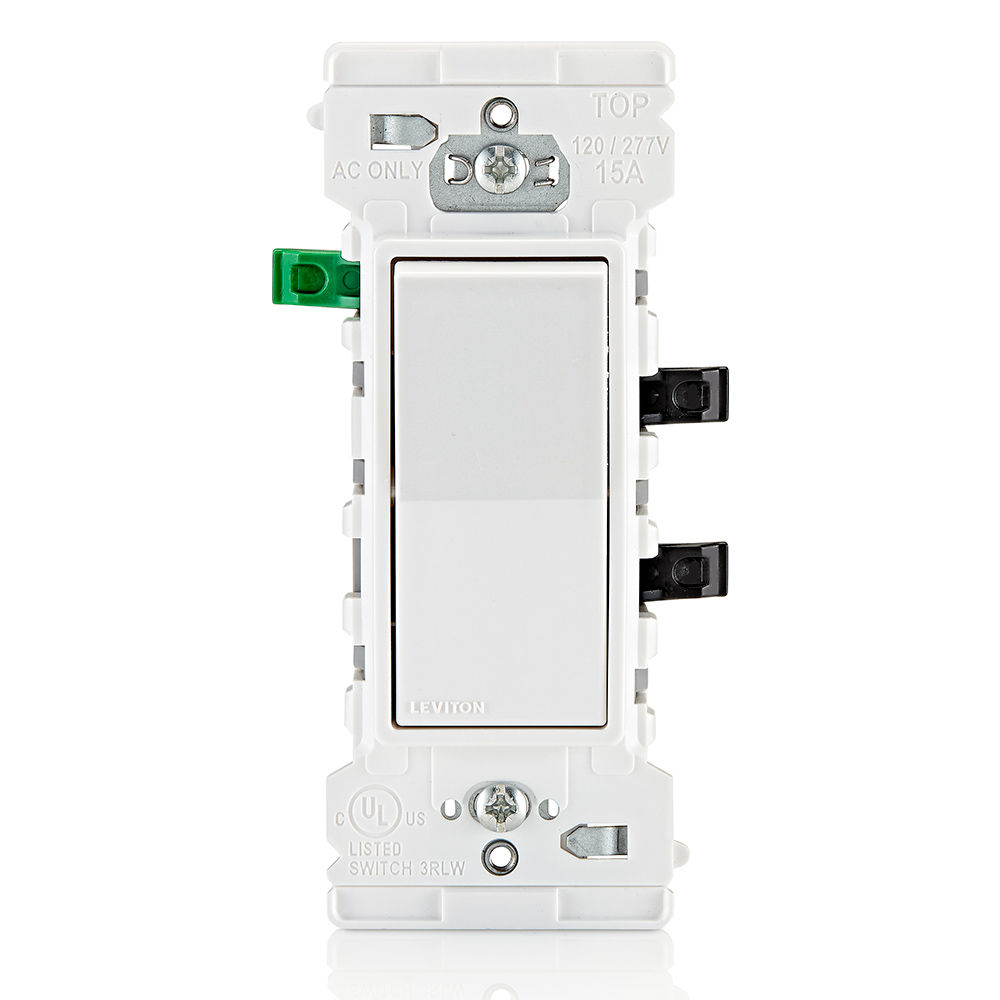

- CONVENIENT – Color-coded lever terminals to help prevent miswiring
- COMPATIBLE – Coordinates seamlessly with other Decora devices and can be used with any sized Decora wallplate
Product Information
Product Features
Amperage : 15 A
Color : White
Device Type : Rocker Switch
Grade : Residential
Electrical Specifications
Amperage : 15 A
Grounding : Self-Grounding
HP Rating : 1/2HP-120V 2HP-240V-277V
Max. Amperage : 12 Amp
Voltage : 120/277 VAC
Mechanical Specifications
Actuator Material : Thermoplastic
Body Material : Thermoplastic
Strap Material : Plastic and Steel
Material Specifications
Terminal Accom. : Side Lever Wire #14-#12 AWG; Stranded and Solid copper wire only

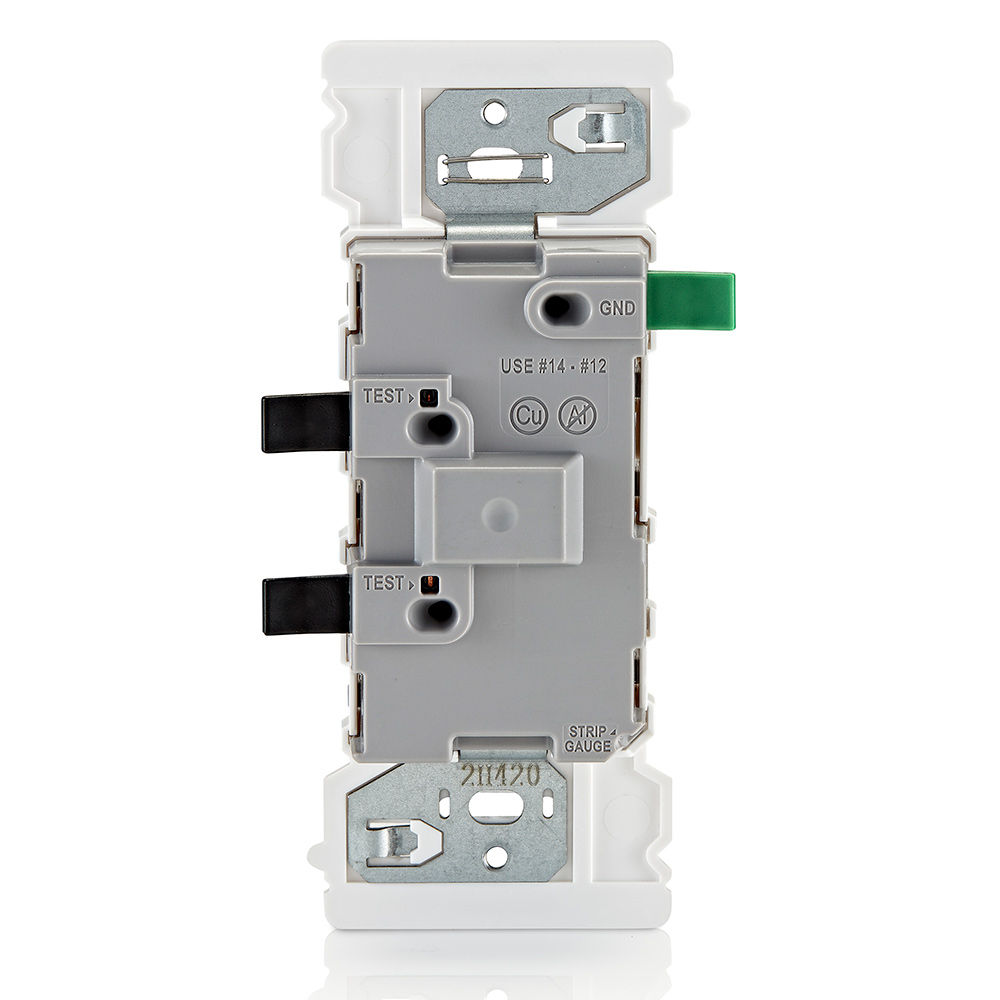

Terminal ID : Color Coded Lever Terminals, including Ground
Termination : Side Lever
Type : Rocker Switch
Standards and Certifications
CSA : CSA 22.2 No 111
NOM : NOM
UL Standard : UL 20: File E7458
Warranty
Warranty : 2-Year Limited

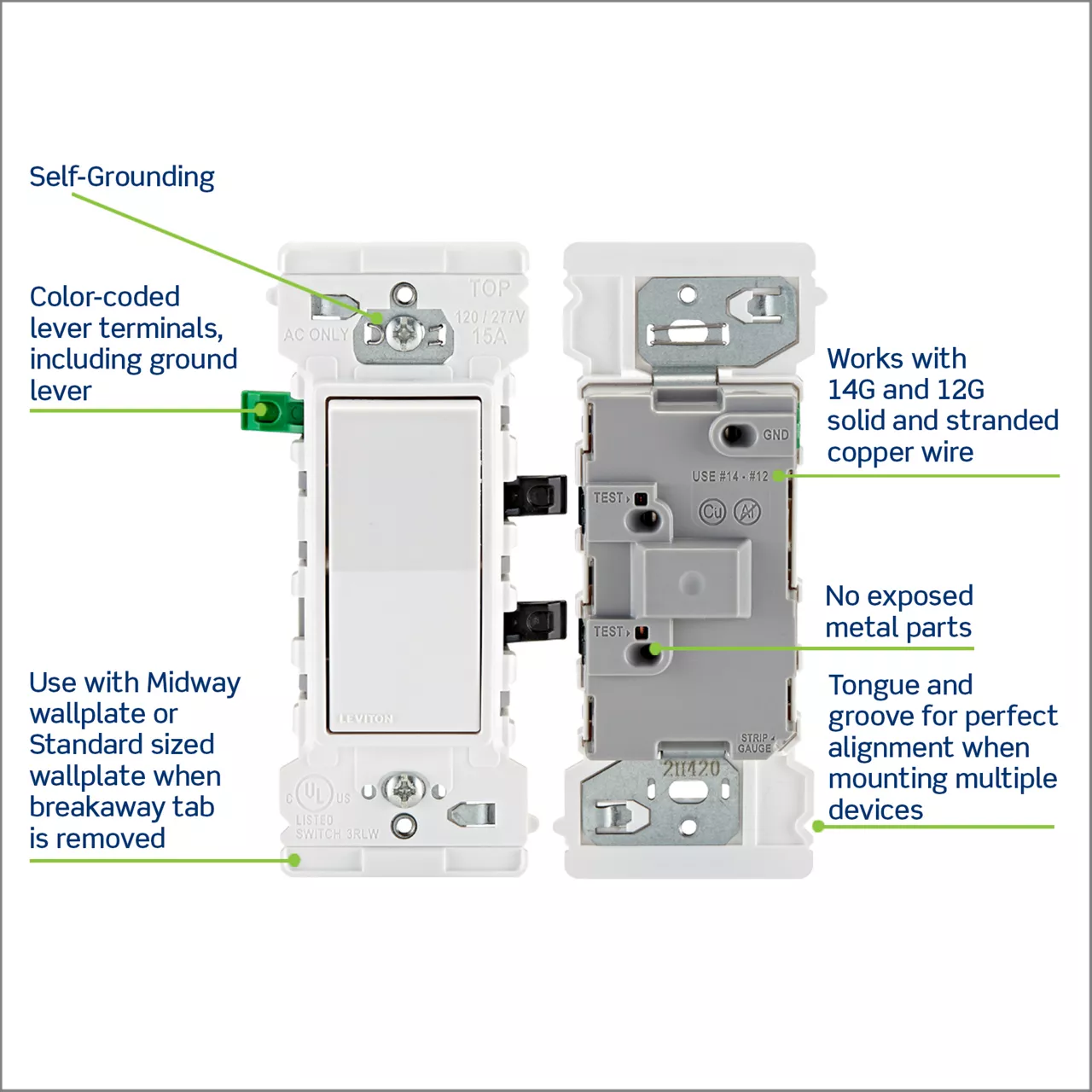

- Provides the traditional appearance and superior performance of Decora® devices in a new, faster, easier-to-install, and safer design
- Patent pending lever terminals for fast, efficient wiring
- Color-coded lever terminals reduces risk of miswiring

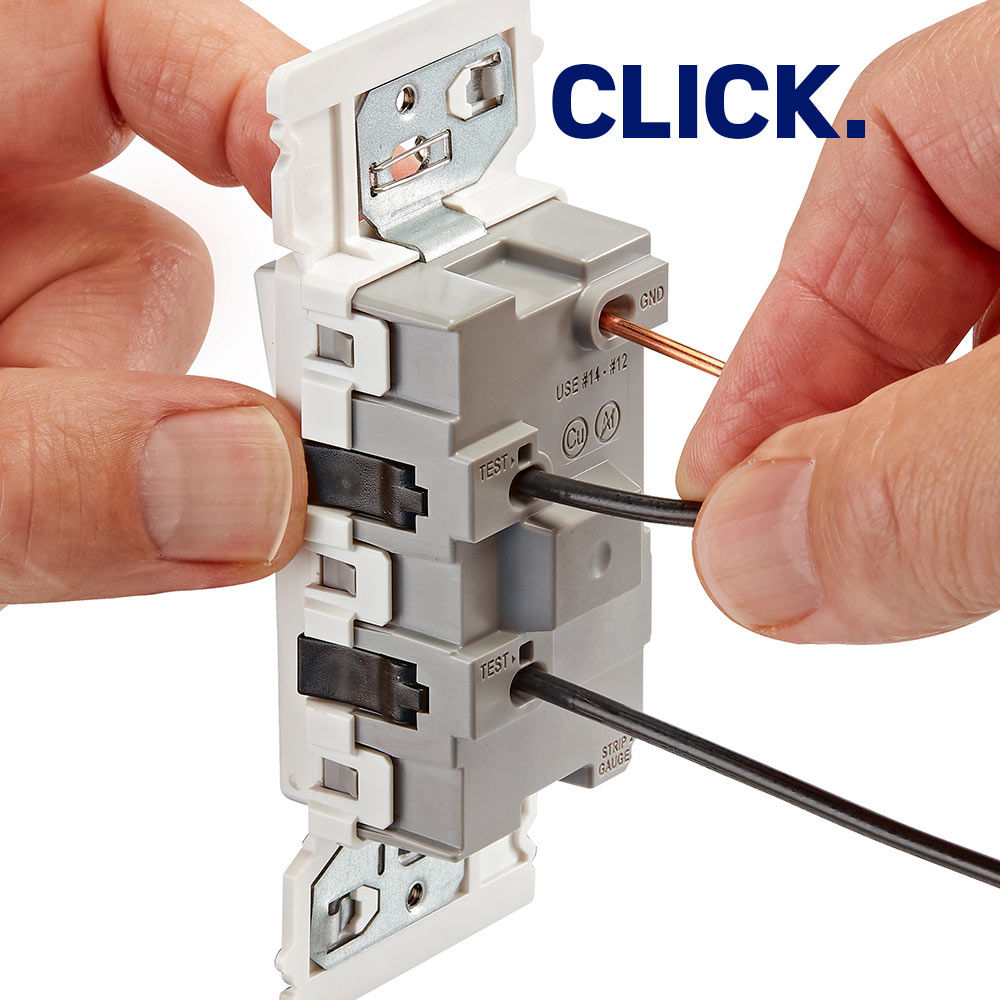

- Lever doors have snap feature to assure connection has been made; audible click confirms lever door is closed
- Only Residential device on the market with a quick termination ground wire
- No exposed metal parts for enhanced safety; eliminates need for electrical tape

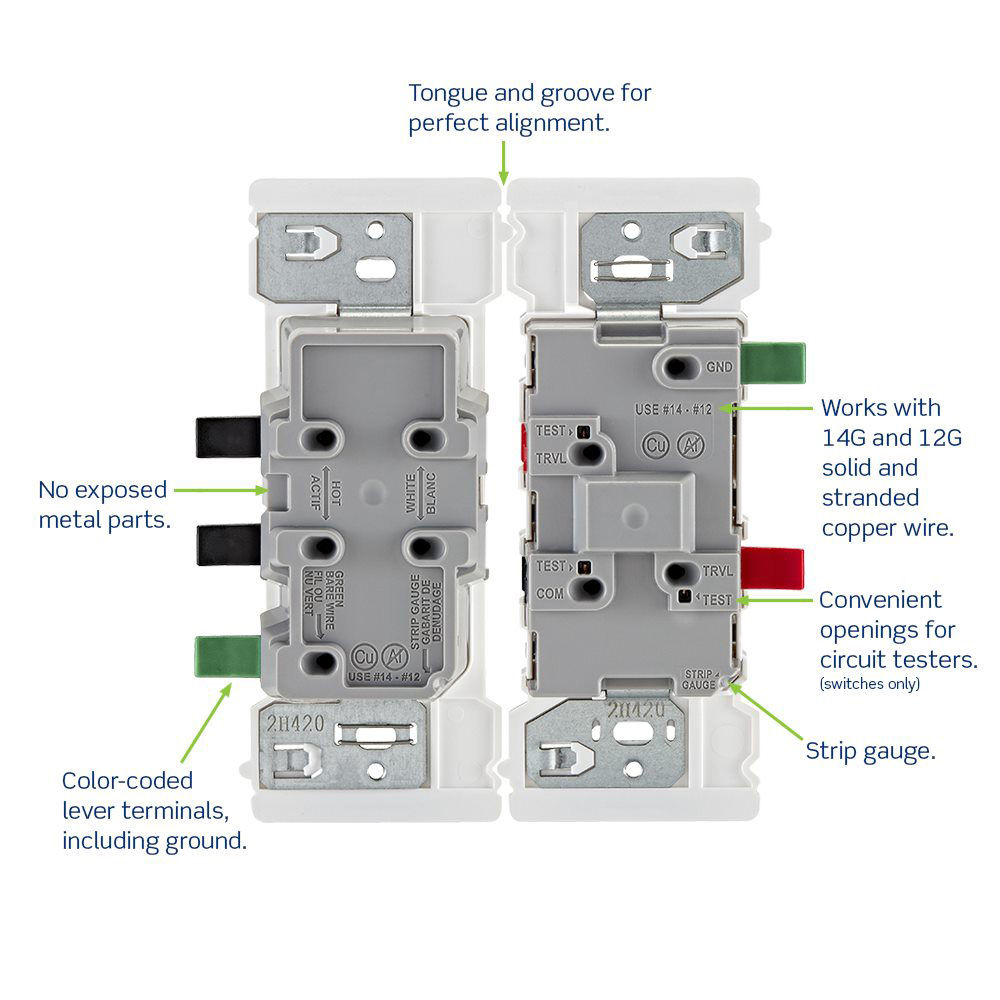

- Strap’s unique tongue and groove alignment offers quicker trim out on multi-gang installations

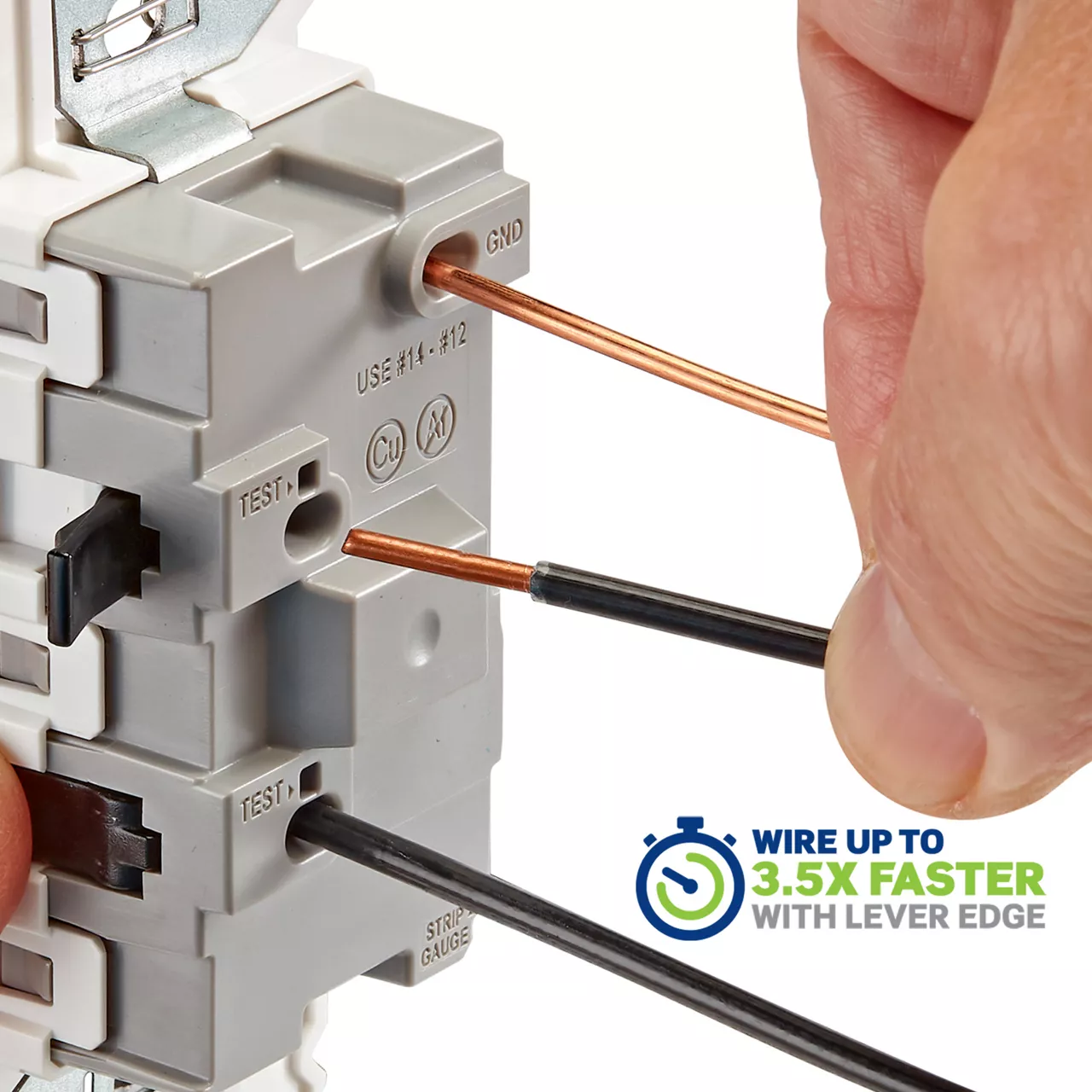

- Lever connectors work with 14 gauge and 12 gauge stranded and solid copper wire
- Wire openings prevent wire insulation from being inserted into the terminals
- One standard strip gauge for all devices
- Devices coordinate seamlessly with other Decora devices

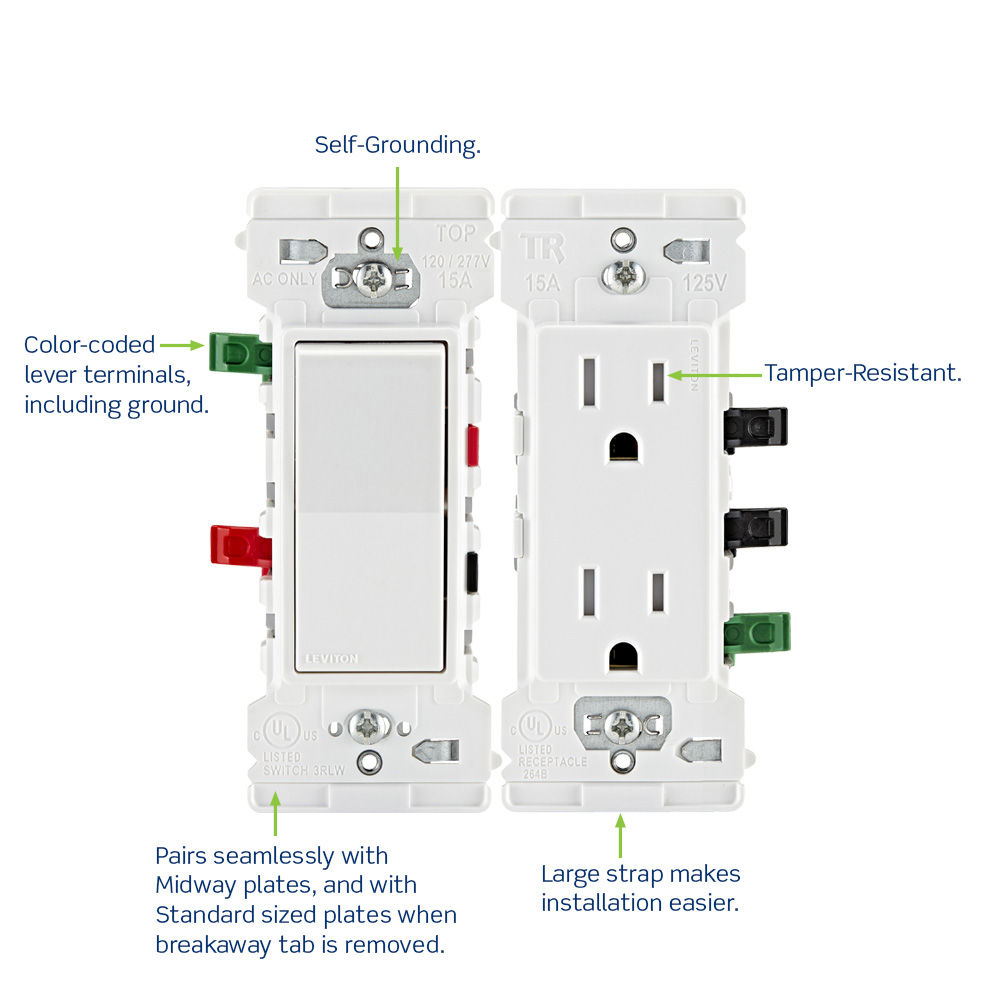

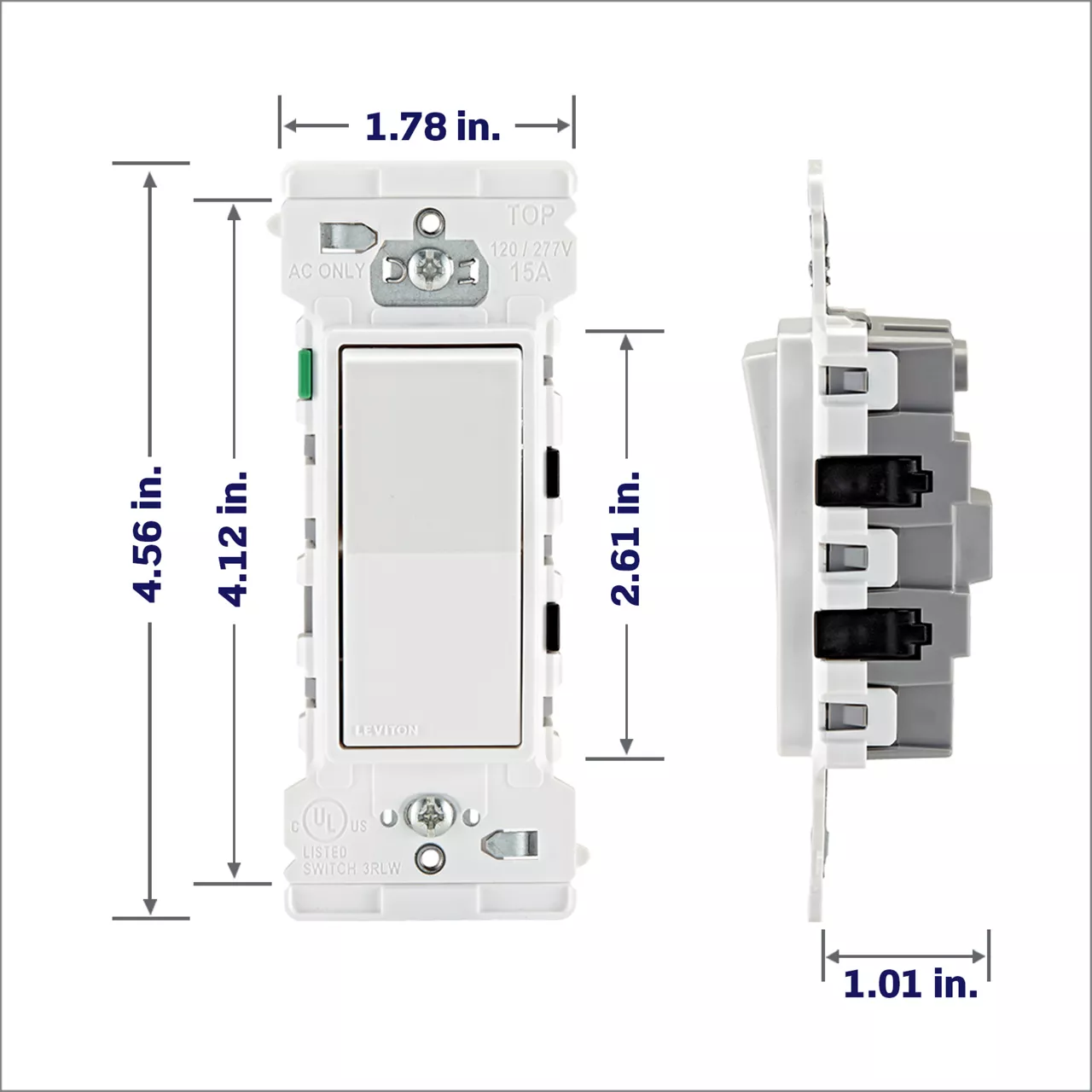

- Longer and wider strap is compatible with Midway wallplates, and with Standard sized wallplates when breakaway tab is removed
- Can be used with Decora wallplates and Decora Plus™ screwless wallplates

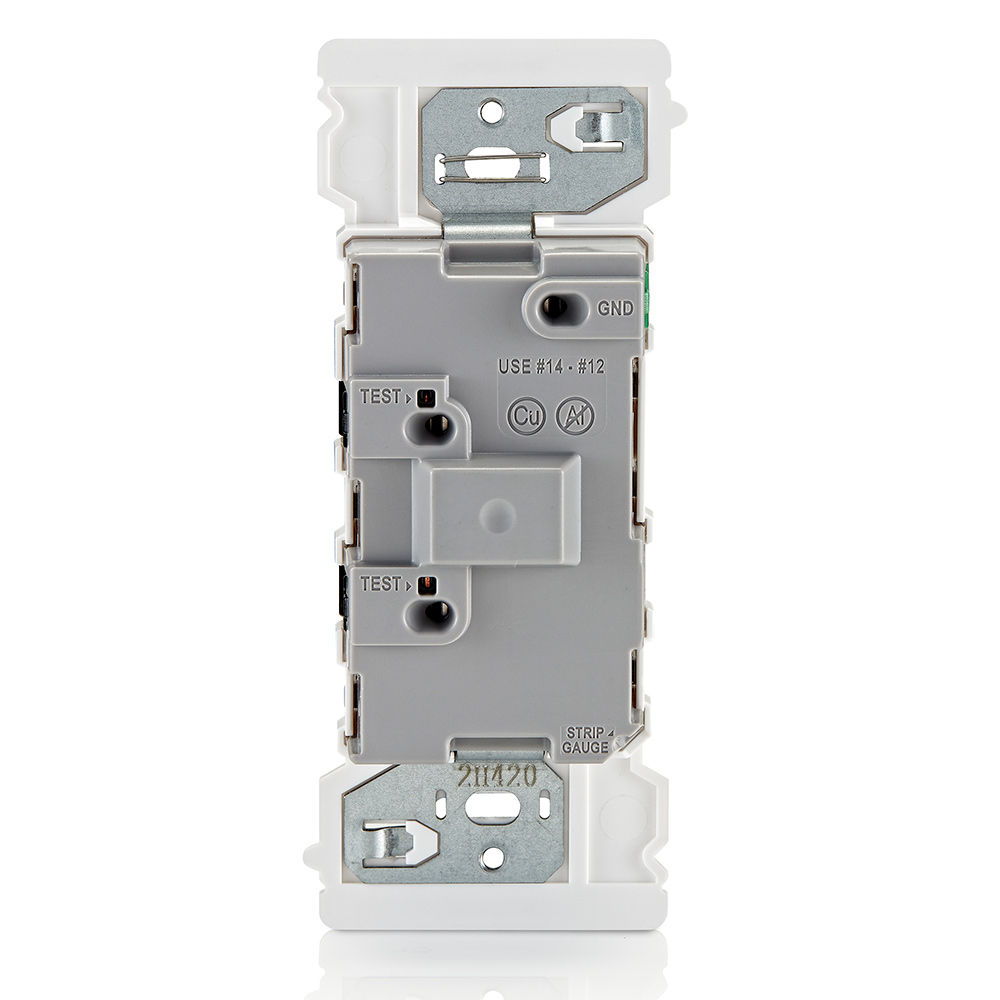

- Test openings for circuit testers
- Single-Pole Switch controls light(s) from one location
