GreenConnect, Load Controller, 800W Dimming, Wireless Lighting Control

ZKM00-10W

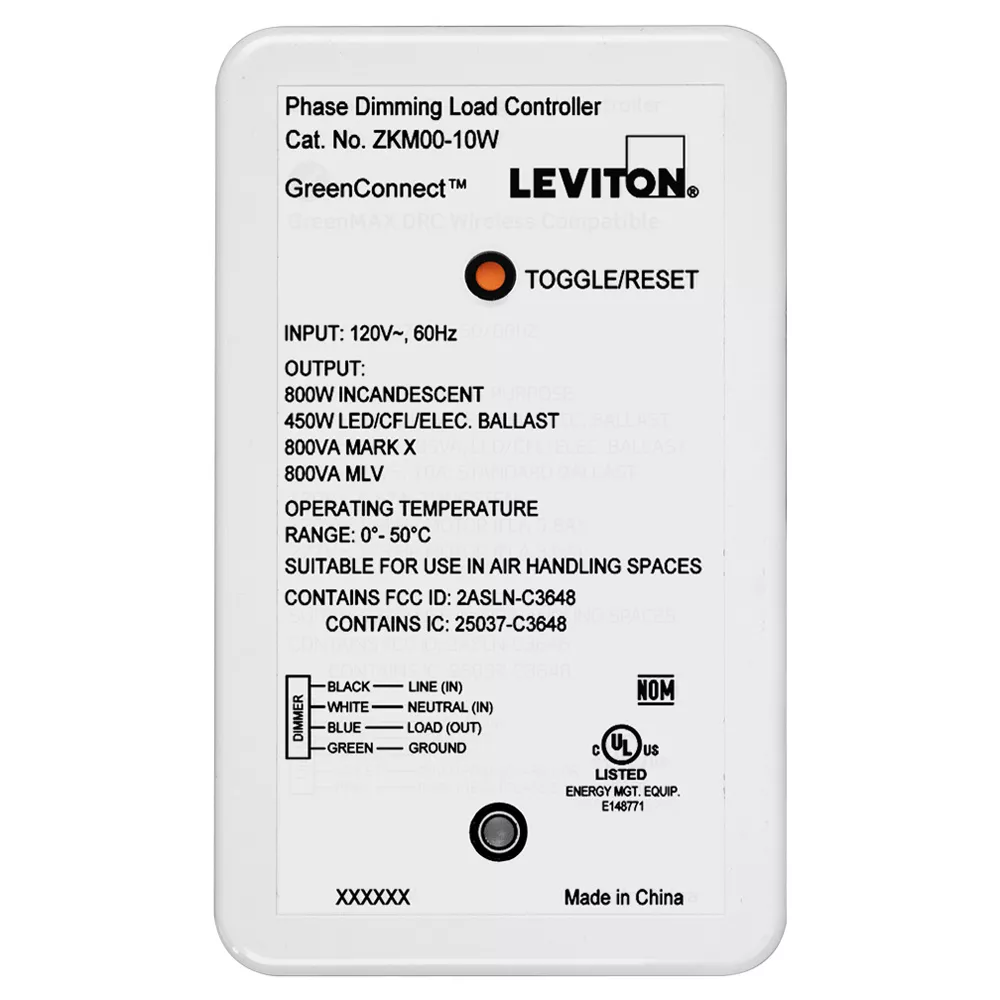

GreenConnect Wireless 800W Dimming Load Controller

GreenConnect Load Controllers are used for 0-10V and forward phase dimming, and general-purpose switching including receptacle circuit control. Quickly connect a Load Controller to a GreenConnect wireless dimmer, switch, or receptacle using Push-to-Pair (P2P).

Color: White

Where to Buy

Add to Project List

General Information

UPC : 078477570869
Product Features
Product Line : GreenConnect
Product Type : Wireless Load Controller
IP Rating : IP30
Local Area Network : IEEE 802.15.4, 2.4GHz wireless mesh network up to 75 ft range between device
Weight : .5lbs (0.22Kg)
Warranty : 5-Year
Code Compliance : Can be used as a component in a system to meet energy code requirements for IECC, ASHRAE 90.1, and 2025 Title 24, Part 6 space/area control, dimming, manual-ON/OFF, occupancy/vacancy control and automatic shutoff requirements.
Electrical Specifications
Input Voltage : 120VAC, 60Hz
Input Current : 120V - Standby: 1.0W, Max: 1.2W + Load Current. 277V - Not rated for use.
Environmental Specifications
Operating Temperature : 32 to 122° F (0 to 50°C)
Storage Temperature : -40 to 185° F (-40 to 85°C)

Robust and reliable—mechanically held latching relay for high inrush (LED) and large commercial loads
Compatible with multiple load types—LED, HID, inductive, fluorescent, etc.
Integrated High Inrush Stability (H.I.S.) relay—designed to handle today’s high inrush electronic ballast loads and offer unmatched durability and service
LED status indicators
Local toggle/test/program switch
Complies with IEEE 802.15.4 standards —for domestic and international wireless networks
Code compliant energy management functionality—can be used as a component in a system to meet energy code requirements for IECC, ASHRAE 90.1,and 2025 Title 24, Part 6 space/area control, dimming, manual-ON/OFF, occupancy/vacancy control and automatic shutoff requirements
