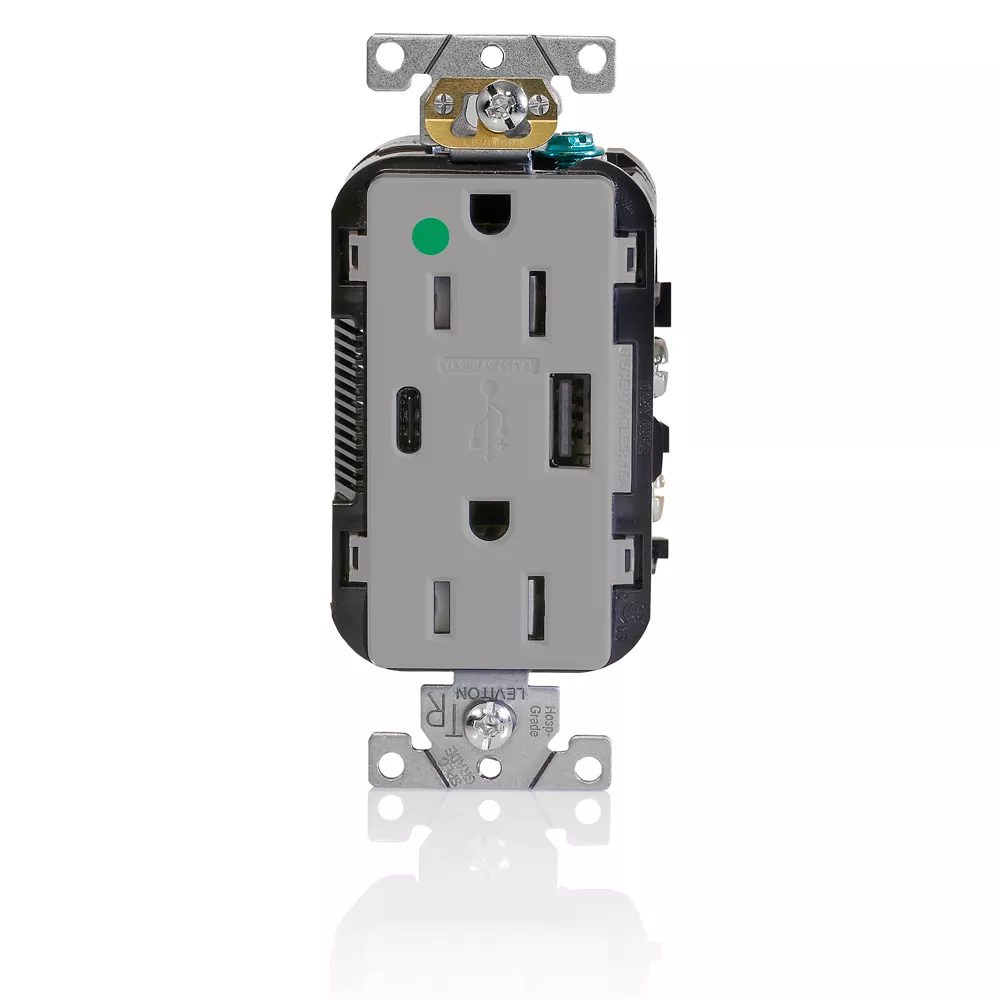

Tamper-Resistant USB Receptacle, 15 Amp, 125 Volt

T5633-HGG

Duplex Receptacle Outlet, Heavy-Duty Hospital Grade, Tamper-Resistant, with USB, One Type A & One Type C USB Port (5.1 Amp), Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Gray

Color: Gray

UPC Code: 078477893463
Country of Origin : China
NEMA 5-15R

Product Information

  • Product Features

    Color : Gray

    Device Type : Duplex Receptacle Outlet

    Feature : Power Indication

    Grade : Heavy-Duty Hospital Grade

  • Warranty

    Warranty : 5-Year Limited

  • Electrical Specifications

    Amperage : 15 A

    Grounding : Self Grounding

    Pole : 2.0

    Short Circuit Current Rating : 10kA

    Voltage : 125 VAC

    Wire : 3.0

  • Horsepower Rating (AC)

    Horsepower Rating : 1 HP

  • Standards & Certifications

    ANSI : C-73

    NEMA : 5-15R

  • Material Specifications

    Grounding Screw : Plated Steel

    Line Contacts : Brass

    Strap Material : Galvanized Steel

    Terminal Clamp : Brass

    Terminal Screws : Plated Steel

  • Mechanical Specifications

    Product ID : Stamped on Strap

    Screw Terminal Torque : 14-18 in-lb

    Terminal ID : Brass-Hot, Green-Ground, Silver-Neutral

    Termination : Back & Side Wire

  • Environmental Specifications

    Operating Temperature : -10C to 40C
