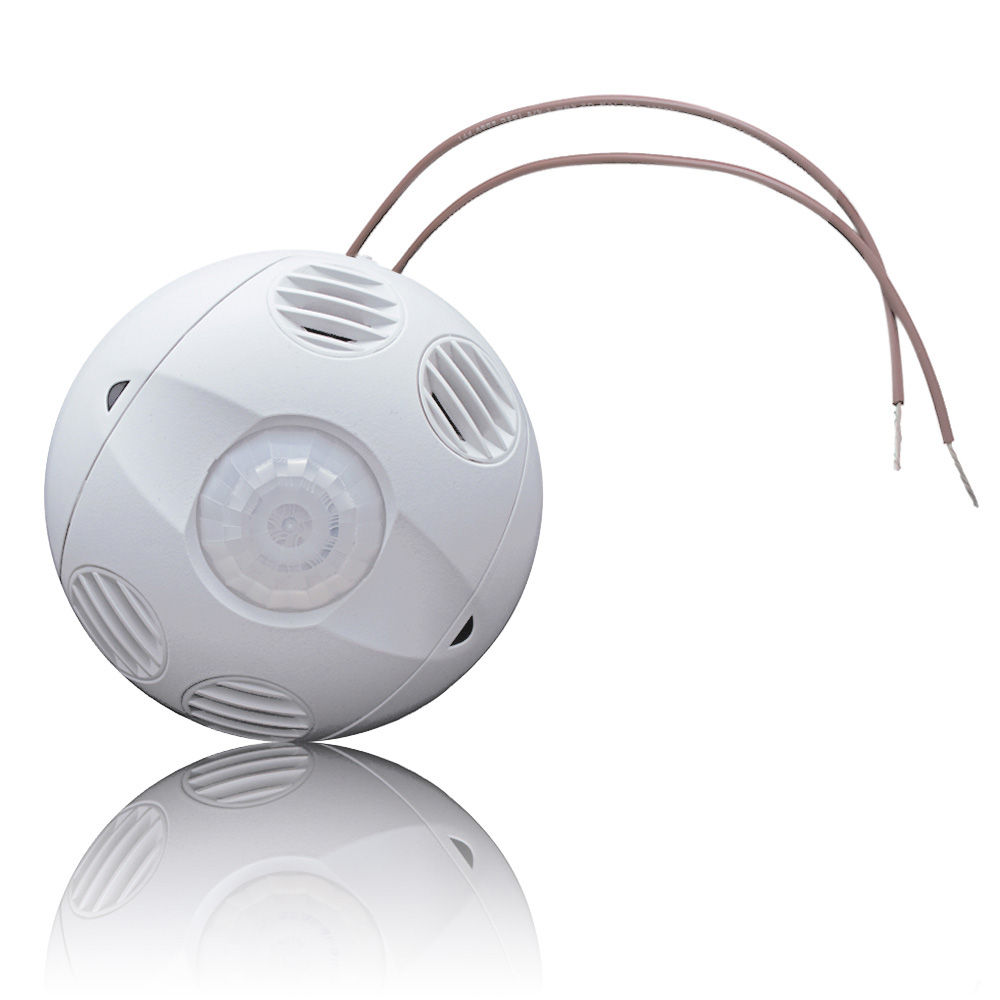

Sector® Multi-Technology Occupancy Sensor, Title 24 compliant, ASHRAE 90.1 compliant, White, 2000SF

OSC20-MSW

DISCONTINUED
Sector® Multi-Technology Occupancy Sensor, Title 24 compliant, ASHRAE 90.1 compliant, White, 2000SF The Leviton Sector® Multi-Technology Occupancy Sensors are low-voltage occupancy sensors that work in conjunction with a Sector® Bus Controller (SBP00-00M) to activate light switching in response to room occupancy within a Sector® Intelligent Lighting Control System. These sensors are part of a system that turns lights on and keeps them on while movement is detected within the sensor’s range, and conversely turns lights off when motion is no longer detected for a specified period of time.

Do you have a question about an
occupancy sensor or vacancy sensor?

Contact us to learn more.

UPC Code: 078477432846
Country of Origin : United States

Product Information

  • Electrical Specifications

    Voltage : 34-42 VDC

    Wiring : Brown wires; polarity-free - Leads: color coded, 6" (16.24cm)

  • Environmental Specifications

    Operating Temperature : 32° to 104°F (0° to 40°C)

    Relative Humidity : 0% to 95% non-condensing

  • Mechanical Specifications

    Construction : High-impact, injection-molded plastic

    Mounting Type : Ceiling Mount

    Size : Width 4.5" (114mm), Depth 1.5" (38mm)

  • Performance Specifications

    Coverage (Sq.Ft.) : 2000

    Pattern : 360°

  • Product Features

    Application : Office buildings,Schools,Medical offices,Restaurants,Government facilities,Location that could benefit from the cost savings and energy efficiency

    Color : White

    Grade : Commercial

    Mounting : Ceiling Mount

    Product Line : Sector

    Protocol : SectorNet

    Sensor Technology : Multi-Technology: Passive Infrared (PIR)/Ultrasonic (US)

    Sensor Type : Occupancy

  • Standards and Certifications

    Listings : IEC61000-4-2

  • Type

    Product Type : Occupancy Sensor

  • Warranty

    Warranty : 5-Year Limited

  • Ultrasonic Motion Detection
  • Simple, Fast Installation
  • Ballasts, occupancy sensors, and control stations connect on a single bus, topology-free, and polarity-free, two conductors
  • Compatible with Class 1 and Class 2 Wiring
  • Self-Adjusting
  • Digital Technology, Complete Reliability
  • Ceiling Mount
  • Non-Volatile Memory
  • Remote or Manual Configuration Capability
  • Adjustable Ambient Light Control

  • MX24023
  • US7800049

This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.
