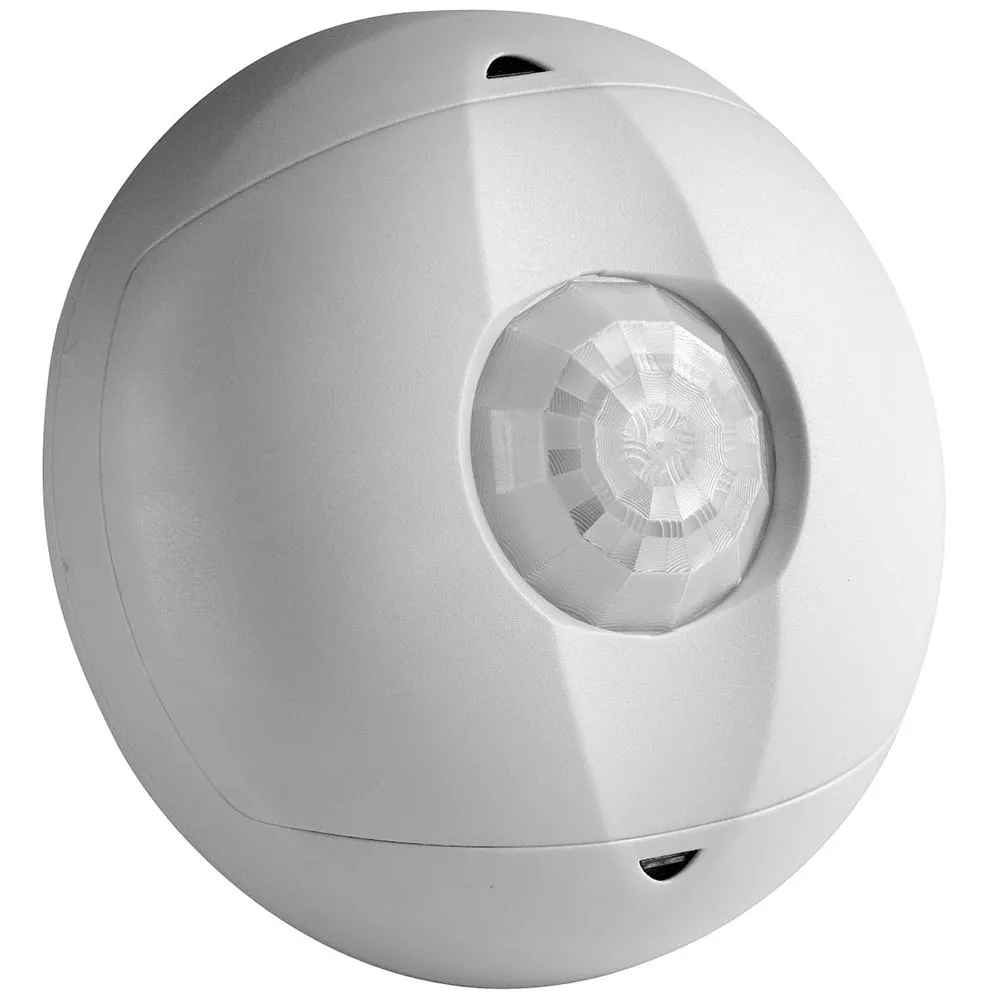

Occupancy Sensor, PIR, Ceiling Mount, 1500SF, Made in USA with globally sourced components, White


Occupancy Sensor low voltage lighting control, Ceiling Mounted, 1500 sq ft Coverage. Passive Infrared Only. High Density Fresnel Lens 24VDC, Class II, C-UL-US Listed/NOM Required, FCC/ CA Title 24 Compliant. Made in USA with globally sourced components. Color: White

The OSCxx-I0W is a Passive Infrared (PIR) ceiling mount, low voltage occupancy sensor that works in conjunction with the Leviton OSPxx Power Pack to control lighting.

Color: White

UPC Code: 078477508640
Country of Origin : United States

Product Information

  • Mechanical Specifications

    Mounting Type : Ceiling Mount

    Size : Width 4.20" (106.68mm), Depth 1.57" (39.90mm)

  • Warranty

    Warranty : 5-Year Limited

  • Electrical Specifications

    Output Power : 24 VDC active high logic control signal with short circuit protection

    Power Consumption : 10mA

    Voltage : 24 VDC

  • Type

    Product Type : Occupancy Sensor

  • Standards and Certifications

    Listings : CUL/US Certified, can be used to comply with Title 24, Part 6 occupancy sensing requirements

    USMCA Compliant : Yes

  • Environmental Specifications

    Relative Humidity : 0% to 95% non-condensing

  • Performance Specifications

    Coverage (Sq.Ft.) : 1500

    Pattern : 360°

  • Product Features

    Application : Classrooms, Utility closets, Conference rooms, Copy rooms, Hallways, Small offices, Open areas, Private restrooms, Storage rooms, Vending rooms, Open warehouses, Workspaces

    Color : White

    Grade : Commercial

    Made in USA : Made in USA with globally sourced components

    Mounting : Ceiling Mount

    Mounting Height (Ft.) : 8-10 FT

    Product Line : OSC15

    Sensor Technology : Passive Infrared (PIR)

    Sensor Type : Occupancy

    Time Delay : 30s-30m

    Title 24 Compliant : Yes

  • Small Size: Installed sensor appears almost invisible.
  • Fast Simple Installation: Easy ceiling mount, three wire connection (low voltage) and twist-lock sensor attachment.
  • Accurate, Consistant Switching: Occupant complaints are eliminated; lights are on when room is occupied, off when empty. annoying false-offs are minimized and lights on at night is eliminated.
  • Self-Adapting: An internal microprocessor continually analyzes, evaluates and adjusts settings. Performance is kept at a maximum and user complaints are eliminated.
  • Maximum Reliability, Low Cost: All digital circuitry uses a minimum of components.
  • Non-Volatile Memory: Learned and adjusted settings saved in protected memory. Power outages will not cause status loss.
  • Ambient Light Recognition: The photocell prevents lights from turning on when room is adequately lit by natural light.
  • Excellent Warranty: 5-Year Limited warranty.
  • Typical Applications: Copy Room, Open Office, Storage Room, Lounge, Non-Partitioned Restroom, Vending Room, General Work Space, or Hallway
