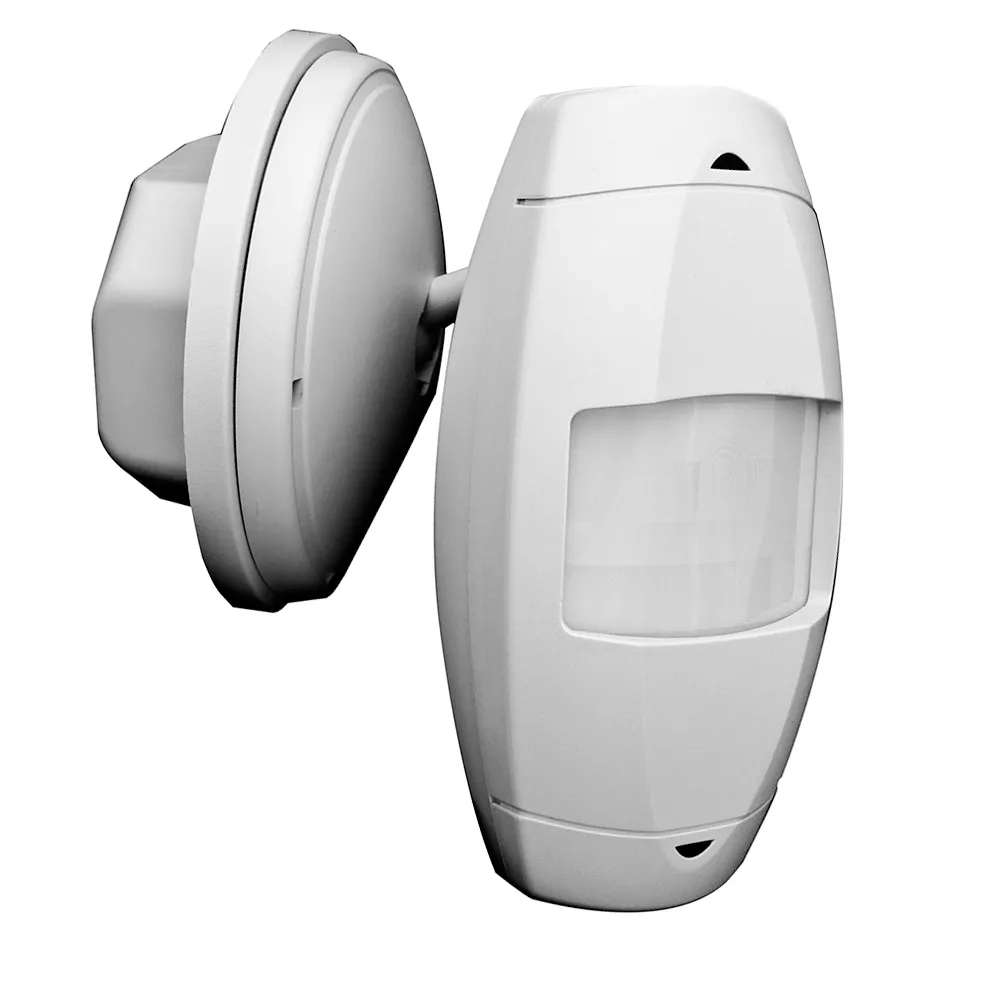

Occupancy Sensor, Line Voltage, PIR, Wall Mount, Wideview, 2500SF, Power Base Included: Line Voltage to Low Voltage Power Base Adaptor - 15A, 120-230-277VAC, Off-white
ODWWV-IDW
Occupancy Sensor OSWWV-I0W lighting control kitted with the Power Base OPB15 to complete a self contained line voltage sensor. (Occ Sensor: 24VDC, 8'-10' Wall Mounted, 2500 sq ft, PIR, (Power Base: Line Voltage to Low Voltage Power Base Adaptor. 15A, 120-230-277VAC), CEC Title 20/24 compliant. Color: Off-white
Leviton’s ODC and ODW series sensors provide a full line of self contained PIR, Ultrasonic (U/S) and Multitechnology (M/T) occupancy sensors. The sensor’s main function is to turn the lights ON or maintain the lights ON while movement is detected within the sensor’s field-of-view, and turn the lights OFF when the space is vacant.Do you have a question about an
occupancy sensor or vacancy sensor?
Contact us to learn more.
Color: White
UPC Code: 078477540060
Country of Origin : China
Product Information
Updated
Electrical Specifications
Frequency : 50/60Hz
Voltage : 120-277 VAC
Mechanical Specifications
Neutral Wire Connection : Required
Product Features
Color : White
Coverage (Sq.Ft.) : 2500
Product Line : ODWWV
Sensor Type : Wall Mount
Technology : Passive Infrared
Power Base Adaptor
- Streamlined installation offers customers an immediate energy-management solution
- Mounts easily in electrical box and provides leads for simple line voltage connection
- Zero-crossing circuitry for enhanced reliability and long-life operation
