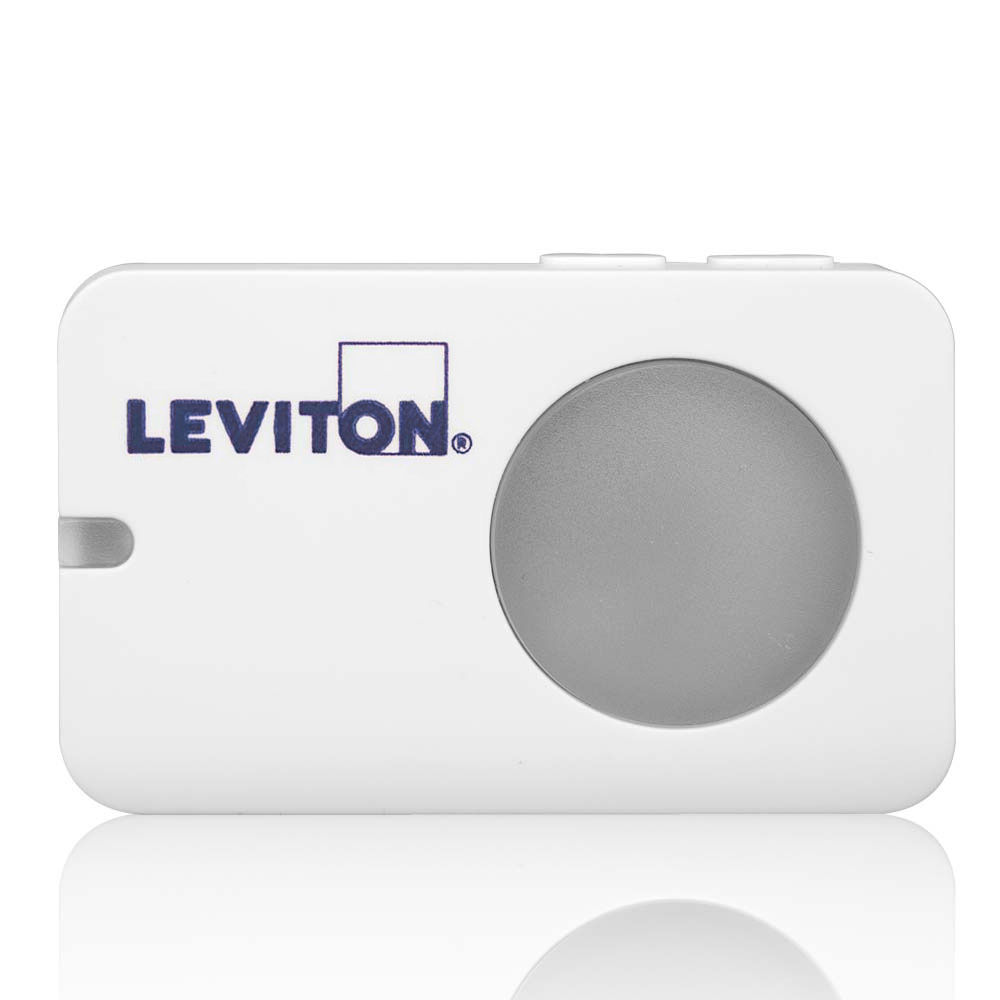

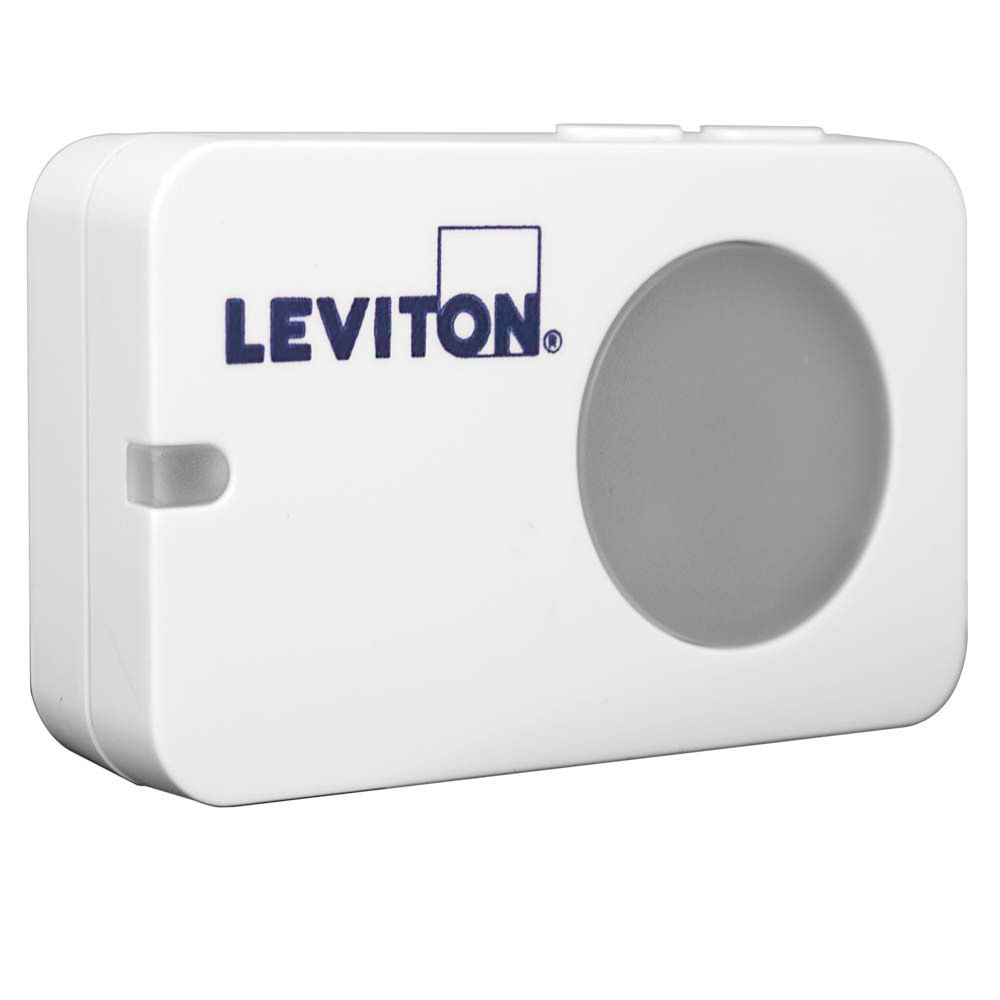

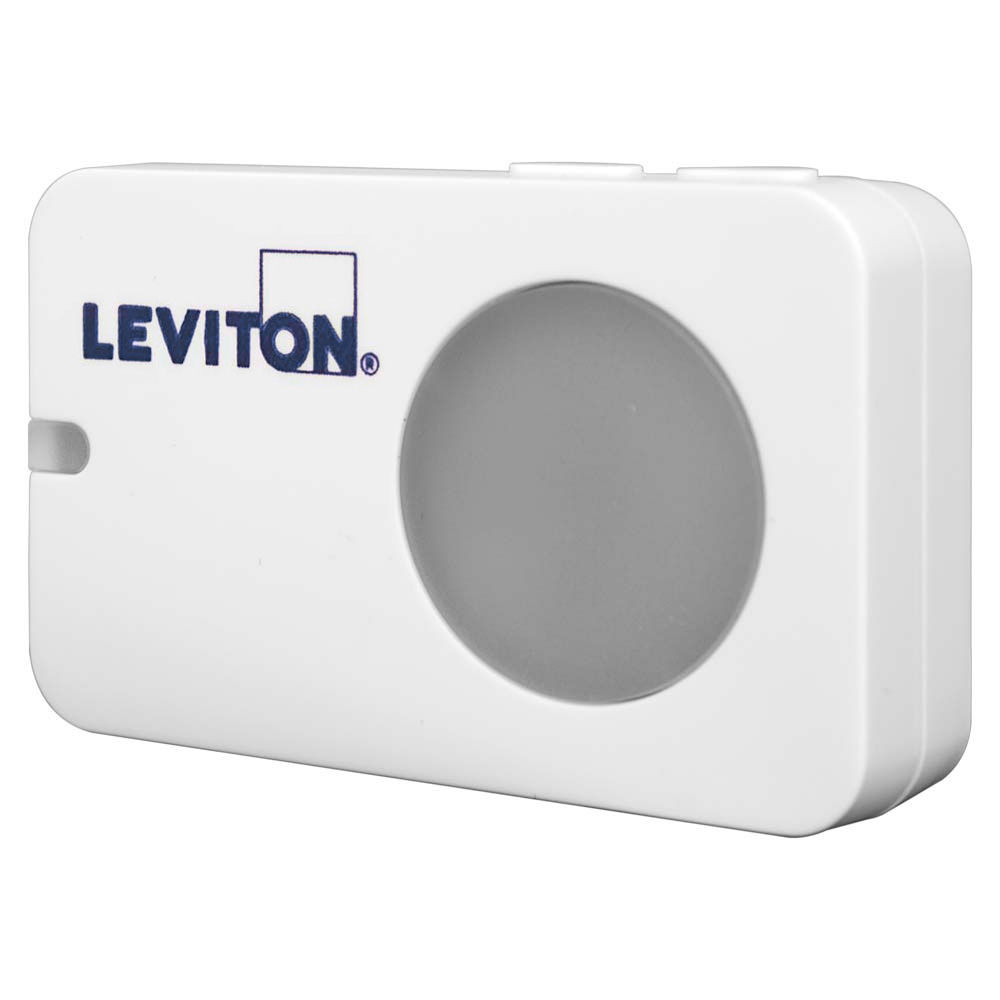

Wireless Surface Mount Photocell
LURPC-1W
Wireless Surface Mount Daylight Harvesting Photocell. Photocell transmitter. Uses Zigbee HA 1.2 Communication. Powered by 2 CR2450 Batteries.
The Levtion Wireless Photocells (LURPC) are designed to monitor and measure natural or electric light levels as a key component in a wireless daylight harvesting solution.
Product Information
Electrical Specifications
Battery : (2) CR2450 3V lithium batteries (included) - 6 years (normal operation)
Frequency : 2.4 GHz
Power Supply : (2) CR2450 3V lithium batteries (included). Battery life 6 years (normal operation)
Voltage Type : Low Voltage
Mechanical Specifications
Mounting Type : Surface Mount
Size : Height 2.24" (57mm) x Width 1.37" (35mm) x Depth .59" (15mm)
Performance Specifications
Foot Candle Level : 0.09-278.70FC (1-3,000 LUX)
Product Features
Application : Small offices,Small Office Executive,Convenience Store,Restaurant,Hospitality,Retail Stores
Color : White
Feature : Code Compliant Wireless Daylight Harvesting Photocell
Grade : Commercial
Mounting : Surface Mount
Product Line : Wireless
Sensor Type : Photocell
Standards and Certifications
Listings : FCC certified for wireless communication (U.S.), IC Certified (Canada), US: FCC Part 15B
Type
Product Type : Wireless Daylight Harvesting Indoor Photocell
Warranty
Warranty : 2-Year Limited
- Photocell sensor can be used to comply with IECC, ASHRAE 90.1, and Title 24, Part 6 daylighting requirements
- Real time light measurement—continuous adjustment of electrical light levels to user-defined set points
- Wireless mesh network—self-healing mesh network offers robust and reliable connectivity, eliminating the need for new wiring
- Sleepy endpoint—low power, battery operated, only powers up when transmitting for energy efficient operation
- Zero external power required—with no power wire limitations, the installer can place the sensor in the optimal location of any application
- No additional wiring—battery-powered wireless technology eliminates the need to pull additional wire, making installation quick and easy and increasing labor savings with little to no impact to business during conversion
- Easy mounting—easily mount the photocell sensor to ceiling or surface using a ceiling tile stem, surface mount screws or double-sided tape
- Complies with IEEE 802.15.4 standards —for domestic and international wireless networks
