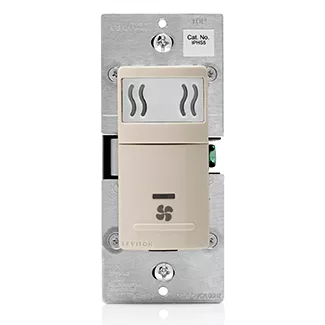

Decora In-Wall Humidity Sensor & Fan Control, 3A, Residential Grade, Single Pole

IPHS5-1LT

DISCONTINUED

Humidity Sensor and Fan Control, Single Pole, 600W Incandescent, 150W LED/CFL, 400VA Inductive/Ballast, 1/6th HP Motor, Wallplate/Faceplate not included, Light Almond The Leviton Humidity Sensor and Fan Control automatically detects excess humidity in a room and activates the ventilation fan to lessen condensation which helps reduce mold and mildew. The sensor uses a microprocessor combined with state-of-the-art digital sensing technology to continuously monitor and manage humidity levels in areas of the home prone to condensation and mildew. It features user-friendly controls to adjust sensitivity, humidity level and time-out settings. The sensor can replace a single pole switch and can be used with most bathroom or ventilation fans or fan/light combinations. It is designed to fit within a standard wallbox and requires a neutral wire for operation. Contemporary in design, the Humidity Sensor and Fan Control is the ideal solution for controlling ventilation in areas of high humidity, dampness or rooms prone to condensation and mildew such as: Bathrooms, Basements, Laundry Rooms and Home Spas. The sensor also helps reduce energy usage by automatically operating the fan only when needed to control excess humidity.

Color: Light Almond

UPC Code: 078477654880

Country of Origin : China

RoHS Compliant: Yes – Click Here

Product Information

Updated

Control Specifications
Time Adjustment : 10m-45m
Electrical Specifications
Ground Connection : No
Load Rating : 600W Incandescent, 150W LED/CFL, 400VA Inductive/Ballast, 1/6th HP Motor
Neutral : Required
Pole : 1
Power Consumption : <0.5 Watts
Switch : Relay
Switch Type : Single-Pole
Time Delay : 10m-45m
Voltage : 120 VAC
Input Characteristics
Adjustment : Manual
Material Specifications
Color : Light Almond
Product Features
Color : Light Almond
LED Color : Green
Style Name : Decora
Torque Range : 14 – 18 in.-lbs
Wallplate : Order Separately
Warranty : 5-Year Limited
Standards and Certifications
2016 CALGREEN : Yes
ASHRAE : Yes
California Title 24 : Yes
Standards and Certifications : CUL/US
Warranty
Warranty : 5-Year Limited

Automatically detects excess humidity in a room and activates the ventilation fan to lessen condensation which helps reduce mold and mildew
Sensor uses microprocessor and digital sensing technology to continuously monitor and manage humidity levels in a room
Built-in timer sets the “minimum ON time” for the ventilation fan. The sensor time settings can be custom set to 10, 20, 30 or 45 minute intervals. The sensor will continue to operate the fan for the minimum time set or until there is a reduction in room humidity level
A sensitivity level adjustment allows users to adjust the sensor’s sensitivity to ambient air to prevent false cycling
Features an Air Cycle mode which automatically turns ON the ventilation fan for a set period of time and repeats the cycle hourly (eg. 20 minutes ON/40 minutes OFF each hour)
Replaces a single pole switch for control of ventilation fan or a fan/light combination
Fits in a standard wall box and requires a neutral for operation
Can be used to comply with 2019 CALGREEN, Part II, Indoor Air Quality and Exhaust.
Can be used to comply with the requirements of 2019 California Title 24, Part 6 Indoor Air Quality and Mechanical Ventilation
Meets the requirements of ASHRAE 62.2
Five-Year Limited warranty

US9976764
USD706726

This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.
