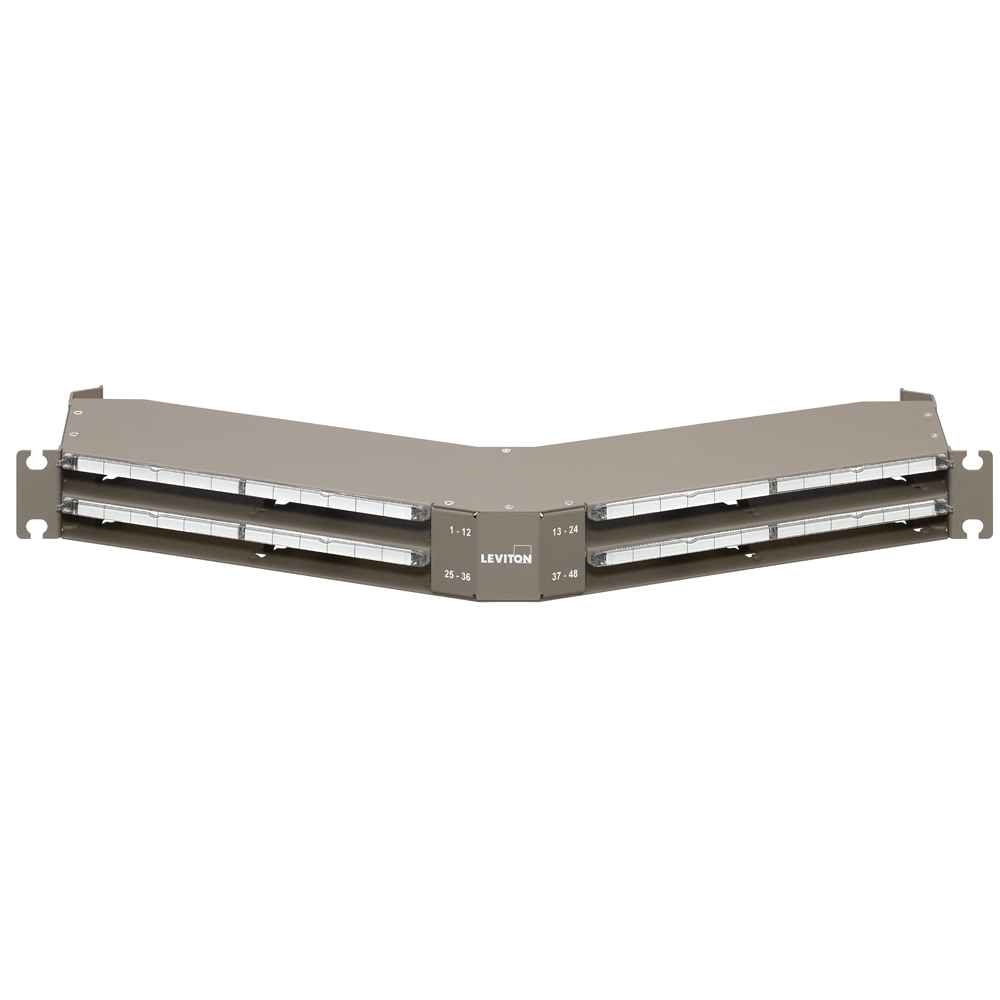

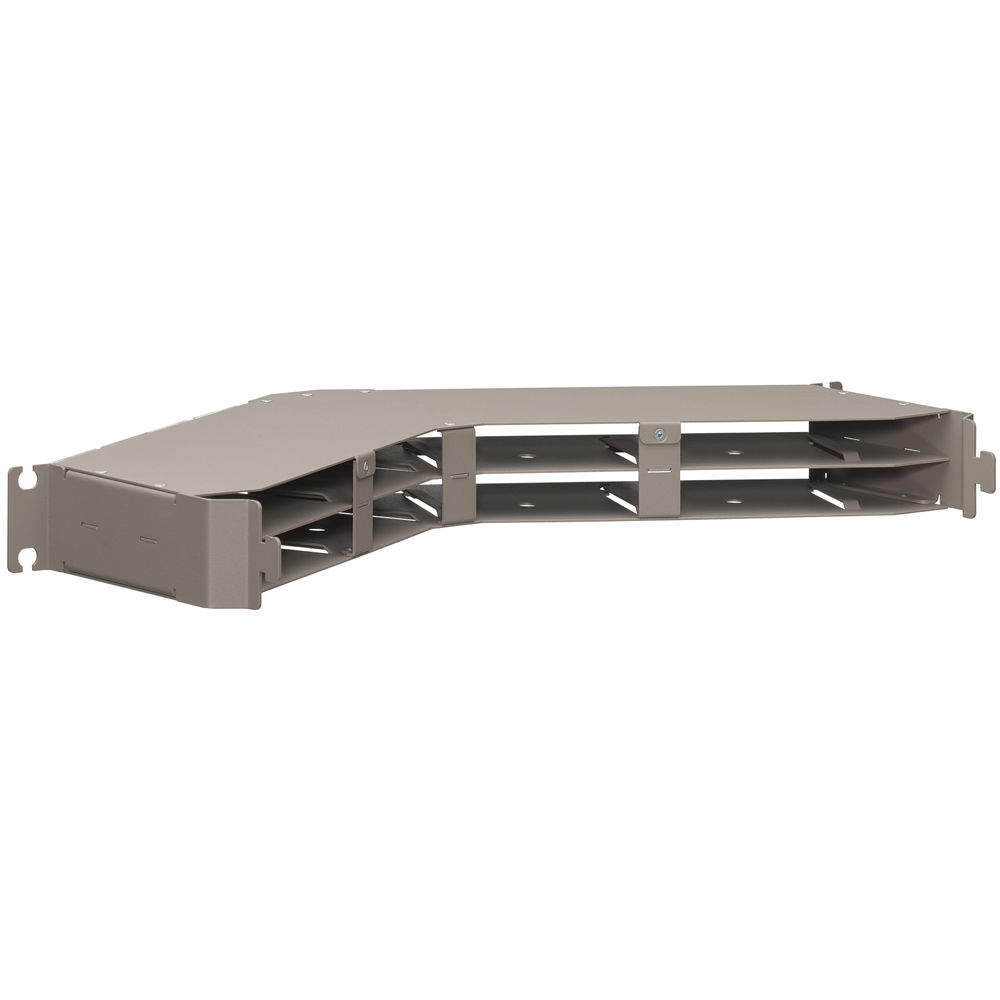

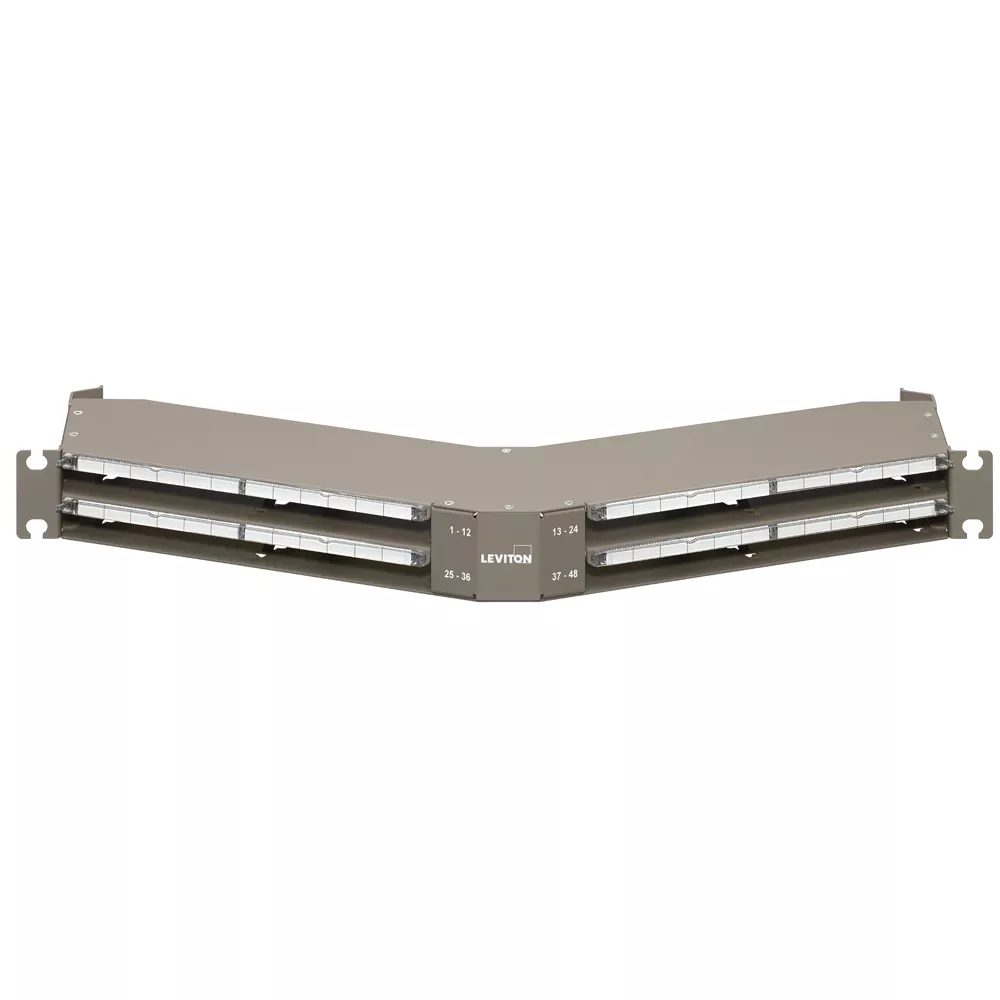

OPT-X™ HDX 1RU Angled Fiber Panel, empty gray; accepts up to (8) HDX adapter plates or MTP cassettes

HDX1U-A96

High-density OPT-X HDX Angled Fiber Optic Panels provide an inter-connect or cross-connect between backbone horizontal cable and active equipment while minimizing rack space in a frame or cabinet. The 1RU panel allows for pre-terminated solutions and open access to patch cords without the need of any horizontal patch cord cable management. This panel is ideal for deployment above cabinets, within racks, and within cabinets in data centers, equipment rooms, and central offices.

Color: Black

Where to Buy

Add to Project List

UPC Code: 078477172322

Country of Origin : United States

Product Information

Updated

Product Specifications - HDX1U-A96 HDX 1RU Angled Panel

View

Updated

Instruction Sheet - HDX 1RU Patch Panels HDX1U

View

Updated

Patch Panels
Category : Fiber
Color : Black
Panel Shape : Flat
Ports : 96
RU : 1
Shielding : Unshielded
Termination : Cassette-Based

Panel allows for up to 96 fibers (using LC) and up to 576 fibers (using 12-fiber MTP^®) or 1,152 fibers (using 24-fiber MTP) capacity
Angled panels eliminates the need for patch cord cable managers
Open access to patch cords and pre-terminated trunks
Enhanced magnifying lens for port id labeling
One-hand installation and removal of HDX MTP cassettes or adapter plates
Rear Cable Manager (sold separately) supports fiber cables and snaps directly to panel without tools
HDX module blanks (sold separately) available for unused openings
Fixed bulkhead shelf minimizes stress on fiber during moves, adds, and changes
Easy migration path from 10 Gb/s to 40, 100, 200, and 400 Gb/s using modular HDX cassettes and adapter plates
Side vertical patch cord managers (sold separately) occupy 0RU space
