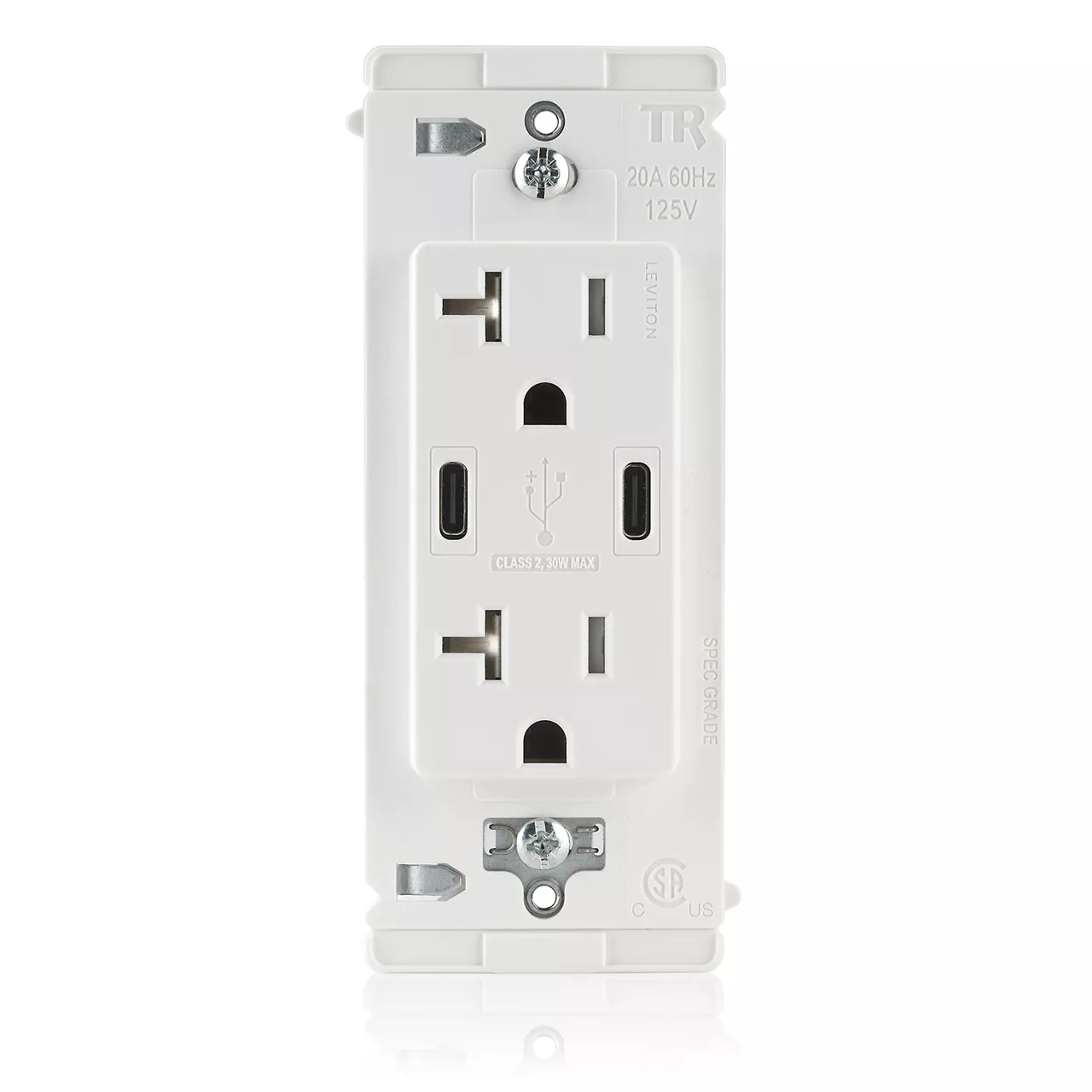

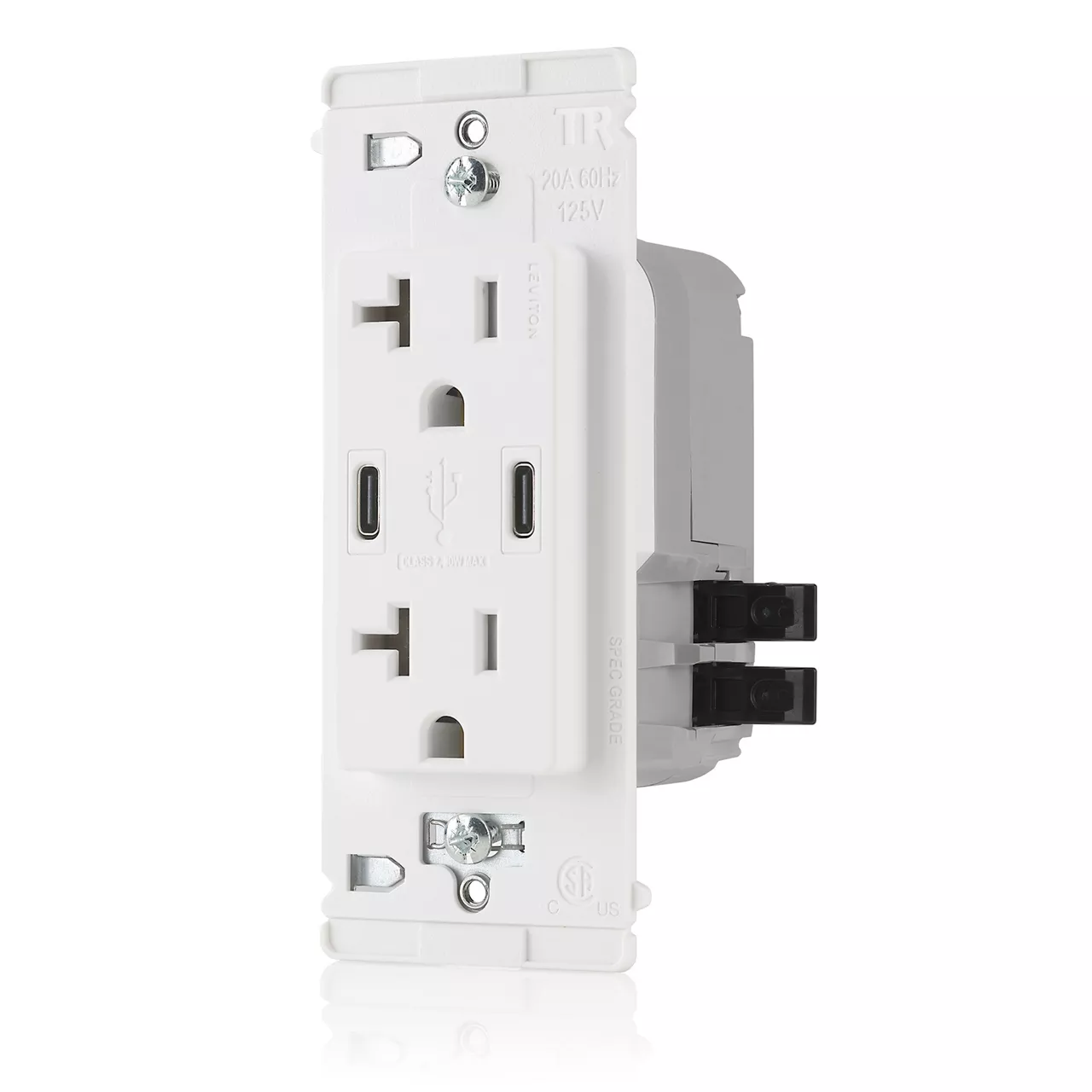

Lever Edge 30W Fast Charging USB Outlet, Dual Type C Charging Ports, 20A Outlet
ECC20-W

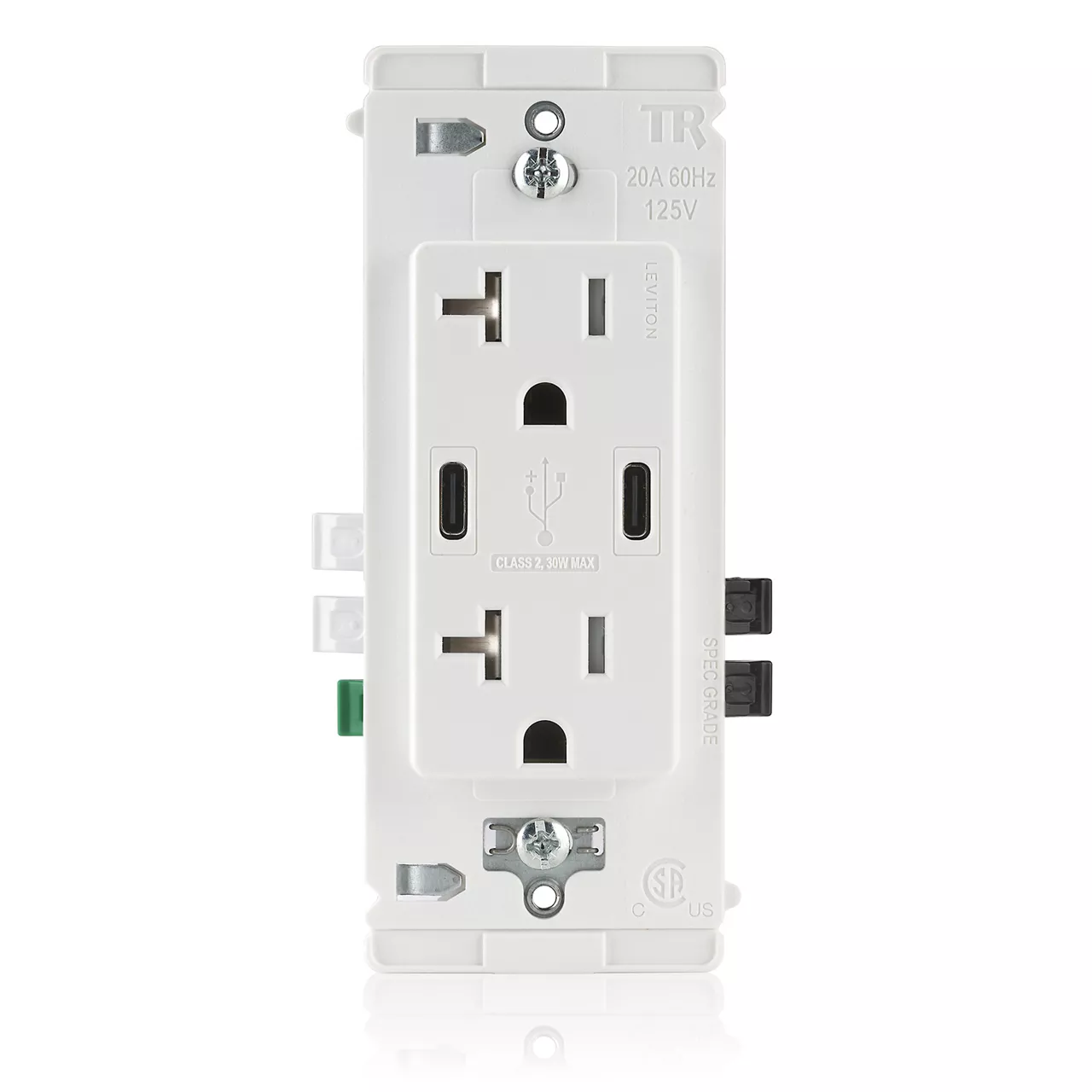

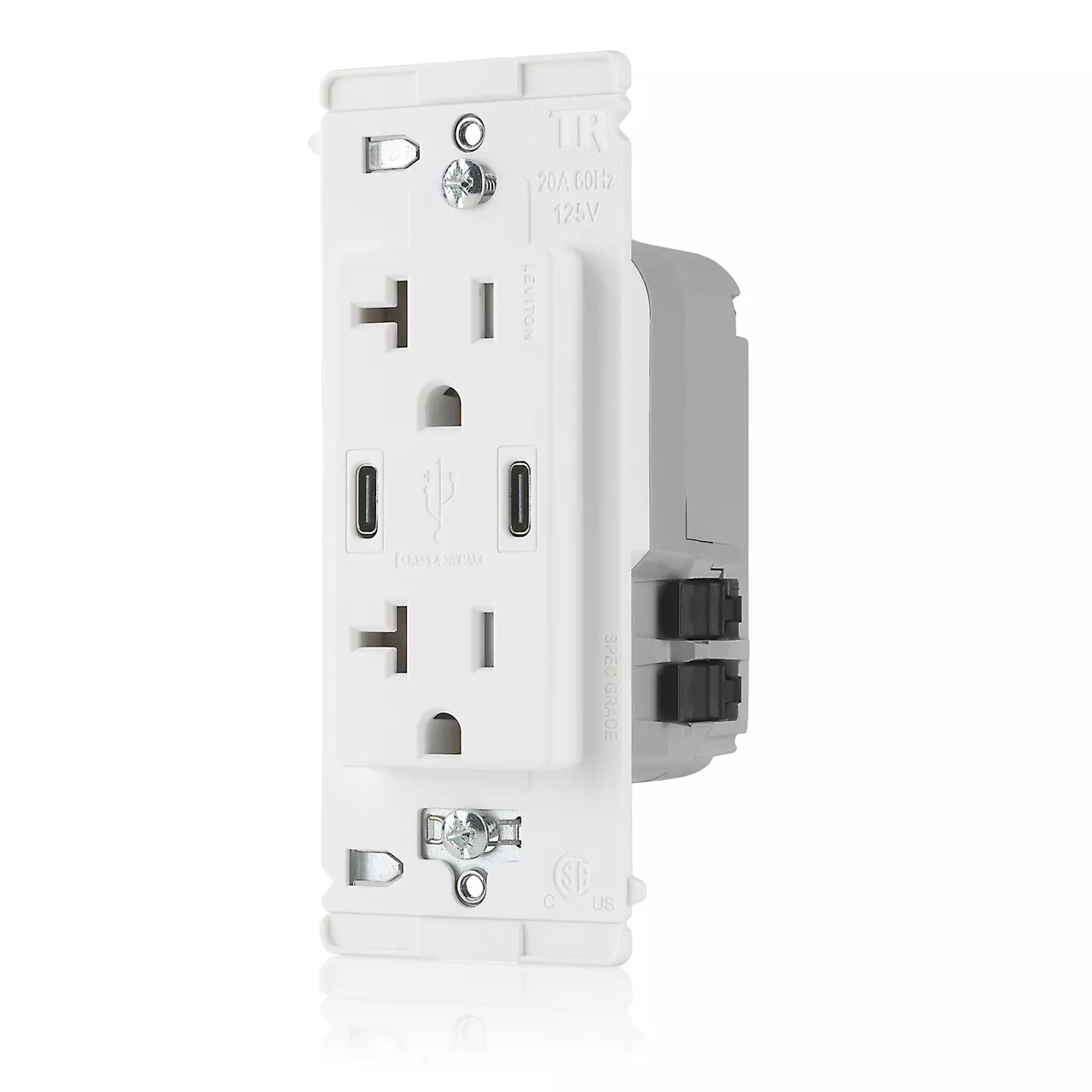

20 Amp, 125 Volt Lever Edge, Tamper Resistant Outlet, 30W (6 Amp) USB Charger with Dual Type C Ports, Self-grounding, NEMA 5-20R Receptacle, White
- FAST & EASY TO INSTALL – Lever terminals provide fast, efficient wiring for installation up to 3.5X faster than traditional devices.

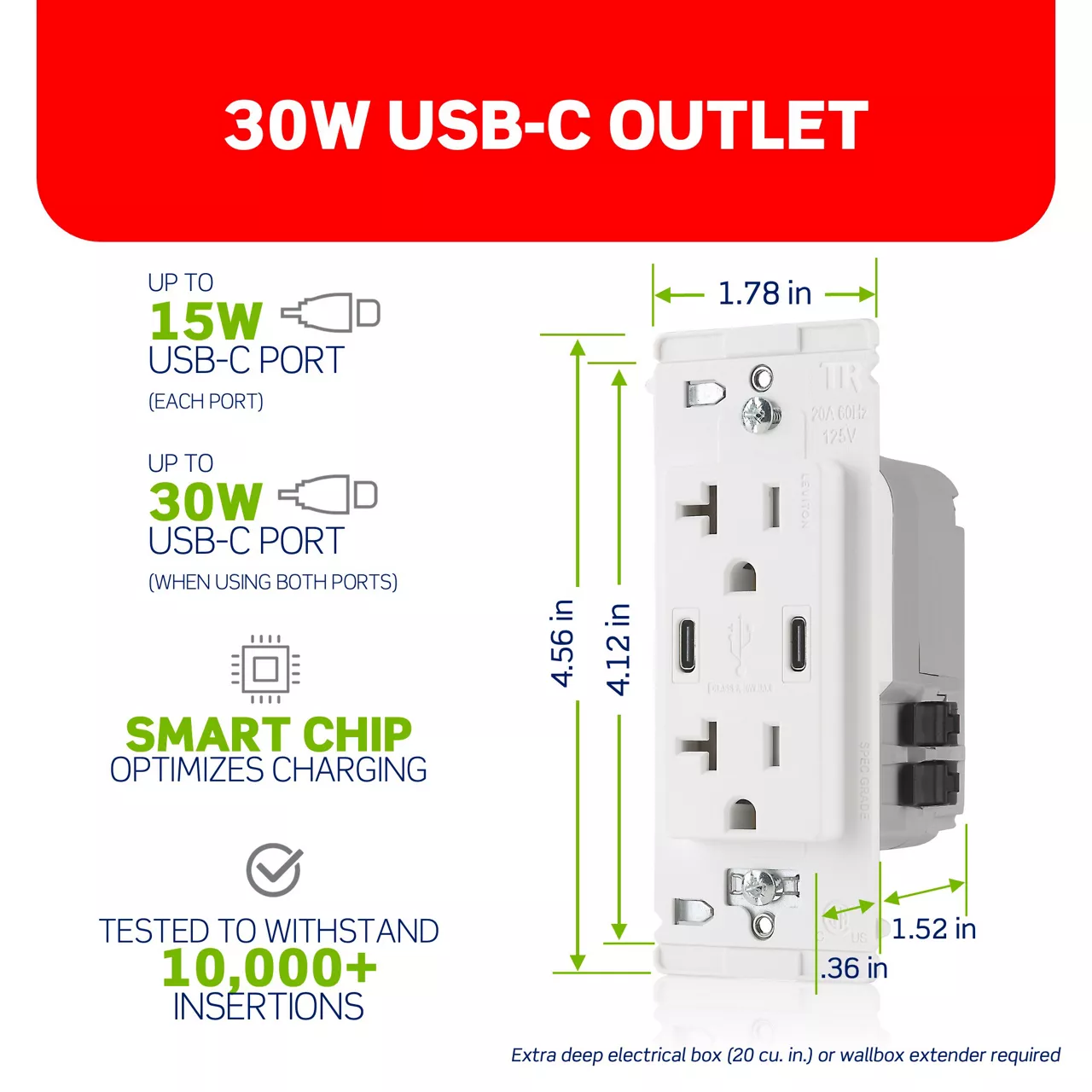

- FAST CHARGING – Dual USB C ports deliver up to 15W per port for phones, tablets, and accessories (30W total); consistent power whether one or two devices are connected
- EASIER - Large strap makes installations easier as well as the ability to use 12 gauge and 10 gauge stranded and solid copper wire. Requires a deep wallbox for installation
- SAFER – Color-coded lever terminals to help prevent miswiring. Secure wire connections, tamper-resistant shutters, and charge-only USB ports provide added safety for users and devices

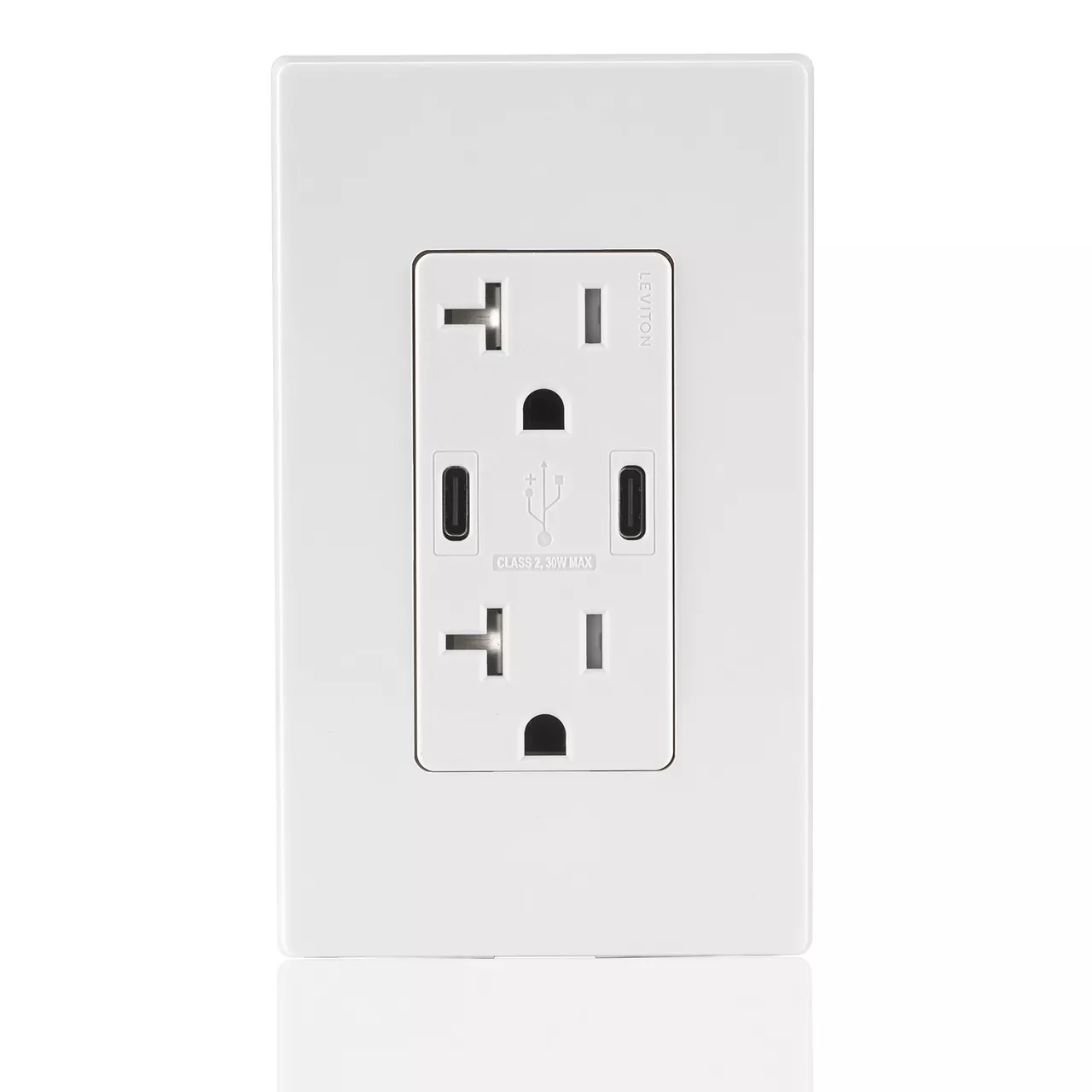

- MODERN UPGRADE – Add convenient built-in USB charging while modernizing any room with a seamless finish when paired with Decora® wallplates (sold separately)
- UNIVERSAL COMPATIBILITY – Use with iPhone, iPad, Samsung Galaxy, Android phones, tablets, smartwatches, e-readers, Bluetooth accessories, cameras, and more
Color: White
Instruction Sheet
Documents
Technical Information
-
General Information
UPC : 078477045664
Nema : 5-20R
Electrical Specifications
Amperage : 20 A
Dielectric Voltage : 1250 VAC
Grounding : Self-Grounding
Horsepower Rating : ½ hp
Pole : 2
Power Supply Input and Frequency : 125V, 60Hz
Temperature Rise : Max 30C
Trip Level : Class A
Voltage : 125 VAC
Wire : 3
Environmental Specifications
Flammability Rating : V-0
Operating Temperature : Maximum Continuous 40C, Minimum -10C (w/o impact)
Material Specifications
Body Material : Thermoplastic
Face Material : Thermoplastic
Line Contacts : Brass
Mounting Strap : Galvanized Steel
Self-Grounding Clip : Steel Staple
TR Shutter : Thermoplastic
Mechanical Specifications
Product ID : Ratings are marked on device

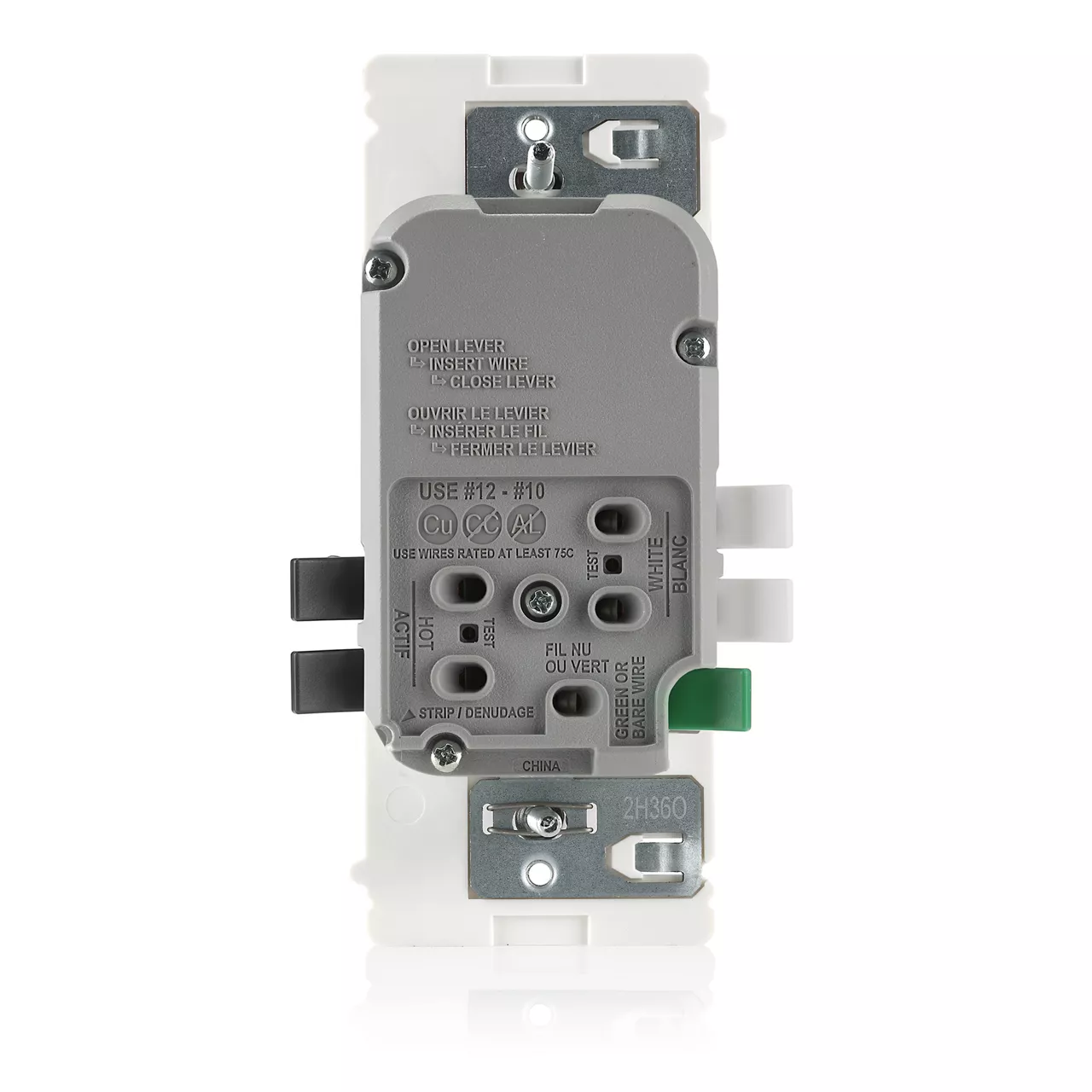

Termination : Color-Coded Levers
Wire Accomodation : #14-#12 AWG Copper Solid or Stranded
Product Features
Brand : Lever Edge
Color : White
Feature : Tamper Resistant
Grade : Residential Grade
NEMA Configuration : 5-15R
Product Type : USB Receptacle Outlet
USB Type : Dual Type C
USB Wattage : 27 W
Standards and Certifications
Applicable Standards & Certifications : cCSAus Listed, NOM, UL 1310, UL 498, UL 1310
NEMA : WD-1 and WD-6
Warranty
Warranty : 1-Year Limited
Features & Benefits
- Ideal for residential and commercial applications including kitchens, bedrooms, home offices, college dormitories, airport lounges, hospitals, salons and spas, hotels, meeting rooms, cafes, restaurants and more
- Charges USB-C devices directly from the outlet, eliminating the need for bulky adapters
- Smart charging technology automatically recognizes connected devices and delivers optimal charging performance
- Provides up to 6A total charging power for phones, tablets, and other USB-powered devices
- USB ports are tested to withstand over 10,000 insertions for long-lasting durability

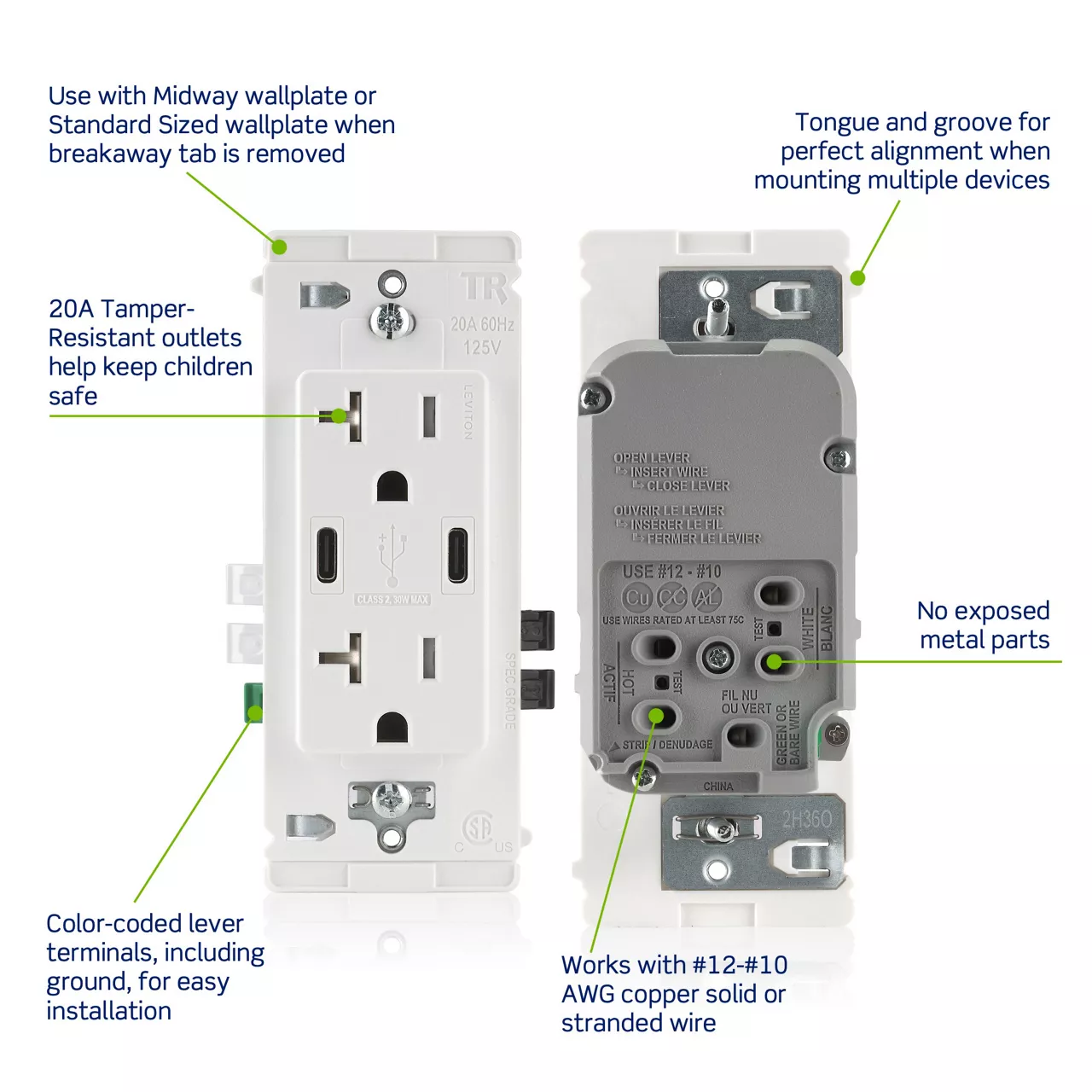

- Lever Edge provides the traditional appearance and superior performance of Decora® devices in a new, faster, easier-to-install, and safer design

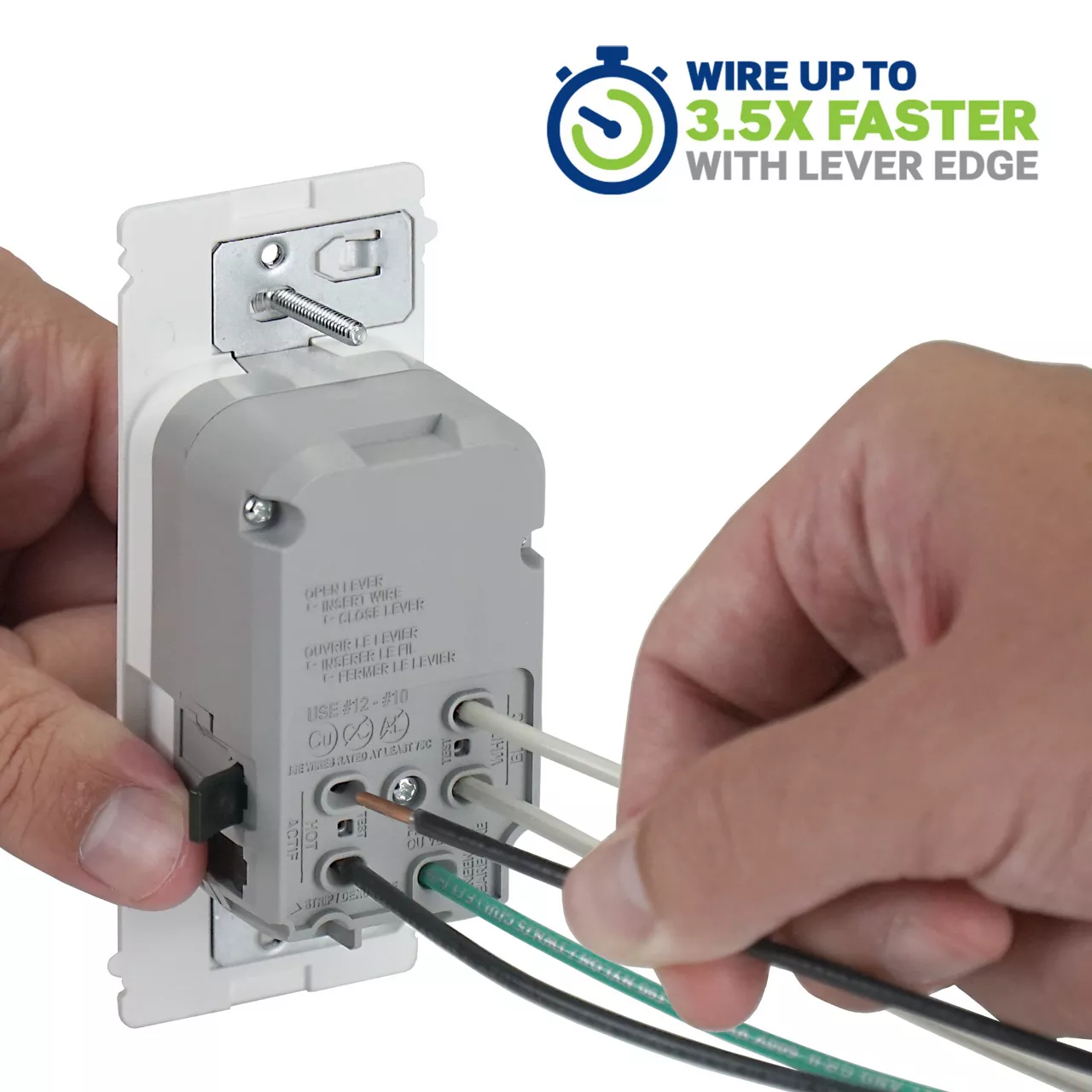

- Fast, easy installation with innovative lever terminals that wire up to 3.5X faster than traditional devices
- Tamper-resistant shutters help protect against the insertion of foreign objects

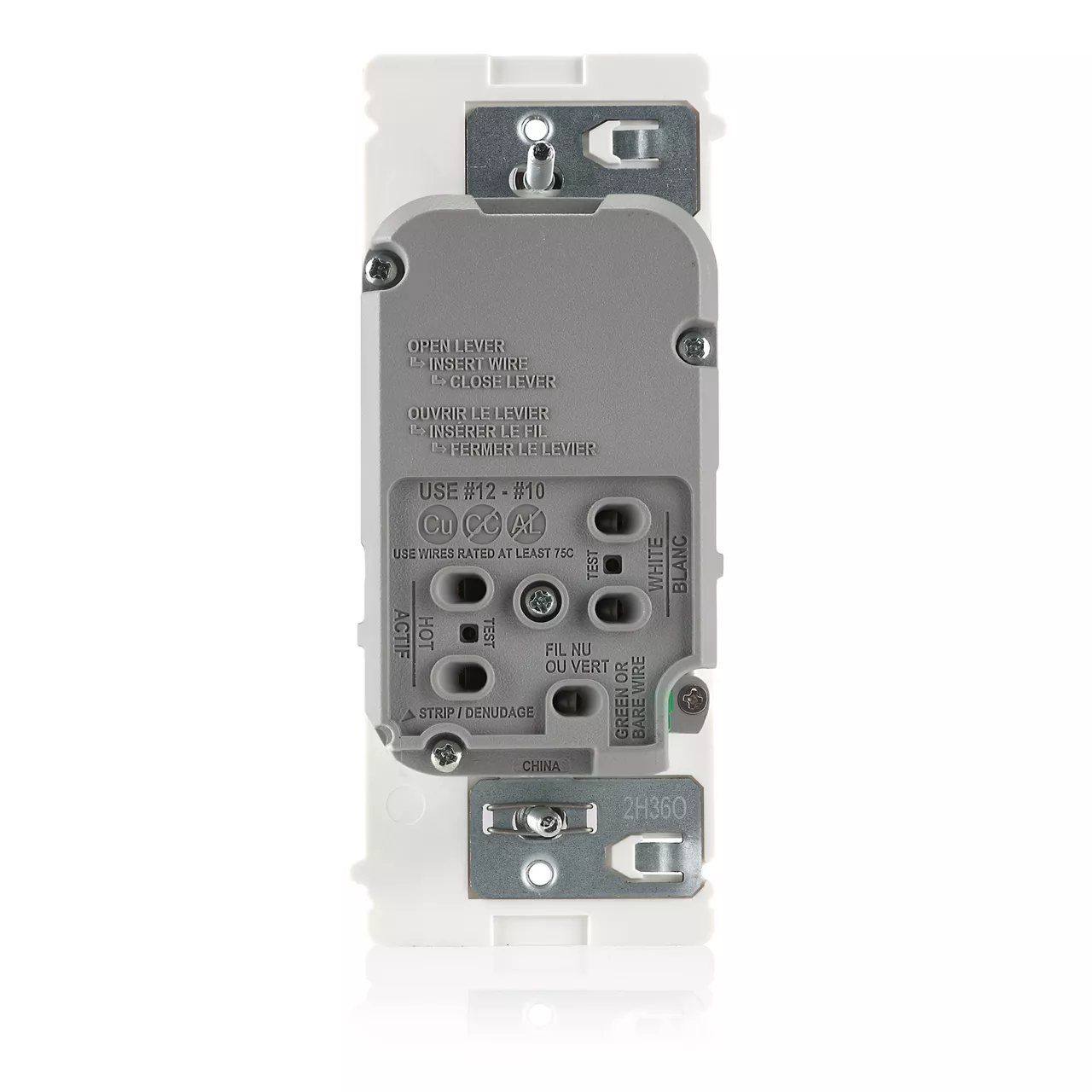

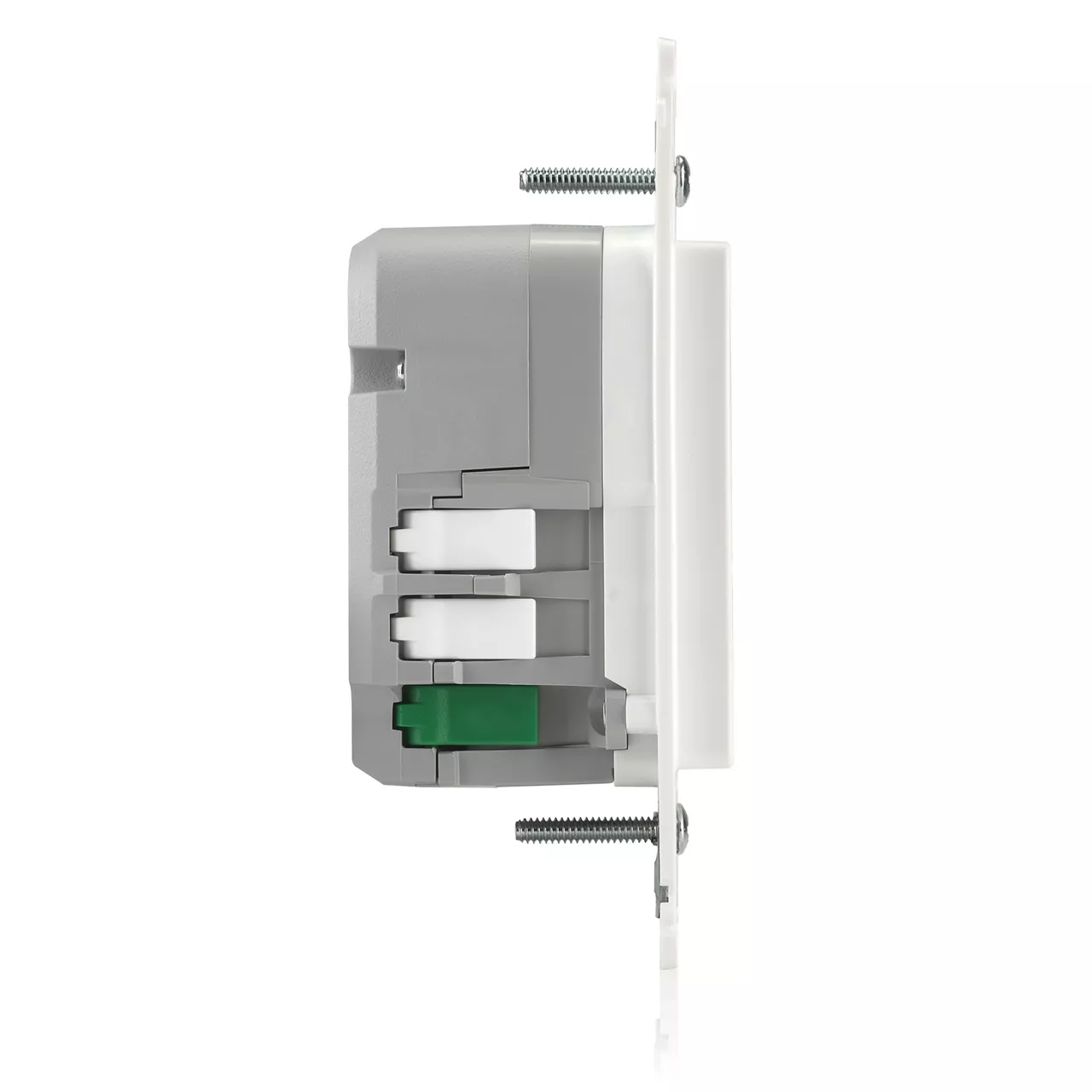

- Color-coded lever terminals help simplify wiring and reduce the risk of miswiring

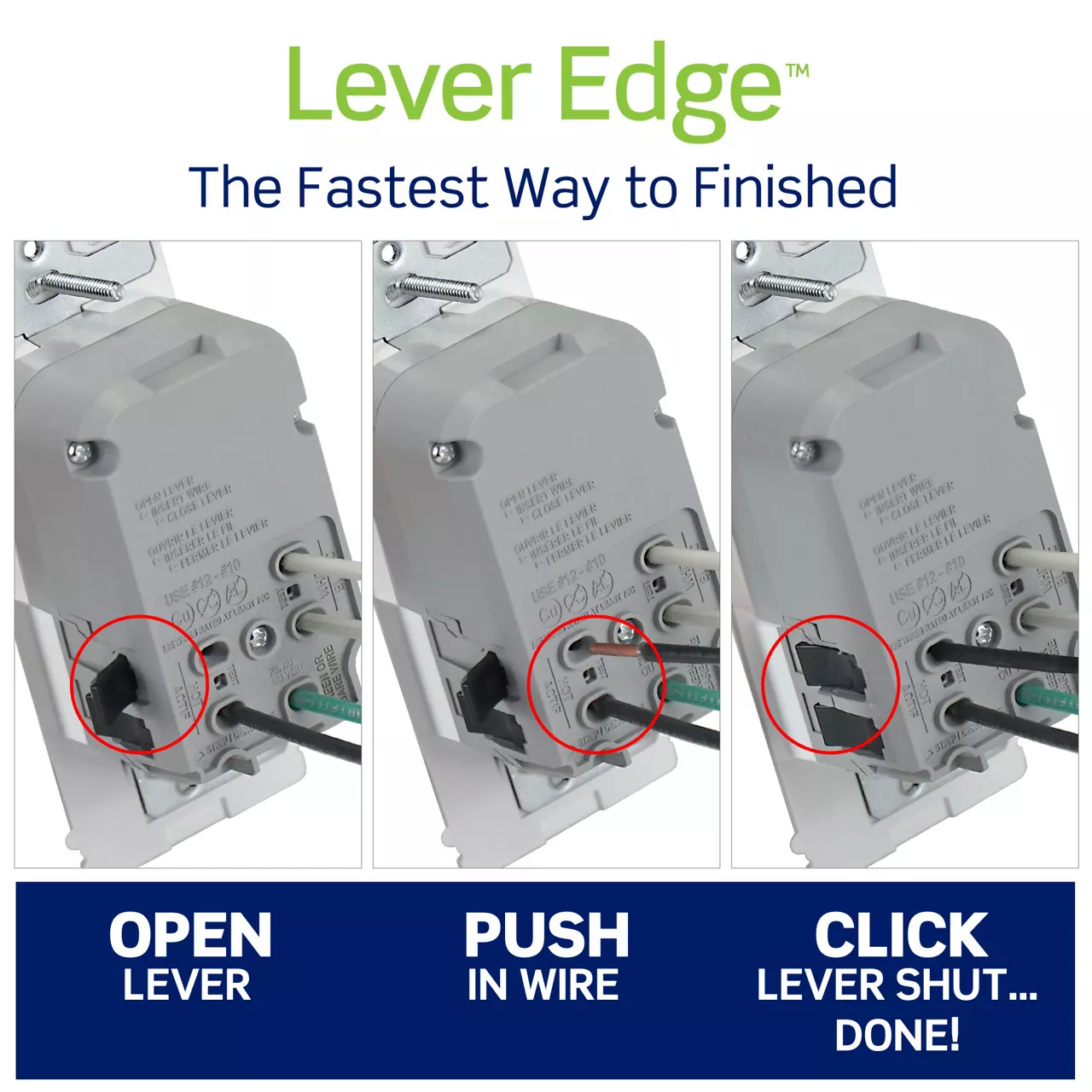

- Audible click and snap-close lever design help confirm secure wire termination
- No exposed metal parts for enhanced safety and no need for electrical tape
- Unique tongue-and-groove strap design helps speed device alignment in multi-gang installations
- Accepts 12 AWG and 10 AWG solid or stranded copper wire. Requires a deep wallbox for installation
- Quick ground termination helps reduce installation time
- Coordinates seamlessly with Decora® devices and Decora® wallplates for a consistent look
