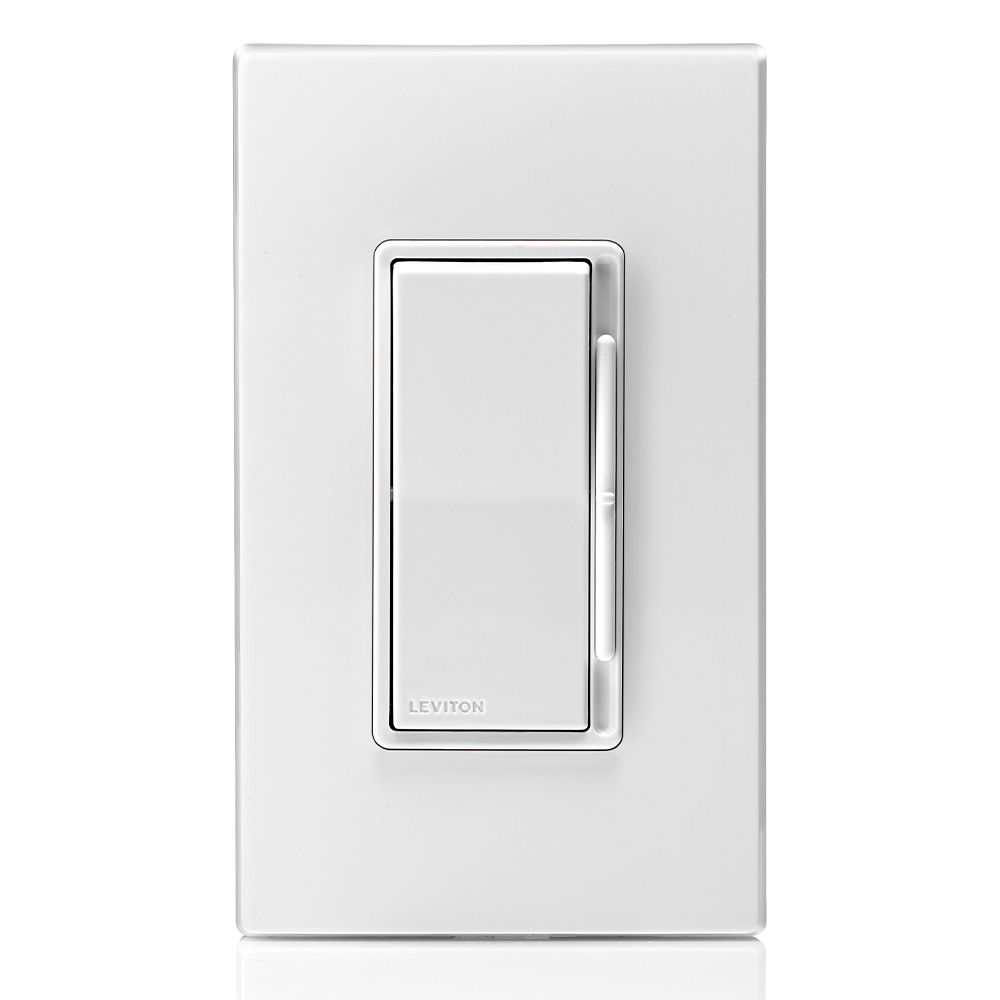

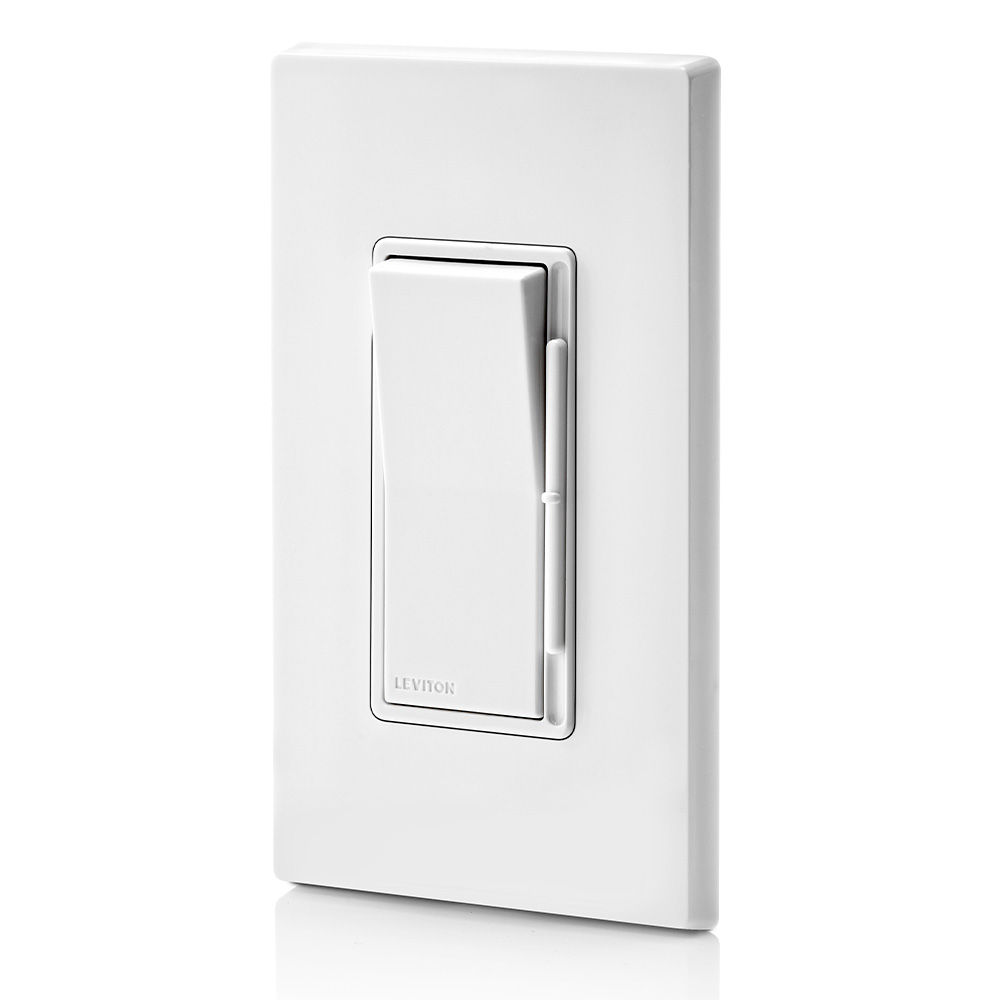

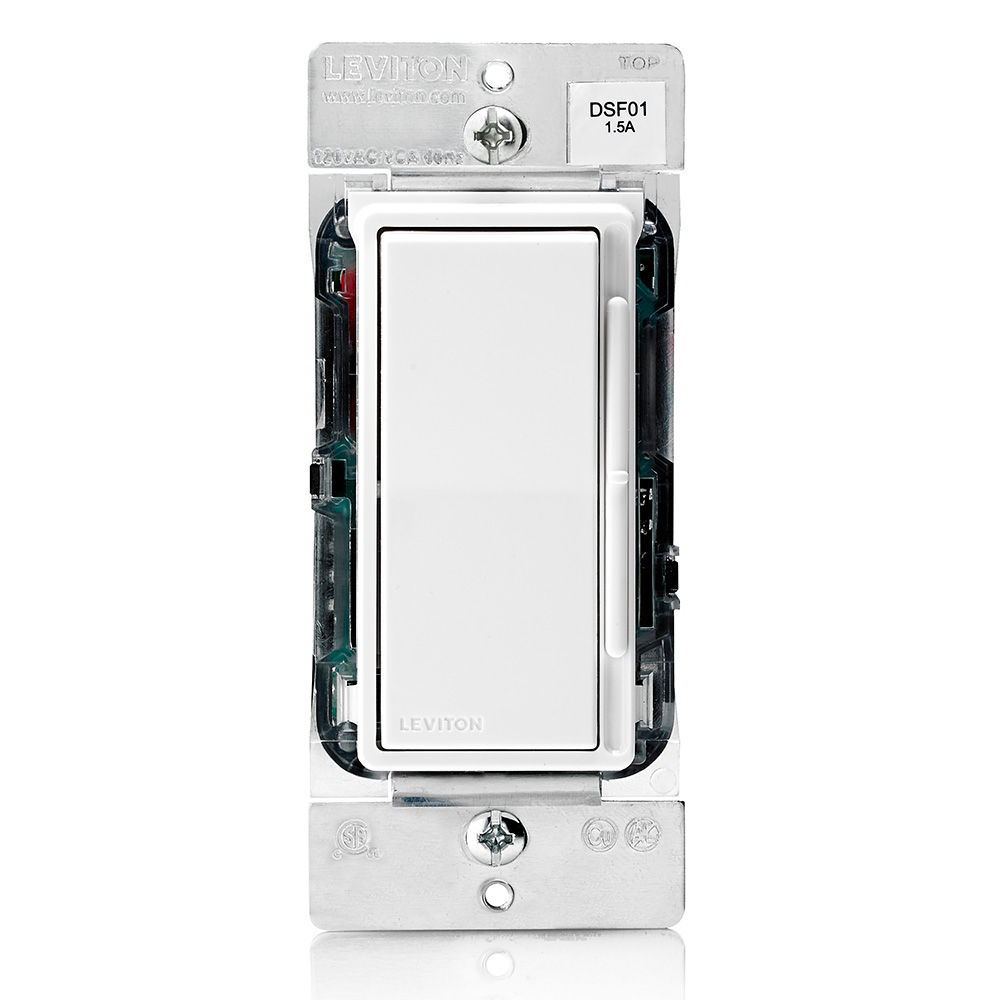

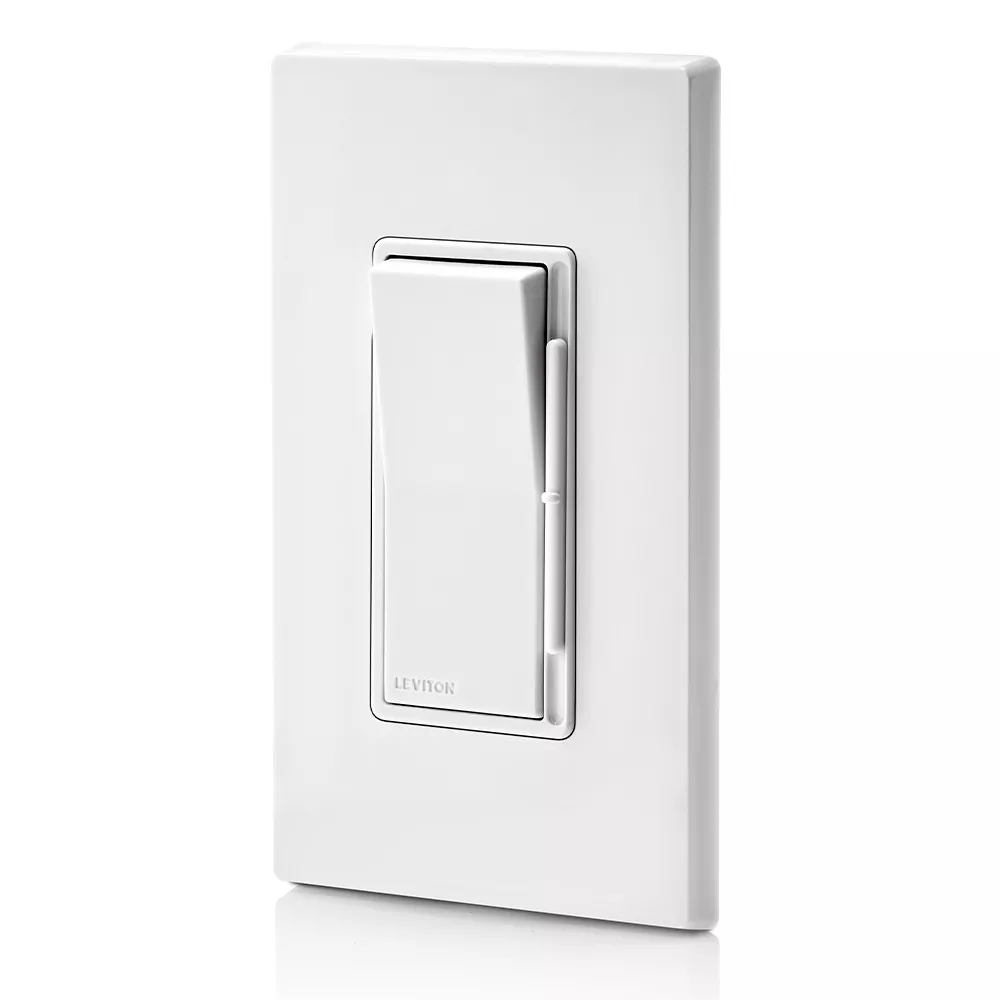

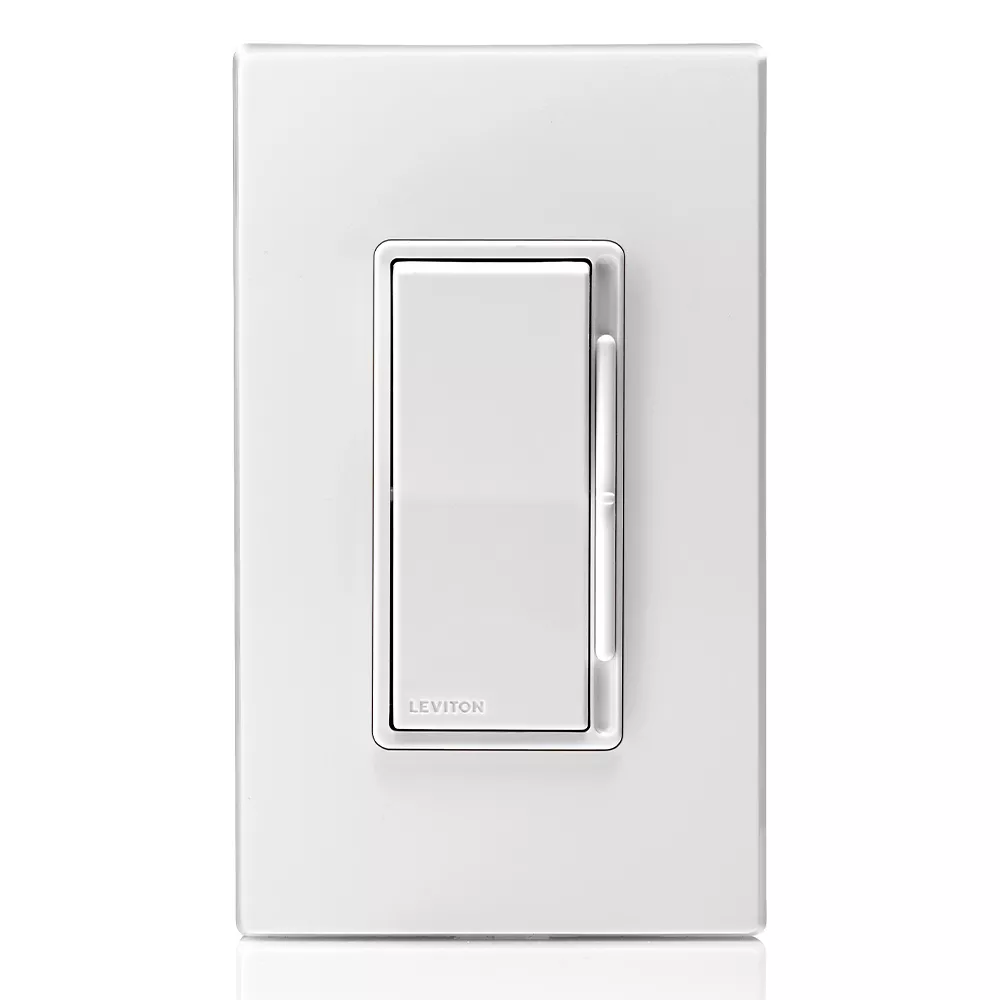

Decora Slide Ceiling Fan Wall Switch, Quiet 3-Speed Fan Control, White with Ivory and Light Almond Faceplates included
DSF01-10Z
Forget the pull chain! Use the Decora Slide fan control switch for your ceiling fan. 1.5 Amp, 120VAC, 60Hz, single pole or 3-way, neutral wire not required for installation. Use with Decora Wallplate or Decora Plus Screwless Wallplate (sold separately) – White
- CONVENIENT – Integrated linear slider for precise control of low, medium and high fan speed selection. Separate on/off switch preserves the selected fan setting
- EASY TO INSTALL – Slim profile fits in most wallboxes. Replaces an existing wall switch for ceiling fan, no neutral wire required for installation
- VERSATILE – Control the ceiling fan from two locations using the DSF01 in the one location and a 3-way switch (sold separately) in the second location
- QUIET – Special circuitry to reduce fan motor noise at low speeds

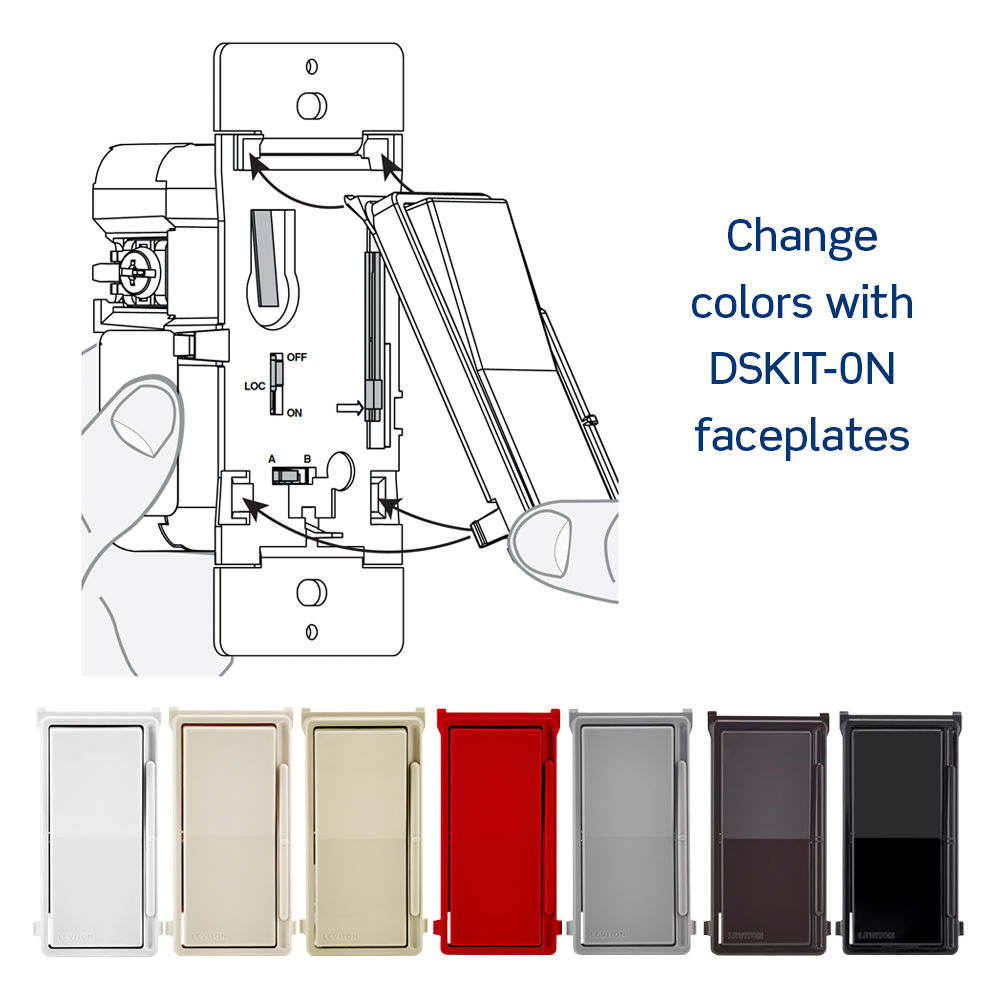

- STYLISH – Easily change the color using DSKIT-0N faceplates (sold separately) available in white, ivory, light almond, gray, black, brown and red color options
Product Information
Product Features
Action : Rocker switch for ON/OFF, Slide bar to select speed
Available Color Kits : Ivry-I Wht-W Gry-G Blk-E Brwn-B Light Almond-T, R-Red
Brand : Decora Slide
Color : White, Ivory, Light Almond
Load Rating : 1.5 Amp
Load Type : Fan
Ordering Notes : Includes Ivory, White and Light Almond Color Kits
Preset : Yes
Standards and Certifications : cCSAus, NOM
Style Name : Decora
Switch Type : Single-Pole & 3-Way
Type : Electro-Mechanical
Voltage : 120 VAC
Wallplate : Order Separately
Warranty : 5-Year Limited

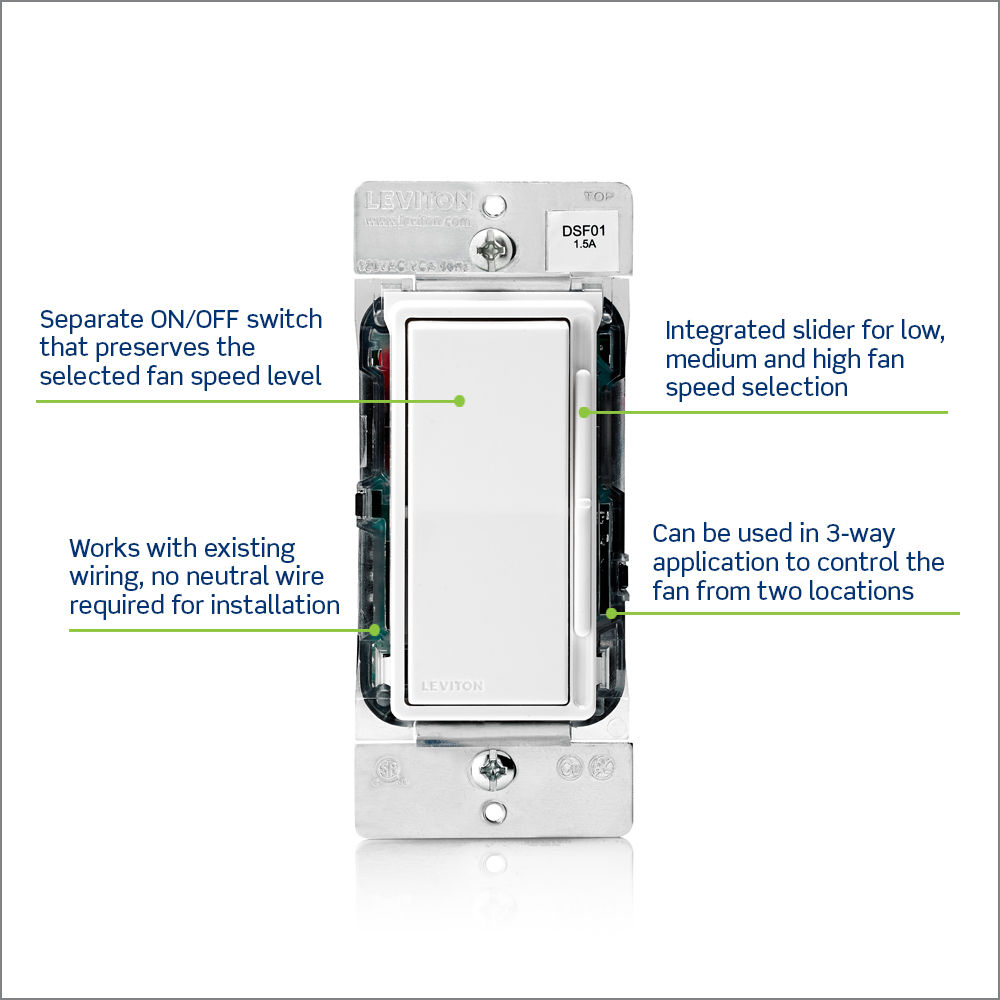

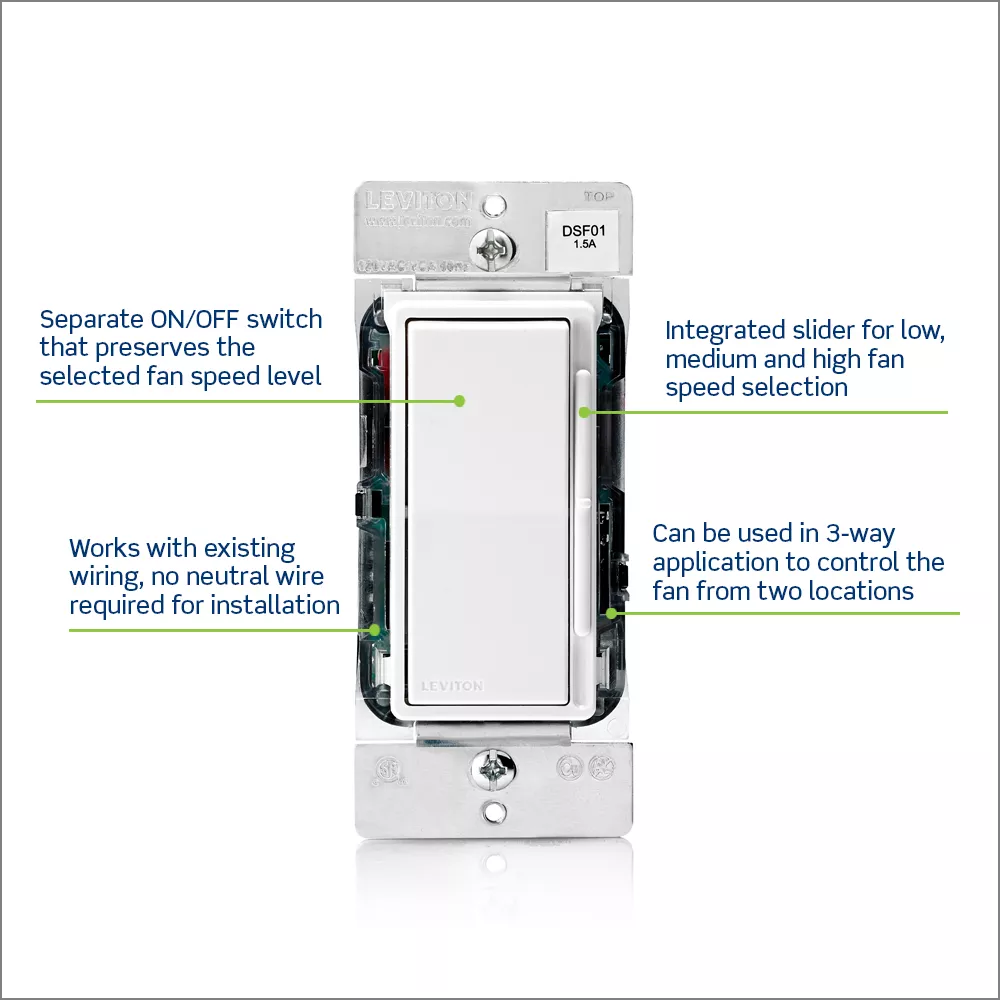

- Integrated linear slide control for precise 3-speed selection
- Low, medium and high fan speed settings
- Separate on/off switch that preserves the selected fan speed
- Single pole or 3-way fan speed control when used with a 3-way switch
- 1.5 Amps, 120VAC, 60Hz
- Slim, compact housing fits easily into a standard wallbox and is suitable for multi-gang installations with other Decora products
- Designed to reduce the buzzing or humming of fan loads
- No fins for multi-gang installation

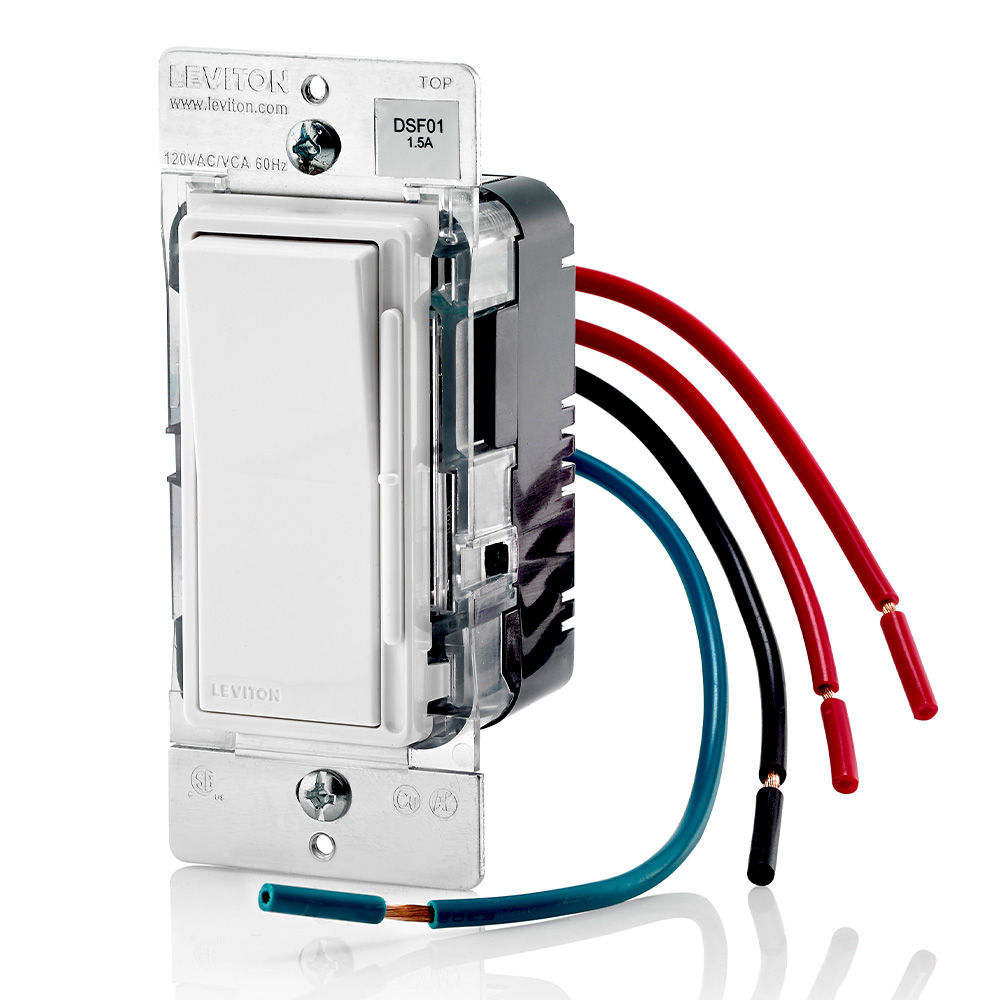

- Wired using leads, a Neutral wire is not required for operation

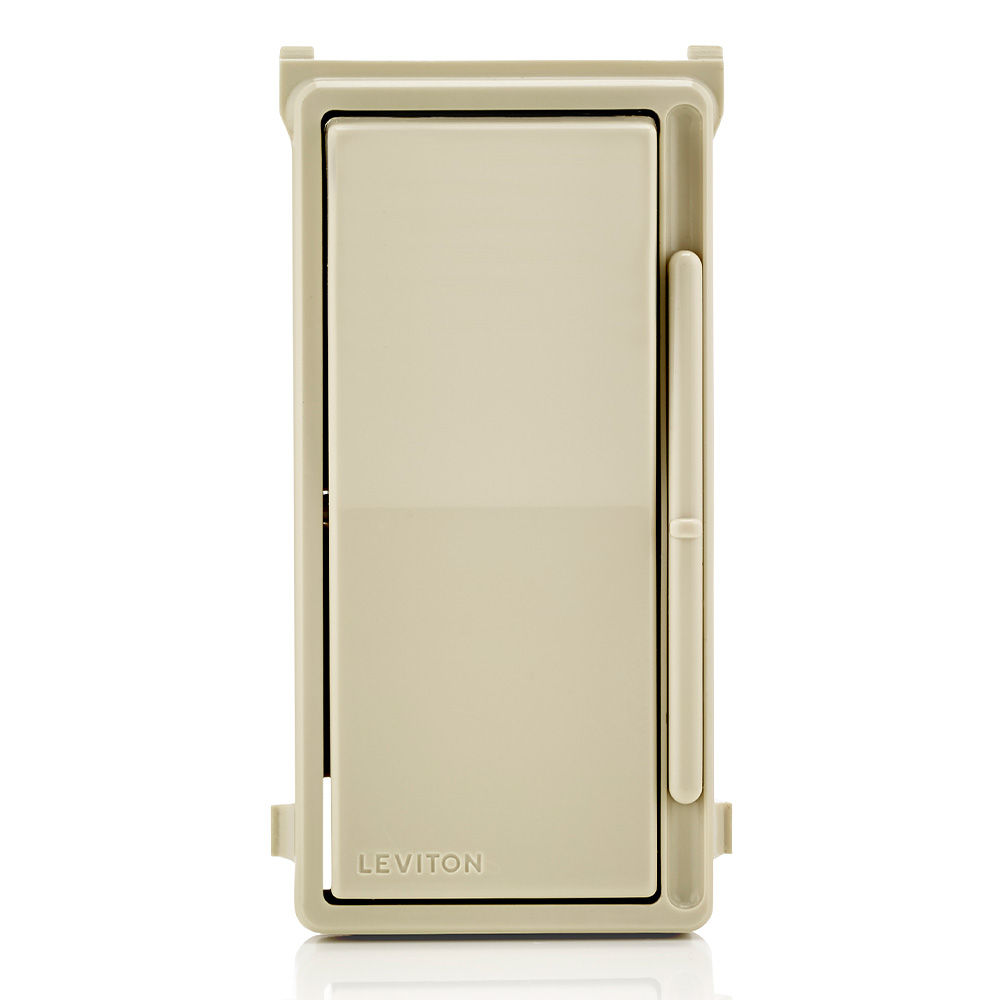

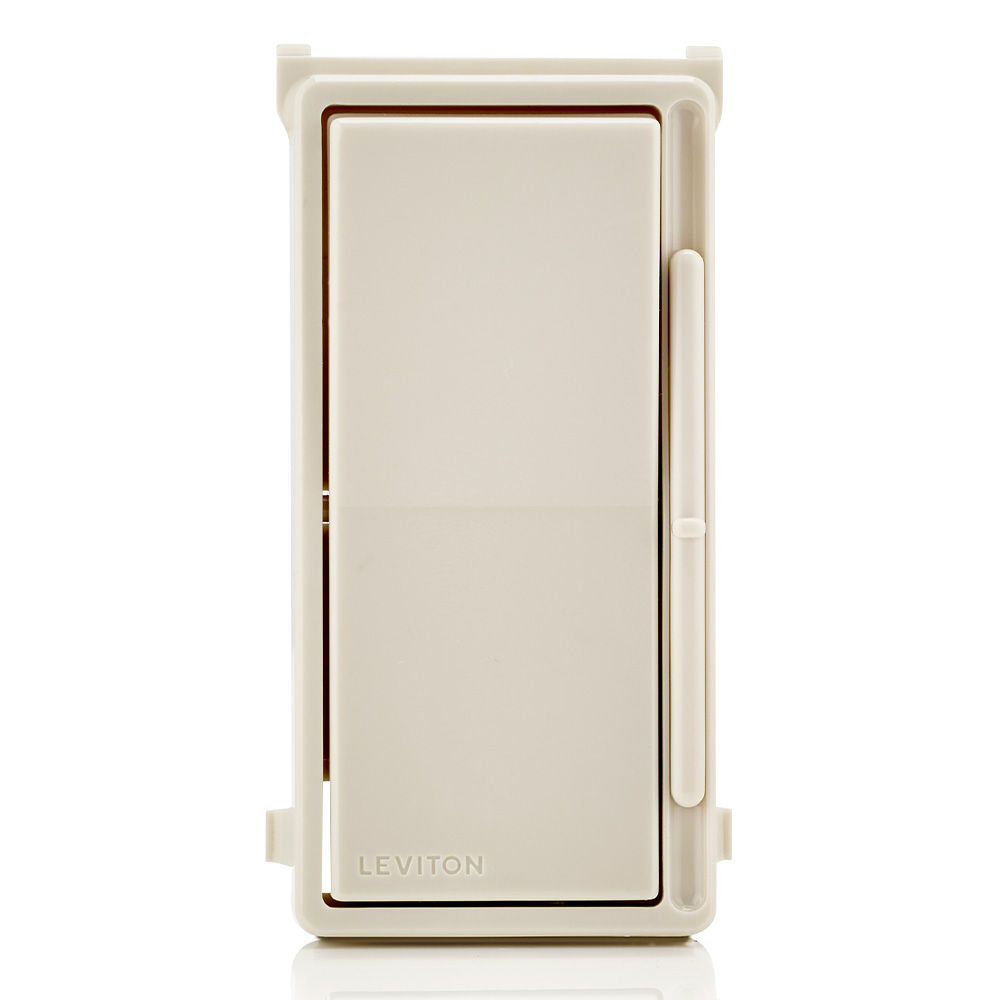

- Ivory, and Light Almond faceplates included
- Color faceplates available in white, ivory, light almond, gray, black, brown, red
- Quiet operation that is ideal in bedrooms, home offices, living rooms and any area where ceiling fan noise could become distracting
- Complements Decora Slide dimmers for a cohesive look
Can I use a dimmer switch for my ceiling fan?
No, dimmer switches are not suitable for ceiling fans as they can cause operational issues and potentially damage the fan motor. Always use a switch specifically designed for fan speed control. If you're unsure about the compatibility or installation, consult a professional electrician.
Can I use this fan switch for an exhaust fan or attic fan?
No. The DSF01 is designed to work with 1.5 Amp ceiling paddle fans and should not be used to control motor loads. Always use a switch specifically designed for the type of fan that is being used. If you're unsure about the compatibility or installation, consult a professional electrician.
How is this fan switch quiet?
The fan switch has special circuitry designed to help reduce fan motor noise that can happen at low speeds of certain fan loads
Is a neutral wire required for installation of the DSF01 fan control switch?
The DSF01 does not require a neutral wire for installation. It works with existing wiring and can replace any standard wall switch.

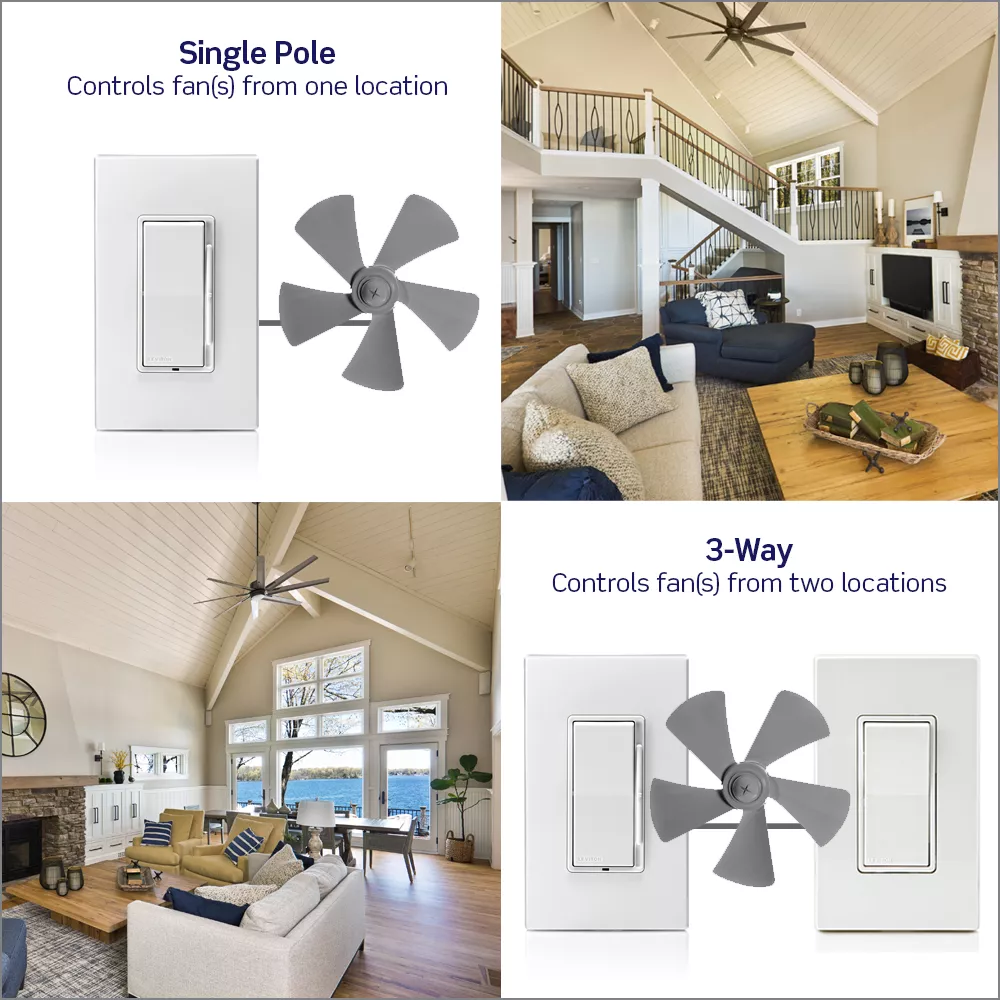

What is the difference between a single pole or 3-way installation?
Single pole is controlling the fan(s) from one location. 3-way is the ability to control the fan(s) from two separate locations. The fan control switch is in the first location and a 3-way on/off switch in the second location.
- US9431192
This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.
