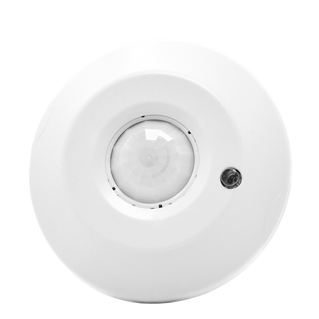

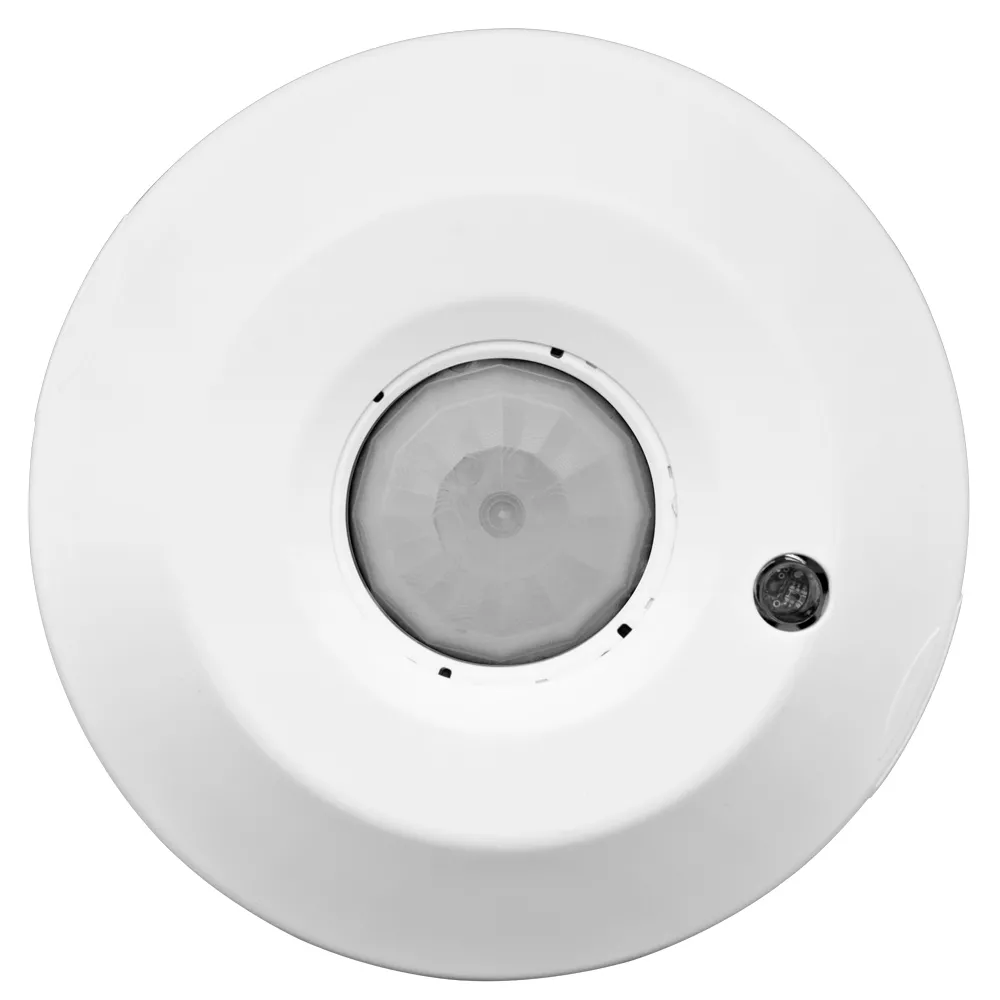

Smart Ceiling Mount Sensor (CMS), PIR, Switching, 450-1500 sq ft Coverage

ACS15-DIW

Smart Ceiling Mount Sensor, PIR only, Switching, 1-zone, 450-1,500 sq ft, 120-277VAC

The Leviton Smart Ceiling Mount Sensors (CMS) offer high performance, code compliant, advanced room configuration in one easy-to-install device. Installers can download the Smart Sensor App for quick-and-easy room configuration and testing with any iOS or Android device.

The CMS’s features meet advanced design requirements for standalone occupancy/vacancy sensing and ambient light hold-OFF applications offering easy configuration and operational testing for occupancy/vacancy sensing, options for one or two ambient light hold-OFF zones, area control, demand response, plug load or receptacle control, and UL924 emergency lighting.

Do you have a question about an occupancy sensor or vacancy sensor?

Color: White

UPC Code: 078477355244
Country of Origin : China

Product Information

  • Can be used to comply with IECC, ASHRAE 90.1. and 2022 Title 24, Part 6 requirements:
    • Occupancy/vacancy sensing
    • Demand response
    • Plug load or receptacle control
  • Available in 450 to 2,000 square foot field-of-view units
  • All configuration is done using the Smart Sensor App
  • For larger spaces, up to five Smart Ceiling Mount Sensors and Smart Ceiling Mount Room Controllers can be connected wirelessly to expand the FOV up to 10,000 sq ft
  • Passive infrared (PIR) and multi-tech (PIR + ultrasonic) models available

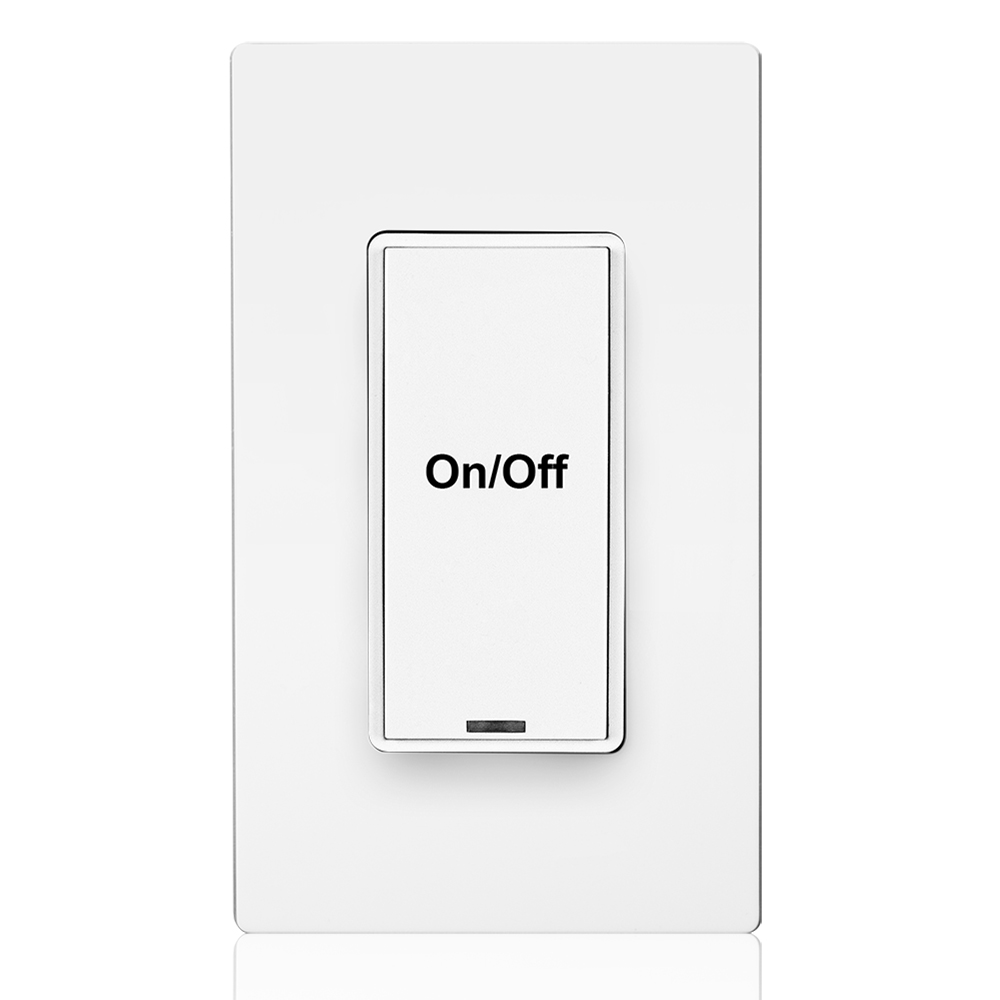

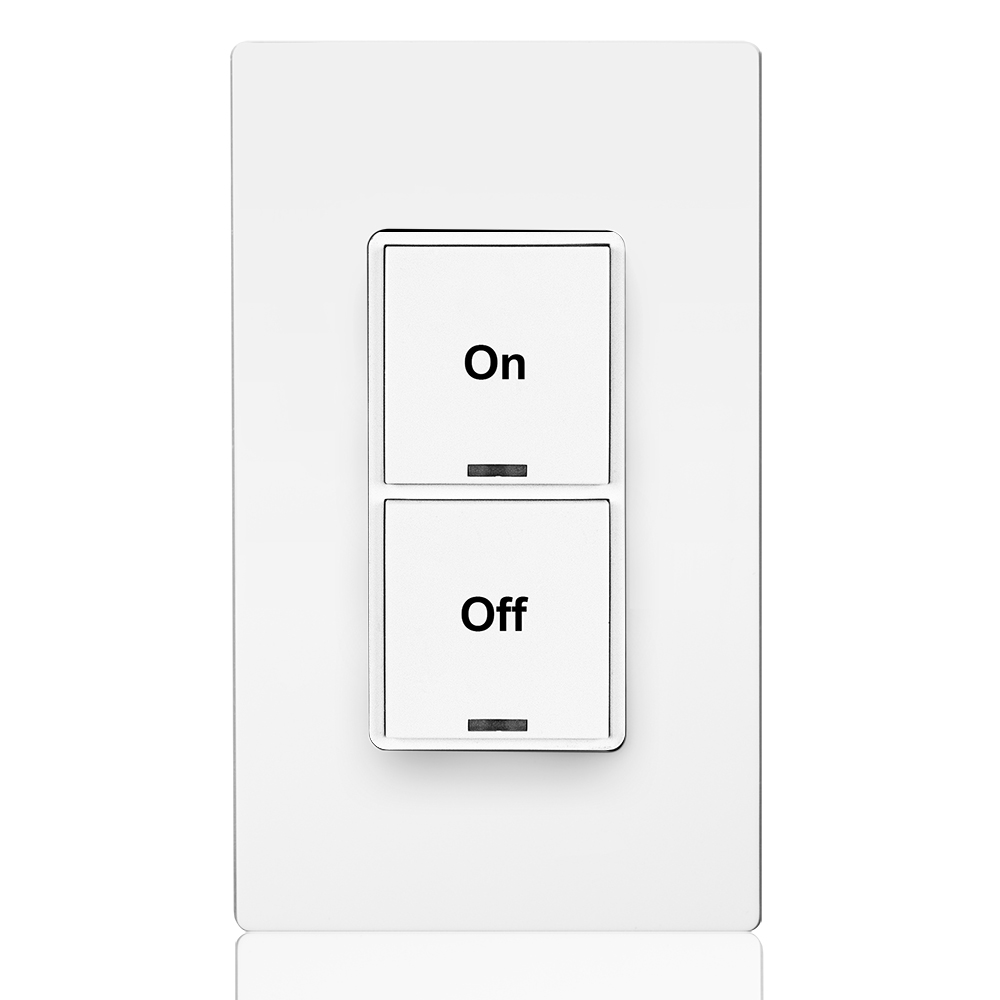

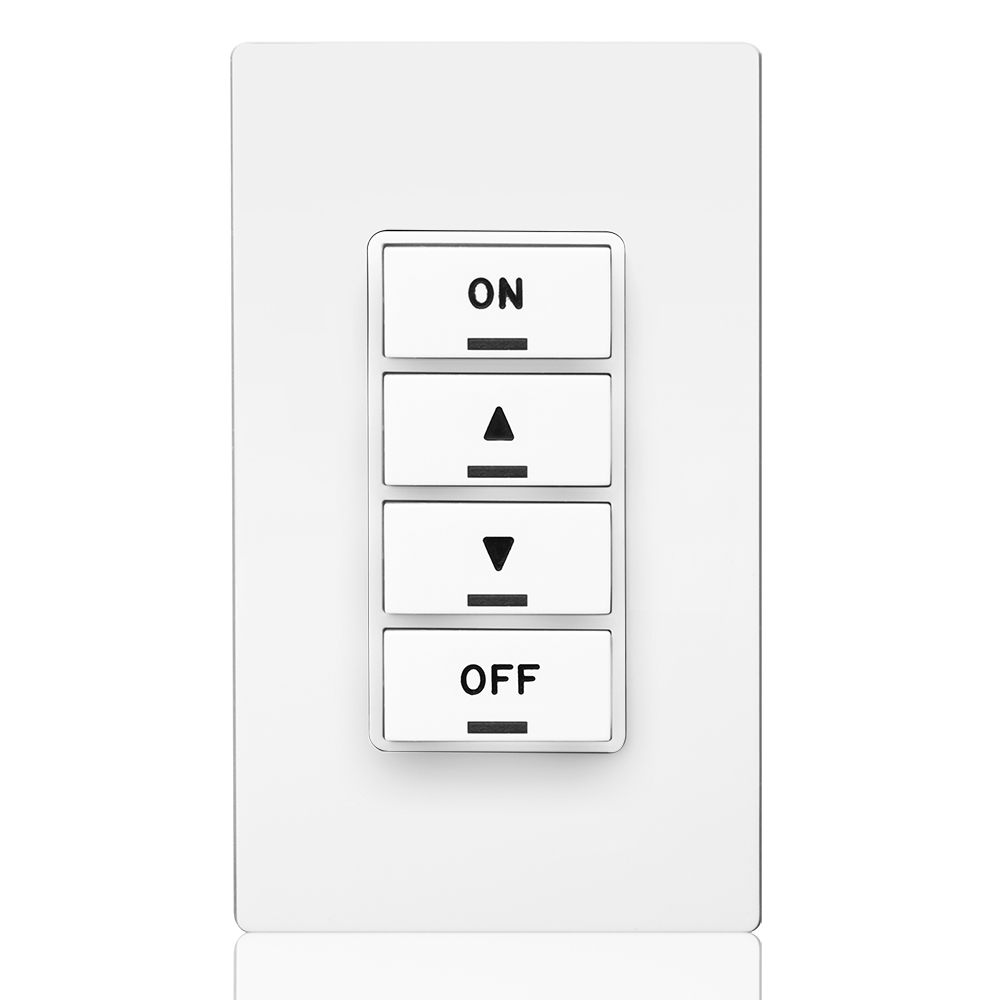

  • Manual area control available for 3-way/multi-way applications with the PLVSW Low Voltage Keypads or SBK00 Wireless Switch (must all be same style)
  • For dual relay models (AC205-DMW and AC220-DMW), two keypads can be connected for manual control of each relay/lighting zone
  • UL924 listed for emergency lighting:
    • Can be connected to BMS (Building Management System) or any contact closure to force the lights full ON in case of emergency
  • Ambient light hold-OFF
  • AutoCal feature—Digital Daylighting Level automatically calibrates photocell to specified lighting design
  • Two light pipes are included for both open (angled) and closed loop (flat and angled) ambient light hold-OFF
    • The angled light pipe provides directional fine tuning and alignment to natural light source for closed loop applications
  • Includes two interchangeable lenses for 8-12’ mounting heights and 13-20’ mounting heights as well as aisleway masks
