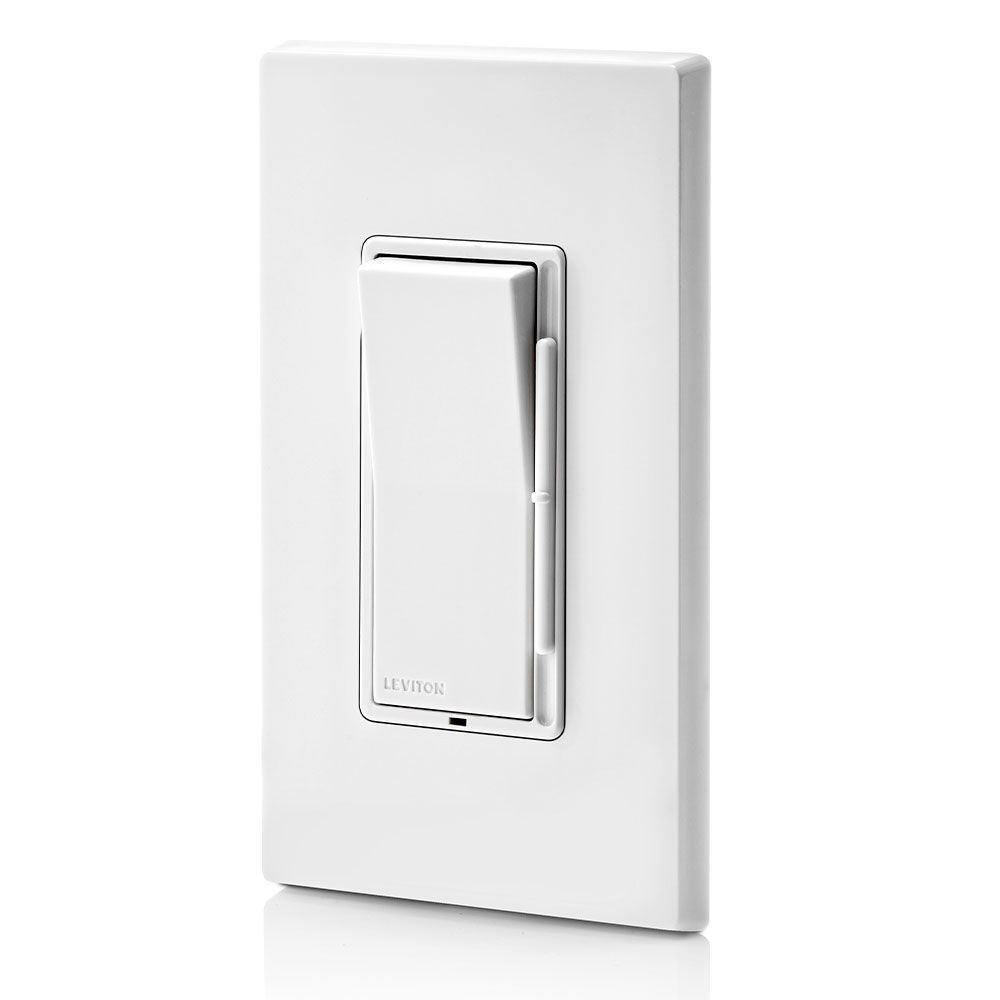

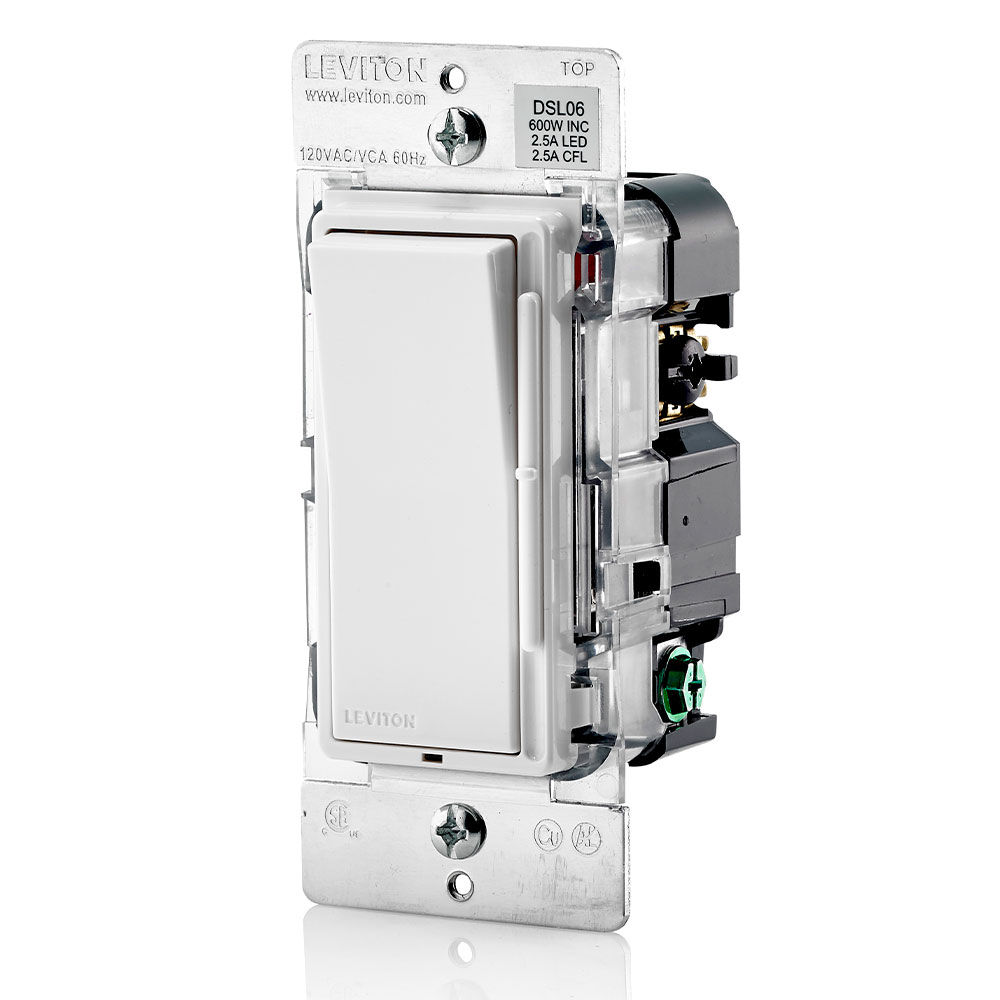

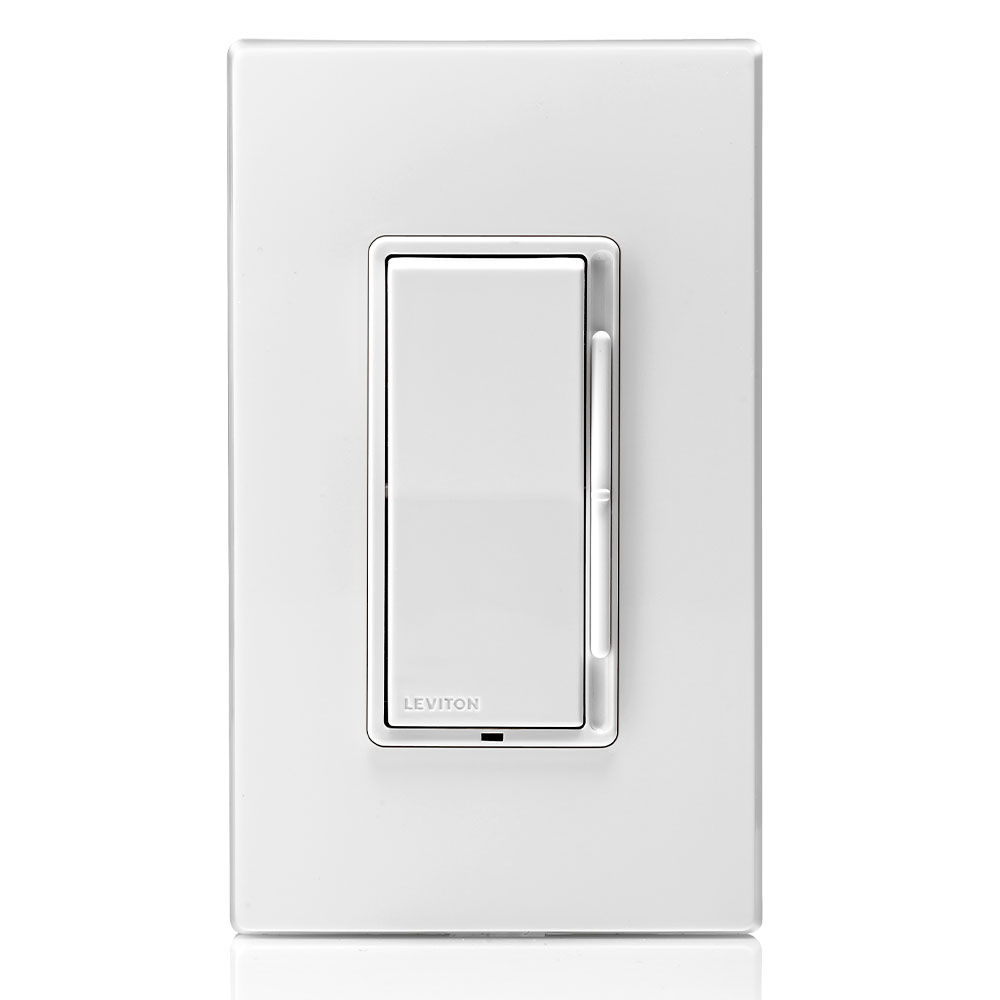

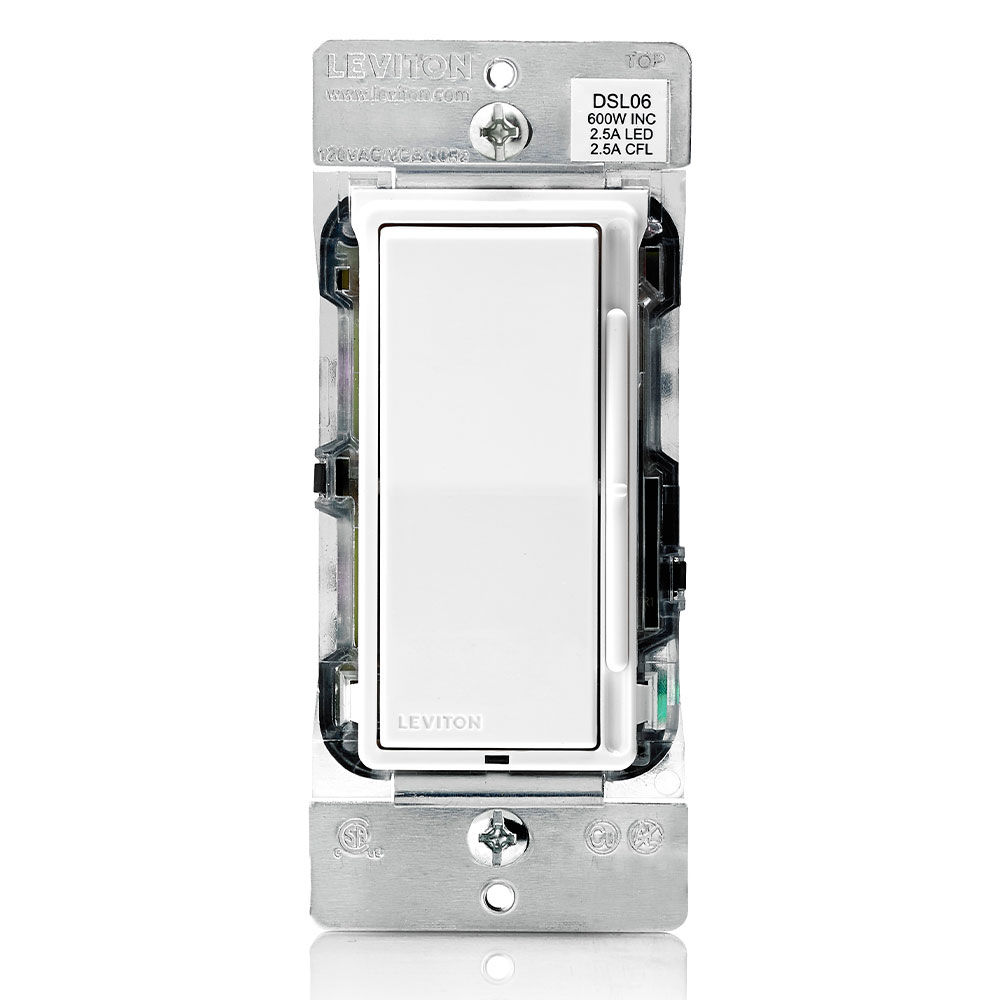

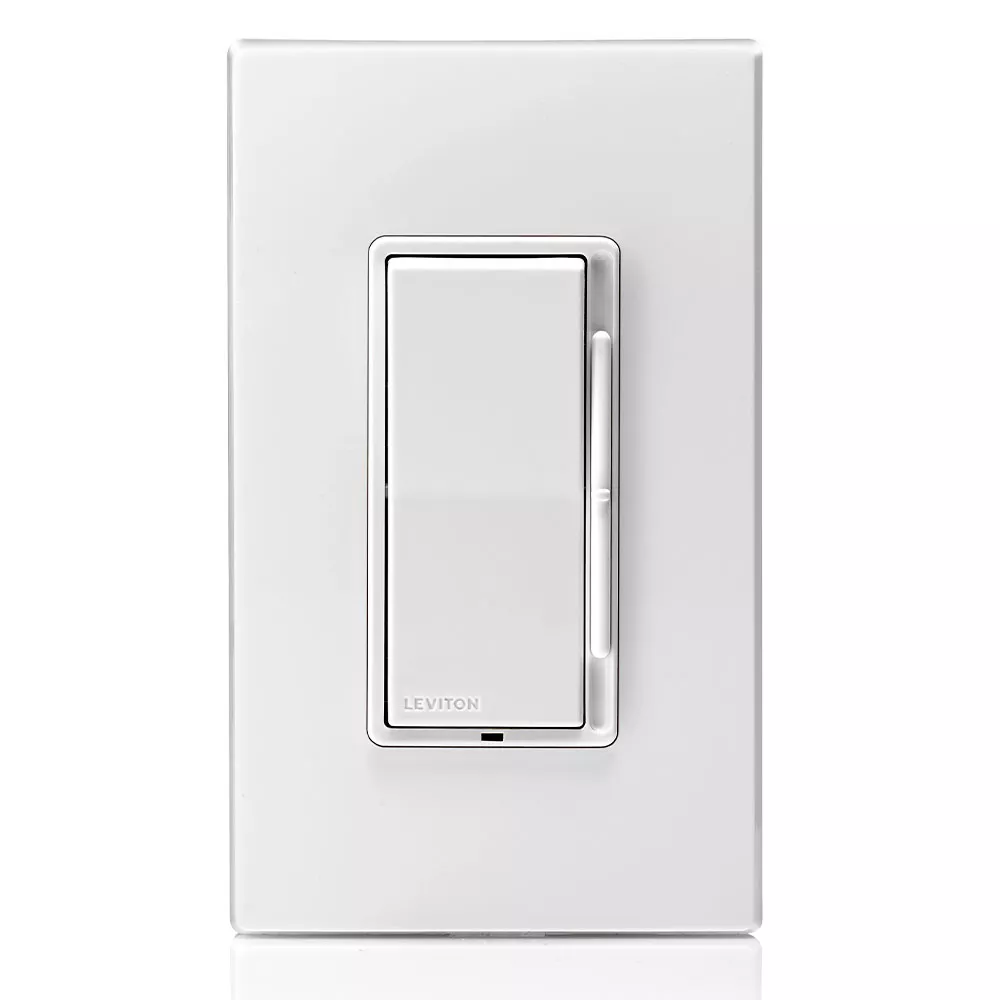

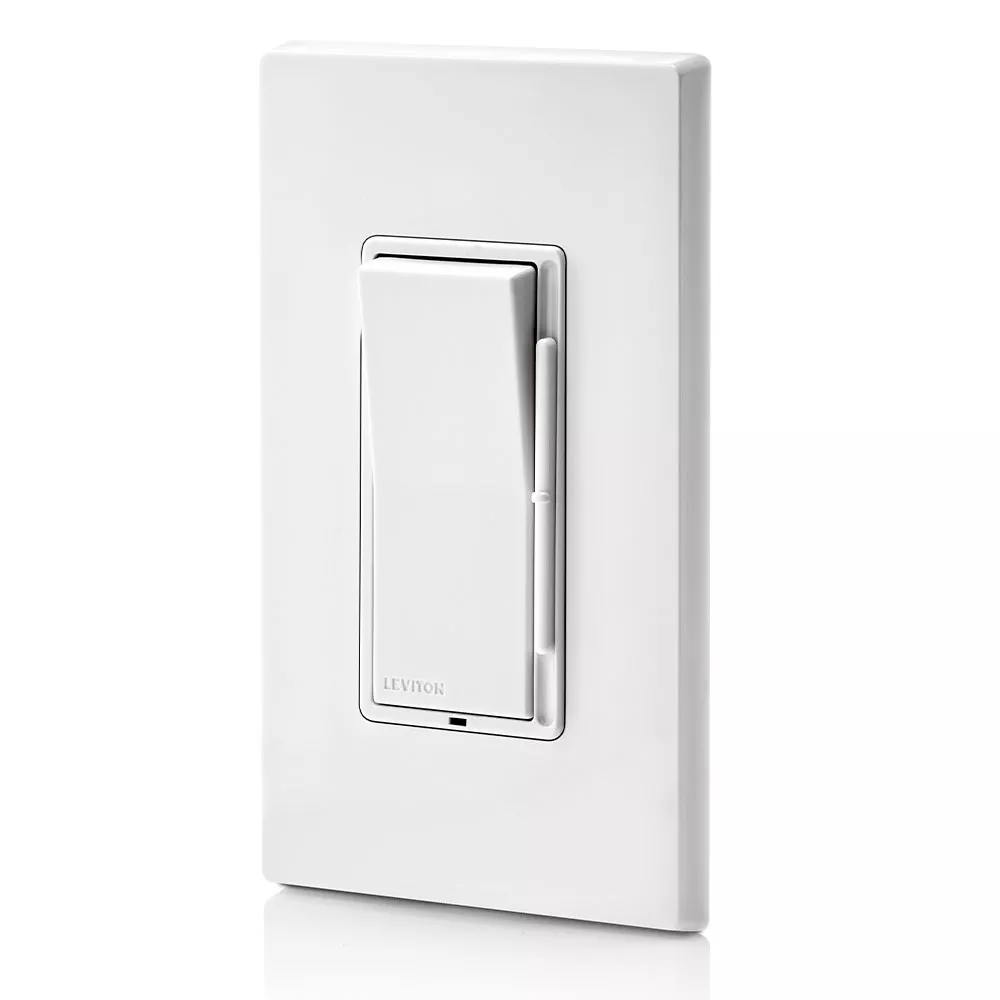

Decora Slide Dimmer Switch for Dimmable LED, Halogen and Incandescent Bulbs

DSL06-1LZ

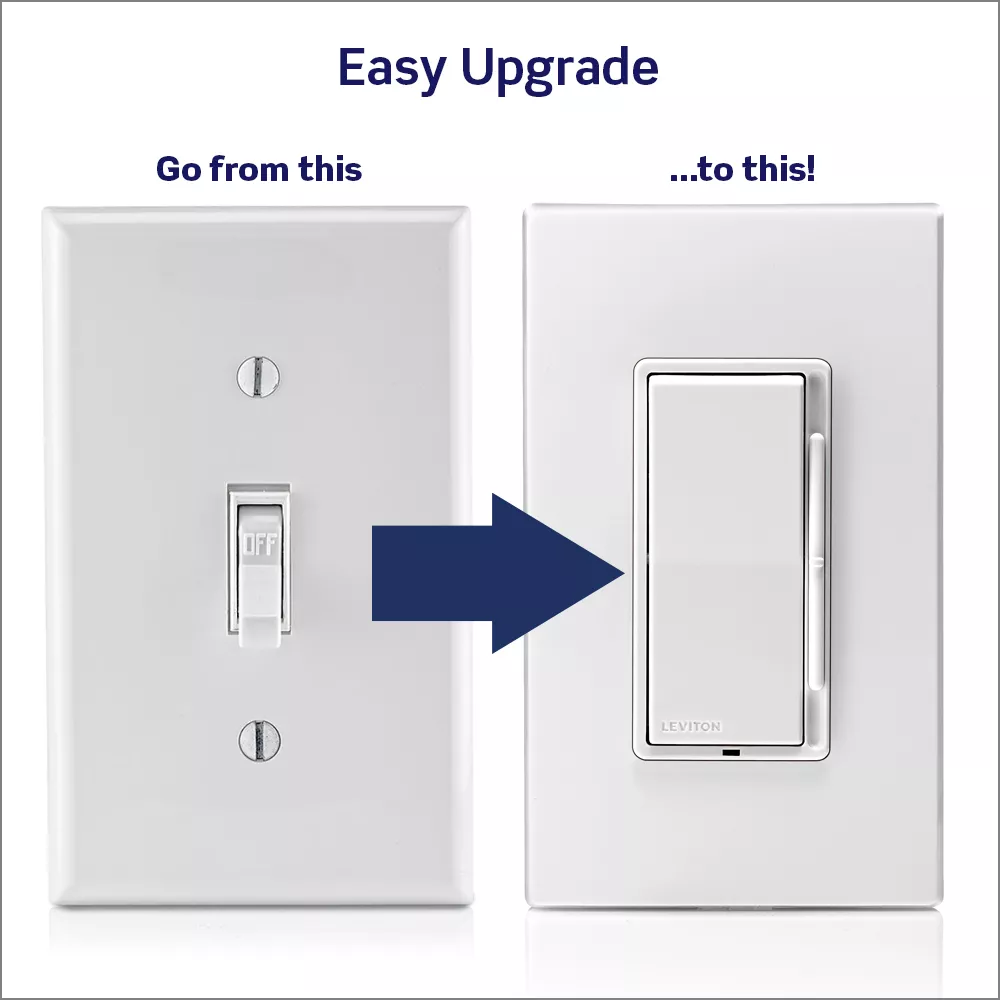

Replace a wall light switch with an Decora Slide dimmer switch. 300W LED, 600W incandescent/halogen, 60Hz, single pole or 3-way installation. Can be installed with or without a neutral wire, use with Decora wallplate or Decora Plus Screwless Wallplate sold separately – White with ivory and light almond faceplates

CONVENIENT – An easy way to create a big impact for a minimal cost and customize the light level in any room, for any occasion and in any home
EASY T...

UPC Code: 078477692325

Country of Origin : China

Product Information

Updated

opens in a new tab

Product Specification Sheetopens in a new tab

06/11/2024 Viewopens in a new tab

Updated

opens in a new tab

Instruction Sheetopens in a new tab

10/09/2023 Viewopens in a new tab
opens in a new tab

Instruction Sheet (French)opens in a new tab

10/09/2023 Viewopens in a new tab
opens in a new tab

Instruction Sheet (Spanish)opens in a new tab

10/09/2023 Viewopens in a new tab
opens in a new tab

Product Cleaning Instructionsopens in a new tab

02/07/2024 Viewopens in a new tab

Updated

Product Features
Action : Rocker Switch for ON/OFF, slide bar for lighting level control
Available Colors : Ivry-I Wht-W Gry-G Blk-E Brwn-B Light Almond-T, R-Red
Color : White, Ivory, Light Almond
Frequency : 60 Hz
Light : Locator light that can be turned off
Load Rating : 600W Incandescent, 300W LED and CFL
Load Type : Incandescent, Dimmable LED, Dimmable CFL

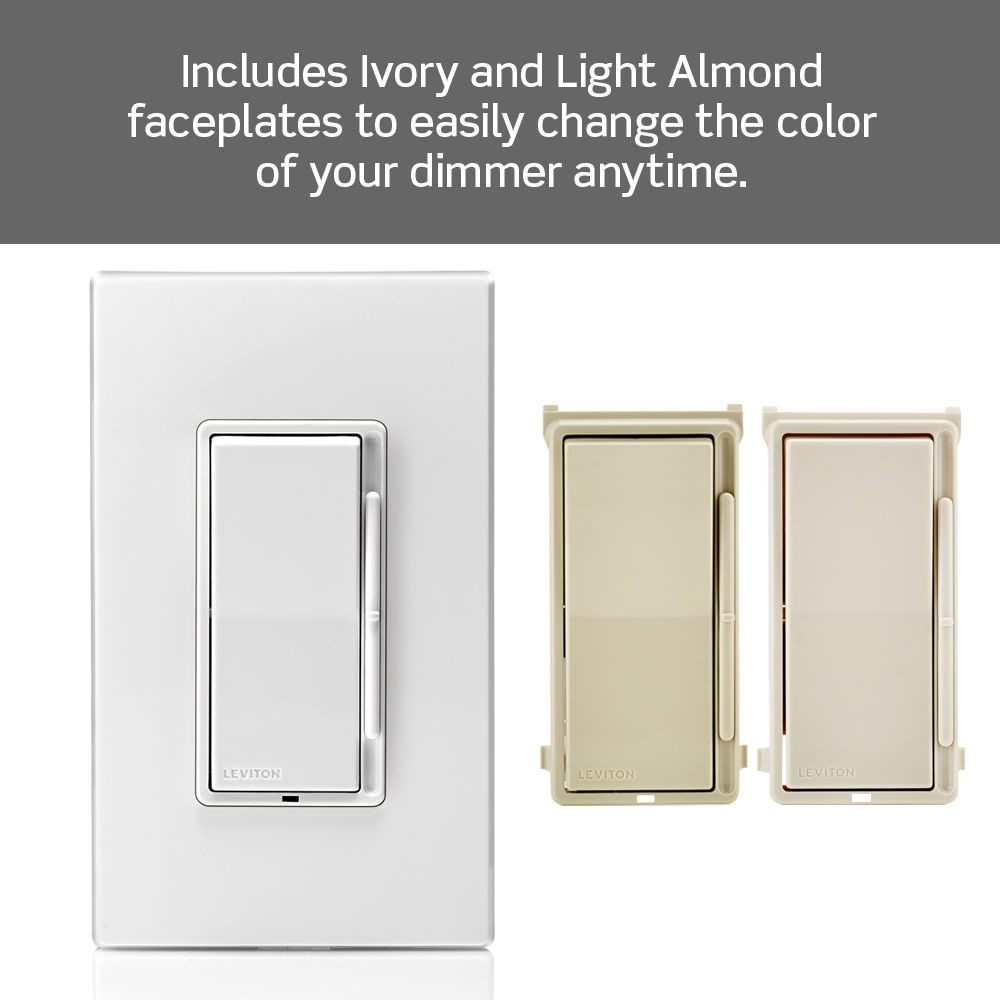

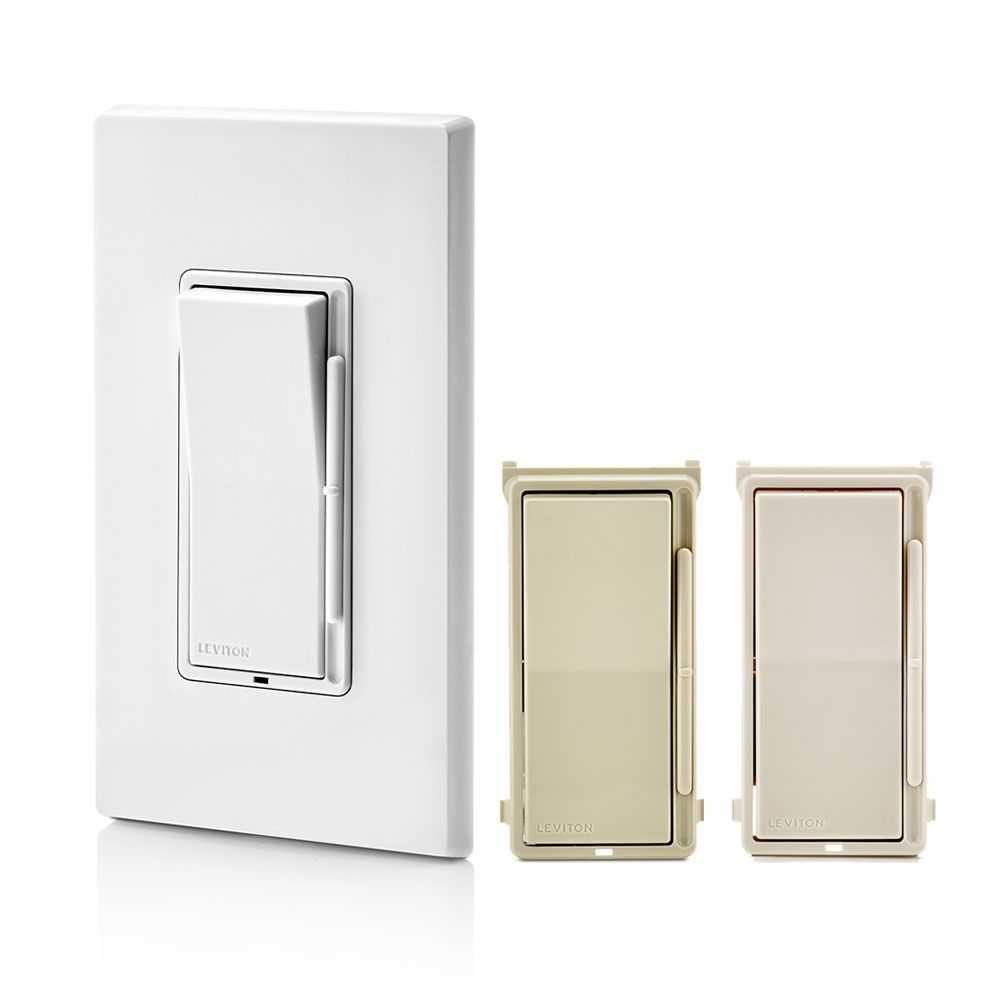

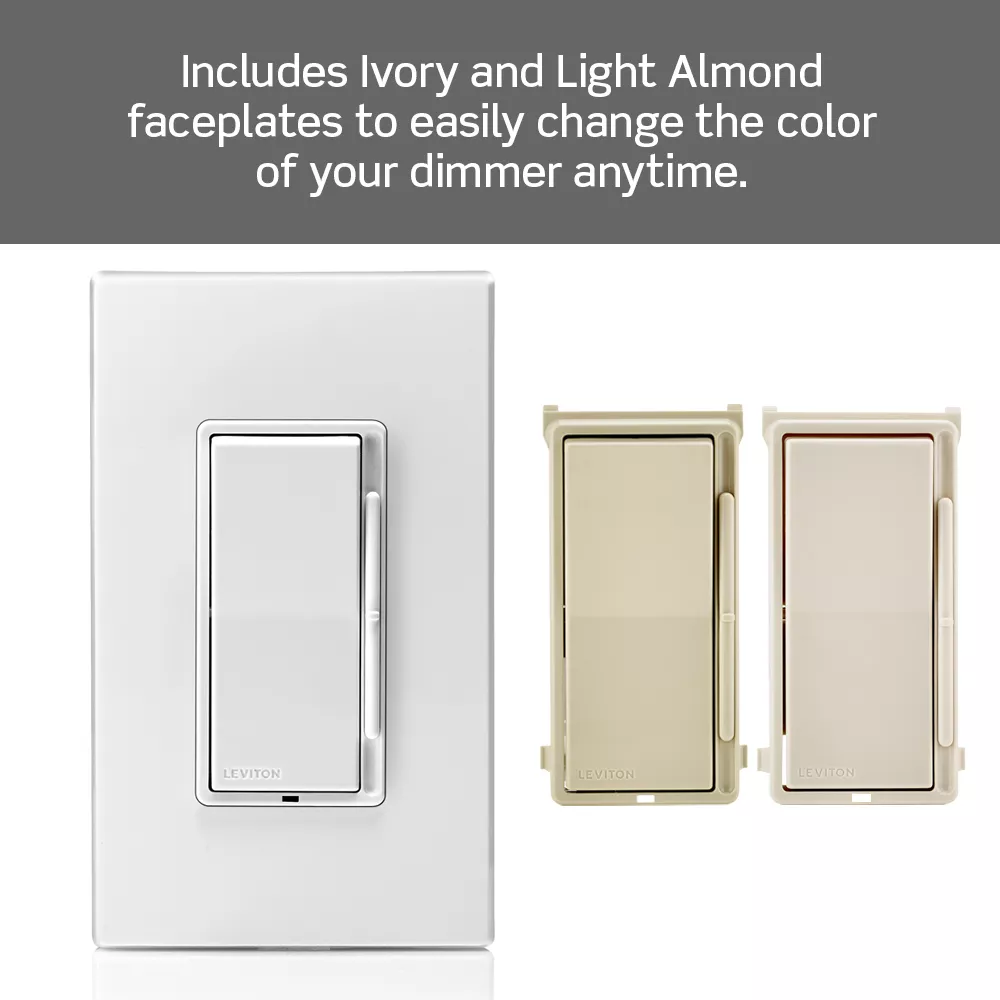

Ordering Notes : Included White, Ivory and Light Almond Color Kit
Preset : Slide bar preserves desired lighting level
Protection : Radio/TV Filter
Standards and Certifications : cCSAus, NOM
Style Name : Decora
Switch Type : Single-Pole & 3-Way
Torque Range : 14 – 18 in.-lbs
Type : Dimmer
Voltage : 120 VAC
Wallplate : Order Separately
Warranty : 5-Year Limited

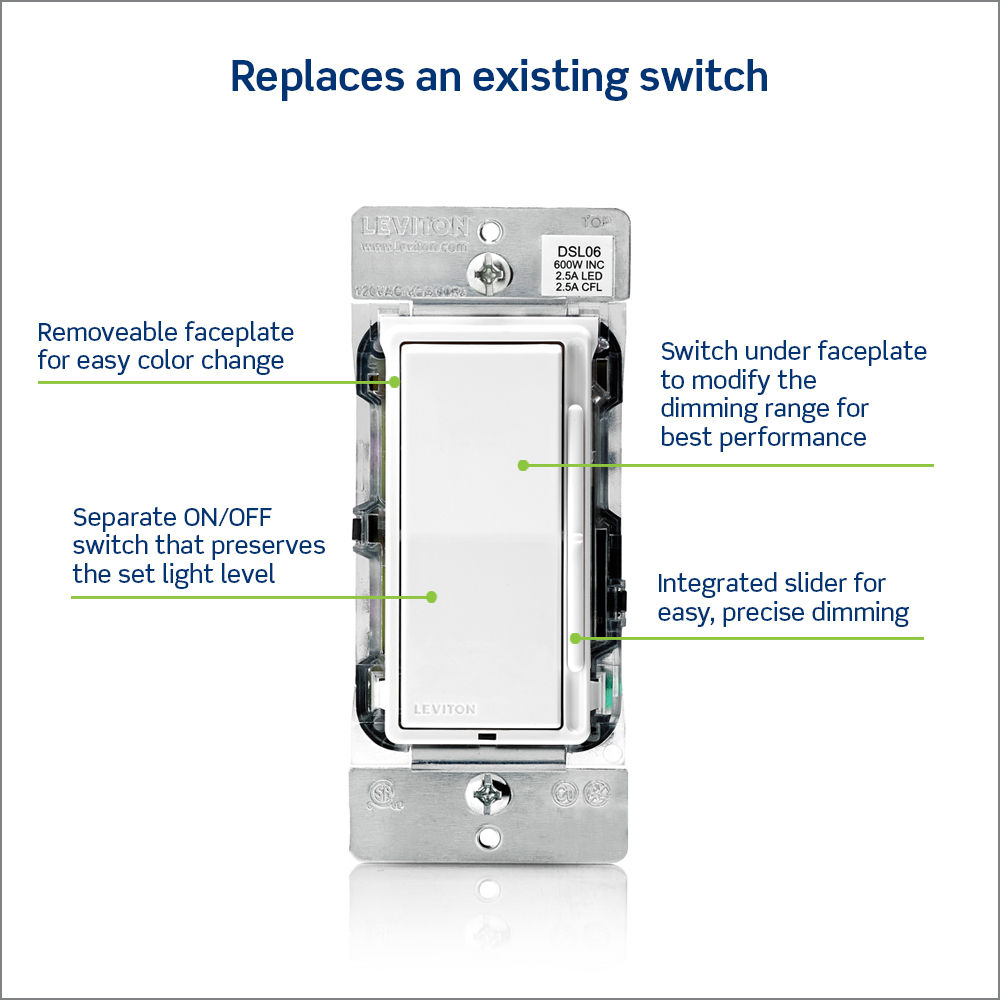

Integrated linear full-range slide control for easy, precise operation
Separate On/Off switch, to preserve set light level when turned off

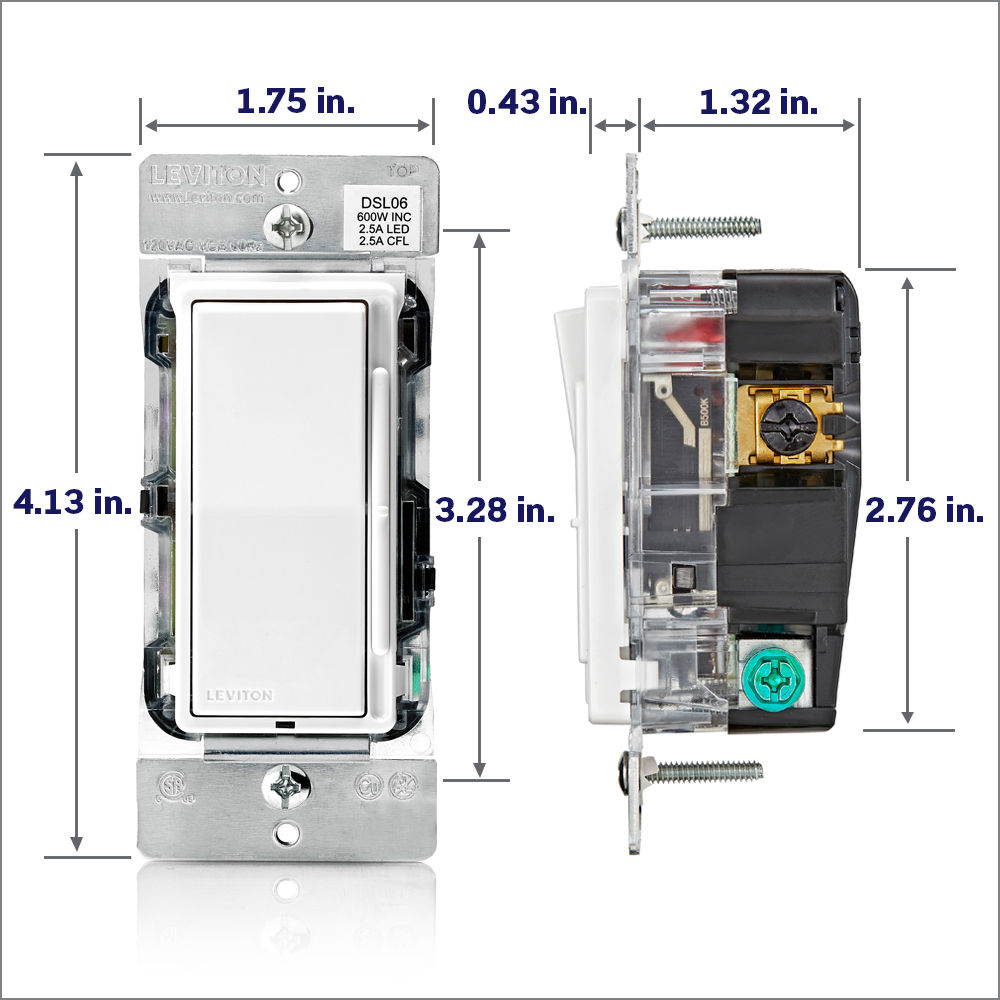

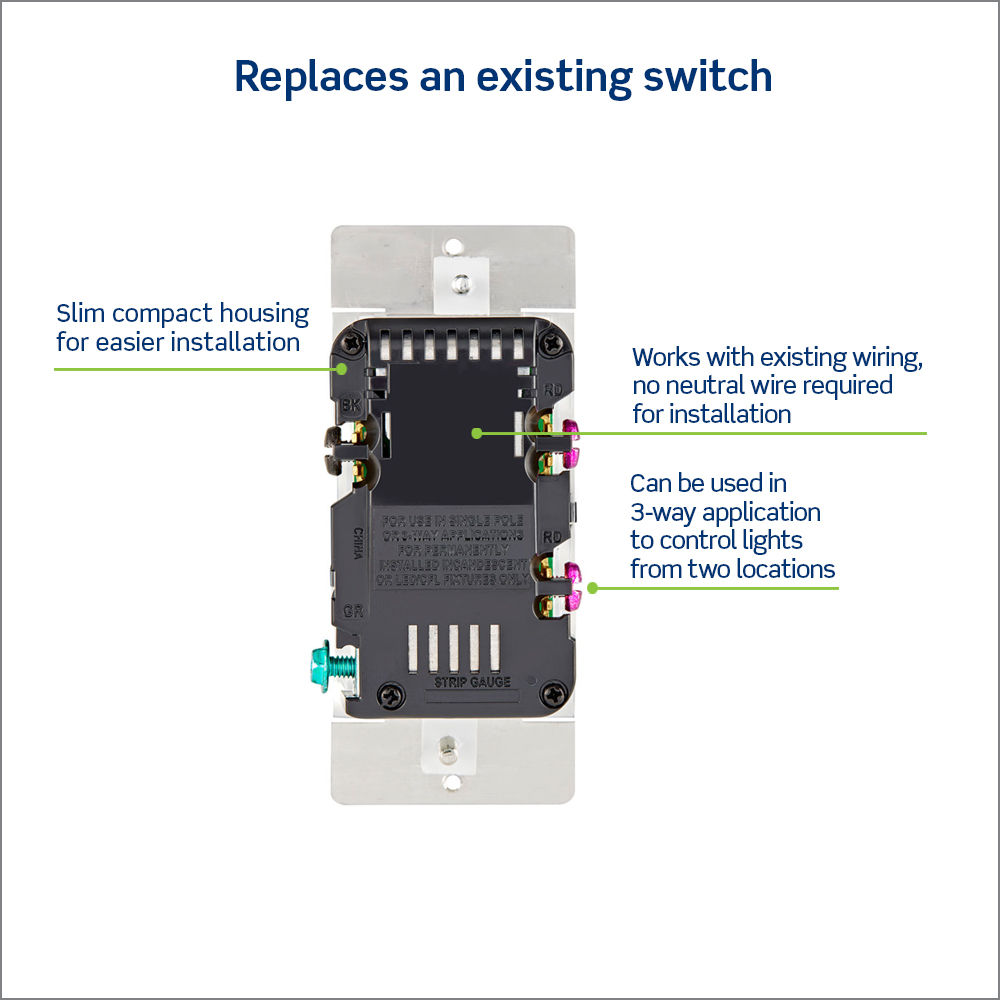

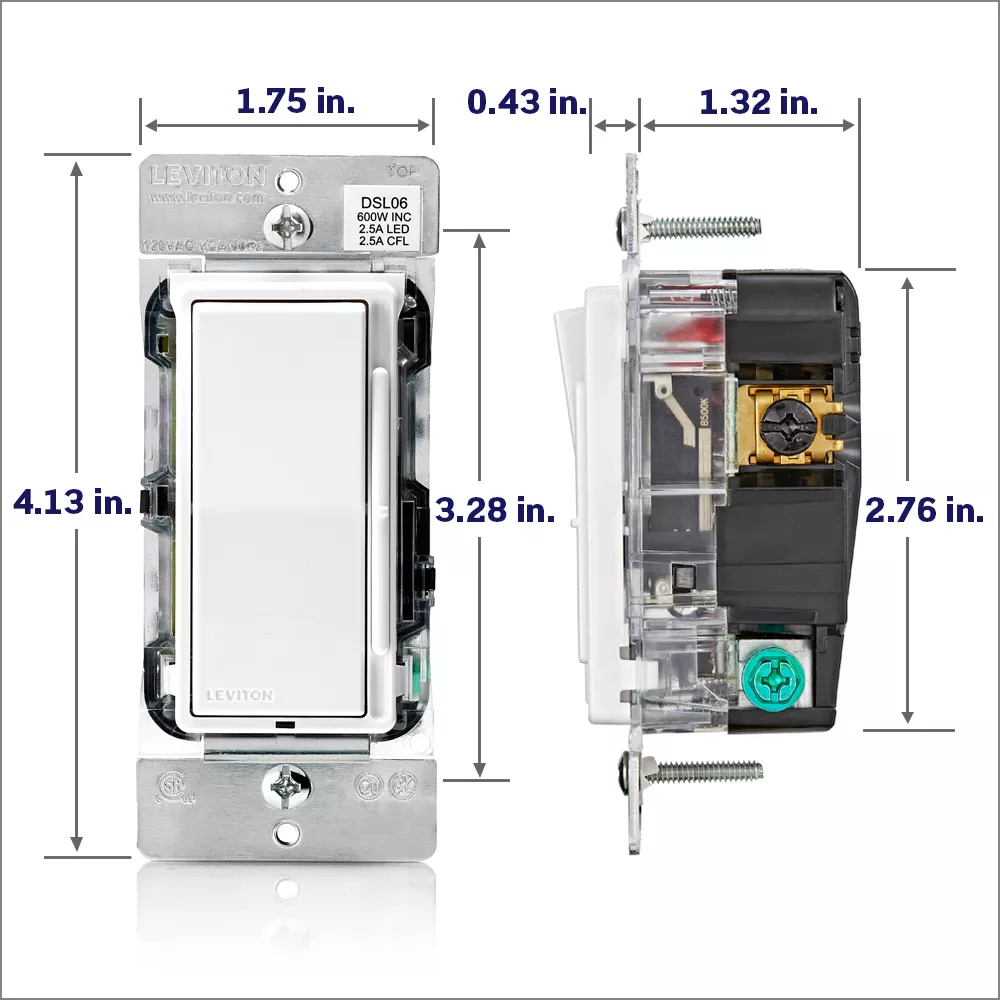

Slim, compact housing fits easily into a standard wall box

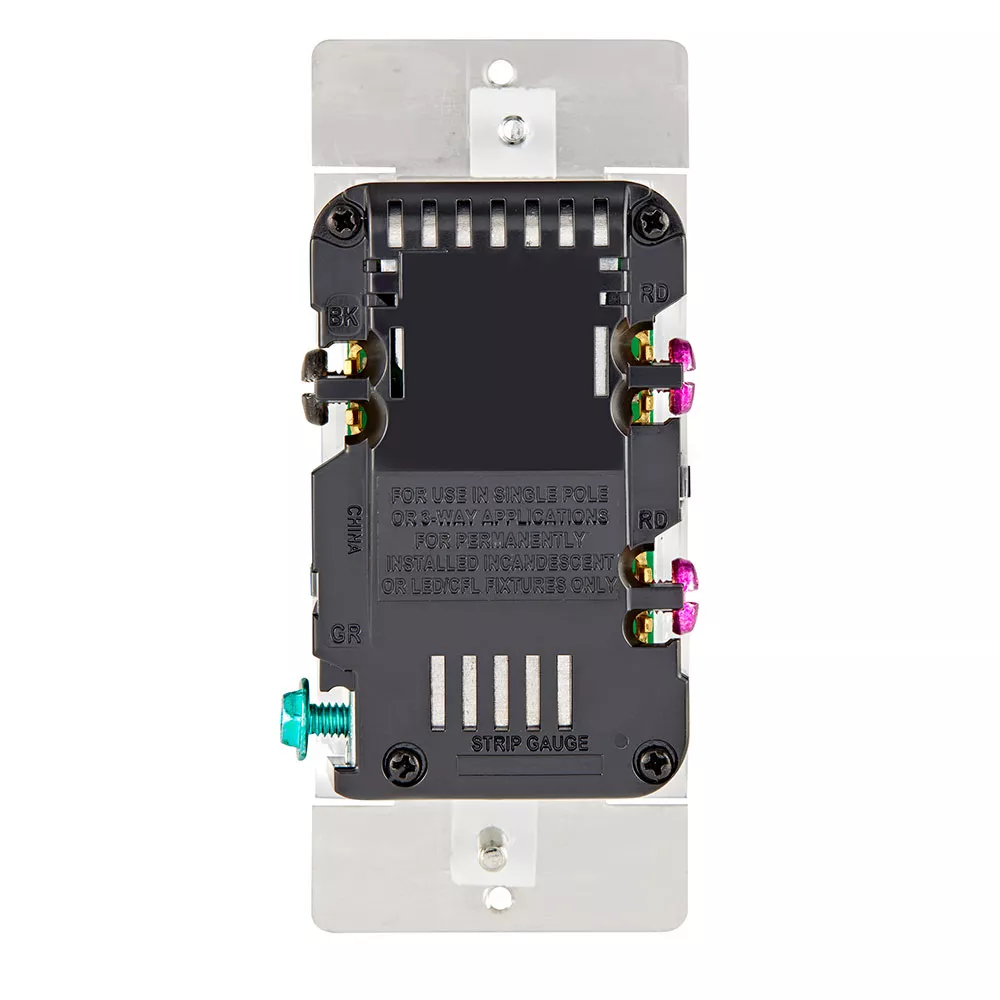

Works with existing wiring, no neutral wire required for installation
Designed to dim LED bulbs. To find out which LED bulbs pair best, visit our online bulb compatiblity tool

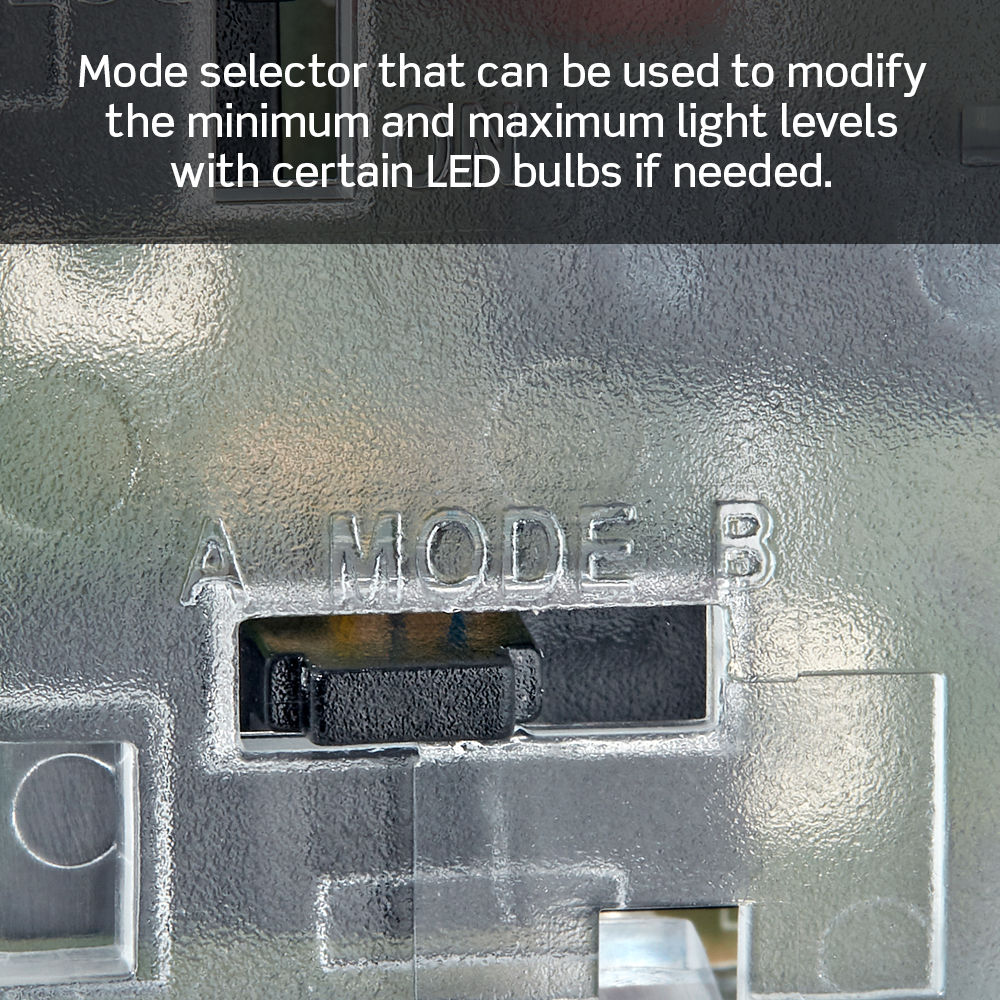

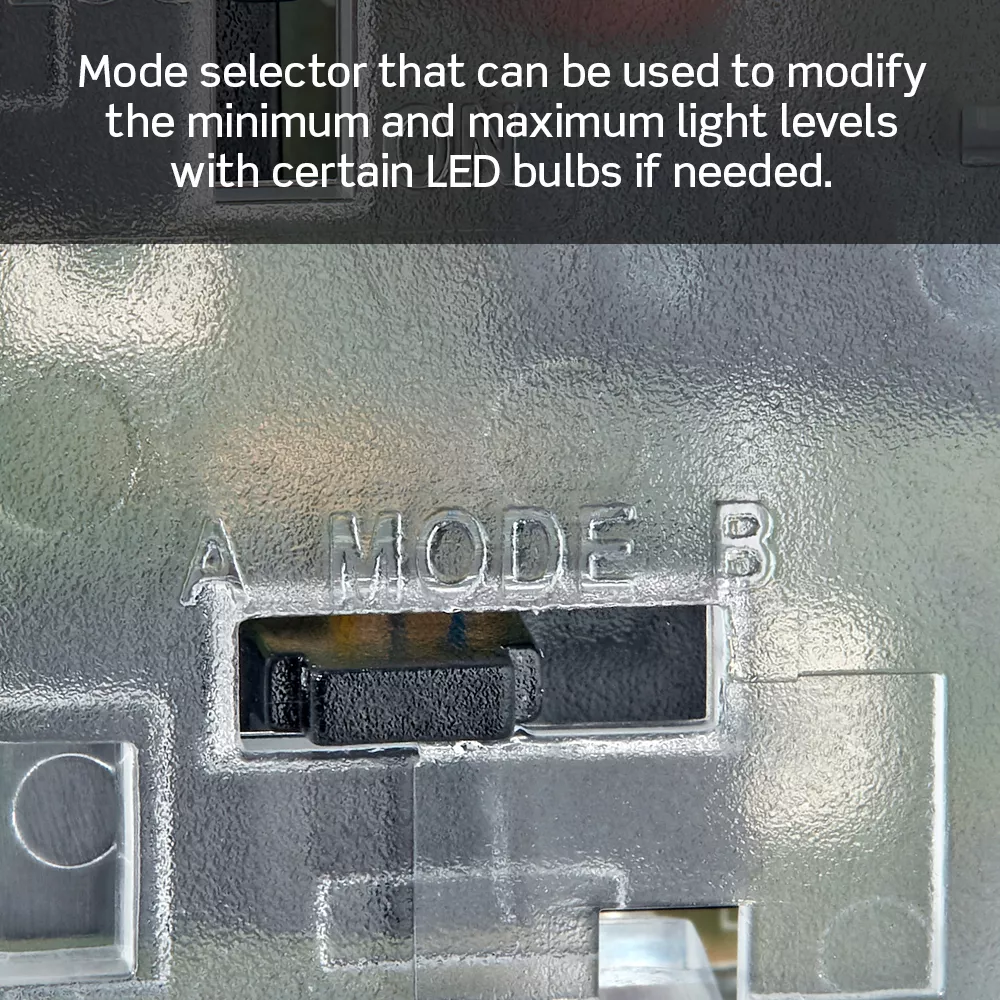

Adjustable minimum and maximum dimming range for LED bulbs to help eliminate flicker, maximize energy savings, and optimize ambiance
Control the lights from two locations using the DSL06 in the main location and a 3-way switch (sold separately) in the second location

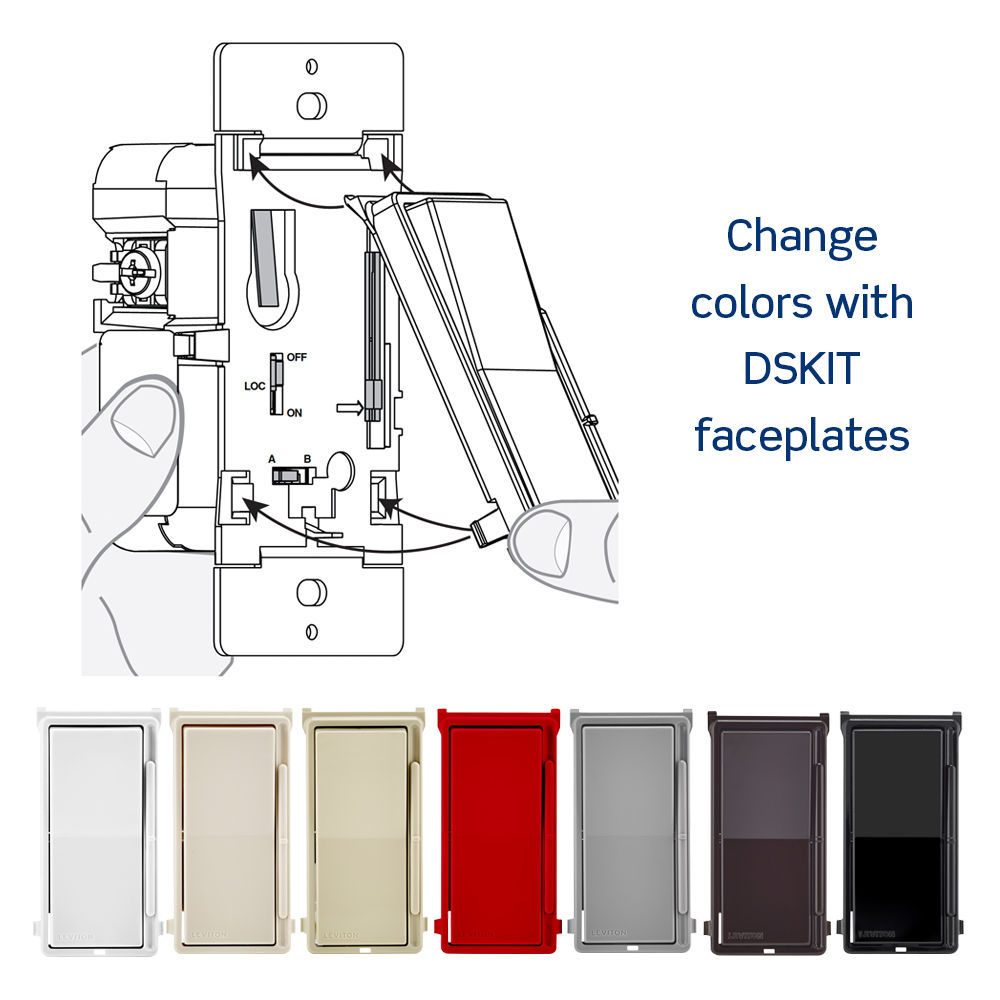

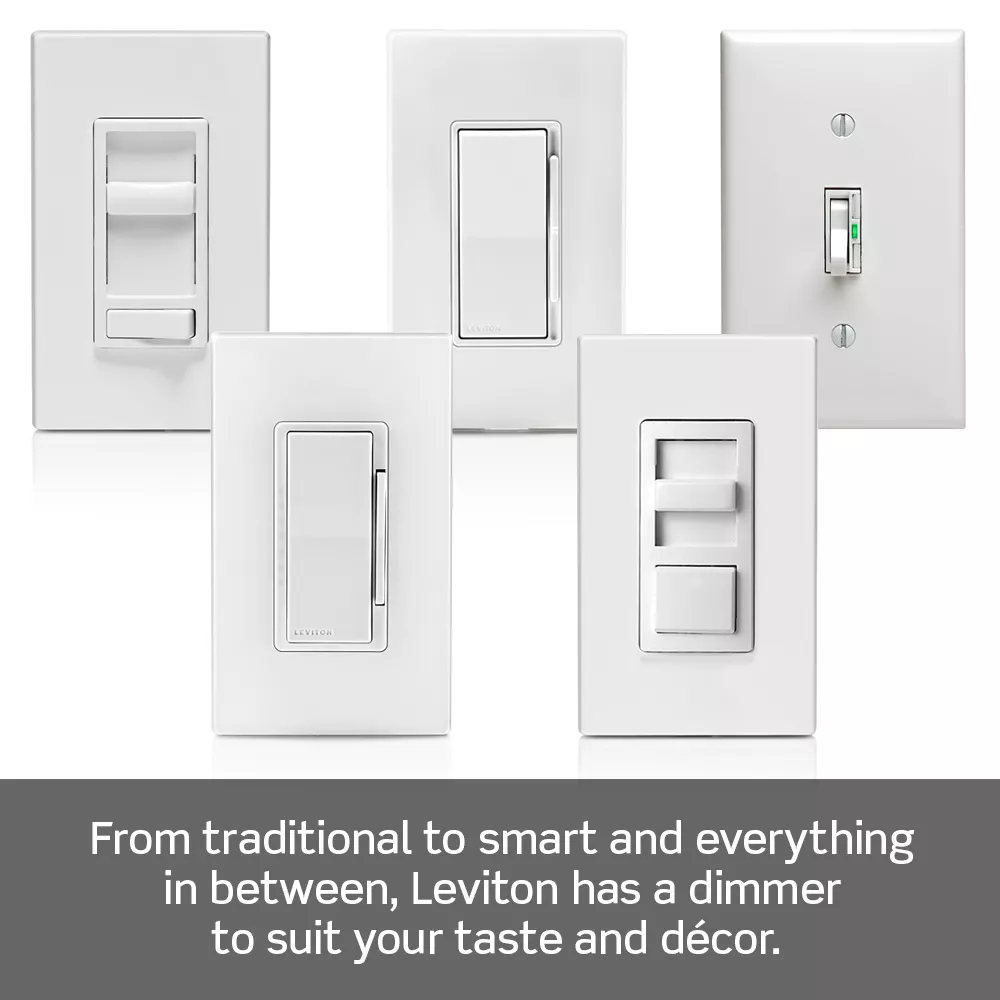

Easily change the color using DSKIT faceplates available in white, ivory, light almond, gray, black, brown and red

What are the benefits of using a LED compatible dimmer?
- These dimmers are designed for smooth operation, precise dimming, low level starting and flicker-free operation when used with compatible dimmable LED bulbs. To find compatible bulbs for the DSL06 dimmer, use Leviton’s online LED compatibility tool.
What types of bulbs can be used with the DSL06 dimmer?
- This dimmer is designed to work with dimmable LED, dimmable CFL, incandescent and halogen bulbs. To find the best bulb pairing, use Leviton’s online LED compatibility tool.
Is a neutral wire required with the DSL06 dimmer?
- The DSL06 does not require a neutral wire for installation. It works with existing wiring and can replace any standard wall switch.

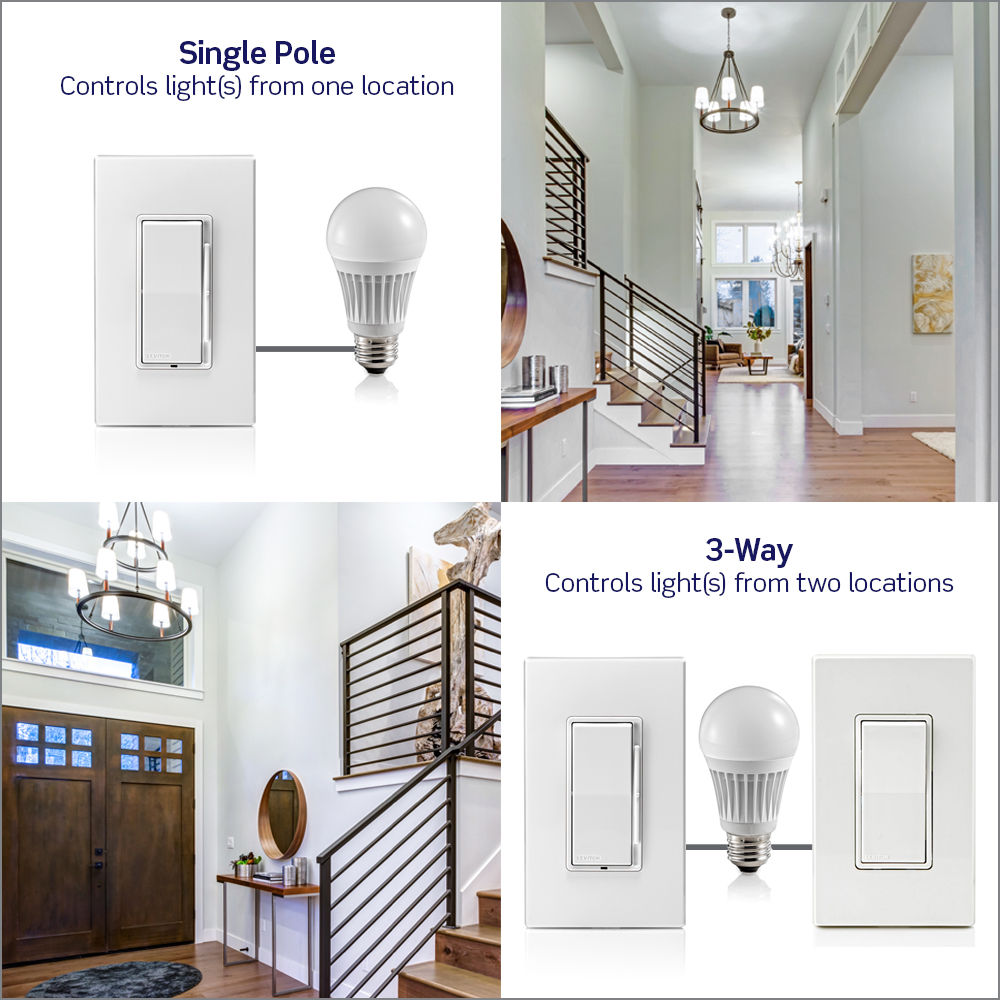

What is the difference between a single pole or 3-way installation?
- Single pole is controlling the light(s) from one location. 3-way is the ability to control the light(s) from two separate locations. The dimmer switch is in the first location and a 3-way switch in the second location.
What will happen if I mix bulb types with the DSL06 dimmer?
- We recommend using the same bulb type to achieve consistent performance. Mixing bulb types could lead to a variation in dimming performance and unpredictable start up characteristics.

CA2798964
CA2869845
MX321054
MX321054
US11903105
US8664886
US8944859
US9431192
US9543667
US9681526

This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.
