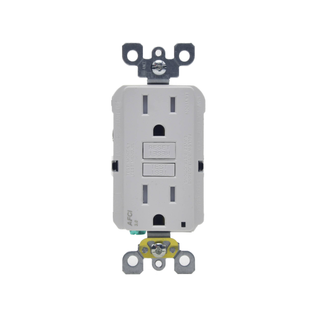

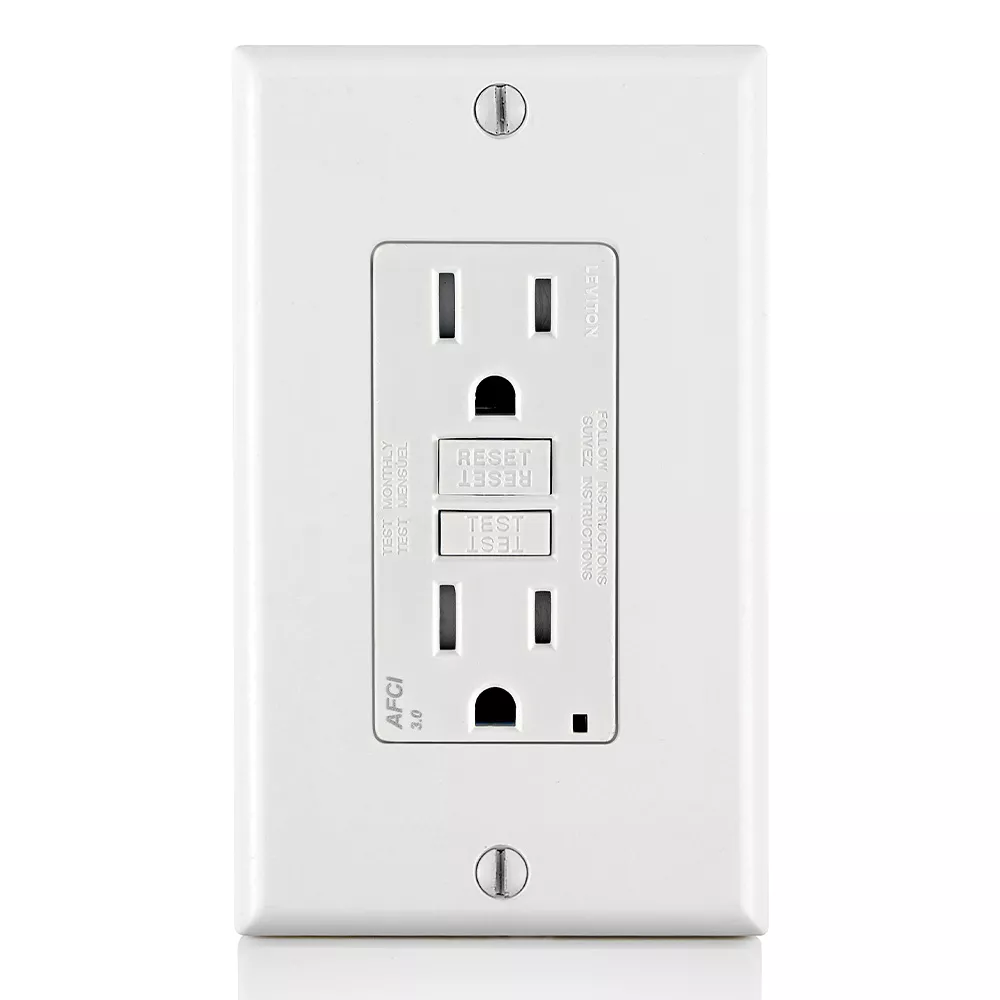

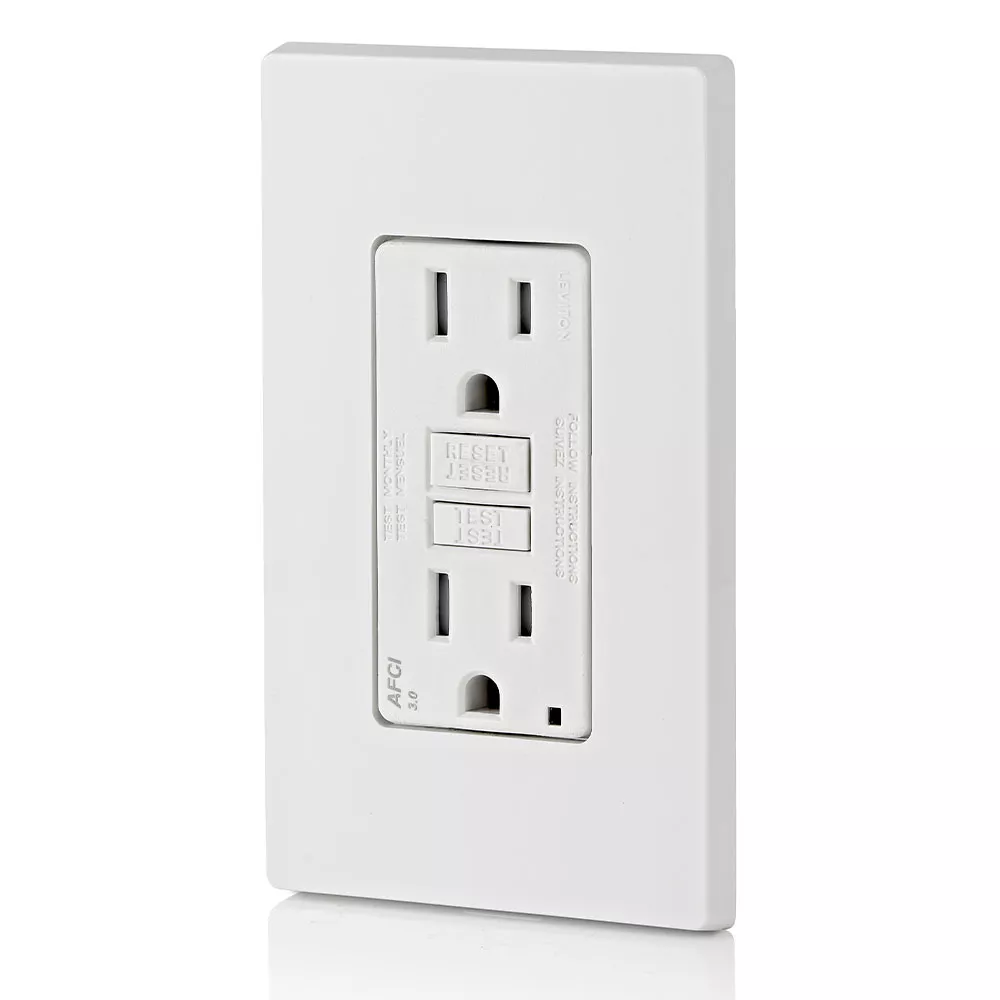

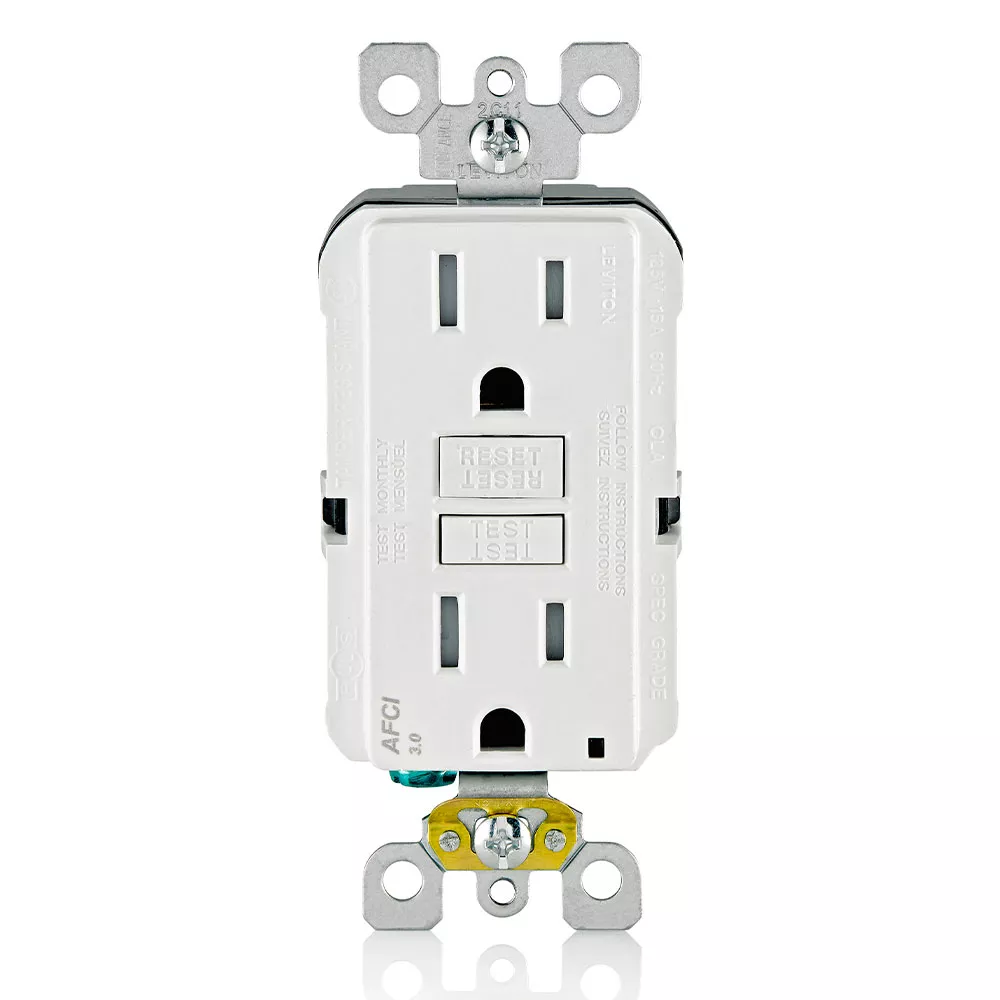

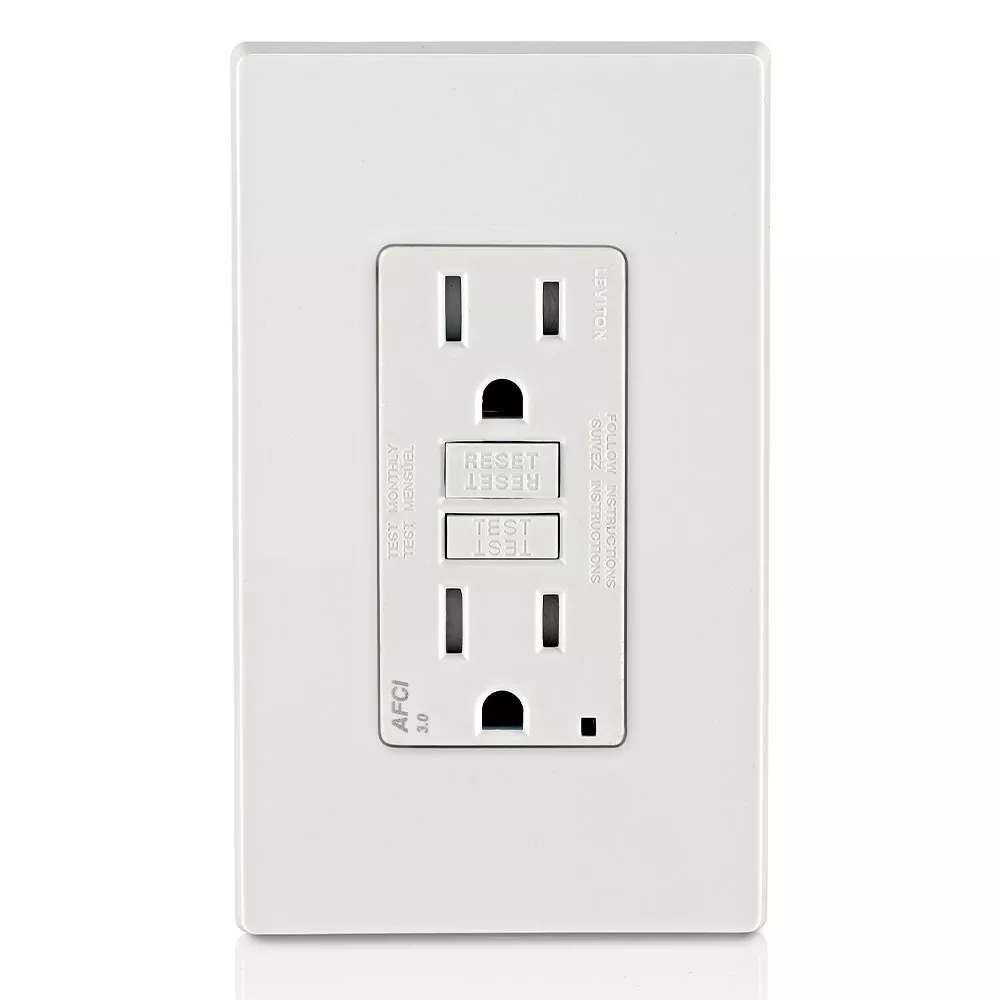

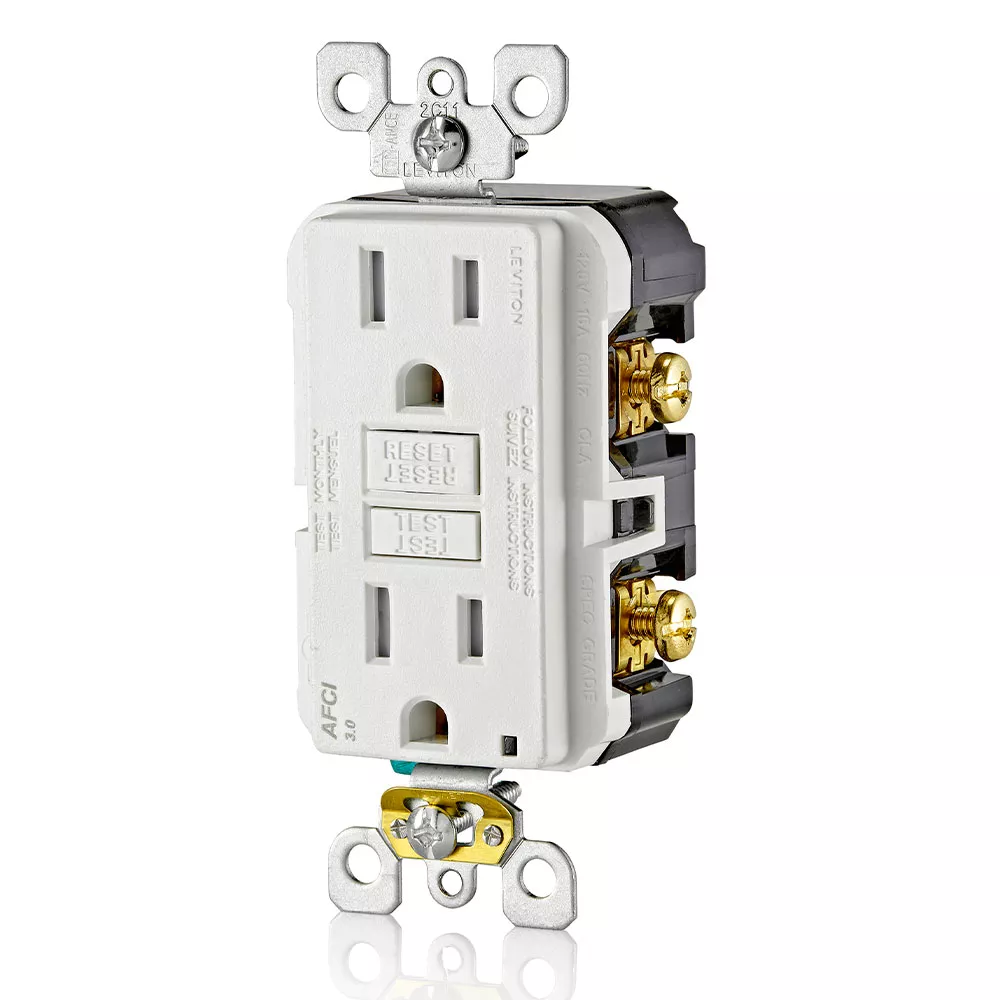

SmartlockPro® AFCI Outlet with LED Indicator Light, 15A Tamper Resistant Receptacle - White
AFTR1-W
15 Amp, 125 Volt SmartlockPro® Tamper Resistant AFCI Outlet, Back and Side Wire, NEMA 5-15R, Self-Grounding, White Receptacle with LED Indicator Light
- SAFE – Offers advanced technology to help protect against electrical fires resulting from arc-faults
- SIMPLE – Status indicator light provides simple, intuitive feedback of status
- IDEAL - for kitchens, utility rooms, rec rooms, bedrooms, and office spaces when doing renovations
- Patented Reset Lockout technology prevents reset if the AFCI is not wired or operating correctly
Color: White
Specifications
Instruction Sheet
Documents
Technical Information
-
General Information
UPC : 078477574942
Nema : 5-15R
Electrical Specifications
Amperage : 15 A
Dielectric Voltage : 1250 VAC
Grounding : Self-Grounding
Horsepower Rating : 1 hp
Pole(s) : 2
Power Supply Input and Frequency : 125V, 60Hz
Short Circuit Current Rating : 10 kA
Temperature Rise : Max 30°C
Voltage : 125 VAC
Wire(s) : 3
Environmental Specifications
Operating Temperature : Maximum Continuous 66°C, Minimum -35°C (w/o impact)
Material Specifications
Body : Thermoplastic
Face : Thermoplastic
Grounding Screw : #8 Galvanized Steel
Line Contacts : Brass
Mounting Strap : Galvanized Steel
Self-Grounding Clip : Yes
TR Shutter : Thermoplastic
Terminal Clamps : Brass
Terminal Screws : #8 Plated Steel
Mechanical Specifications
Product ID : Ratings are marked on device
Termination : Back and Side Wire
Torque Range : 14-18 lbs.
Wire Accomodation : #10 - #14 AWG Copper, #10 - #12 Copper Clad
Product Features
Brand : SmartlockPro
Color : White
Device Type : Duplex Receptacle/Outlet
Feature(s) : Indicator Light, Tamper Resistant, Wallplate Included
Grade : Residential/Commercial Specification Grade
NEMA Configuration : 5-15R
Product Type : AFCI
Standards and Certifications
Applicable Standards and Certifications : UL,CSA,CSA C22.2 No. 270,CSA C22.2 No. 42,Fed Spec WC-596,UL 1699A,UL 498
NEMA : WD-1 and WD-6
Warranty
Warranty : 2-Year Limited
Features & Benefits
- Use of TEST and RESET buttons is similar to traditional GFCI receptacles of which consumers have become familiar with. This translates into greater acceptance of the technology and a more user-friendly platform
- Automatically tests the AFCI every time the RESET button is depressed; the AFCI will not reset if the AFCI circuit is not functioning properly
- By blocking reset of the AFCI if protection has been compromised, the SmartlockPro OBC AFCI reduces the possibility of end-users incorrectly assuming that a reset AFCI is providing protection when its functionality has been compromised
- A line-load reversal diagnostic feature is provided which prevents the AFCI from being reset and stops power from being fed to the AFCI receptacle face or through to downstream devices; a green LED indicator on the AFCI’s face also illuminates to alert the installer to a line-load wiring reversal when the device is in the tripped state
- TR symbol indicates the device’s compliance with the latest NEC® requirements for tamper-resistant receptacles in residences and childcare facilities
- Device design reduces nuisance tripping
- Impact-resistant thermoplastic cover and body
- Superior resistance to electrical surges and over-voltages
- Terminals allow for easy wiring options – back and side wire capable
- Compatible with all Decora® devices and wallplates; available in select colors
- Meets or exceeds UL requirements for tripping time on both series and parallel arcs
