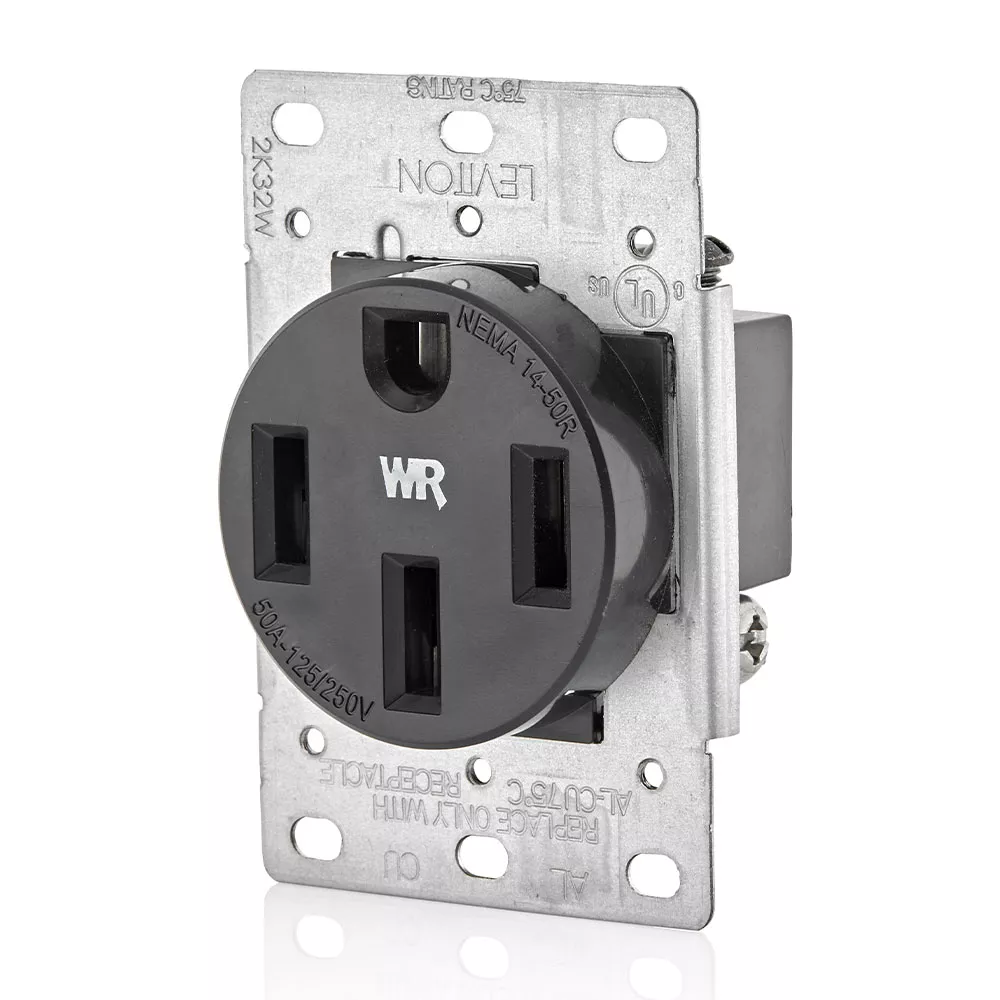

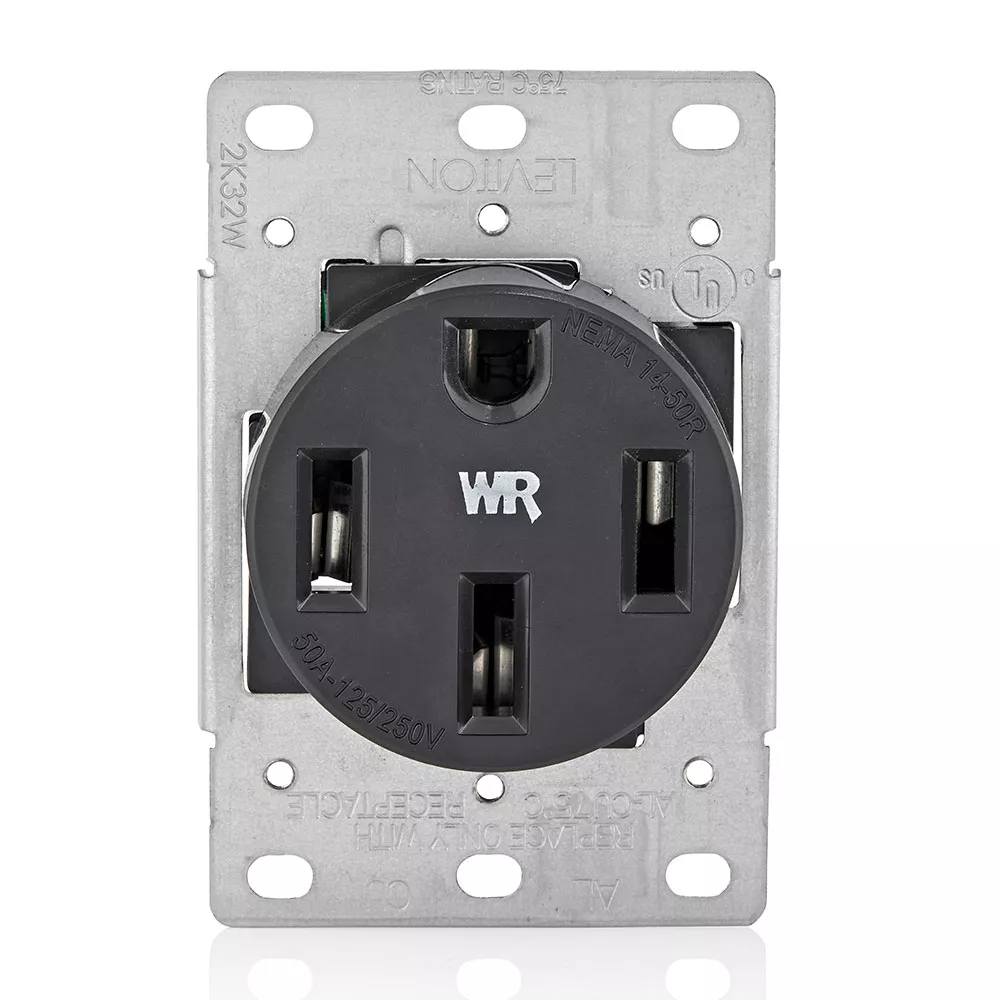

50A Weather Resistant Flush Mount Outlet/Receptacle
W0279-S01
50 Amp, 125/250 Volt, 3-Pole, 4-Wire, NEMA 14-50R, Weather-Resistant, Flush Mtg Outlet/Receptacle, Straight Blade, Grounding, Side Wired, Steel Strap – Black
- IDEAL - Designed for outdoor applications where moderate current is required - Outdoor Equipment or Appliances and more
- WEATHER-RESISTANT – Ideal for use in wet and damp locations
- DURABLE – Shallow design built of durable high-impact thermoplastic
- EFFICIENT – Pressure-wire terminal connections ensure full-contact with the conductors; terminals require 40 in lbs
- INSTALL – Must be installed in a 2-gang outdoor box and must use code compliant weatherproof cover
Color: Black
Documents
Technical Information
-
General Information
UPC : 078477471616
Nema : WD-6
Product Features
Amperage : 50 A
Color : Black
Device Type : Single Receptacle
Feature : Weather-Resistant
Mechanical Specifications
Terminal Accom. : #6 - #8 AWG
Terminal ID : X (Brass screw or Black screw) = Hot; Y (Brass screw or Black screw) = Hot; White (Silver Screw) = Neutral; Green (Green Screw) = Ground
Termination : Side Wire
Torque Range : 40 in-lbs.
Standards and Certifications
ANSI : C73
CSA : 22.2 No. 42, C22 No. 14, C22.2 No. 65
File : E13399
NEMA : WD-6
NOM : NOM - ANCE
UL : UL 498, UL 486E
Material Specifications
Body Material : Valox
Face Material : Valox
Line Contacts : Brass Double-Wipe
Strap Material : Galvanized Steel
Environmental Specifications
Flammability : Rated V-2 per UL 94
Operating Temperature : -40°C to 60°C
Warranty
Warranty : 2-Year Limited
Features & Benefits
- Designed for outdoor applications where high current is required - RVs, Trailers, Outdoor Equipment or Appliances and more
- Ideal for use in wet and damp locations
- Shallow design built of durable high-impact thermoplastic
- Pressure-wire terminal connections ensure full-contact with the conductors; terminals require 40 in lbs.
- Must be installed downstream of a GFCI per NEC® and CEC®
- Use 2-gang wallplate (2.15" dia. opening) to complete installation
- Must be installed in a 2-gang outdoor box and must use code compliant weatherproof cover
- Not Recommended for Electric Vehicle Charging – see 1450W
