OPT-X™ Unity Ultra Low Loss Conversion Fiber Harnesses
UNITY-ACH

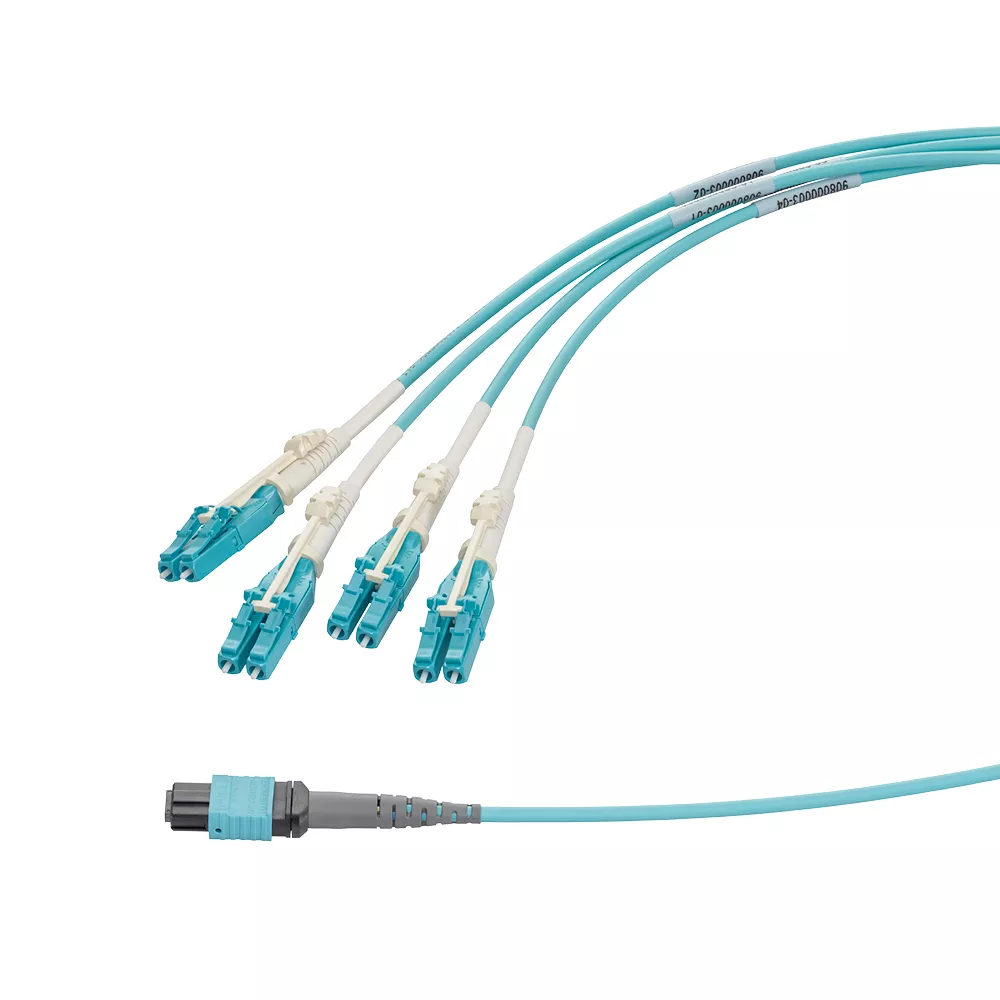

Conversion harnesses connect to electronics with LC style ports and aggregates 10G and 25G ports to a 40G or 100G port. The harness will manage polarity to maintain the transmit and receive connections. The harness links an MTP connector on one end with duplex LC connectors on the other end. The harnesses interface to QSFP+, QSFP28, and CXP transceivers. MTP Connectors feature ultra low loss to support maximum distance and multiple connection points while staying within IEEE low-loss limits.
Country of Origin : Please Contact Customer Service
Specifications
Instruction Sheet
Documents
Technical Information
Product Features
Assembly Type : Fiber Harness
Connector : MTP-MTP,MTP-LC
Family : Opt-X Unity
Fiber Type : OM3,OM4,OS2
Length : 1 meter,2 meters,3 meters,5 meters,10 meters,Custom
Features & Benefits
- Pre-terminated MTP to MTP connectors in Laser Optimized Multimode
- Custom short length cable for cabinet/rack packing
- Custom staggering available
- MTP polarity options are TIA method A, B, or C
- Used in conjunction with MTP brackets (Zero-U) or adapter plates
- 100% factory tested, with test results included for each assembly
- All assemblies labeled with serial number and length for traceability and easy re-order
- OPT-X Unity MTP-LC conversion harnesses provide a simple way to break out 40GbE or 100GbE connections into individual 10GbE channels. They feature 8- and 12-fiber ultra-low loss connectors for networks requiring extended reach or multiple connection points.
- Used in 12- or 24-fiber cabling systems
- Color-coded boots
