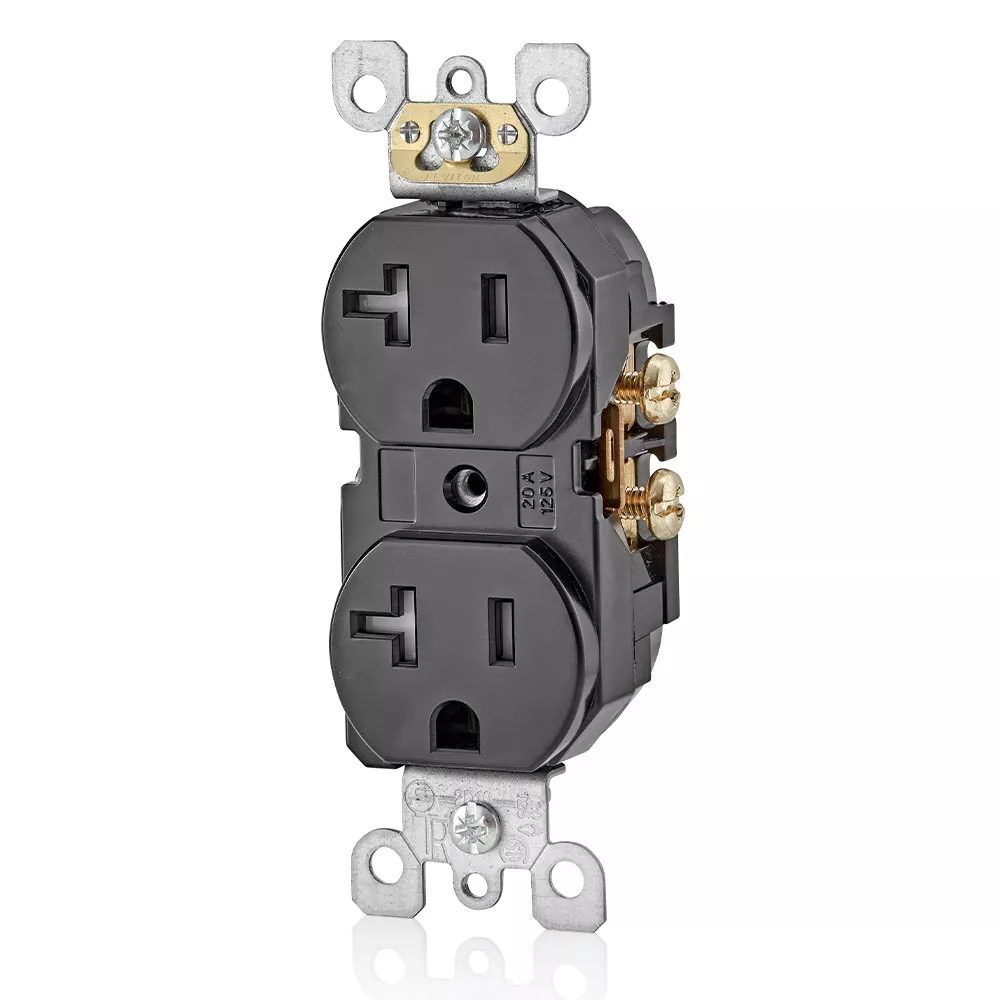

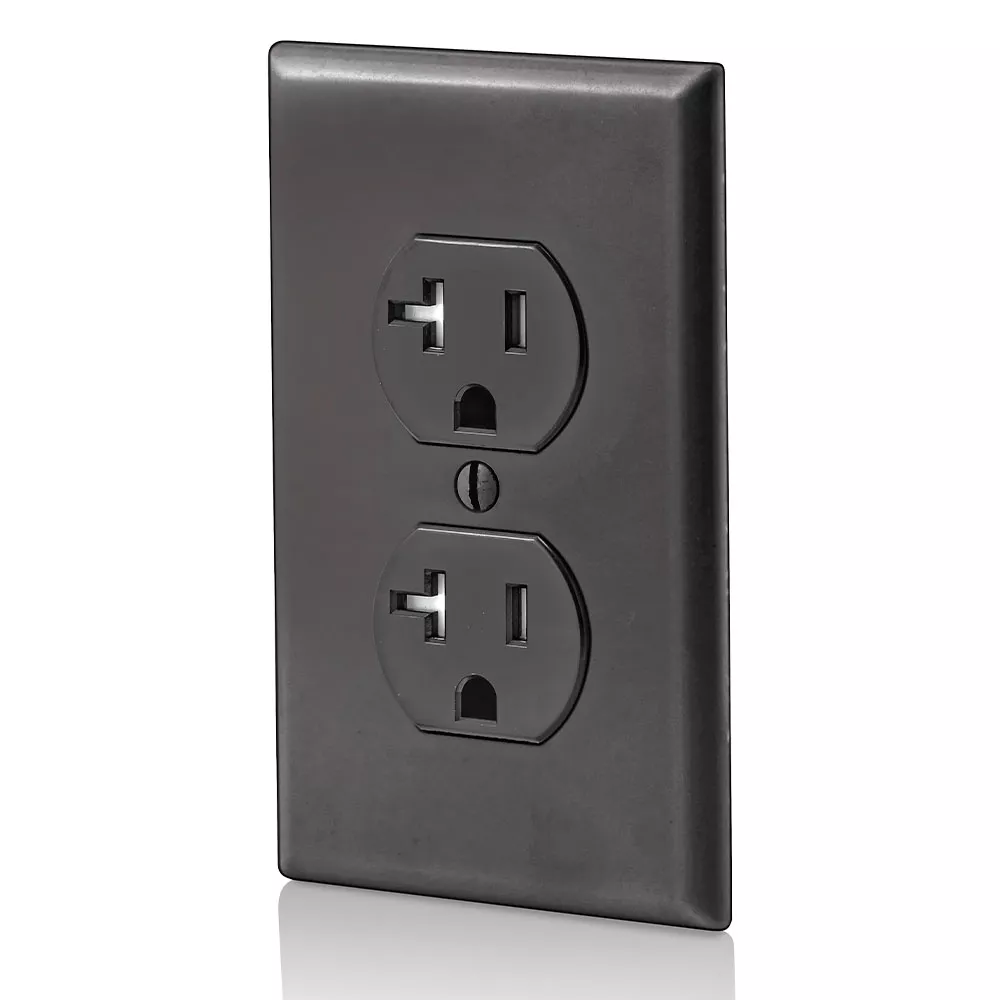

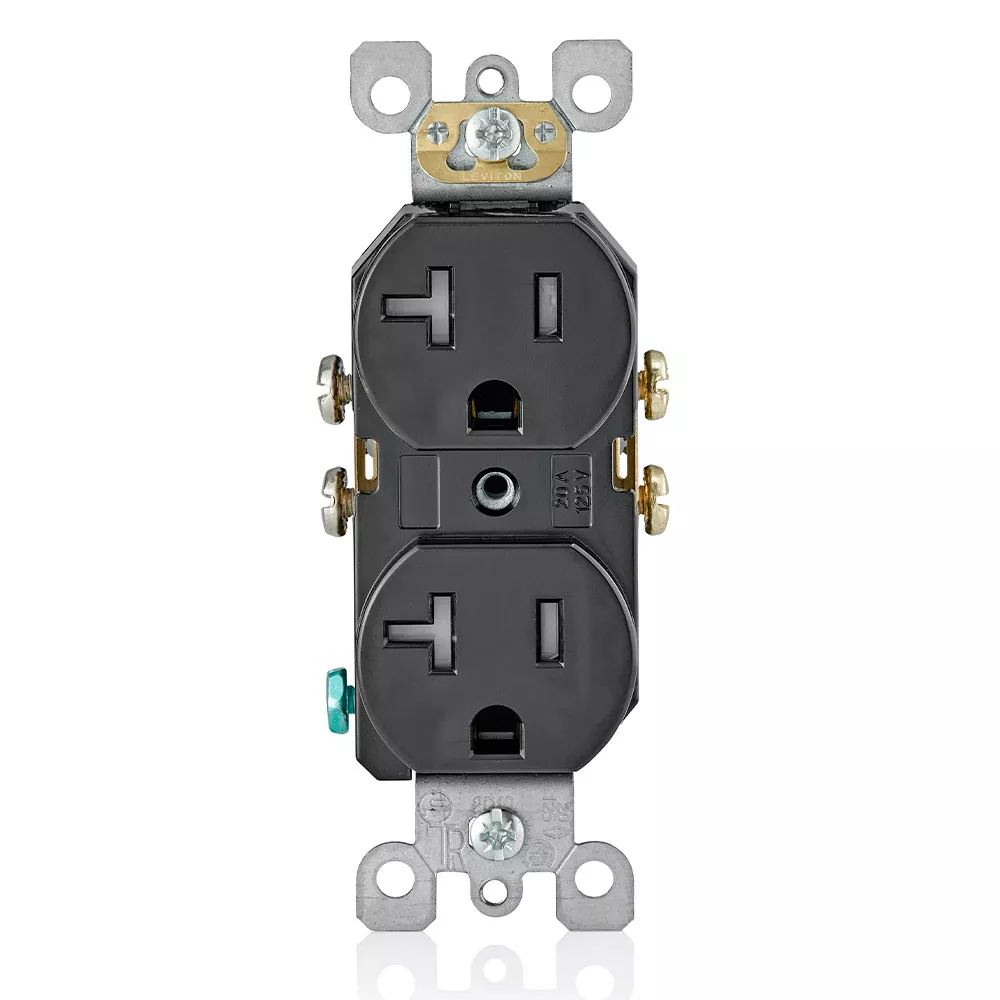

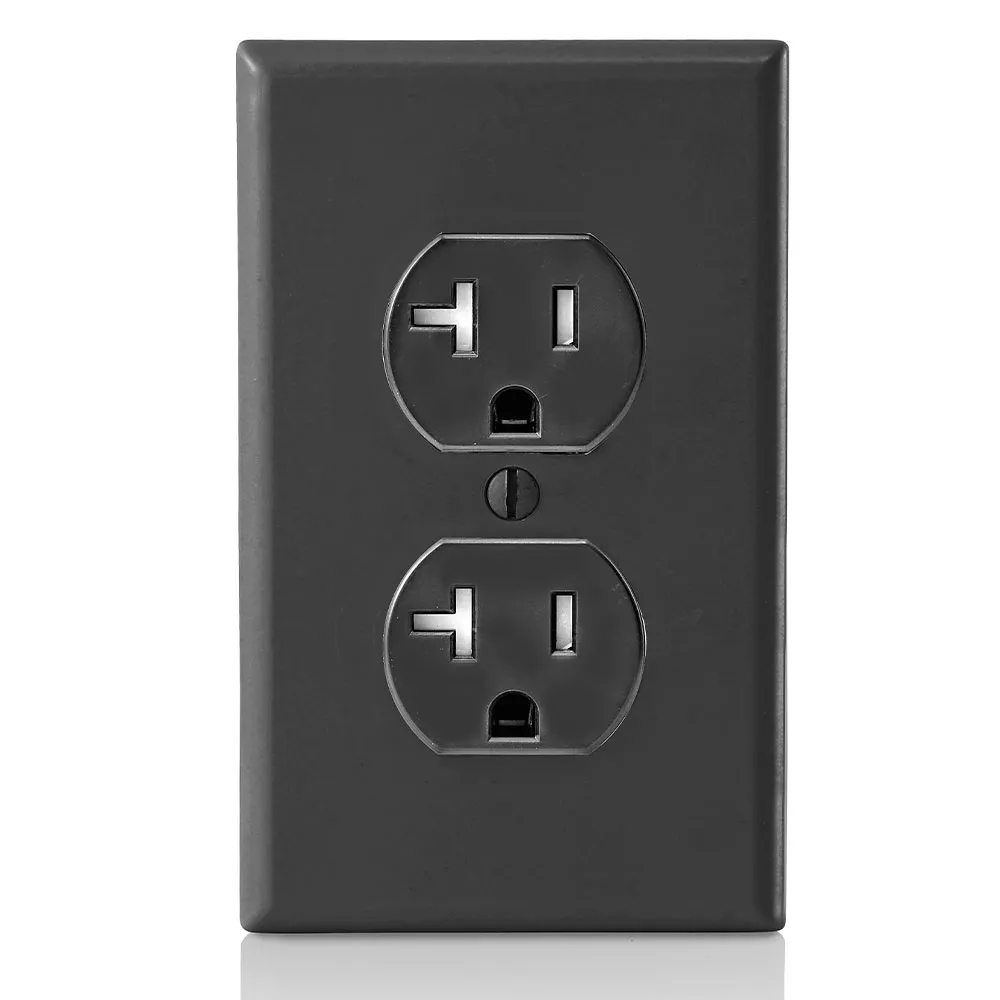

20 Amp Duplex Tamper-Resistant Outlet/Receptacle, Grounding, Black
T5820-E
20 Amp, 125 Volt, NEMA: 5-20R, Pole: 2, 3-Wire, Tamper-Resistant, Duplex Receptacle/Outlet, Straight Blade, Self Grounding, Side Wired Only, NEC compliant – Black
- SAFE - Tamper-Resistant offers protection from electrical shocks
- DURABLE - Impact-resistant thermoplastic nylon construction
- EASY - Side wiring for easy installation
- CONVENIENT - TR symbol on strap assures they meet the latest NEC requirements
Color: Black
Product Information
Product Features
Amperage : 20 A
Body Material : Thermoplastic Nylon
Color : Black
Device Type : Duplex Receptacle
Face Material : Thermoplastic Nylon
Feature : Tamper-Resistant
Grounding : Self-Grounding
NEMA : 5-20R
Pole : 2
Product Type : Standard
Terminal Accom. : Side wiring accepts #10 and #12 AWG copper (CU) or #10 copper clad (CC) wire
Termination : Side
Torque Range : 14 – 18 in.-lbs
Type : Duplex Receptacle
Voltage : 125 VAC
Wire : 3
Standards & Certifications
CSA C22.2 No. 42 : File 152105; Class 6233-01
NOM : NOM Certified
UL 498 : File E13399
- Mechanical shutter mechanism prevents access to contacts unless a two-pronged plug is inserted, helping ensure that foreign objects will be locked out
- TR symbol on receptacle face assures they meet the NEC Section 406.11 code requirements
- Ultrasonically welded for additional assembly security
- Base and face made of high impact thermoplastic
- Convenient break-off plaster ears for best flush alignment
- Self-grounding clip staked on, will never fall off
- Easily accessible break-off tabs when split feed wiring is required; allows easy two circuit conversion
- Terminal screws accept #10 and #12 AWG copper (CU) or #10 copper clad (CC) wire
- US8242362
This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.
