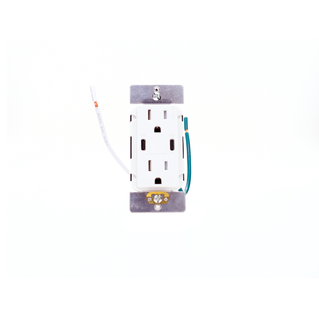

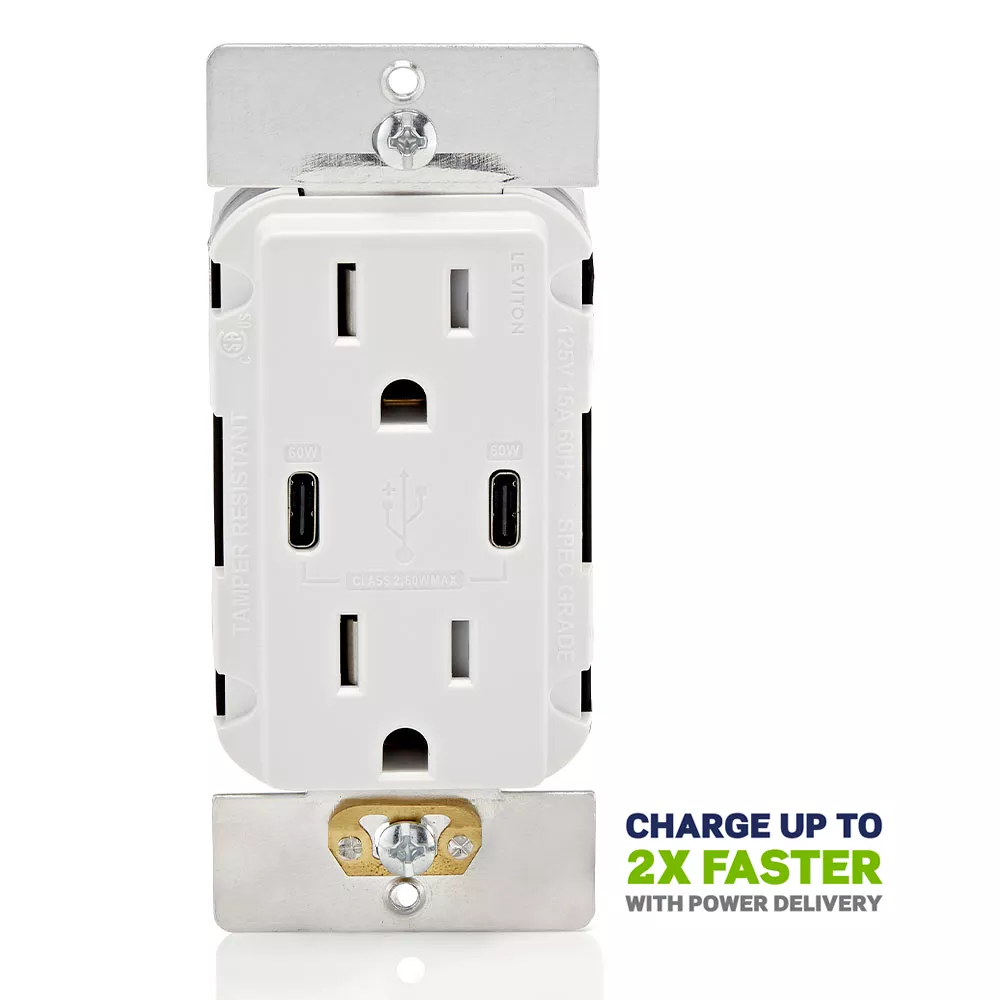

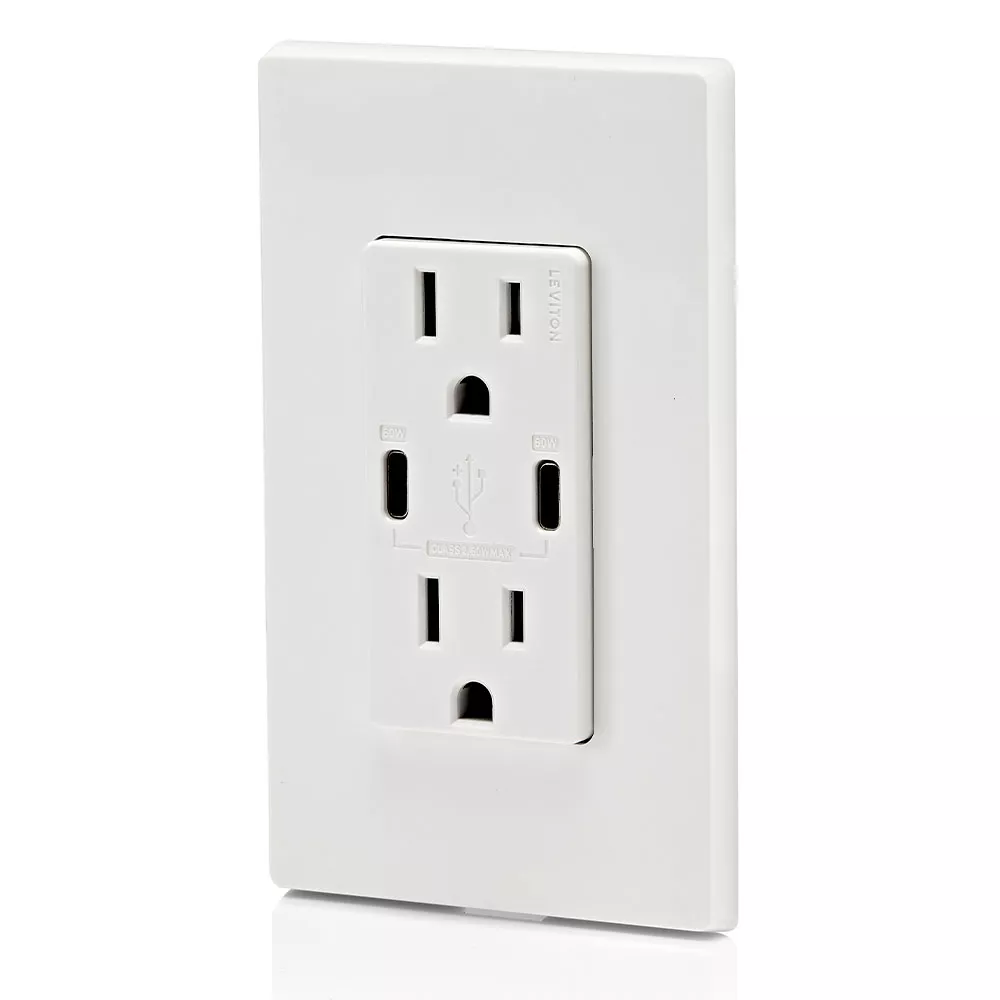

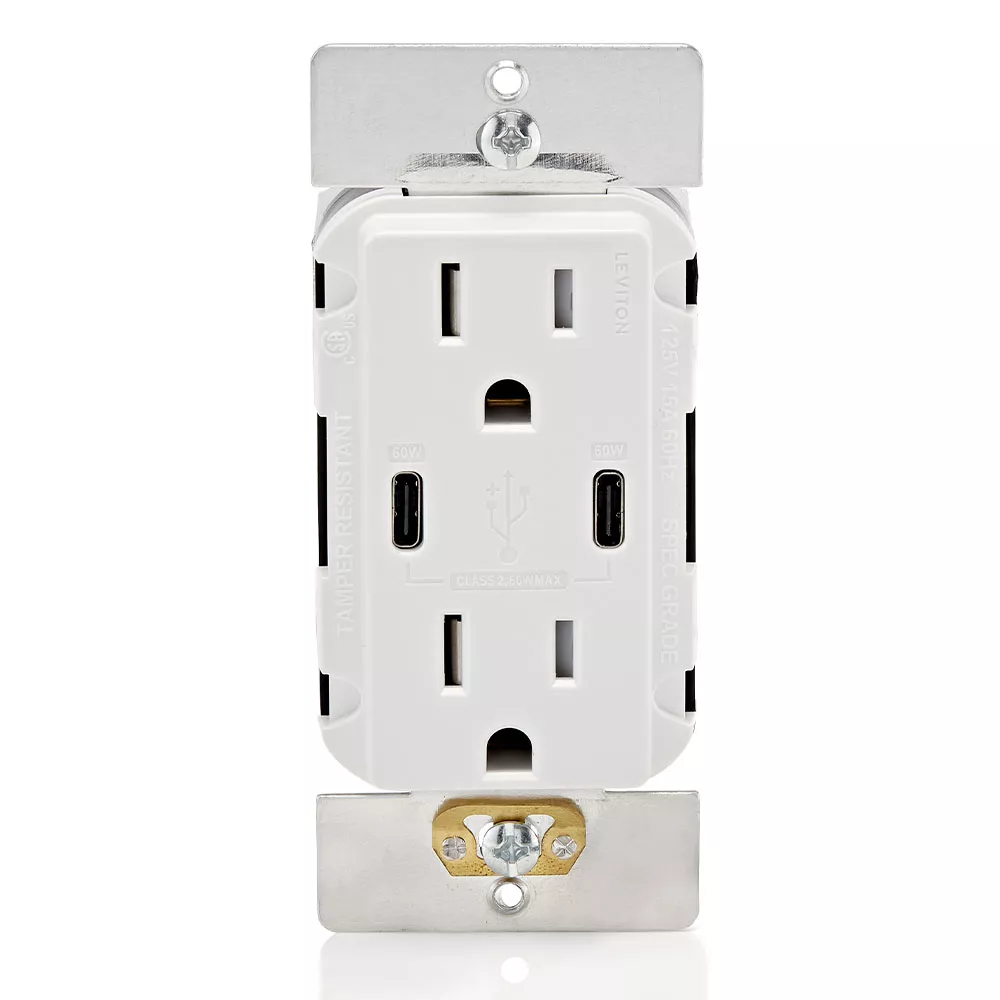

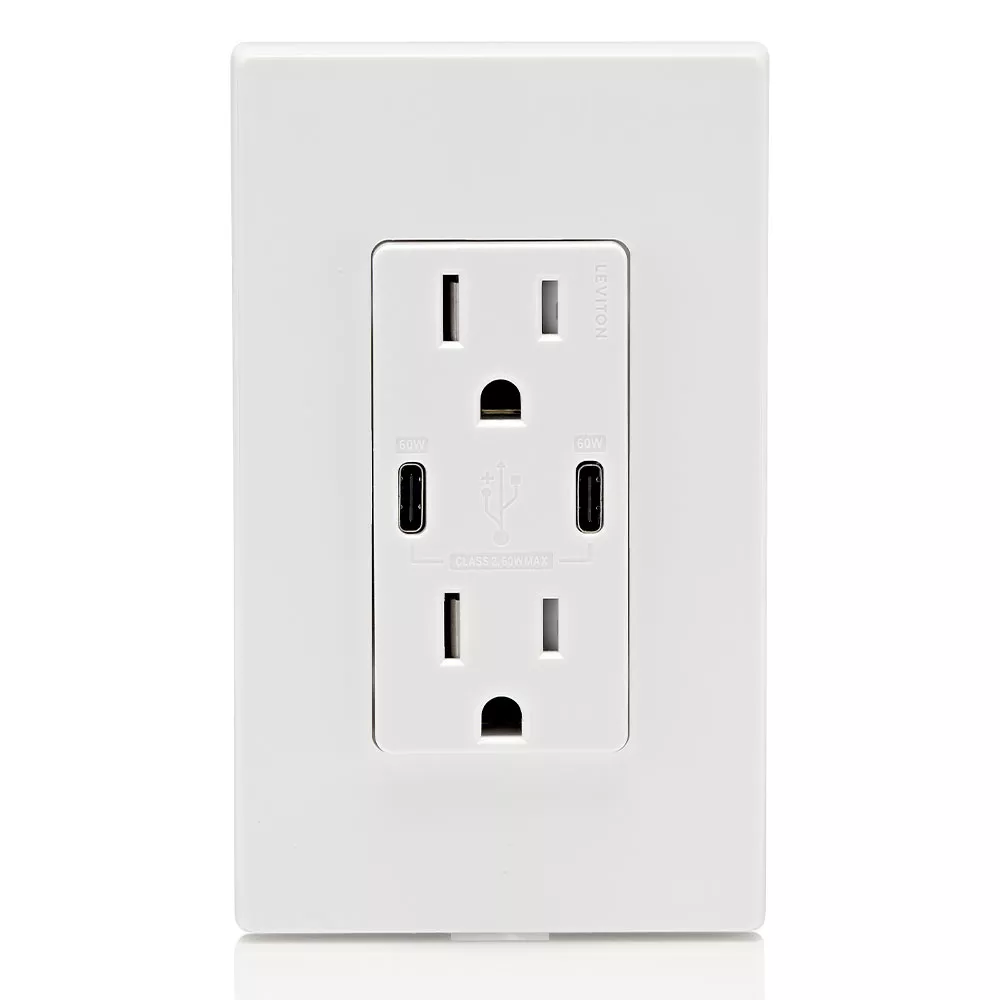

60W (6A) USB Dual Type-C/C Power Delivery Wall Outlet Charger with 15A Tamper-Resistant Outlet

T5636-W

60W (6A) USB Dual Type-C/C Power Delivery Wall Outlet Charger with 15A Tamper-Resistant Outlet - White

POWERFUL – 60W charge on a single port. Up to 2x the charging power with PD-enabled devices
INNOVATIVE – USB Type-C or USB-C provides faster charging and is the new standard port on many phones, tablets and laptops
ENHANCED SAFETY – Overcurrent protection helps protect electronic devices from over charging/heating and tamper-resistant outlets prevent unwanted objects from being inserted into the outlets
FAST CHARGING – Smart chip ensures each device gets the power level it needs to charge fast and efficiently

Color: White

Where to Buy

Add to Project List

Product Support

UPC Code: 078477471517

Country of Origin : Please Contact Customer Service

NEMA 5-15R

Product Information

Updated

Electrical Specifications
Flammability : Rated V-0 per UL 94
Operating Temperature : -10°C to 40°C
Environmental Specifications
Body Material : Thermoplastic
Face Material : Thermoplastic
Notes : w/ Wallplate
Operating Temperature : -10°C to 40°C
Yoke : Zinc-Plated Steel
Mechanical Specifications
Type : 60W Type C/C with PD Duplex Receptacle
Product Features
Amperage : 15 A
Brand : Decora
Color : White
Grade : Residential/Commercial Specification Grade
Grounding : Grounding
NEMA : 5-15R
Power Delivery : Yes
Strap Material : Steel
Tamper Resistant : Yes

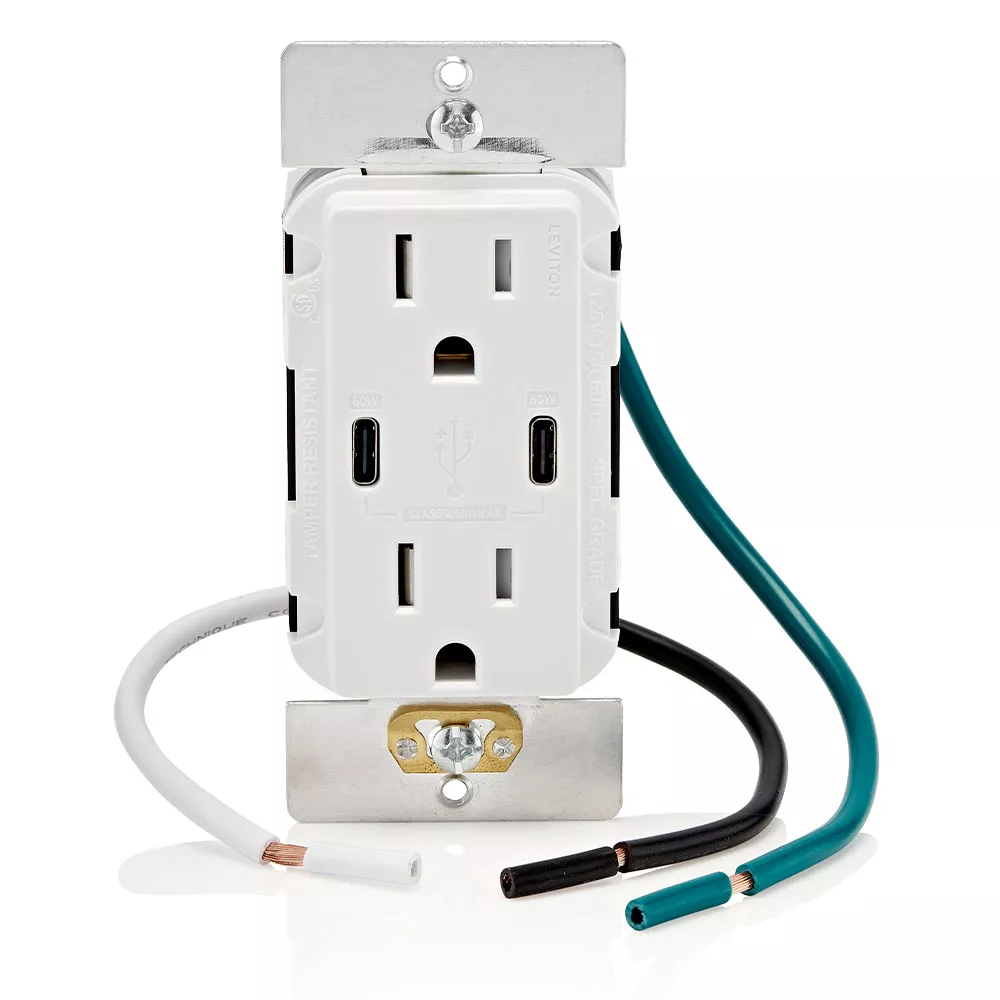

Termination : Wire Leads
Type : 60W Type C/C with PD Duplex Receptacle
Voltage : 125 VAC
Wallplate : Included
Warranty : 2-Year Limited
Wire : 3
Standards & Certifications
FCC Part 15 : Class B
Listed : cCSAis
NOM : 057
UL 1310 : Yes
UL 498 : Yes
Warranty : 2-Year Limited

Your time matters. Charge for minutes, enjoy for hours!
The most advanced USB in-wall charger on the market with up to 2X the charging power with PD-enabled devices. Also compatible with non-PD devices as well as Type A devices (adapter required)
Up to 60W charge on a single port when connected to a PD-enabled device, up to 30W charge per port (60W total) when both USB ports are in use
Maximum charging outputs: 5V/3A, 9V/3A, 15V/3A, 20V/3A with a maximum power output of 60W
USB Type-C provides faster charging and is emerging as the standard port on many phones, and tablets, such as iPhones, iPads, Samsung Galaxy, Samsung Tabs, Google Pixel and More
Compatible with USB 3.1, 3.0, 2.0, 1.1 devices
Smart chip recognizes and optimizes the charging requirements of individual devices
No data transfer capability
Overcurrent protection helps protect the electronics from receiving too much power, which can damage the device
Internal thermoregulator prevents the electronics from overheating
Tamper-resistant outlets block access by most non-rated/foreign objects to help keep children safe
For new construction and retrofit installations, an extra deep electrical box (20 cu. in.) or wallbox extender is required
Use with Decora wallplate or Decora Plus screwless wallplate (sold separately)
