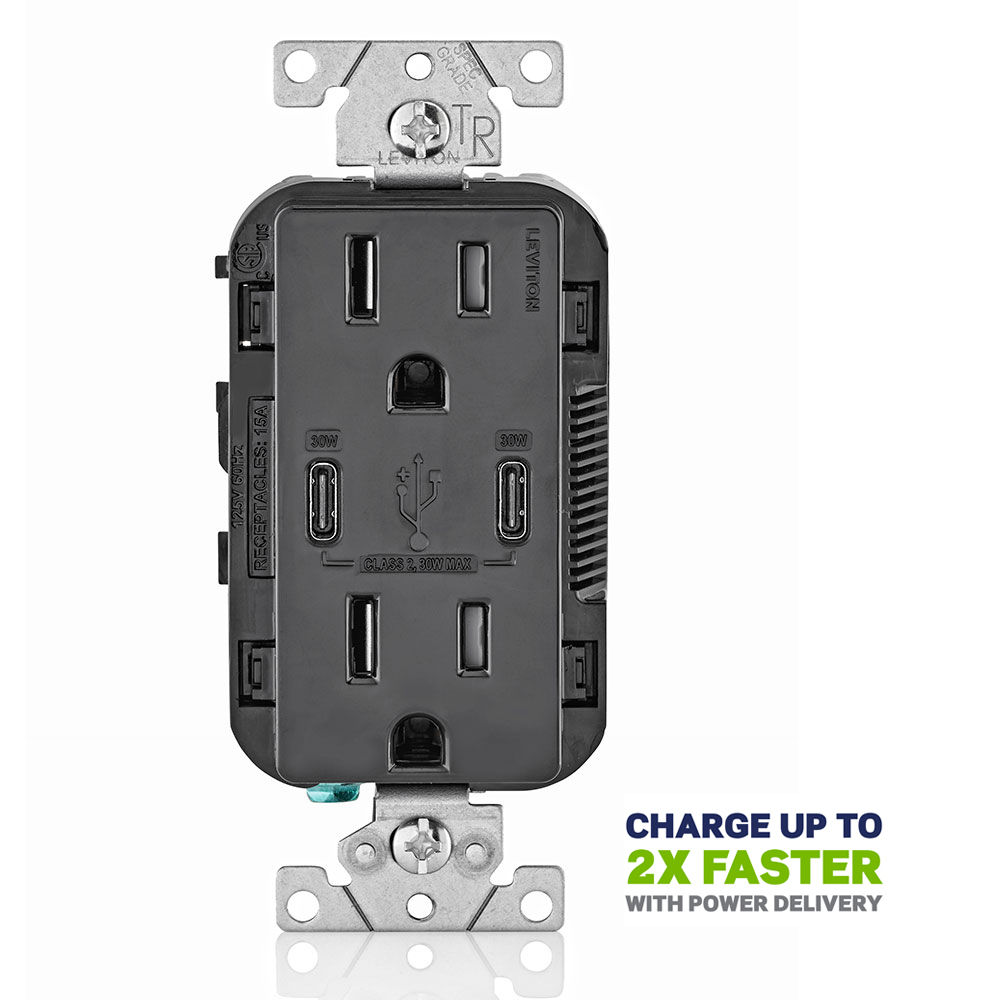

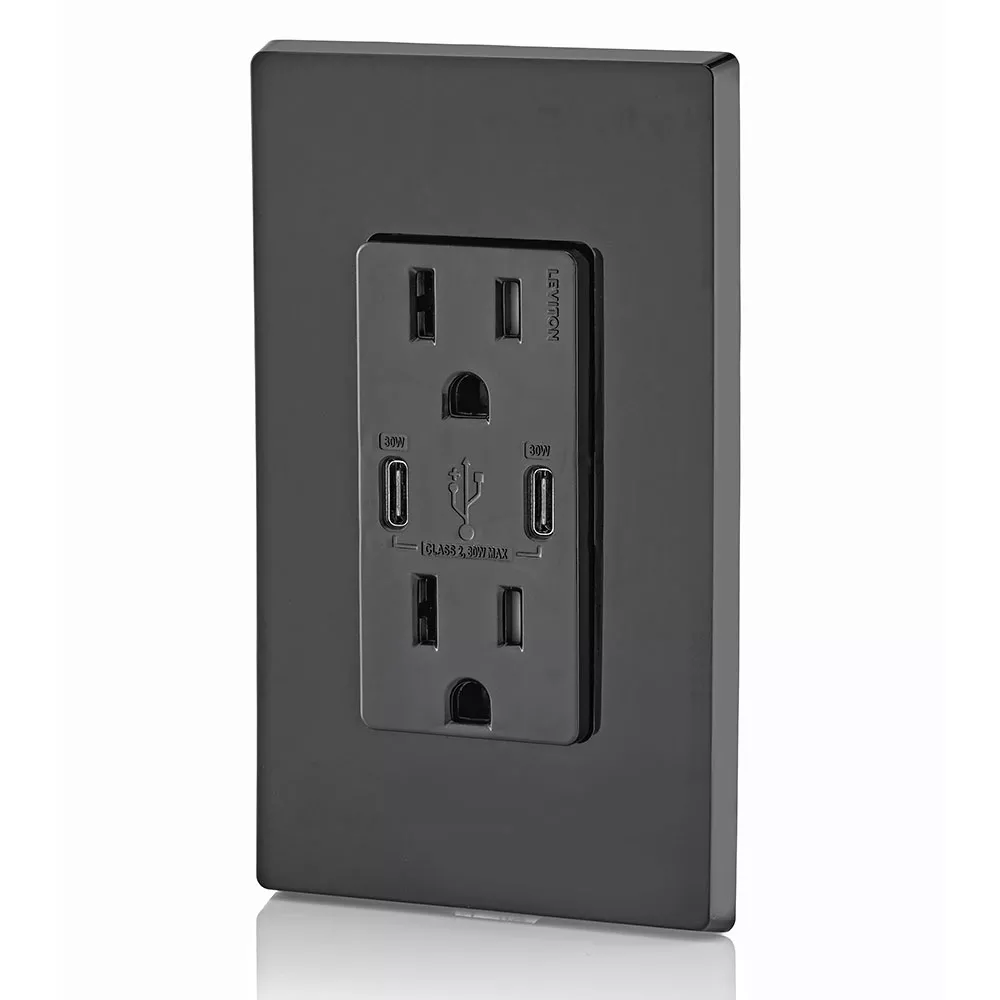

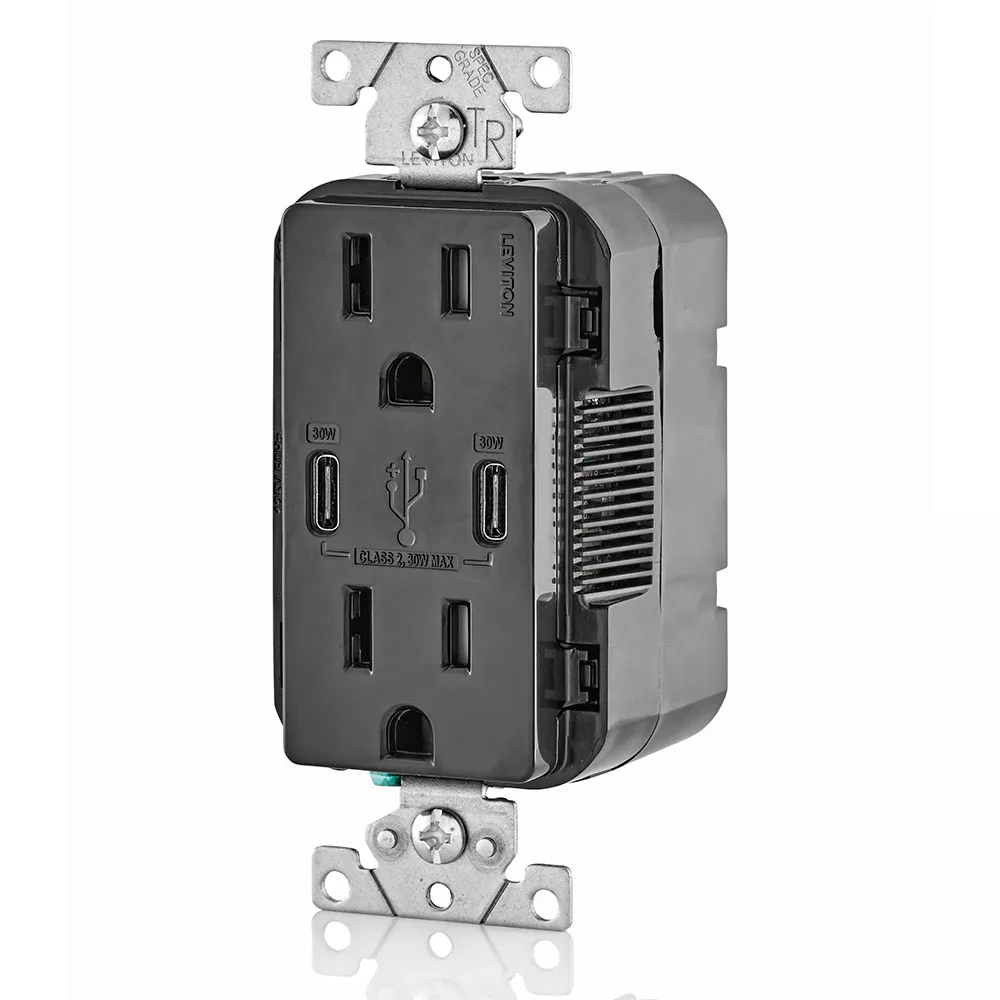

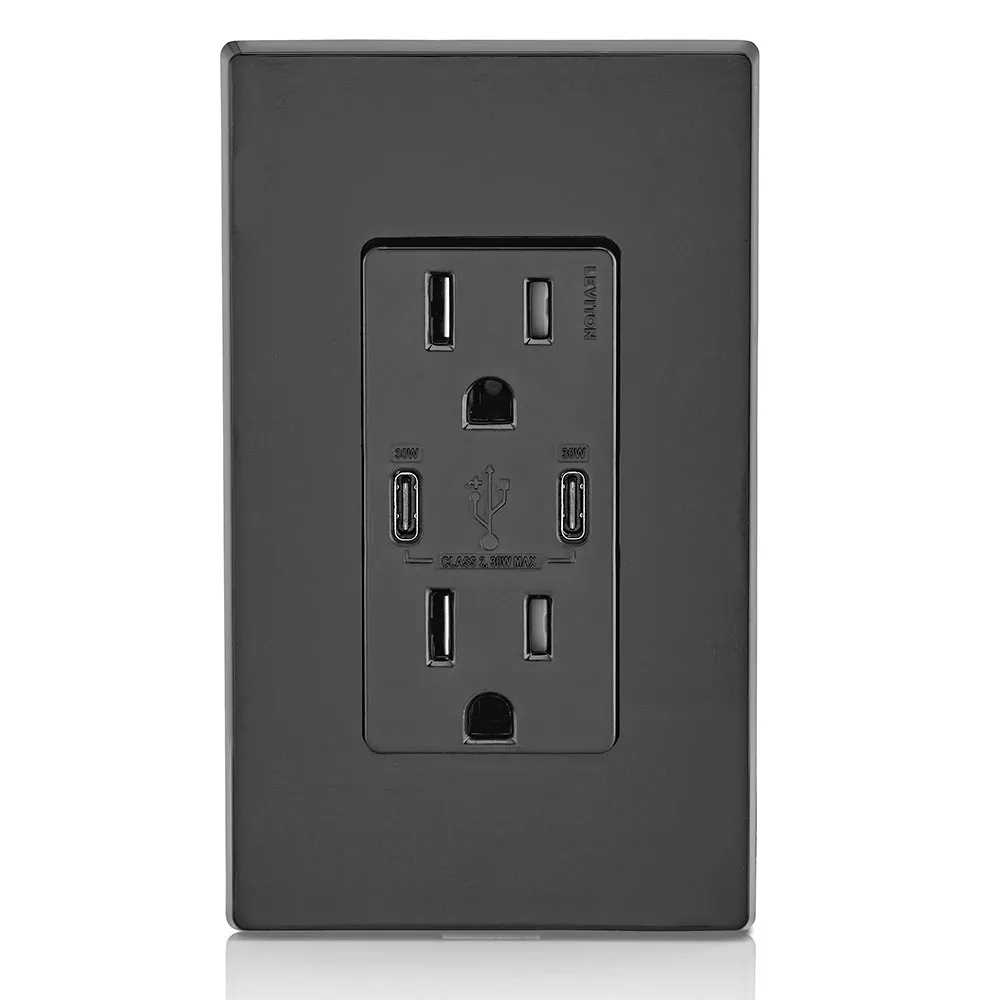

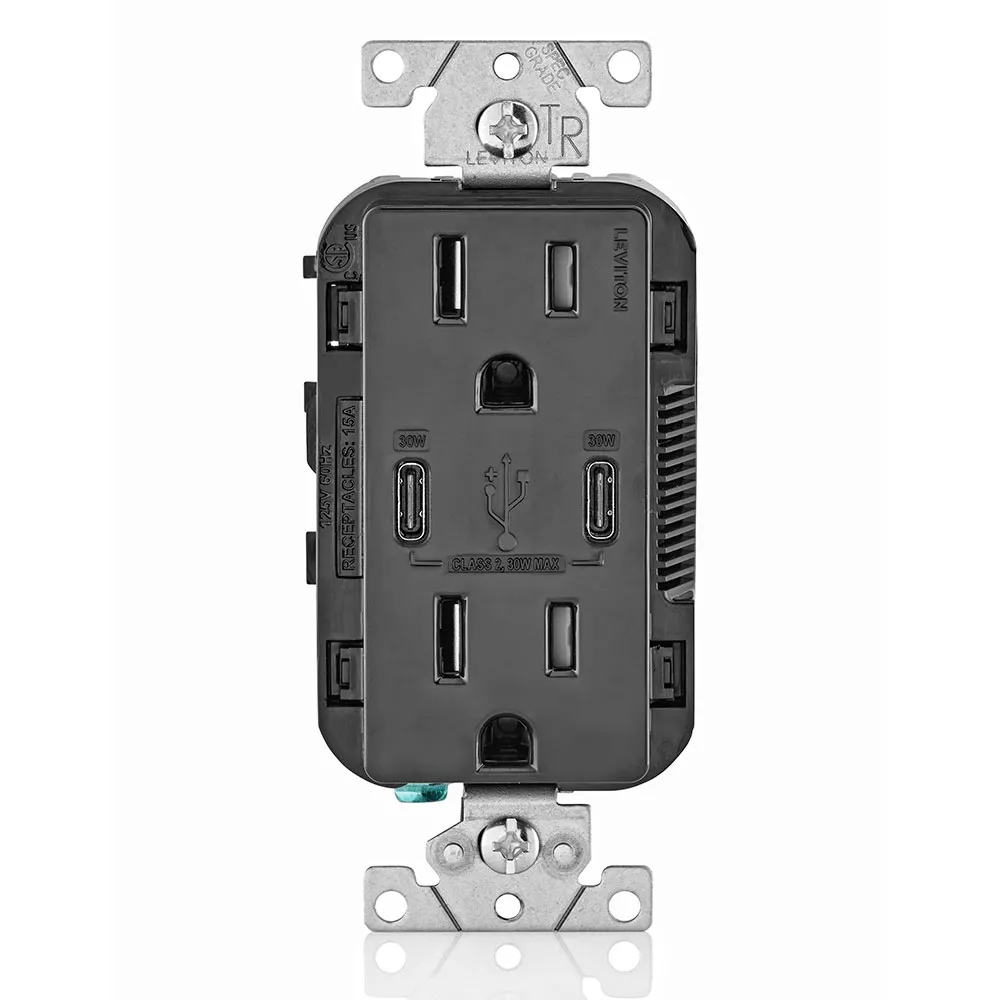

30W (6A) USB Dual Type-C/C Power Delivery Wall Outlet Charger with 15A Tamper-Resistant Outlet

T5635-E

15 Amp, 125 Volt, Decora Tamper-Resistant Outlet. NEMA 5-15R, 30W (6 Amps), Dual Type-C/C Power Delivery USB Chargers, Grounding, Side Wired & Back Wired - Black

POWERFUL – 30W charge on a single port. Up to 2x the charging power with PD-enabled devices
INNOVATIVE – USB Type-C or USB-C provides faster charging and is emerging as the standard port on many phones, tablets and laptops
ENHANCED SAFETY – Overcurrent protection helps protect electronic devices from over charging/heating and tamper-resistant outlets prevent unwanted objects from being inserted into the outlets
FAST CHARGING – Smart chip ensures each device gets the power level it needs to charge fast and efficiently

Color: Black

Where to Buy

Add to Project List

Product Support

UPC Code: 078477979419

Country of Origin : Please Contact Customer Service

NEMA 5-15R

Product Information

Updated

Instruction Sheet (English, French, Spanish)

View

Updated

Electrical Specifications
Amperage : 15 A
Body Material : Thermoplastic
Color : Black
Cover Material : Thermoplastic
Grounding : Grounding
Horsepower Rating : 15A-1/2 HP
Ratings : 15A-125V
Strap Material : Steel
Voltage : 125 VAC
Environmental Specifications
Flammability : Rated V-0 per UL 94
Operating Temperature : -10°C to 40°C
Product ID : Stamped on Strap
Terminal Accom. : 14-12 AWG
Terminal ID : Brass-Hot Black-Hot White-Neutral Green-Gnd
Termination : Back & Side
Torque Range : 14 – 18 in.-lbs
Material Specifications
Body Material : Thermoplastic
Color : Black
Cover Material : Thermoplastic
Grade : Residential/Commercial Specification Grade
Strap Material : Steel
Mechanical Specifications
Listed : cCSAus
NOM : 057
Product ID : Stamped on Strap
Terminal Accom. : 14-12 AWG
Terminal ID : Brass-Hot Black-Hot White-Neutral Green-Gnd
Termination : Back & Side
Torque Range : 14 – 18 in.-lbs
Warranty : 2-Year Limited
Product Features
Amperage : 15 A
Brand : Decora
Color : Black
Flammability : Rated V-0 per UL 94
Grade : Residential/Commercial Specification Grade
NEMA : 5-15R
Operating Temperature : -10°C to 40°C
Power Delivery : Yes
Product Type : Outlet/USB Combo
Type : 30W Type C/C with PD Duplex Receptacle
Voltage : 125 VAC
Wallplate : Not Included
Standards & Certifications
FCC Part 15 : Class B
Listed : cCSAus
NOM : 057
UL 1310 : Yes
UL 498 : Yes
Warranty : 2-Year Limited

Up to 30W charge when PD-enabled device connected to single port. Up to 15W charge per port (30W total) when both USB ports are connected to devices. Examples of maximum charging outputs are:
- Single port connected to PD-enabled device: 15VDC@2A (30W) or 9VDC@3A (27W)
- Single port connected to non-PD device: 5VDC@3A (15W)
- Both ports connected to devices (PD or non-PD): 5VDC@3A each (up to 30W total)
Charges most Type-C devices as well as Type A devices (adapter required)
Shallowest profile on the market for ease of installation
Smart chip recognizes and optimizes the charging requirements of individual devices
Built-in overcurrent protection helps protect the electronics from receiving too much power, which can damage the device
Internal thermo regulator prevents the electronics from overheating
USB Ports tested to meet the industry requirement to withstand over 10,000 insertions
Compatible with USB 3.1, 3.0, 2.0, 1.1 devices
Type-C USB Ports enable cables to be inserted in either direction
Tamper-Resistant improves child safety – built-in shutter prevents access by most non-rated/foreign objects
Charging time may be affected by the charge cord used. Leviton recommends using the cord provided with the device
Compatible with Decora® wallplates and Decora Plus™ screwless wallplates

Ideal for residential and commercial applications including kitchens, bedrooms, home offices, college dormitories, airport lounges, hospitals, salons and spas, hotels, meeting rooms, cafes, restaurants and more
Compatible with Decora® wallplates and Decora Plus™ screwless wallplates. Wallplate sold separately
No data transfer capability

CA2621644
CA2624409
CA2677283
MX338817
US7355117
US7820909
US7868719
US8242362
US8944859
US9368982
US9496726

This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.
