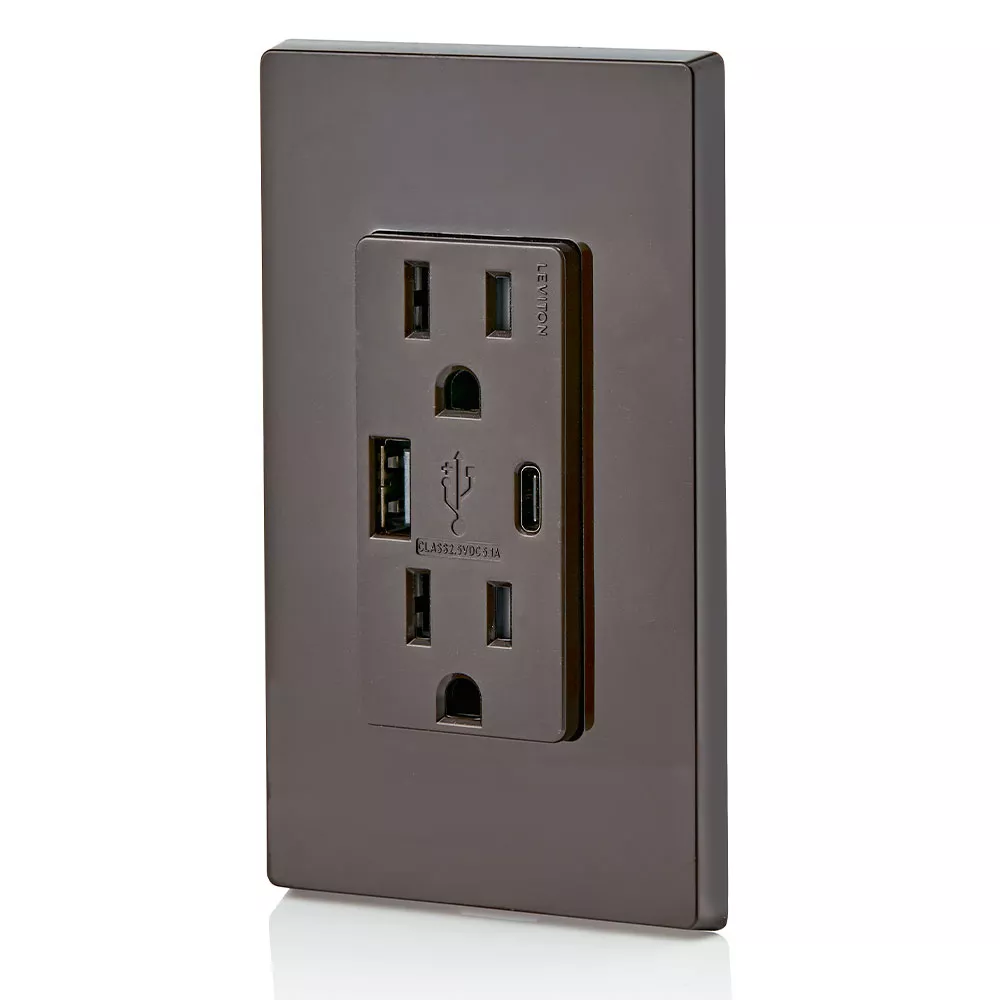

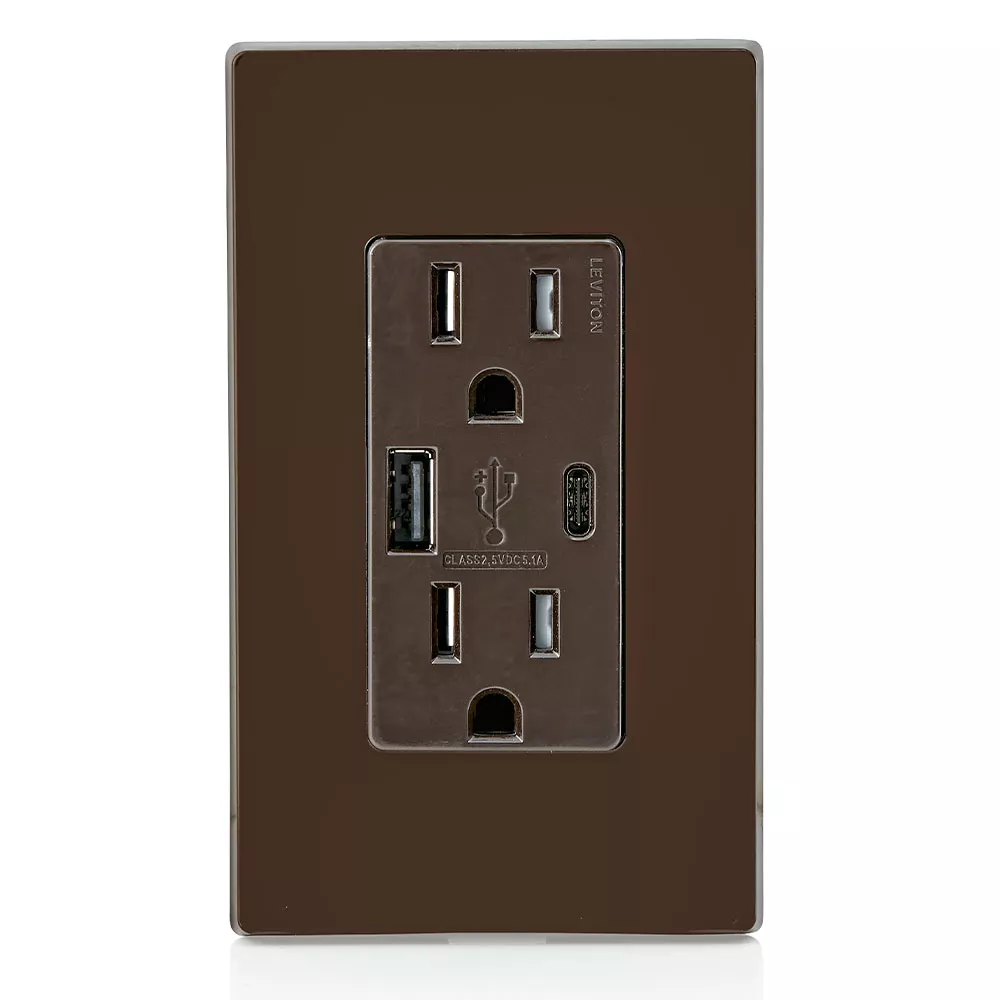

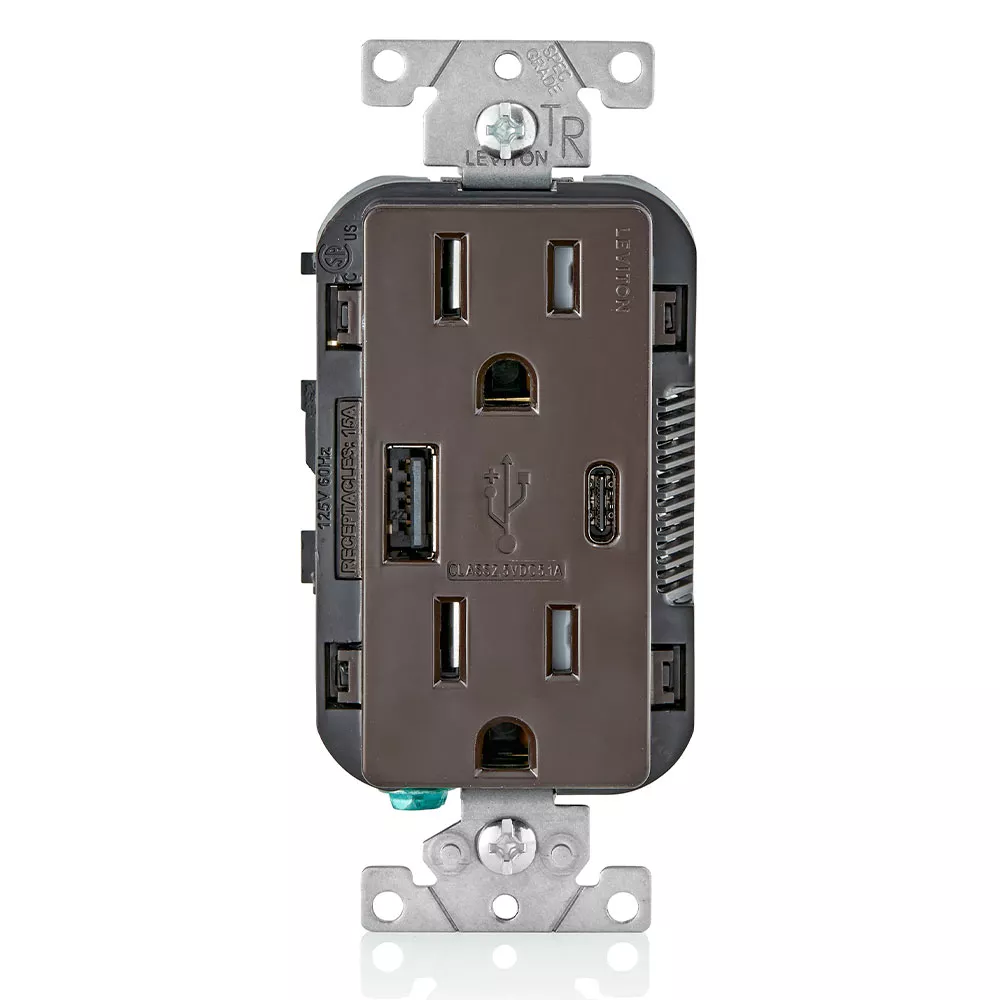

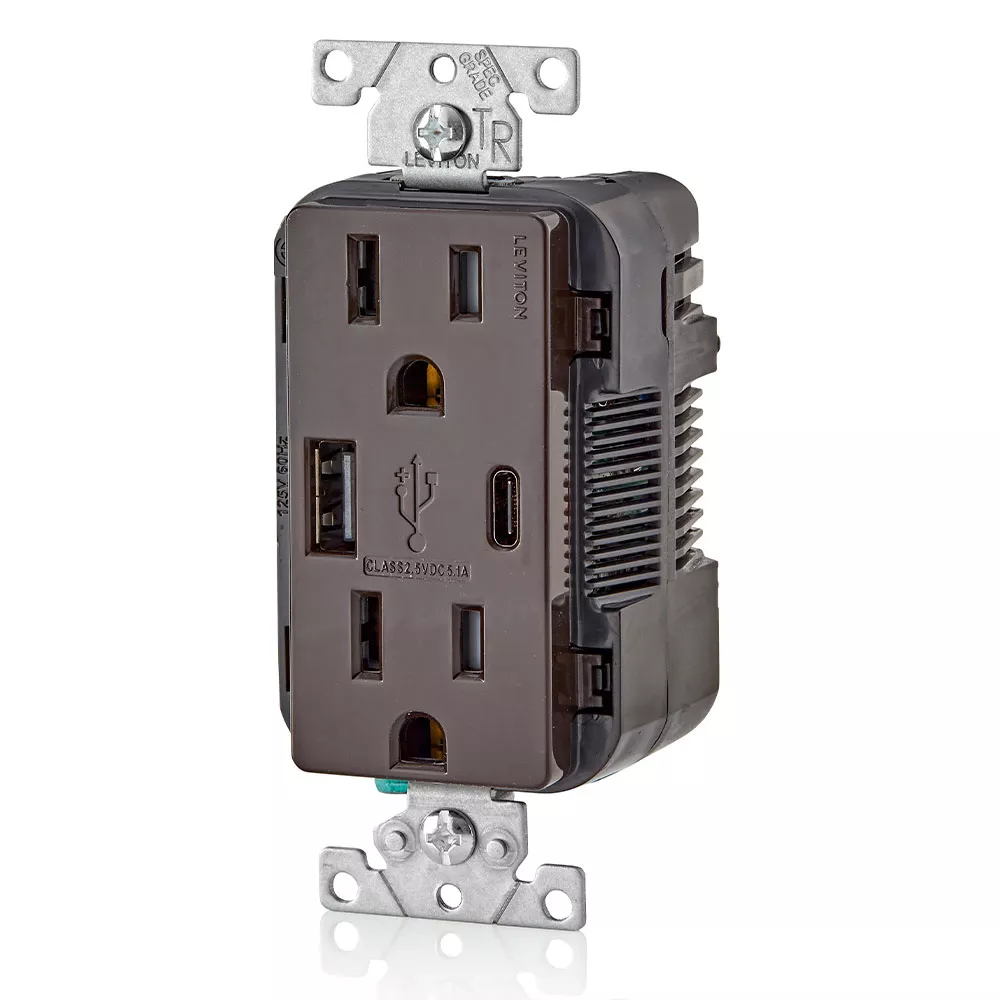

5.1A USB Type A/Type-C Wall Outlet Charger with 15A Tamper-Resistant Outlet
T5633-B
15 Amp, 125 Volt, Decora Tamper-Resistant Outlet. NEMA 5-15R, 25+W (5.1 Amp), Type A and Type-C USB In Wall Charger, Grounding, Side Wired & Back Wired - Brown
SMART – Built-in smart chip recognizes the individual device’s charging requirements to optimize the charge (Does not provide Power Delivery. See Leviton T5635)
POWERFUL - Two high-powered charging ports deliver a combined total of 5.1A charging current and 25+ watts of power
CONVENIENT – No more searchi...
15 Amp, 125 Volt, Decora Tamper-Resistant Outlet. NEMA 5-15R, 25+W (5.1 Amp), Type A and Type-C USB In Wall Charger, Grounding, Side Wired & Back Wired - Brown
SMART – Built-in smart chip recognizes the individual device’s charging requirements to optimize the charge (Does not provide Power Delivery. See Leviton T5635)
POWERFUL - Two high-powered charging ports deliver a combined total of 5.1A charging current and 25+ watts of power
CONVENIENT – No more searching for charging adapters! Upgrade so you can charge electronics leaving the outlets free for additional power needs
THE FUTURE OF CHARGING – USB Type-C provides faster charging and is emerging as the standard port on many phones, tablets and laptops
ENHANCED SAFETY – Built-in overcurrent protection helps protect electronics from receiving too much power, which can damage the device
Terminal ID : Brass-Hot Black-Hot White-Neutral Green-Gnd
Torque Range : 14 – 18 in.-lbs
Material Specifications
Body Material : Thermoplastic
Color : Brown
Cover Material : Thermoplastic
Grade : Commercial Specification Grade
Strap Material : Steel
Mechanical Specifications
Listed : cCSAus
NOM : 057
Product ID : Stamped on Strap
Terminal Accom. : 14-12 AWG
Terminal ID : Brass-Hot Black-Hot White-Neutral Green-Gnd
Termination : Back & Side
Torque Range : 14 – 18 in.-lbs
Warranty : 2-Year Limited
Product Features
Amperage : 15 A
Brand : Decora
Color : Brown
Grade : Commercial Specification Grade
Grounding : Grounding
Horsepower Rating : 15A-1/2 HP
NEMA : 5-15R
Product Type : Outlet/USB Combo
Ratings : 15A-125V
Type : Type A/C Duplex Receptacle
Voltage : 125 VAC
Wallplate : Not Included
Standards & Certifications
FCC Part 15 : Class B
Listed : cCSAus
NOM : 057
UL 1310 : Yes
UL 498 : Yes
Warranty : 2-Year Limited
Ideal for residential and commercial applications including kitchens, bedrooms, home offices, college dormitories, airport lounges, hospitals, salons and spas, hotels, meeting rooms, cafes, restaurants and more
Smart chip technology recognizes and optimizes the charging requirements of individual devices including Apple, Samsung, Nexus, Pixel and more
One Type A Port and one Type-C Port; combined total of 5.1A of charging power
- Type-C Port can charge maximum 3 Amps @ 5V
- Type A Port can charge maximum 2.4 Amps @ 5V
Tamper-Resistant improves child safety – built-in shutter prevents access by most non-rated/foreign objects
USB Ports tested to withstand over 10,000 insertions
Charges most Type A and Type-C USB powered devices
Type-C Port permits the cables to be inserted easily in either direction
Charging time may be affected by the charge cord used. Leviton recommends using the cord provided with the device
Compatible with Decora® wallplates and Decora Plus™ screwless wallplates
Compatible with USB 3.1, 3.0, 2.0, 1.1 devices
No data transfer capability
Compatible with Decora® wallplates and Decora Plus™ screwless wallplates. Wallplate sold separately
CA2621644
CA2624409
CA2677283
CA2857863
MX338817
US7355117
US7820909
US7868719
US8242362
US8944859
US9368982
US9496726
This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.
