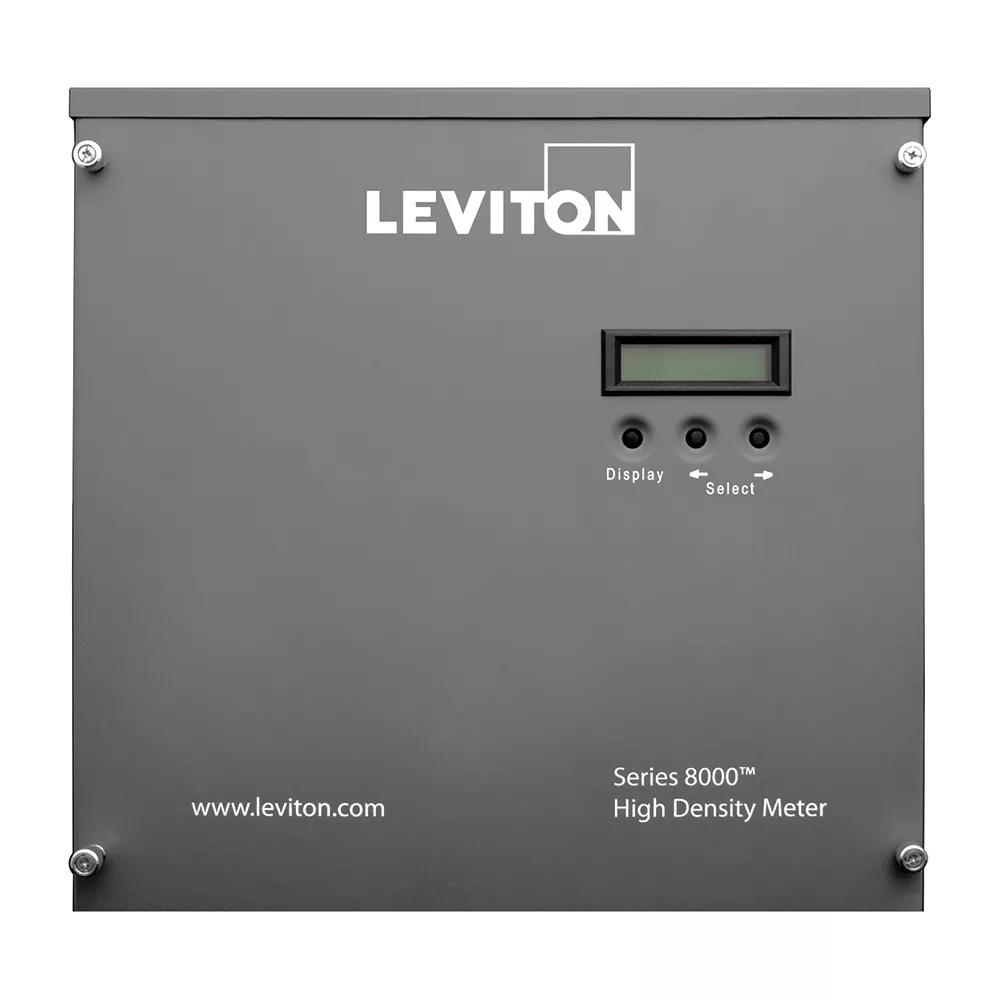

Submeter, Indoor, 120/208/240V, Phase Config 6x2 with Wiring Harness, Electric Meter, Multiple Point High Density Smart Meter

S8120-62

DISCONTINUED

Discontinued Product. Series 8000, Residential Submeter, 120/208/240V 1PH 3W, Phase Config 6x2 with Wiring Harness, Electric Meter: Yes, Title 24 compliant, ASHRAE 90.1 compliant. SUBMETER ONLY

The VerifEye™ Series 8000 Multiple Point Submeter are designed to meter multi-tenant office buildings, medium-sized retail, institutional, multi-tenant residential and other high density applications. VerifEye Series 8000 submeters provide twenty-four meter elements that can be configured as any combination of 1 phase, 2 phase or 3 phase meters or monitors.

Do you have a question about submetering?

Contact us to learn more.

UPC Code: 078477665497

Country of Origin : Canada

Product Information

Updated

Product Specification and Data Sheet

View

Updated

Instruction Sheet - English

View

Updated

Electrical Specifications
Amperage : 100 A & 200 A
Voltage : 120/208/240 VAC 1PH 3W
Product Features
CTs Included : No Meter Only
Communication : ModBus/RTU, ModBus/TCP, TCP/IP, PPP, HTTP/HTML, FTP, NTP, XML, SNMP-Trap, Optional BACnet/IP
Enclosure : Indoor
Meter Configuration : Branch Circuit Monitor
Product Line : Series 8000
Product Type : Electric Submeter

Building automation integration and tenant metering
Multiple point meter-installation and hardware-savings
Can monitor as low as 2A
Provides multiple electric loads in one device
Monitors up to 24 current transformers - 8 (3) phase, 12 (2) phase or 24 single phase loads
100 - 5,000 amp current transformers
ModBus TCP, ModBus RTU (RS-485) and BACnet IP standard feature
Measures kilowatt hours, kW demand, volts, amps
Interval and net metering
Configurable via Ethernet or simple ModBus RTU network to BMS or VerifEye software solutions for tenant billing or measurement & verification (M&V)
