Camphead, Single Phase Loop Distribution Bus Bar, Metering

RVCHM-L

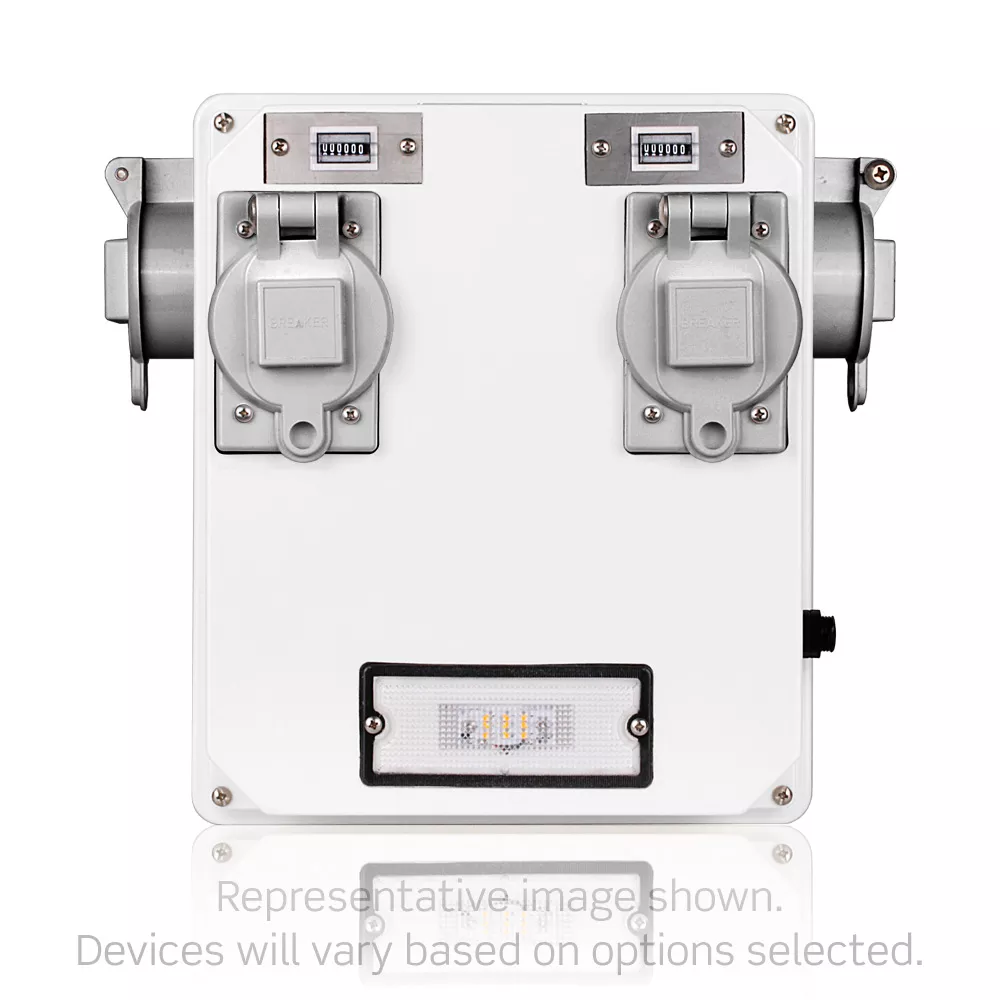

Power Pedestal for RV and Campsites; Camphead Base Includes 10"x12" Box with 20 Amp GFCI Receptacle with Standard Breaker, 30 Amp (125 Volt) RV Receptacle with Standard Breaker, 50 Amp (125/250 Volt) RV Receptacle with Standard Breaker, White LED w/ Photocell, and Gray Receptacle Covers. Includes Single Phase Loop Distribution Block Bus Bar, Dual Element Meter, and No Water Hookup

  • DURABLE - UL Listed and NEMA 4X Rated; Withstands corrosive environments with plastic resin housing for extended lifespan
  • EASY INSTALLATION/MAINTENANCE - Simply mount pedestal and connect wiring
  • FLEXIBLE - Available in a variety of configurations to suit any need, providing power, water, metering and lighting in one solution

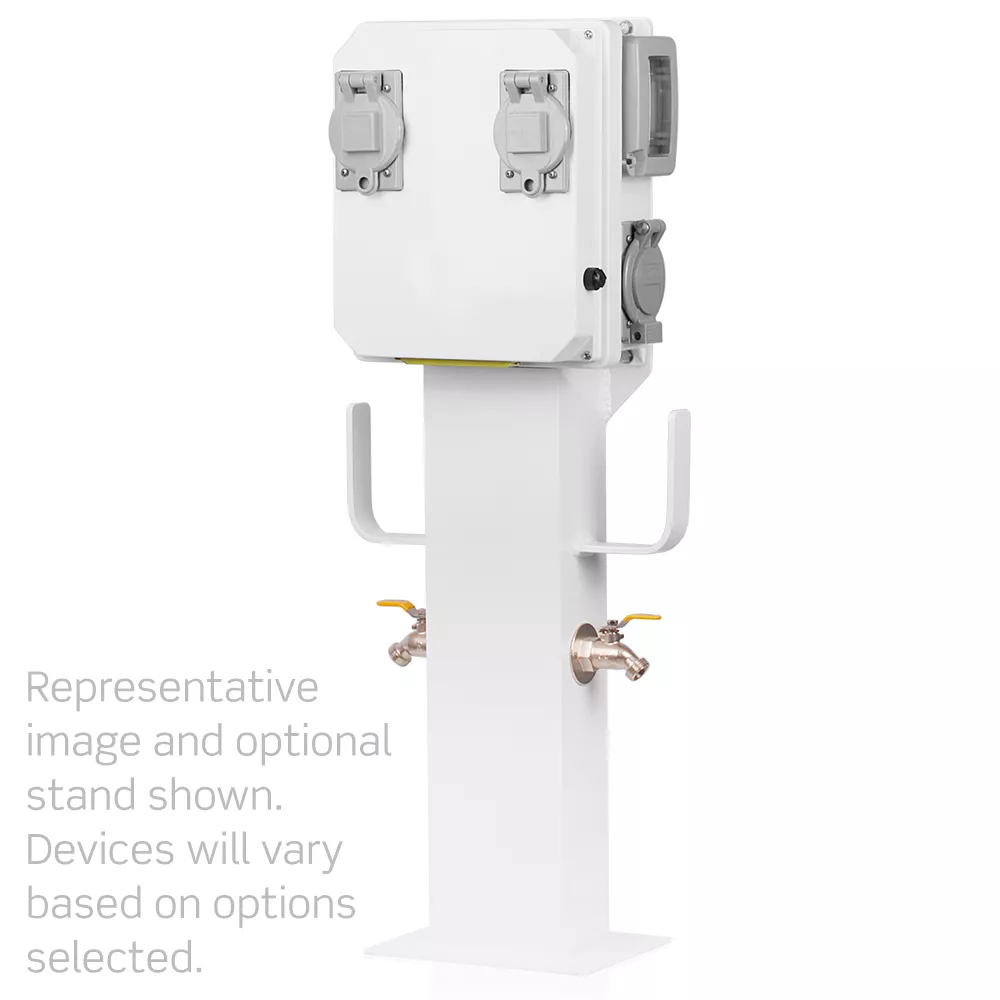

Stand sold separately.

Learn more about Power Pedestals for RV and Campsites

Country of Origin : United States

Product Information

  • Mechanical Specifications

    Maximum Dimensions : 10" x 12"

  • Warranty

    Warranty : Housing: 5-Year,Devices:1-Year

  • Standards & Certifications

    Certification/Listing : UL-231, CSA 22.2 No. 29, NFPA 303, NFPA 70

  • Product Features

    Application : RV/Campsites

    Color : White

  • Material Specifications

    Pedestal Material : Fiberglass w/ UV protective finish
