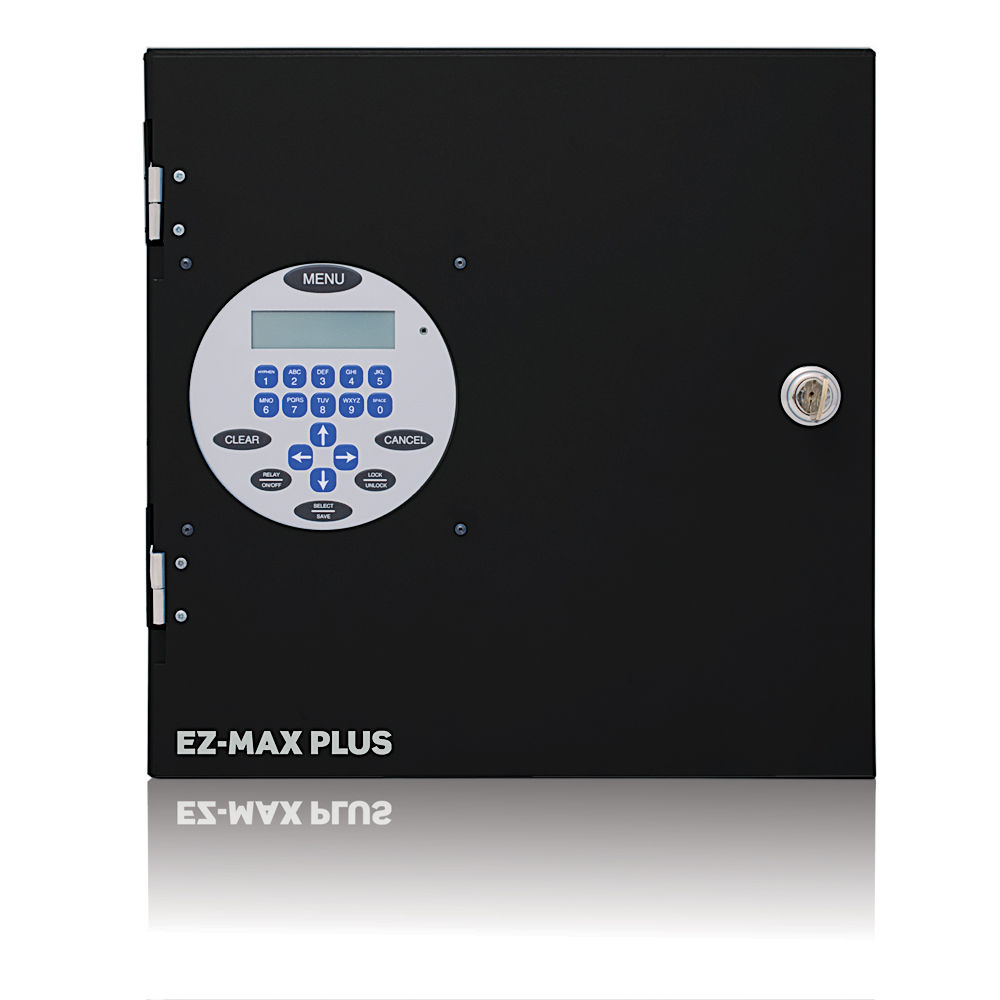

EZ-MAX Plus 8 Circuit Lighting Control Relay Panel 8 Relays 230V



EZ-MAX® Plus 8 Relay Panel, 230V, (8) 30A (NO/NC) Relays, Title 24 compliant, ASHRAE 90.1 compliant

EZ-MAX® Plus relay lighting control panels deliver power and performance in compact and costeffective 8-circuit and 16/24-circuit models. EZ-MAX Plus is the ideal solution for smaller, stand-alone applications that do not require the field configuration or advanced networking features like GreenMAX® Relay Control Systems.

Do you have any questions about EZ-MAX Plus Relay Panel Lighting Control Systems?

Contact us to learn more.

UPC Code: 078477463741
Country of Origin : Mexico

Product Information

  • Electrical Specifications

    Voltage : 220/230/240 VAC

    Voltage Type : Line Voltage

  • Product Features

    Circuits/Channels : 8

    Product Line : EZ-MAX Plus

    Product Type : Relay Panel

    Protocol : Luma-Net

  • Mechanical Specifications

    Mounting Type : Flush or Surface Mount

  • Relay cards are rated for all light sources and motors
  • Relay cards are individually replaceable
  • Single pole and two pole relay cards fit in the same location—same density regardless
  • Normal or emergency panel capability
  • Panel is pre-wired and tested
  • Standard transformer has inputs for:
    • Input power (domestic): 120V, 277V and 347V
    • Input power (foreign): 230V +/- 15%
  • Panels may be surface or recess mounted
  • 2 year warranty on panels
  • Integrated Astronomical Time Clock scheduler
