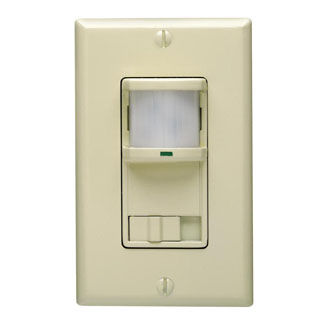

PR180-1LI

DISCONTINUED

40W/VA Min 500W 400VA Max, 120 Volt AC 60Hz, Single-Pole & 3-Way, 180 Degree, 400 Sq. Ft. Coverage, Decora® Passive Infrared Wall Switch Occupancy Sensor, Residential Grade - Ivory Leviton offers many products that will help lower electrical costs and add convenience to everyday living. By simply replacing standard switches with occupancy sensors reduces energy consumption and extends bulb life. Leviton's Decora Manual-On Occupancy Sensor Switch complies with California Title 24 by requiring the user to manually turn the lights ON but will automatically turn the lights OFF when a space is unoccupied. It ensures that lights are not left ON unnecessarily for hours at a time. It uses "passive infrared technology" in order to detect human presence in a room, and respond to the infrared heat people naturally emit to monitor a specific area. When this "heat" is sensed, the lights will stay ON in the room, and then turn the lights OFF, when the space is vacated or are unoccupied. Compatible with Decora screwless snap-on wallplates (sold separately).

Color: Ivory

UPC Code: 07847712722

Country of Origin : China

Product Information

Updated

Instruction Sheet

View

Updated

Electrical Specifications
Frequency : 60Hz
Load Rating : Incandescent: 500W @ 120V - Rapid Start Magnetic Fluorescent - Ballasts Only: 400VA @ 120V
Neutral Wire Connection : Not Required
Voltage : 120 VAC
Environmental Specifications
Operating Temperature : 32° to 122°F (0° to 50°C)
Relative Humidity : 20% to 90% non-condensing
Storage Temperature Range : 14° to 185°F (-10° to 85°C)
Mechanical Specifications
Mounting Type : Wall Switch
Size : Height 4.13" (105.0mm), Width 1.73" (44.0mm), Box Mount Depth 1.35" (34.3mm), Box Mount Height 2.72" (69.0mm)
Switch Type : Single-Pole & 3-Way
Performance Specifications
Coverage (Sq.Ft.) : 400
Pattern : 180°
Product Features
Adjustment : Manual
Application : Bathrooms,Basements Pantries,Garages,Utility/Laundry Rooms,Dining Rooms,Hallways,Closets,Kitchens
Color : Ivory
Grade : Light Commercial
Mounting : Wall Switch
Pattern Degrees : 180
Photo Cell : Ambient Override ON
Product Line : PR180
Sensor Technology : Passive Infrared (PIR)
Sensor Type : Occupancy
Standards and Certifications : UL/CSA
Time Adjustment : 15s-15m
Time Delay : 15s-15m
Standards and Certifications
Listings : UL Listed (File #E-118904) CSA Certified (File #LR-91148M)
Type
Product Type : Occupancy Sensor
Warranty
Warranty : 5-Year Limited
