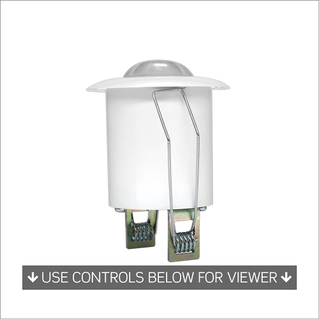

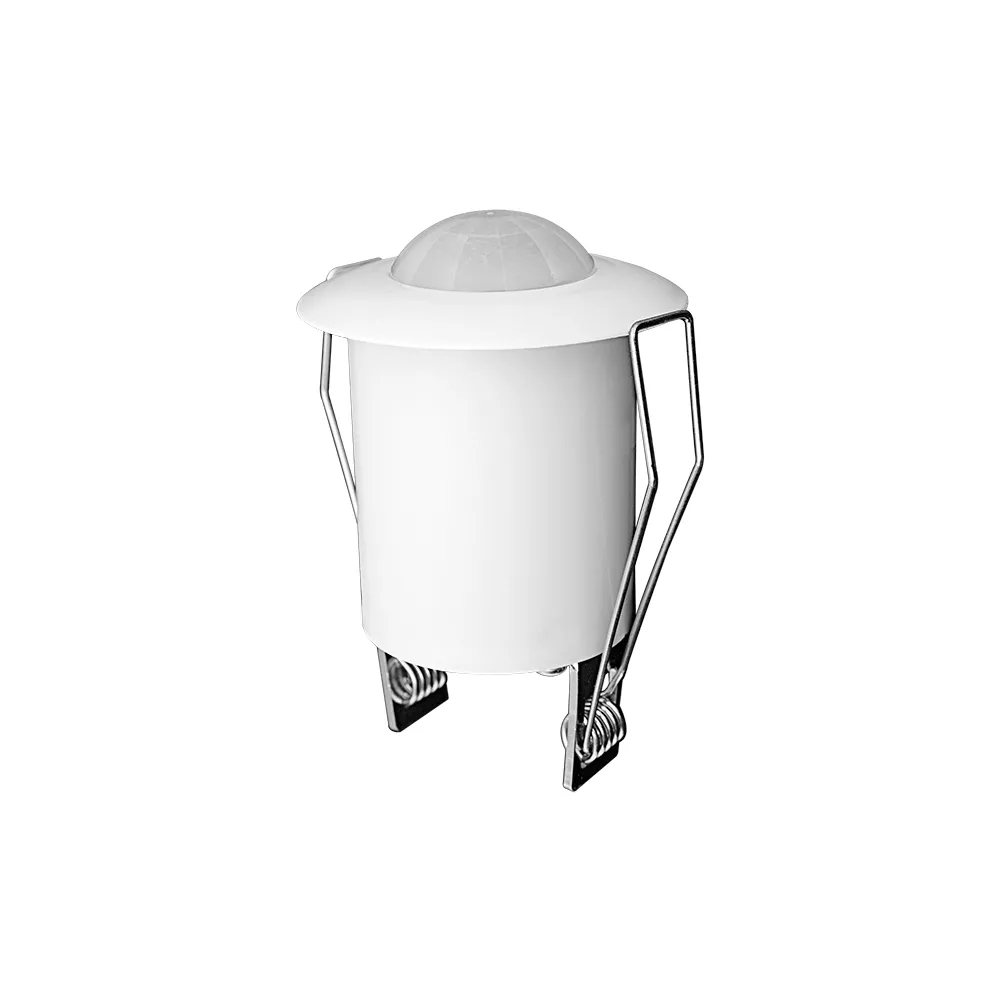

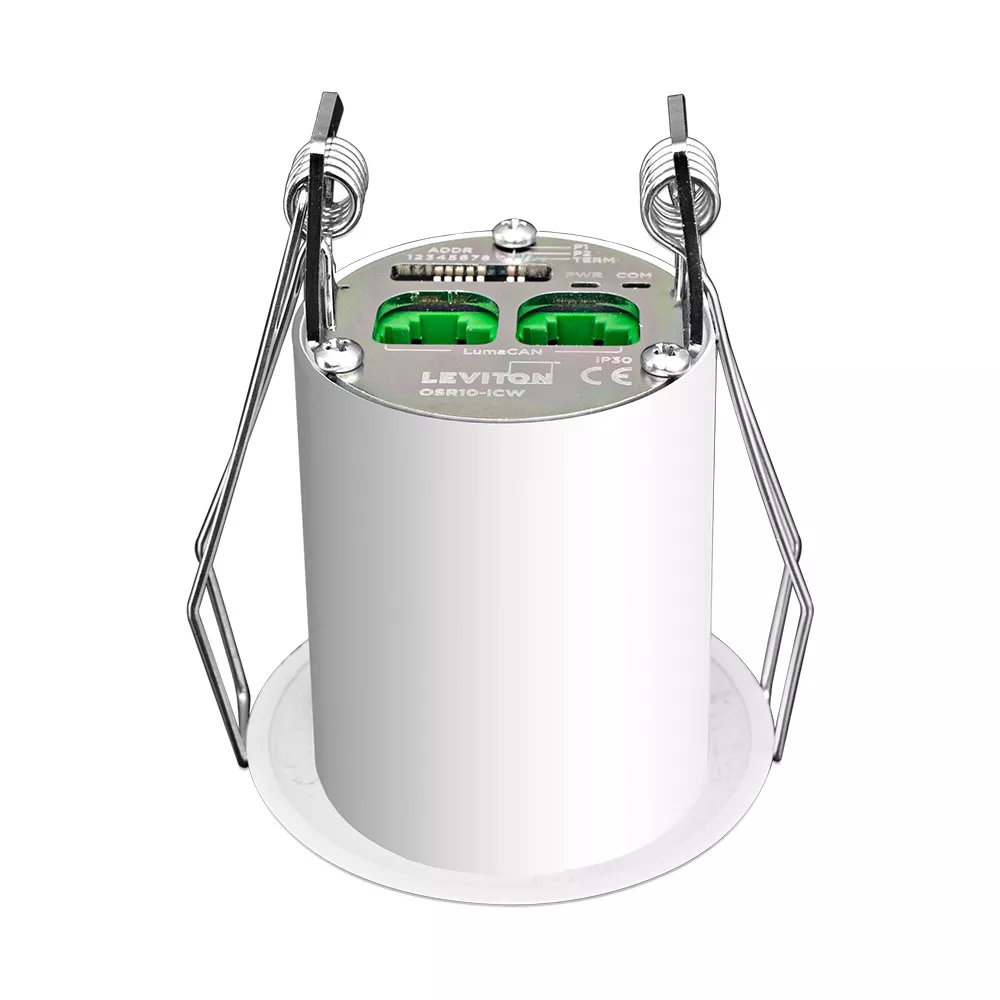

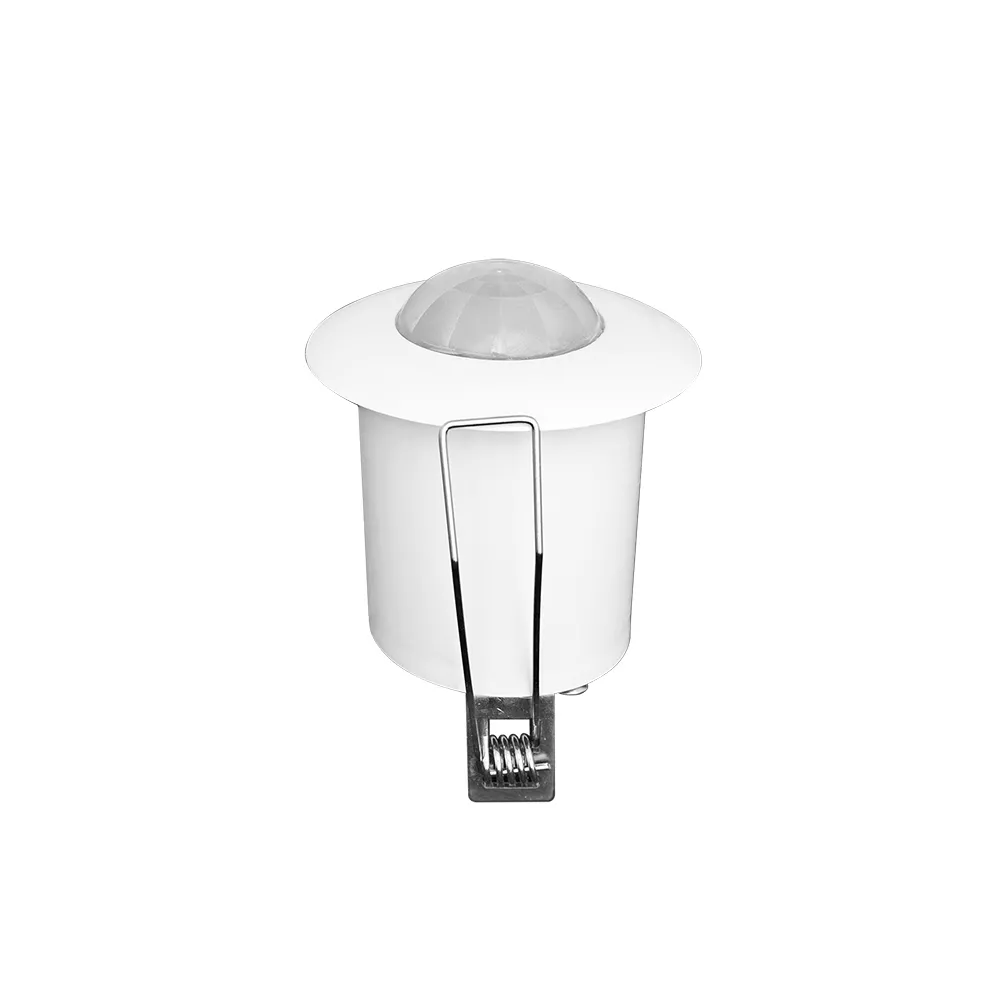

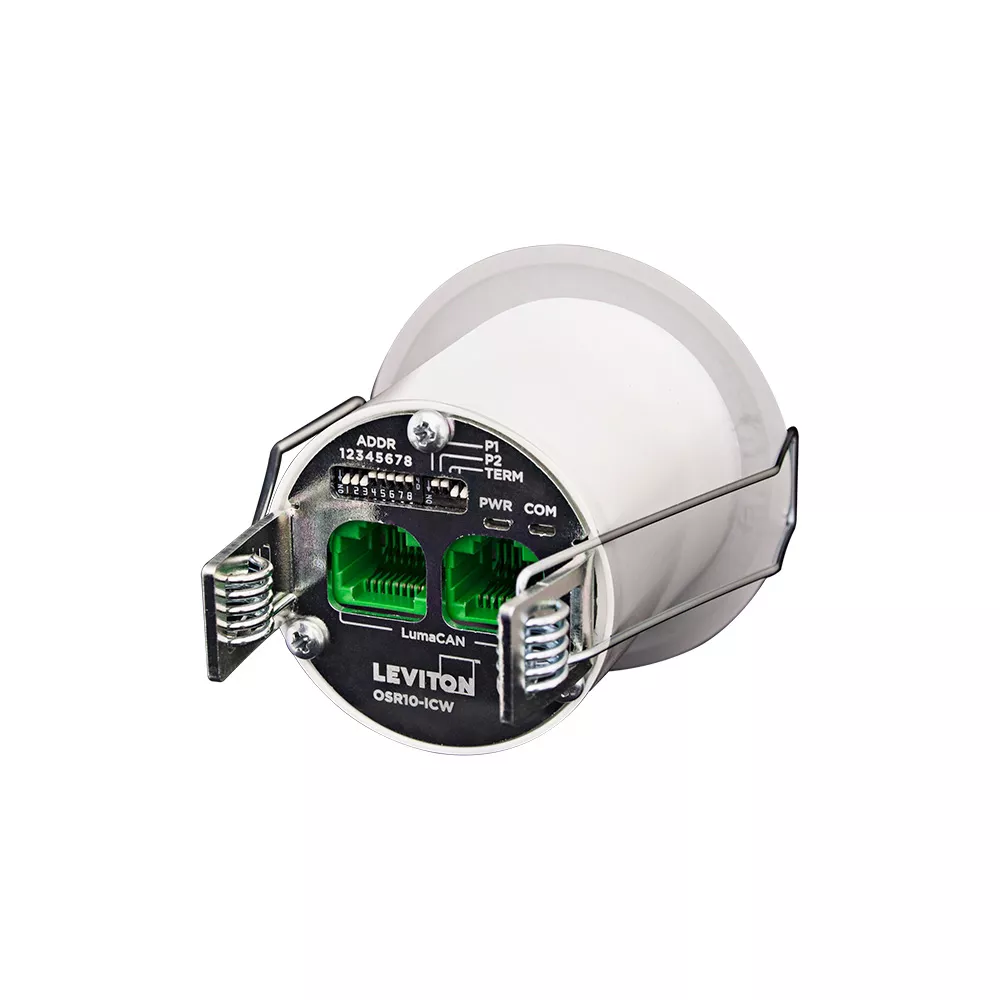

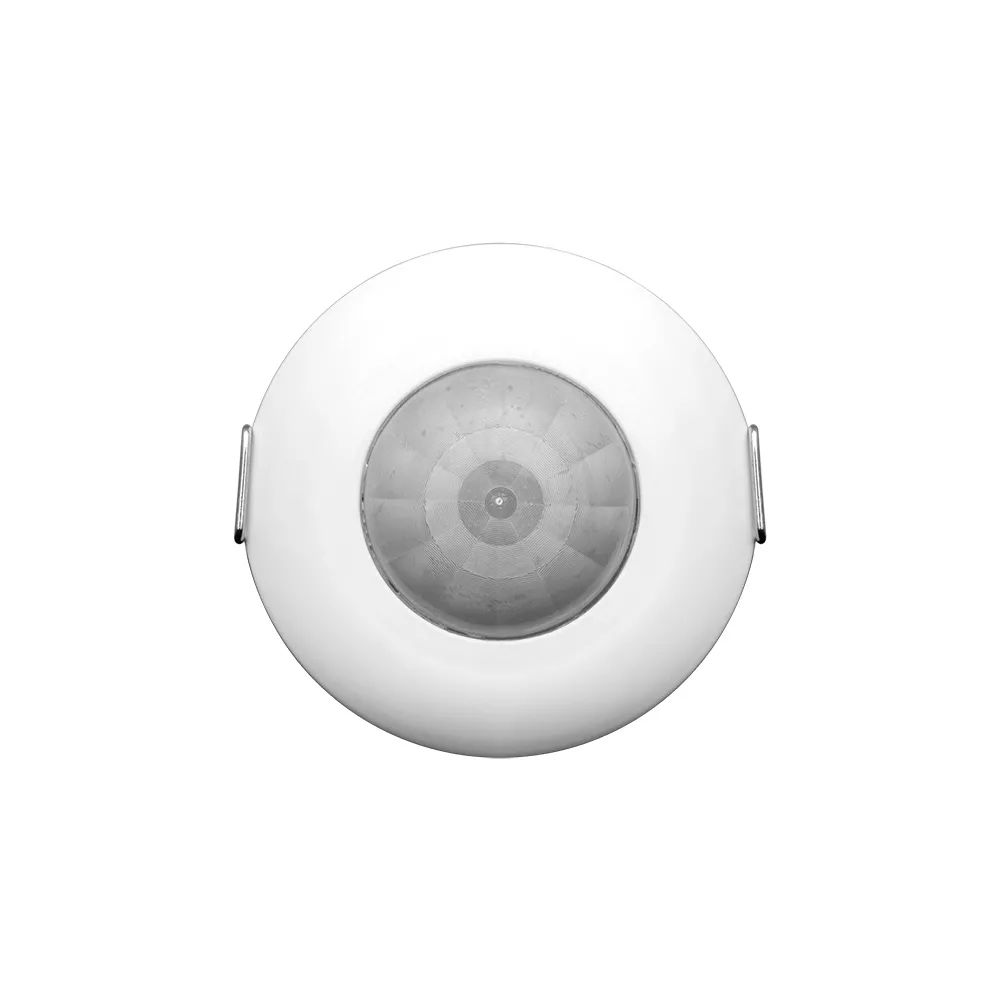

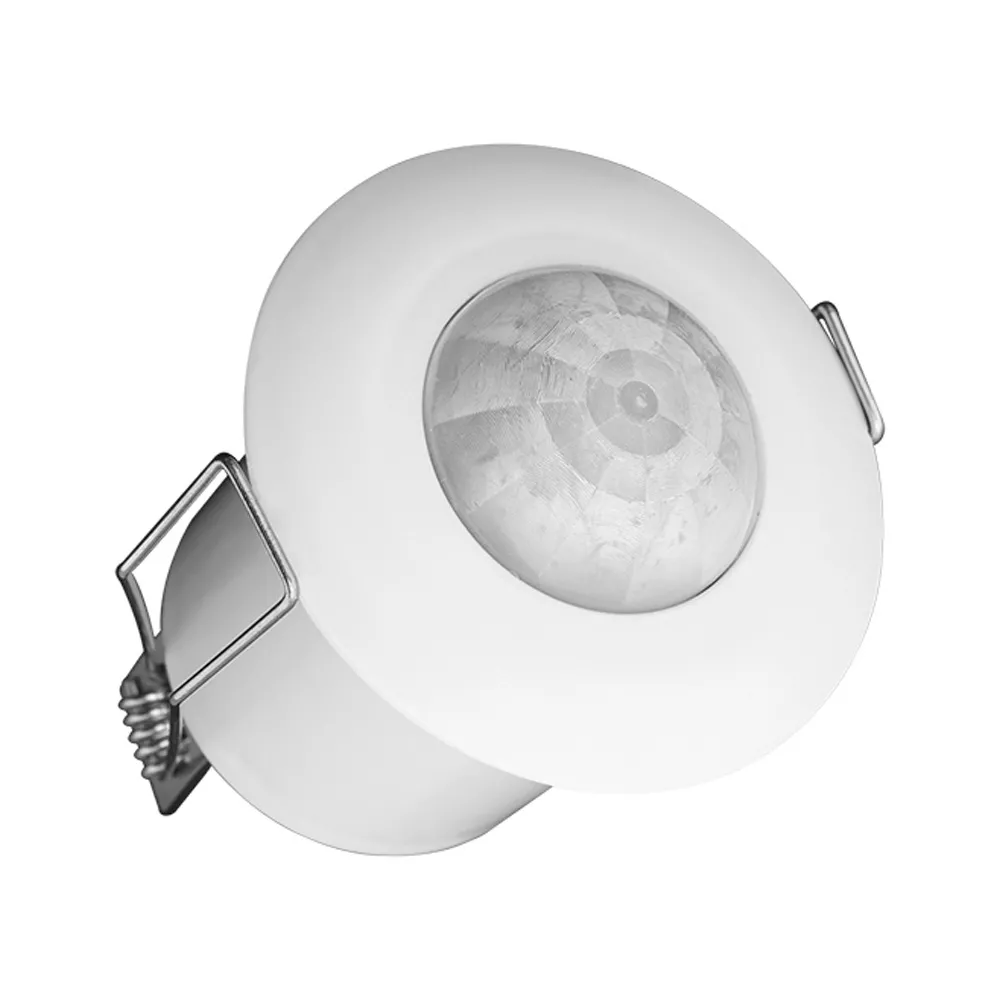

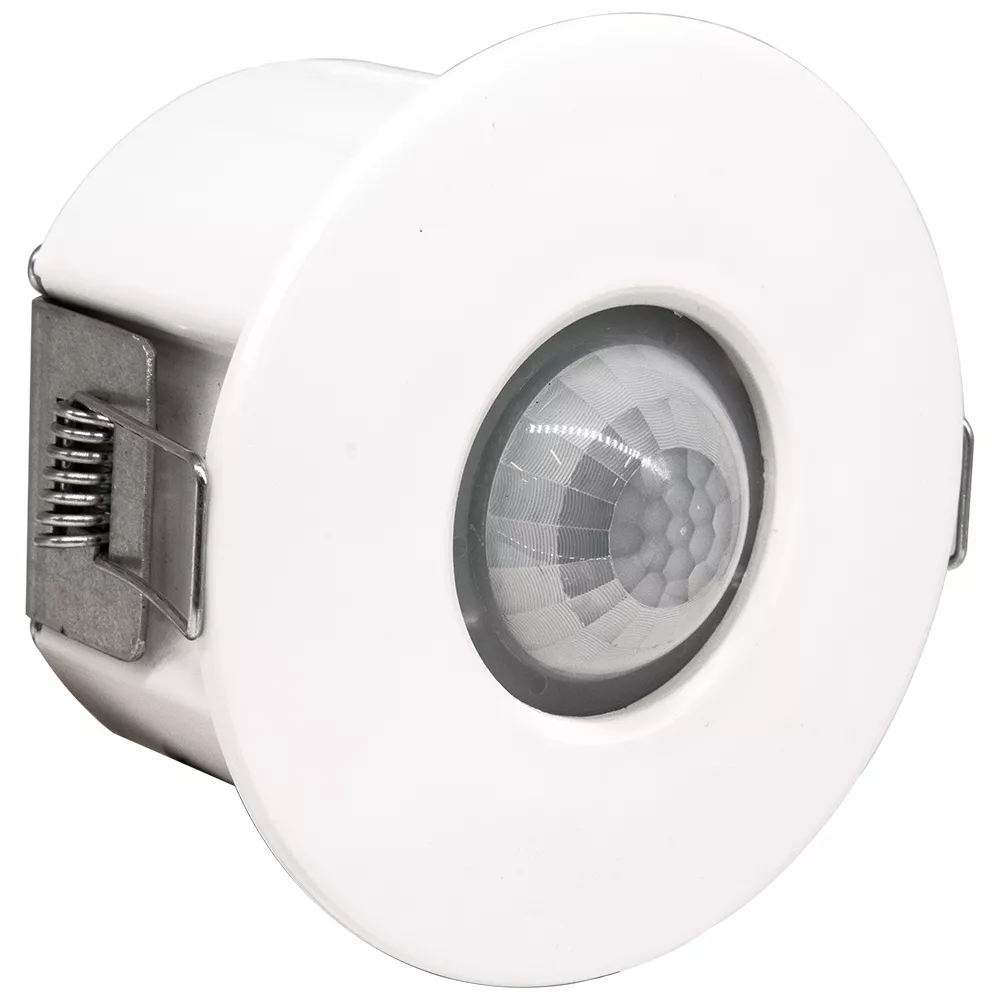

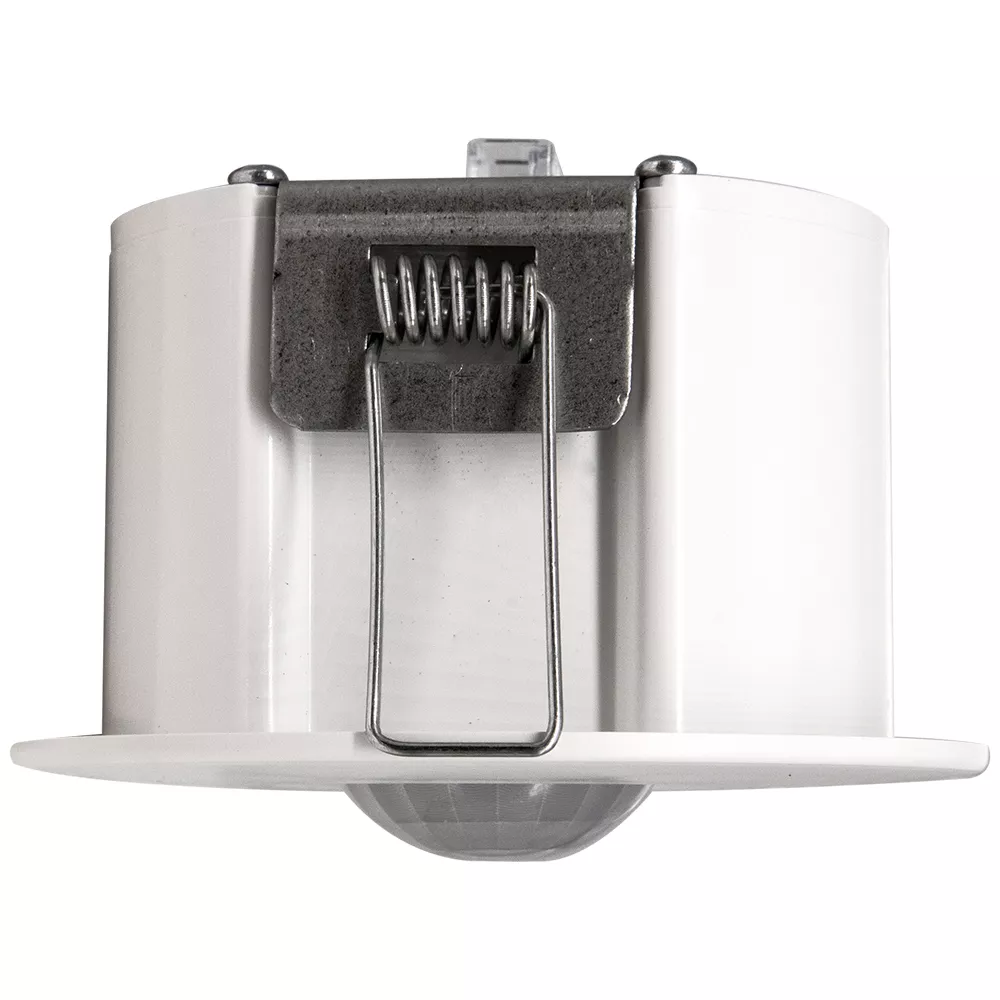

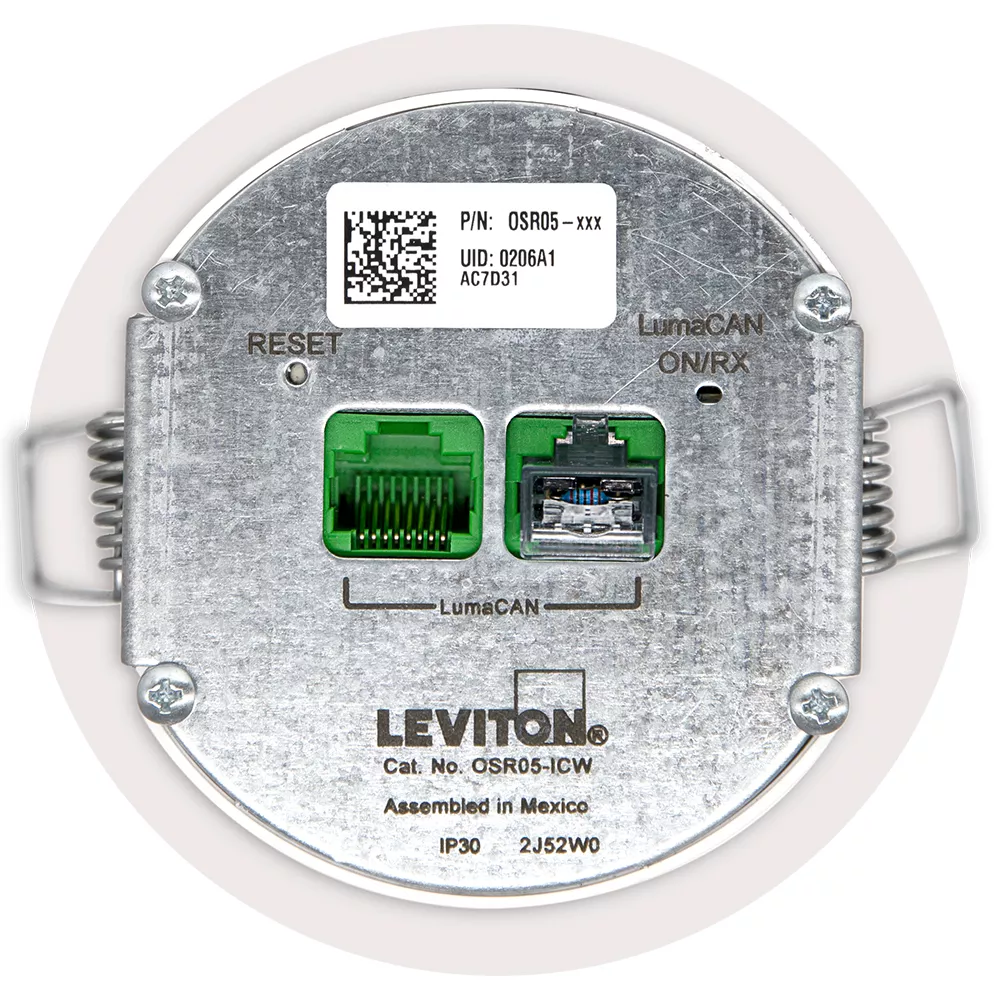

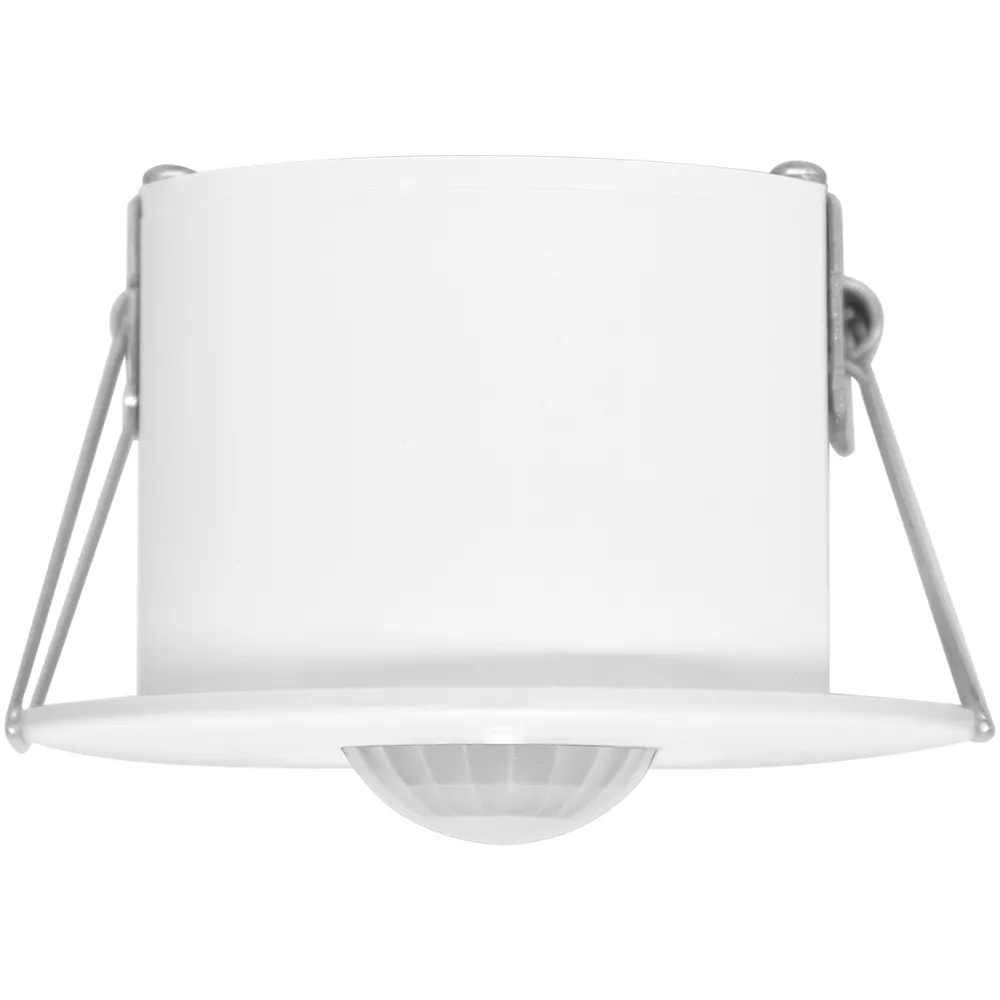

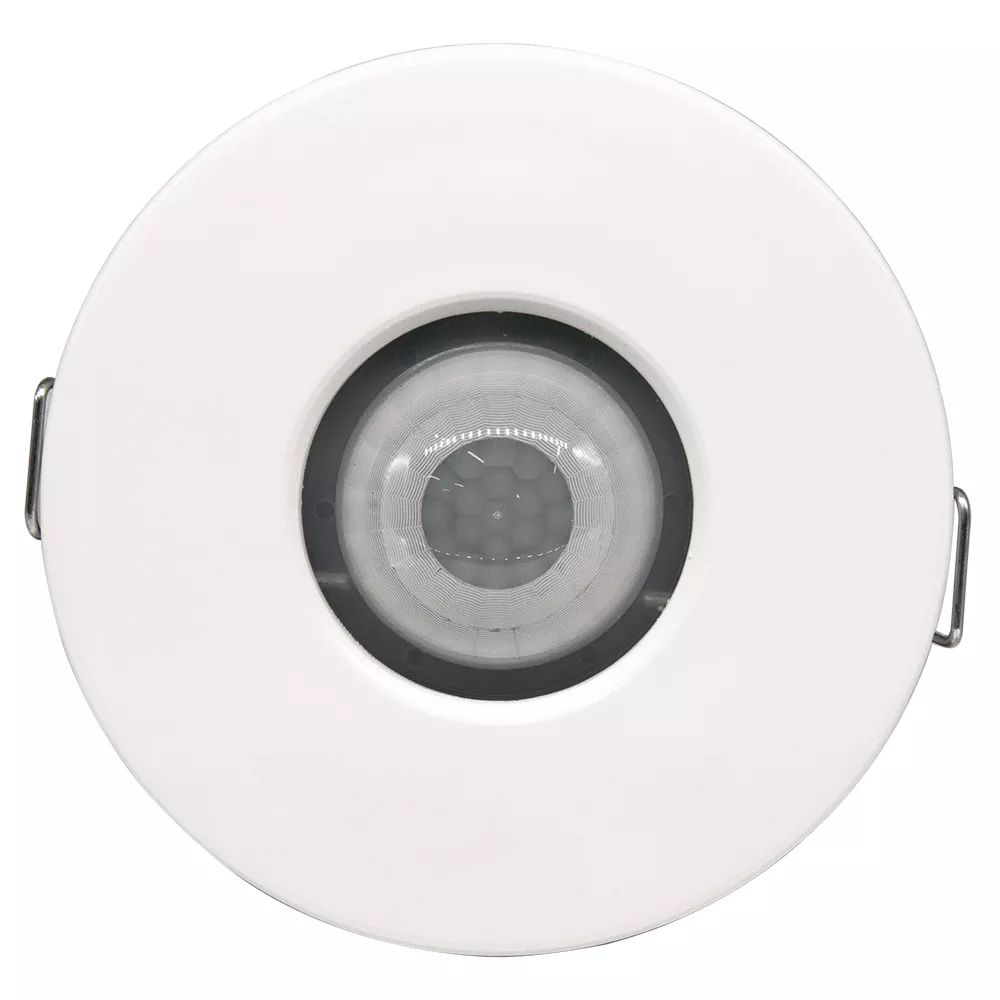

GreenMAX® DRC, Digital Occupancy Sensor and Photocell, Passive Infrared (PIR) Sensor, 450 SF, White

OSR05-ICW

GreenMAX® DRC Digital Occupancy Sensor and Photocell, PIR, LumaCAN Interface, 450sqft, White. For connection only to LumaCAN networks.

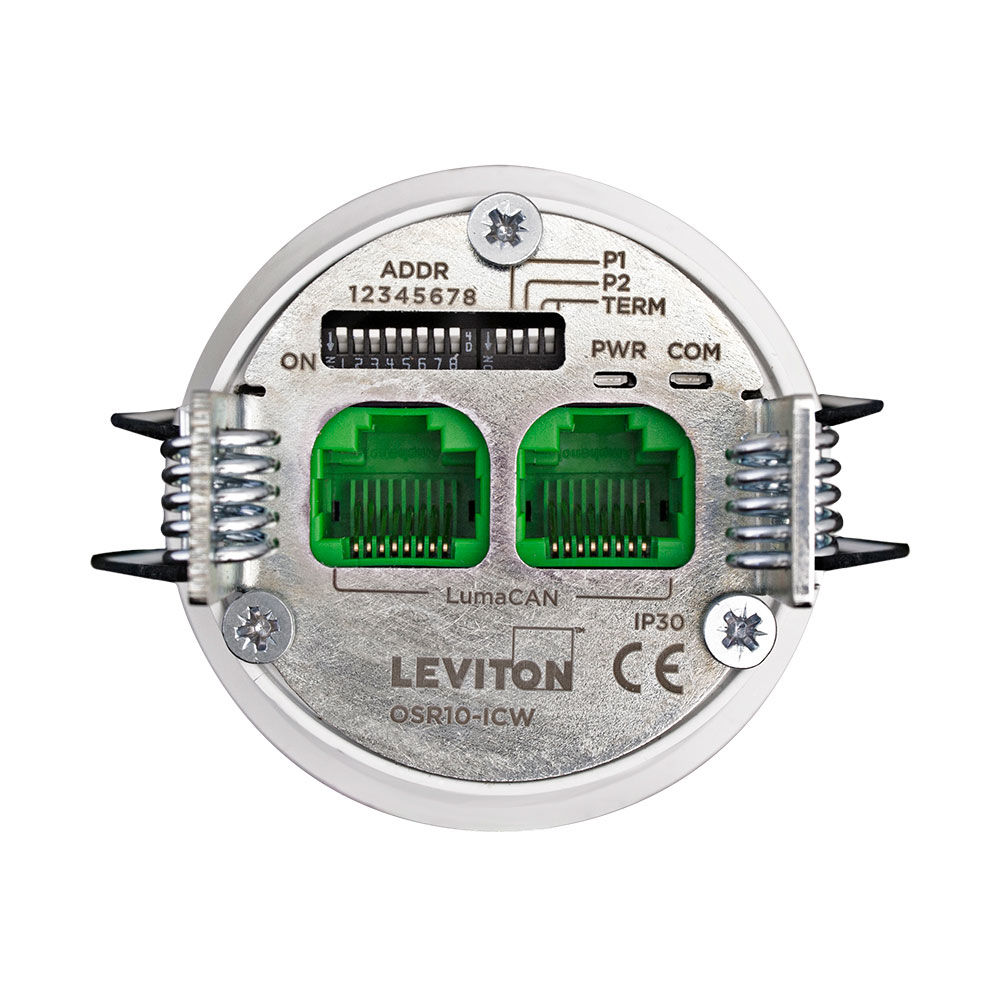

The GreenMAX® DRC Digital Sensor incorporates occupancy/vacancy and daylight sensing directly into the GreenMAX DRC system. The GreenMAX DRC Digital Sensor interfaces to the GreenMAX DRC system via the LumaCAN port for simplified specification and installation. The sensor combines both a PIR occupancy/vacancy sensor with a daylight-sensing photocell, providing more capabilities while requiring much less equipment and wiring.

UPC Code: 078477934111
Country of Origin : Turkey

Product Information

  • Product Features

    Application : Digital Occupancy/Vacancy Sensor and Photocell, When only major detection is appropriate, CAT6 Wiring

    Grade : Commercial

    Mounting : Ceiling Mount

    Mounting Height (Ft.) : 8-12 FT

    Product Line : DRC

    Sensor Technology : Passive Infrared (PIR)

    Sensor Type : Occupancy / Vacancy

  • Warranty

    Warranty : 5-Year Limited

  • Electrical Specifications

    Power Consumption : Up to 40mA

    Voltage : 24 VDC

  • Performance Specifications

    Coverage (Sq.Ft.) : 450.0

    Foot Candle Level : 0-100 FC

    Pattern : 360°

  • Environmental Specifications

    Operating Temperature : 0° to 55°C (32° to 131°F)

    Relative Humidity : 0% to 90% non-condensing, for indoor use only

  • Mechanical Specifications

    IP Rating : IP32

    Mounting Type : Ceiling Mount

    Size : Height 3.3" (83.8mm), Width 2.55" (64.8mm)

  • Type

    Product Type : Digital Sensor

  • Standards and Certifications

    Listings : UL, cUL (File # E148771), RoHS, CE. Can be used to comply with IECC, ASHRAE 90.1, and Title 24, Part 6 occupancy/vacancy sensing, multi-level lighting, daylight harvesting, partial-ON, partial-OFF, scheduling, exterior lighting, demand response and receptacle control requirements

  • Occupancy detection using PIR technology with a 450 sq ft field of view
  • Light level detection, 0-100 footcandles
  • Configurable from the network
  • Configurable parameters:
    • Occupancy sensitivity
    • Occupancy timeout
    • Occupancy enable/disable
    • Photocell range
    • Photocell enable/disable
    • LED brightness
    • LumaCAN input number
  • Recess mount into 2”-diameter hole
  • Requires 4” (102mm) vertical clearance
  • When installation requires conduit for Class 2 LumaCAN wiring, drill 2” (52mm) opening into side of junction box and install j-box above ceiling directly above sensor

  • N_A

This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.
