20A incandescent @ 120V, 20A fluorescent @ 120-230-277VAC; 1/2HP @ 120V, 2HP @ 240-277V; HVAC: 0.5A @ 120VAC, 1A @ 30VDC, Power Supply Output: 225mA, USMCA Compliant, Title 24 Compliant, ASHRAE 90.1 Compliant

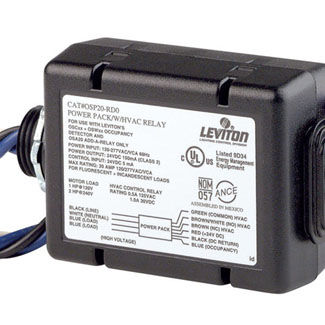

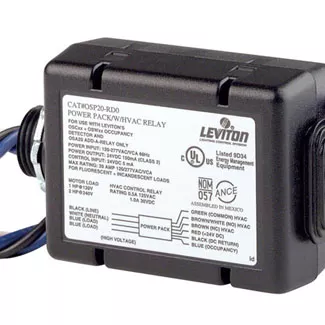

OSP20-RNH

DISCONTINUED
20A incandescent @ 120V, 20A fluorescent @ 120-230-277VAC; 1/2HP @ 120V, 2HP @ 240-277V; HVAC: 0.5A @ 120VAC, 1A @ 30VDC, Power Supply Output: 225mA, USMCA Compliant, Title 24 Compliant, ASHRAE 90.1 Compliant

Do you have a question about an
occupancy sensor or vacancy sensor?

Contact us to learn more.

UPC Code: 07847748460
Country of Origin : Mexico

Product Information

  • Electrical Specifications

    Control Input : 5mA, 24VDC

    Frequency : 50/60Hz

    Load Rating : 20A fluorescent/incandescent @ 120V; 20A fluorescent@ 277V; 1HP @ 120V, 2HP @ 240V; HVAC; .05A @ 120VAC, 1A @ 20VDC and 15A fluorescent @ 347V; 1HP @ 120V; 2HP @ 240; HVAC: 0.5A @ 120V, 1A @ 30VDC

    Neutral Wire Connection : Required

    Power Supply Output : 225mA, 24VDC

    Voltage : 120/230/277 VAC

  • Type

    Product Type : Power Pack

  • Mechanical Specifications

    Relay Type : HVAC Relay

  • Standards and Certifications

    Title 24 Compliant : Yes

    USMCA Compliant : Yes

  • Product Features

    Application : Bi-level Lighting Applications,Classrooms,Conference Rooms,Offices,Load Shed/Interface Hold OFF Applications,Retail Hold ON/Bypass Applications,Anywhere optimal lighting and energy savings are desired

    Color : Black

    Grade : Commercial

    Product Line : OSP20

    Sensor Type : Accessory
