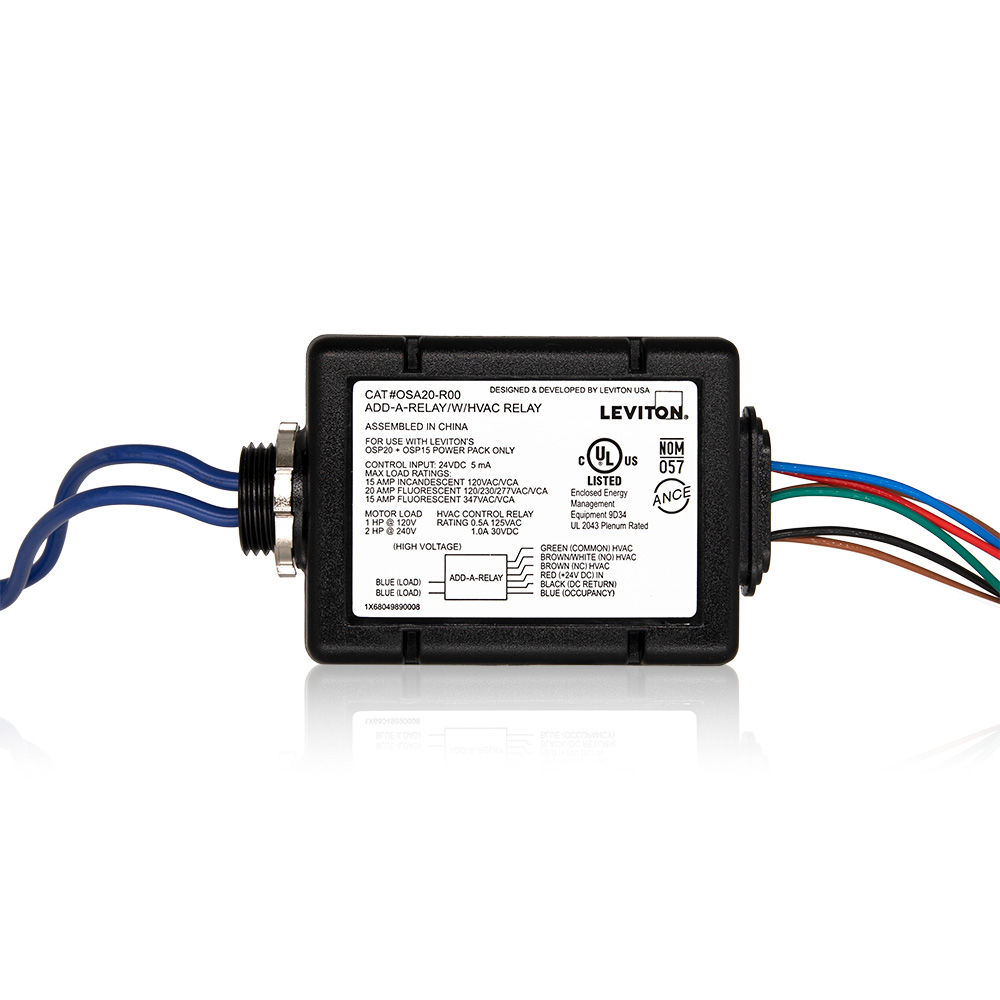

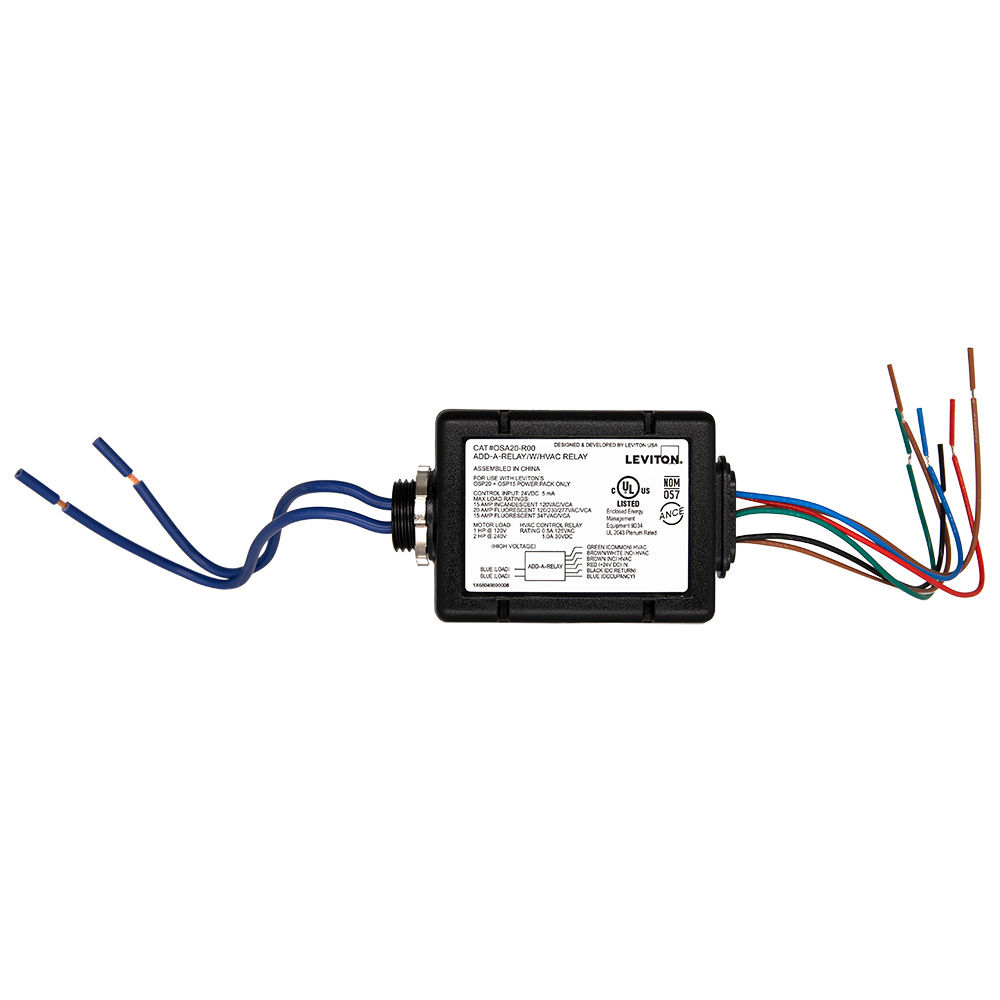

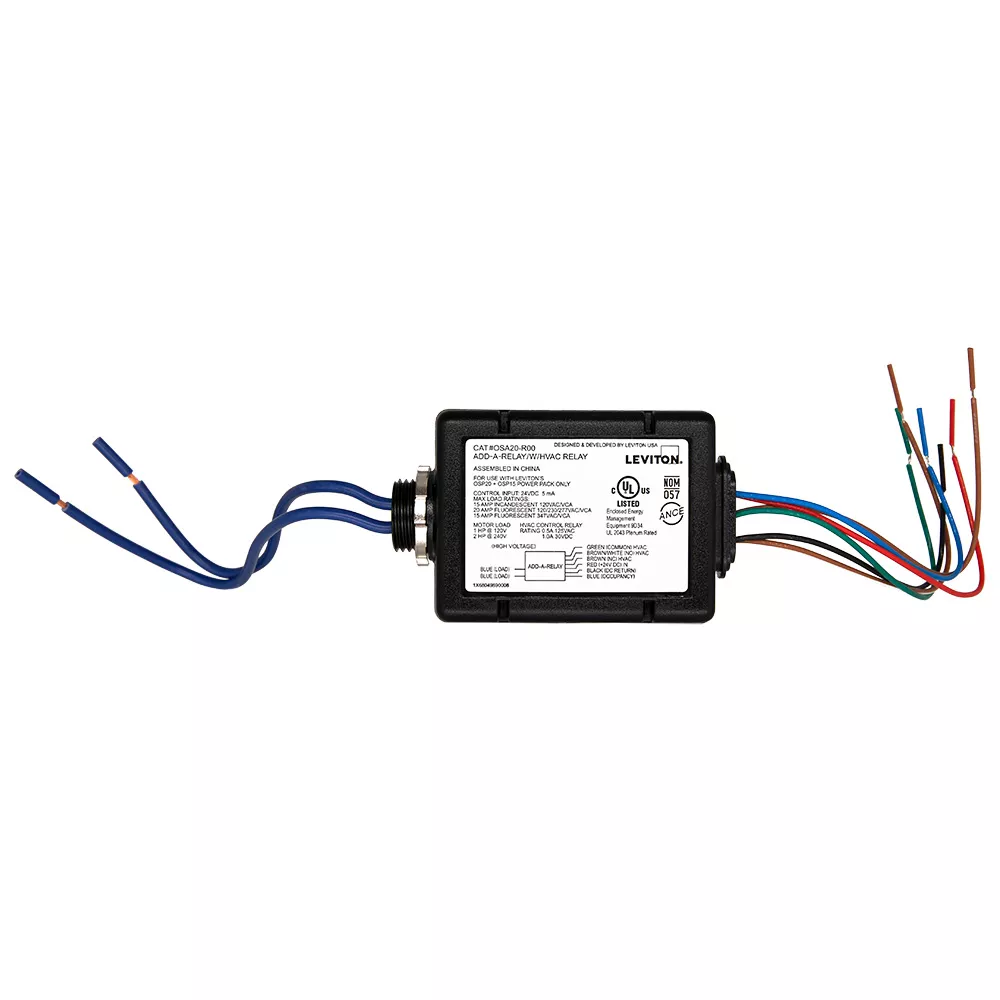

Occupancy Sensor Power Pack, Add-A-Relay, 15 amp

OSA20-R00

15A INC 20A FL 120/277VAC 15A FL 347VAC, Add-A-Relay for Occupancy Sensor w/ HVAC Relay 0.5A 125VAC 1.0A 30VDC, Title 24 Compliant, ASHRAE 90.1 Compliant

Containing both a 24VDC supply and a 20A line voltage relay for most models, the Leviton compact power pack provides low voltage power and line voltage control for Leviton Occupancy Sensors. Versions include Auto-ON and Manual-ON inputs for occupancy sensors, Hold-ON and Hold-OFF capabilities, and a local input for momentary or maintained dry contact switches. The OSP Power Pack Series is also used to supply power to the OSA Add-A-Relay model. The Power Pack conveniently mounts in a knockout hole of a standard junction box. The unit can be placed inside or outside the junction box with a simple twist-on nut.

Do you have a question about an
occupancy sensor or vacancy sensor?

Contact us to learn more.

Color: Black

UPC Code: 078477166512
Country of Origin : Please Contact Customer Service

Product Information

  • Electrical Specifications

    Frequency : 50/60Hz

    Voltage : 120/230/277 VAC

  • Mechanical Specifications

    Neutral Wire Connection : Required

    Relay Type : HVAC Relay

  • Product Features

    Color : Black

    Product Line : OSA20

    Sensor Type : Power Pack

  • Standards and Certifications

    Title 24 Compliant : Yes

  • Companion relay for Power Pack provides additional load capacity
  • Switches incandescent, magnetic and electronic fluorescent, magnetic and electronic low-voltage and motor loads
  • Compact size and light weight allows easy mounting through knockout in junction box (from either inside or outside junction box) with a simple twist-on nut. Unit is also approved for mounting in ballast channel cavity.
  • Single or multiple luminaire control from one or more sensors
  • HVAC Relay for signaling energy management systems and controls
  • Zero crossing circuitry provides increased durability
  • CUL/US, FCC and NOM Certified
  • Meets ASHRAE Standard 90.1 requirements
  • Backed by a Limited 5-Year warranty
