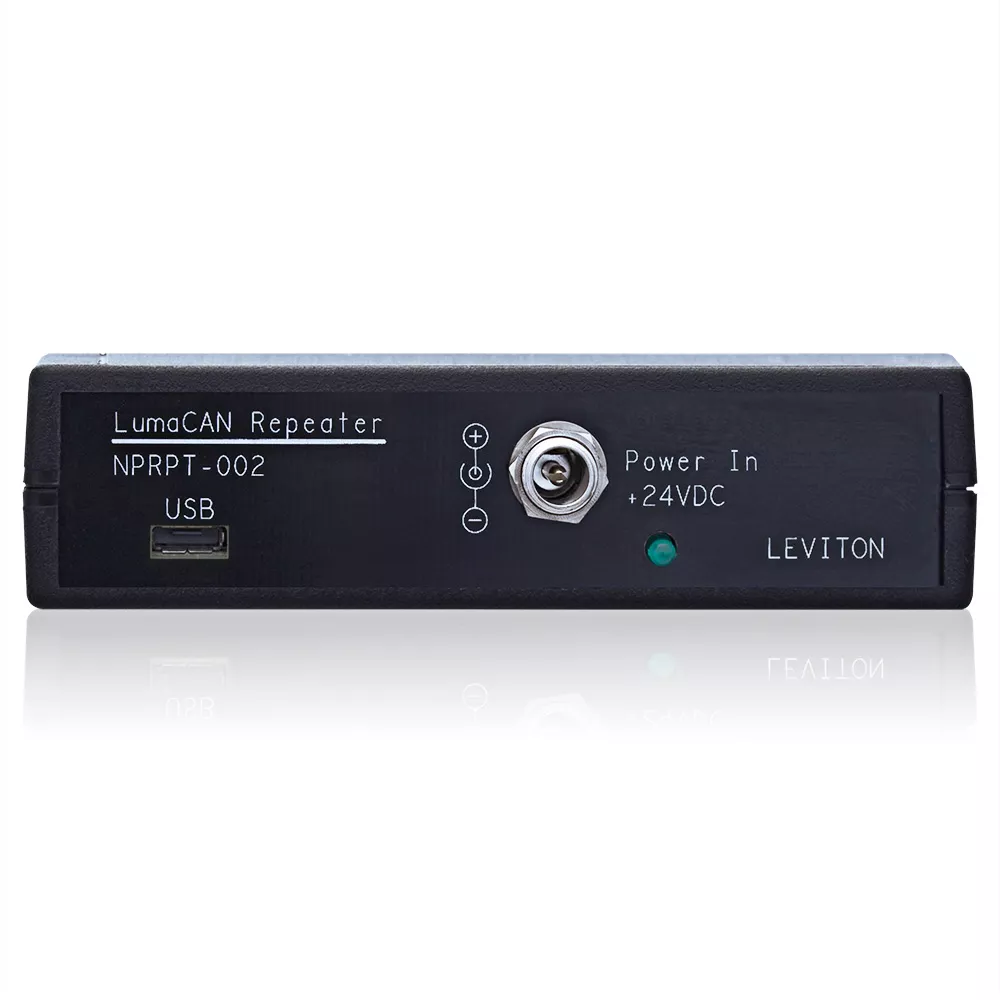

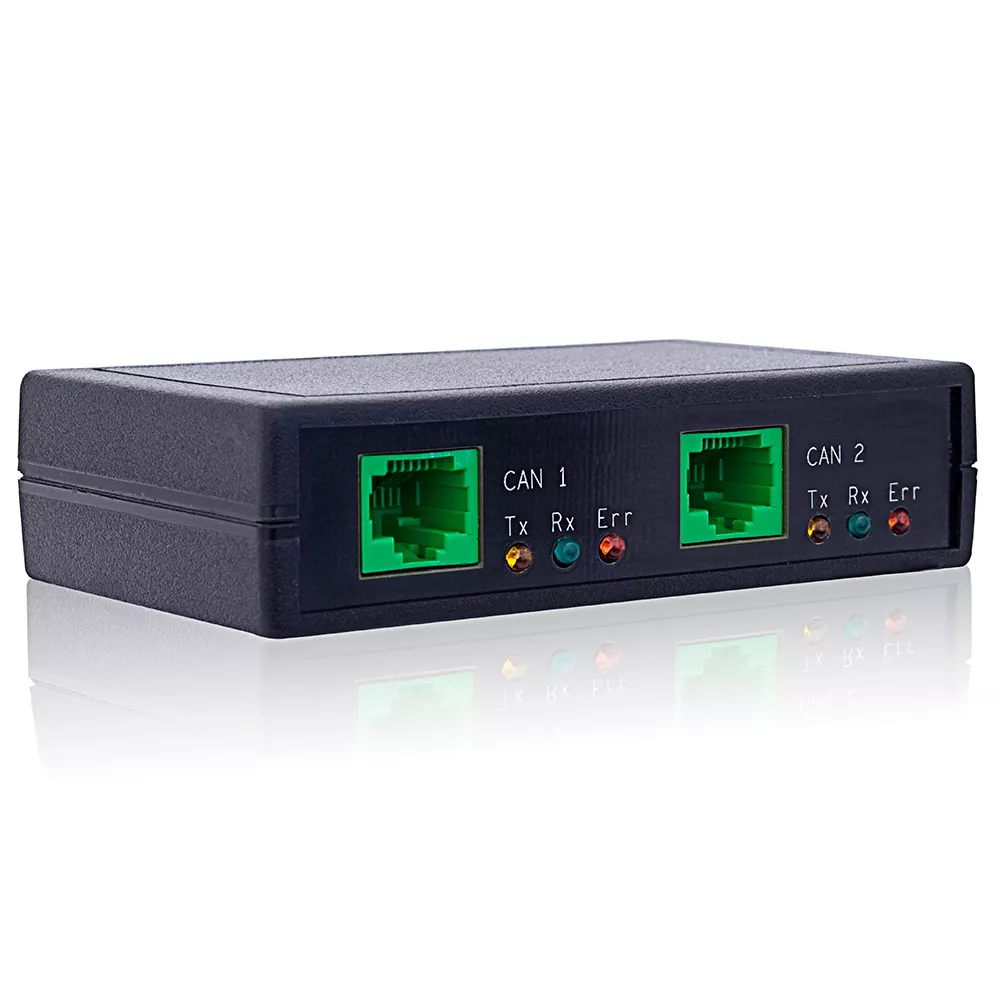

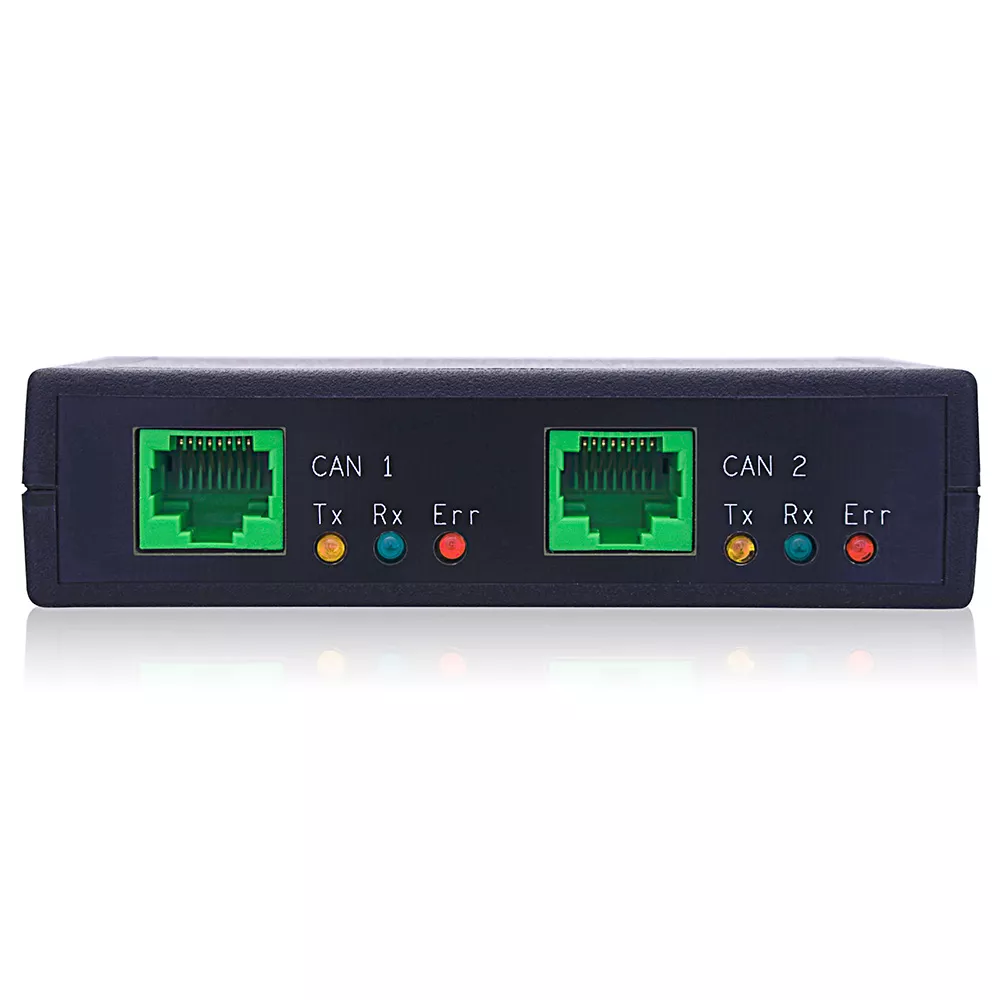

LumaCAN Repeater 2 Port

NPRPT-2

LumaCAN 2-Port Pocket Repeater

Leviton’s repeaters are designed to repeat LumCAN/CAN data out each port to extend the network length and increase device density, or creating a home-run network topography.

UPC Code: 078477595626
Country of Origin : United States

Product Information

  • Product Features

    Product Category : Networking

    Product Line : LumaCAN

    Product Type : Repeater

  • Electrical Specifications

    Voltage : 12-24 VDC

  • Expands LumaCAN network configuration options to include star and home run topography
  • Extends LumaCAN total network length up to 10,000 ft (3,048m) made up of maximum 1,600 ft (480m) segments
  • Max width = 7 repeaters
  • Max depth = 3 repeaters
  • LED Indicators: RX/Link, TX/Link, Error
  • Reset switch
  • Update software via USB
  • 2 port repeater installation is up to the discretion of contractor as required by field conditions; device may be installed into a field box or surface mounted
