Surge Protective Panel Flush Mount Flange

MSURG-FLG

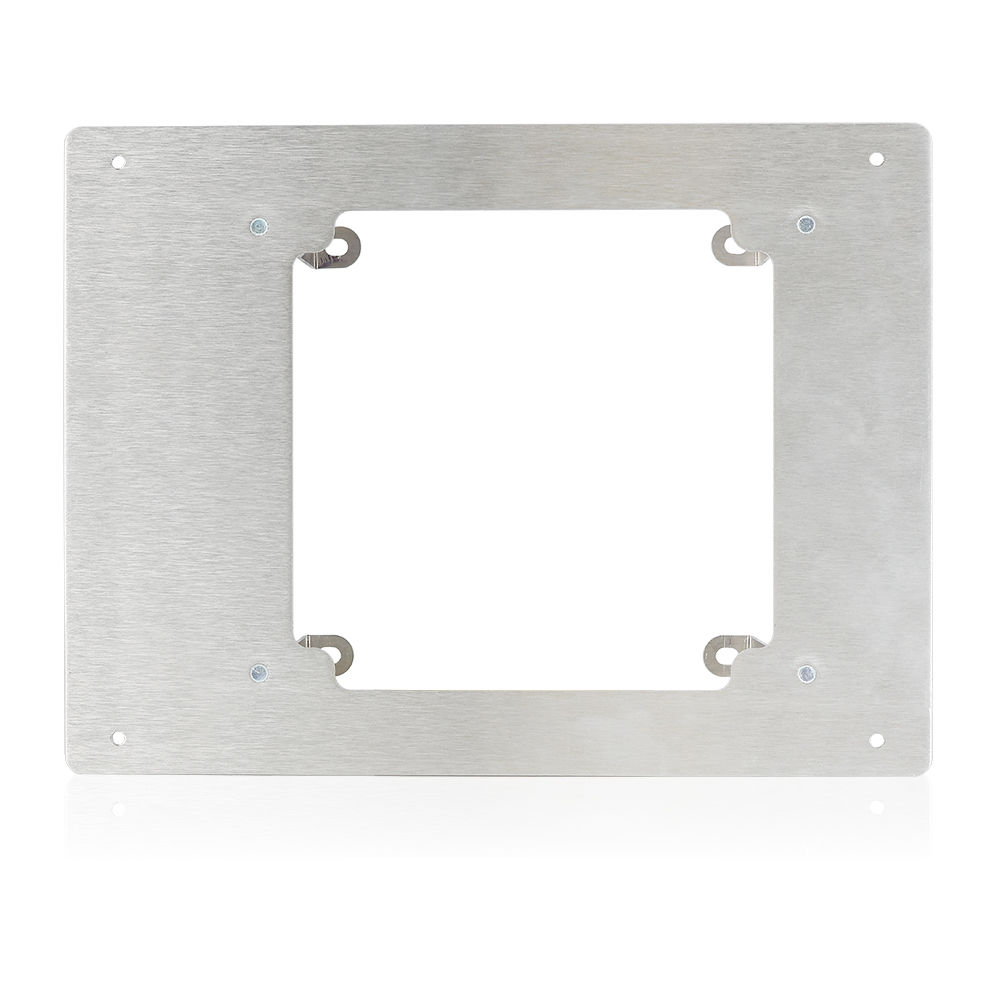

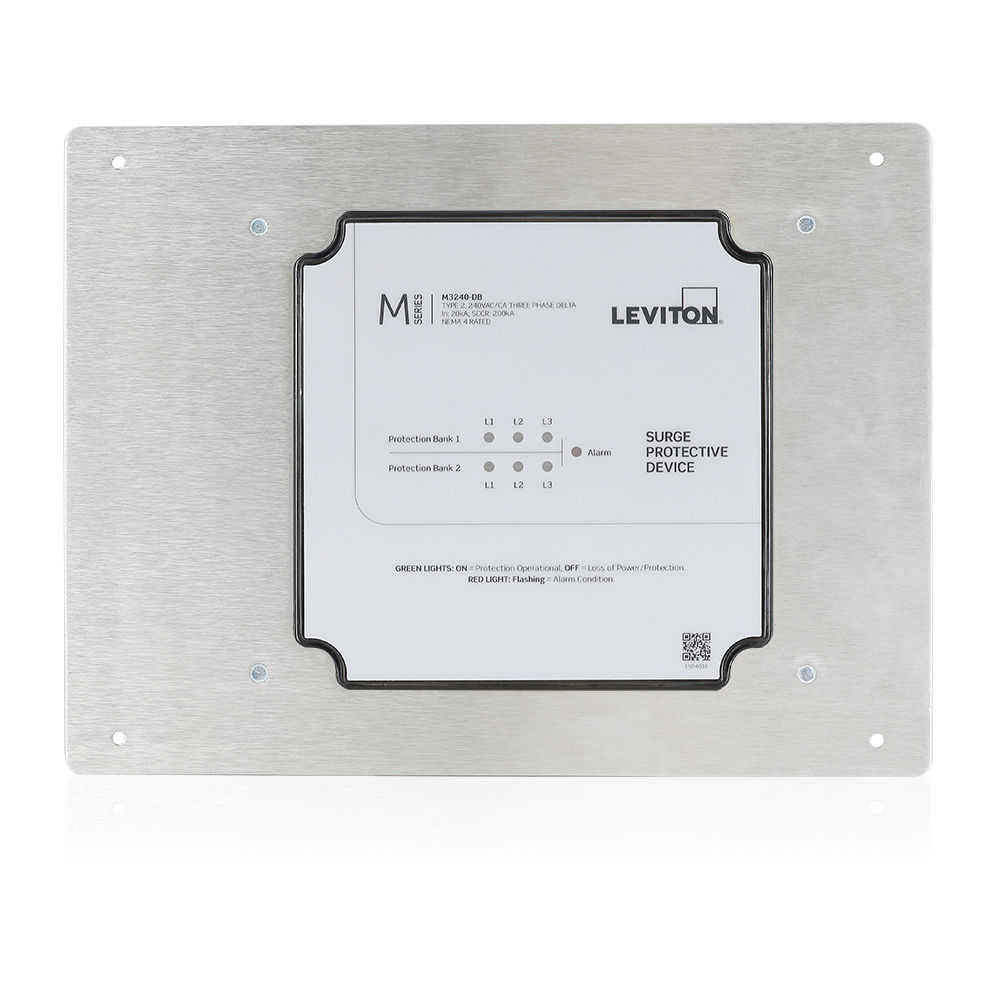

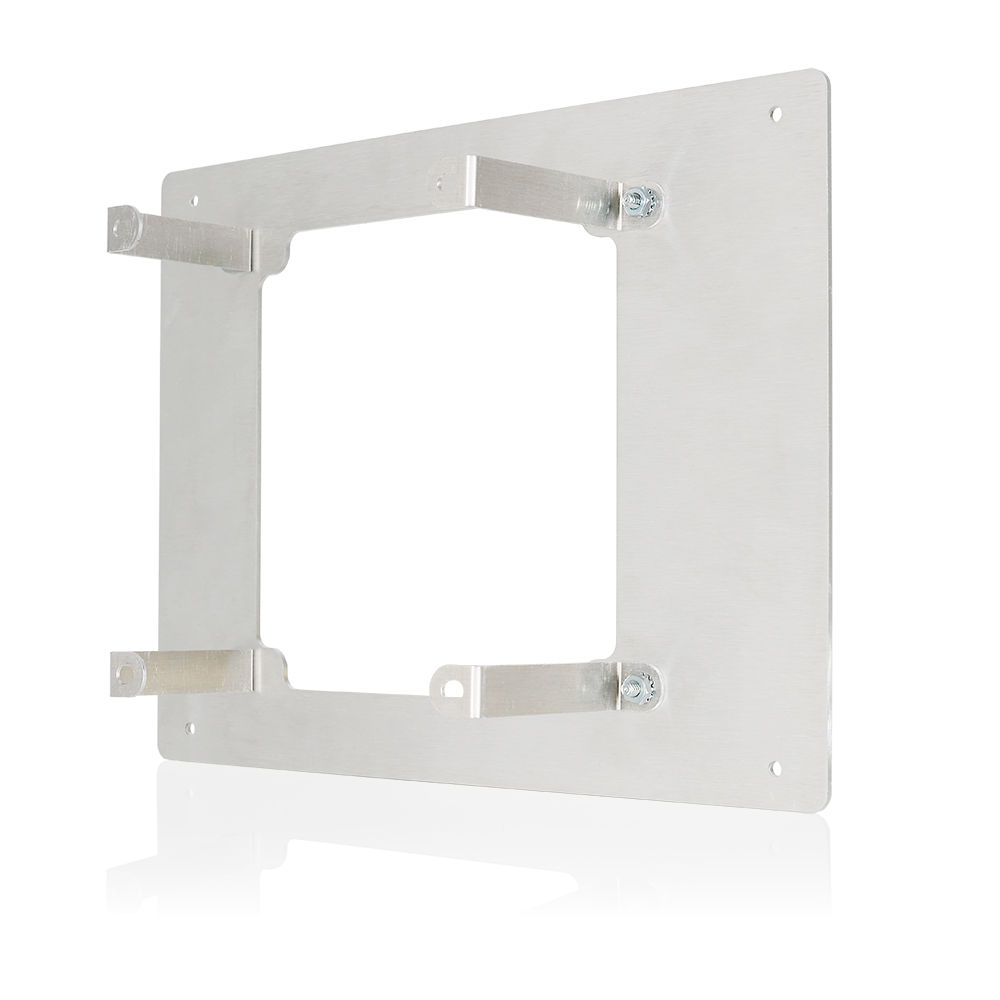

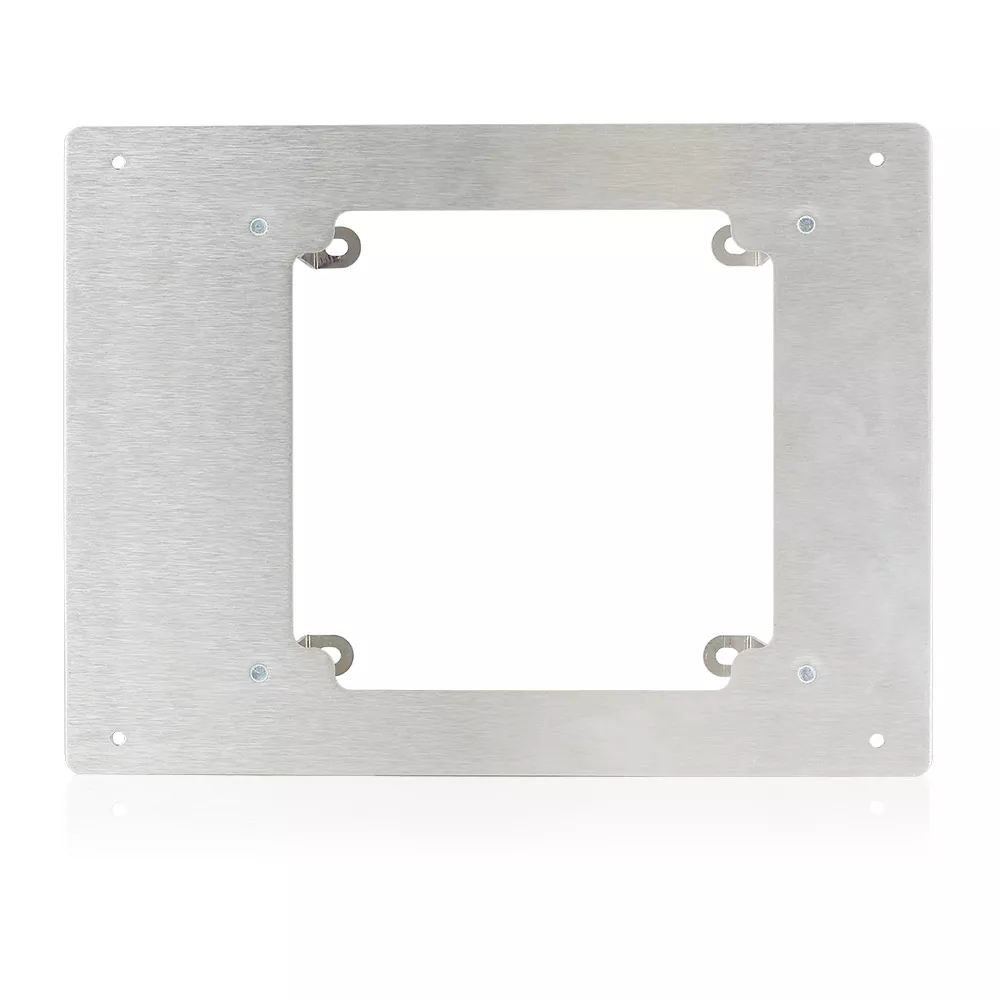

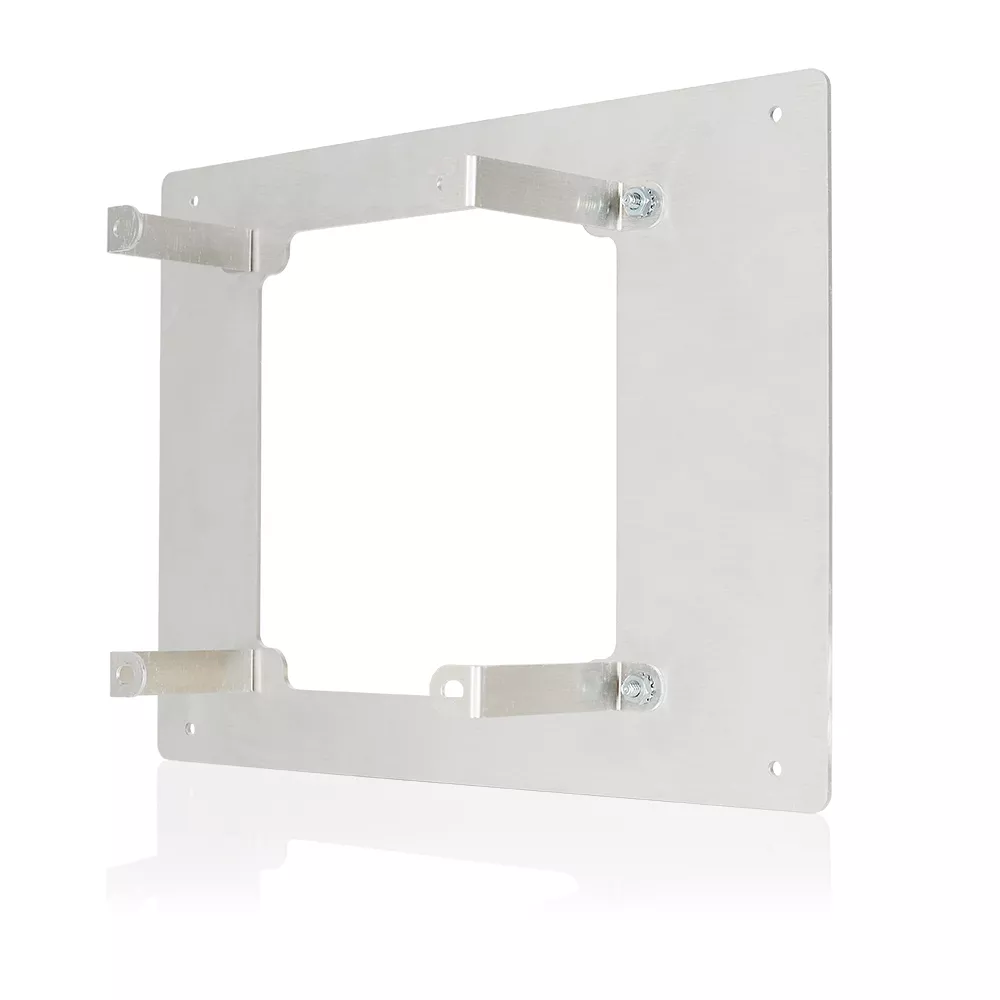

Flush Mount Flange for Leviton M Series Surge Protective Panels, Aluminum

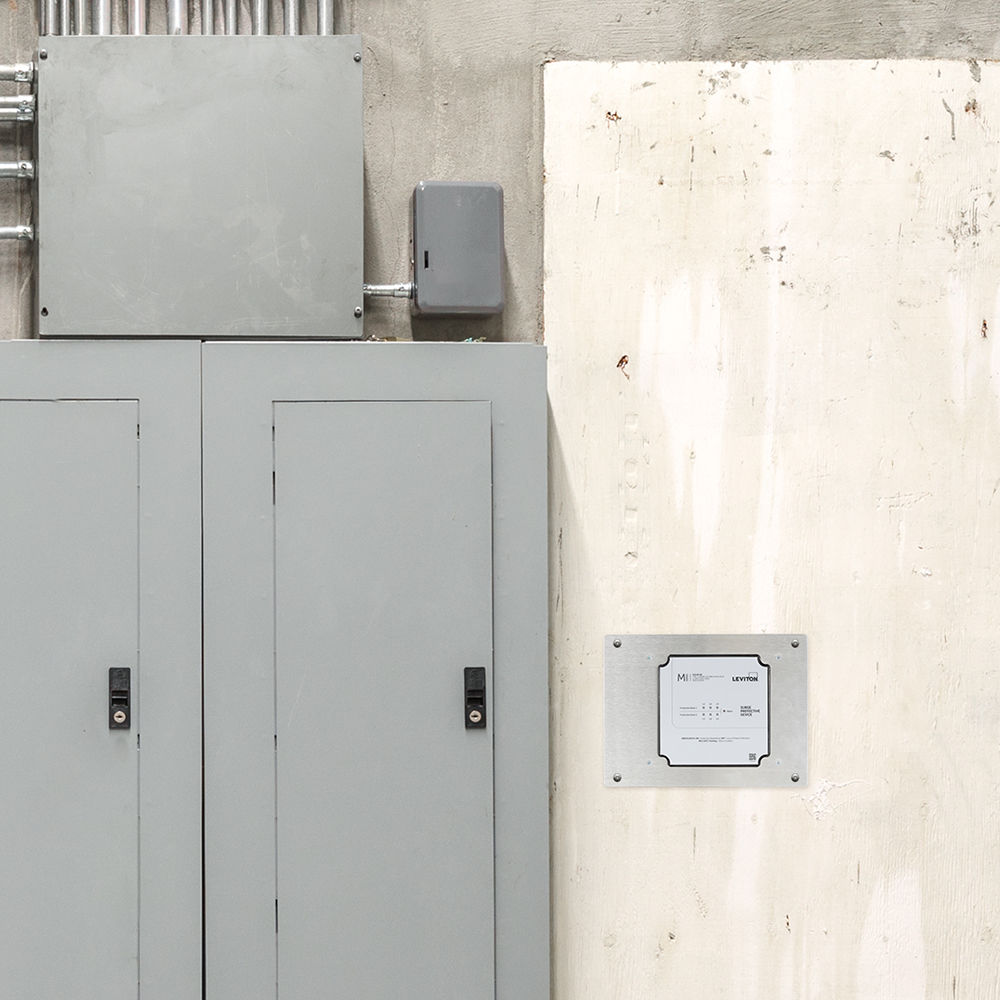

  • Ideal for flush mount applications
  • Paintable to match your décor
  • For use only with Leviton's M Series Surge Protective Panels
Add to Project List

Documents

Technical Information

  • General Information

    UPC : 078477016817

Related Products

Product image for Type 2 Surge Protective Device, 120/240 VAC, Split Phase

Type 2 Surge Protective Device, 120/240 VAC, Split Phase

M Series Type 2 Surge Panel, 120/240 VAC, Split Phase, Max Surge Current Rating of 130kA per Mode/260kA per Phase, 200kA Short Circuit Current Rating (SCCR), 20kA I-nominal (ln) Rating, NEMA 4 Rated Enclosure, Thermally Protected MOVs, VPR Performance Data = L-N: 700, L-G: 700, N-G: 700, L-L: 1200, Maximum Continuous Operating Voltage (MCOV): Plastic Enclosure, LED Status Monitoring, Audible Alarm, UL 1449 Listed, UL 1283 EMI/RFI Filtering, Approximate Lead Length = 28"
Product image for Type 2 Surge Protective Device, 208Y/120 VAC, Three Phase WYE

Type 2 Surge Protective Device, 208Y/120 VAC, Three Phase WYE

M Series Type 2 Surge Panel, 208Y/120 VAC, Three Phase WYE, Max Surge Current Rating of 130kA per Mode/260kA per Phase, 200kA Short Circuit Current Rating (SCCR), 20kA I-nominal (ln) Rating, NEMA 4 Rated Enclosure, Thermally Protected MOVs, VPR Performance Data = L-N: 600, L-G: 700, N-G: 600, L-L: 1000, Maximum Continuous Operating Voltage (MCOV): 150V/300V, Plastic Enclosure, LED Status Monitoring, Audible Alarm, UL 1449 Listed, UL 1283 EMI/RFI Filtering, Approximate Lead Length = 28"
Product image for Type 2 Surge Protective Device, 240 VAC, Three Phase Delta

Type 2 Surge Protective Device, 240 VAC, Three Phase Delta

M Series Type 2 Surge Panel, 240 VAC, Three Phase Delta, Max Surge Current Rating of 130kA per Mode/260kA per Phase, 200kA Short Circuit Current Rating (SCCR), 20kA I-nominal (ln) Rating, NEMA 4 Rated Enclosure, Thermally Protected MOVs, VPR Performance Data = L-G: 900, L-L: 1200, Maximum Continuous Operating Voltage (MCOV): 275V, Plastic Enclosure, LED Status Monitoring, Audible Alarm, UL 1449 Listed, UL 1283 EMI/RFI Filtering, Approximate Lead Length = 28"
Product image for Type 2 Surge Protective Device, 480Y/277 VAC, Three Phase WYE

Type 2 Surge Protective Device, 480Y/277 VAC, Three Phase WYE

M Series Type 2 Surge Panel, 480Y/277 VAC, Three Phase WYE, Max Surge Current Rating of 130kA per Mode/260kA per Phase, 200kA Short Circuit Current Rating (SCCR), 20kA I-nominal (ln) Rating, NEMA 4 Rated Enclosure, Thermally Protected MOVs, VPR Performance Data = L-N: 1200, L-G: 1200, N-G: 1200, L-L: 2500, Maximum Continuous Operating Voltage (MCOV): 350V, Plastic Enclosure, LED Status Monitoring, Audible Alarm, UL 1449 Listed, UL 1283 EMI/RFI Filtering, Approximate Lead Length = 28"
Product image for Type 2 Surge Protective Device, 347/600 VAC, Three Phase WYE

Type 2 Surge Protective Device, 347/600 VAC, Three Phase WYE

M Series Type 2 Surge Panel, 347/600 VAC, Three Phase WYE, Max Surge Current Rating of 130kA per Mode/260kA per Phase, 200kA Short Circuit Current Rating (SCCR), 20kA I-nominal (ln) Rating, NEMA 4 Rated Enclosure, Thermally Protected MOVs, VPR Performance Data = L-N: 1500, L-G: 1500, N-G: 1500, L-L: 2500, Maximum Continuous Operating Voltage (MCOV): 440V/880V, Plastic Enclosure, LED Status Monitoring, Audible Alarm, UL 1449 Listed, UL 1283 EMI/RFI Filtering, Approximate Lead Length = 28"
Product image for Type 2 Surge Protective Device, 480 VAC, Three Phase Delta

Type 2 Surge Protective Device, 480 VAC, Three Phase Delta

M Series Type 2 Surge Panel, 480 VAC, Three Phase Delta, Max Surge Current Rating of 130kA per Mode/260kA per Phase, 200kA Short Circuit Current Rating (SCCR), 20kA I-nominal (ln) Rating, NEMA 4 Rated Enclosure, Thermally Protected MOVs, VPR Performance Data = L-G: 1800, L-L: 1800, Maximum Continuous Operating Voltage (MCOV): 550V, Plastic Enclosure, LED Status Monitoring, Audible Alarm, UL 1449 Listed, UL 1283 EMI/RFI Filtering, Approximate Lead Length = 28"
Product image for Type 2 Surge Protective Device, 600 VAC, Three Phase Delta

Type 2 Surge Protective Device, 600 VAC, Three Phase Delta

M Series Type 2 Surge Panel, 600 VAC, Three Phase Delta, Max Surge Current Rating of 130kA per Mode/260kA per Phase, 200kA Short Circuit Current Rating (SCCR), 20kA I-nominal (ln) Rating, NEMA 4 Rated Enclosure, Thermally Protected MOVs, VPR Performance Data = L-G: 2000, L-L: 2000, Maximum Continuous Operating Voltage (MCOV): 680V, Plastic Enclosure, LED Status Monitoring, Audible Alarm, UL 1449 Listed, UL 1283 EMI/RFI Filtering, Approximate Lead Length = 28"
