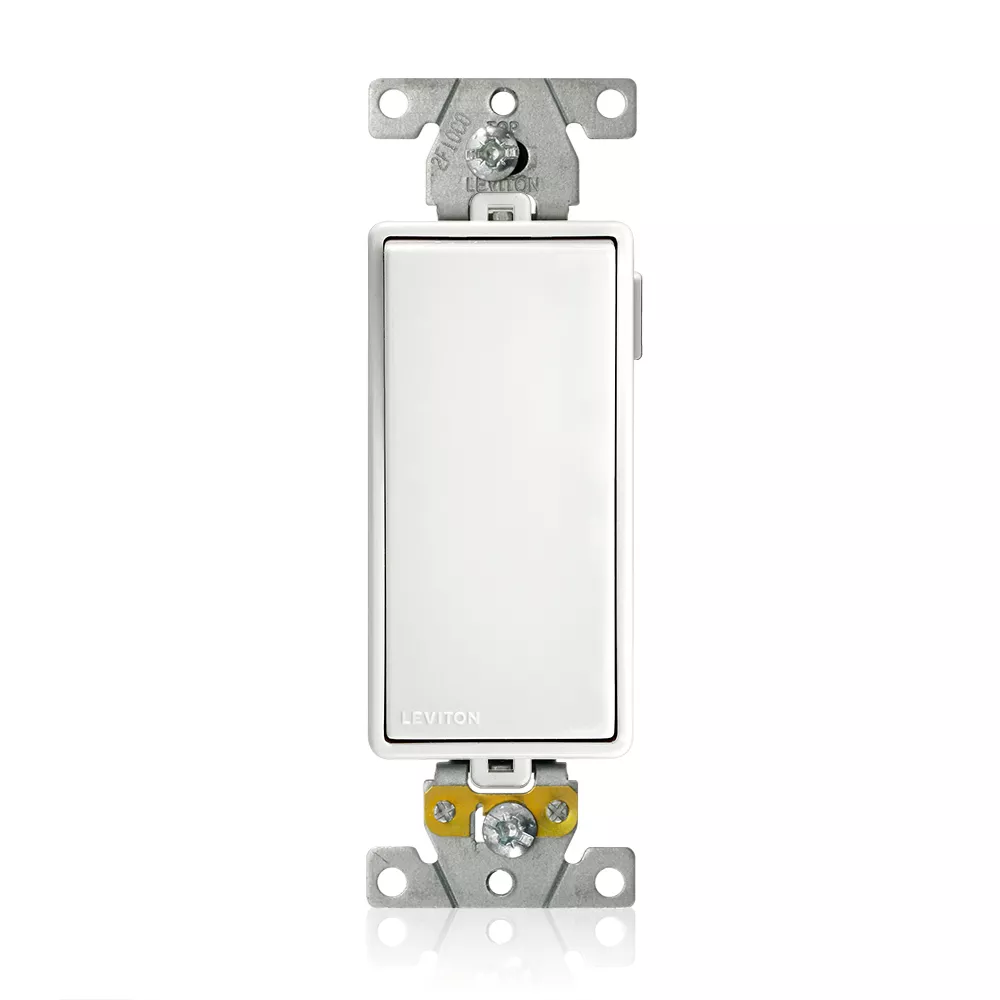

Lev-Lok Decora Plus 3-Way Rocker Switch
M5623-W
Lev-Lok Decora Plus 3-Way Rocker Switch, Heavy-Duty Industrial Specification Grade, 20 Amp, 120/277 Volt AC, Modular, Self-Grounding - White
Mating Lev-Lok Wiring Module Required for Use
Color: White
Product Information
AC Horsepower Rating
At Rated Voltage : 1 HP @ 120V, 2HP @ 240V
Product ID : Ratings are permanently marked on device
Terminal Accom. : Wiring Module
Terminal ID : Labeled on wiring module, switch is keyed to ensure proper installation
Electrical Specifications
Amperage : 20 A
At Rated Voltage : 1 HP @ 120V, 2HP @ 240V
Dielectric Voltage : Withstands 1500 V for 1 minute
Endurance : 30,000 cycles min
Grounding : Self-Grounding
Overload UL20 Test : 100 cycles of OL at 4.8 times rated current
Temperature Rise : Maximum 30° C Rise
Voltage : 120/277 VAC
Environmental Specifications
ANSI : C-73
Applicable Standards : UL20, CSA C22.2 No. 111
Certification/Listing : cULus (File #E7458)
Flammability : Rated V-2 per UL 94
Operating Temperature : -40°C to 60°C
RoHS : Compliant
Material Specifications
Actuator Material : Polycarbonate
Amperage : 20 A
Base Material : Nylon
Contact Material : Silver-Alloy
Dielectric Voltage : Withstands 1500 V for 1 minute
Frame Material : Polycarbonate
Ground Clips : Brass
Grounding : Self-Grounding
Strap Material : .046" Thick Galvanized Steel
Temperature Rise : Maximum 30° C Rise
Voltage : 120/277 VAC
Mechanical Specifications
Ground Clips : Brass
Product ID : Ratings are permanently marked on device
Strap Material : .046" Thick Galvanized Steel
Terminal Accom. : Wiring Module
Terminal ID : Labeled on wiring module, switch is keyed to ensure proper installation
Termination : Modular
Product Features
Brand : Lev-Lok Decora Plus
Color : White
Device Type : Rocker Switch
Function : 3-Way
Grade : Heavy-Duty Industrial Specification Grade
Standards & Certifications
ANSI : C-73
Applicable Standards : UL20, CSA C22.2 No. 111
Brand : Lev-Lok Decora Plus
Certification/Listing : cULus (File #E7458)
Color : White
Device Type : Rocker Switch
Function : 3-Way
Grade : Heavy-Duty Industrial Specification Grade
RoHS : Compliant
Warranty
Flammability : Rated V-2 per UL 94
Operating Temperature : -40°C to 60°C
Warranty : 10-Year Limited
