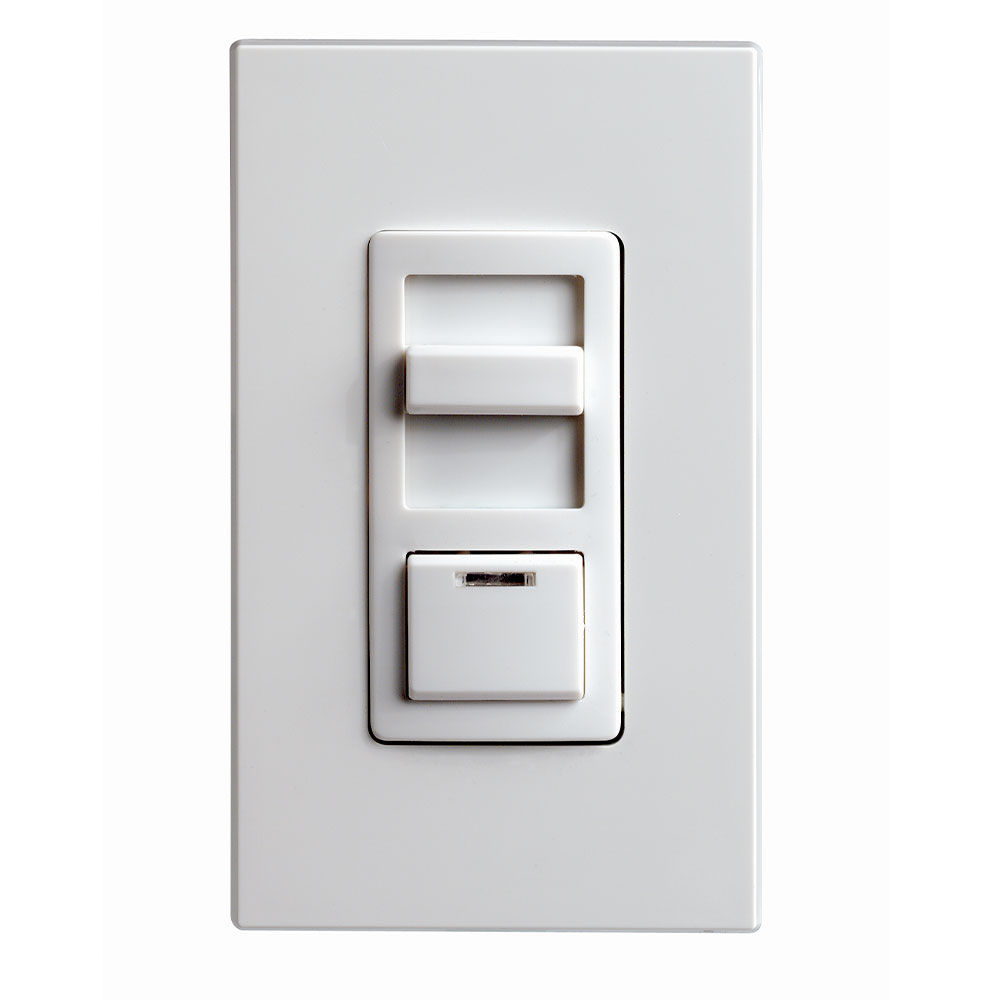

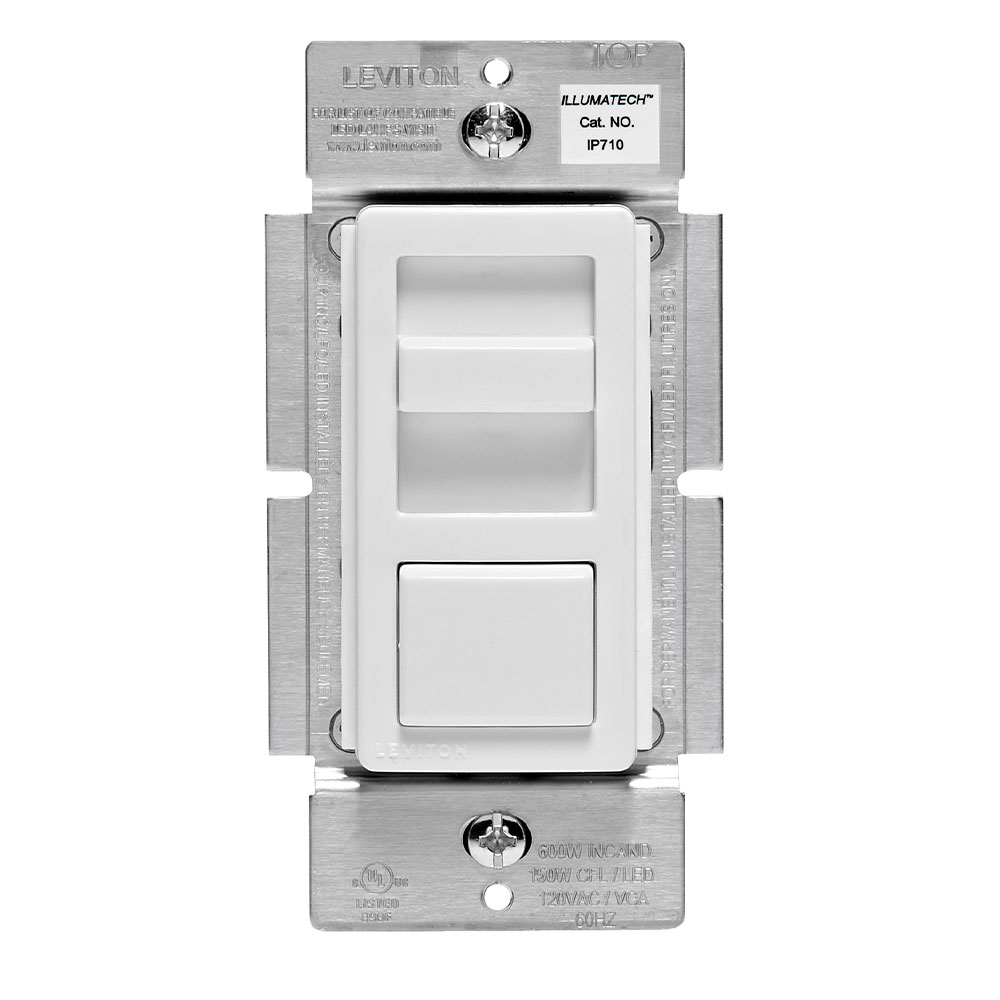

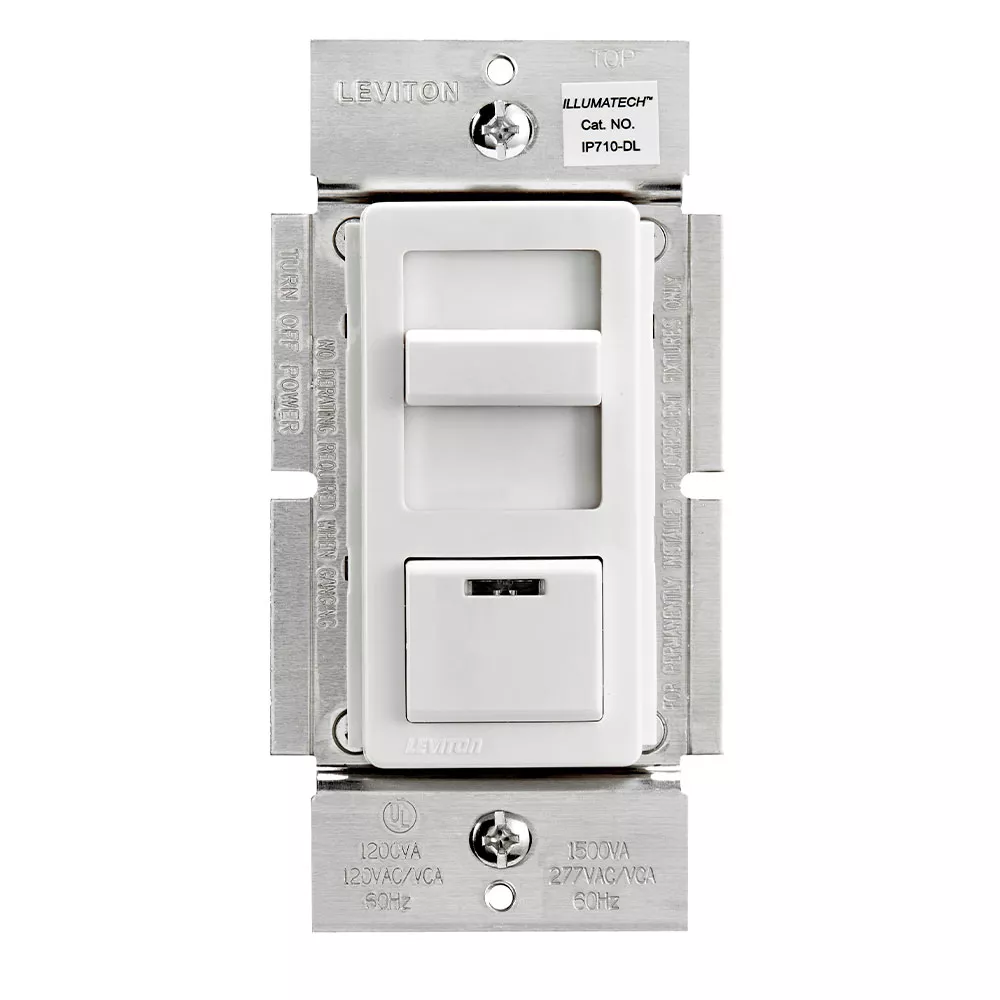

IllumaTech Dimmer Switch for 0-10V LED, Mark 7 Florescent Ballasts
IP710-DLZ
- INNOVATIVE – Designed for use with LED fixtures using 0-10V power supplies
- ADVANCED – No power pack required for switching
- EXCEPTIONAL – Superior quality and dimming performance
- FLEXIBLE – Can be used in a single-pole or 3-way installation (with a 3-way switch, sold separately)
Product Information
Product Features
Action : Standard ON/OFF
Available Color Kits : Ivry-I Wht-W Gry-G Blk-E Brwn-B Light Almond-T, R-Red
Color : White, Ivory, Light Almond

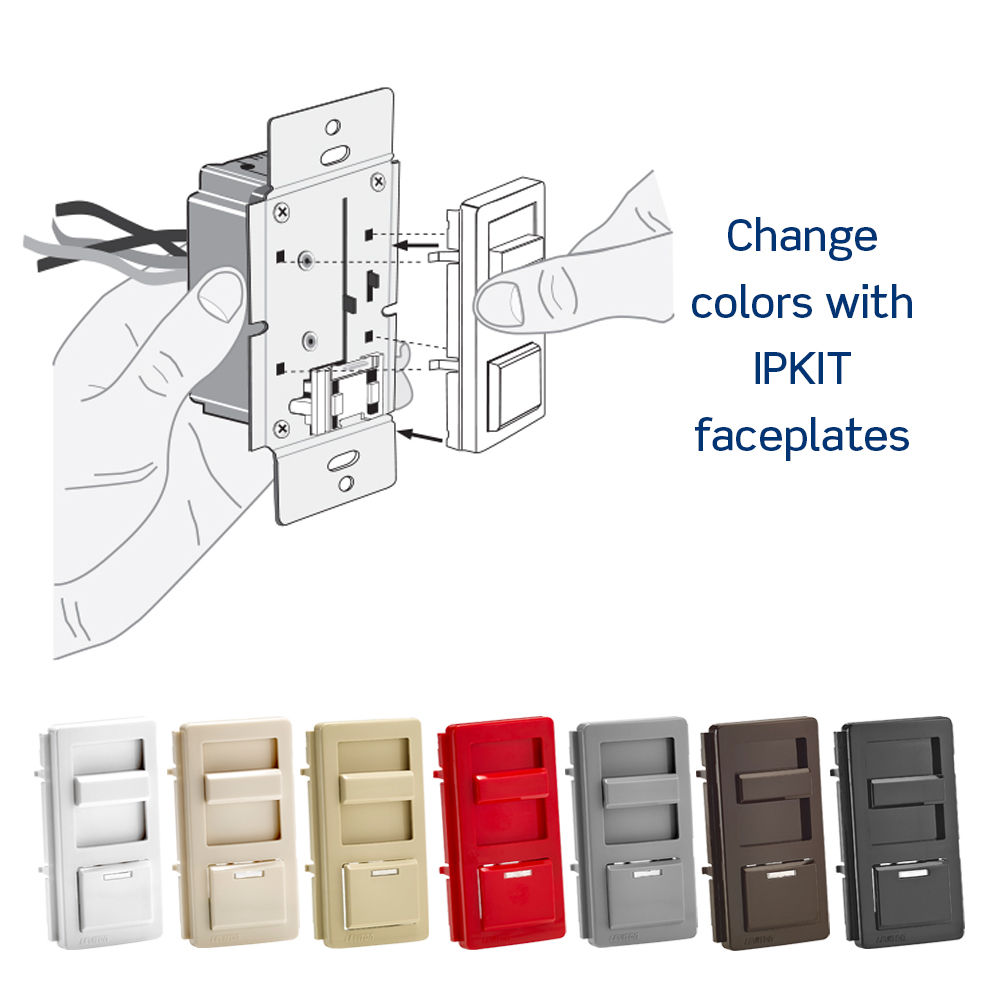

Color Change Kit : IPKIT Series
Frequency : 60 Hz
Light : LED Locator Light
Load Rating : 1200VA
Load Type : Electronic 0-10VDC Fluorescent and 0-10VDC LED Power Supply
Ordering Notes : Incl White, Ivory and Light Almond Color Kit
Preset : Preset
Protection : Radio/TV Filter
Standards and Certifications : cCSAus
Style Name : IllumaTech
Switch Type : Single-Pole & 3-Way
Type : Slide
Voltage : 120/277 VAC
Wallplate : Order Separately
Warranty : 5-Year Limited
- Designed specifically for use with LED fixtures using 0-10V power supplies and Mark 7® 0-10V fluorescent ballasts
- Dual voltage 120V/277V; 50mAmps maximum sink current
- No power pack required for switching
- Provides single pole or 3-way lighting control when used with a 3-way switch
- Compatible with Decora Plus™ screwless and Decora standard designer wallplates (sold separately)

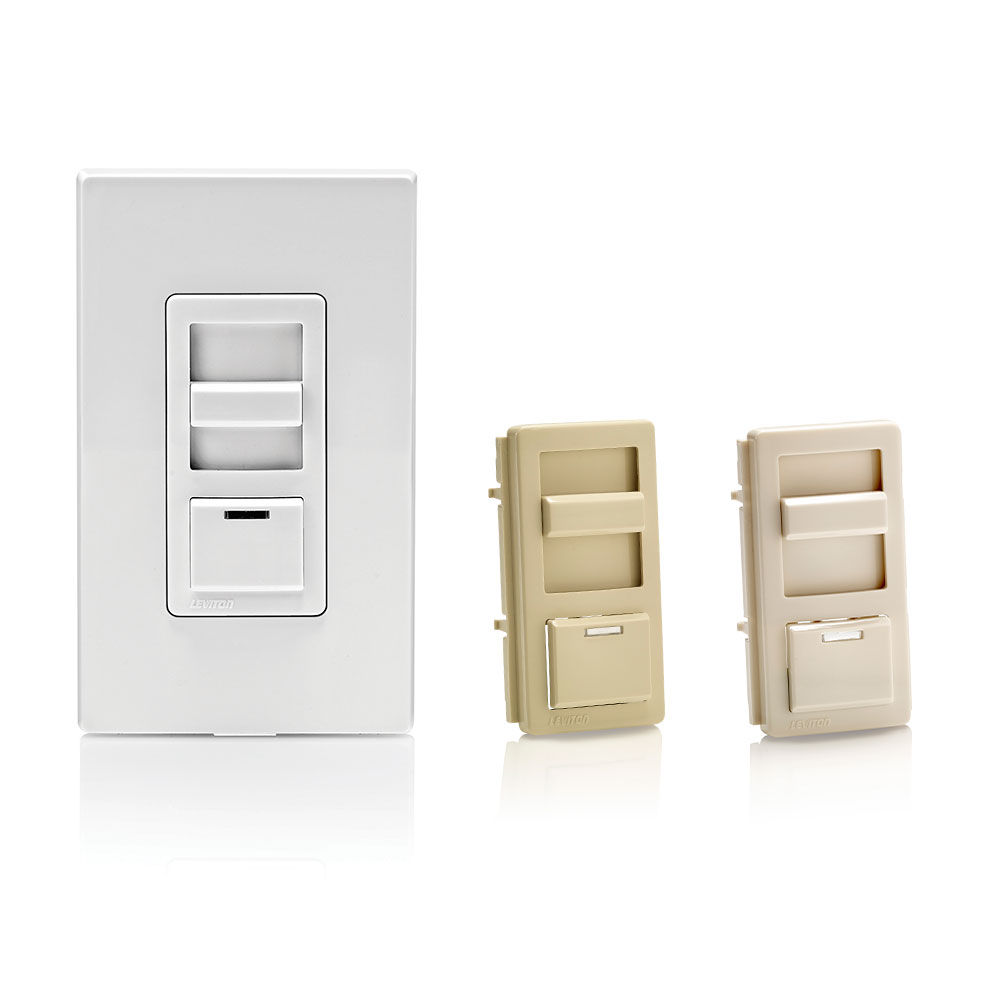

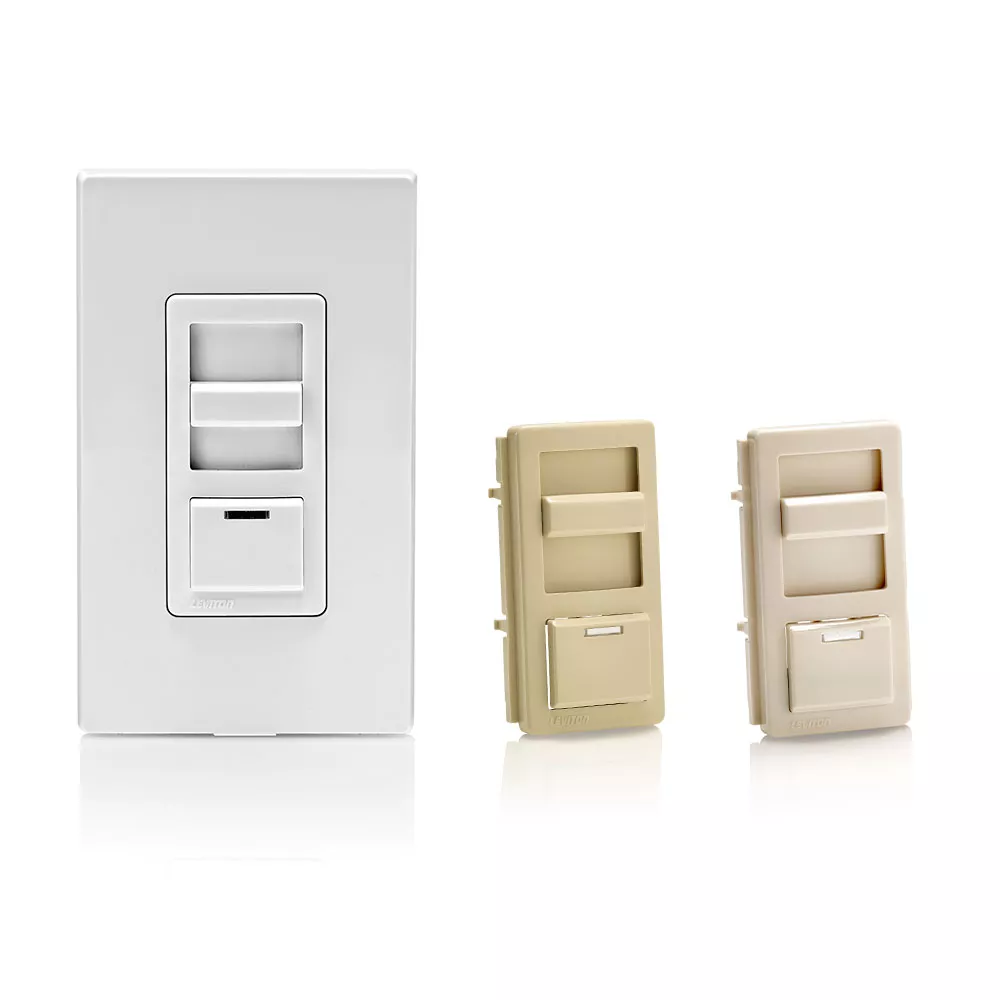

- Six product options in each box with three changeable faceplates and single pole or 3-way functionality when used with a 3-way switch

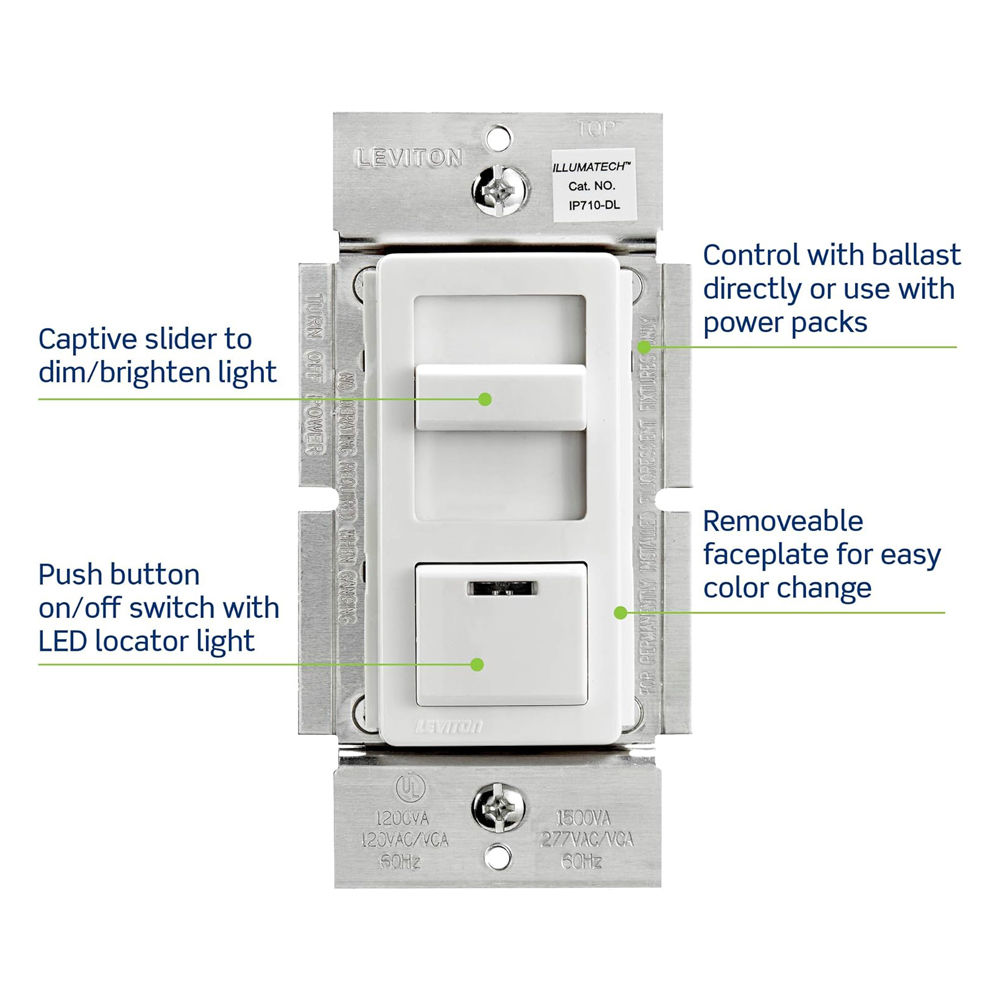

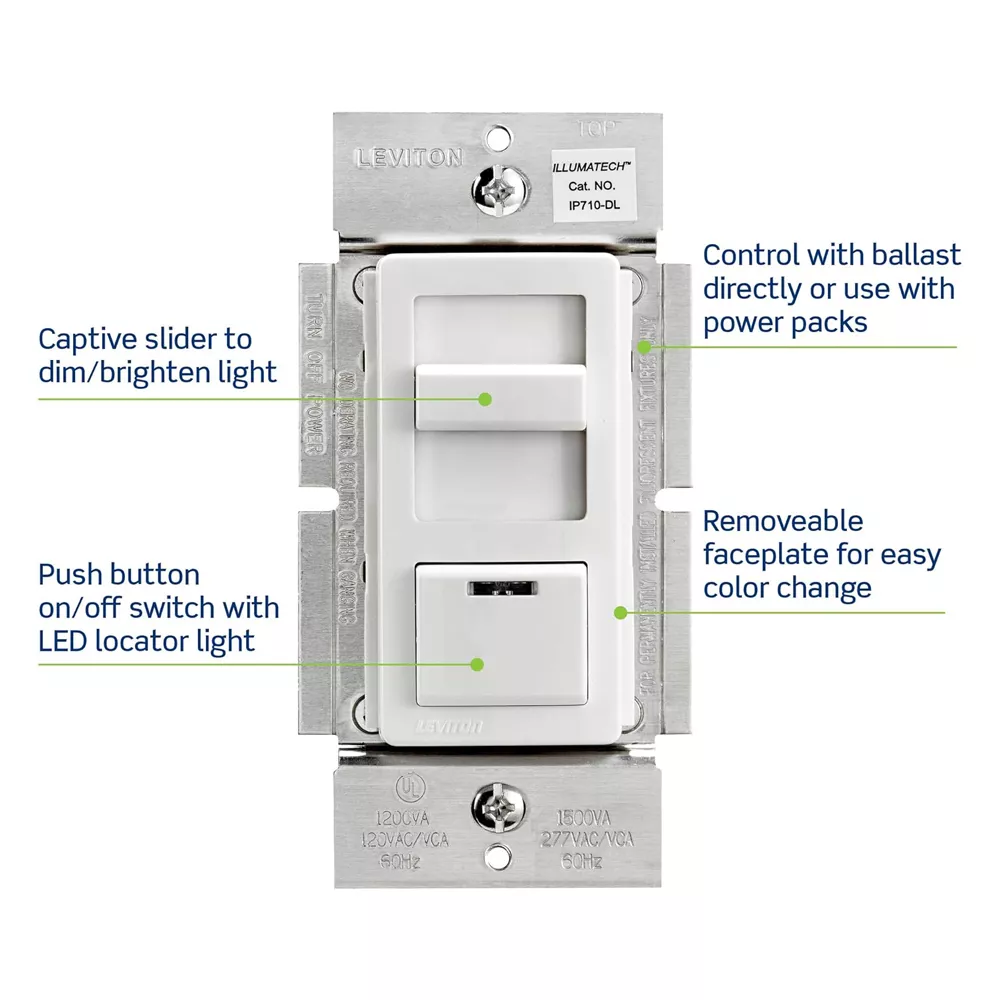

- Fluid slide movement allows fine adjustment of light level with minimal effort
- Captive wraparound slide bar remains securely attached
