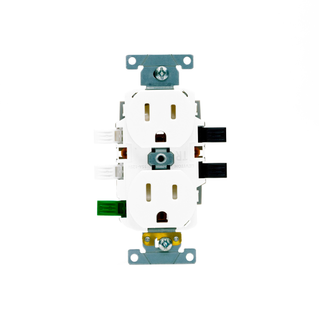

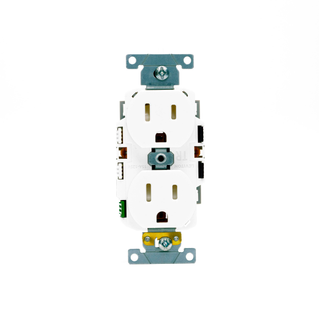

Lever Edge™ 15 Amp Duplex Receptacle/Outlet, Commercial Grade, Tamper-Resistant

ETCR1-W

Lever Edge™ 15 Amp 125 Volt Duplex Receptacle/Outlet, Commercial Grade, Tamper-Resistant, NEMA 5-15R

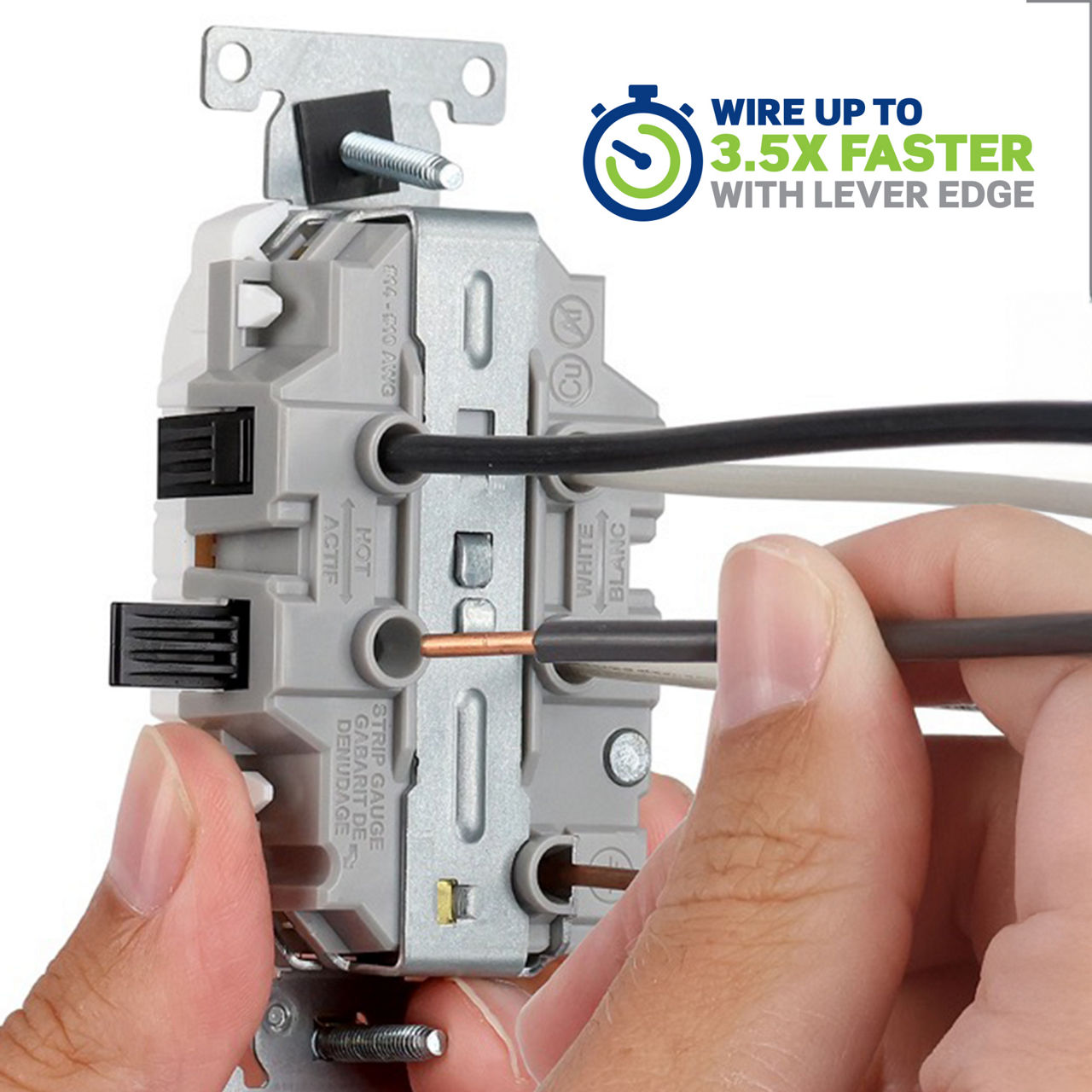

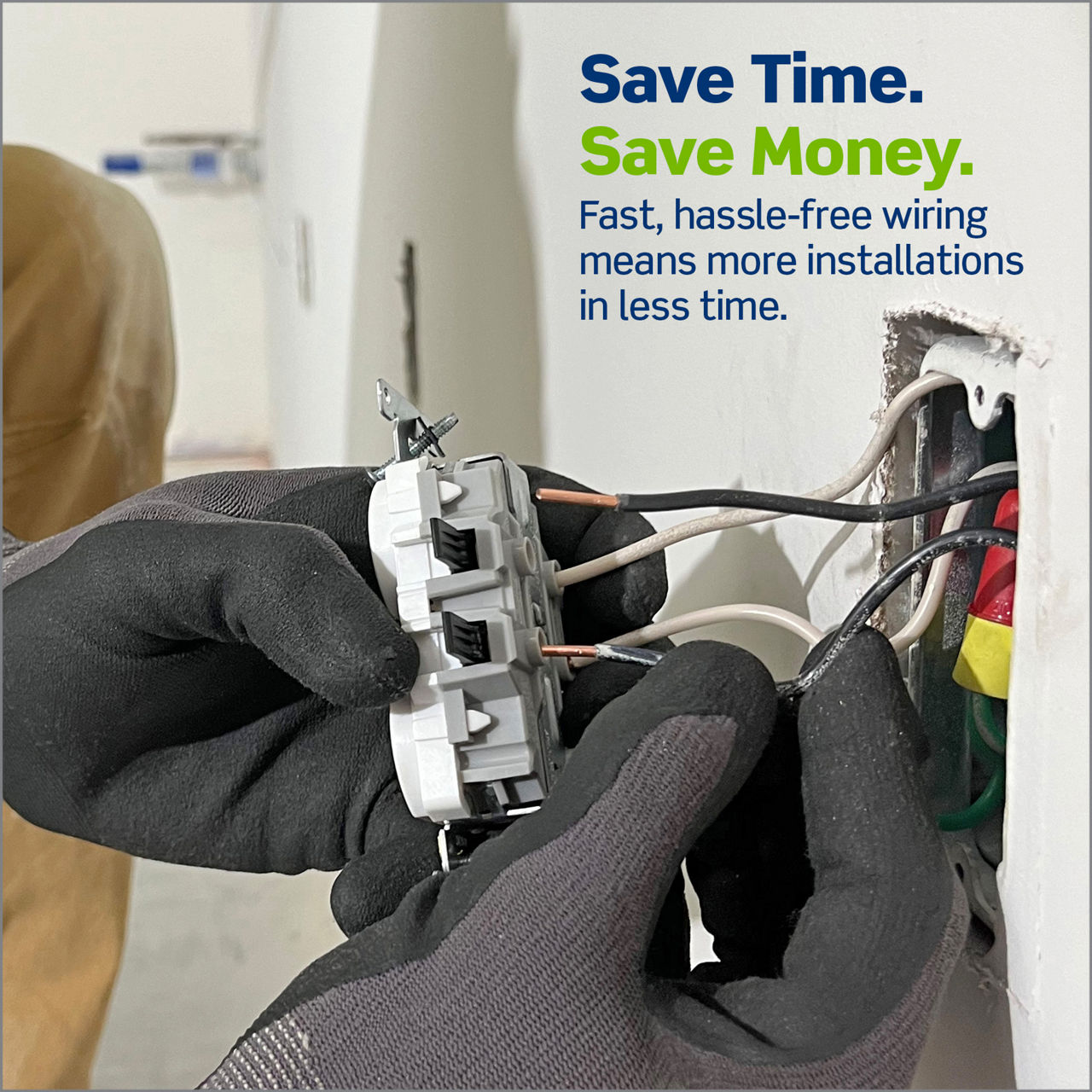

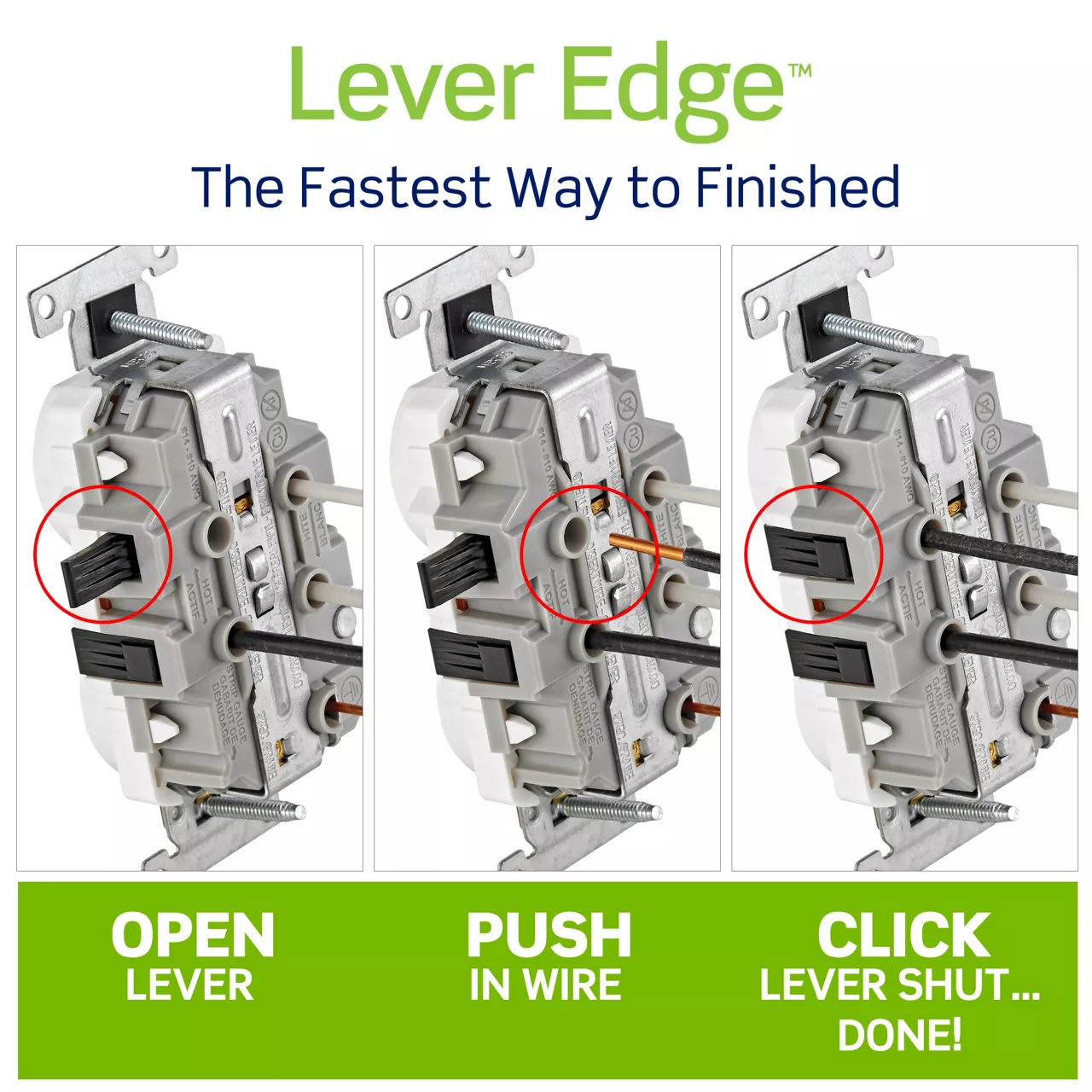

What happens when you combine Leviton’s industry-leading line of electrical wiring devices with the future of wiring? Meet Lever Edge™ wiring devices, designed for simple installations, time savings, superior performance, and long-lasting reliability. Simply open the lever, push the wire into the color-coded terminals, click down, and you’re done.

  • Fast, safe, easy to install: PUSH. CLICK. DONE.
  • Secure: lever mechanism provides a strong, secure wire connection
  • User-friendly design: color-coded lever terminals help prevent miswiring
  • Durable: exceptional performance against heat and vibration
  • Convenient: devices can be unwired/removed and rewired if needed

Color: White

UPC Code: 078477020500
Country of Origin : Mexico
NEMA 5-15R

Product Information

  • Electrical Specifications

    Horsepower Rating : 1/2 HP

    Amperage : 15 A

    Voltage : 125 VAC

    Grounding : Self Grounding

    Pole(s) : 2

    Wire(s) : 3

    Dielectric Voltage : Withstands 2000V per UL498

    Temperature Rise : Max 30C after 250 cycles OL at 200 percent rated current

  • Environmental Specifications

    Flammability Rating : V-2

    Relative Humidity : 5-95% (non-condensing)

  • Material Specifications

    Face : Polycarbonate

    Body : Polycarbonate

    Mounting Strap : Galvanized Steel

    Self-Grounding Clip : Brass

    Ground Contacts : Brass

    Mounting Screws : #6 Plated Steel

    Bushing : Galvanized Steel

    Line Contacts : High Performance Brass Alloy

    Lever : Acetal

    Spring : Stainless Steel

  • Mechanical Specifications

    Wire Accomodation : #14-#10 AWG Solid or Stranded

    Strap Construction : Wraparound Strap

    Termination : SpringTermination

  • Product Features

    Grade : Commercial Specification Grade

    Brand : Lever Edge

    Color : White

    Feature : Tamper-Resistant

    NEMA Configuration : 5-15R

    Device Type : Duplex Receptacle Outlet

  • Standards and Certifications

    NEMA : WD-1 and WD-6

  • Warranty

    Warranty : 2-Year Limited

  • Patent pending lever terminals for fast, efficient wiring
  • Color-coded lever terminals reduces risk of miswiring
  • Lever doors have snap feature to assure connection has been made; audible click confirms lever door is closed
  • Exceptional performance against heat and vibration
  • Devices can be unwired/removed and rewired if needed
