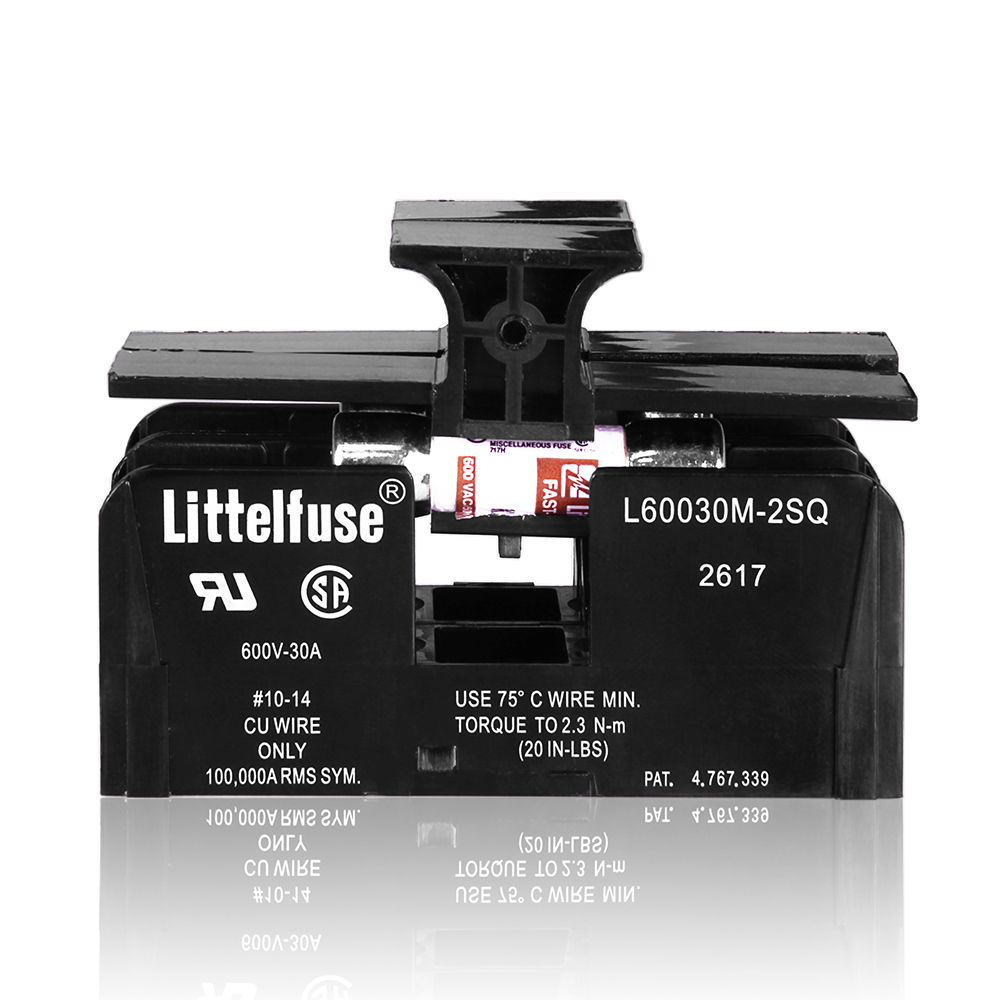

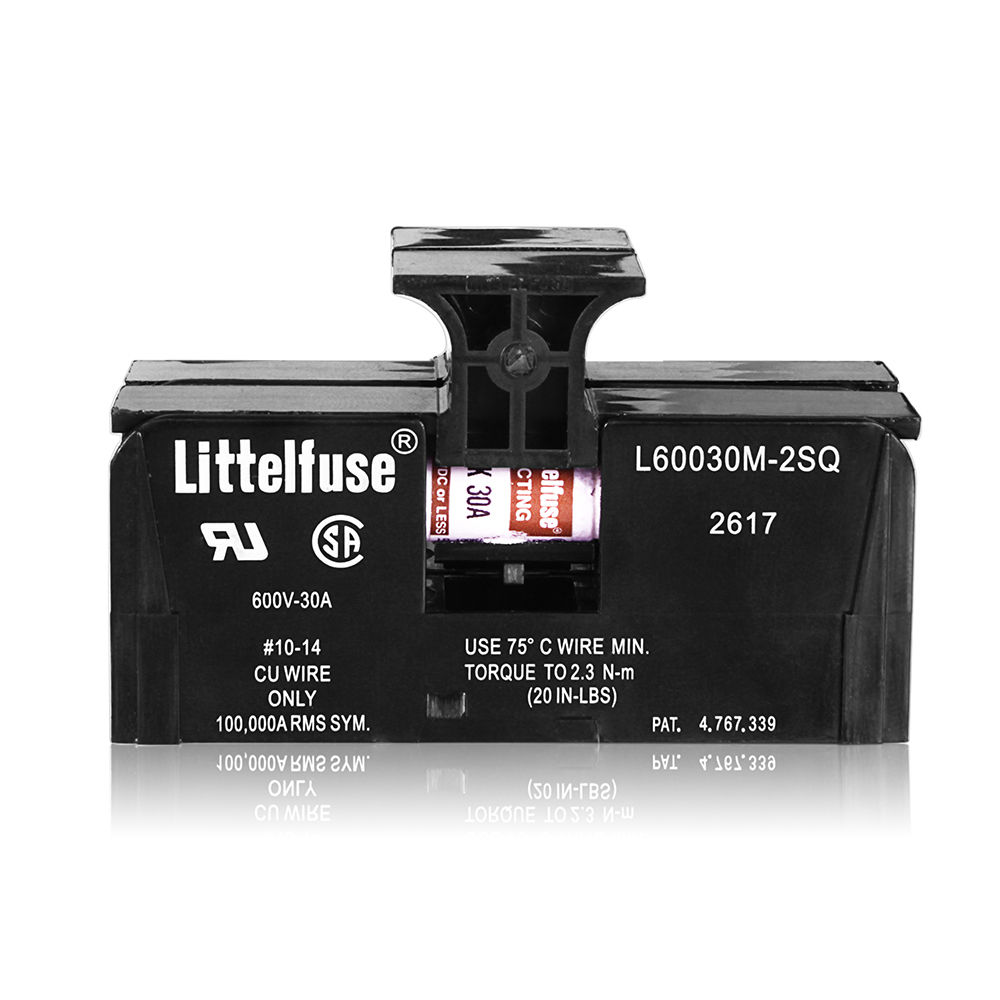

Emergency Control, Fuse and Fuseholder Accessory Kit, Use with ECD00-D0W

ECD00-FUS

For use with ECD00-D0W. Fuse and fuseholder accessory kit includes two fuses, a UL listed holder, and fuse puller. Required to meet UL1008 requirements for Short Circuit Current Rating (5000A). The fuse is installed on the line side of the dimming control. Under this method, a single ECD00-FUS may feed multiple ECD00-D0Ws, provided that their total load does not exceed 16A, and they share the same normal and emergency breakers. Fuses are 30 Amps

In order to meet UL1008 requirements for short circuit current rating (5000A), an approved fuse must be used on the normal and emergency circuits. Leviton offers the ECD00-FUS assembly with two fuses, a UL listed holder, and a fuse puller, to be used with the ECD00-D0W Emergency Lighting Transfer Switch.
UPC Code: 078477925690
Country of Origin : Mexico
RoHS Compliant: Yes – Click Here
