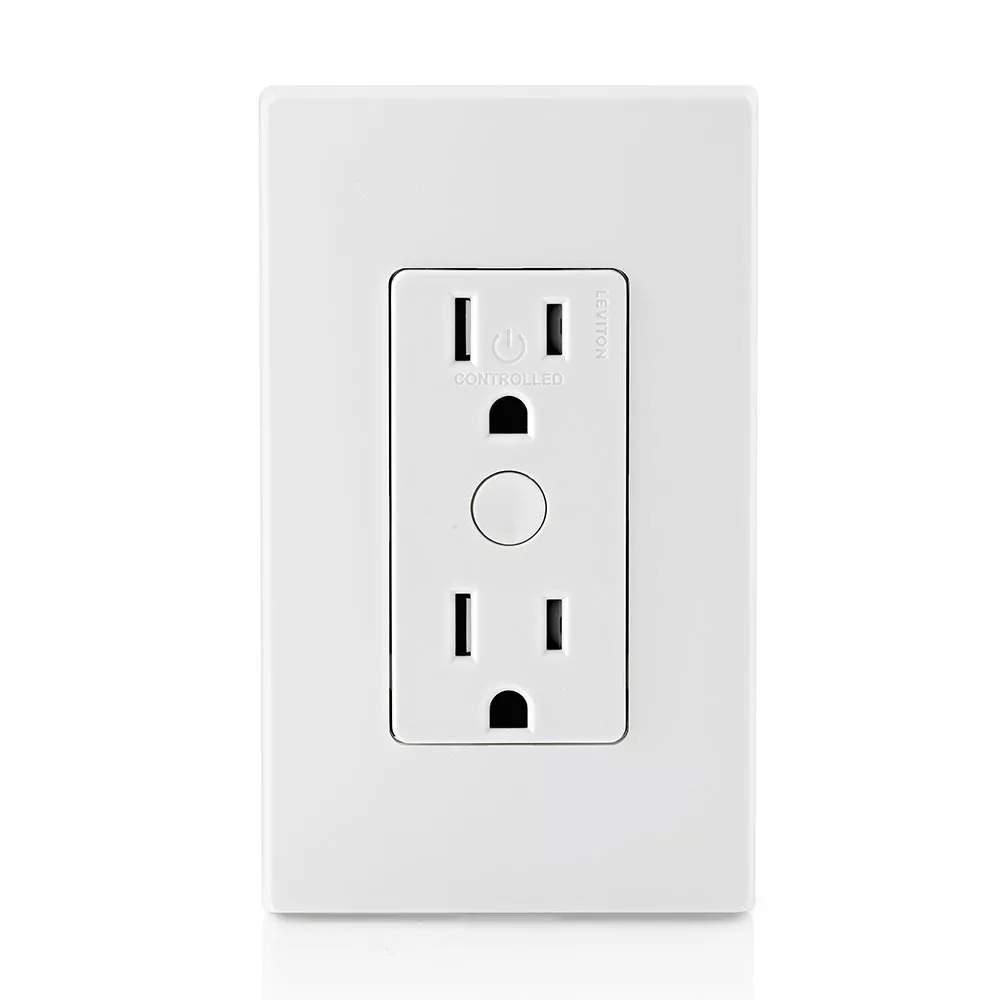

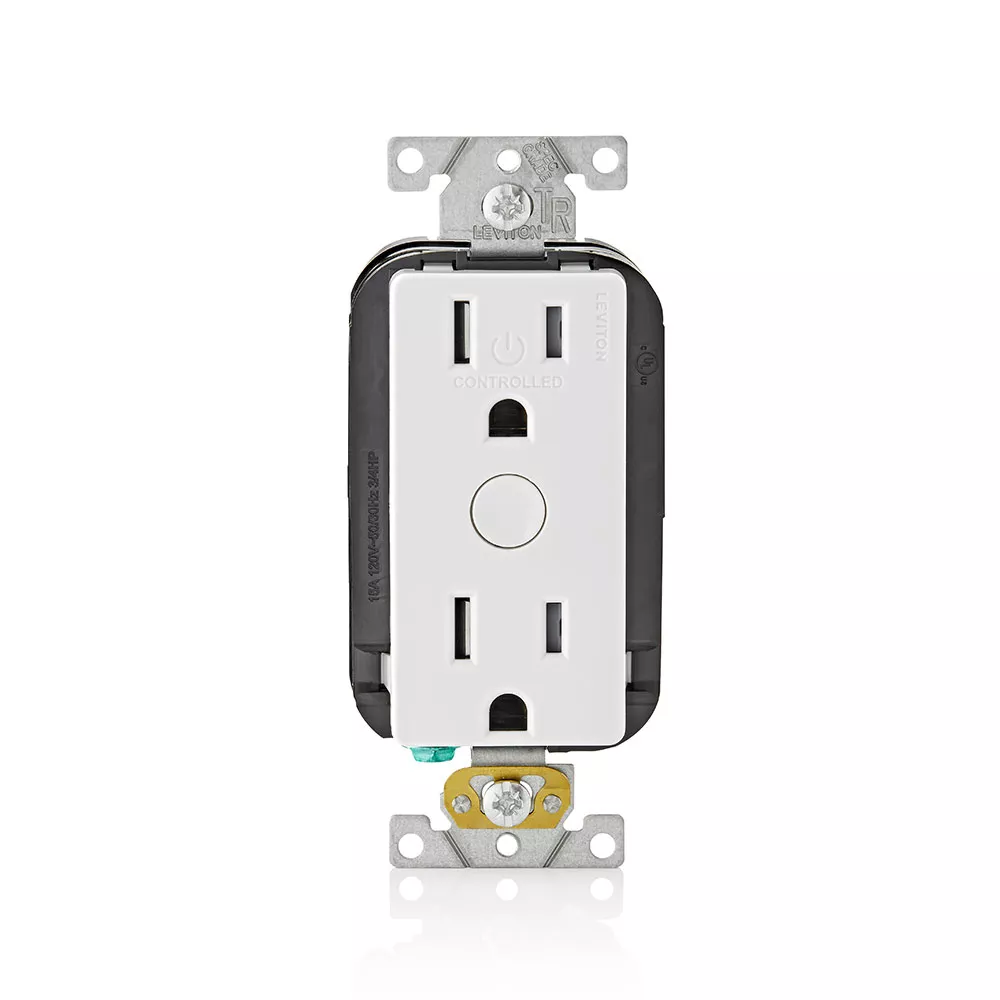

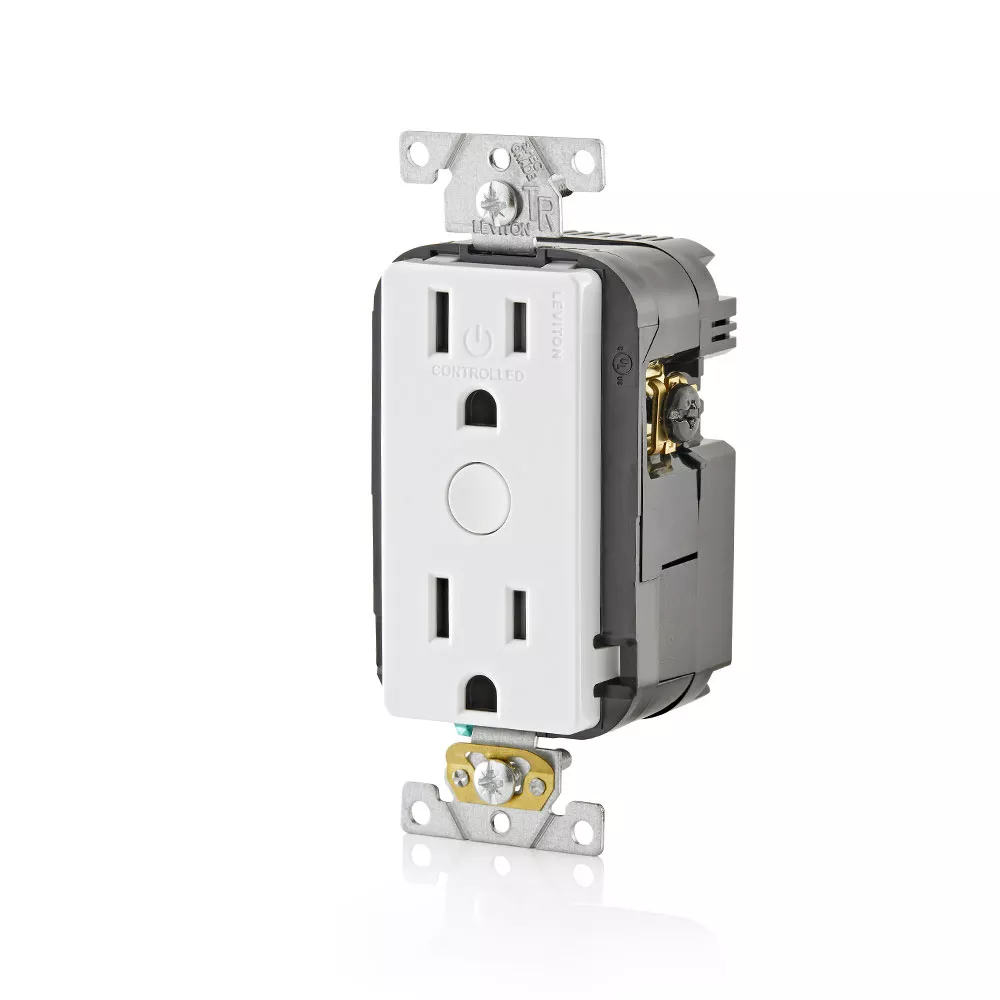

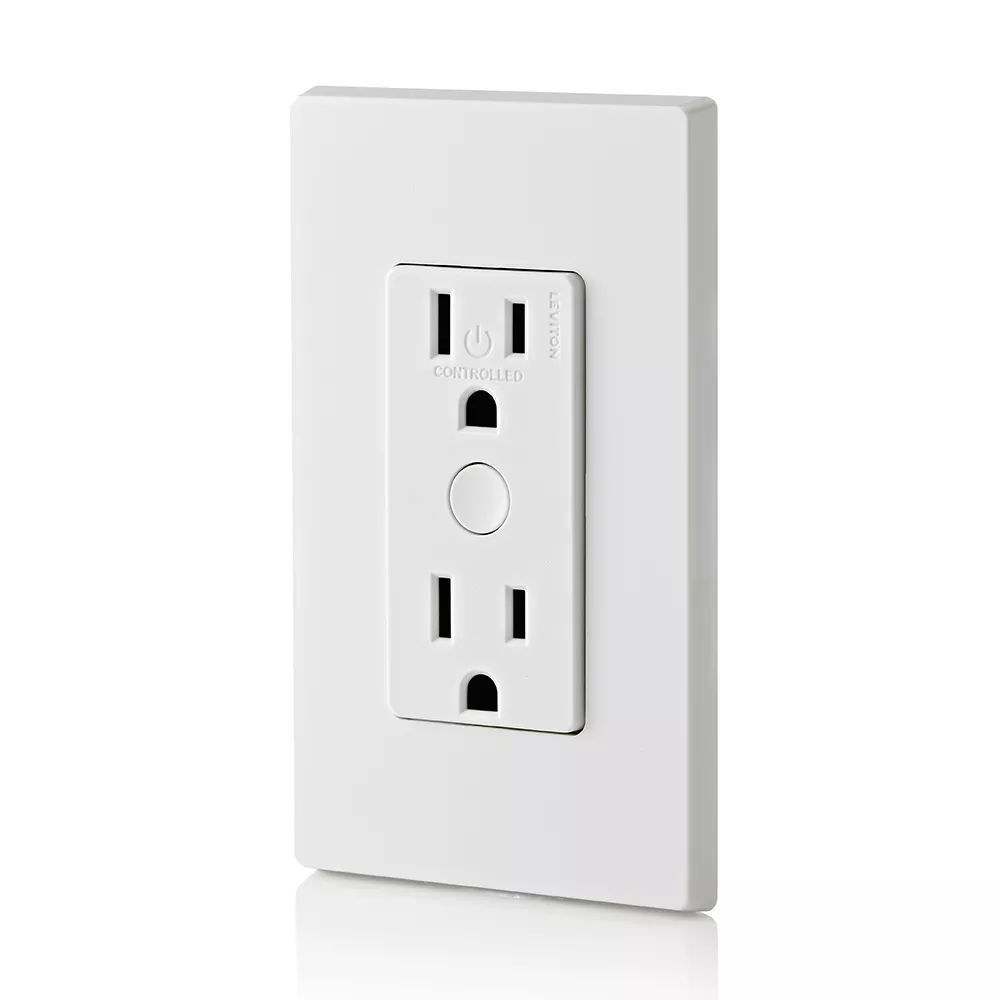

Indoor Decora Smart Wi-Fi Tamper-Resistant Outlet

DW15R-1BW

DISCONTINUED

Connect your plug-in lamps, holiday lighting, and small appliances to the top “Controlled” outlet, while the bottom “Powered” outlet remains always on. Connect your plug-in lamps, holiday lighting, and small appliances to the top “Controlled” outlet, while the bottom “Powered” outlet remains always on. The DW15R features tamper resistant receptacles with built-in shutters to prevent the insertion of unintended foreign objects. As well, the integrated button with vanishing feedback LED provides manual push-button on/off control and clear indiciation at any time. Simplify control of the residence - schedule lamps and connected loads to turn on/off at specific times or based on sunrise/sunset, easily group smart devices into rooms, and create scenes to activate multiple loads at once. Utilize the auto-shutoff feature as a countdown timer in closets, hallways and bathrooms. Engage home vs. away to enact randomization of lighting control, providing a lived-in appearance. Typical applications include switching of lamps, portable fans, kitchen appliances, indoor fountains, holiday lighting, and more. Create schedules around your lifestyle, control from anywhere with the My Leviton app, or use your voice to turn on and off. WORKS WITH IFTTT (IF THIS THEN THAT)
Use the free IFTTT service to connect your My Leviton devices with other Internet Of Things (IoT) enabled devices & services to create a smarter home automation experience. Multiple color options are available with part # DSRKT. Need Support? Please click here to search the knowledge base.

UPC Code: 078477648650

Country of Origin : China

Product Information

Updated

Product Specification - Tamper-Resistant Outlet with Wi-Fi Technology

View

Updated

Instruction Sheet - Generic Product Cleaning Instructions | EN, FR, ES

View

Updated

Electrical Specifications
Load Rating : 5A LED/CFL, 1500W Incand/Halogen, 15A Magnetic, 3/4 HP Motor
Termination : Screw Terminals
Voltage : 120VAC, 60Hz
Environmental Specifications
Operating Temperature : 0°C to 40°C
Material Specifications
Color : White
Optional Color Change Kits Available : Yes, DSRKT in Black, White, Light Almond, Ivory, Gray, and Brown
Product Features
Brand : Decora Smart Wi-Fi
Device Type : In-Wall Smart Outlet
Grade : Residential
Hub Required : No
Standards and Certifications
Standards and Certification : UL, FCC, NOM, Wi-Fi
Warranty
Warranty : Two-Year Limited

BENEFITS

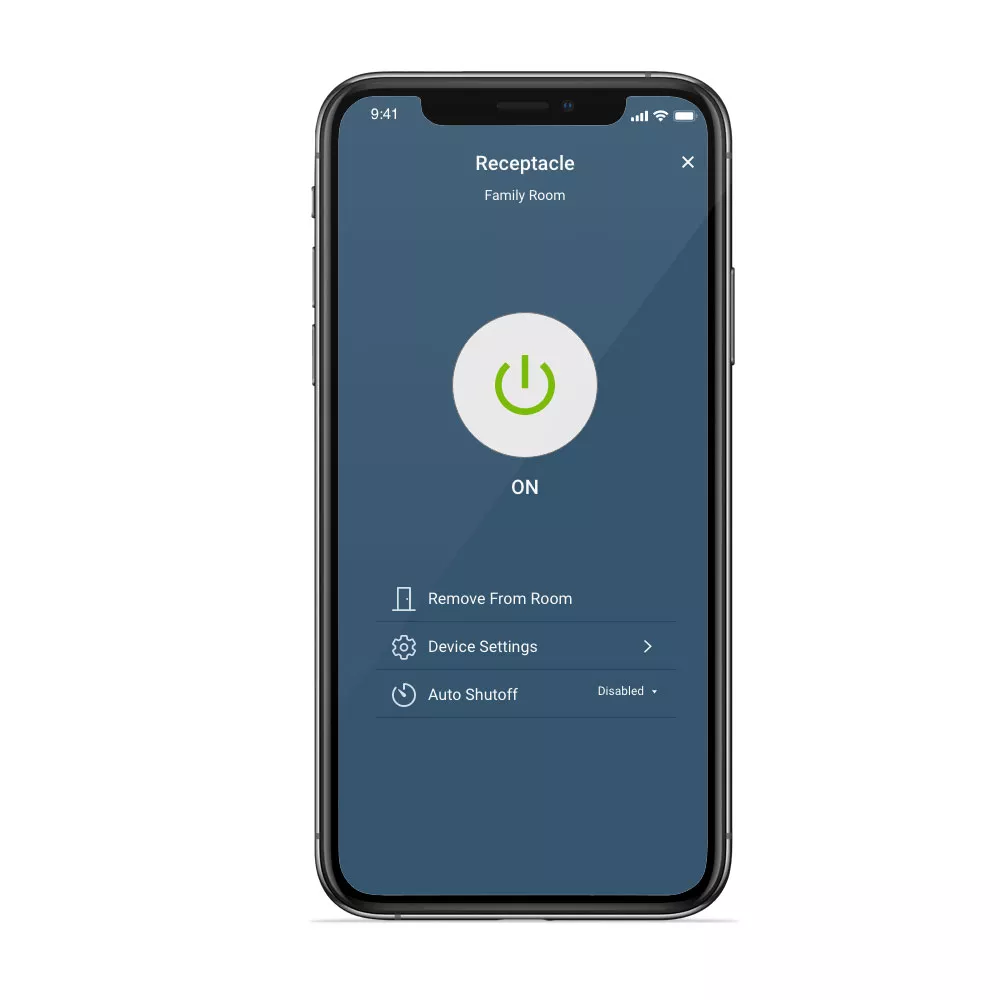

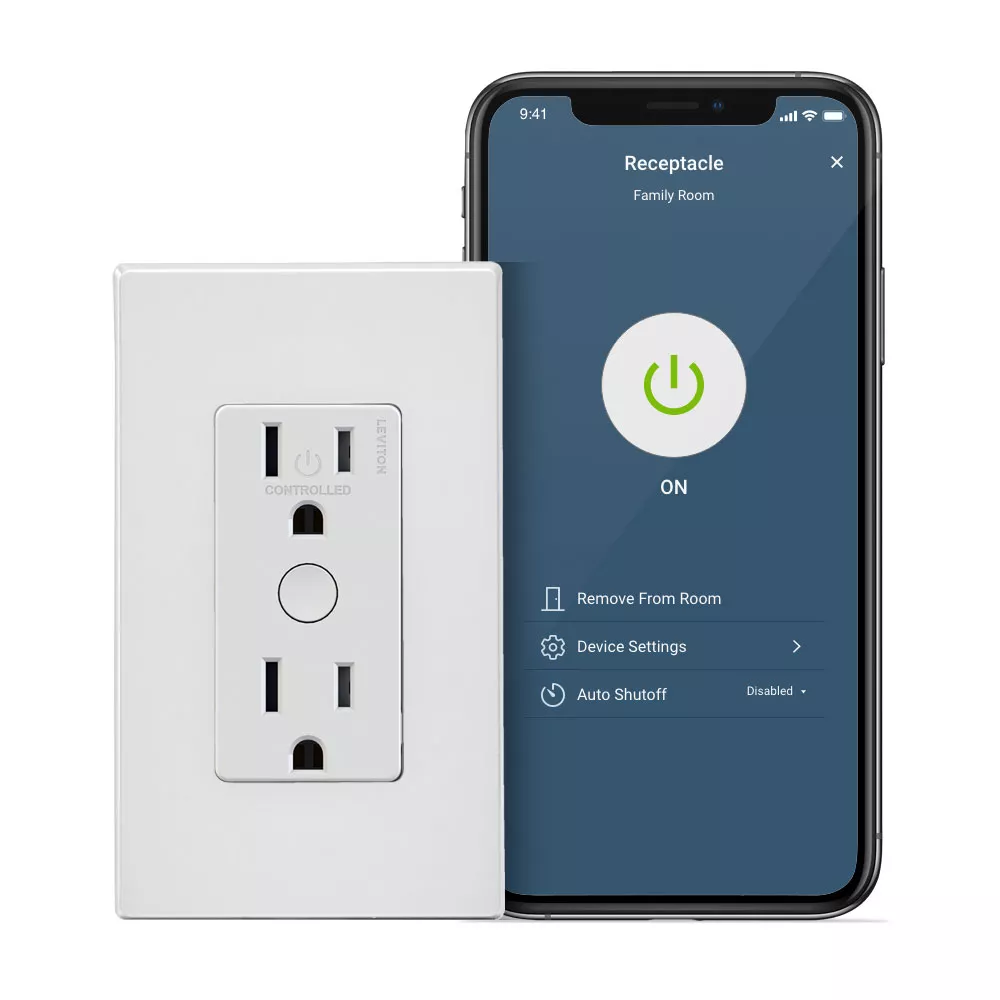

Control lights and plug loads from anywhere using the free My Leviton app for iOS and Android, no hub required
Amazon Alexa products provide voice control: “Alexa, turn on living room table lamp”
Works with Google Assistant for voice control. “Ok Google, turn the bedroom table lamp On”
Integrate with IFTTT for additional third-party functionality
Automatically turn outlet off after pre-programmed period of time
Turn LED on to show status, or to find in the dark, or off all the time

FEATURES

Relay switching
Tamper Resistant
Includes single-gang Decora Screwless Wallplate
Green LED locator
Provides two 15A, 120 VAC NEMA 5-15R grounding receptacles (one controlled, one always on) for use with a wide variety of lamps and appliances
Memory maintains ON/OFF status of loads and during minor power fluctuations
Button for ON/OFF manual control
For Indoor use only
Color change kit available in: White - DSRKT-1PW
Color change kit available in: Light Almond - DSRKT-1PT
Color change kit available in: Ivory - Ivory DSRKT-1PI
Color change kit available in: Black - Black DSRKT-1PE
Color change kit available in: Brown - Brown DSRKT-1PB
Color change kit available in: Gray - Gray DSRKT-1PG
Control up to 99 devices, 50 rooms, 50 activities, and 50 schedules per residence and up to 20 residences per account
Works with IFTTT, Samsung SmartThings and Schlage Wi-Fi locks

US10062528
CA2624409
US7355117
US7820909
US7868719
US8944859
US10048653
US11889314
US8592681
US7938676
CA2677283
CA2621644
US8242362
US9767973

This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.
